APL MEXICO CITY
9632210 | 9V9926 | APL by *********************** Last update: Tue Feb 04 2025

General Info

Ship Name:APL MEXICO CITY
IMO Code:9632210
Call Sign:9V9926
Line Operator:APL
Class Name for Sister Ships:AMEX
Year Built:2014
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:073
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:20
Min Below ISO Tier:02
Total TEU:9,326

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of APL MEXICO CITY

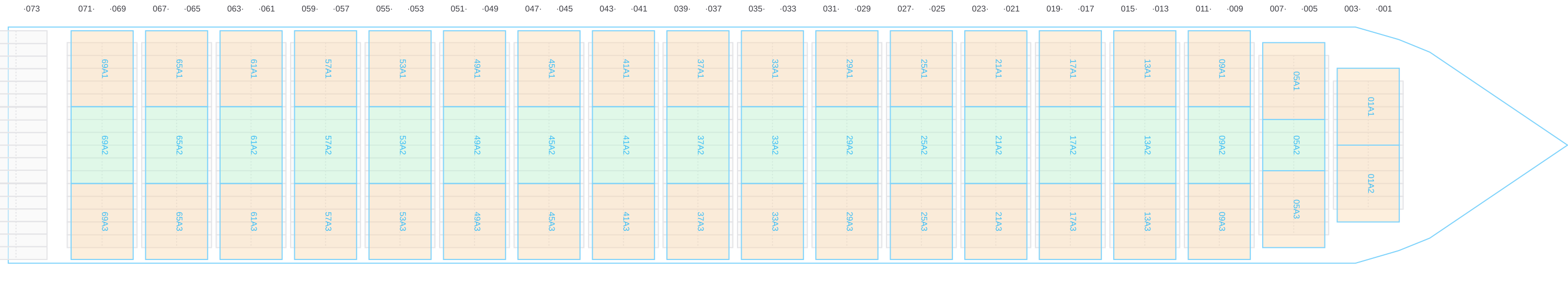

Hatch-Covers View

Deck view of APL MEXICO CITY

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

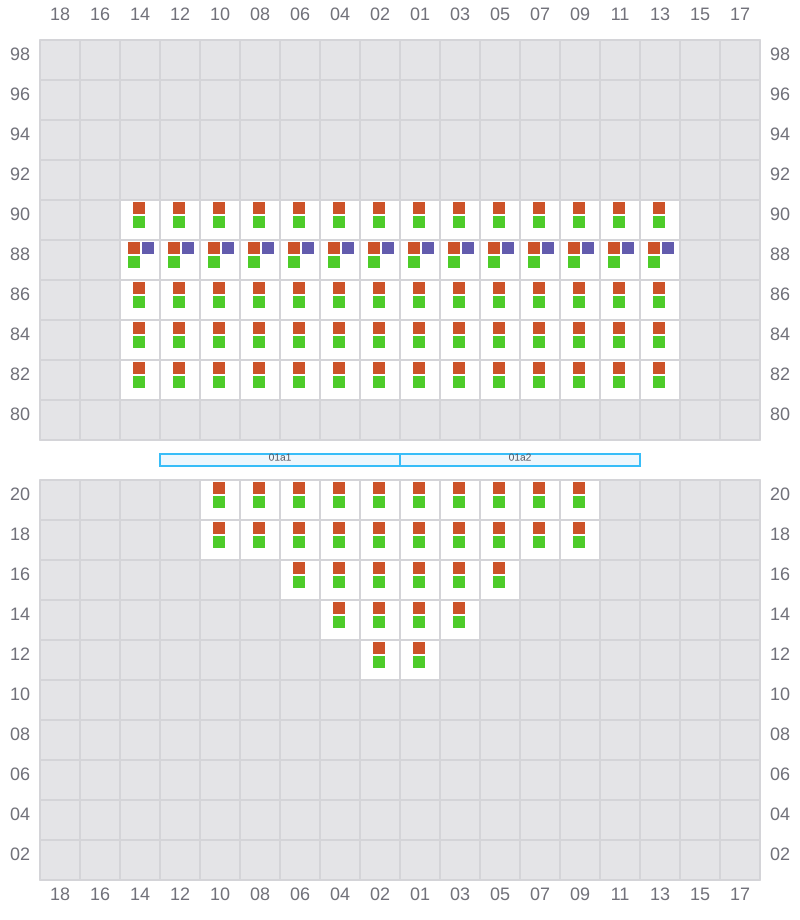

Bay 001 view and slots of APL MEXICO CITY

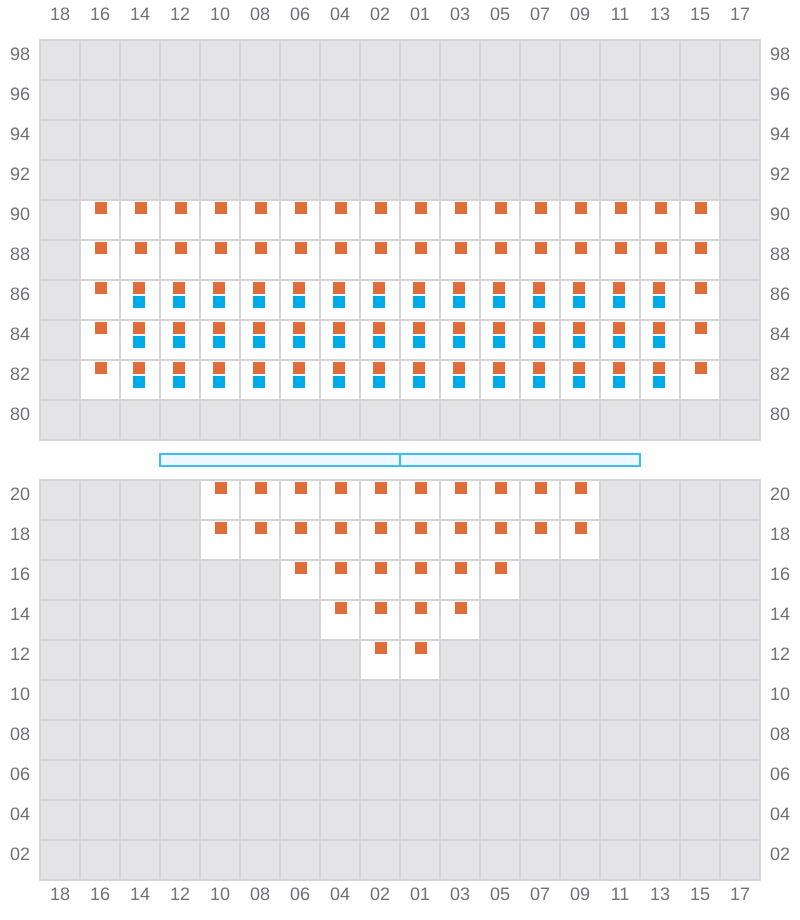

003

  • / ?
Bay 003 view and slots of APL MEXICO CITY

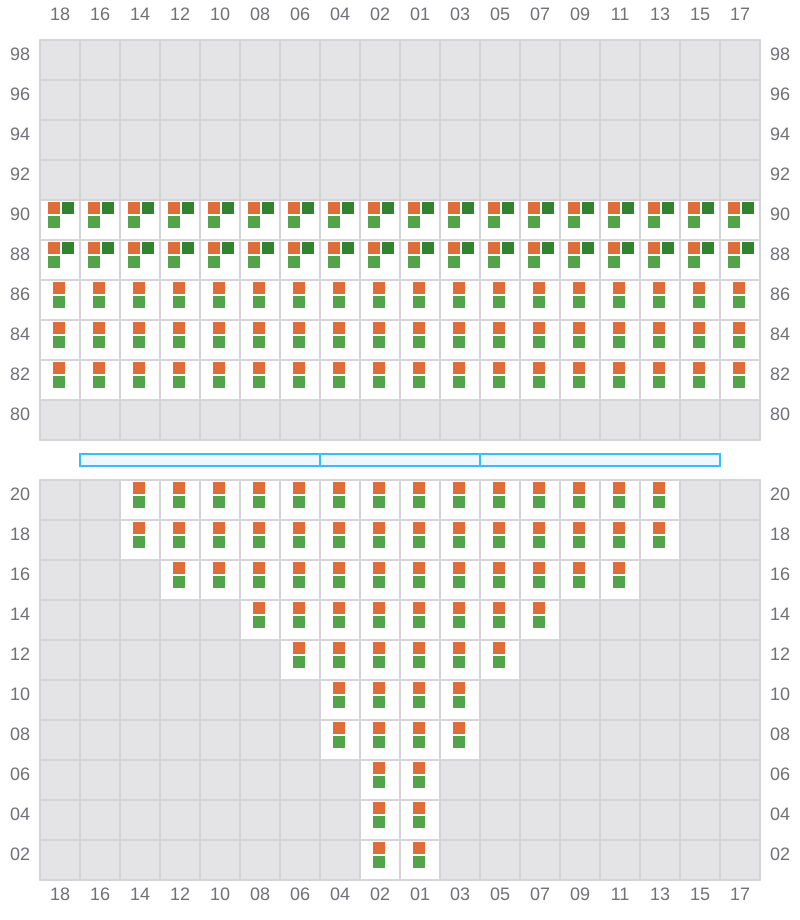

005 (006)

  • / ?
Bay 005 view and slots of APL MEXICO CITY

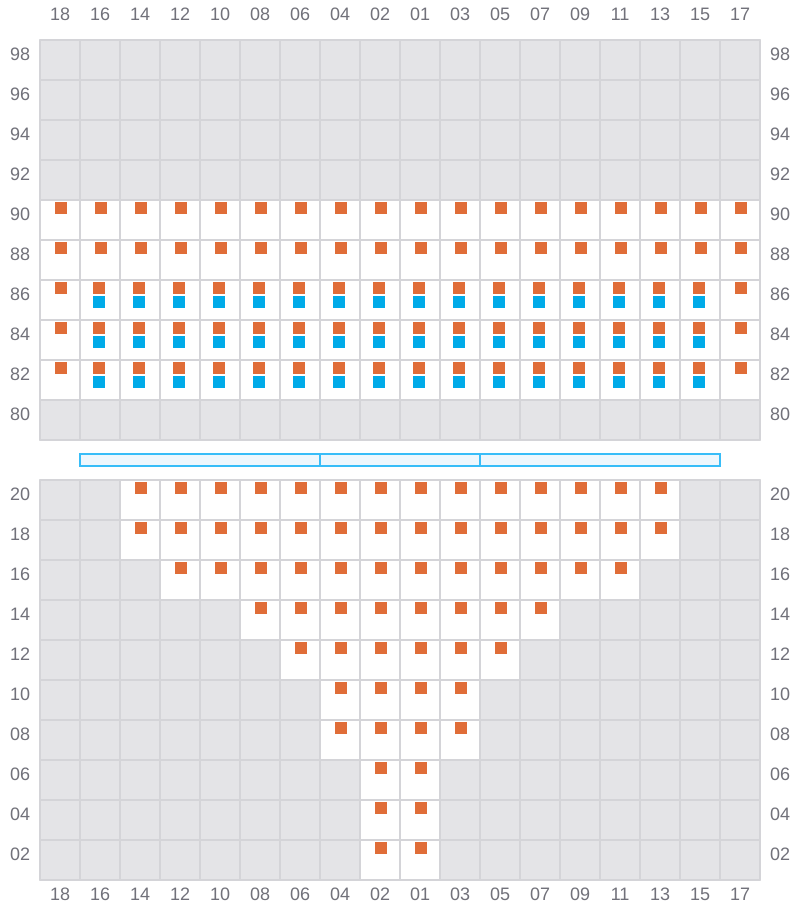

007

  • / ?
Bay 007 view and slots of APL MEXICO CITY

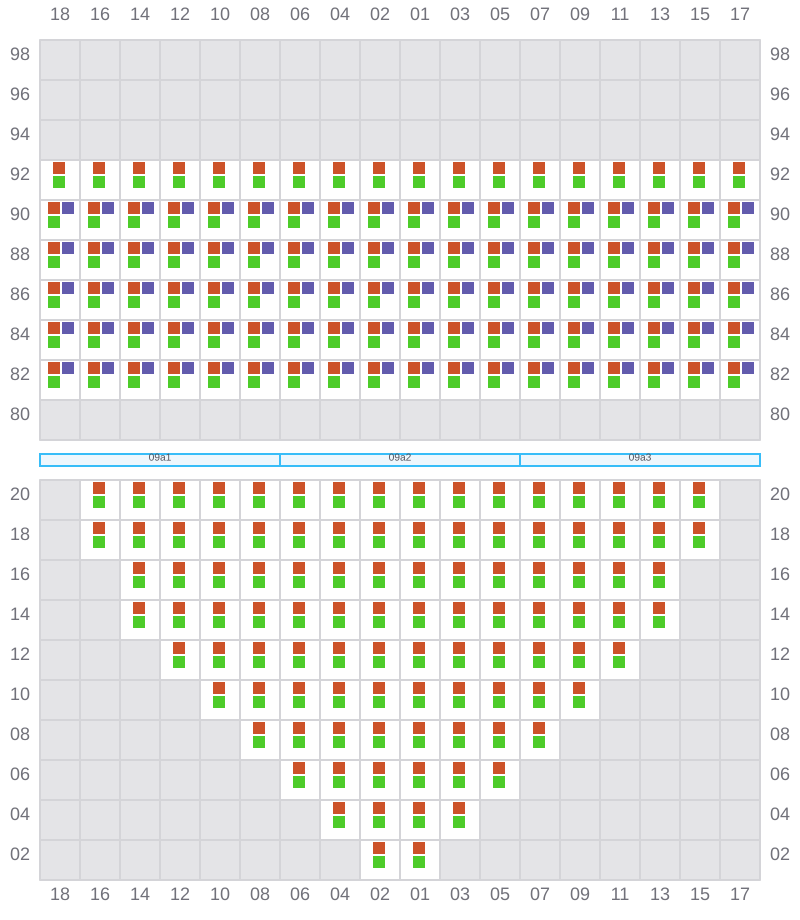

009 (010)

  • / ?
Bay 009 view and slots of APL MEXICO CITY

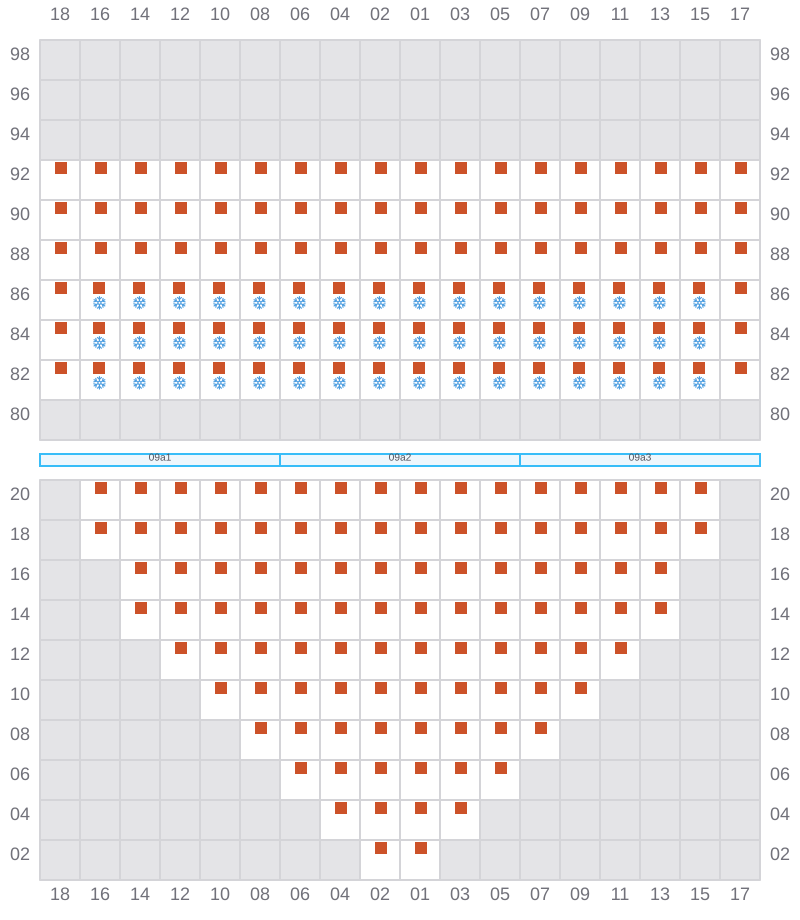

011

  • / ?
Bay 011 view and slots of APL MEXICO CITY

013 (014)

  • / ?

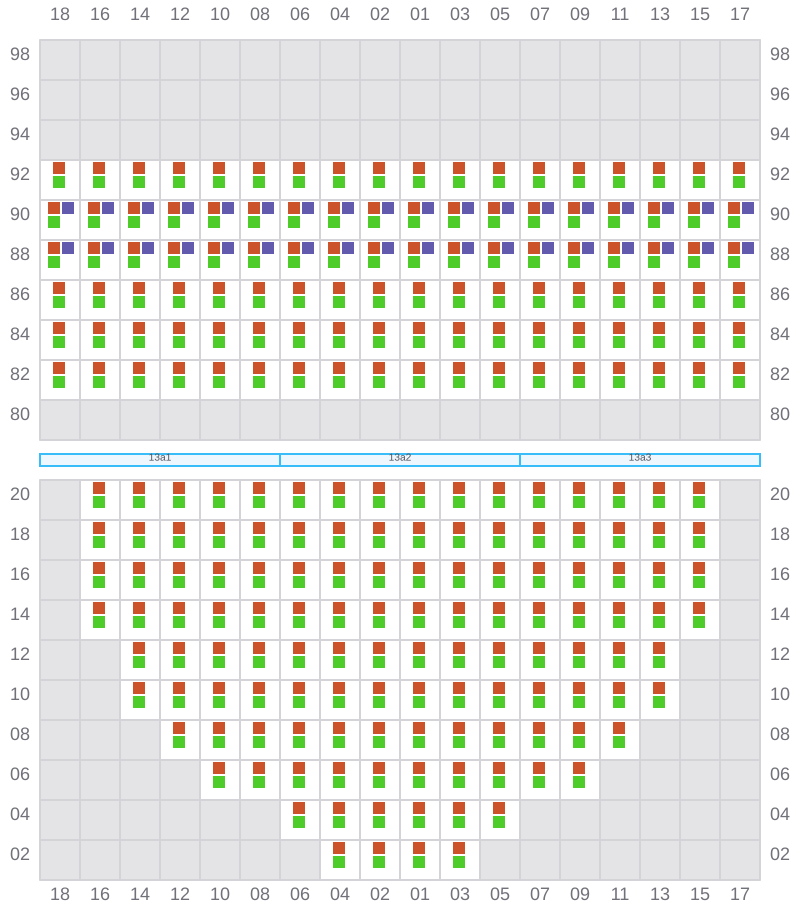

Bay 013 view and slots of APL MEXICO CITY

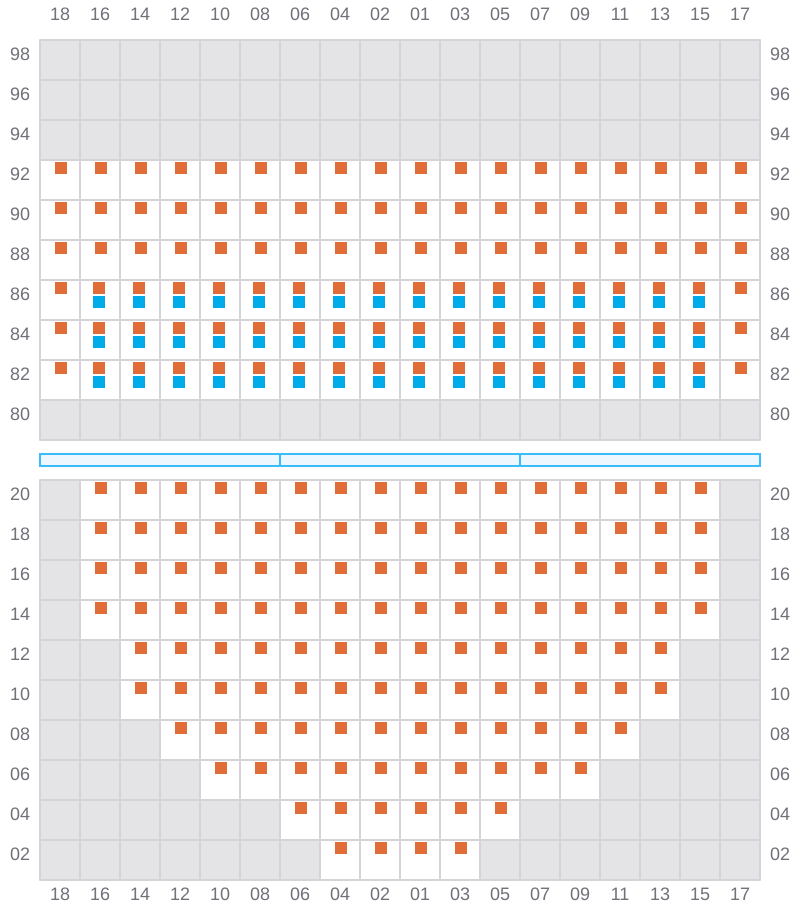

015

  • / ?
Bay 015 view and slots of APL MEXICO CITY

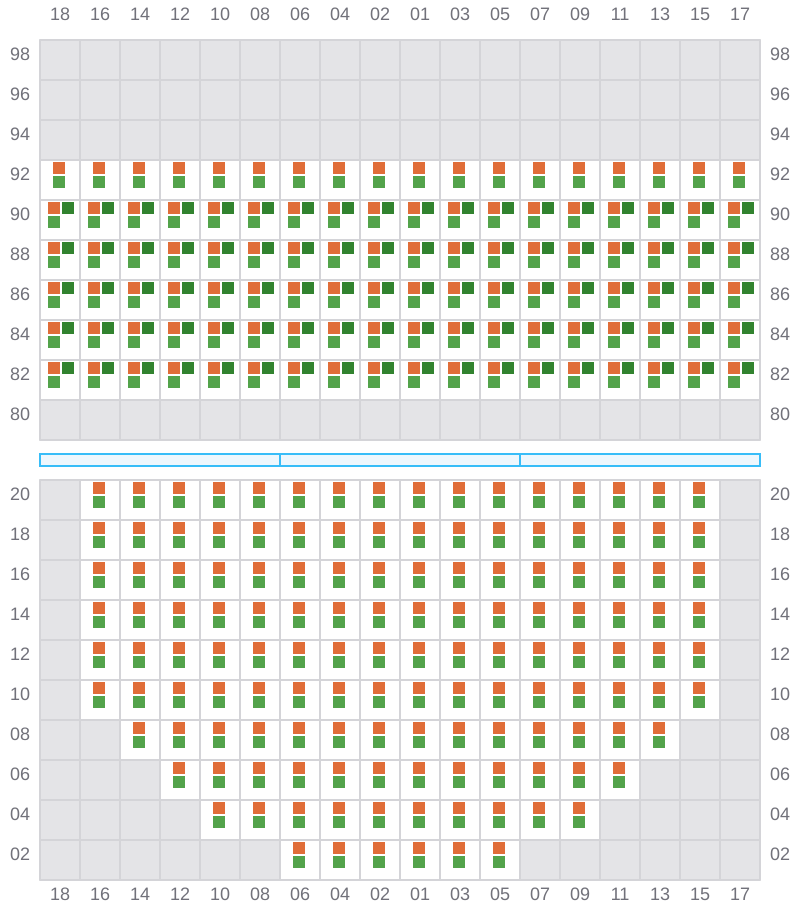

017 (018)

  • / ?
Bay 017 view and slots of APL MEXICO CITY

019

  • / ?
Bay 019 view and slots of APL MEXICO CITY

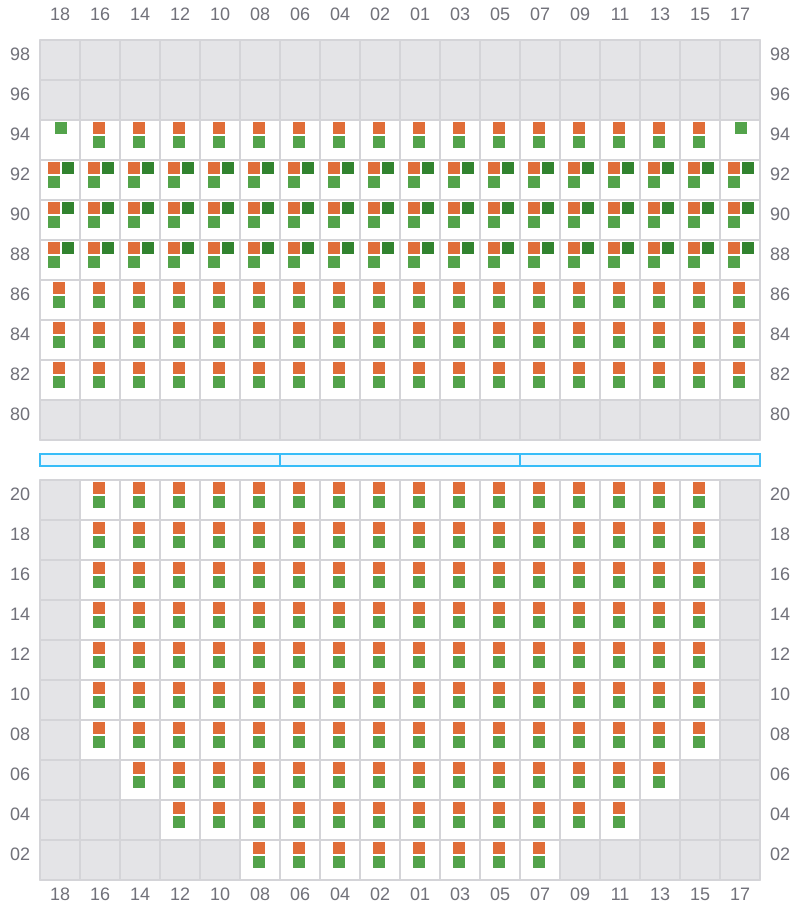

021 (022)

  • / ?
Bay 021 view and slots of APL MEXICO CITY

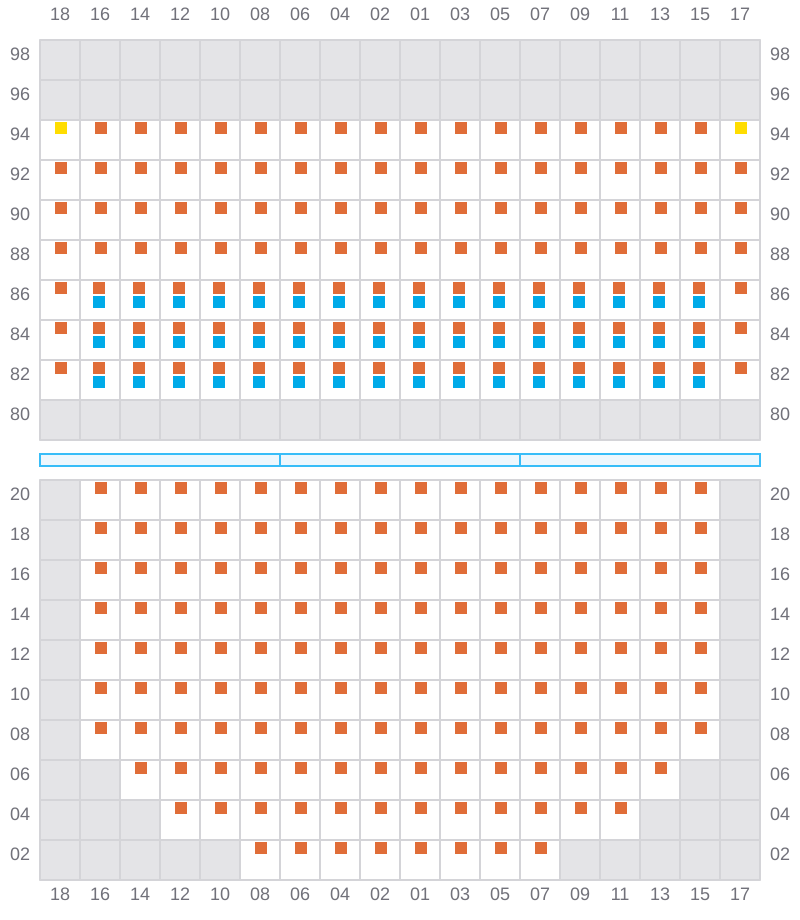

023

  • / ?
Bay 023 view and slots of APL MEXICO CITY

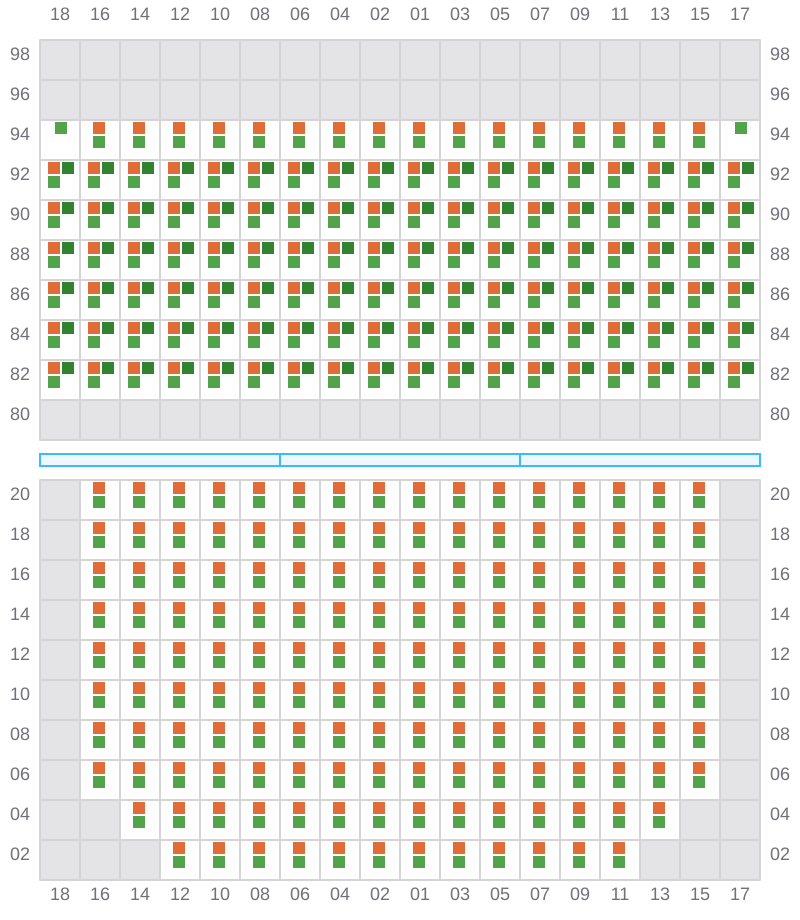

025 (026)

  • / ?
Bay 025 view and slots of APL MEXICO CITY

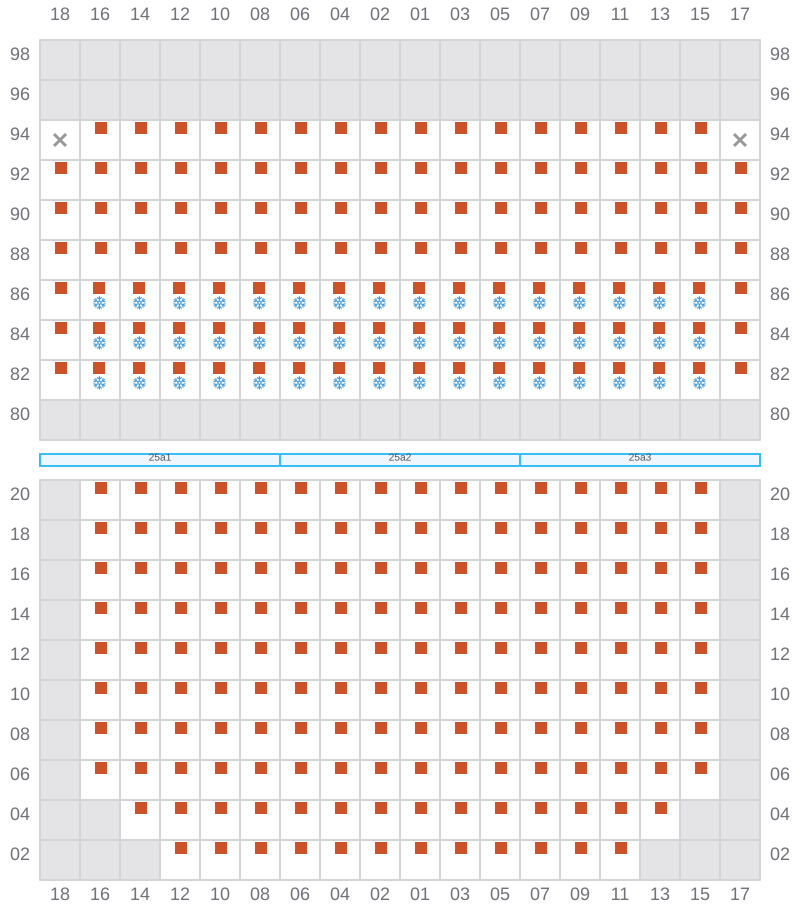

027

  • / ?
Bay 027 view and slots of APL MEXICO CITY

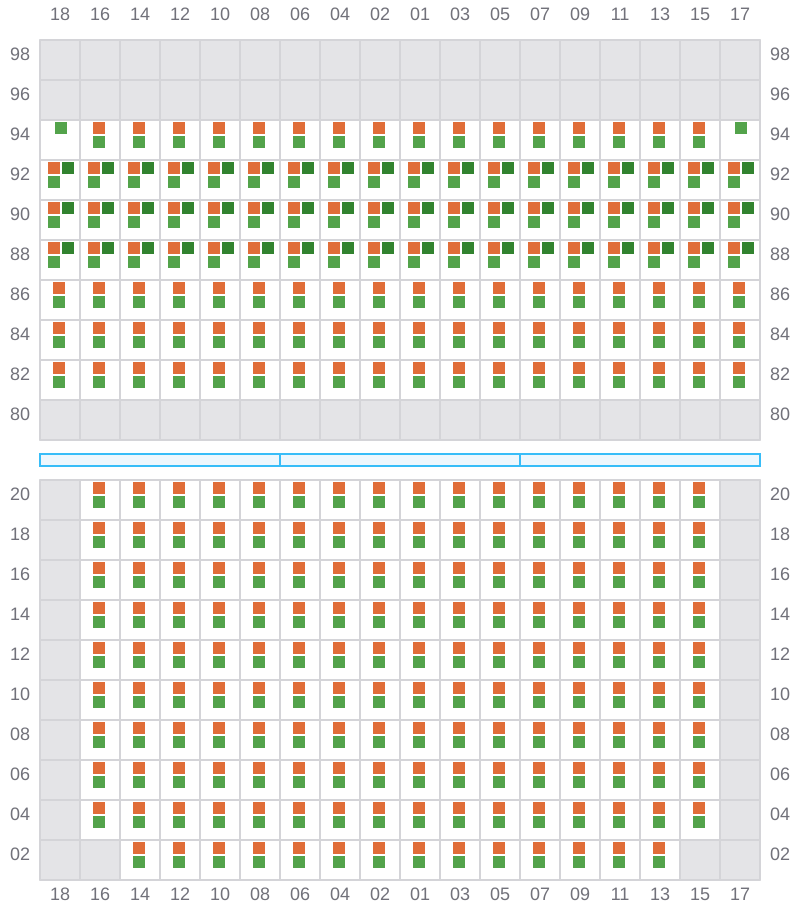

029 (030)

  • / ?
Bay 029 view and slots of APL MEXICO CITY

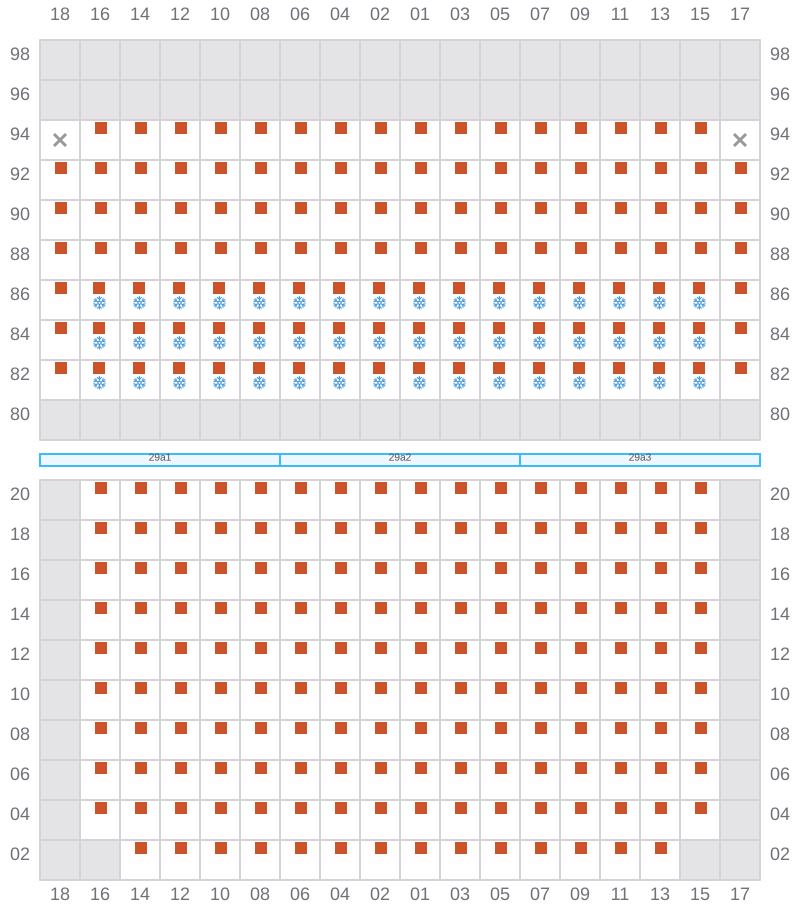

031

  • / ?
Bay 031 view and slots of APL MEXICO CITY

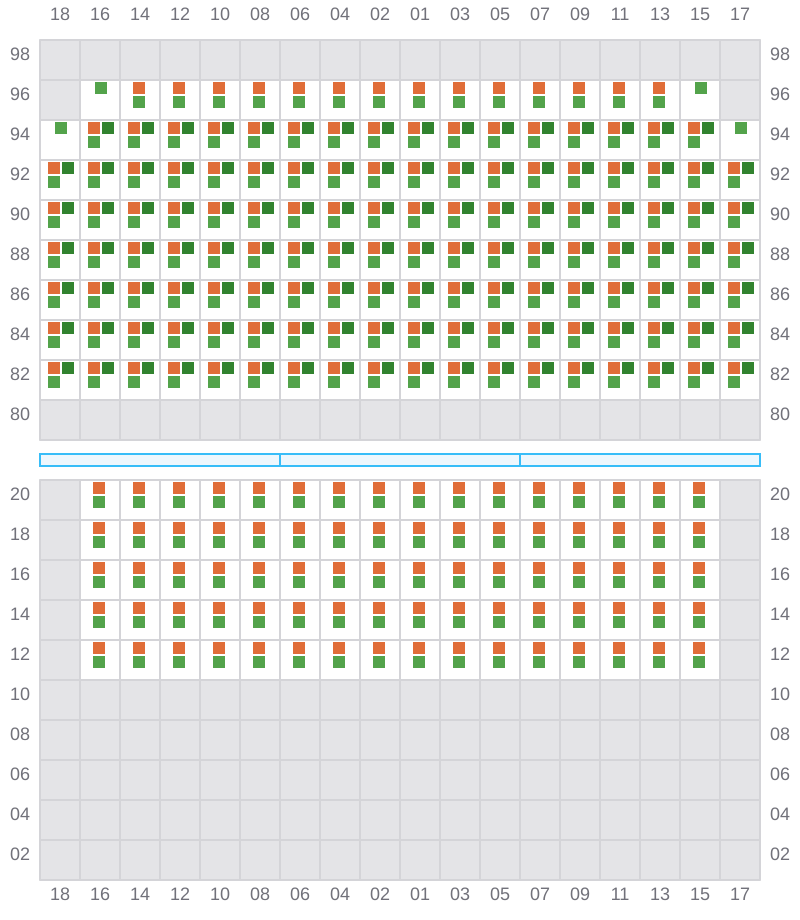

033 (034)

  • / ?
Bay 033 view and slots of APL MEXICO CITY

035

  • / ?

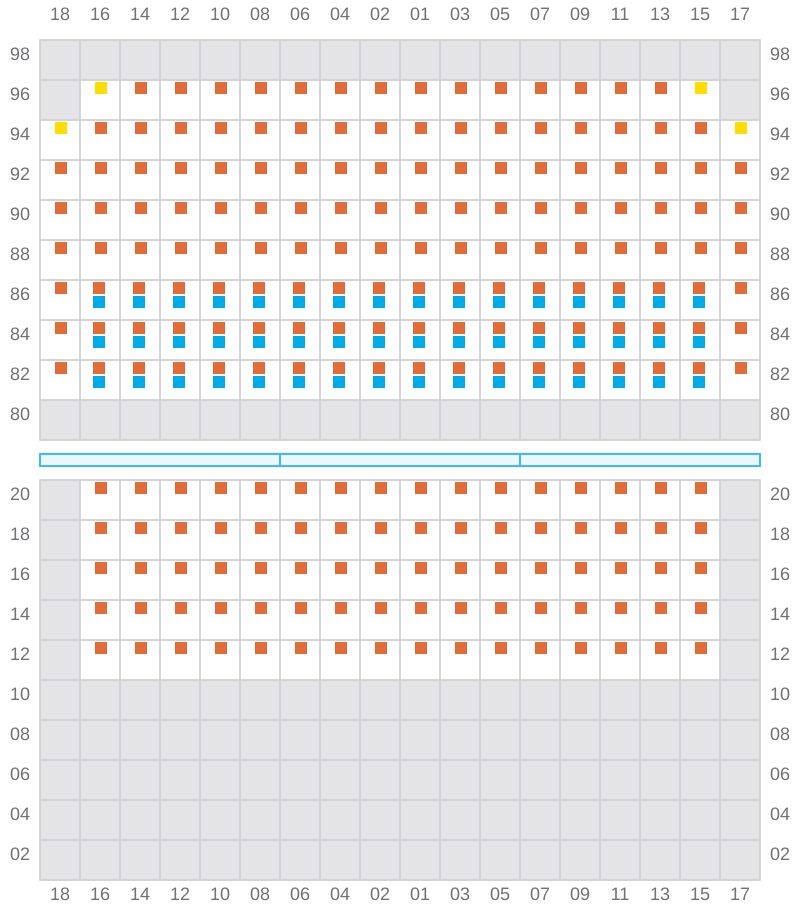

Bay 035 view and slots of APL MEXICO CITY

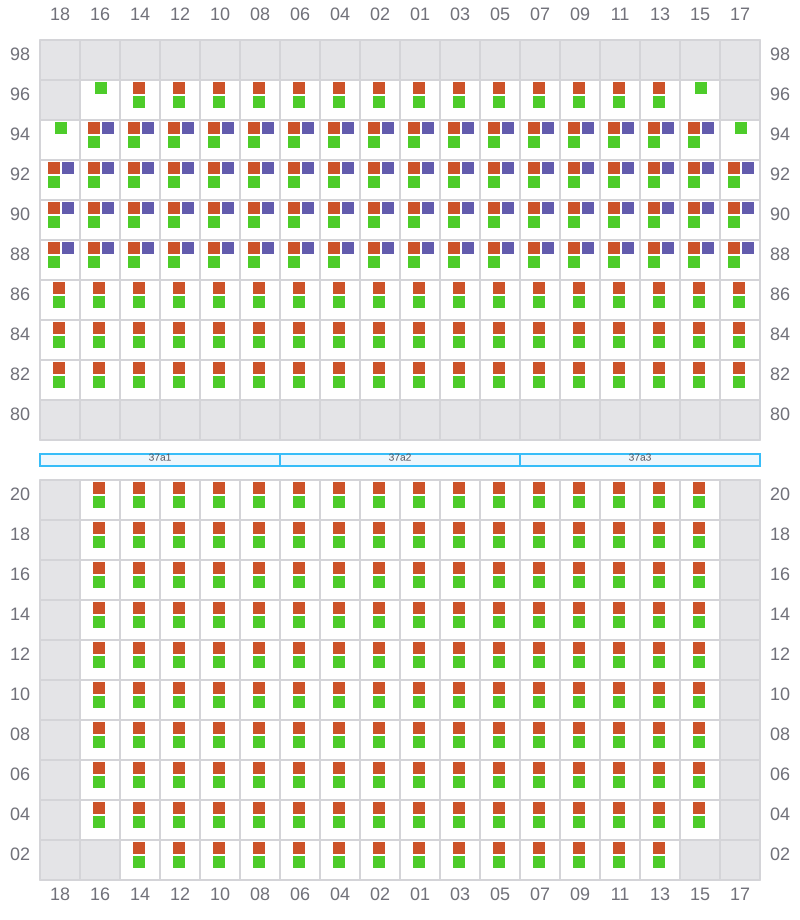

037 (038)

  • / ?
Bay 037 view and slots of APL MEXICO CITY

039

  • / ?

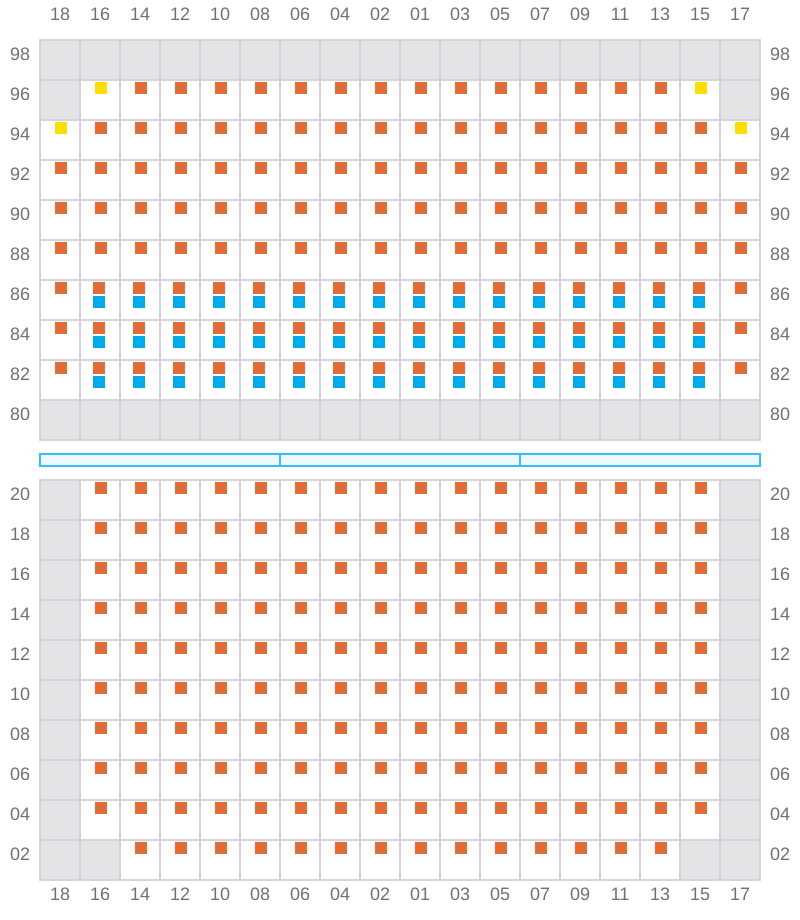

Bay 039 view and slots of APL MEXICO CITY

041 (042)

  • / ?

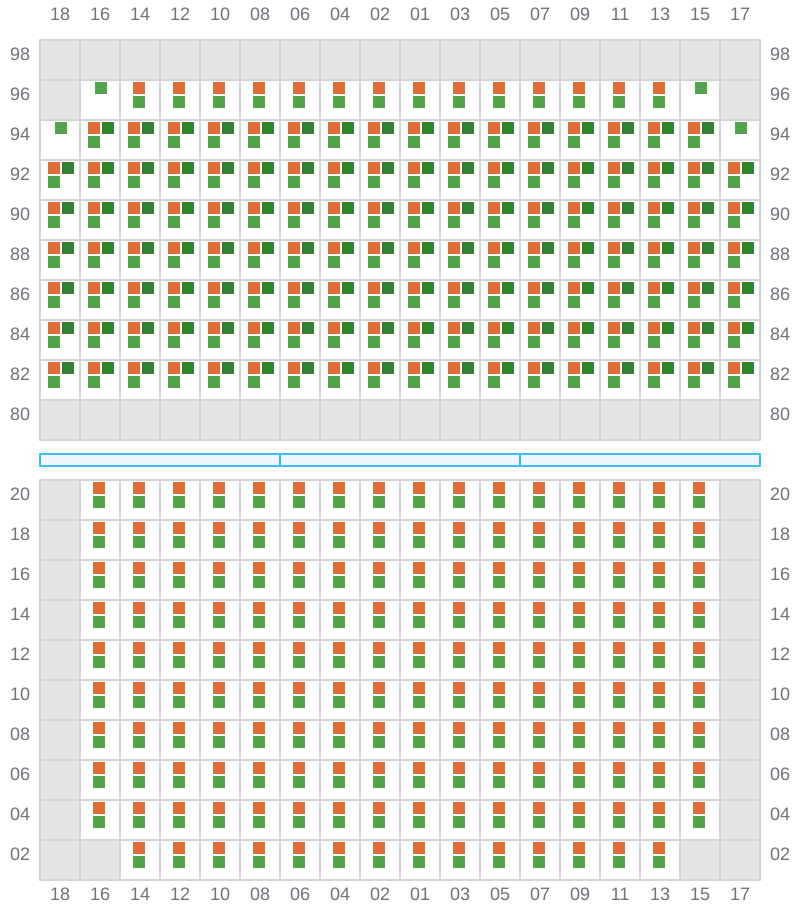

Bay 041 view and slots of APL MEXICO CITY

043

  • / ?
Bay 043 view and slots of APL MEXICO CITY

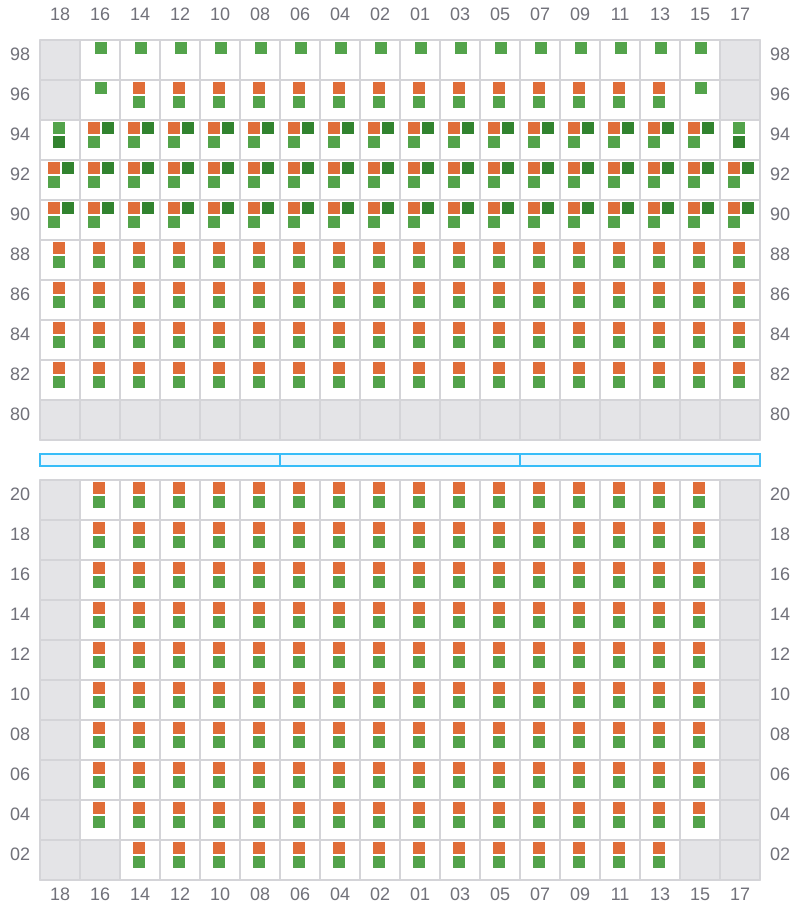

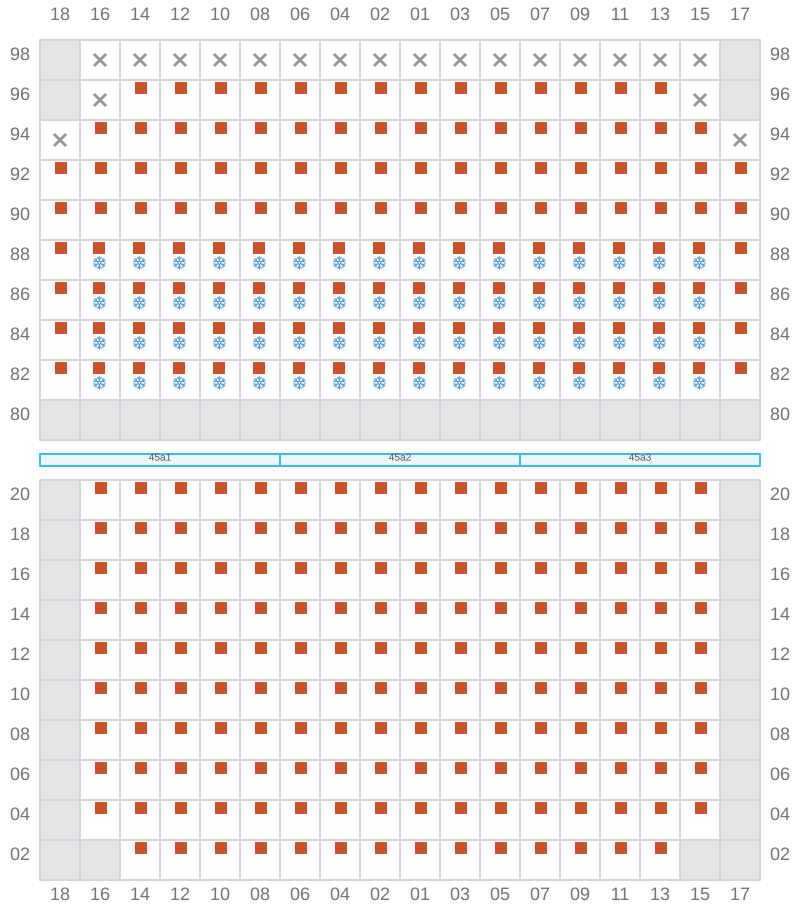

045 (046)

  • / ?
Bay 045 view and slots of APL MEXICO CITY

047

  • / ?
Bay 047 view and slots of APL MEXICO CITY

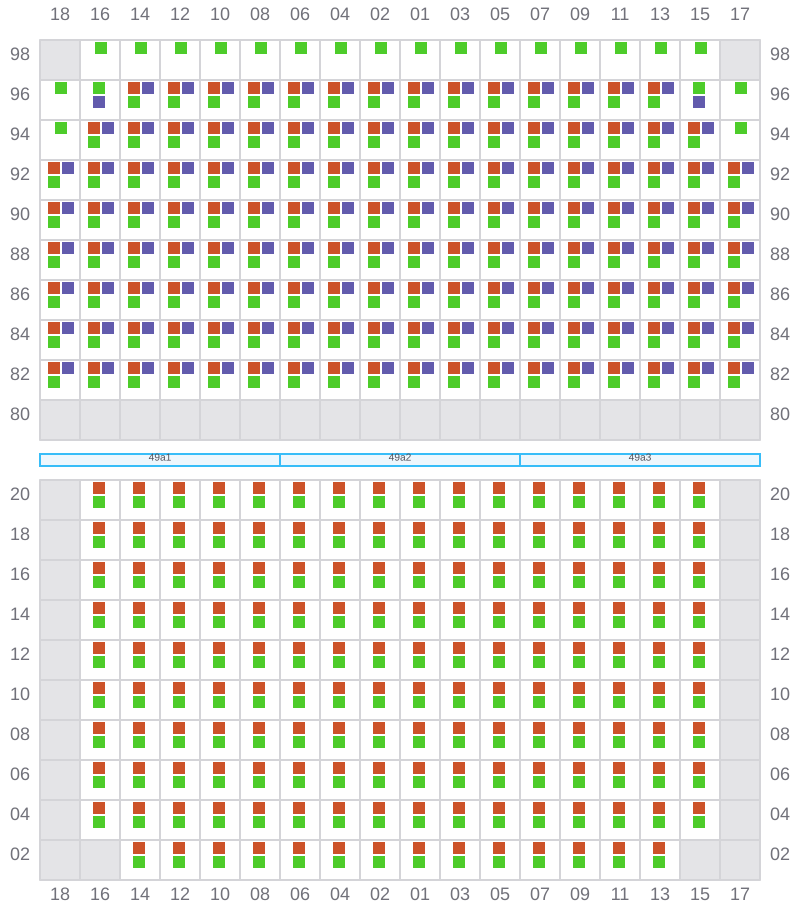

049 (050)

  • / ?
Bay 049 view and slots of APL MEXICO CITY

051

  • / ?

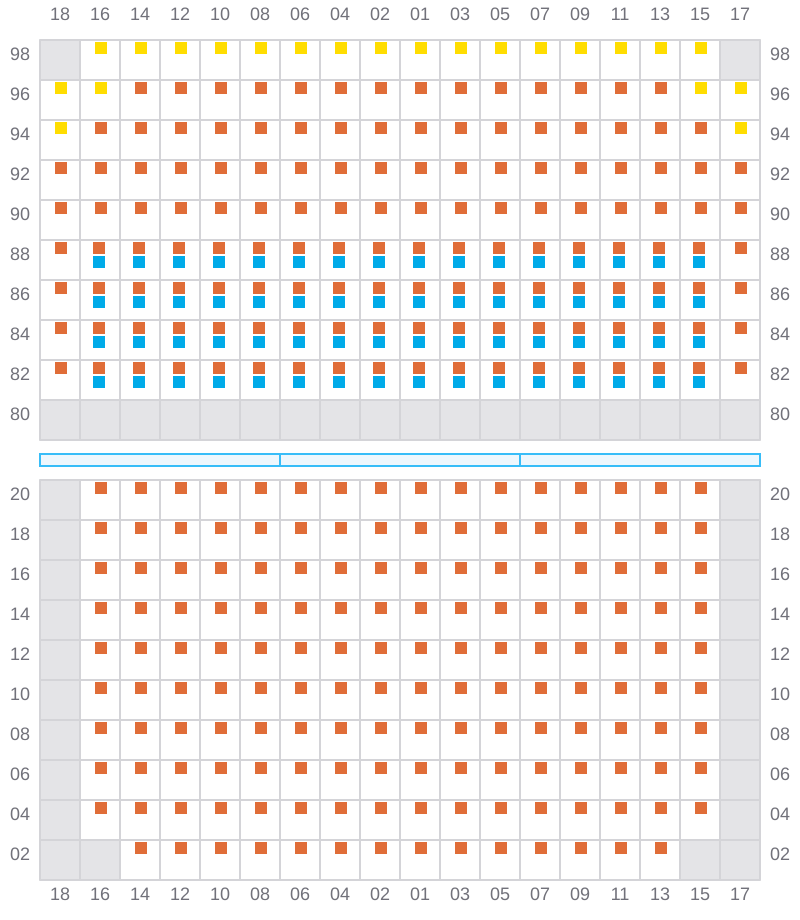

Bay 051 view and slots of APL MEXICO CITY

053 (054)

  • / ?

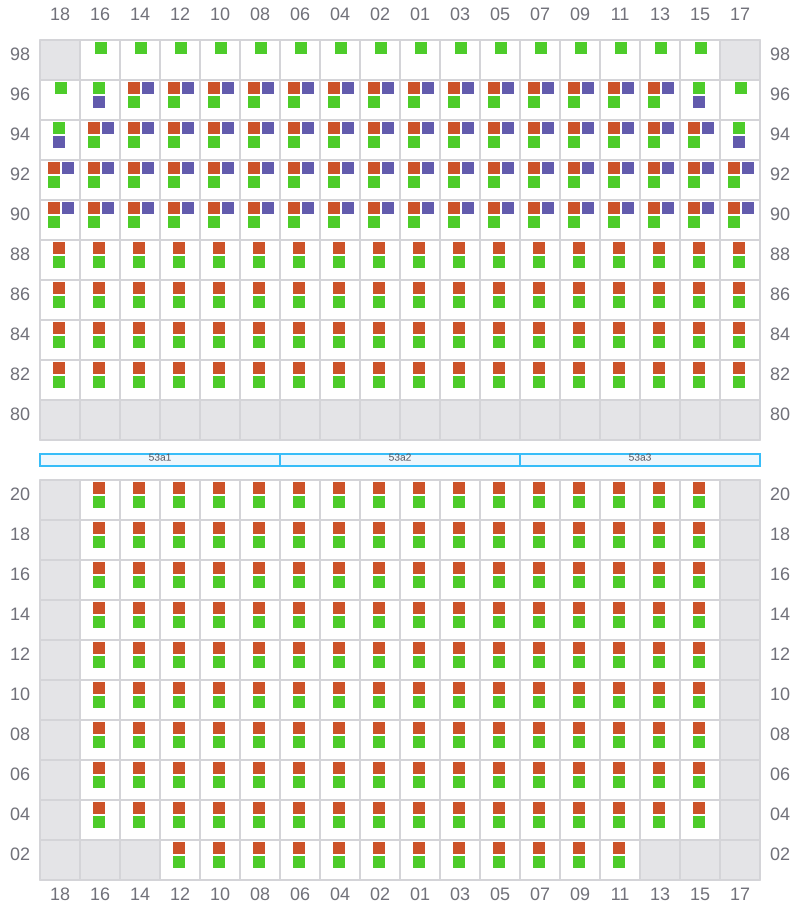

Bay 053 view and slots of APL MEXICO CITY

055

  • / ?

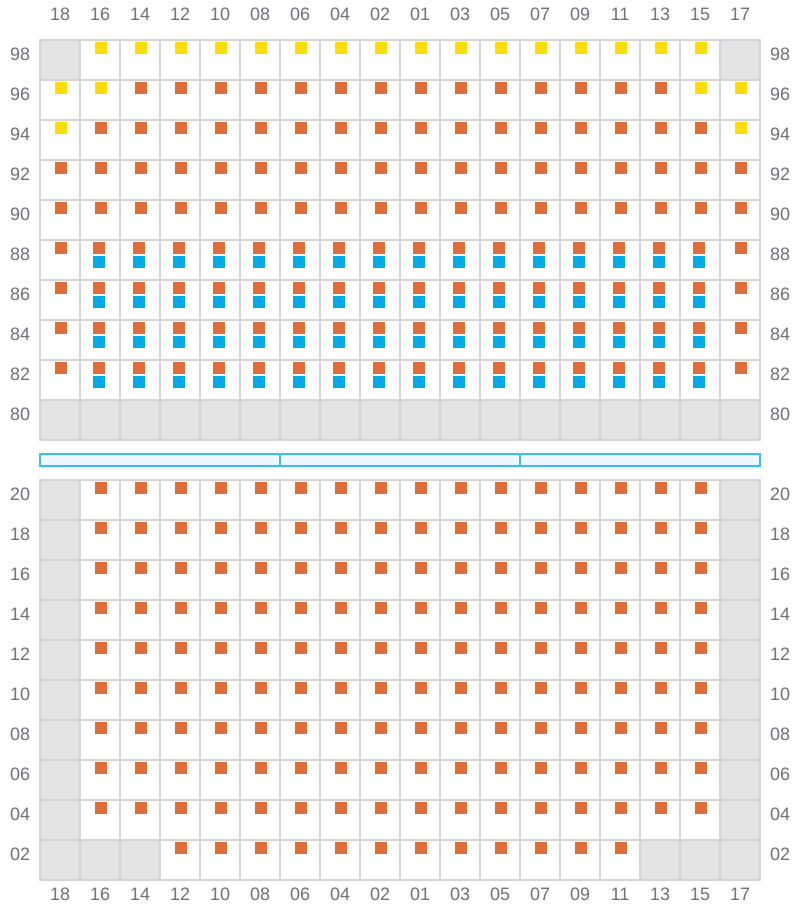

Bay 055 view and slots of APL MEXICO CITY

057 (058)

  • / ?
Bay 057 view and slots of APL MEXICO CITY

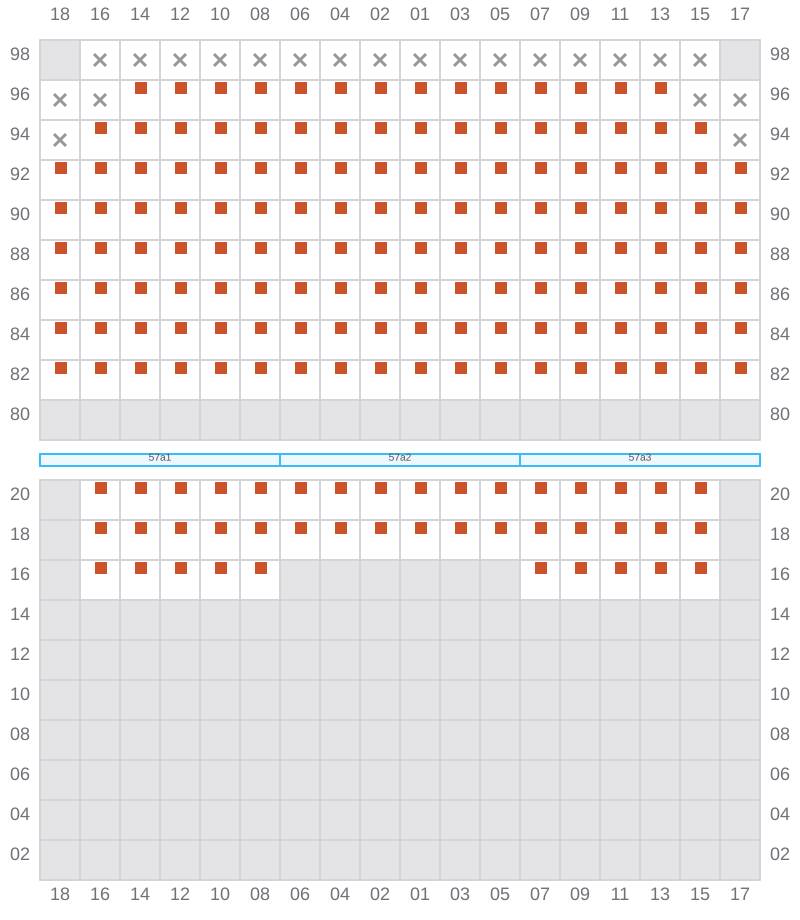

059

  • / ?
Bay 059 view and slots of APL MEXICO CITY

061 (062)

  • / ?

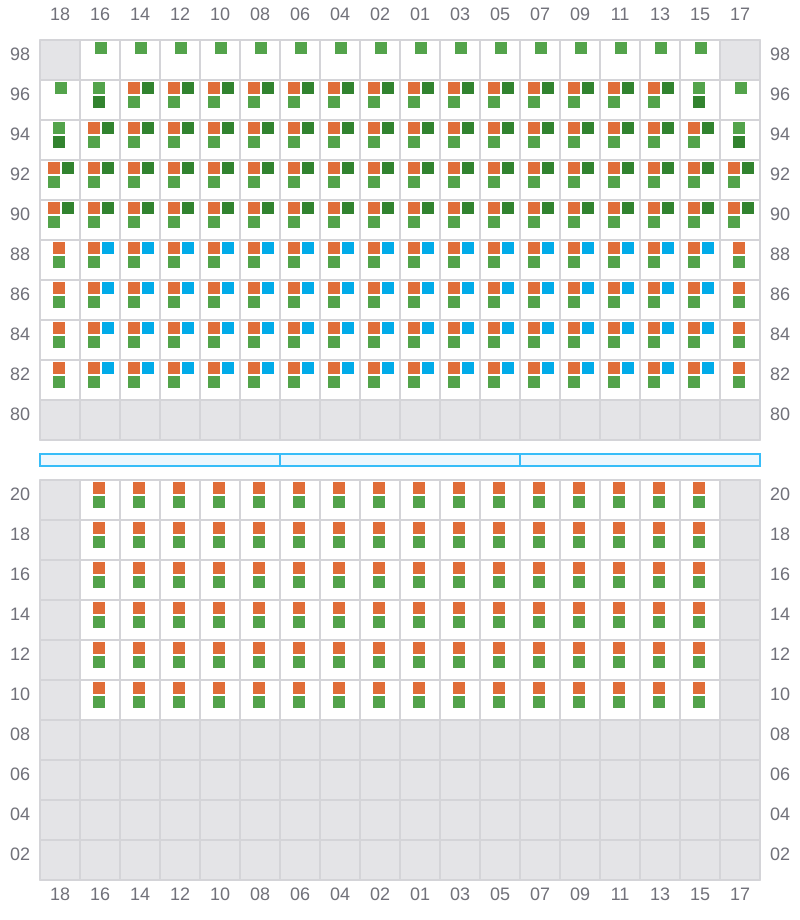

Bay 061 view and slots of APL MEXICO CITY

063

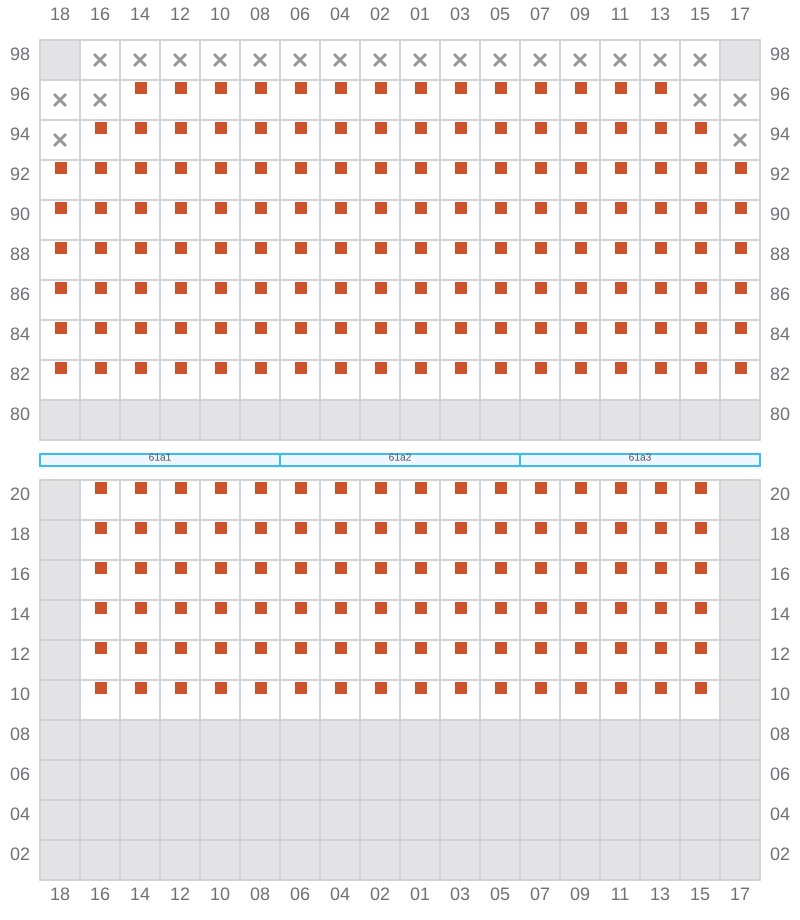

Bay 063 view and slots of APL MEXICO CITY

065 (066)

  • / ?

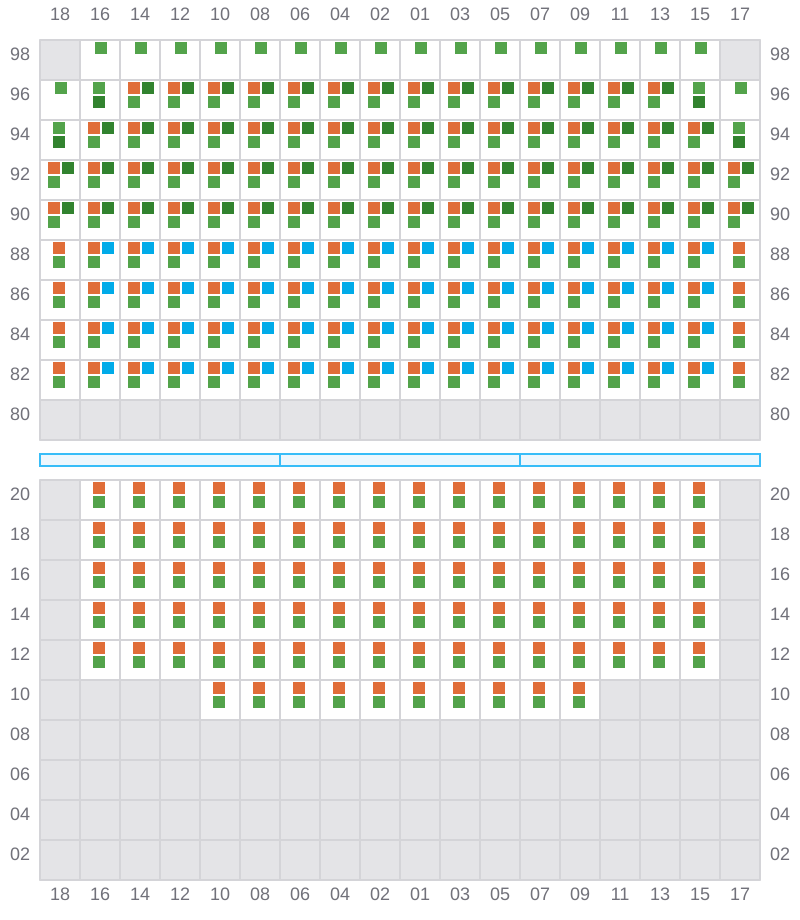

Bay 065 view and slots of APL MEXICO CITY

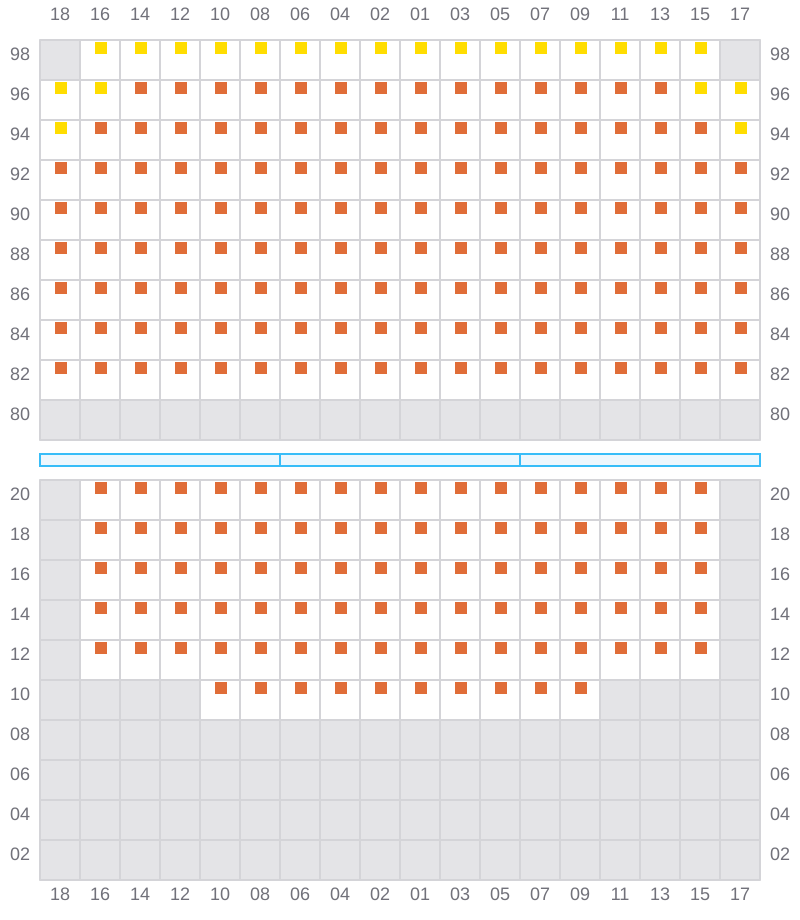

067

Bay 067 view and slots of APL MEXICO CITY

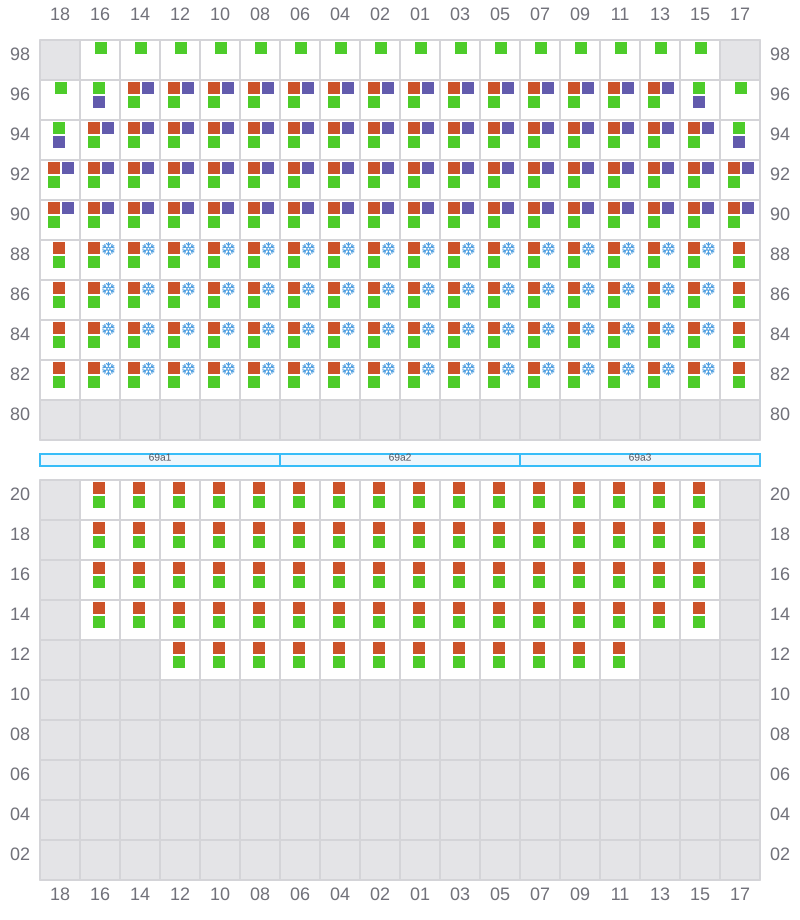

069 (070)

  • / ?
Bay 069 view and slots of APL MEXICO CITY

071

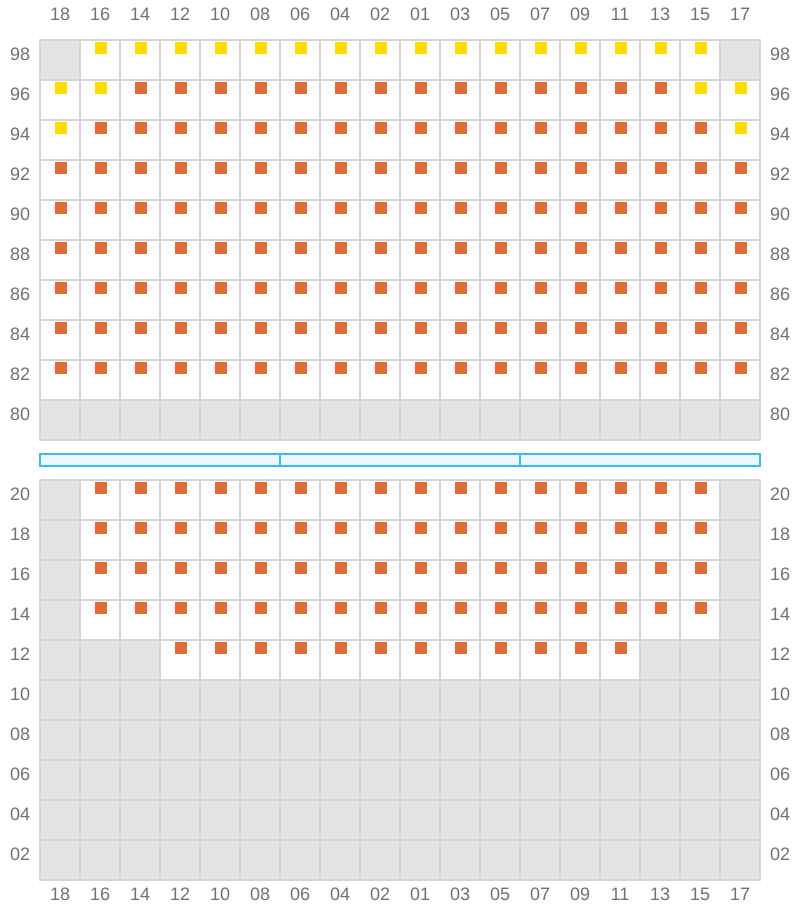

Bay 071 view and slots of APL MEXICO CITY

073 (074)

  • / ?
  • / ?

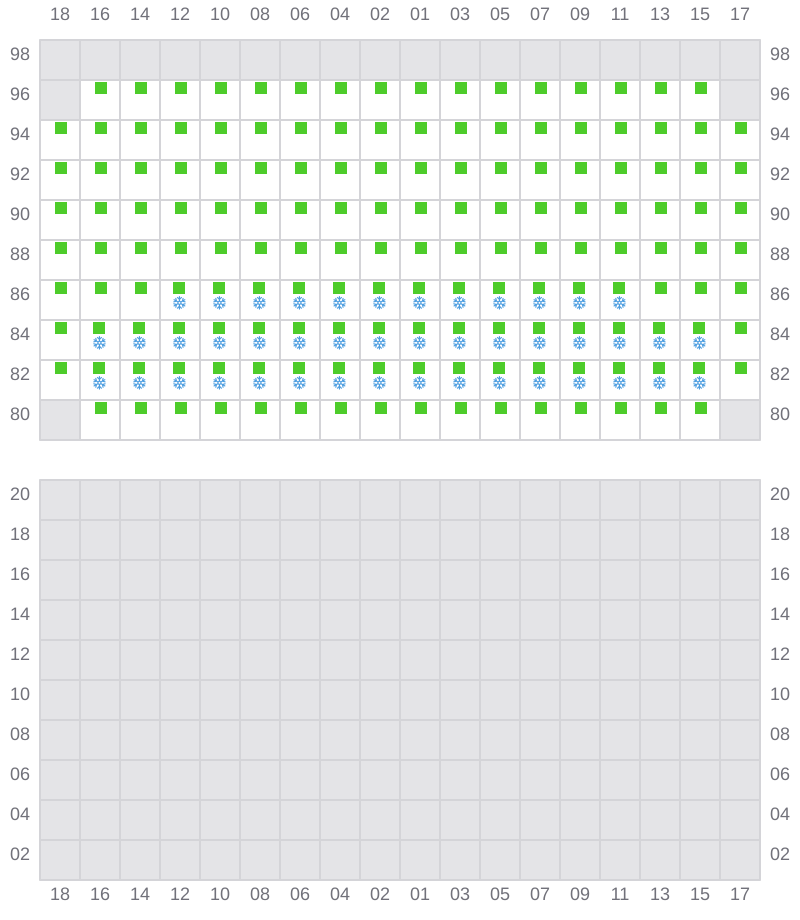

Bay 073 view and slots of APL MEXICO CITY
