APL MINNESOTA
9350018 | A8NM5 | 9350018 by ********* Last update: Fri Mar 22 2024
General Info
Ship Name:APL MINNESOTA
IMO Code:9350018
Call Sign:A8NM5
Line Operator:9350018
Class Name for Sister Ships:APL_MINNESOTA
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):276.00
LOA (Length Overall):293.10
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:067
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,350
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

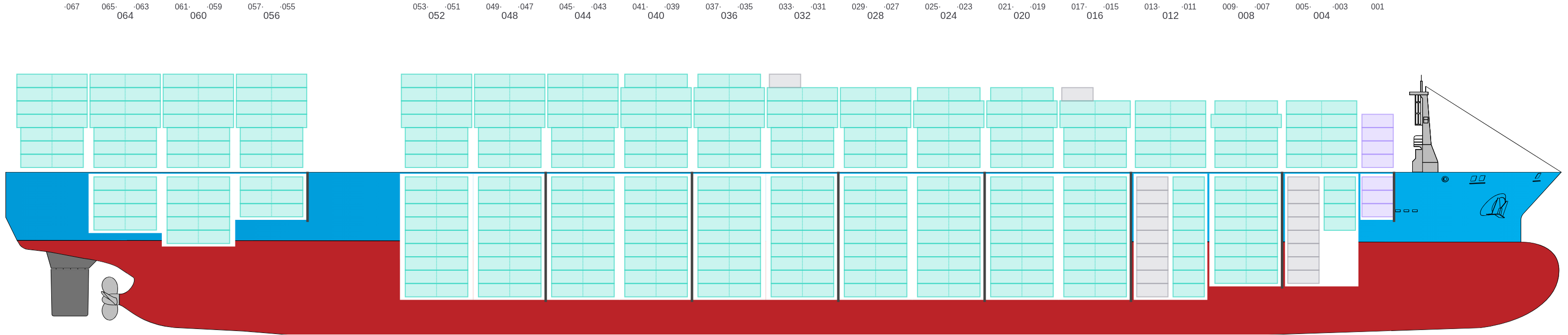

Side View
![Side view of APL MINNESOTA](/vessel-images/408ed2d8-8347-4928-a198-8fe119bd418f-sideView.png?v=1711143833130)
Hatch-Covers View
![Deck view of APL MINNESOTA](/vessel-images/408ed2d8-8347-4928-a198-8fe119bd418f-deckView.png?v=1711143833130)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

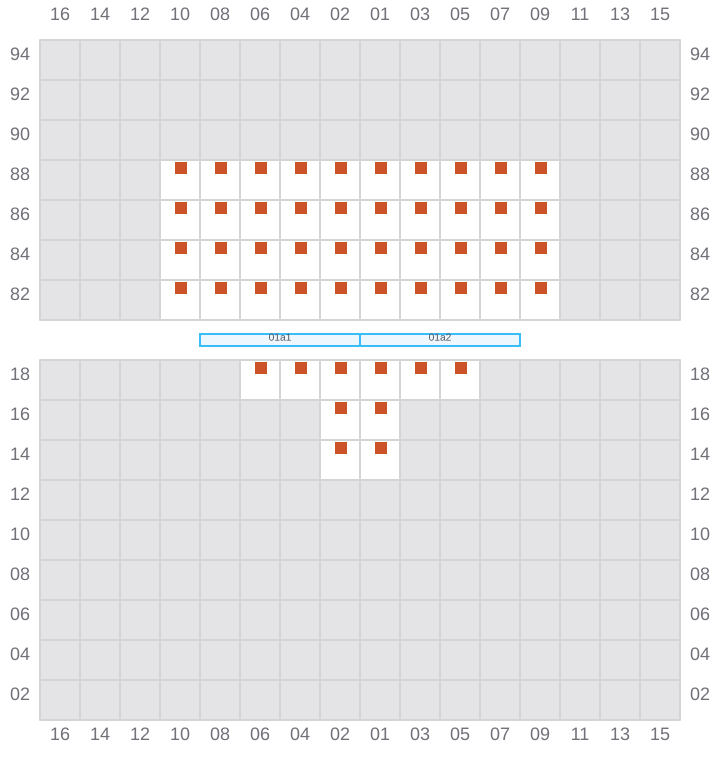

001
![Bay 001 view and slots of APL MINNESOTA](/vessel-images/408ed2d8-8347-4928-a198-8fe119bd418f-b001.png?v=1711143833130)

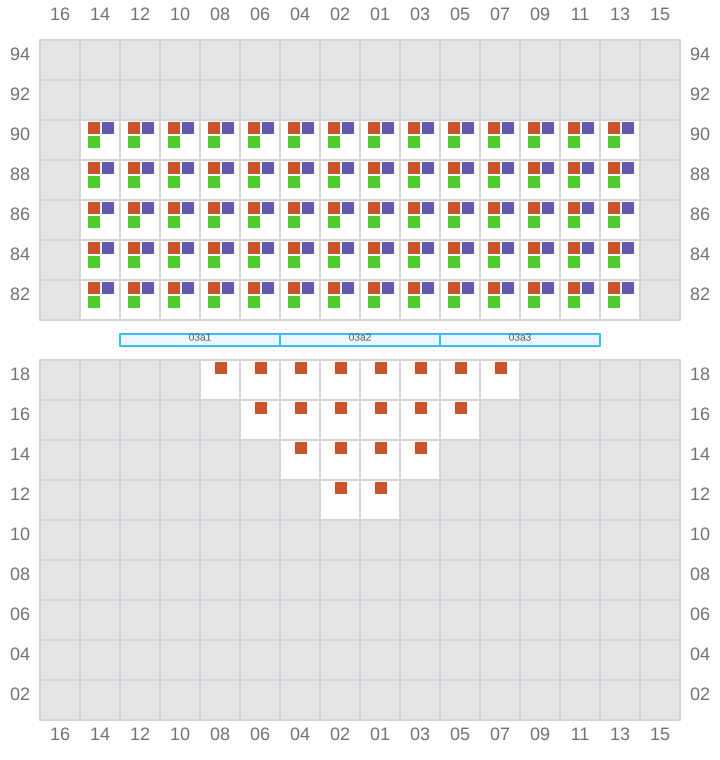

003 (004)
- →
![Bay 003 view and slots of APL MINNESOTA](/vessel-images/408ed2d8-8347-4928-a198-8fe119bd418f-b003.png?v=1711143833130)

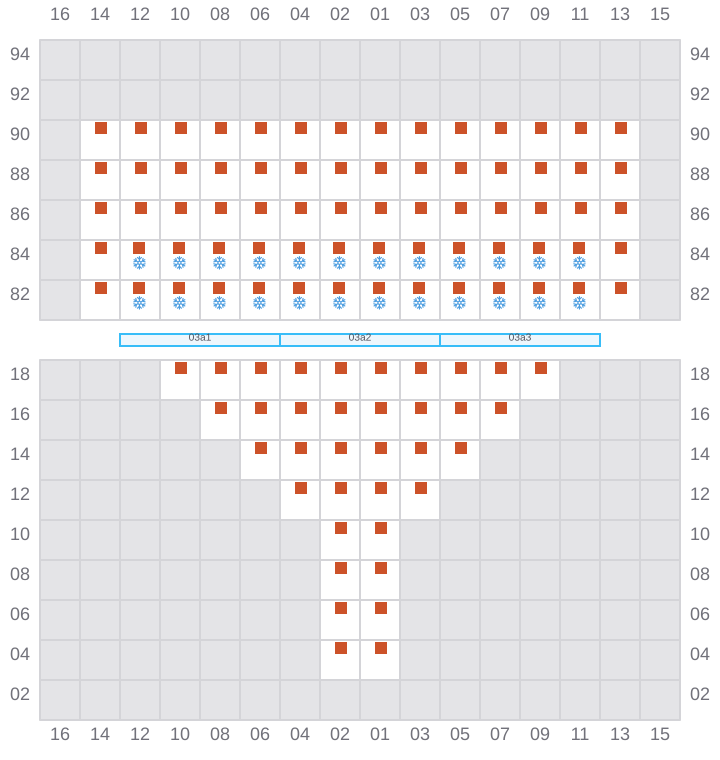

005
- ←
- → / ?
![Bay 005 view and slots of APL MINNESOTA](/vessel-images/408ed2d8-8347-4928-a198-8fe119bd418f-b005.png?v=1711143833130)

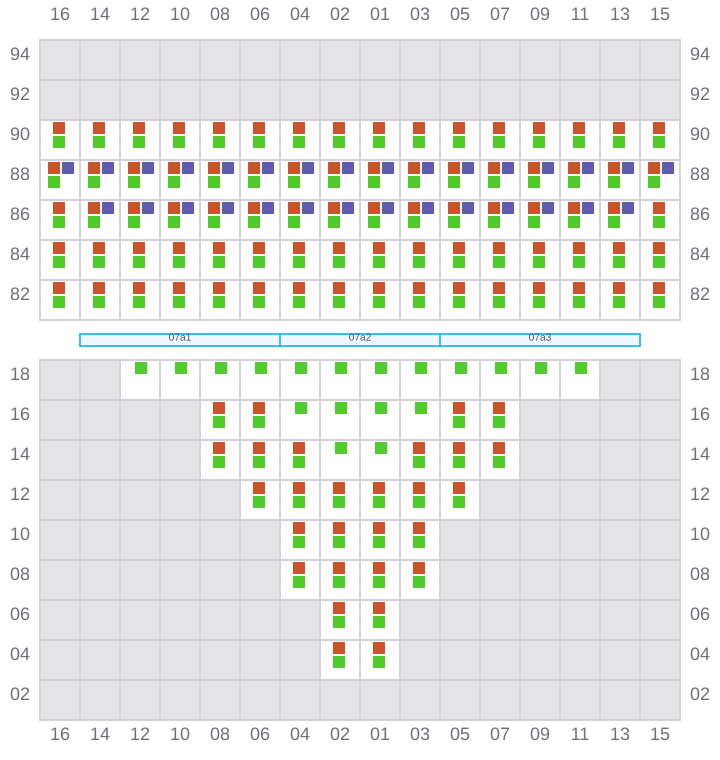

007 (008)
- →
![Bay 007 view and slots of APL MINNESOTA](/vessel-images/408ed2d8-8347-4928-a198-8fe119bd418f-b007.png?v=1711143833130)

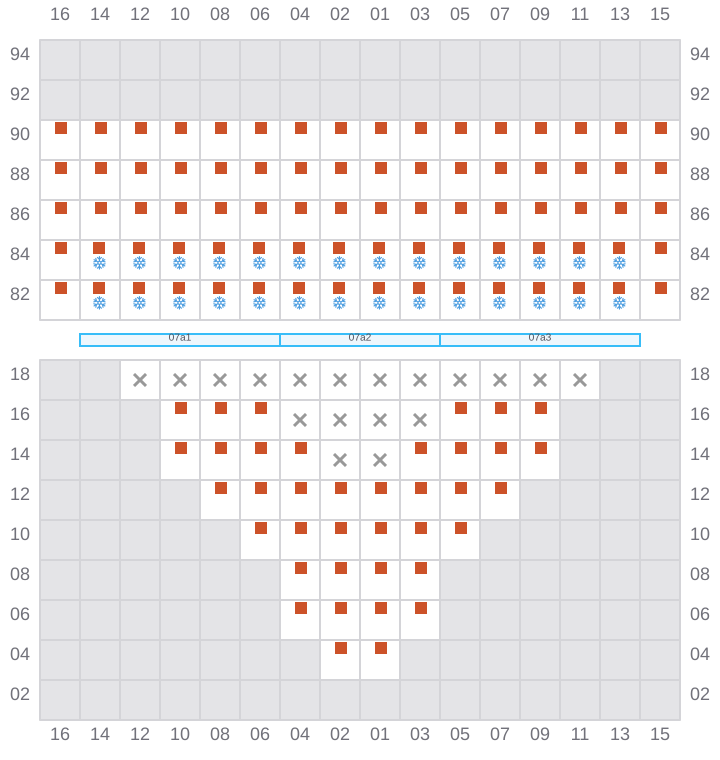

009
- ←
- → / ?
![Bay 009 view and slots of APL MINNESOTA](/vessel-images/408ed2d8-8347-4928-a198-8fe119bd418f-b009.png?v=1711143833130)

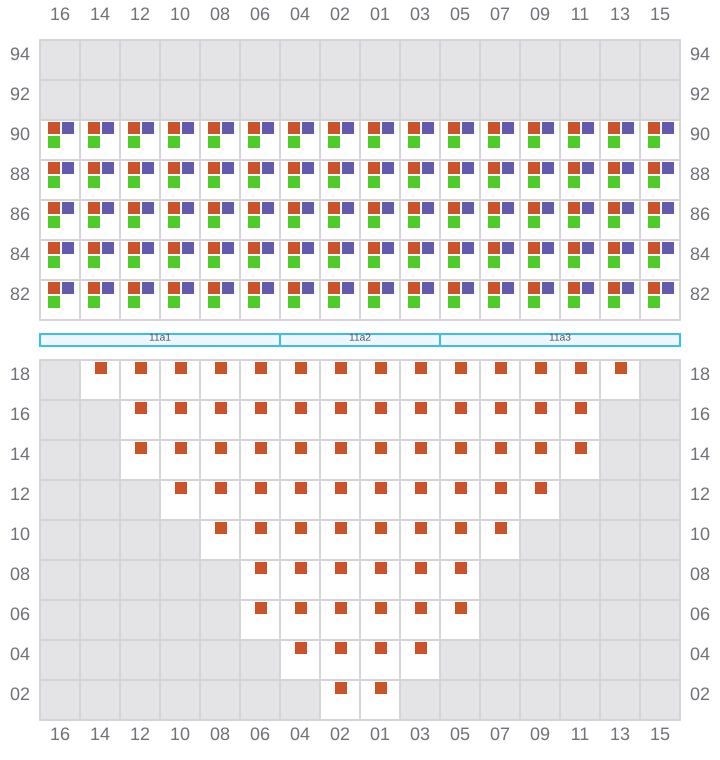

011 (012)
- →
![Bay 011 view and slots of APL MINNESOTA](/vessel-images/408ed2d8-8347-4928-a198-8fe119bd418f-b011.png?v=1711143833130)

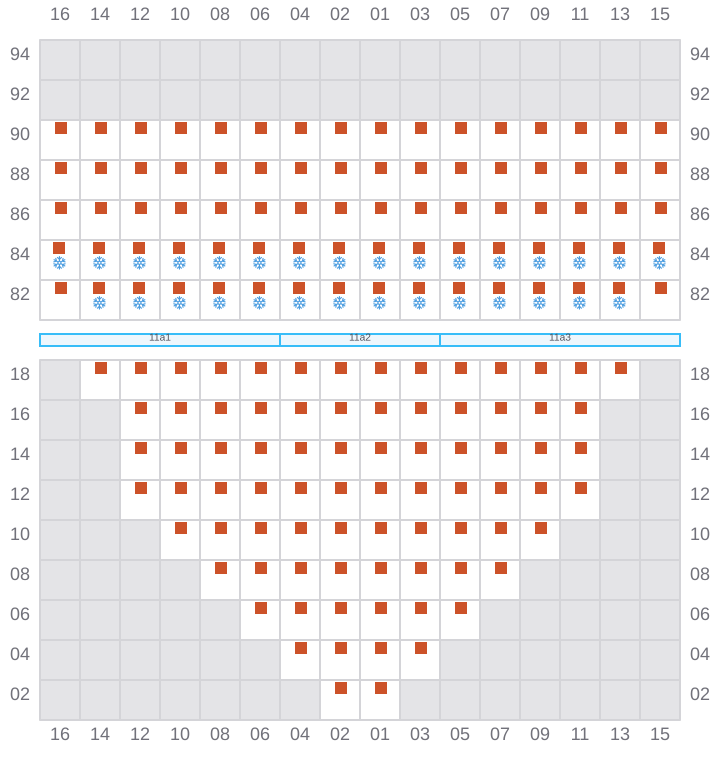

013
- ←
- → / ?
![Bay 013 view and slots of APL MINNESOTA](/vessel-images/408ed2d8-8347-4928-a198-8fe119bd418f-b013.png?v=1711143833130)

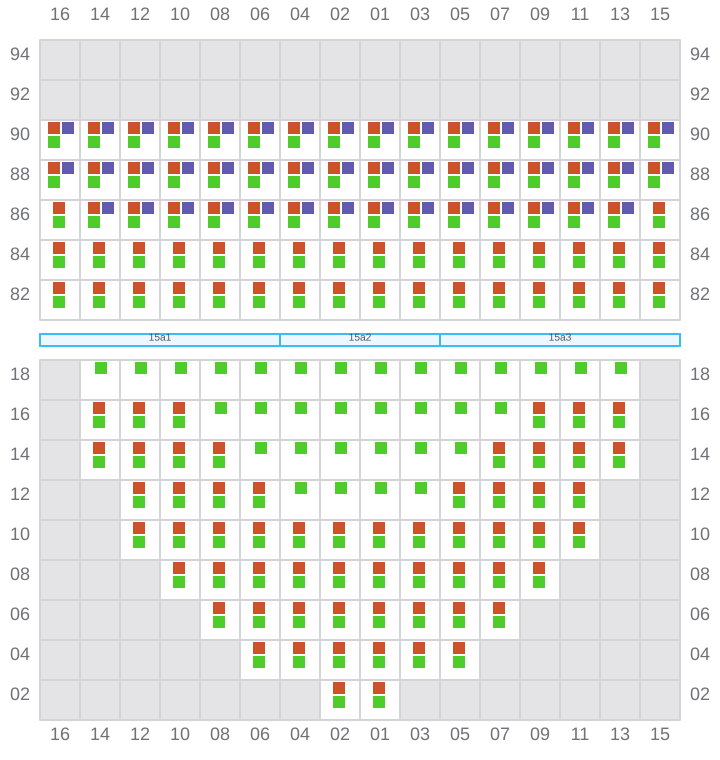

015 (016)
- →
![Bay 015 view and slots of APL MINNESOTA](/vessel-images/408ed2d8-8347-4928-a198-8fe119bd418f-b015.png?v=1711143833130)

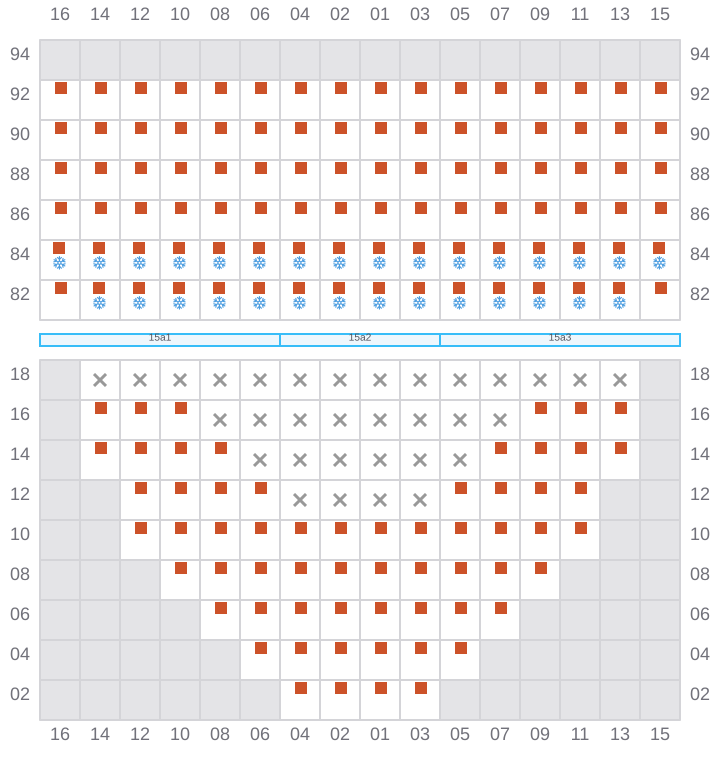

017
- ←
- → / ?
![Bay 017 view and slots of APL MINNESOTA](/vessel-images/408ed2d8-8347-4928-a198-8fe119bd418f-b017.png?v=1711143833130)

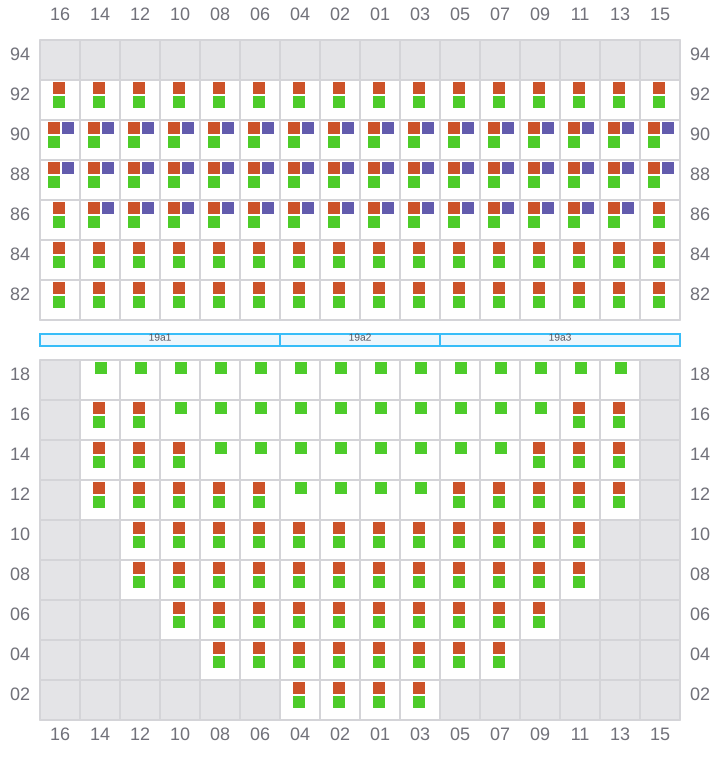

019 (020)
- →
![Bay 019 view and slots of APL MINNESOTA](/vessel-images/408ed2d8-8347-4928-a198-8fe119bd418f-b019.png?v=1711143833130)

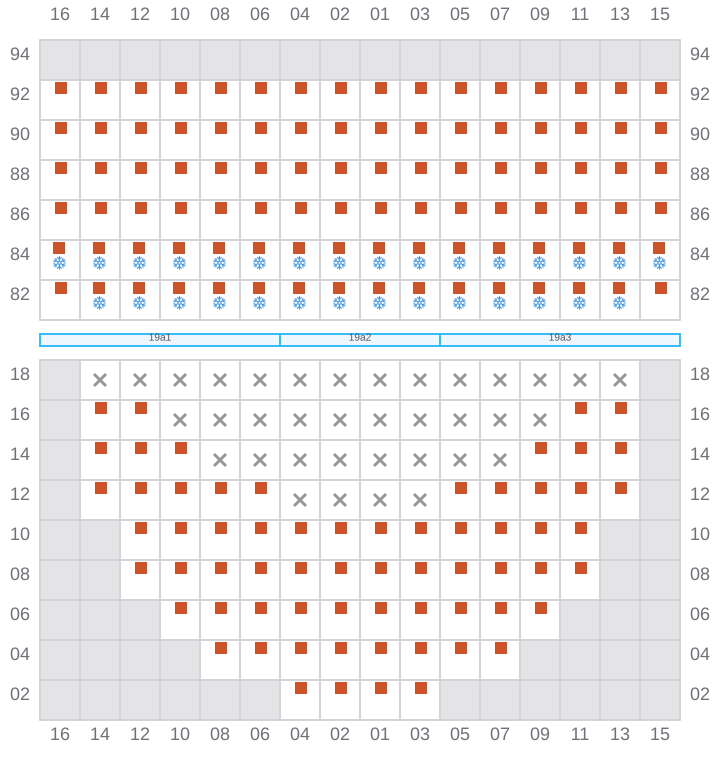

021
- ←
- → / ?
![Bay 021 view and slots of APL MINNESOTA](/vessel-images/408ed2d8-8347-4928-a198-8fe119bd418f-b021.png?v=1711143833130)

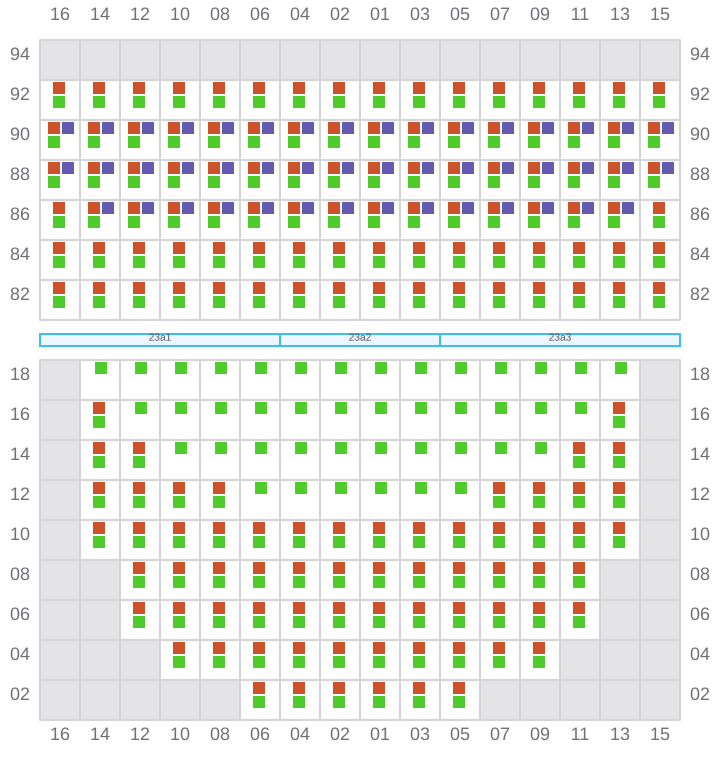

023 (024)
- →
![Bay 023 view and slots of APL MINNESOTA](/vessel-images/408ed2d8-8347-4928-a198-8fe119bd418f-b023.png?v=1711143833130)

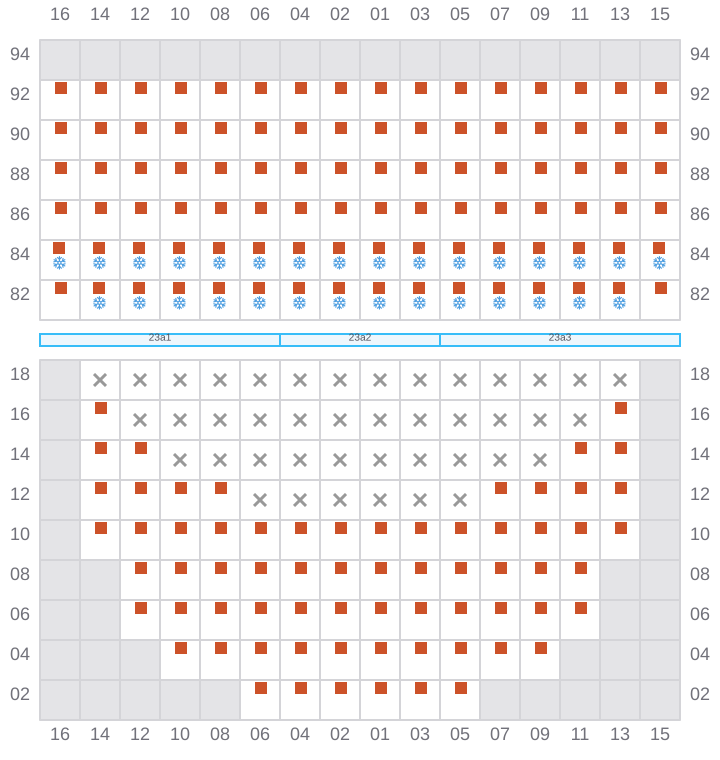

025
- ←
- → / ?
![Bay 025 view and slots of APL MINNESOTA](/vessel-images/408ed2d8-8347-4928-a198-8fe119bd418f-b025.png?v=1711143833130)

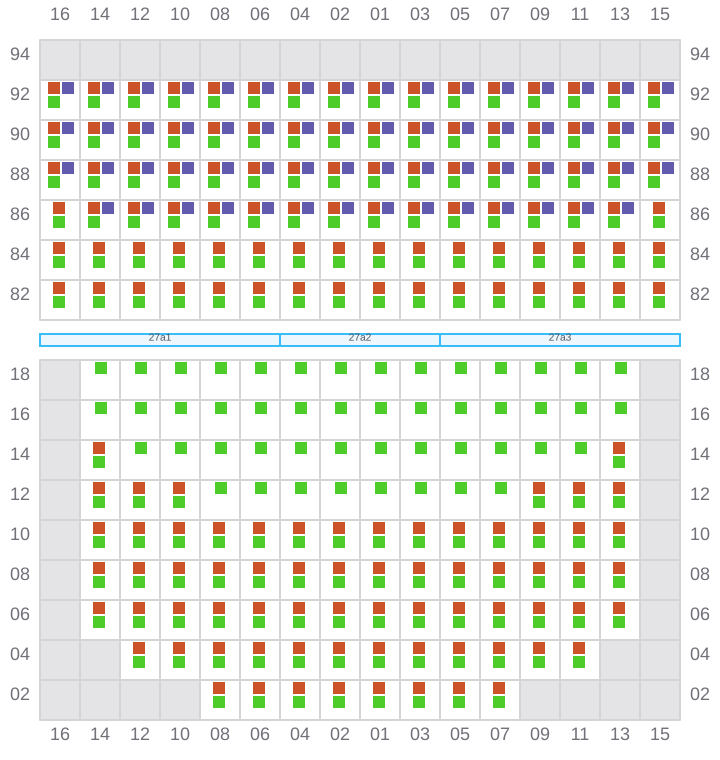

027 (028)
- →
![Bay 027 view and slots of APL MINNESOTA](/vessel-images/408ed2d8-8347-4928-a198-8fe119bd418f-b027.png?v=1711143833130)

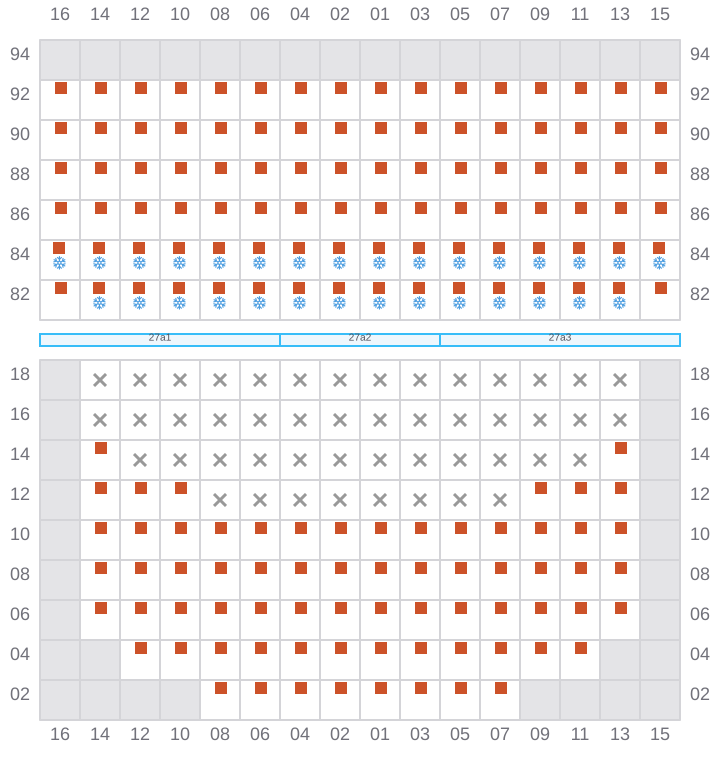

029
- ←
- → / ?
![Bay 029 view and slots of APL MINNESOTA](/vessel-images/408ed2d8-8347-4928-a198-8fe119bd418f-b029.png?v=1711143833130)
031 (032)
- →
![Bay 031 view and slots of APL MINNESOTA](/vessel-images/408ed2d8-8347-4928-a198-8fe119bd418f-b031.png?v=1711143833130)

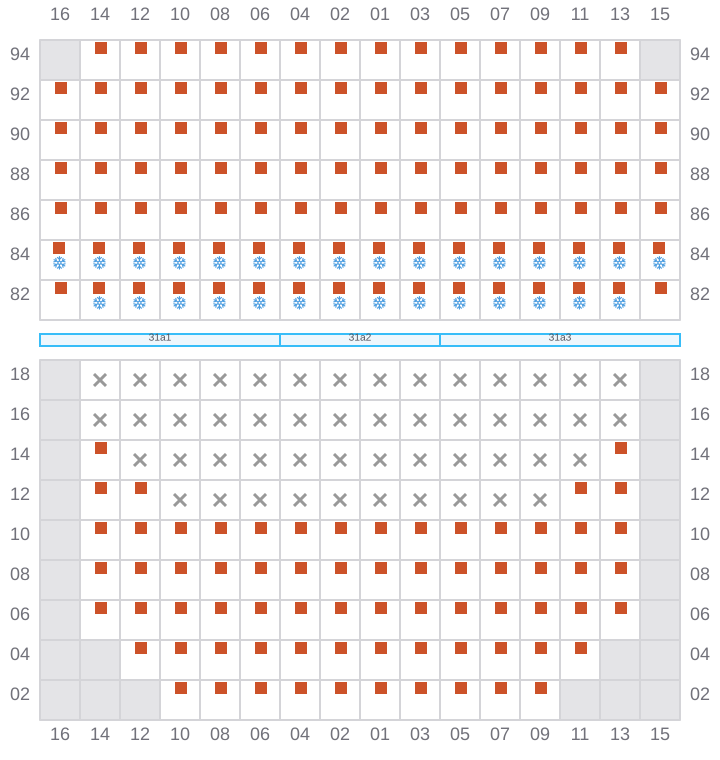

033
- ←
- → / ?
![Bay 033 view and slots of APL MINNESOTA](/vessel-images/408ed2d8-8347-4928-a198-8fe119bd418f-b033.png?v=1711143833130)

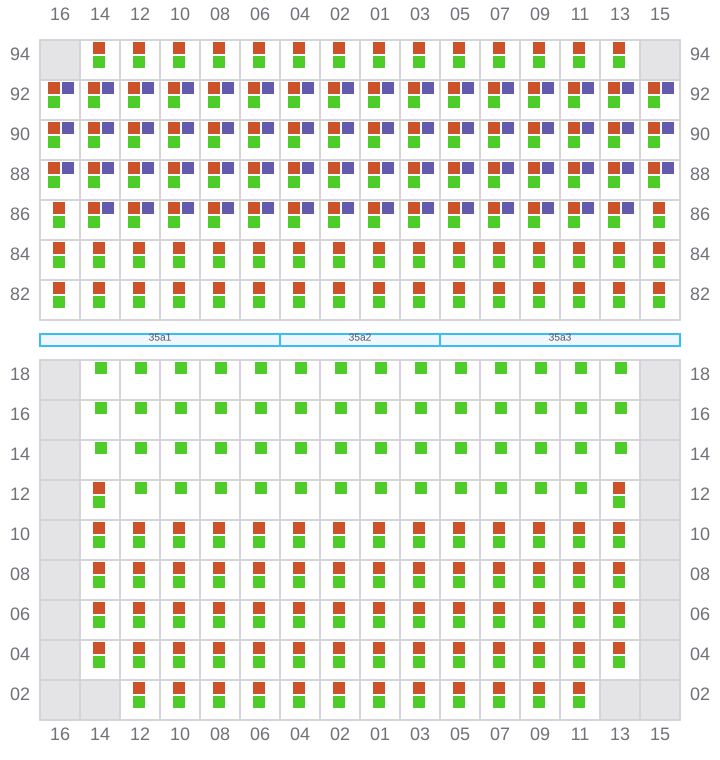

035 (036)
- →
![Bay 035 view and slots of APL MINNESOTA](/vessel-images/408ed2d8-8347-4928-a198-8fe119bd418f-b035.png?v=1711143833130)

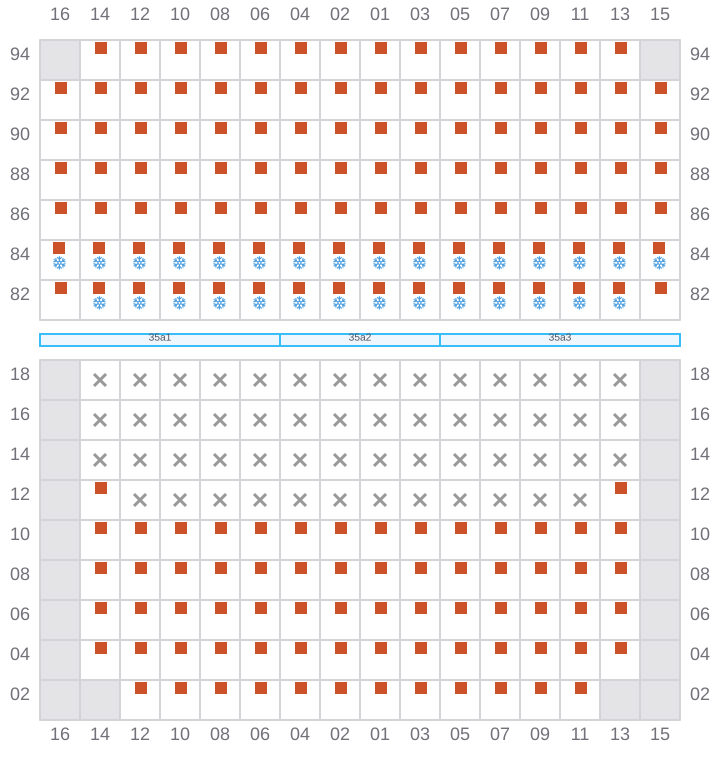

037
- ←
- → / ?
![Bay 037 view and slots of APL MINNESOTA](/vessel-images/408ed2d8-8347-4928-a198-8fe119bd418f-b037.png?v=1711143833130)
039 (040)
- →
![Bay 039 view and slots of APL MINNESOTA](/vessel-images/408ed2d8-8347-4928-a198-8fe119bd418f-b039.png?v=1711143833130)

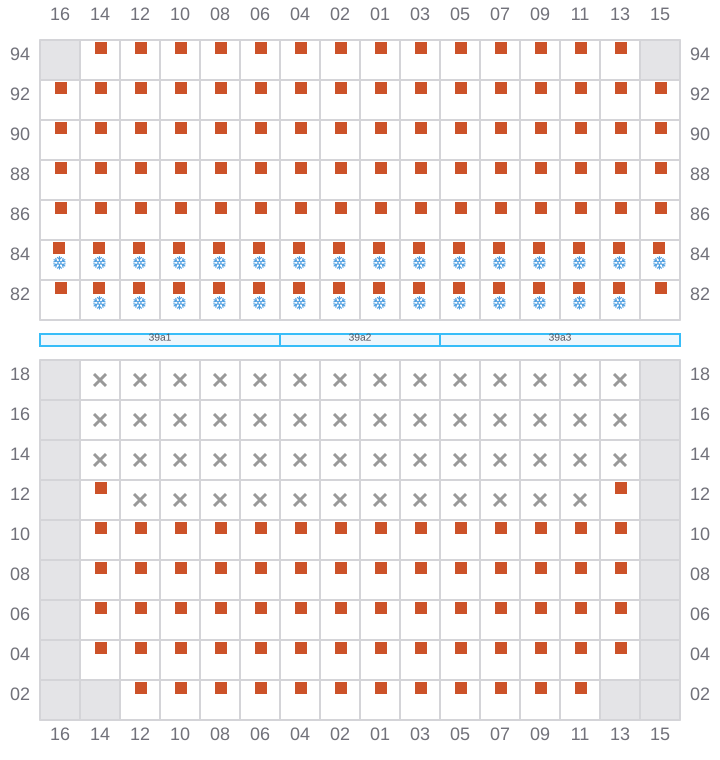

041
- ←
- → / ?
![Bay 041 view and slots of APL MINNESOTA](/vessel-images/408ed2d8-8347-4928-a198-8fe119bd418f-b041.png?v=1711143833130)

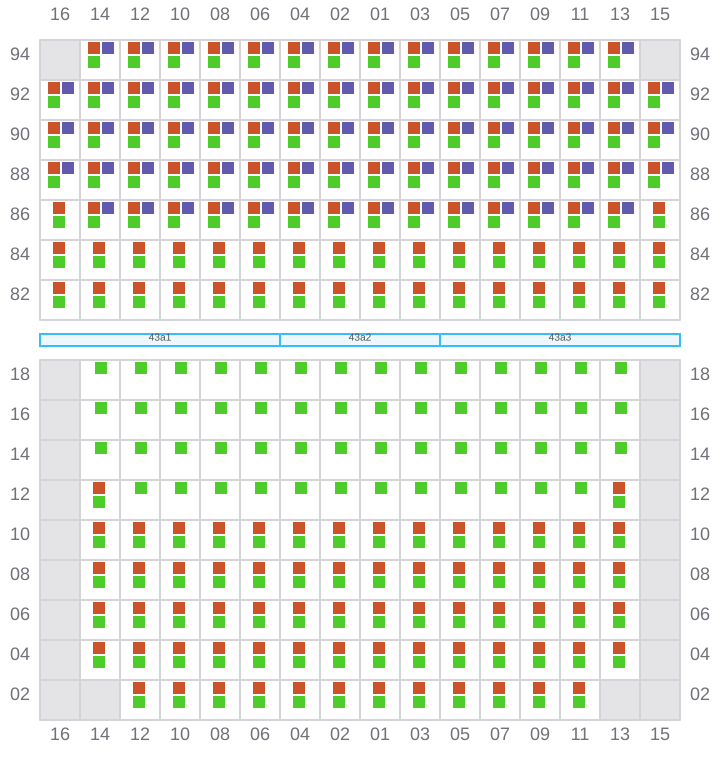

043 (044)
- →
![Bay 043 view and slots of APL MINNESOTA](/vessel-images/408ed2d8-8347-4928-a198-8fe119bd418f-b043.png?v=1711143833130)

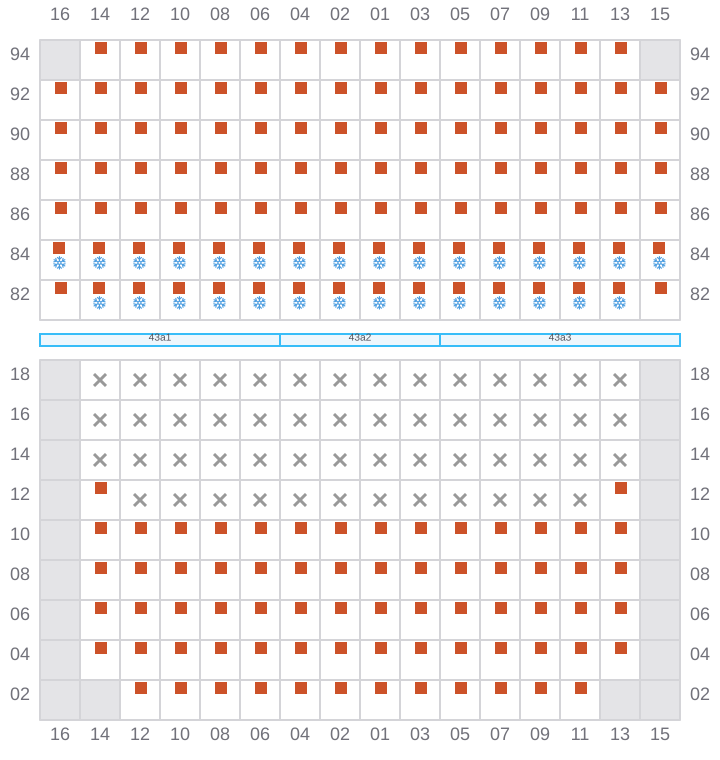

045
- ←
- → / ?
![Bay 045 view and slots of APL MINNESOTA](/vessel-images/408ed2d8-8347-4928-a198-8fe119bd418f-b045.png?v=1711143833130)

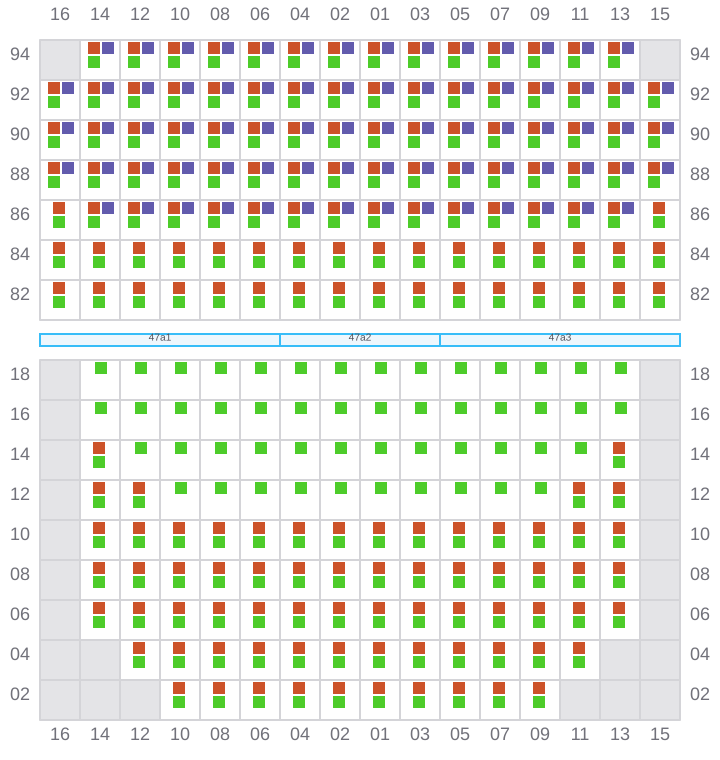

047 (048)
- →
![Bay 047 view and slots of APL MINNESOTA](/vessel-images/408ed2d8-8347-4928-a198-8fe119bd418f-b047.png?v=1711143833130)
049
- ←
- → / ?
![Bay 049 view and slots of APL MINNESOTA](/vessel-images/408ed2d8-8347-4928-a198-8fe119bd418f-b049.png?v=1711143833130)

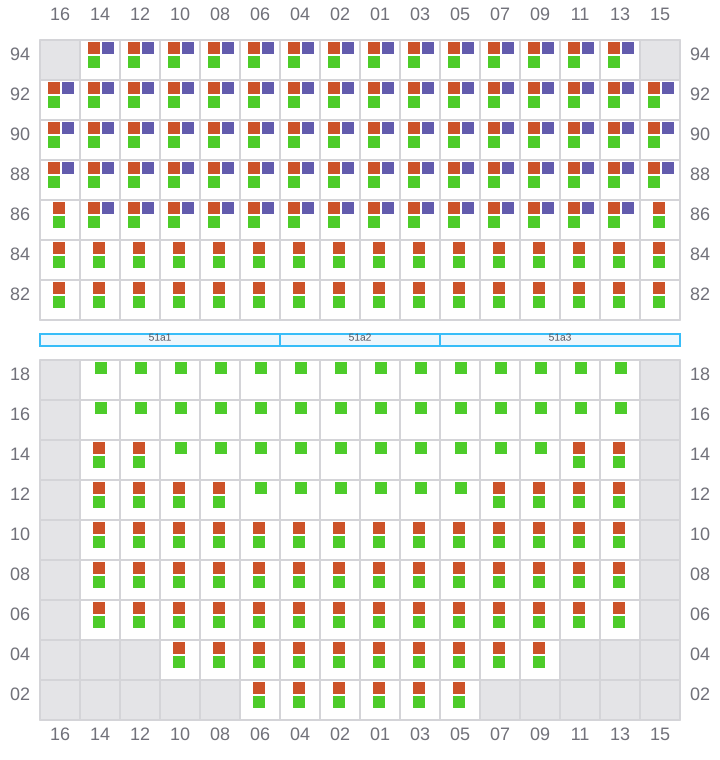

051 (052)
- →
![Bay 051 view and slots of APL MINNESOTA](/vessel-images/408ed2d8-8347-4928-a198-8fe119bd418f-b051.png?v=1711143833130)

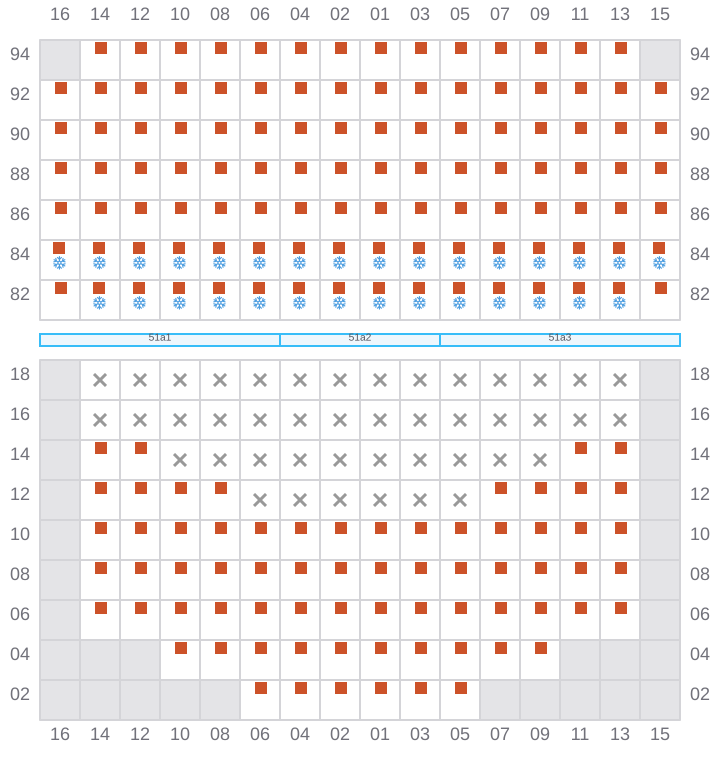

053
- ←
- → / ?
![Bay 053 view and slots of APL MINNESOTA](/vessel-images/408ed2d8-8347-4928-a198-8fe119bd418f-b053.png?v=1711143833130)

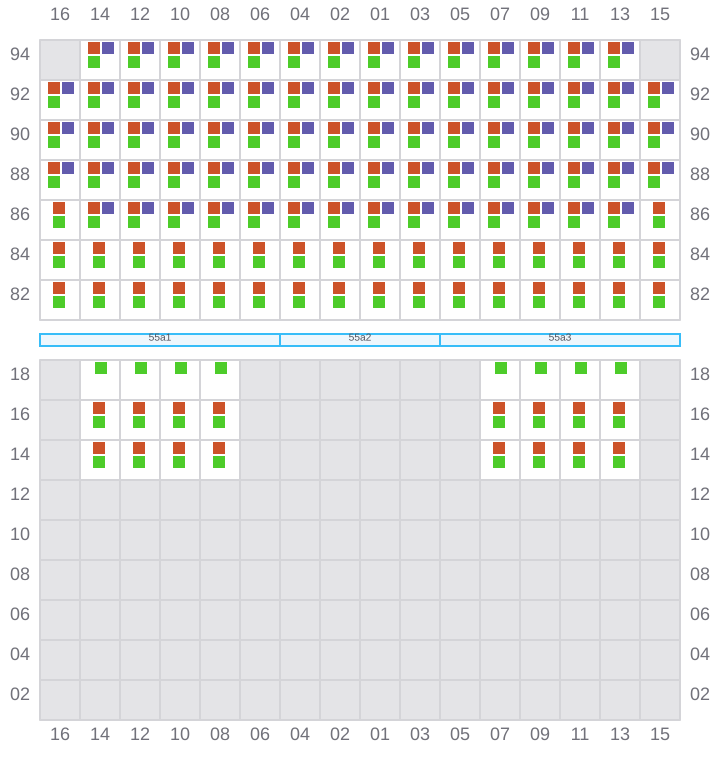

055 (056)
- →
![Bay 055 view and slots of APL MINNESOTA](/vessel-images/408ed2d8-8347-4928-a198-8fe119bd418f-b055.png?v=1711143833130)

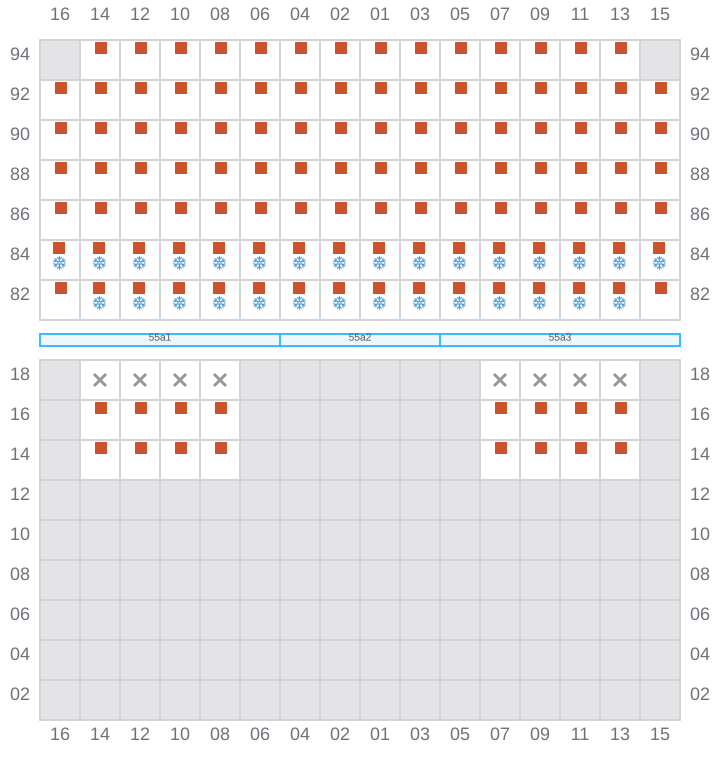

057
- ←
- → / ?
![Bay 057 view and slots of APL MINNESOTA](/vessel-images/408ed2d8-8347-4928-a198-8fe119bd418f-b057.png?v=1711143833130)
059 (060)
- →
![Bay 059 view and slots of APL MINNESOTA](/vessel-images/408ed2d8-8347-4928-a198-8fe119bd418f-b059.png?v=1711143833130)

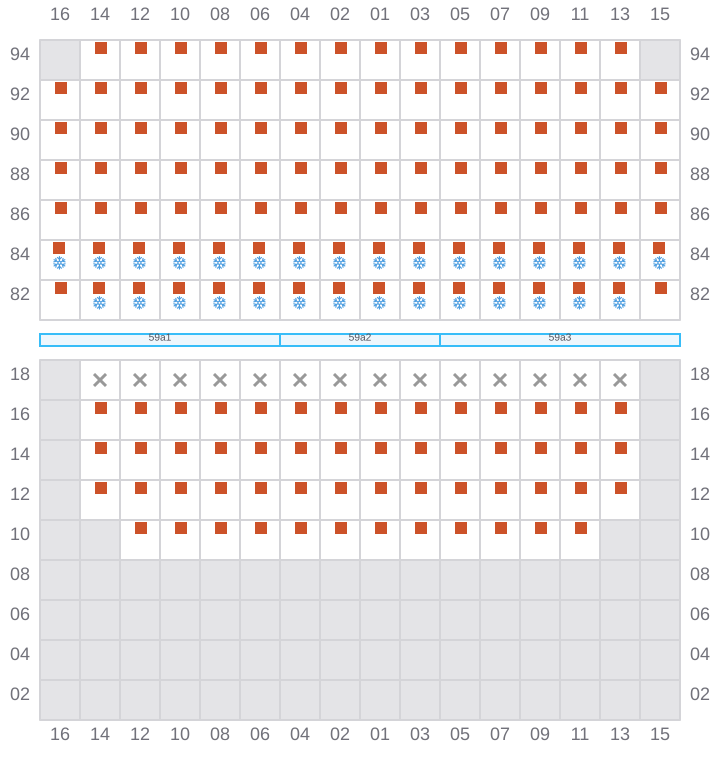

061
- ←
- → / ?
![Bay 061 view and slots of APL MINNESOTA](/vessel-images/408ed2d8-8347-4928-a198-8fe119bd418f-b061.png?v=1711143833130)

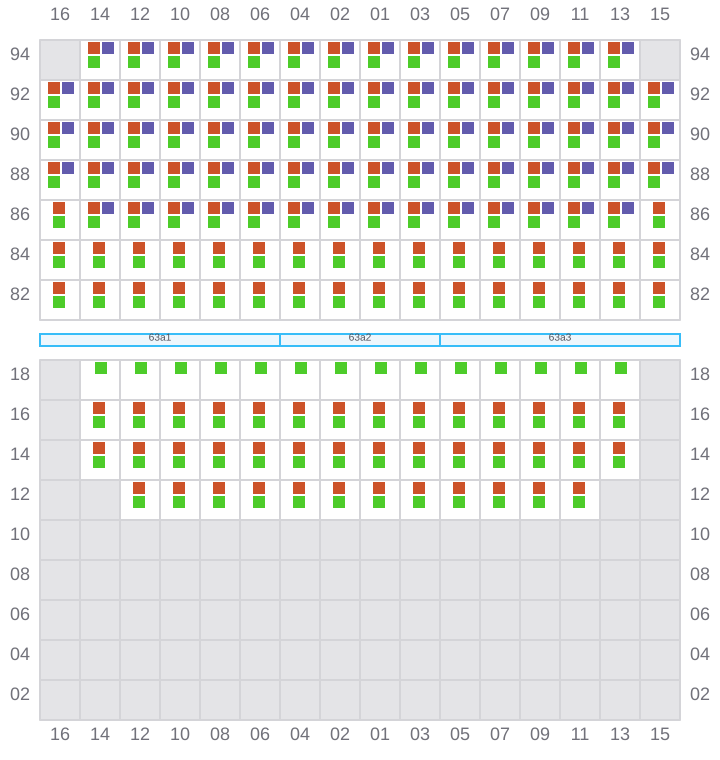

063 (064)
- →
![Bay 063 view and slots of APL MINNESOTA](/vessel-images/408ed2d8-8347-4928-a198-8fe119bd418f-b063.png?v=1711143833130)

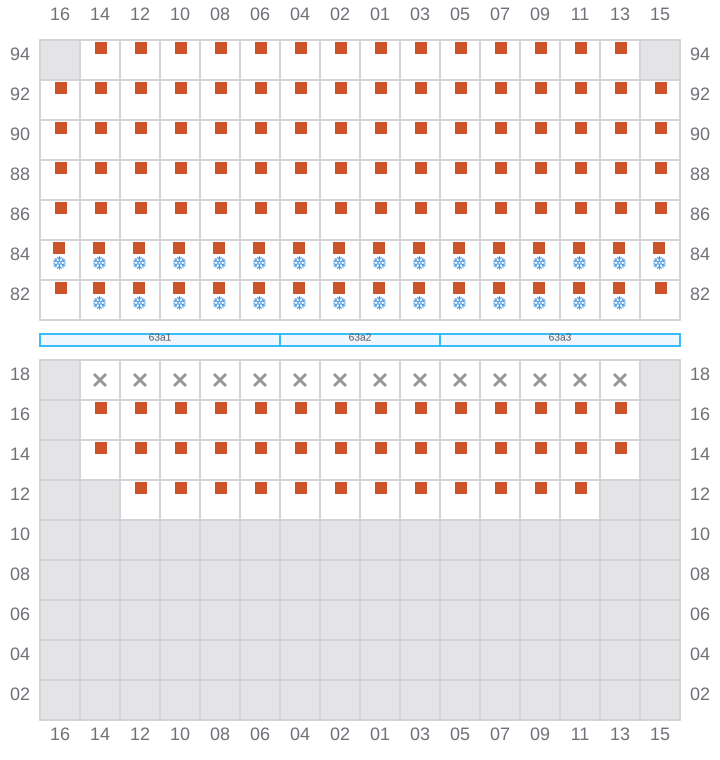

065
- ←
- → / ?
![Bay 065 view and slots of APL MINNESOTA](/vessel-images/408ed2d8-8347-4928-a198-8fe119bd418f-b065.png?v=1711143833130)

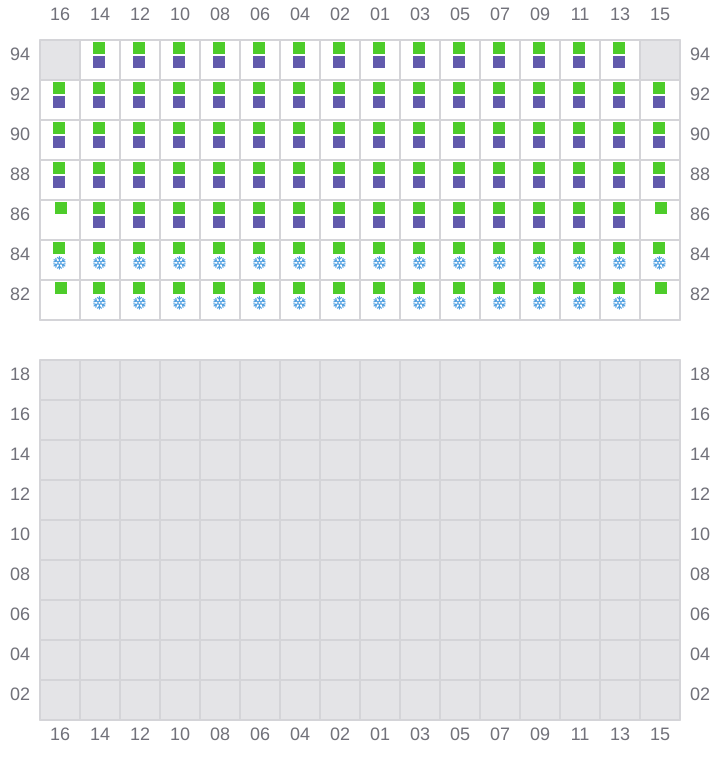

067 (068)
- → / ?
- ← / ?
![Bay 067 view and slots of APL MINNESOTA](/vessel-images/408ed2d8-8347-4928-a198-8fe119bd418f-b067.png?v=1711143833130)
