APL NEW YORK
9597484 | 9V9916 | 959748 by ********* Last update: Mon Apr 01 2024
General Info
Ship Name:APL NEW YORK
IMO Code:9597484
Call Sign:9V9916
Line Operator:959748
Class Name for Sister Ships:APL
Year Built:2013
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:073
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:20
Min Below ISO Tier:02
Total TEU:9,326
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
![Side view of APL NEW YORK](/vessel-images/6ad13d1d-546a-46b5-aac0-de6fa9881d7d-sideView.png?v=1711998247942)
Hatch-Covers View
![Deck view of APL NEW YORK](/vessel-images/6ad13d1d-546a-46b5-aac0-de6fa9881d7d-deckView.png?v=1711998247942)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

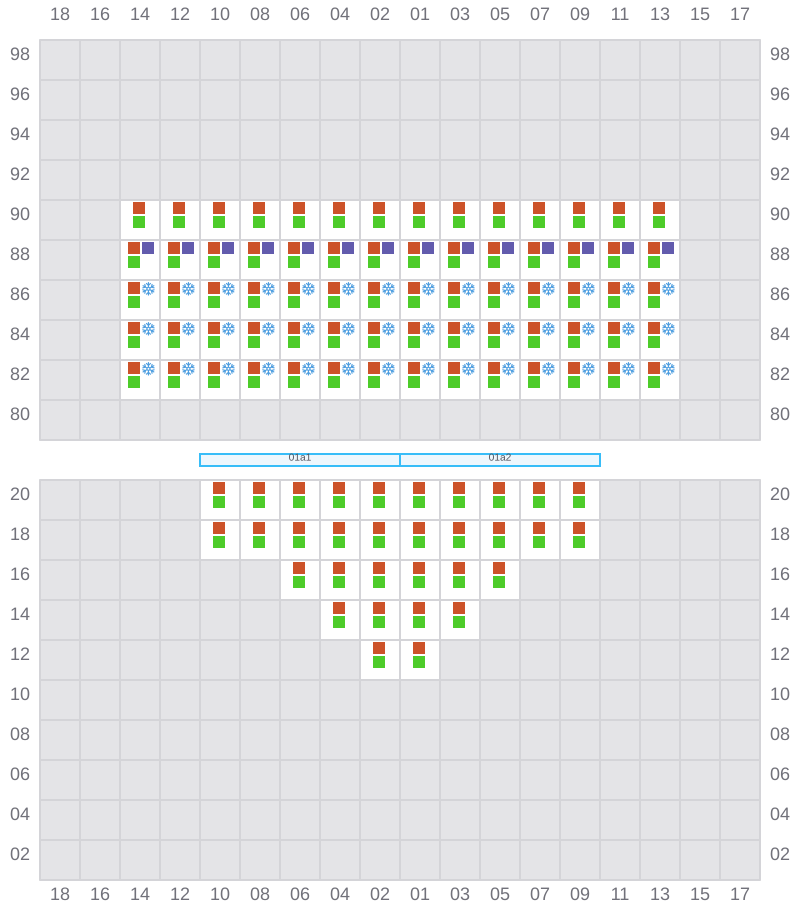

001 (002)
- →
- → / ?
![Bay 001 view and slots of APL NEW YORK](/vessel-images/6ad13d1d-546a-46b5-aac0-de6fa9881d7d-b001.png?v=1711998247942)

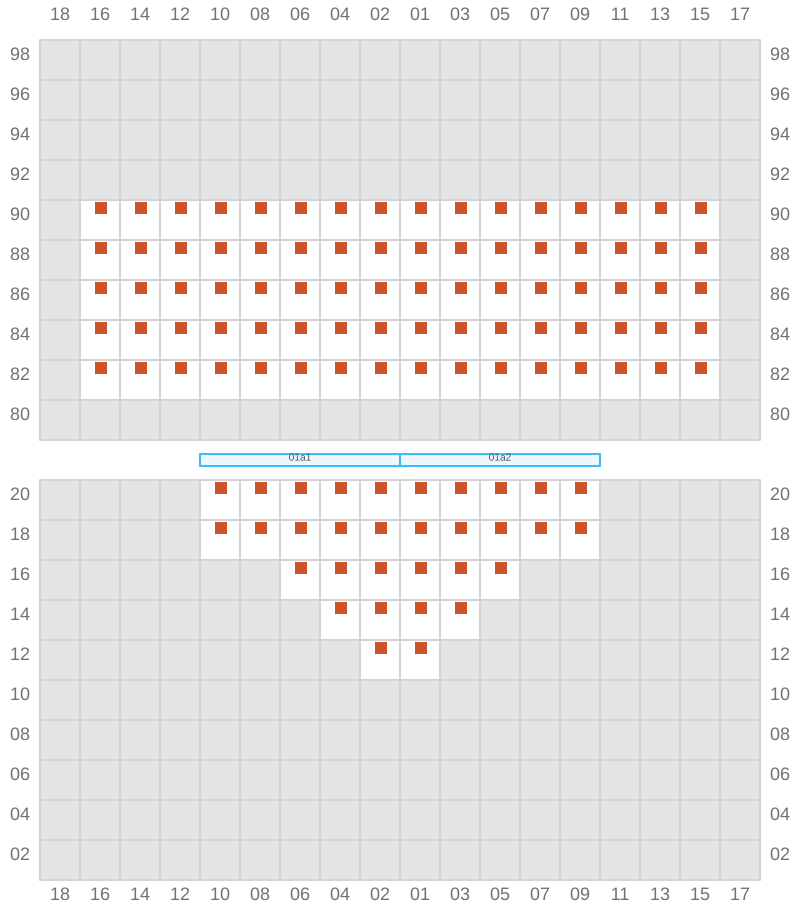

003
- ←
![Bay 003 view and slots of APL NEW YORK](/vessel-images/6ad13d1d-546a-46b5-aac0-de6fa9881d7d-b003.png?v=1711998247942)

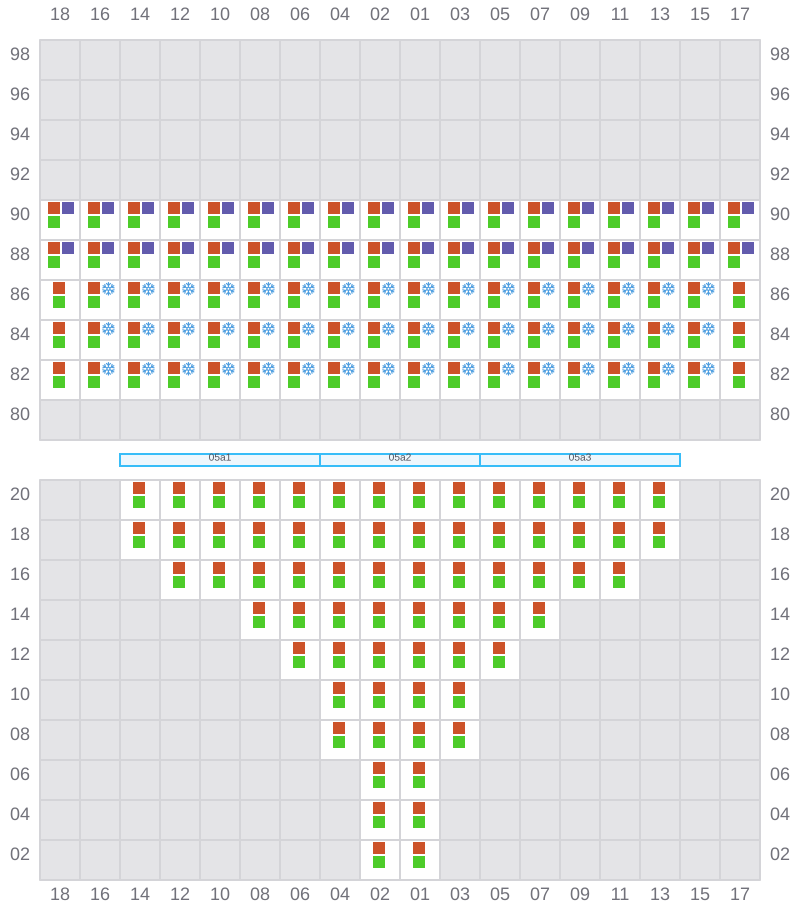

005 (006)
- →
- → / ?
![Bay 005 view and slots of APL NEW YORK](/vessel-images/6ad13d1d-546a-46b5-aac0-de6fa9881d7d-b005.png?v=1711998247942)

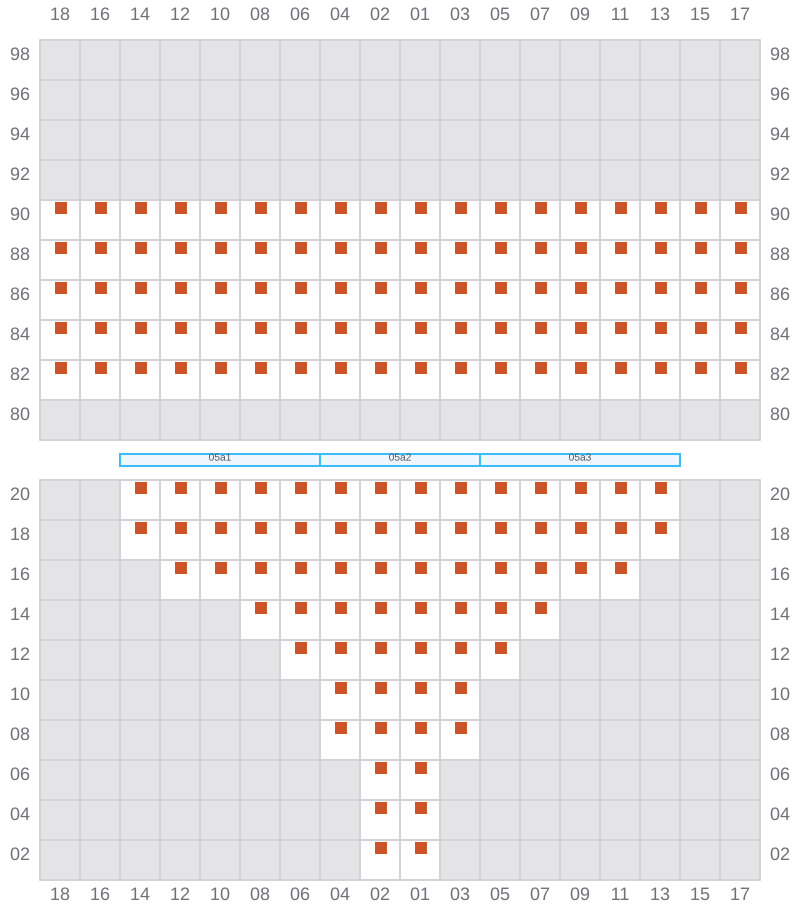

007
- ←
![Bay 007 view and slots of APL NEW YORK](/vessel-images/6ad13d1d-546a-46b5-aac0-de6fa9881d7d-b007.png?v=1711998247942)

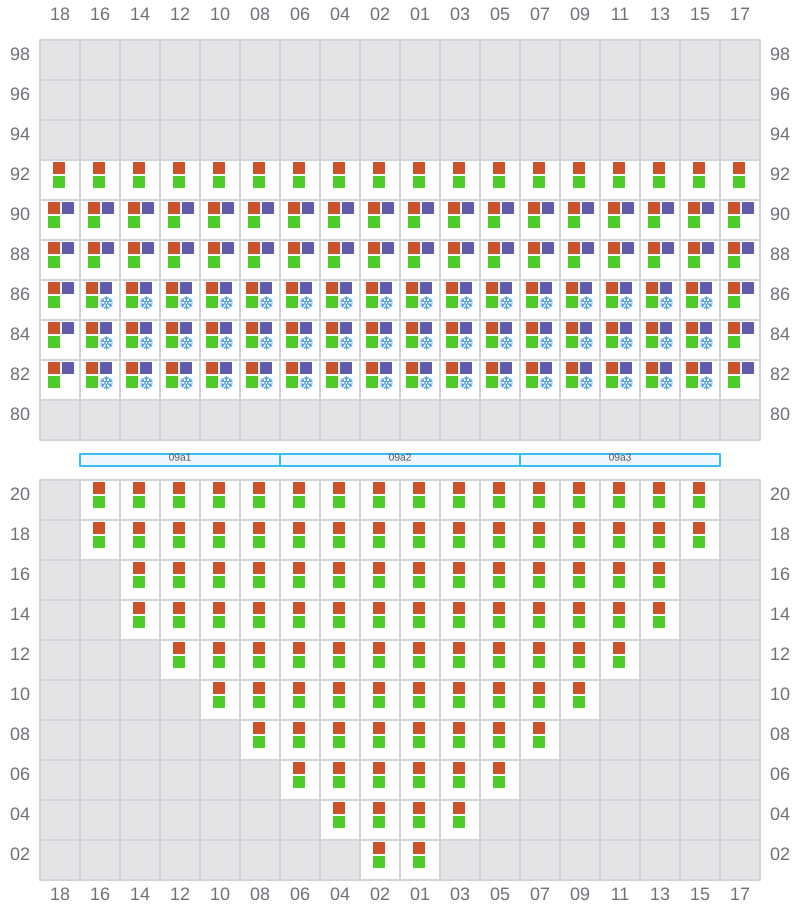

009 (010)
- →
- → / ?
![Bay 009 view and slots of APL NEW YORK](/vessel-images/6ad13d1d-546a-46b5-aac0-de6fa9881d7d-b009.png?v=1711998247942)

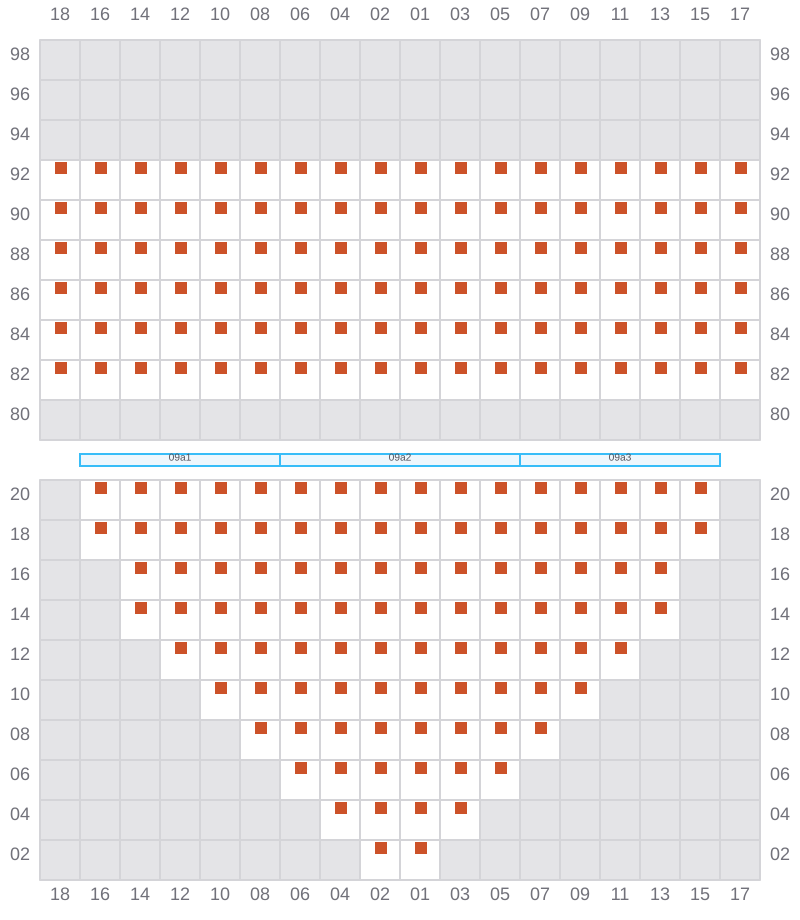

011
- ←
![Bay 011 view and slots of APL NEW YORK](/vessel-images/6ad13d1d-546a-46b5-aac0-de6fa9881d7d-b011.png?v=1711998247942)

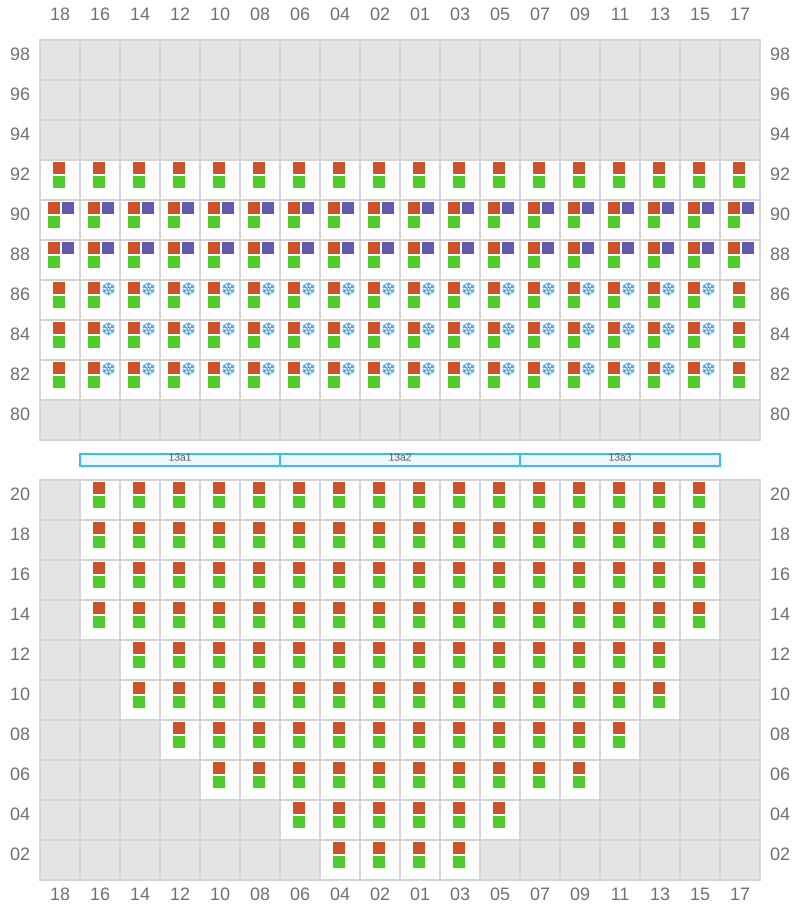

013 (014)
- →
- → / ?
![Bay 013 view and slots of APL NEW YORK](/vessel-images/6ad13d1d-546a-46b5-aac0-de6fa9881d7d-b013.png?v=1711998247942)

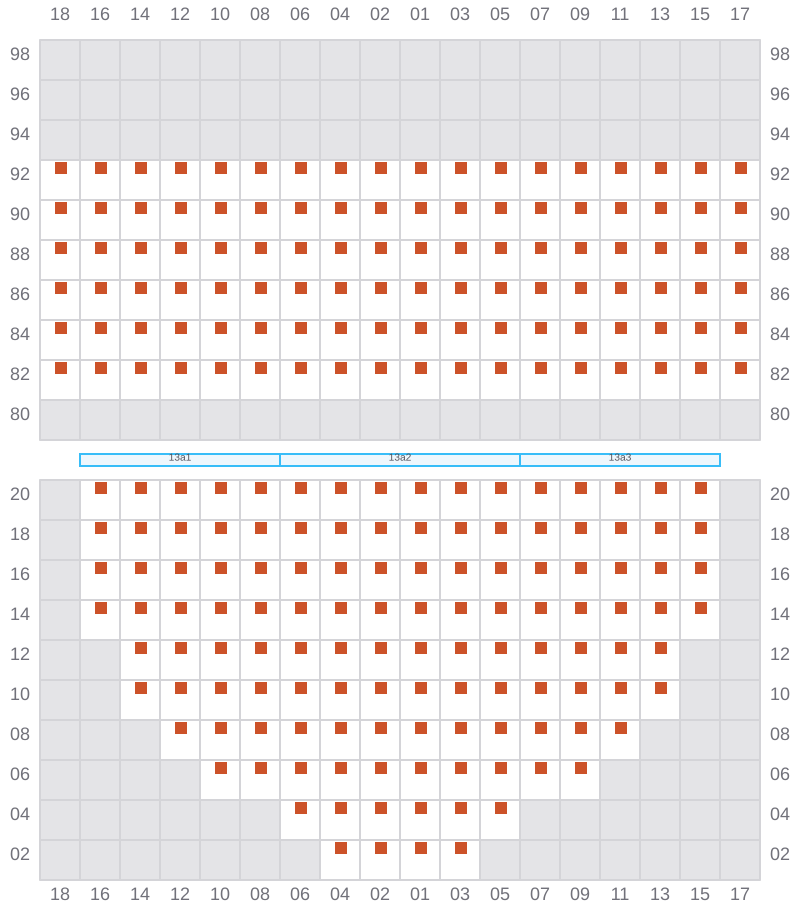

015
- ←
![Bay 015 view and slots of APL NEW YORK](/vessel-images/6ad13d1d-546a-46b5-aac0-de6fa9881d7d-b015.png?v=1711998247942)

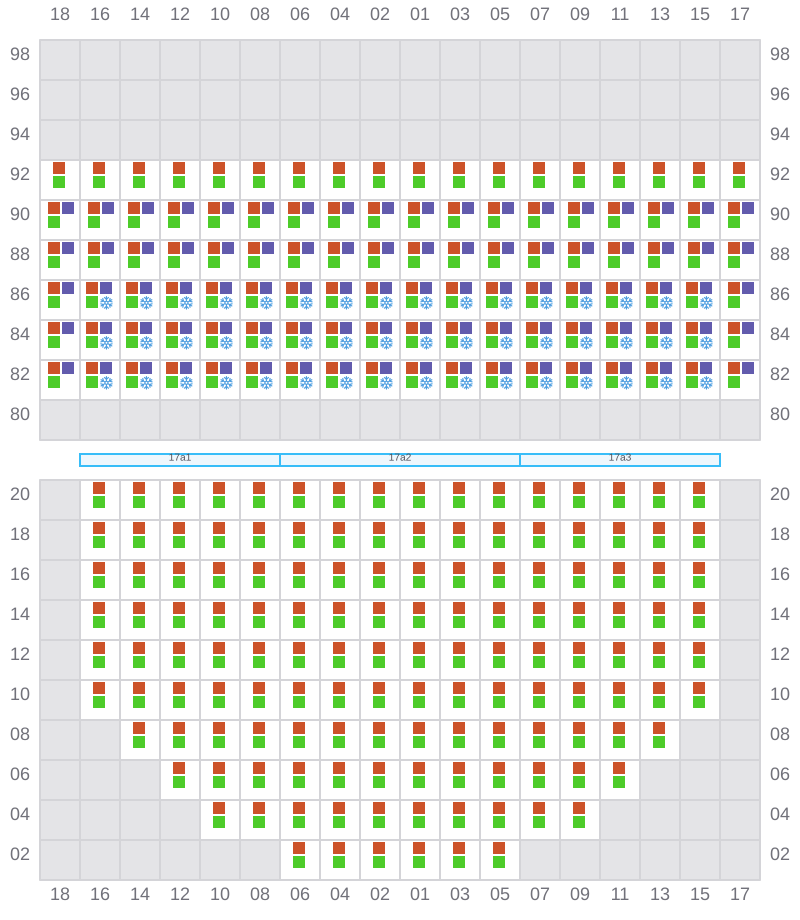

017 (018)
- →
- → / ?
![Bay 017 view and slots of APL NEW YORK](/vessel-images/6ad13d1d-546a-46b5-aac0-de6fa9881d7d-b017.png?v=1711998247942)

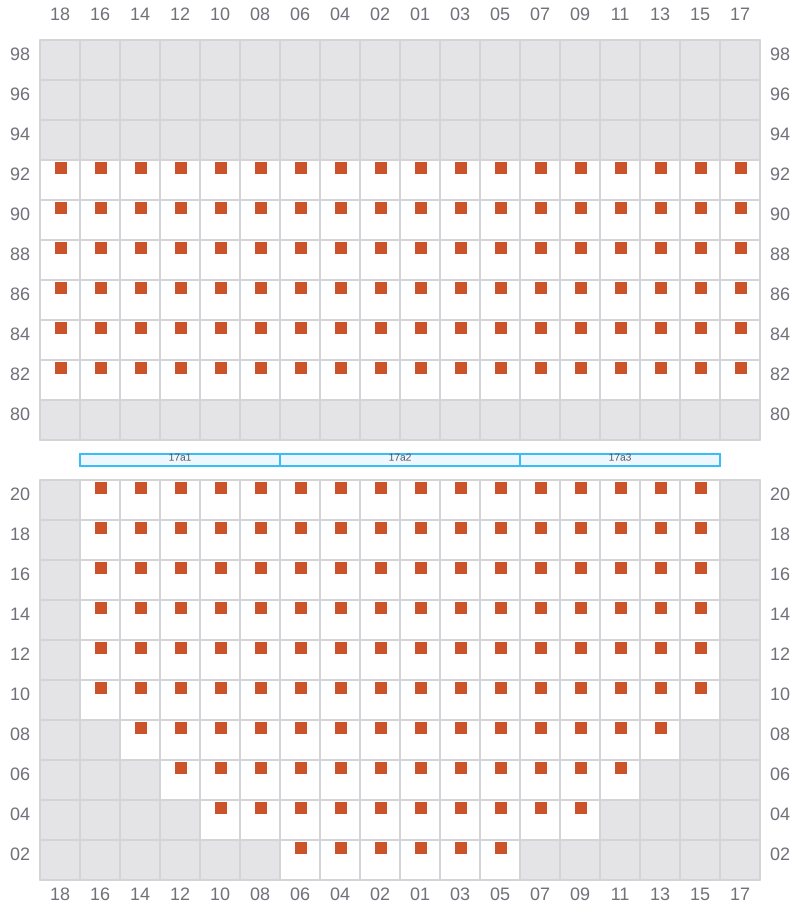

019
- ←
![Bay 019 view and slots of APL NEW YORK](/vessel-images/6ad13d1d-546a-46b5-aac0-de6fa9881d7d-b019.png?v=1711998247942)

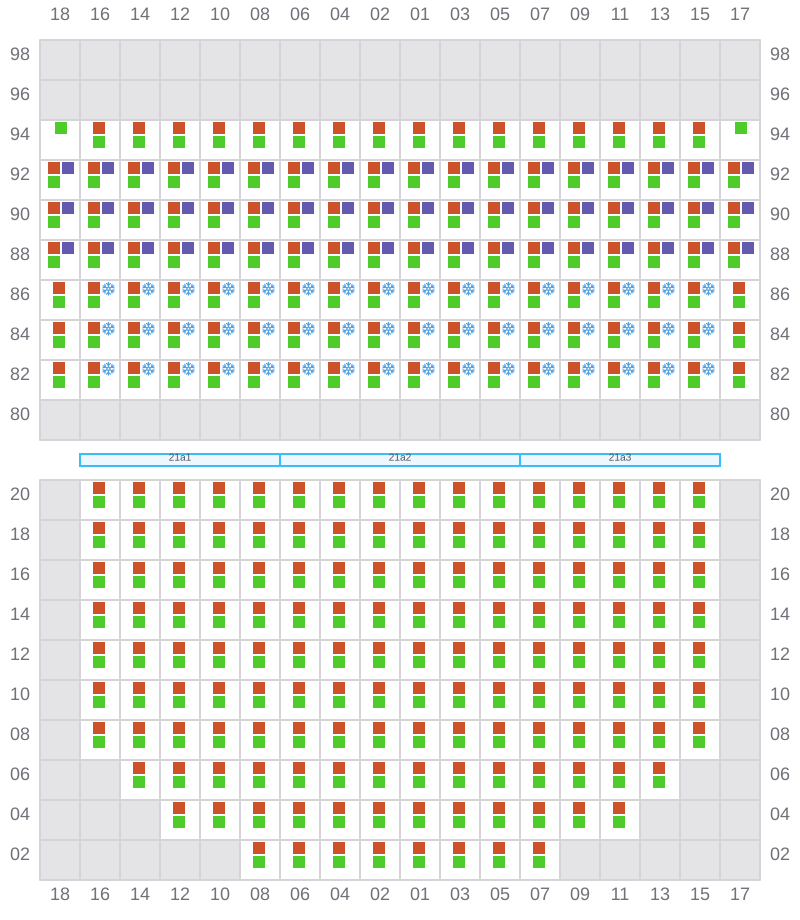

021 (022)
- →
- → / ?
![Bay 021 view and slots of APL NEW YORK](/vessel-images/6ad13d1d-546a-46b5-aac0-de6fa9881d7d-b021.png?v=1711998247942)

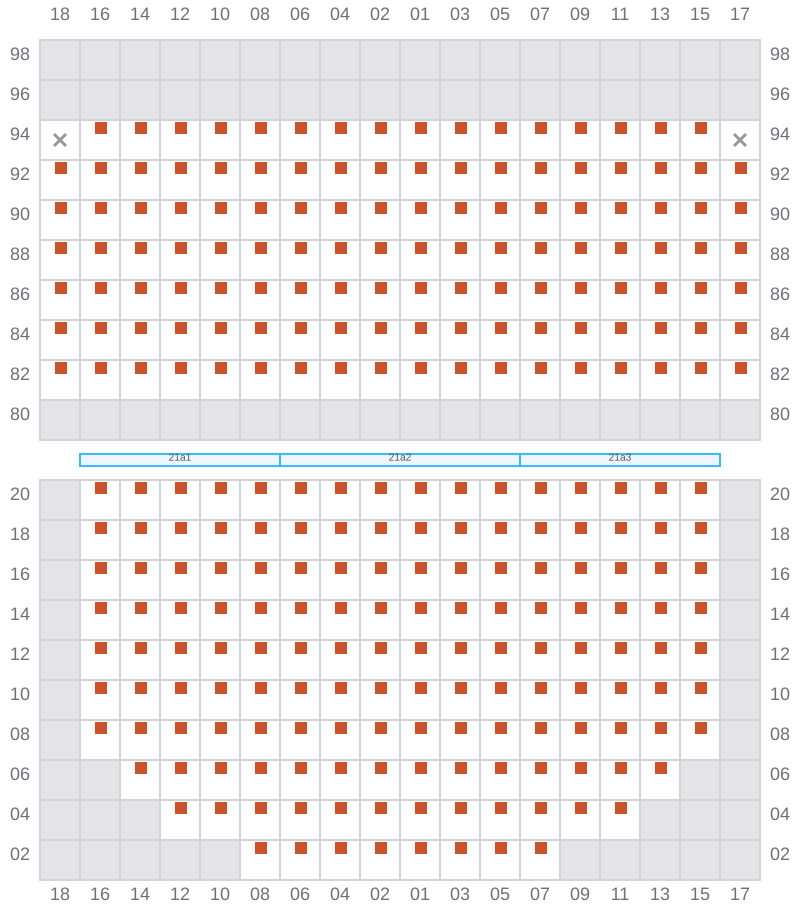

023
- ←
![Bay 023 view and slots of APL NEW YORK](/vessel-images/6ad13d1d-546a-46b5-aac0-de6fa9881d7d-b023.png?v=1711998247942)

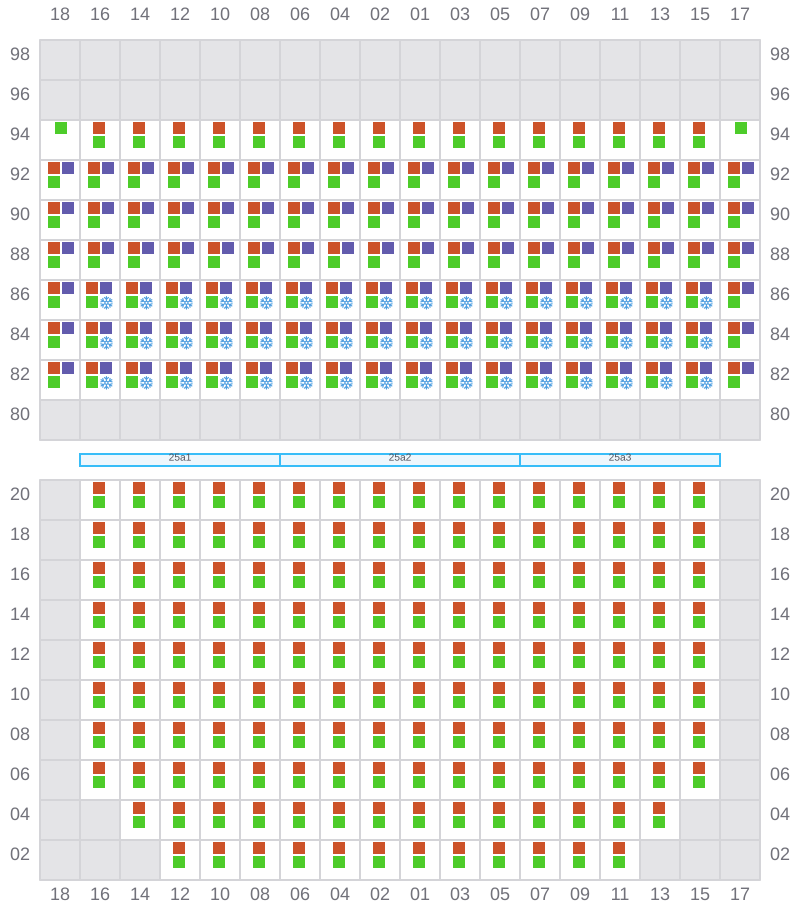

025 (026)
- →
- → / ?
![Bay 025 view and slots of APL NEW YORK](/vessel-images/6ad13d1d-546a-46b5-aac0-de6fa9881d7d-b025.png?v=1711998247942)

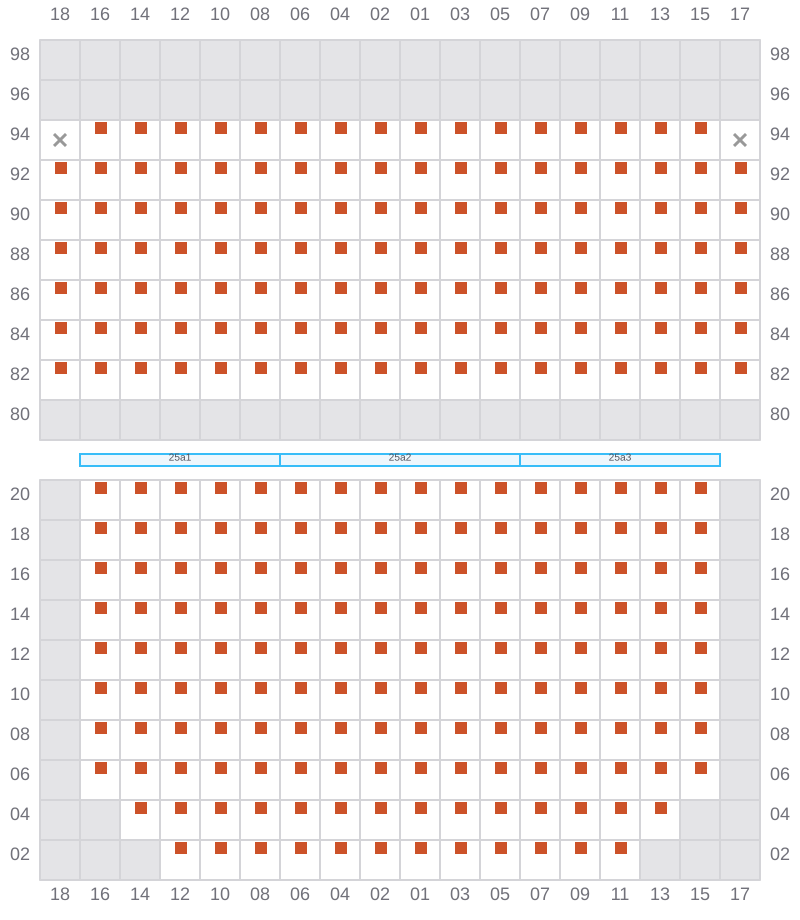

027
- ←
![Bay 027 view and slots of APL NEW YORK](/vessel-images/6ad13d1d-546a-46b5-aac0-de6fa9881d7d-b027.png?v=1711998247942)
029 (030)
- →
- → / ?
![Bay 029 view and slots of APL NEW YORK](/vessel-images/6ad13d1d-546a-46b5-aac0-de6fa9881d7d-b029.png?v=1711998247942)

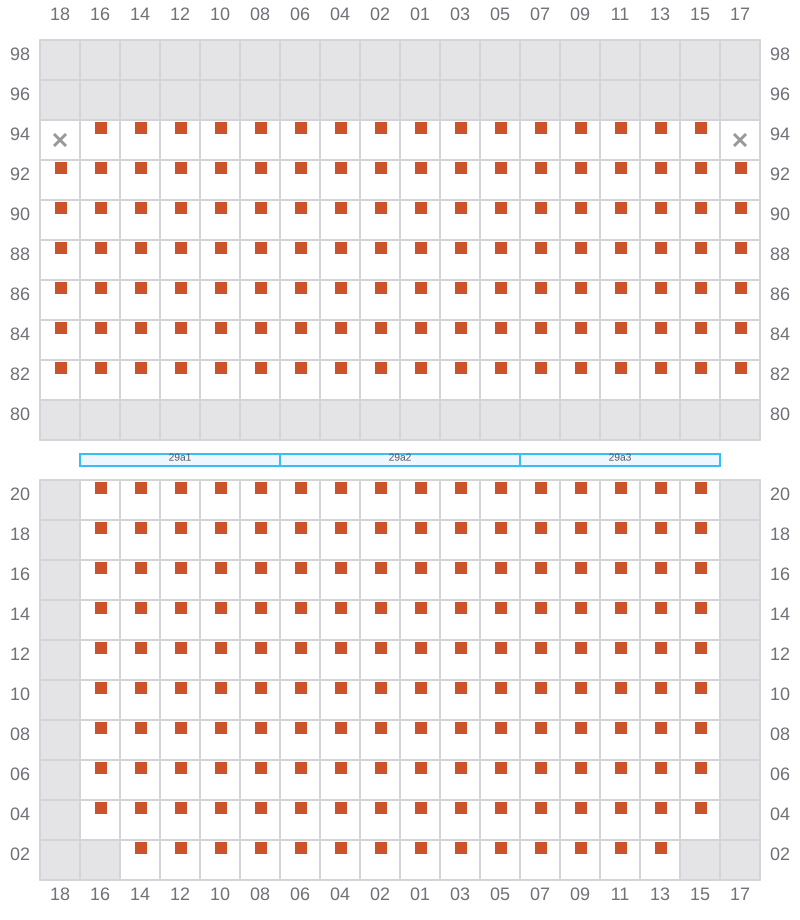

031
- ←
![Bay 031 view and slots of APL NEW YORK](/vessel-images/6ad13d1d-546a-46b5-aac0-de6fa9881d7d-b031.png?v=1711998247942)

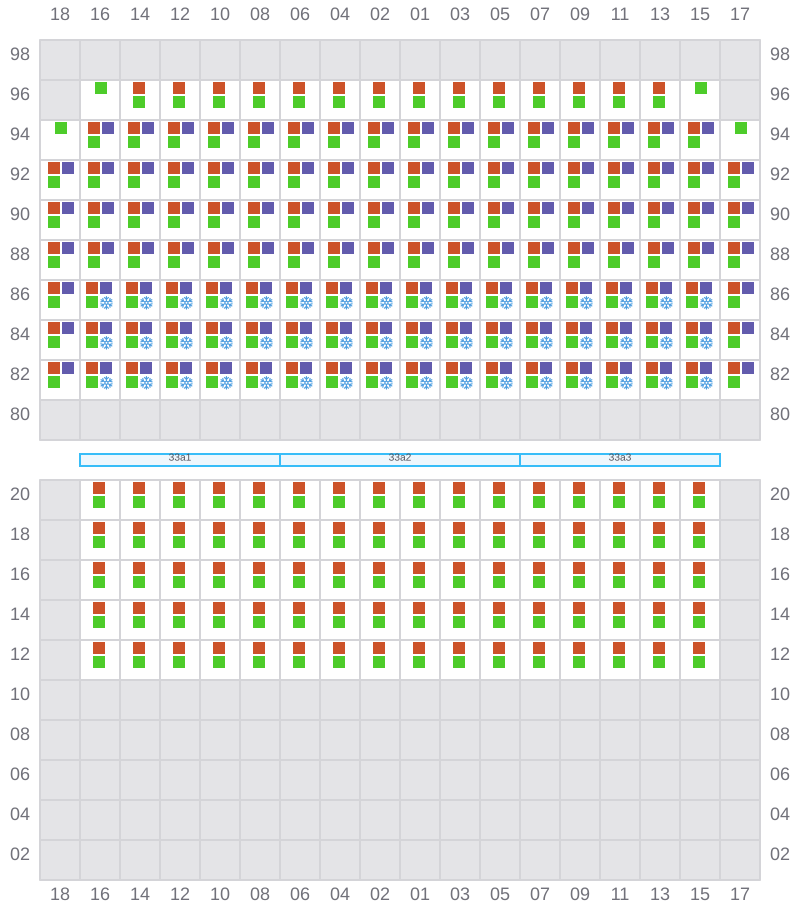

033 (034)
- →
- → / ?
![Bay 033 view and slots of APL NEW YORK](/vessel-images/6ad13d1d-546a-46b5-aac0-de6fa9881d7d-b033.png?v=1711998247942)

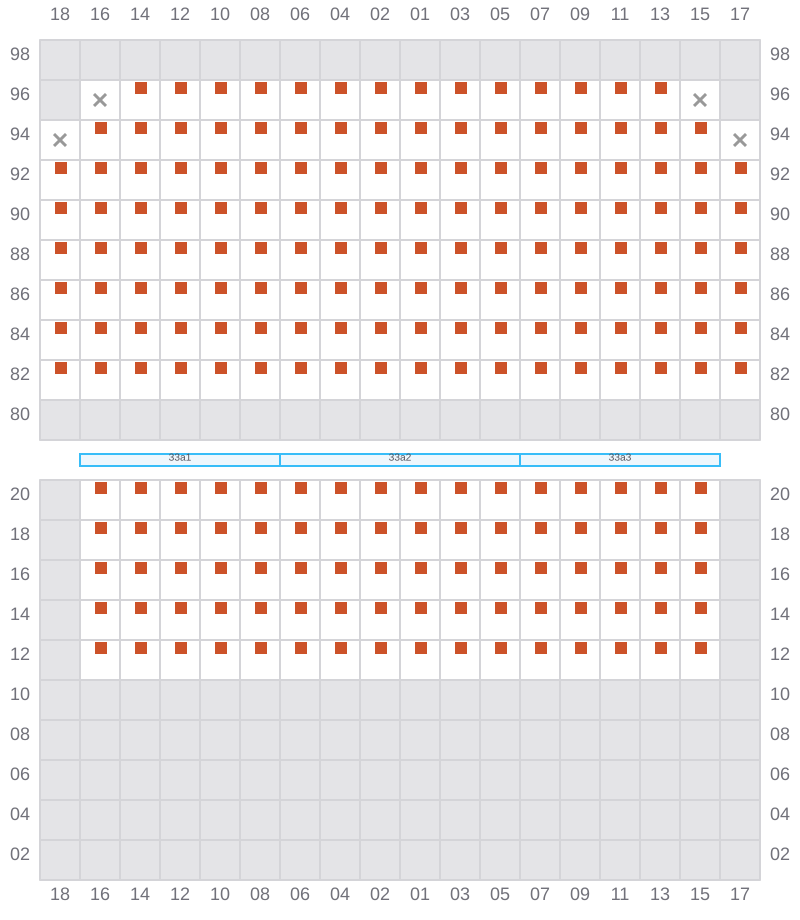

035
- ←
![Bay 035 view and slots of APL NEW YORK](/vessel-images/6ad13d1d-546a-46b5-aac0-de6fa9881d7d-b035.png?v=1711998247942)
037 (038)
- →
- → / ?
![Bay 037 view and slots of APL NEW YORK](/vessel-images/6ad13d1d-546a-46b5-aac0-de6fa9881d7d-b037.png?v=1711998247942)

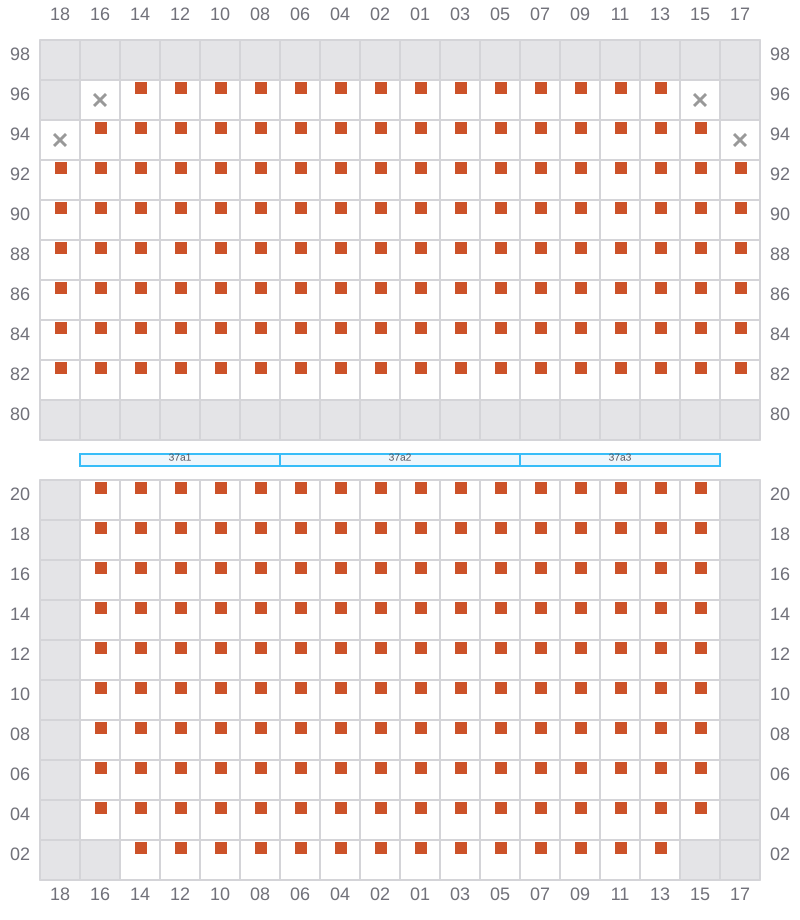

039
- ←
![Bay 039 view and slots of APL NEW YORK](/vessel-images/6ad13d1d-546a-46b5-aac0-de6fa9881d7d-b039.png?v=1711998247942)

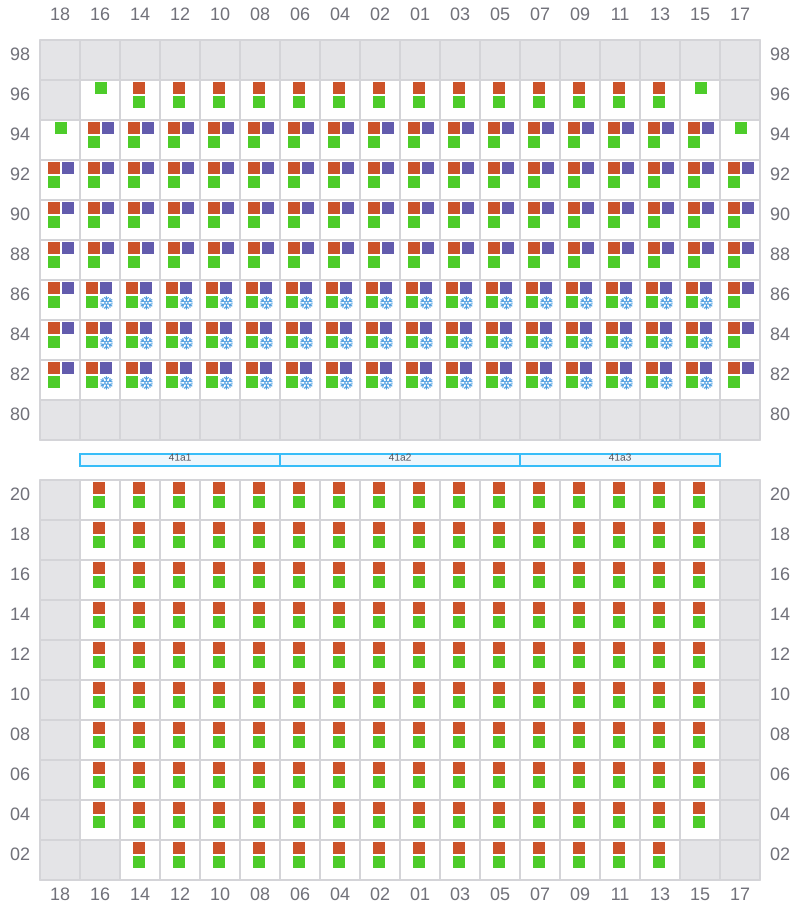

041 (042)
- →
- → / ?
![Bay 041 view and slots of APL NEW YORK](/vessel-images/6ad13d1d-546a-46b5-aac0-de6fa9881d7d-b041.png?v=1711998247942)
043
- ←
![Bay 043 view and slots of APL NEW YORK](/vessel-images/6ad13d1d-546a-46b5-aac0-de6fa9881d7d-b043.png?v=1711998247942)

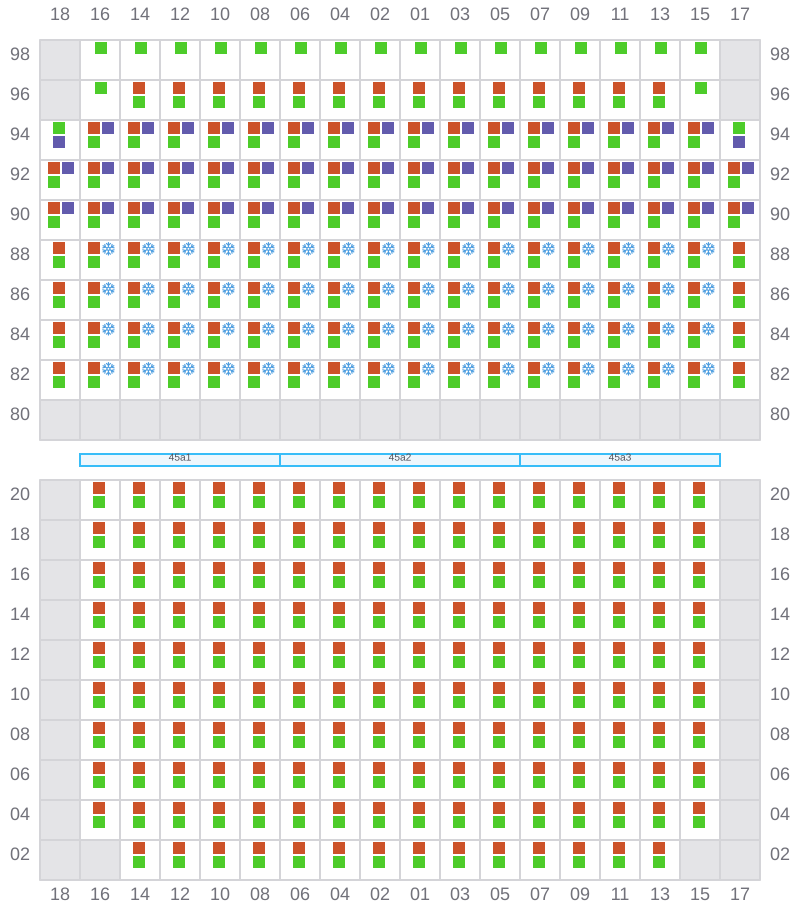

045 (046)
- →
- → / ?
![Bay 045 view and slots of APL NEW YORK](/vessel-images/6ad13d1d-546a-46b5-aac0-de6fa9881d7d-b045.png?v=1711998247942)

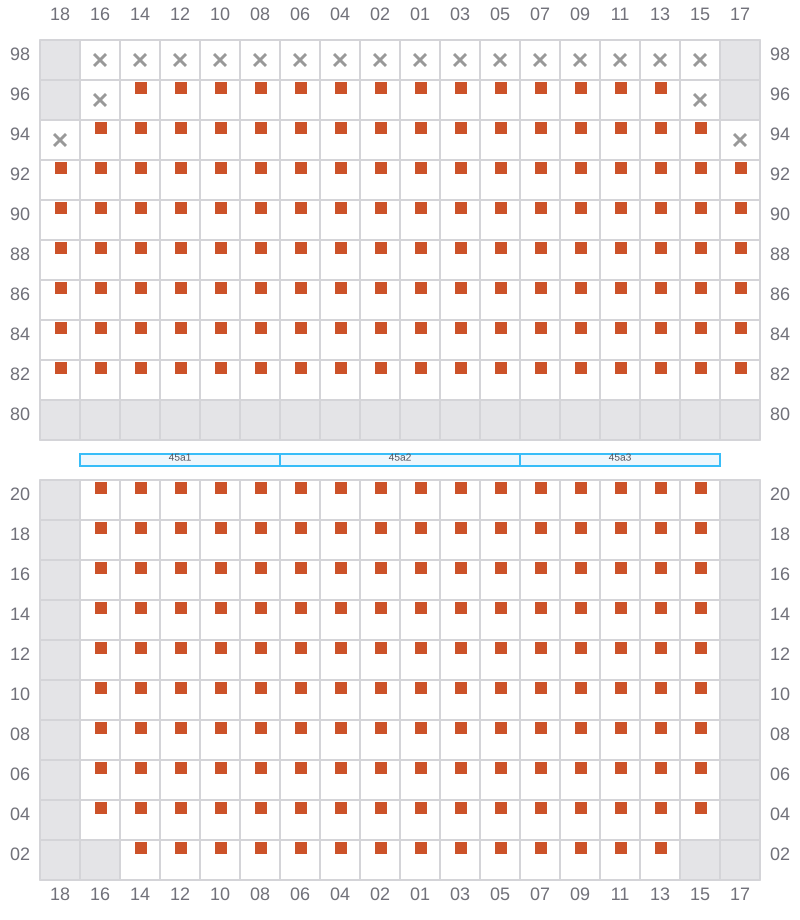

047
- ←
![Bay 047 view and slots of APL NEW YORK](/vessel-images/6ad13d1d-546a-46b5-aac0-de6fa9881d7d-b047.png?v=1711998247942)

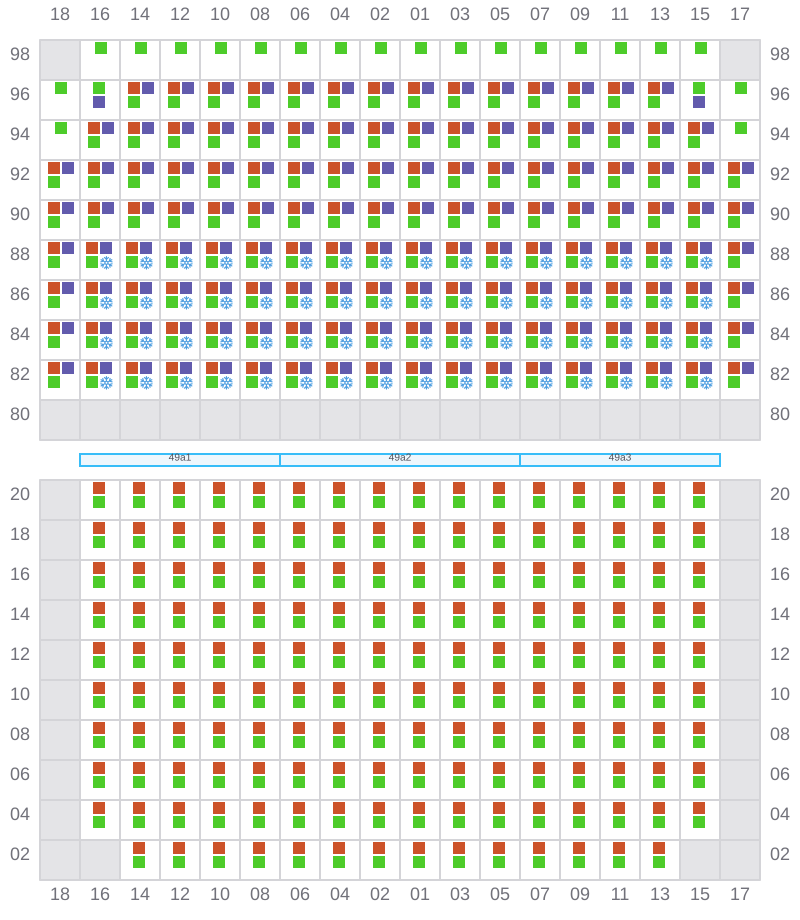

049 (050)
- →
- → / ?
![Bay 049 view and slots of APL NEW YORK](/vessel-images/6ad13d1d-546a-46b5-aac0-de6fa9881d7d-b049.png?v=1711998247942)

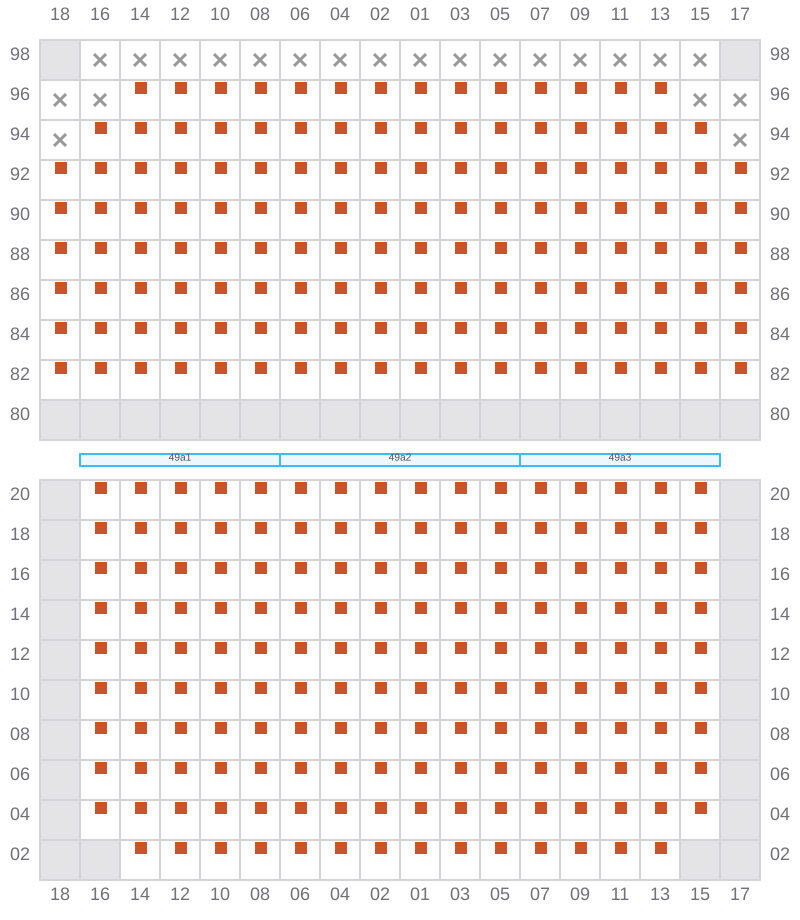

051
- ←
![Bay 051 view and slots of APL NEW YORK](/vessel-images/6ad13d1d-546a-46b5-aac0-de6fa9881d7d-b051.png?v=1711998247942)

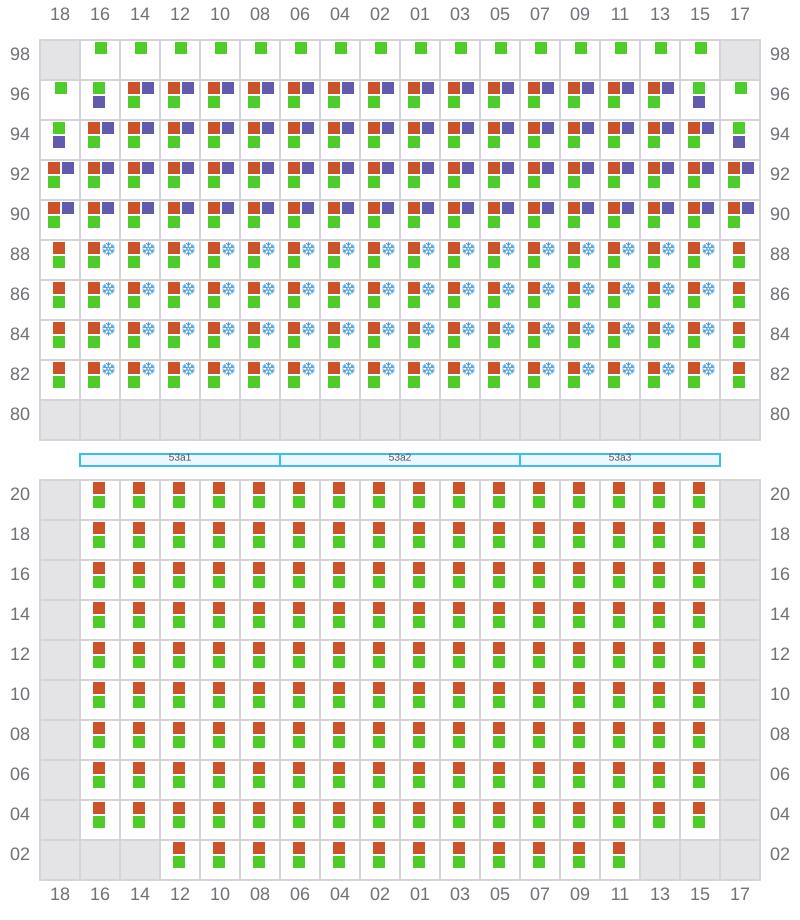

053 (054)
- →
- → / ?
![Bay 053 view and slots of APL NEW YORK](/vessel-images/6ad13d1d-546a-46b5-aac0-de6fa9881d7d-b053.png?v=1711998247942)

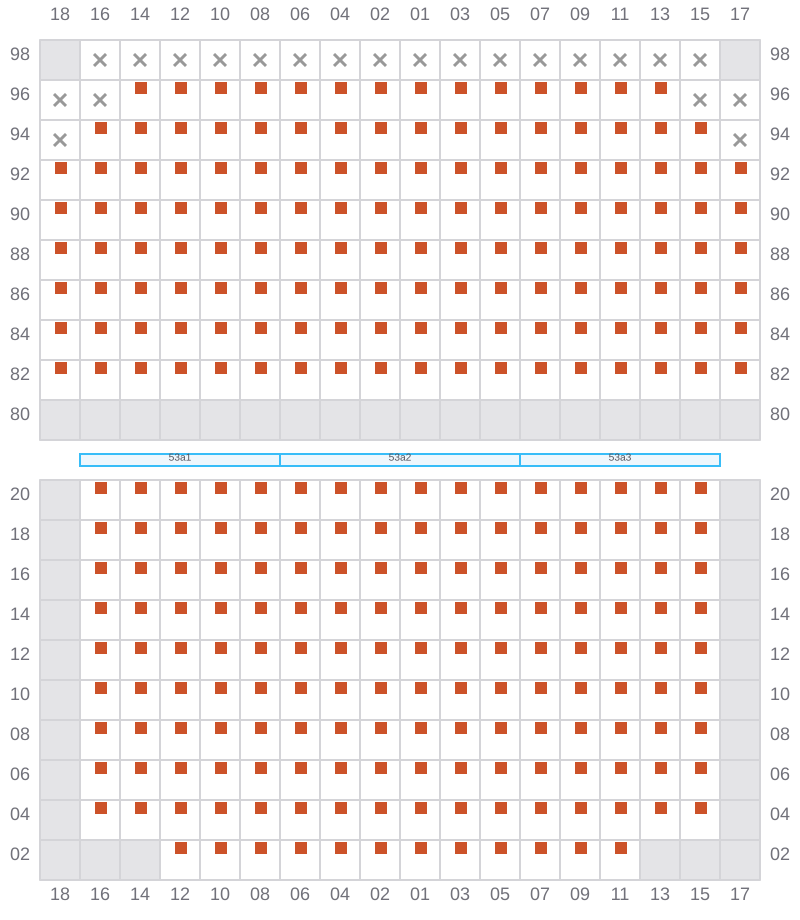

055
- ←
![Bay 055 view and slots of APL NEW YORK](/vessel-images/6ad13d1d-546a-46b5-aac0-de6fa9881d7d-b055.png?v=1711998247942)

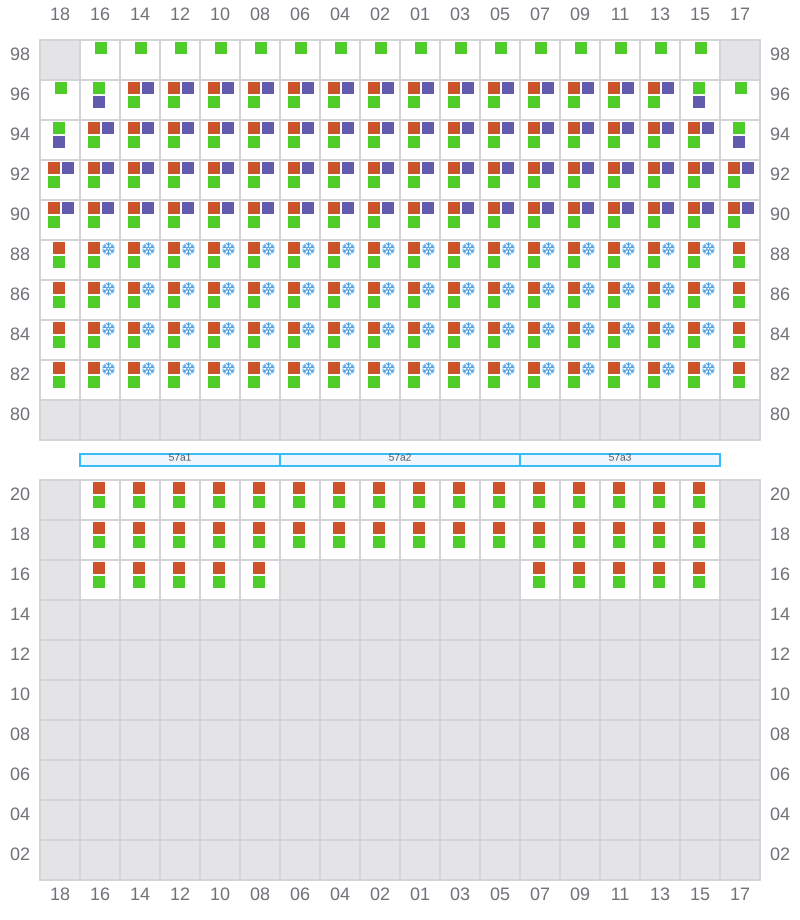

057 (058)
- →
- ← / ?
![Bay 057 view and slots of APL NEW YORK](/vessel-images/6ad13d1d-546a-46b5-aac0-de6fa9881d7d-b057.png?v=1711998247942)

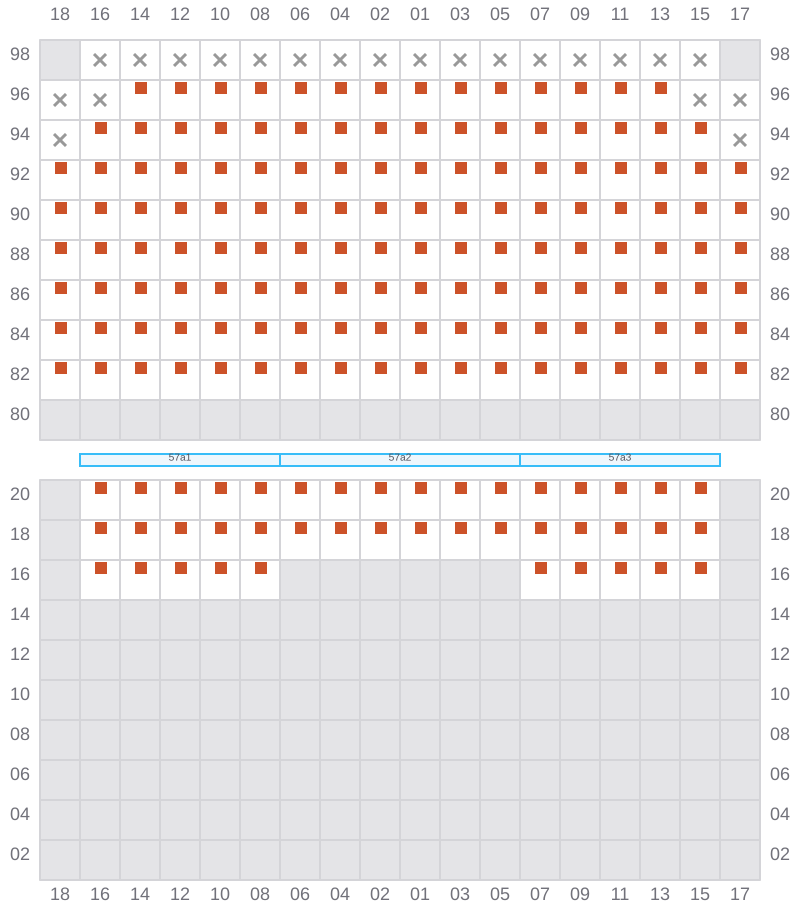

059
- ←
![Bay 059 view and slots of APL NEW YORK](/vessel-images/6ad13d1d-546a-46b5-aac0-de6fa9881d7d-b059.png?v=1711998247942)

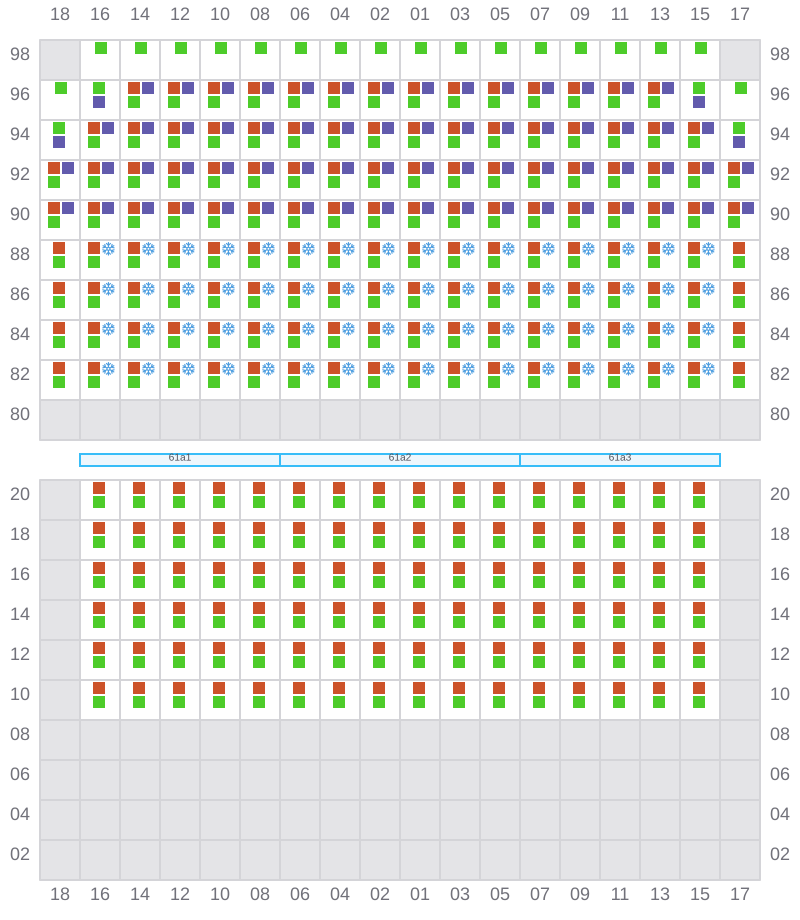

061 (062)
- →
- ← / ?
![Bay 061 view and slots of APL NEW YORK](/vessel-images/6ad13d1d-546a-46b5-aac0-de6fa9881d7d-b061.png?v=1711998247942)

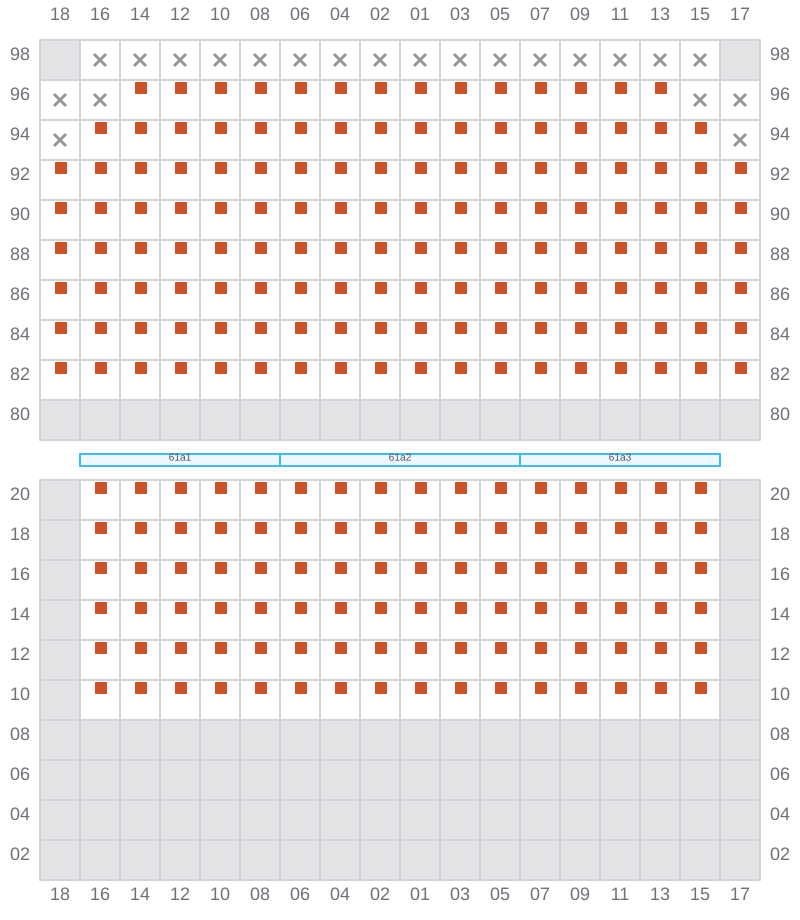

063
- ←
![Bay 063 view and slots of APL NEW YORK](/vessel-images/6ad13d1d-546a-46b5-aac0-de6fa9881d7d-b063.png?v=1711998247942)

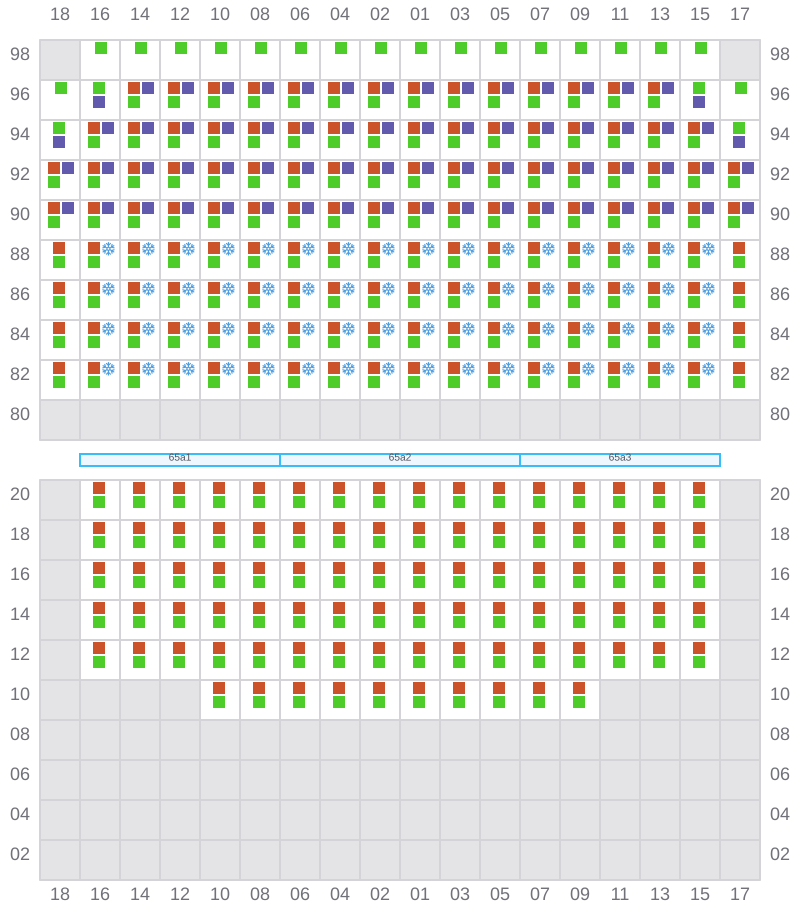

065 (066)
- →
- ← / ?
![Bay 065 view and slots of APL NEW YORK](/vessel-images/6ad13d1d-546a-46b5-aac0-de6fa9881d7d-b065.png?v=1711998247942)
067
- ←
![Bay 067 view and slots of APL NEW YORK](/vessel-images/6ad13d1d-546a-46b5-aac0-de6fa9881d7d-b067.png?v=1711998247942)

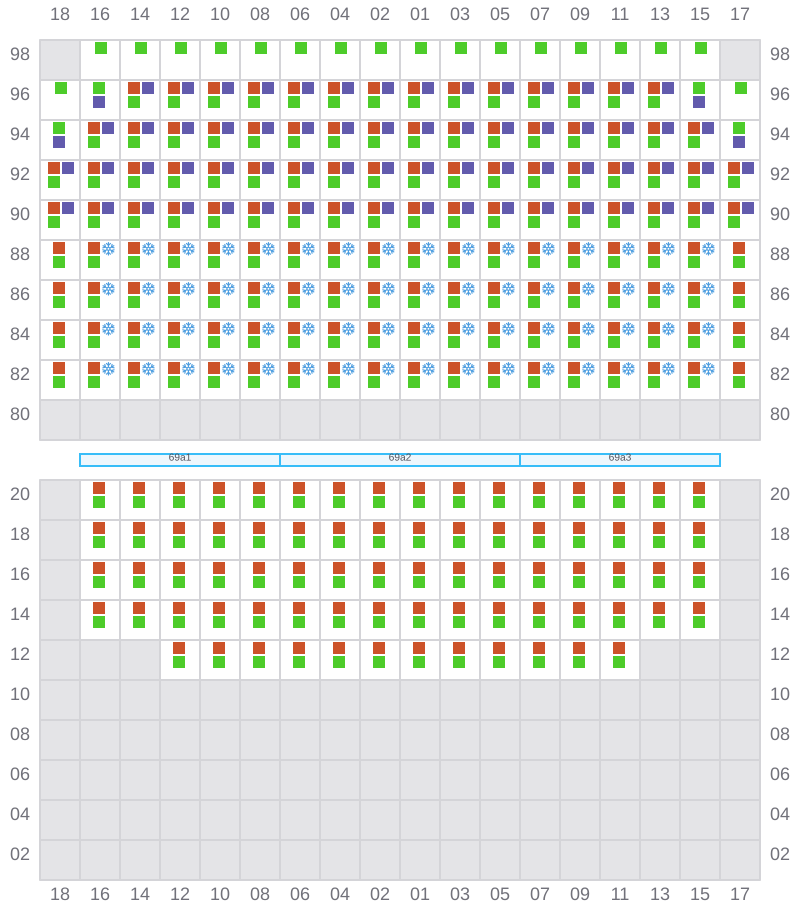

069 (070)
- →
- ← / ?
![Bay 069 view and slots of APL NEW YORK](/vessel-images/6ad13d1d-546a-46b5-aac0-de6fa9881d7d-b069.png?v=1711998247942)

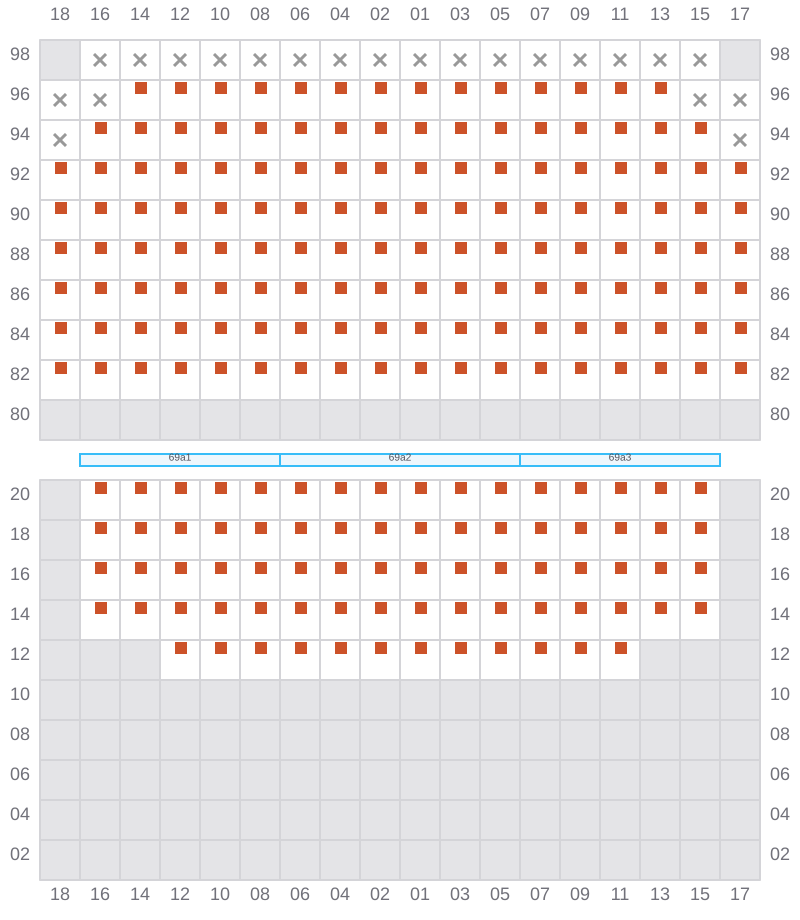

071
- ←
![Bay 071 view and slots of APL NEW YORK](/vessel-images/6ad13d1d-546a-46b5-aac0-de6fa9881d7d-b071.png?v=1711998247942)

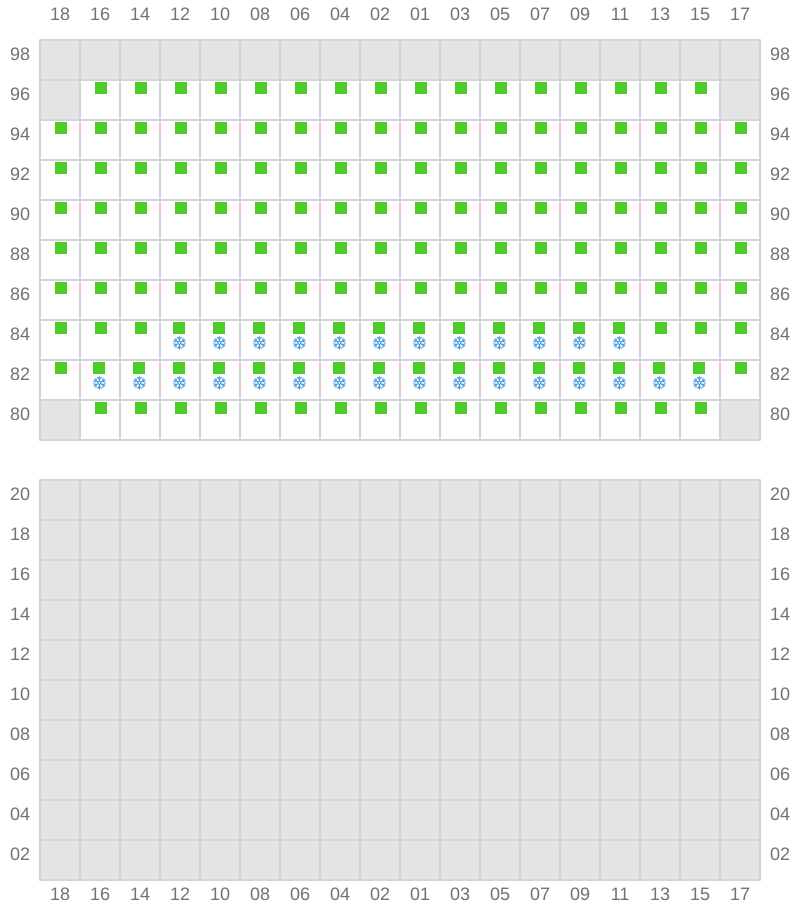

073 (074)
- → / ?
- ← / ?
![Bay 073 view and slots of APL NEW YORK](/vessel-images/6ad13d1d-546a-46b5-aac0-de6fa9881d7d-b073.png?v=1711998247942)
