APL OCEANIA
9436070 | KDAB | 9436070 by ********* Last update: Mon Mar 25 2024
General Info
Ship Name:APL OCEANIA
IMO Code:9436070
Call Sign:KDAB
Line Operator:9436070
Class Name for Sister Ships:68E
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:035
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,728
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

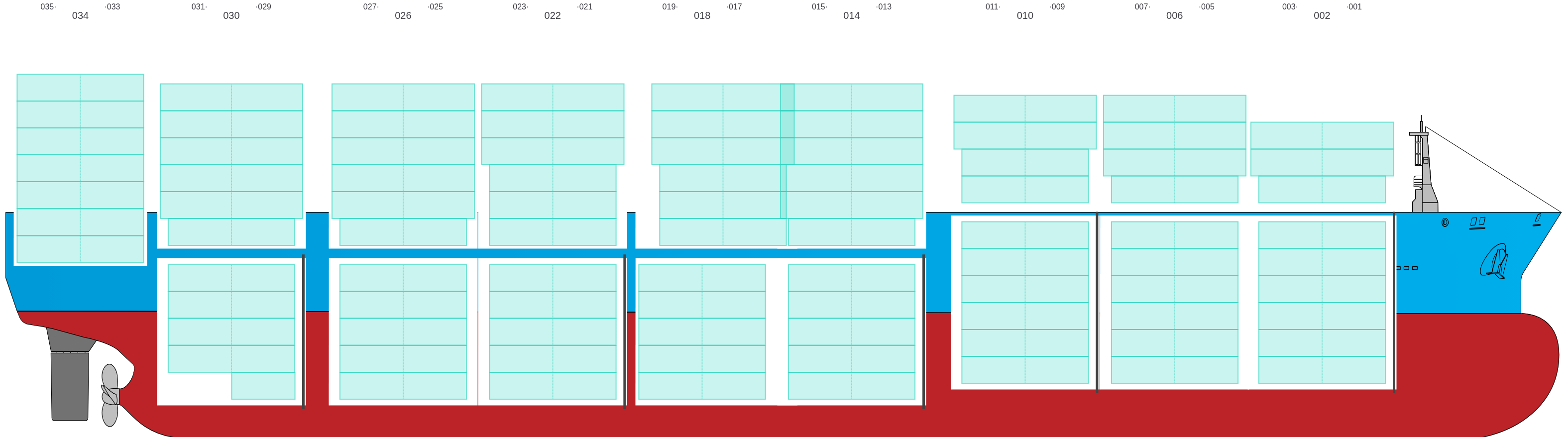

Side View
![Side view of APL OCEANIA](/vessel-images/9bf55096-9cf4-4d2b-abf1-016259b166a7-sideView.png?v=1711393518643)
Hatch-Covers View
![Deck view of APL OCEANIA](/vessel-images/9bf55096-9cf4-4d2b-abf1-016259b166a7-deckView.png?v=1711393518643)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

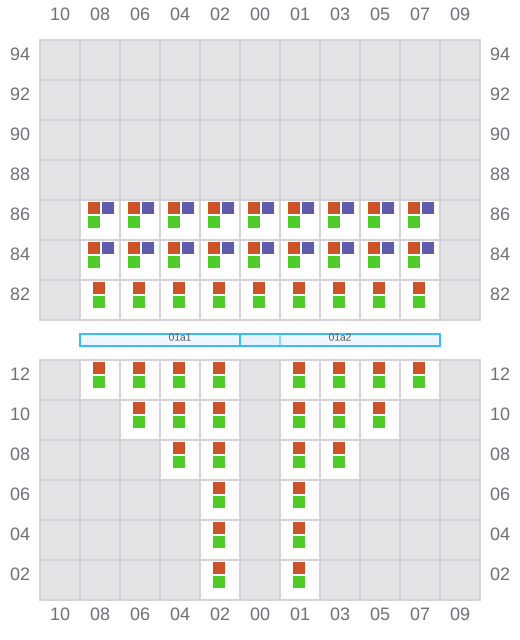

001 (002)
- →
- → / ?
![Bay 001 view and slots of APL OCEANIA](/vessel-images/9bf55096-9cf4-4d2b-abf1-016259b166a7-b001.png?v=1711393518643)

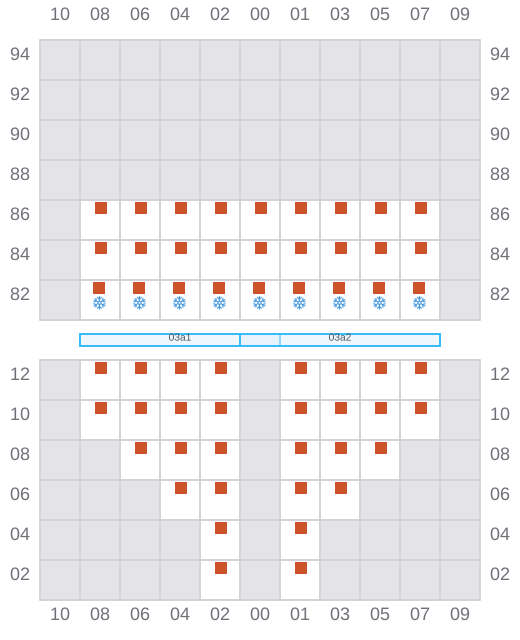

003
- ←
- → / ?
![Bay 003 view and slots of APL OCEANIA](/vessel-images/9bf55096-9cf4-4d2b-abf1-016259b166a7-b003.png?v=1711393518643)

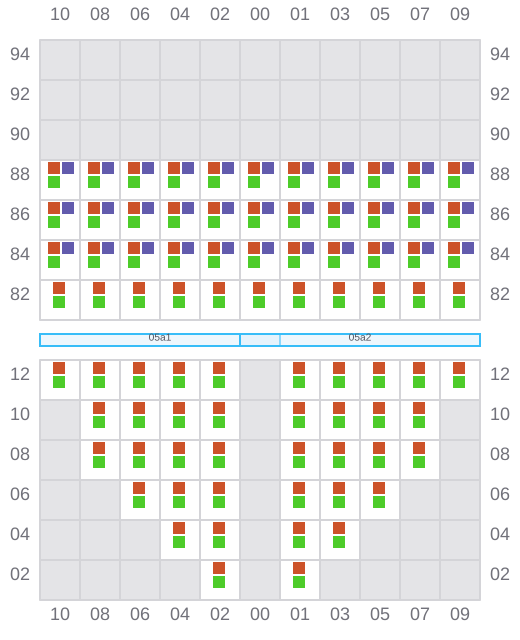

005 (006)
- →
- → / ?
![Bay 005 view and slots of APL OCEANIA](/vessel-images/9bf55096-9cf4-4d2b-abf1-016259b166a7-b005.png?v=1711393518643)

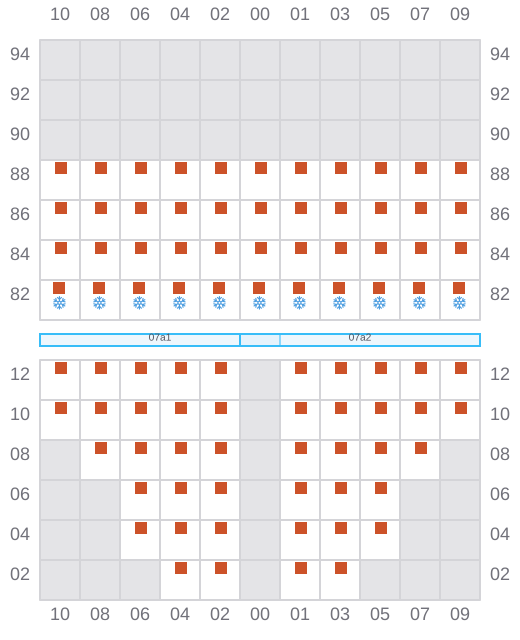

007
- ←
- → / ?
![Bay 007 view and slots of APL OCEANIA](/vessel-images/9bf55096-9cf4-4d2b-abf1-016259b166a7-b007.png?v=1711393518643)

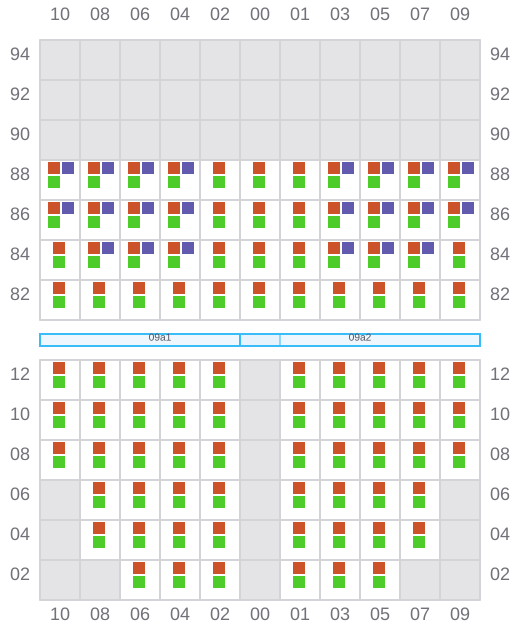

009 (010)
- →
- → / ?
![Bay 009 view and slots of APL OCEANIA](/vessel-images/9bf55096-9cf4-4d2b-abf1-016259b166a7-b009.png?v=1711393518643)

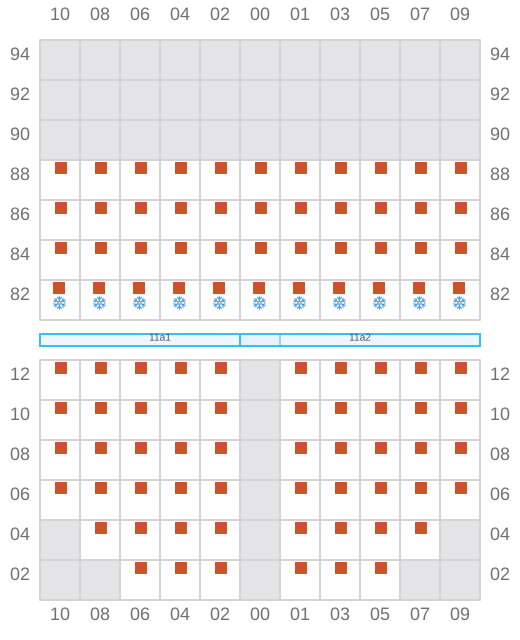

011
- ←
- → / ?
![Bay 011 view and slots of APL OCEANIA](/vessel-images/9bf55096-9cf4-4d2b-abf1-016259b166a7-b011.png?v=1711393518643)

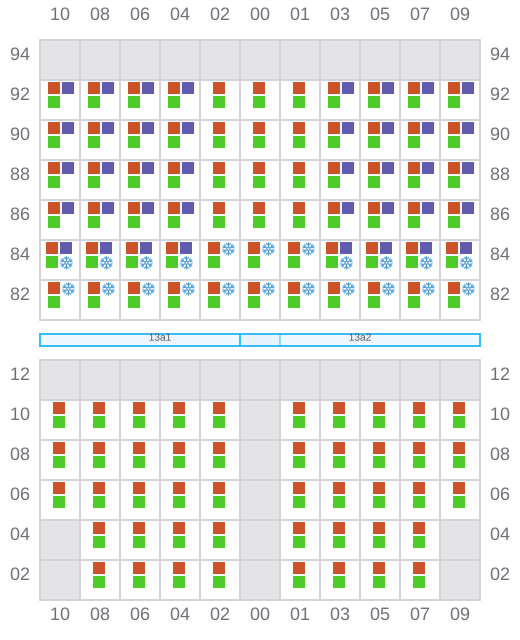

013 (014)
- →
- ← / ?
![Bay 013 view and slots of APL OCEANIA](/vessel-images/9bf55096-9cf4-4d2b-abf1-016259b166a7-b013.png?v=1711393518643)

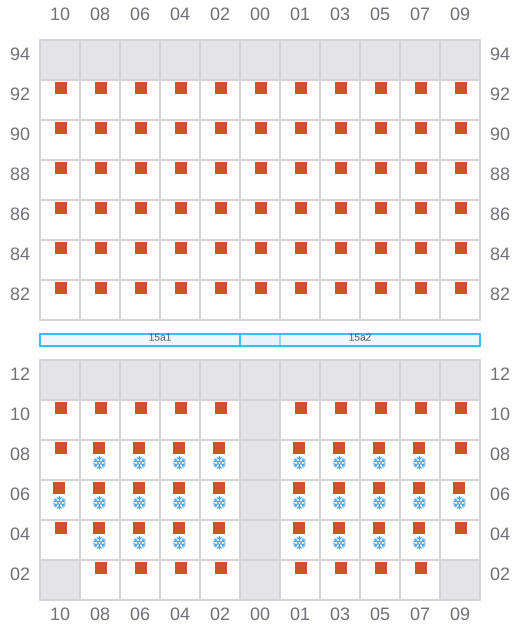

015
- ←
- ? / →
![Bay 015 view and slots of APL OCEANIA](/vessel-images/9bf55096-9cf4-4d2b-abf1-016259b166a7-b015.png?v=1711393518643)

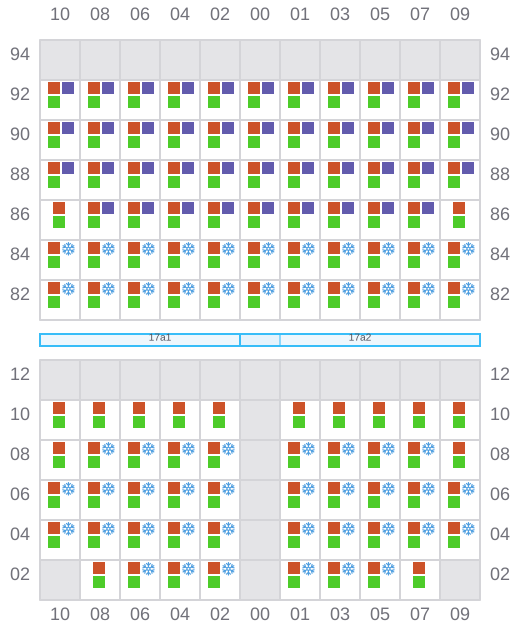

017 (018)
- →
- ←
![Bay 017 view and slots of APL OCEANIA](/vessel-images/9bf55096-9cf4-4d2b-abf1-016259b166a7-b017.png?v=1711393518643)

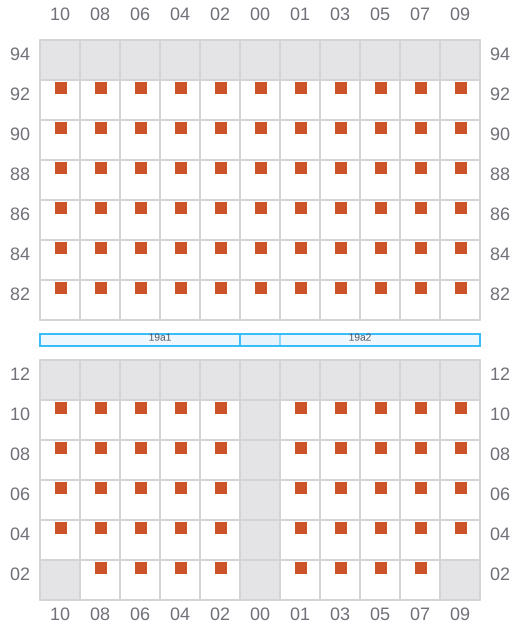

019
- ←
- → / ?
![Bay 019 view and slots of APL OCEANIA](/vessel-images/9bf55096-9cf4-4d2b-abf1-016259b166a7-b019.png?v=1711393518643)

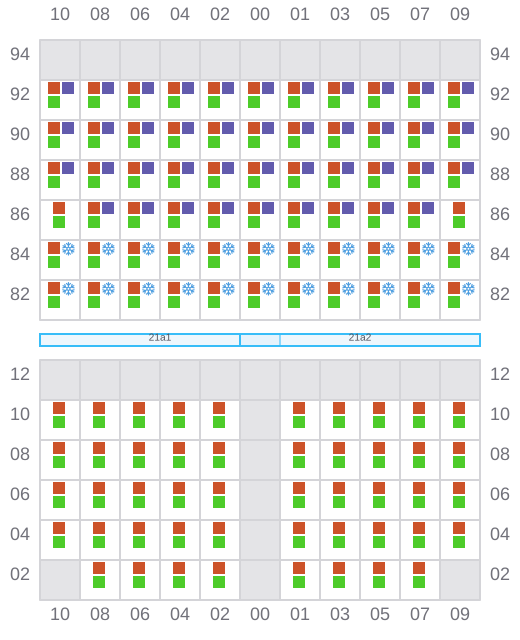

021 (022)
- →
- ← / ?
![Bay 021 view and slots of APL OCEANIA](/vessel-images/9bf55096-9cf4-4d2b-abf1-016259b166a7-b021.png?v=1711393518643)

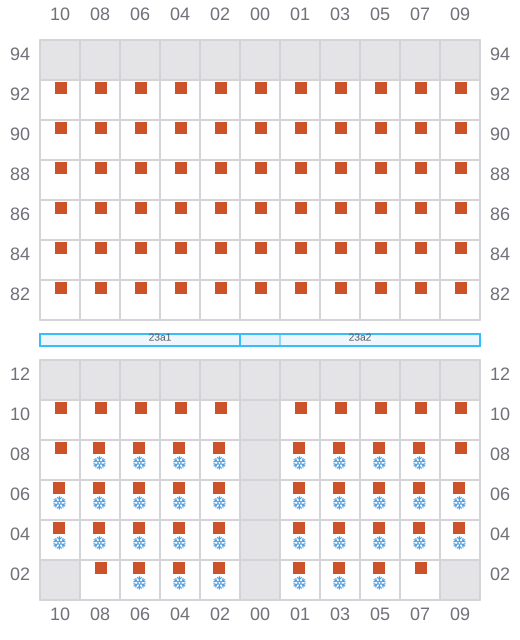

023
- ←
- →
![Bay 023 view and slots of APL OCEANIA](/vessel-images/9bf55096-9cf4-4d2b-abf1-016259b166a7-b023.png?v=1711393518643)

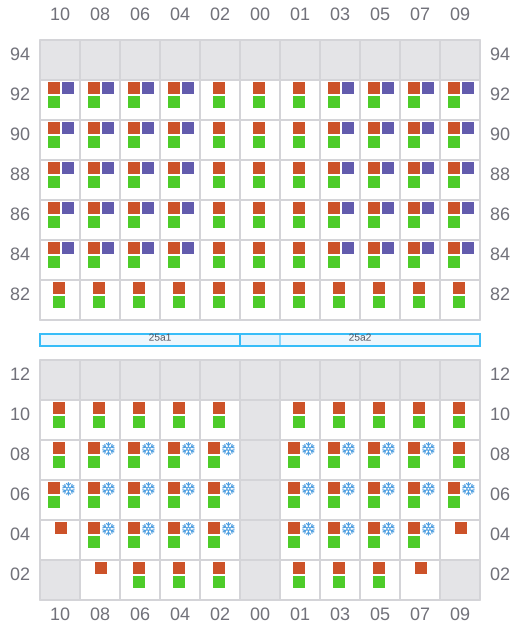

025 (026)
- →
- ? / ←
![Bay 025 view and slots of APL OCEANIA](/vessel-images/9bf55096-9cf4-4d2b-abf1-016259b166a7-b025.png?v=1711393518643)

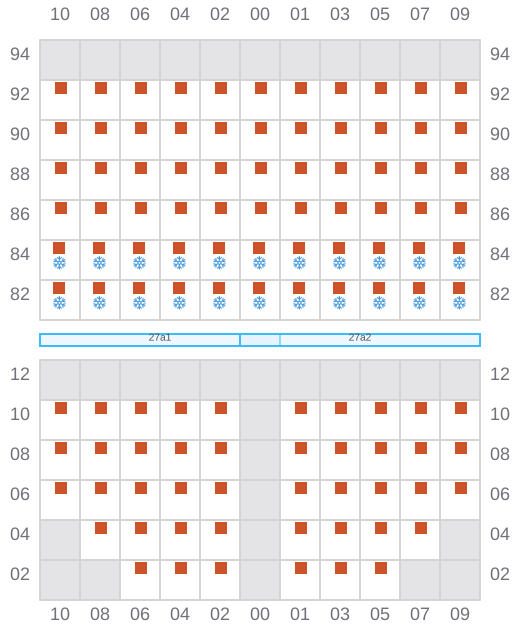

027
- ←
- → / ?
![Bay 027 view and slots of APL OCEANIA](/vessel-images/9bf55096-9cf4-4d2b-abf1-016259b166a7-b027.png?v=1711393518643)

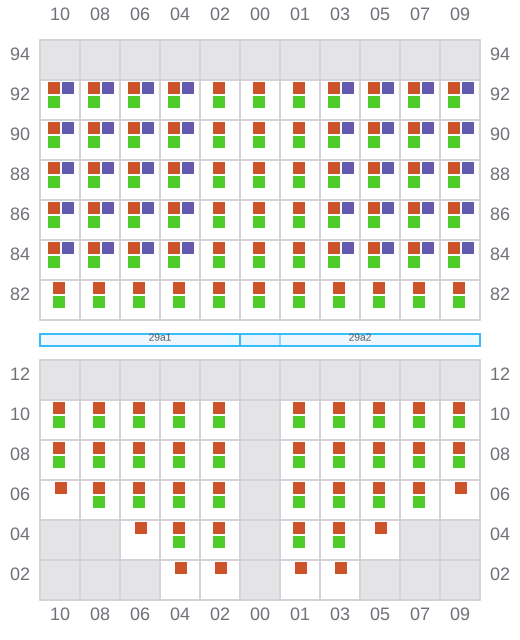

029 (030)
- →
![Bay 029 view and slots of APL OCEANIA](/vessel-images/9bf55096-9cf4-4d2b-abf1-016259b166a7-b029.png?v=1711393518643)

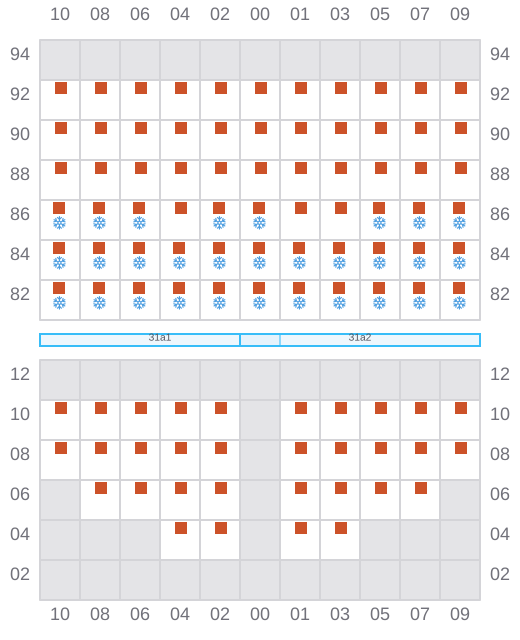

031
- ←
- → / ?
![Bay 031 view and slots of APL OCEANIA](/vessel-images/9bf55096-9cf4-4d2b-abf1-016259b166a7-b031.png?v=1711393518643)

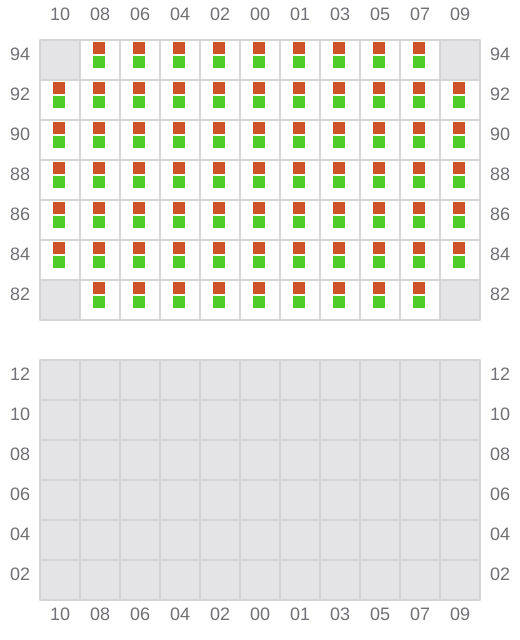

033 (034)
- → / ?
![Bay 033 view and slots of APL OCEANIA](/vessel-images/9bf55096-9cf4-4d2b-abf1-016259b166a7-b033.png?v=1711393518643)
035
- ← / ?
- → / ?
![Bay 035 view and slots of APL OCEANIA](/vessel-images/9bf55096-9cf4-4d2b-abf1-016259b166a7-b035.png?v=1711393518643)
