APL PUSAN
9234123 | S6HU5 | 9234123 by ********* Last update: Mon Apr 01 2024
General Info
Ship Name:APL PUSAN
IMO Code:9234123
Call Sign:S6HU5
Line Operator:9234123
Class Name for Sister Ships:APL
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,480
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

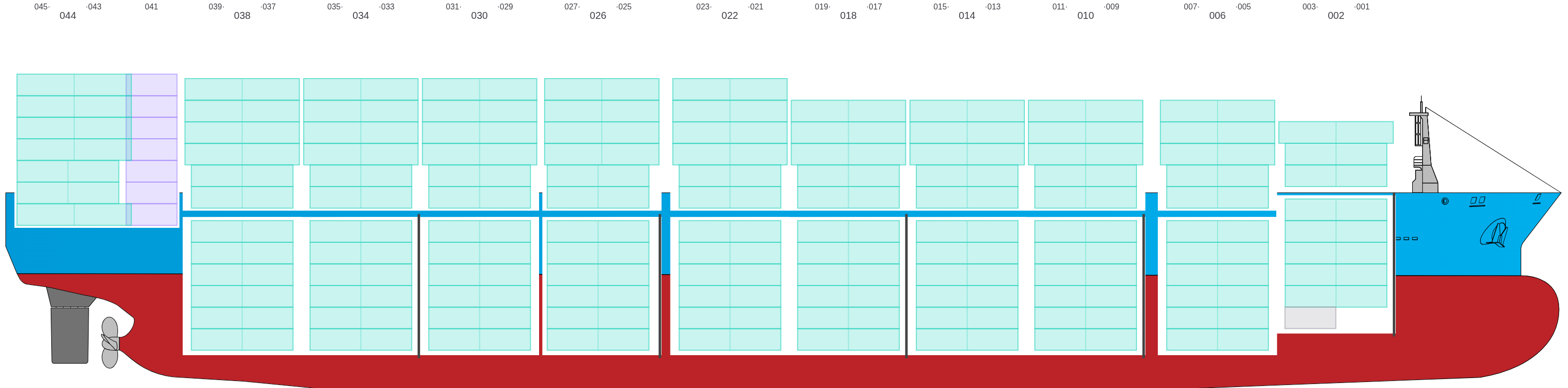

Side View
Hatch-Covers View

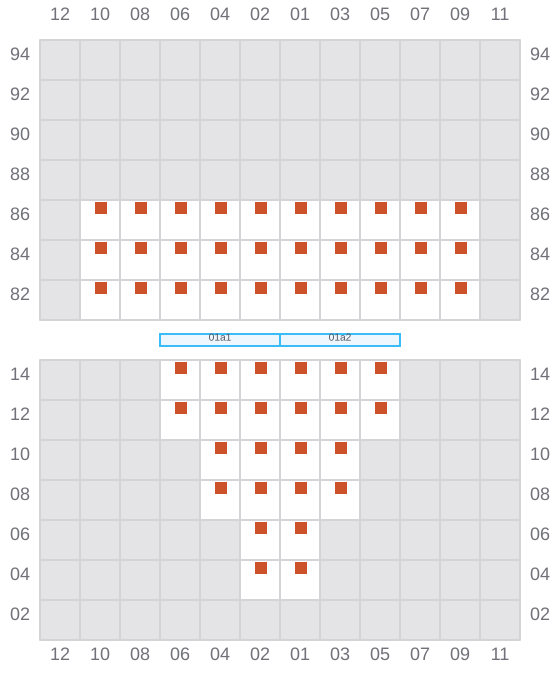

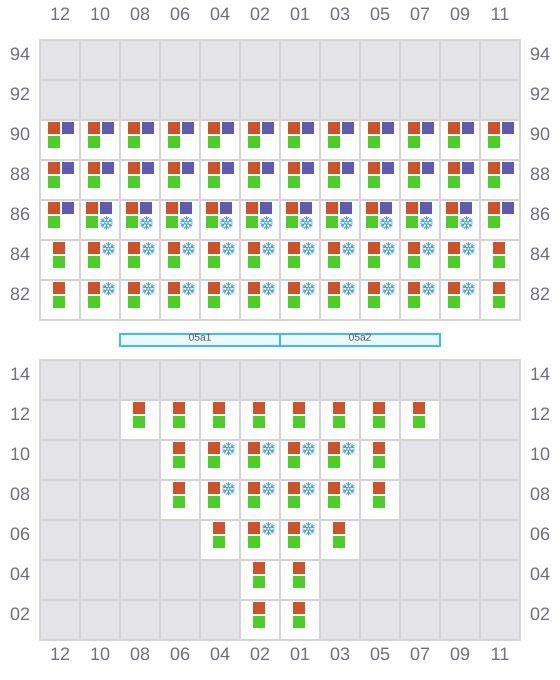

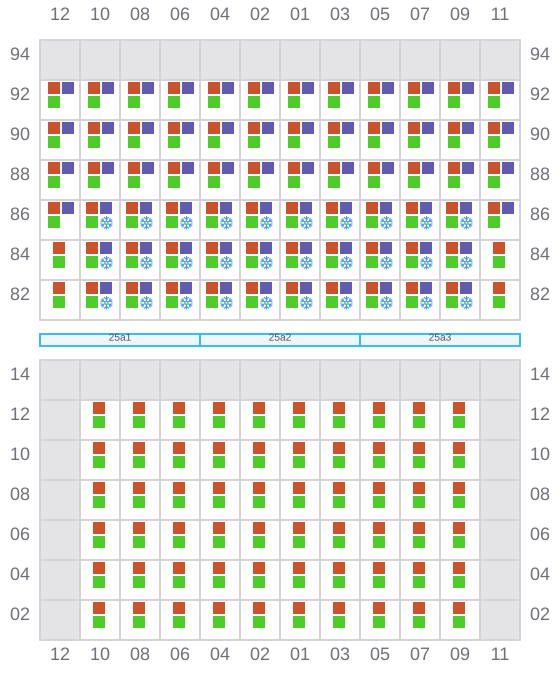

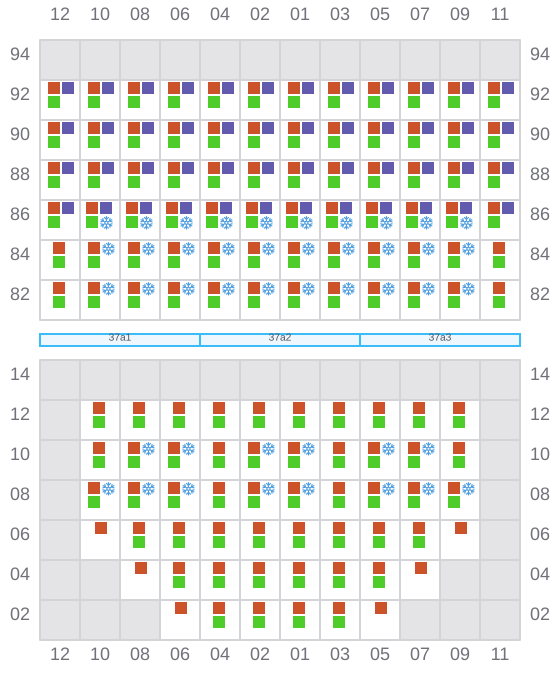

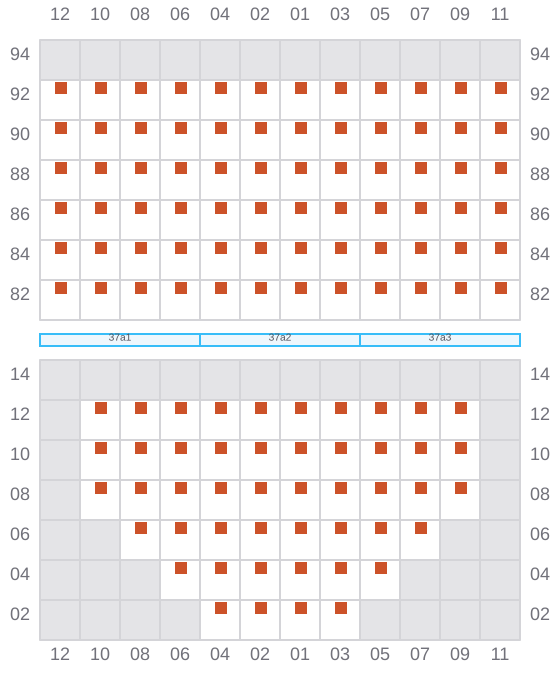

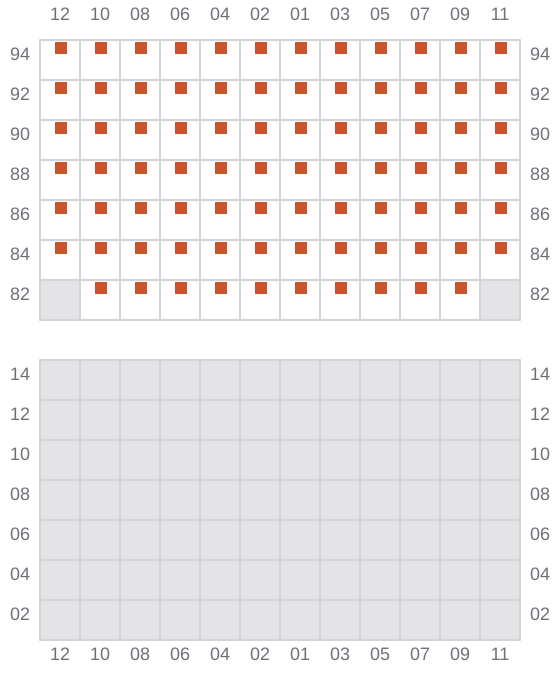

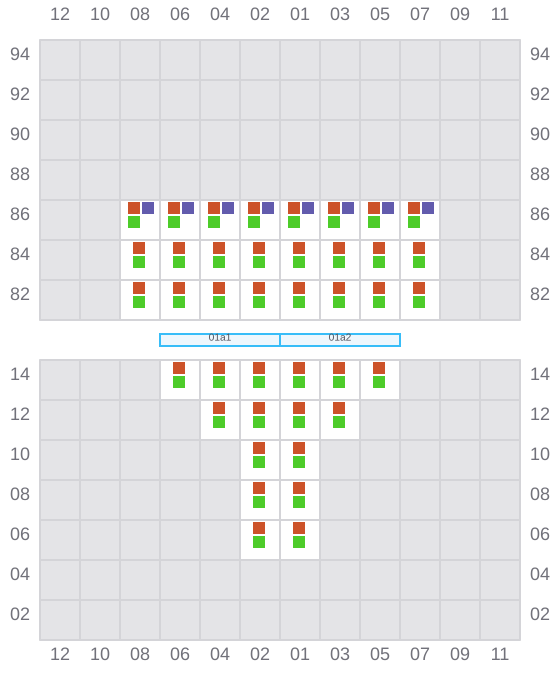

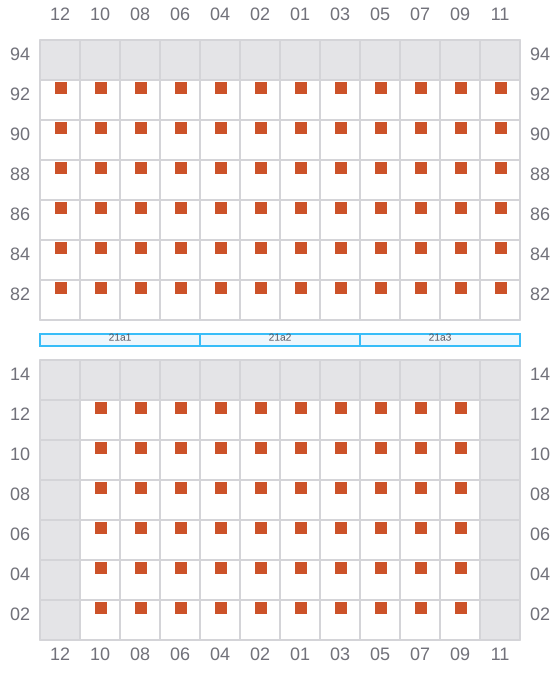

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
003
- ←

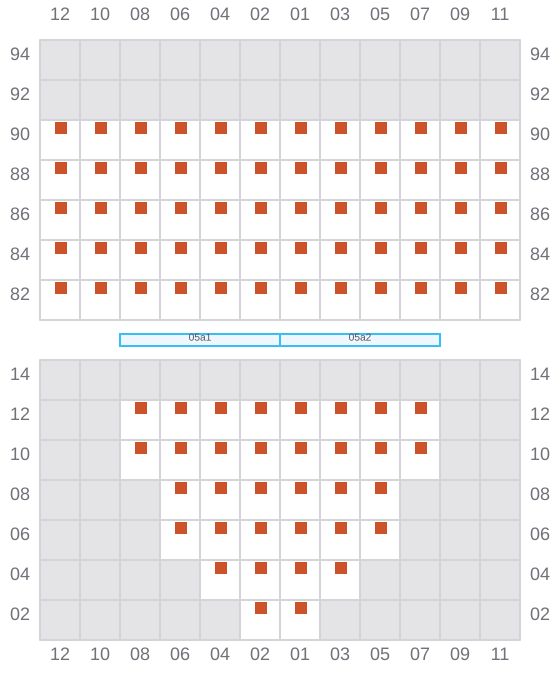

005 (006)
- →
- ←
007
- ←

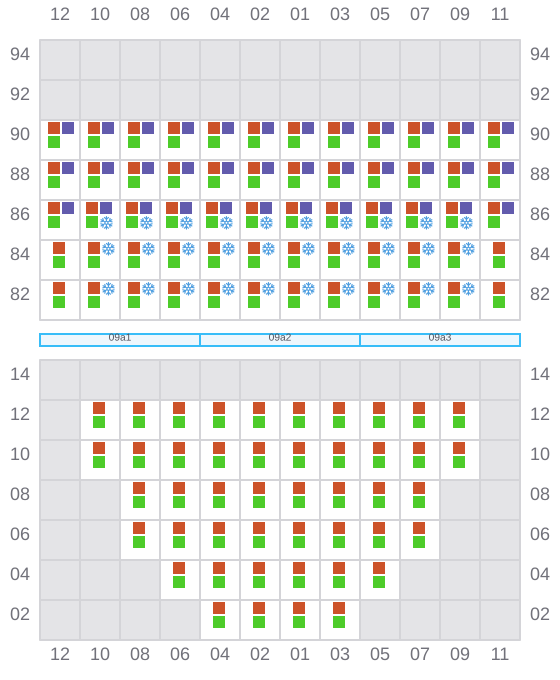

009 (010)
- →
- ← / →

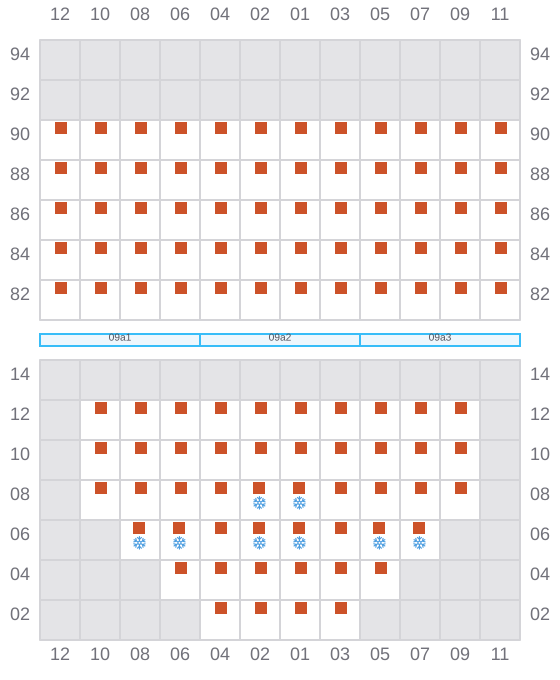

011
- ←
- ? / →

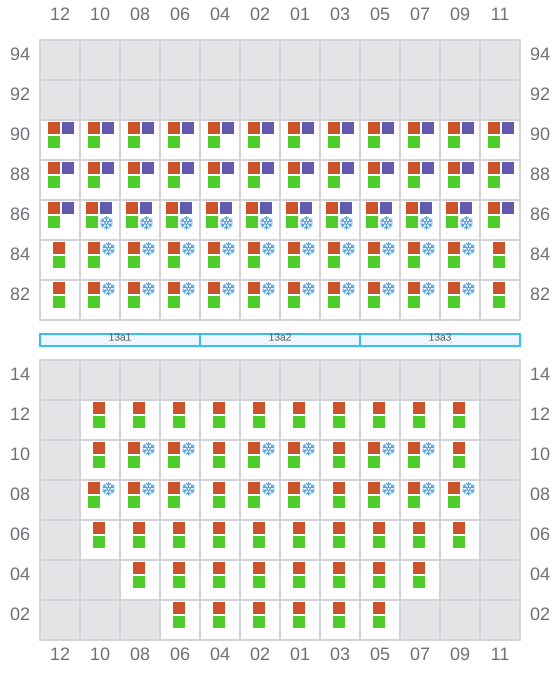

013 (014)
- →
- ←

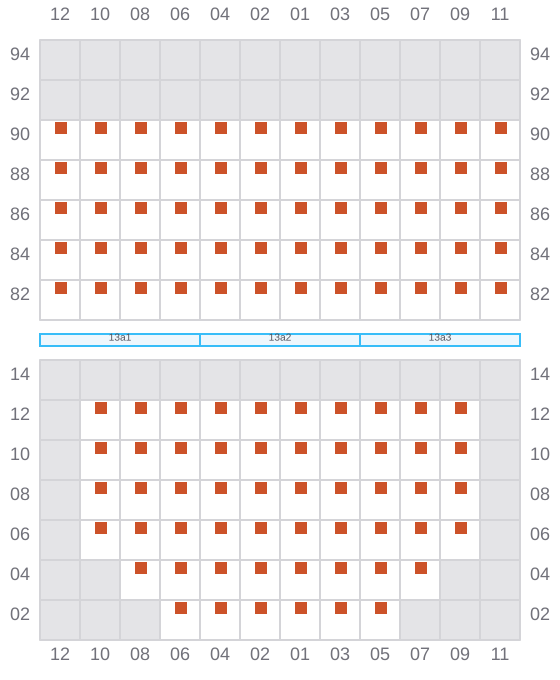

015
- ←

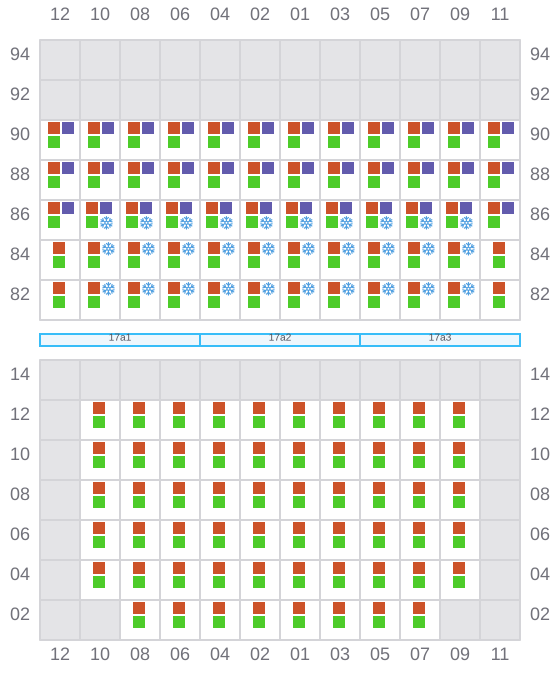

017 (018)
- →
- ← / ?

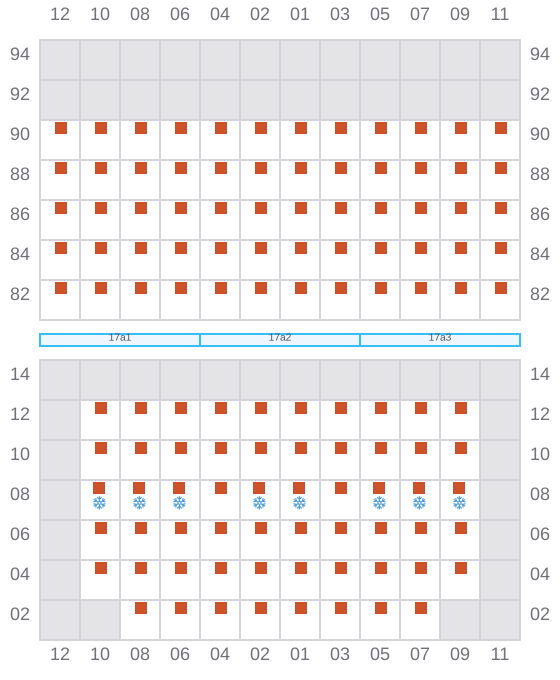

019
- ←
- ? / →

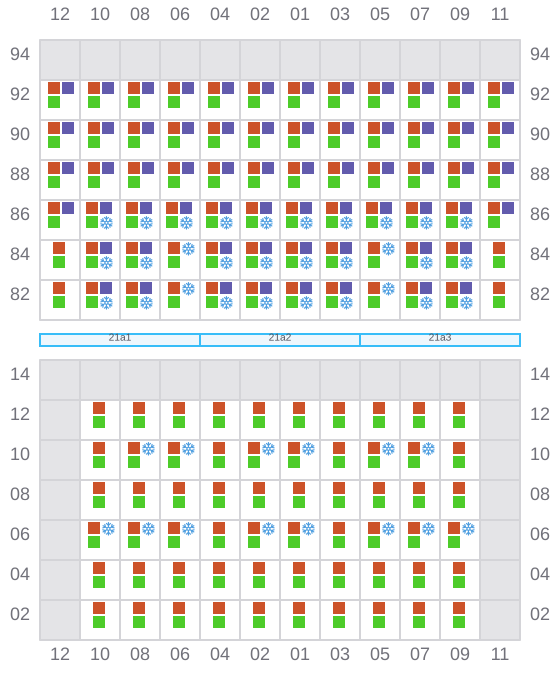

021 (022)
- →
- ←
023
- ←
025 (026)
- →
- ← / ?

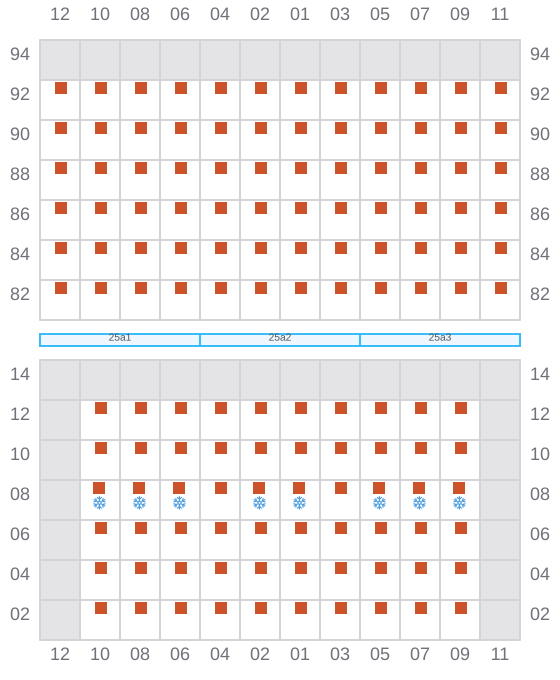

027
- ←
- ? / →

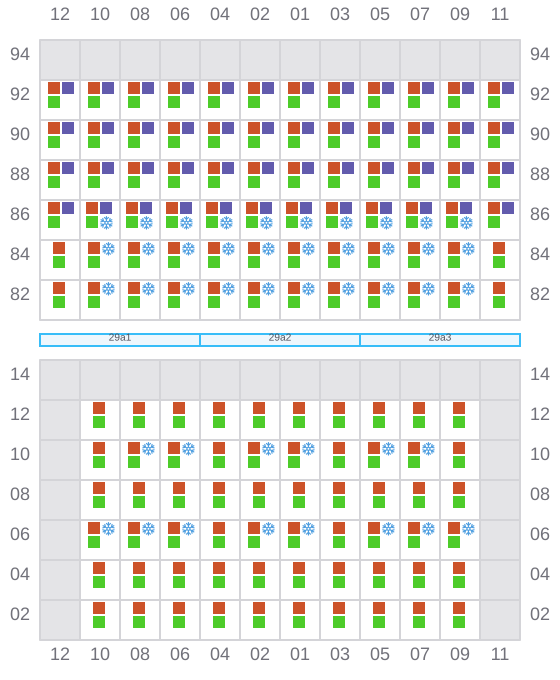

029 (030)
- →
- ←
031
- ←
033 (034)
- →
- ← / ?
035
- ←
- ? / →
037 (038)
- →
- ←
039
- ←

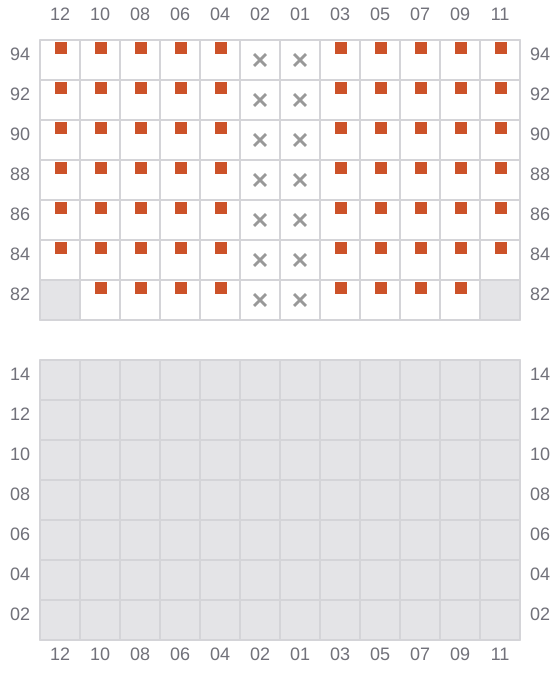

041

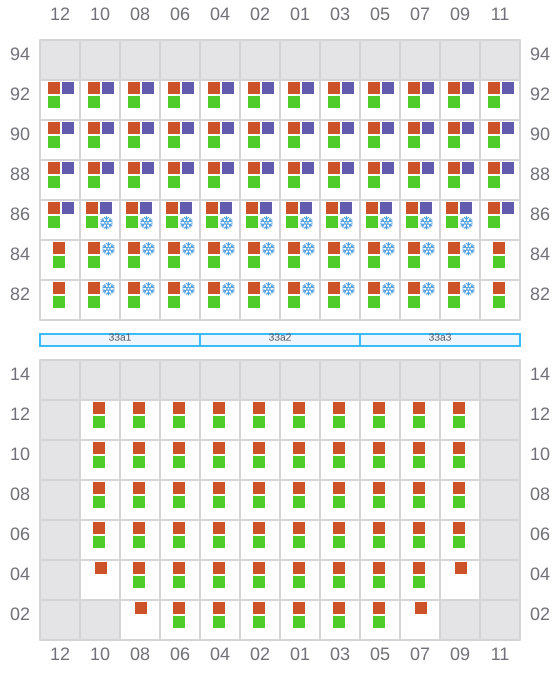

043 (044)
- → / ?
- ← / ?

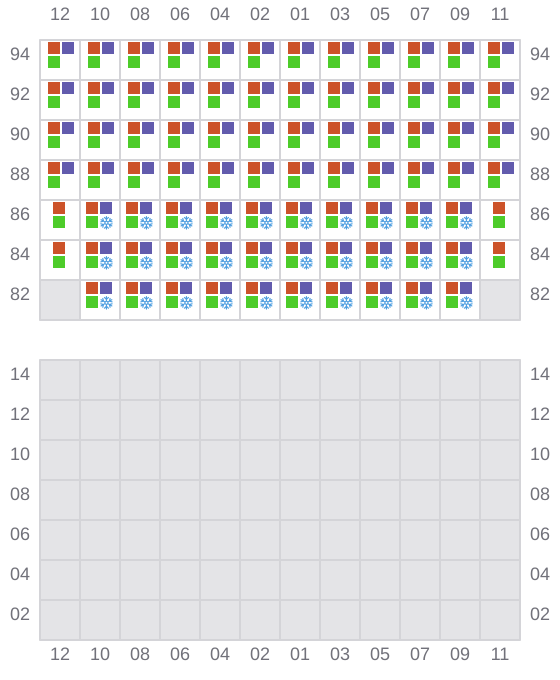

045
- ← / ?
