APL SAIPAN
9239850 | 9HA5536 | 92398 by ********* Last update: Tue Jul 16 2024

General Info

Ship Name:APL SAIPAN
IMO Code:9239850
Call Sign:9HA5536
Line Operator:92398
Class Name for Sister Ships:CMA
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:037
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,653

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

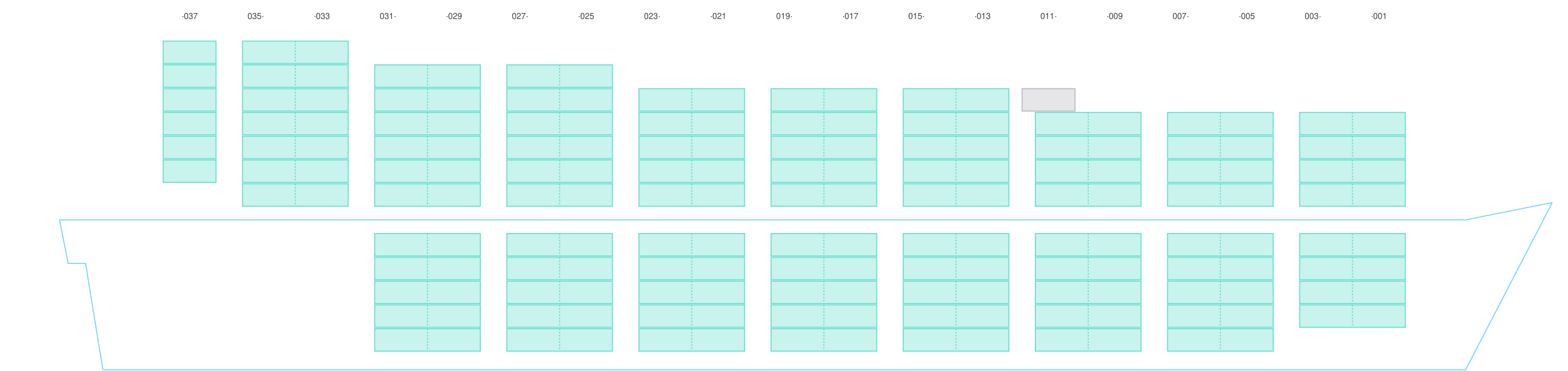

Side View

Side view of APL SAIPAN

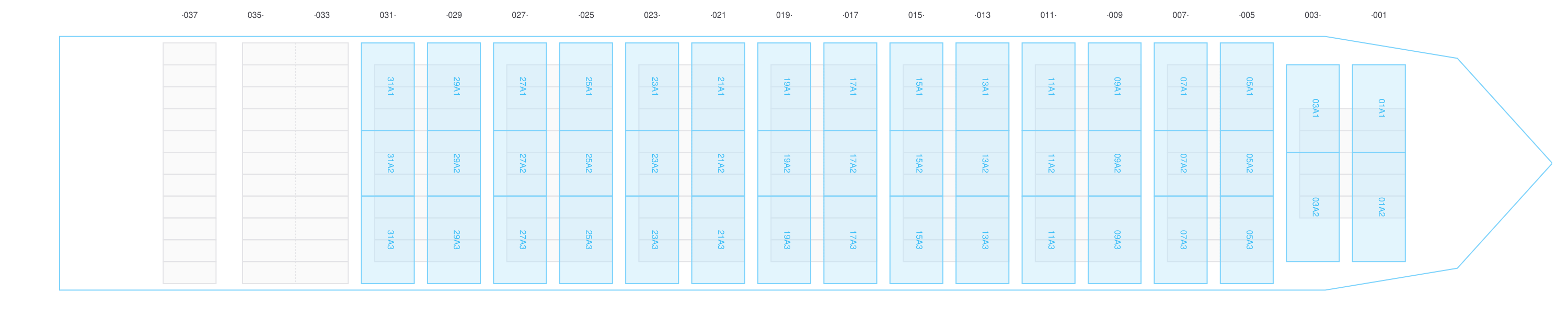

Hatch-Covers View

Deck view of APL SAIPAN

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

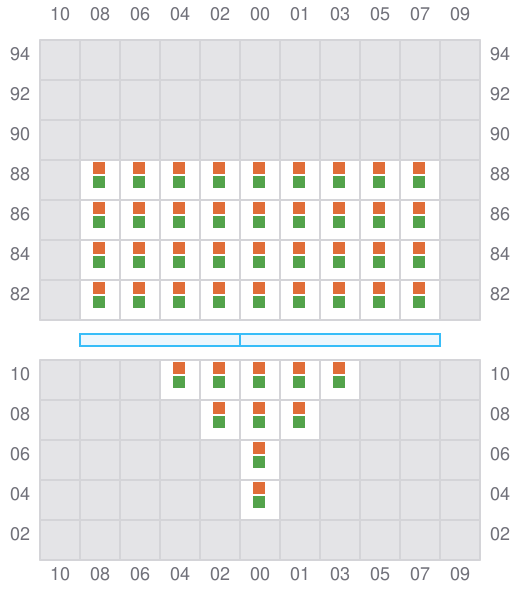

001 (002)

  • →
Bay 001 view and slots of APL SAIPAN

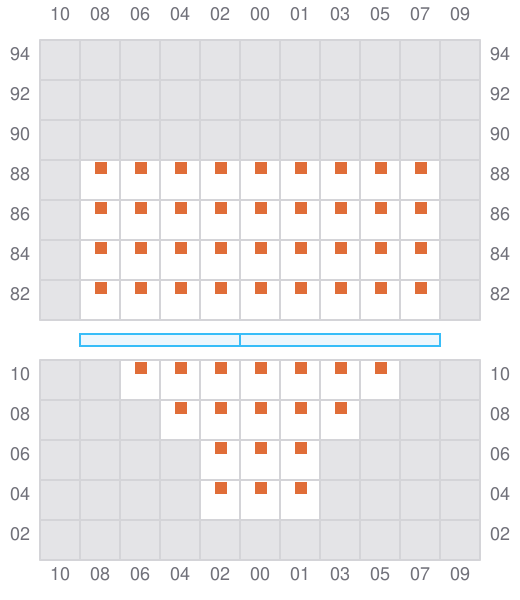

003

  • ←
Bay 003 view and slots of APL SAIPAN

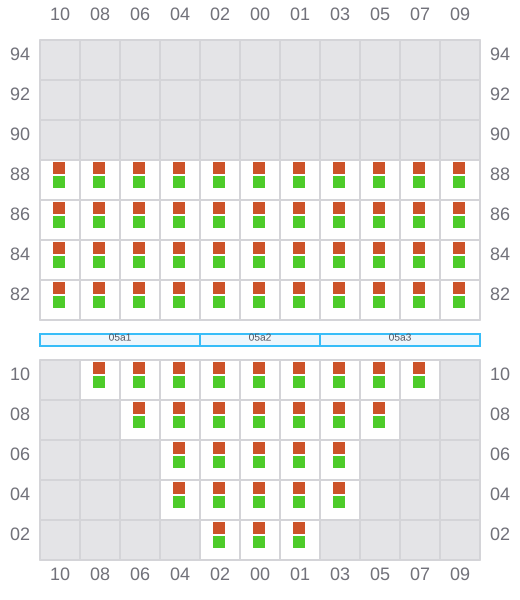

005 (006)

  • →
Bay 005 view and slots of APL SAIPAN

007

  • ←

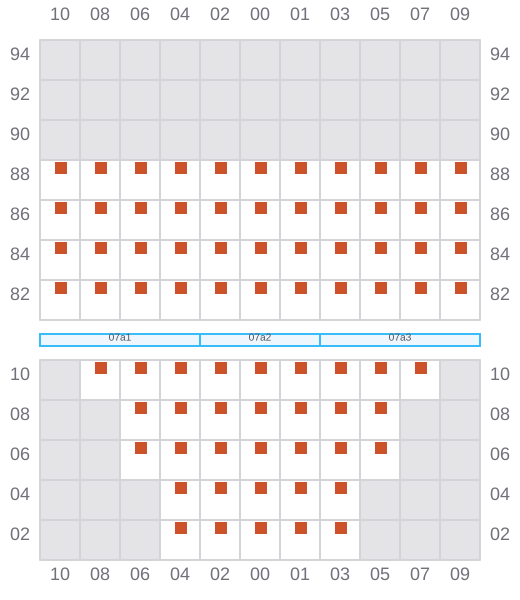

Bay 007 view and slots of APL SAIPAN

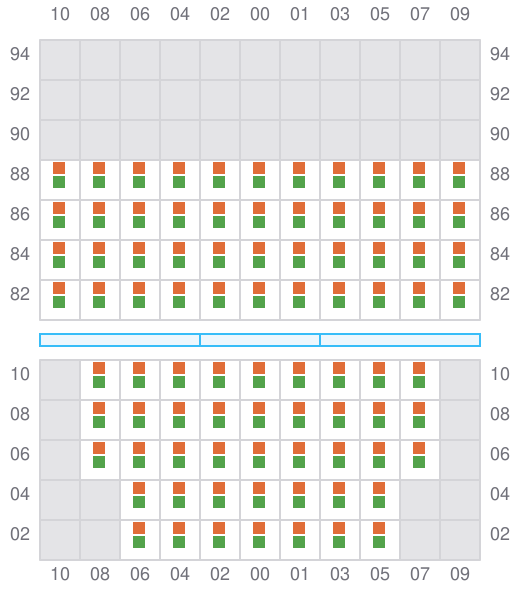

009 (010)

  • →
Bay 009 view and slots of APL SAIPAN

011

  • ←

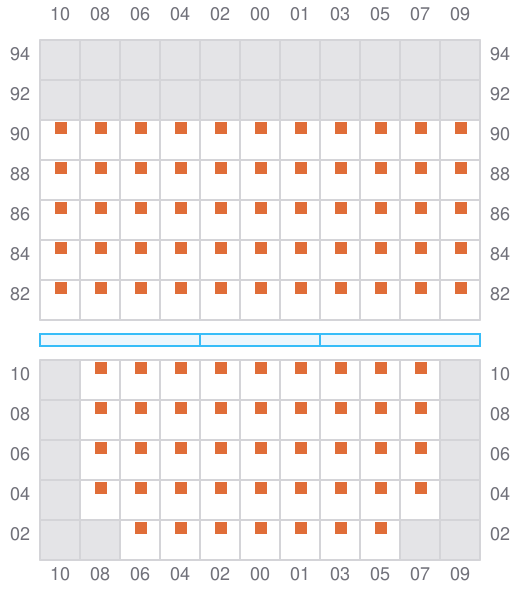

Bay 011 view and slots of APL SAIPAN

013 (014)

  • →
Bay 013 view and slots of APL SAIPAN

015

  • ←
Bay 015 view and slots of APL SAIPAN

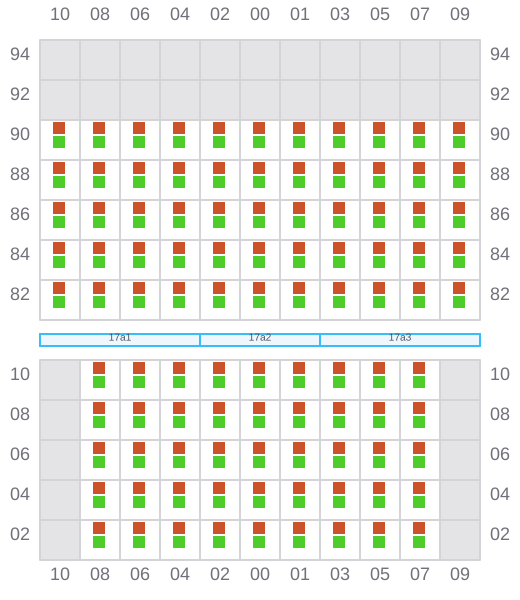

017 (018)

  • →
Bay 017 view and slots of APL SAIPAN

019

  • ←
Bay 019 view and slots of APL SAIPAN

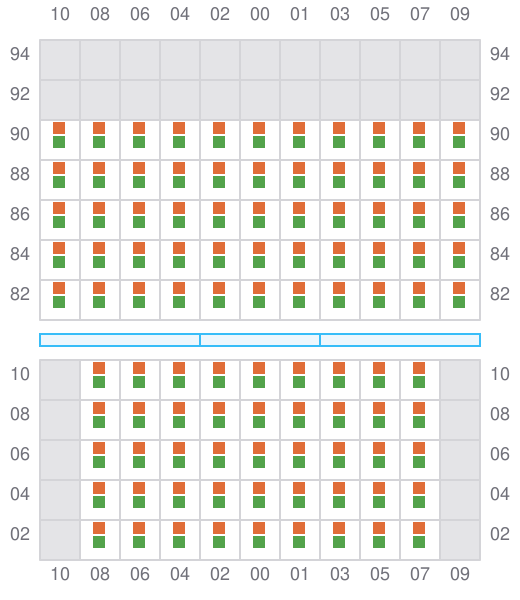

021 (022)

  • →
Bay 021 view and slots of APL SAIPAN

023

  • ←
Bay 023 view and slots of APL SAIPAN

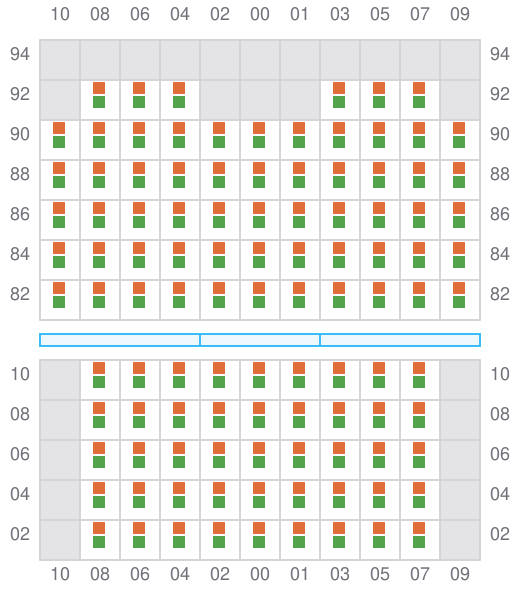

025 (026)

  • →
Bay 025 view and slots of APL SAIPAN

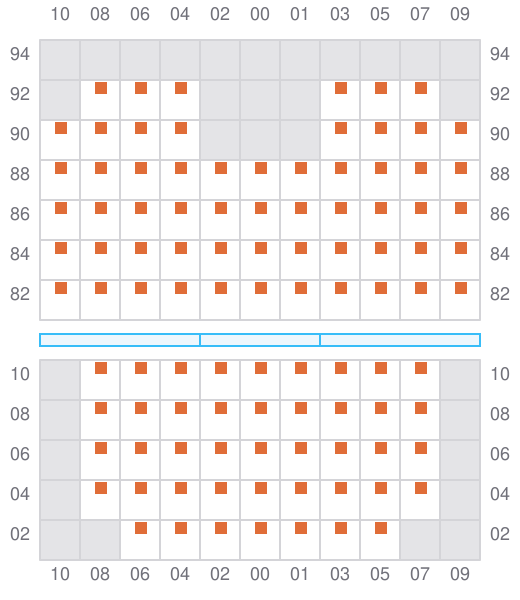

027

  • ←
Bay 027 view and slots of APL SAIPAN

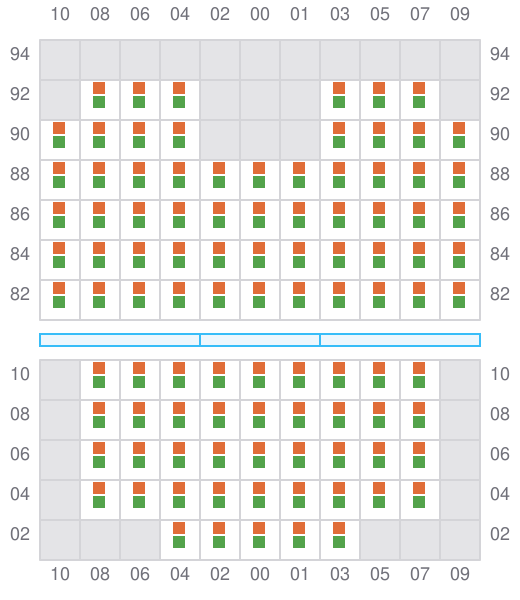

029 (030)

  • →
Bay 029 view and slots of APL SAIPAN

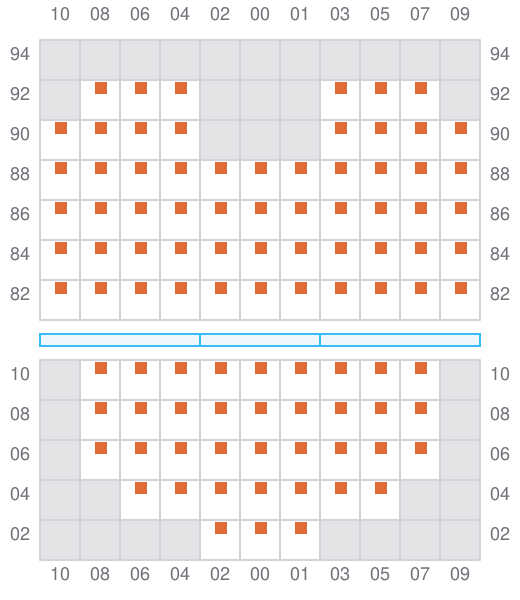

031

  • ←
Bay 031 view and slots of APL SAIPAN

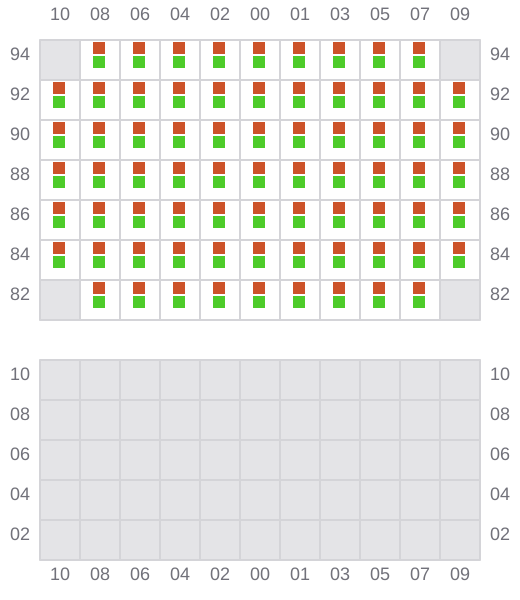

033 (034)

  • → / ?
Bay 033 view and slots of APL SAIPAN

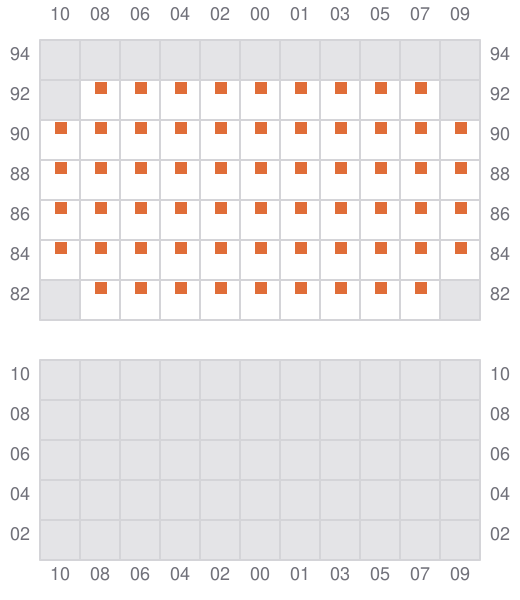

035

  • ← / ?
Bay 035 view and slots of APL SAIPAN

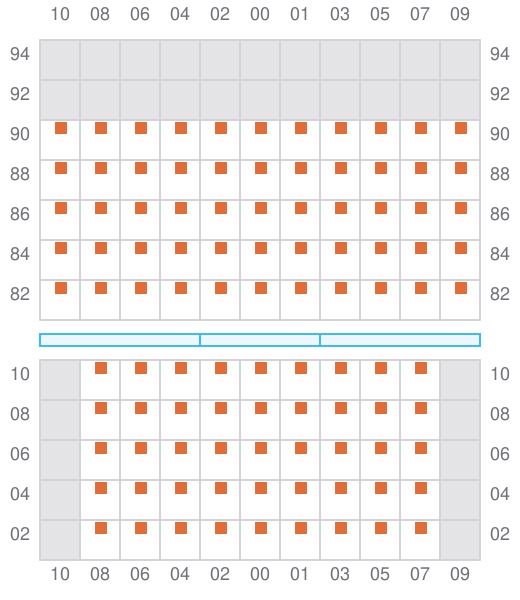

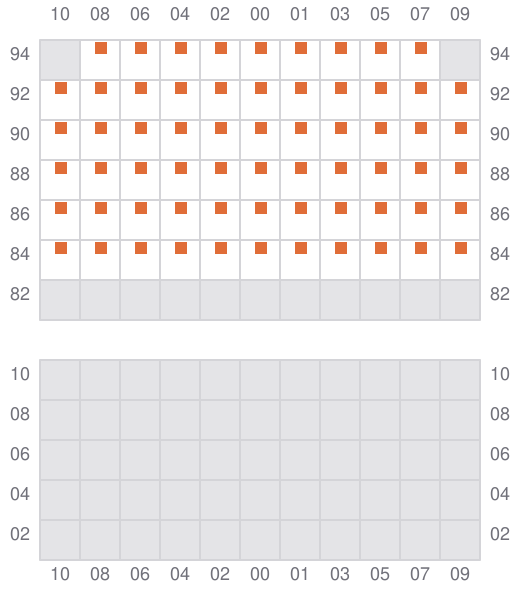

037

  • → / ?
Bay 037 view and slots of APL SAIPAN
