APL SAVANNAH
9597513 | 9V9919 | CMA by *********************** Last update: Tue Feb 04 2025

General Info

Ship Name:APL SAVANNAH
IMO Code:9597513
Call Sign:9V9919
Line Operator:CMA
Class Name for Sister Ships:ASAV
Year Built:2013
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:073
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:20
Min Below ISO Tier:02
Total TEU:9,326

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of APL SAVANNAH

Hatch-Covers View

Deck view of APL SAVANNAH

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

Bay 001 view and slots of APL SAVANNAH

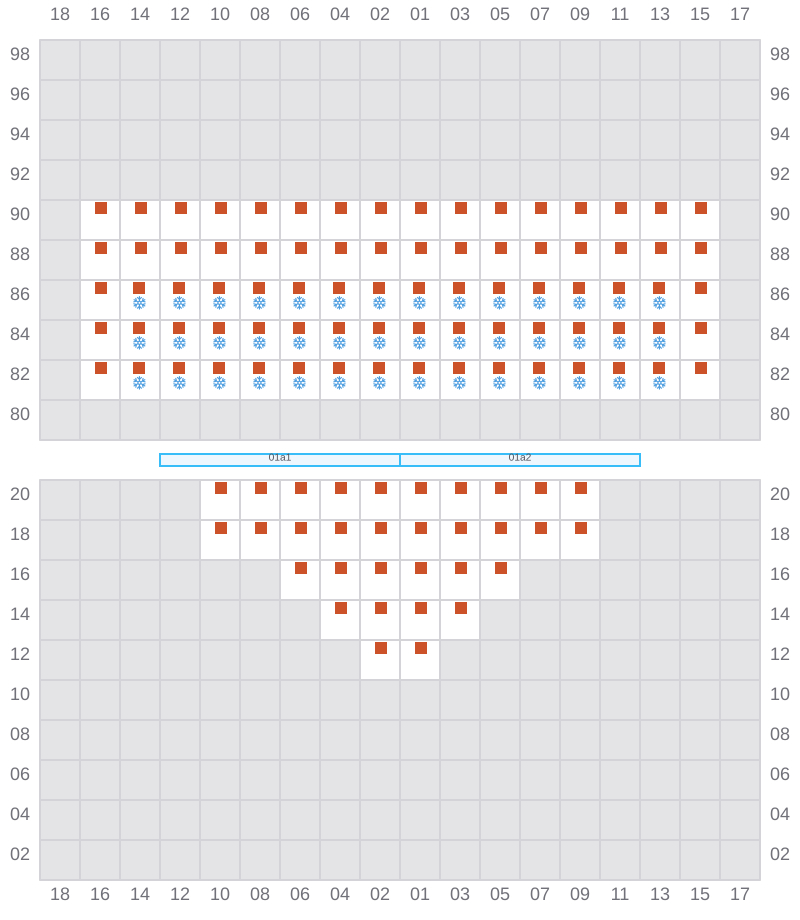

003

  • / ?
Bay 003 view and slots of APL SAVANNAH

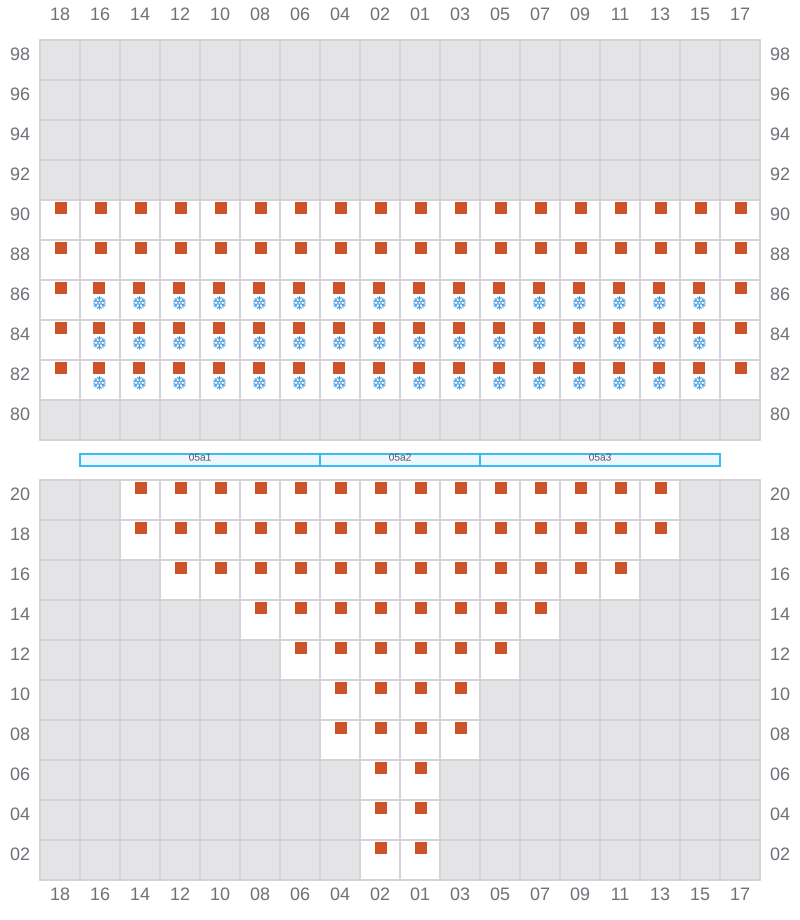

005 (006)

  • / ?
Bay 005 view and slots of APL SAVANNAH

007

  • / ?
Bay 007 view and slots of APL SAVANNAH

009 (010)

  • / ?
Bay 009 view and slots of APL SAVANNAH

011

  • / ?
Bay 011 view and slots of APL SAVANNAH

013 (014)

  • / ?
Bay 013 view and slots of APL SAVANNAH

015

  • / ?
Bay 015 view and slots of APL SAVANNAH

017 (018)

  • / ?
Bay 017 view and slots of APL SAVANNAH

019

  • / ?
Bay 019 view and slots of APL SAVANNAH

021 (022)

  • / ?
Bay 021 view and slots of APL SAVANNAH

023

  • / ?
Bay 023 view and slots of APL SAVANNAH

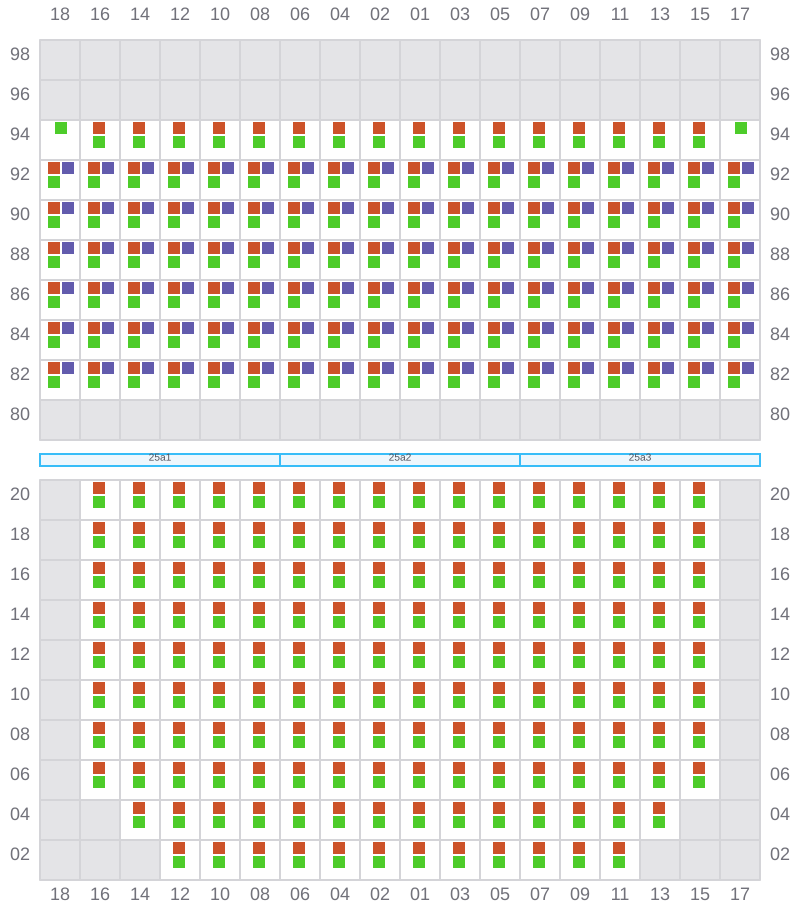

025 (026)

  • / ?
Bay 025 view and slots of APL SAVANNAH

027

  • / ?
Bay 027 view and slots of APL SAVANNAH

029 (030)

  • / ?
Bay 029 view and slots of APL SAVANNAH

031

  • / ?
Bay 031 view and slots of APL SAVANNAH

033 (034)

  • / ?
Bay 033 view and slots of APL SAVANNAH

035

  • / ?
Bay 035 view and slots of APL SAVANNAH

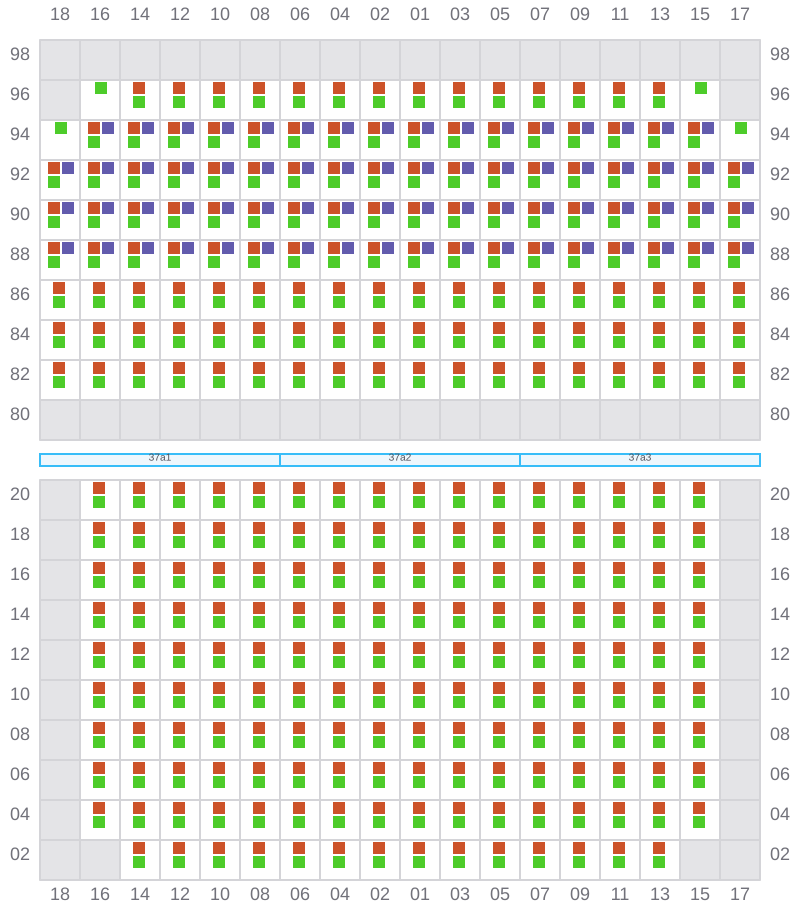

037 (038)

  • / ?
Bay 037 view and slots of APL SAVANNAH

039

  • / ?
Bay 039 view and slots of APL SAVANNAH

041 (042)

  • / ?
Bay 041 view and slots of APL SAVANNAH

043

  • / ?
Bay 043 view and slots of APL SAVANNAH

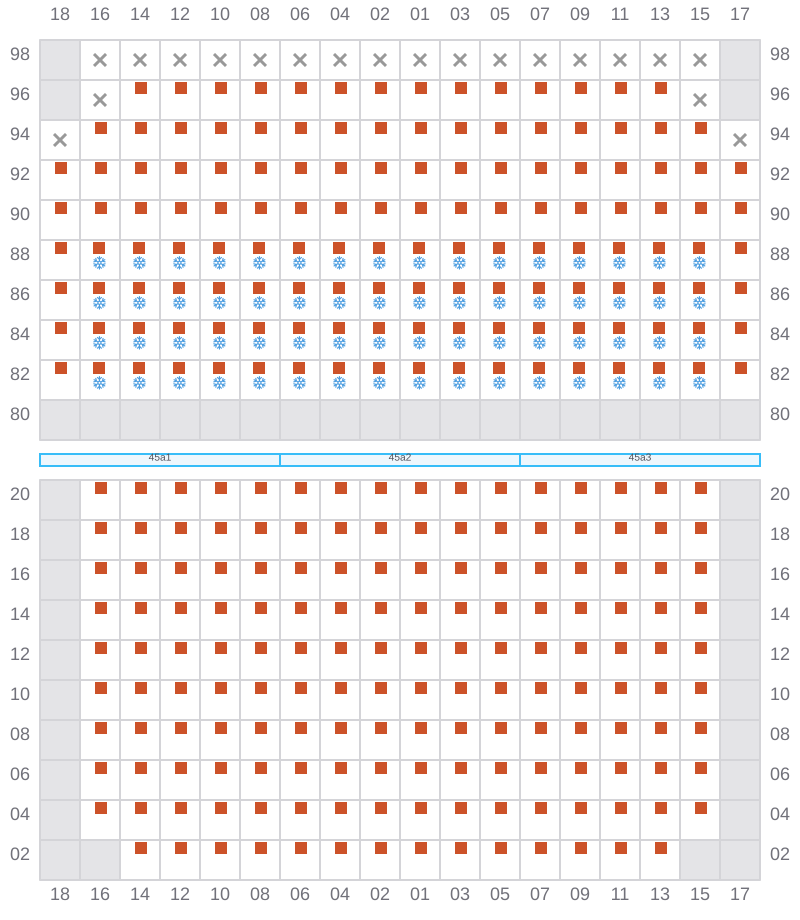

045 (046)

  • / ?
Bay 045 view and slots of APL SAVANNAH

047

  • / ?
Bay 047 view and slots of APL SAVANNAH

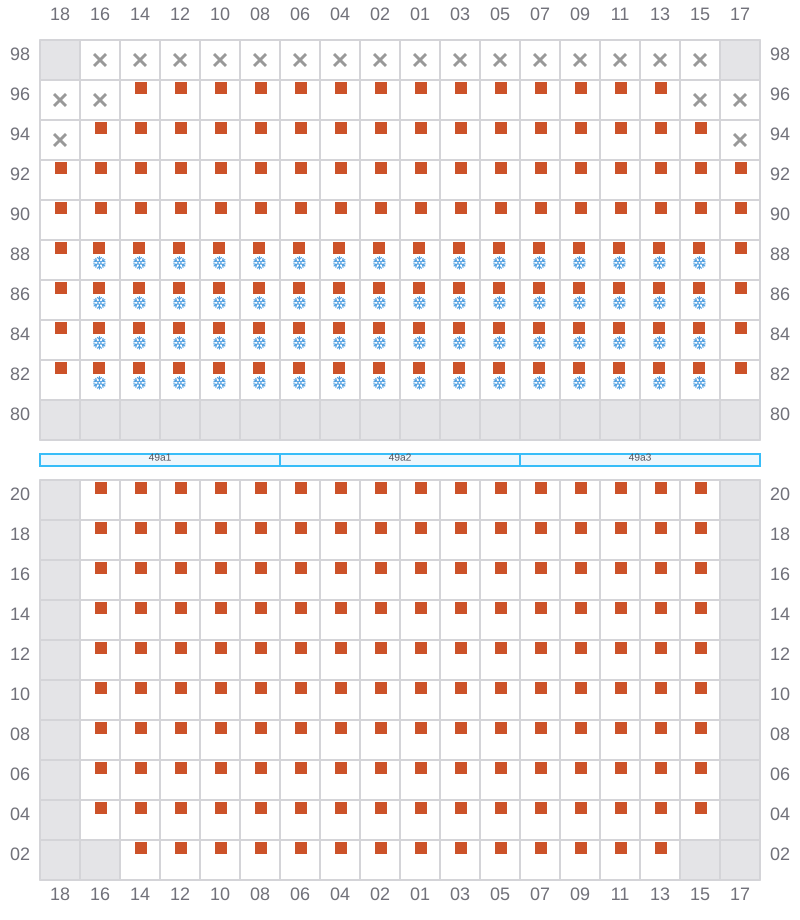

049 (050)

  • / ?
Bay 049 view and slots of APL SAVANNAH

051

  • / ?
Bay 051 view and slots of APL SAVANNAH

053 (054)

  • / ?
Bay 053 view and slots of APL SAVANNAH

055

  • / ?
Bay 055 view and slots of APL SAVANNAH

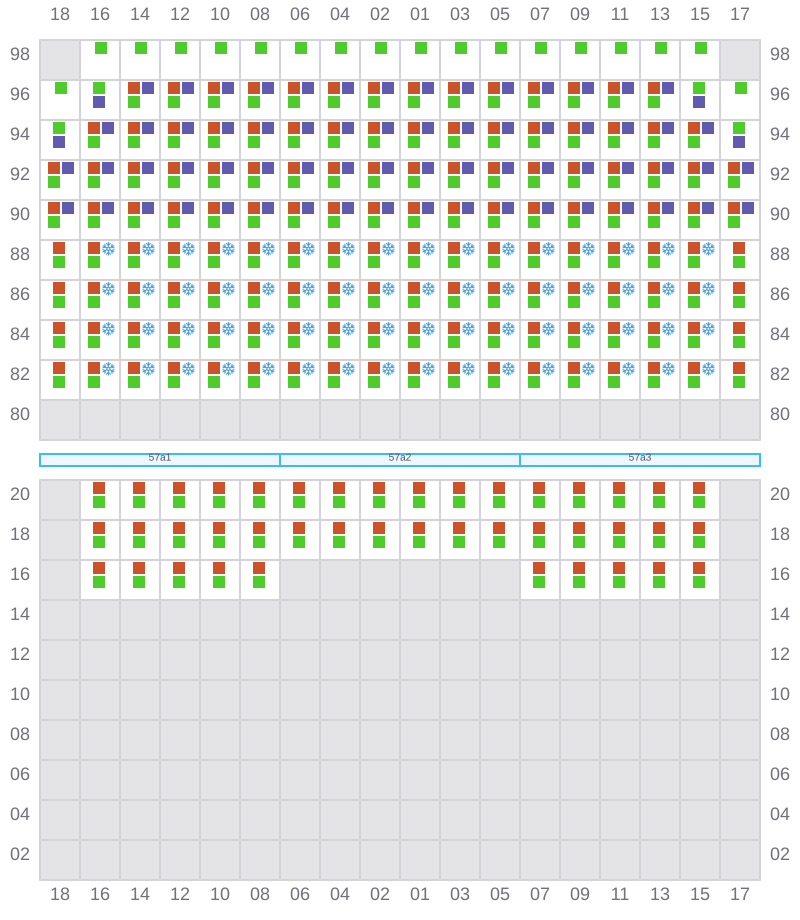

057 (058)

  • / ?
Bay 057 view and slots of APL SAVANNAH

059

  • / ?
Bay 059 view and slots of APL SAVANNAH

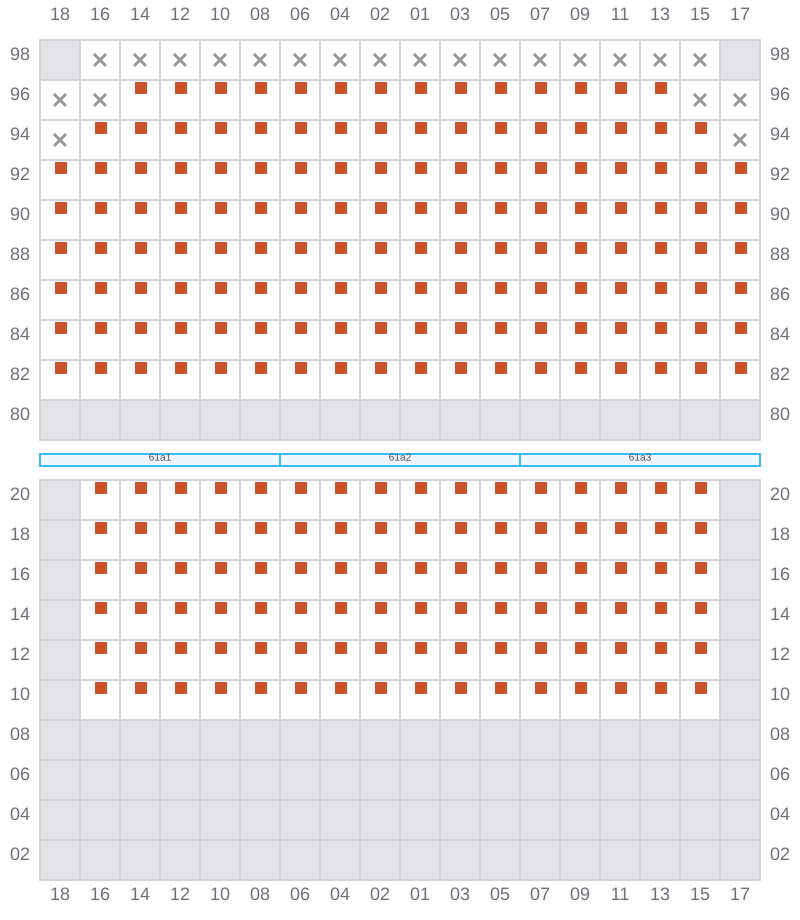

061 (062)

  • / ?
Bay 061 view and slots of APL SAVANNAH

063

Bay 063 view and slots of APL SAVANNAH

065 (066)

  • / ?
Bay 065 view and slots of APL SAVANNAH

067

Bay 067 view and slots of APL SAVANNAH

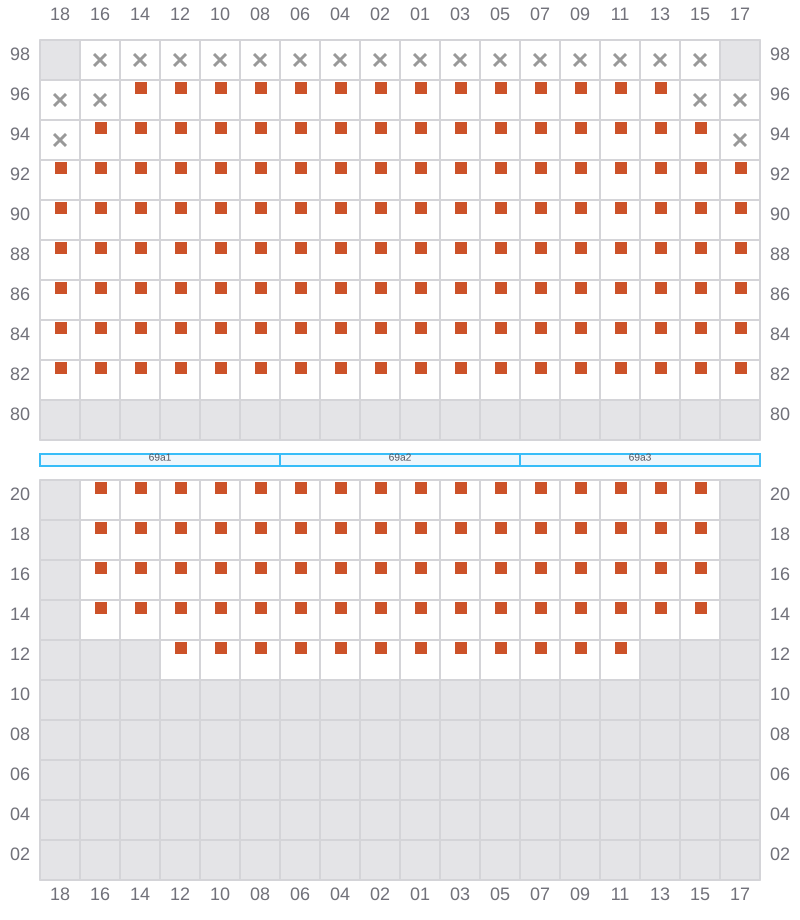

069 (070)

  • / ?
Bay 069 view and slots of APL SAVANNAH

071

Bay 071 view and slots of APL SAVANNAH

073 (074)

  • / ?
  • / ?
Bay 073 view and slots of APL SAVANNAH
