APL SENTOSA
9632040 | 9HA5180 | APL by *********************** Last update: Tue Feb 04 2025
General Info
Ship Name:APL SENTOSA
IMO Code:9632040
Call Sign:9HA5180
Line Operator:APL
Class Name for Sister Ships:ASEN
Year Built:2014
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:093
Max ISO Row:20
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:72
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:17,292
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Known
TCG Data:100%

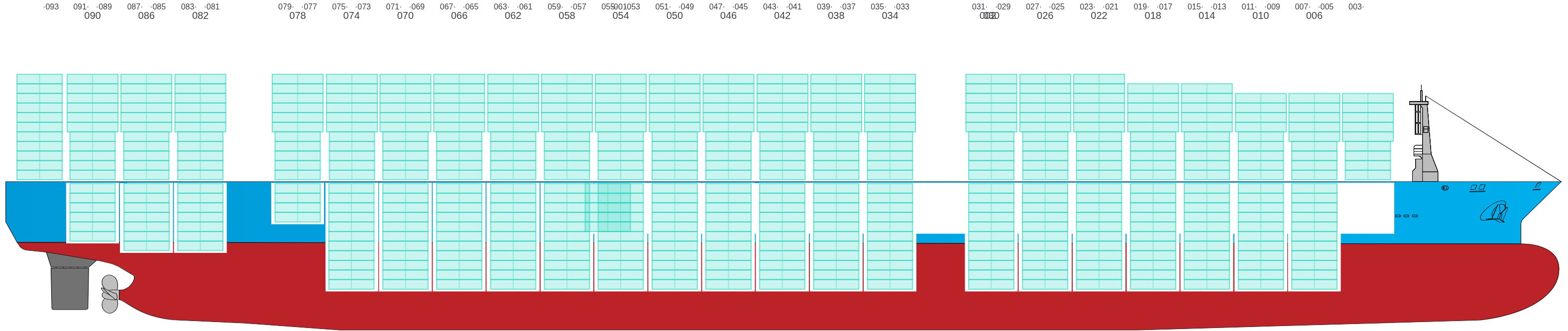

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

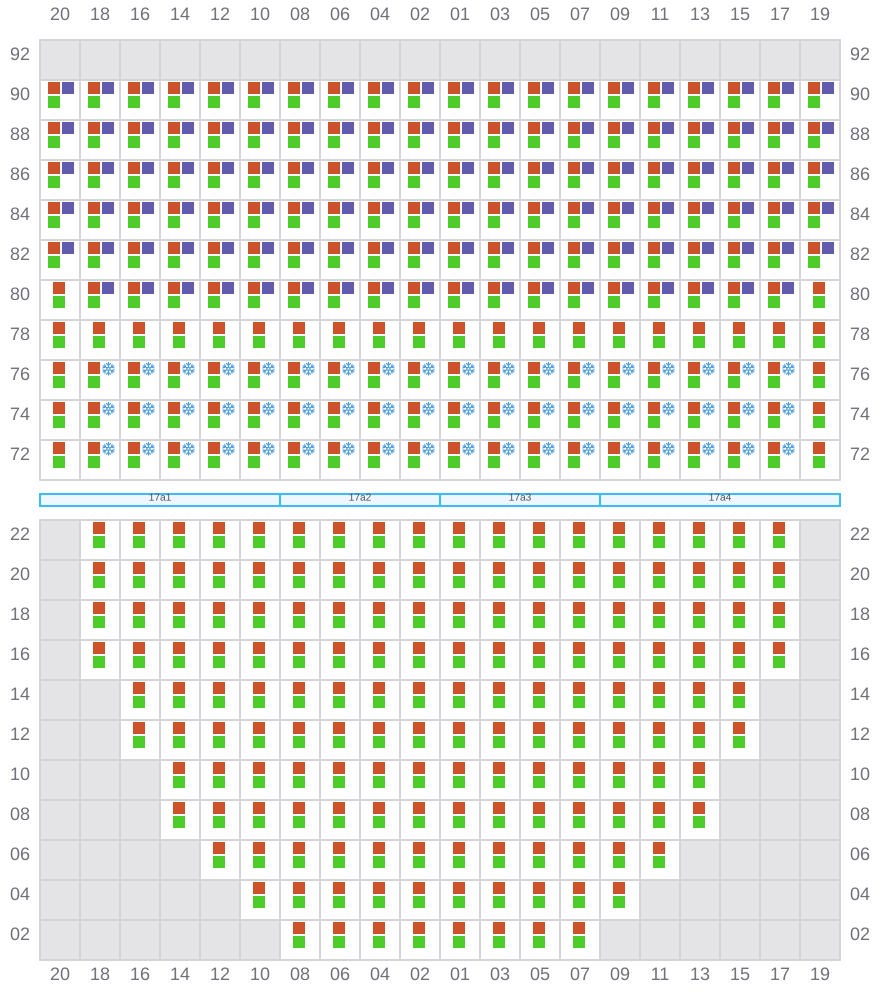

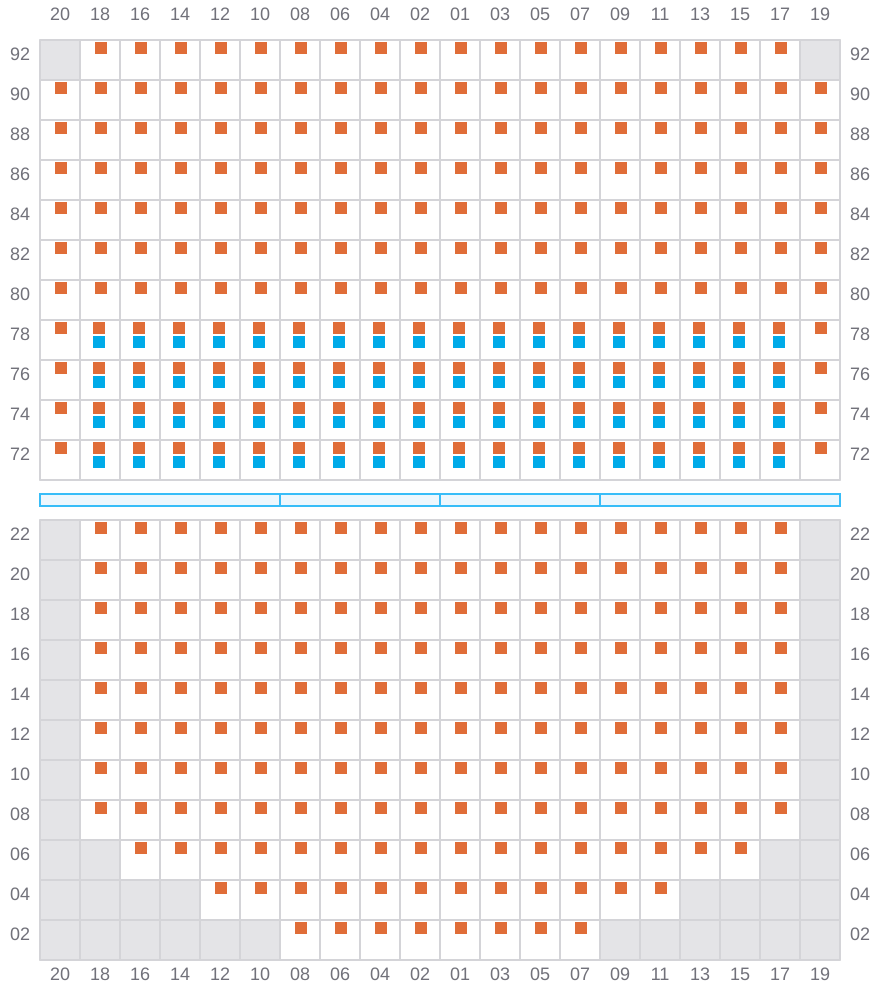

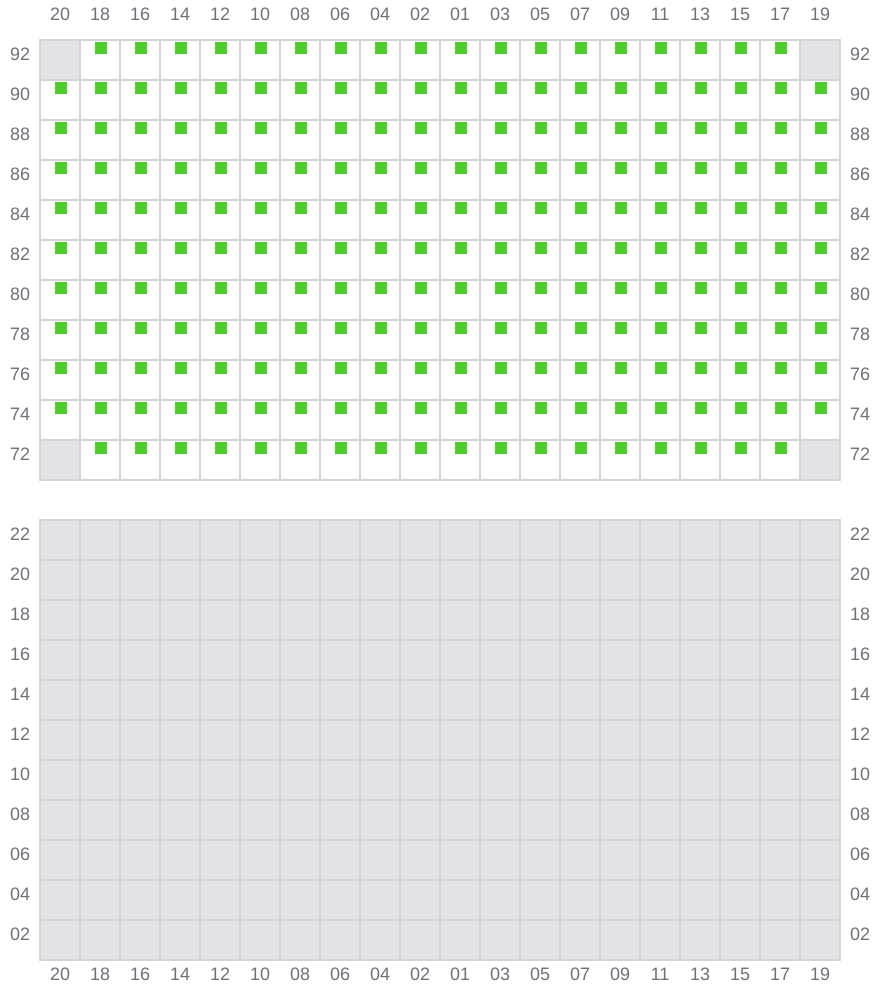

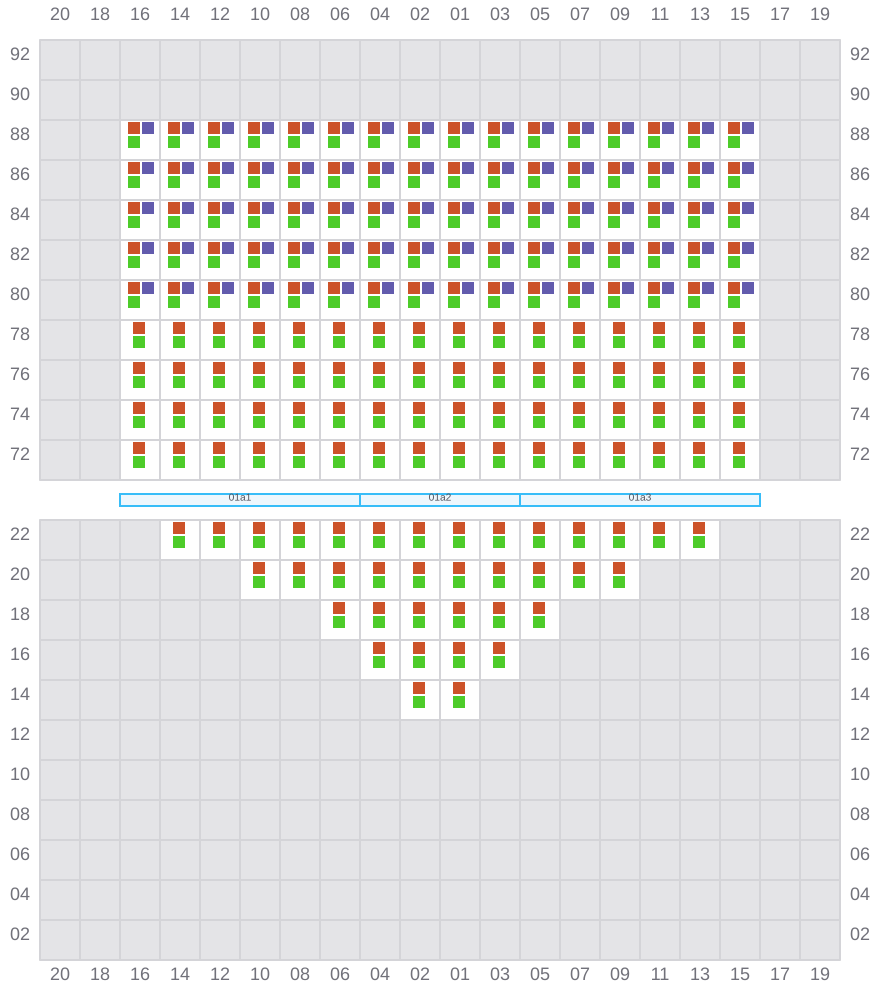

001 (002)
- →
- →

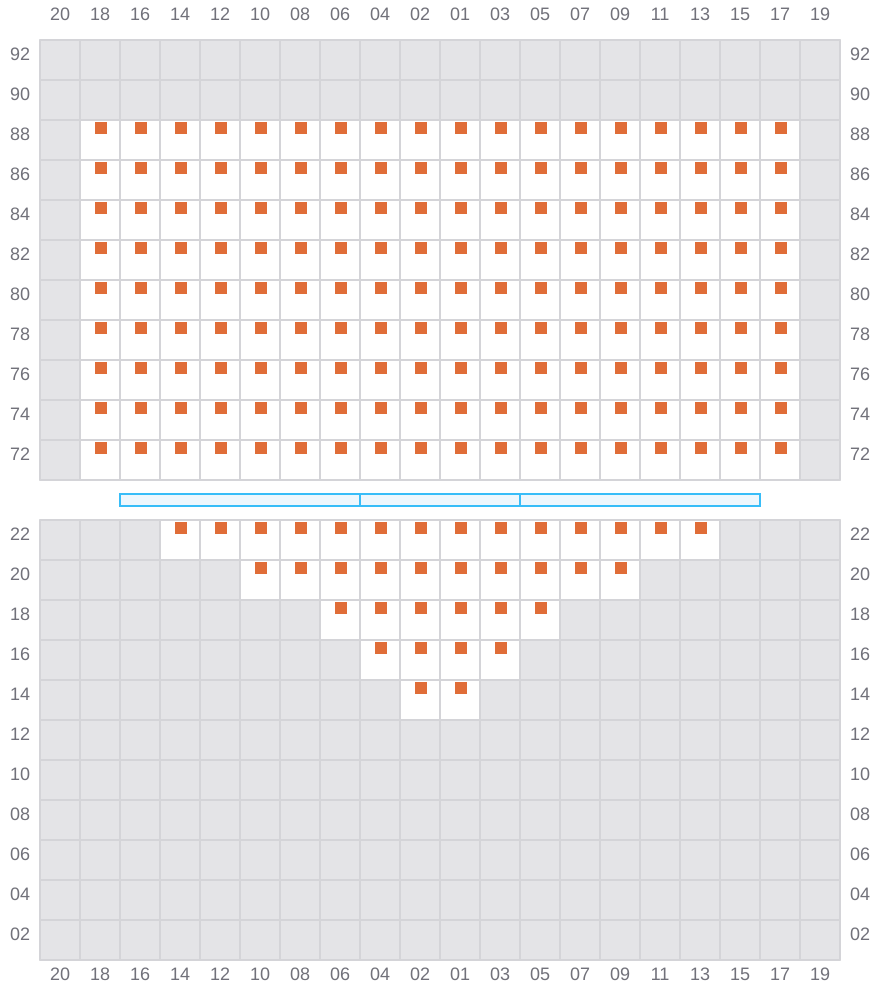

003
- ←
- →

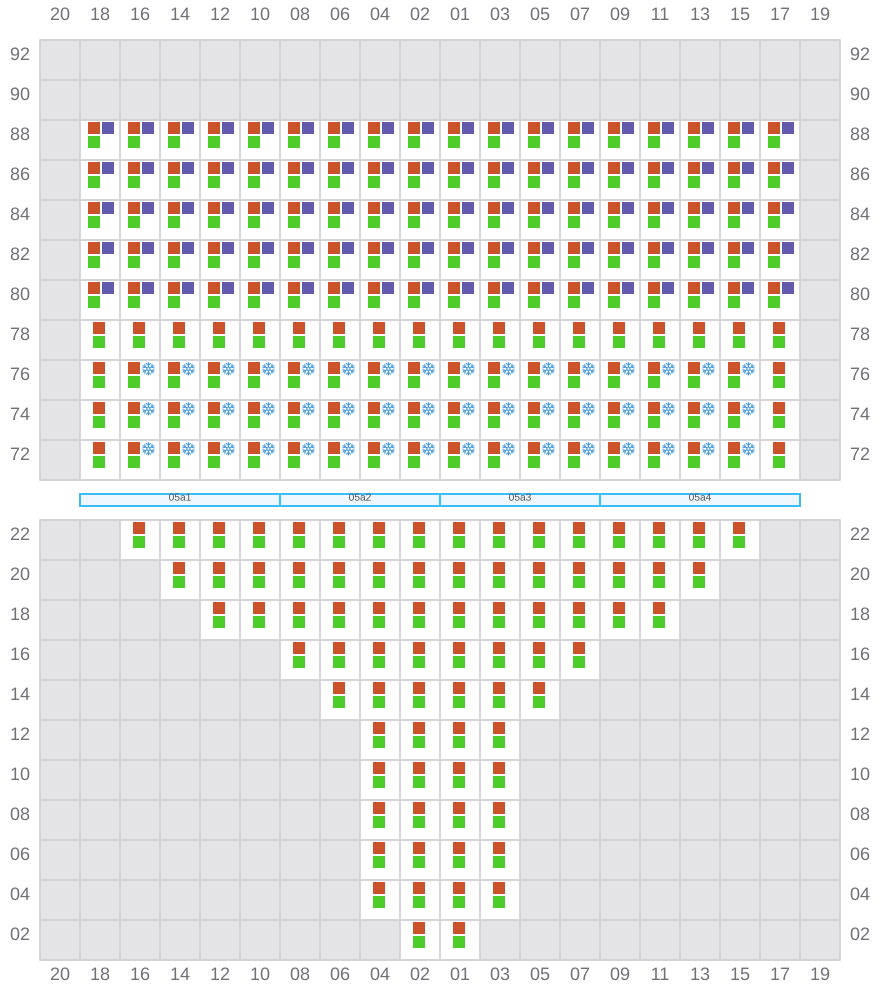

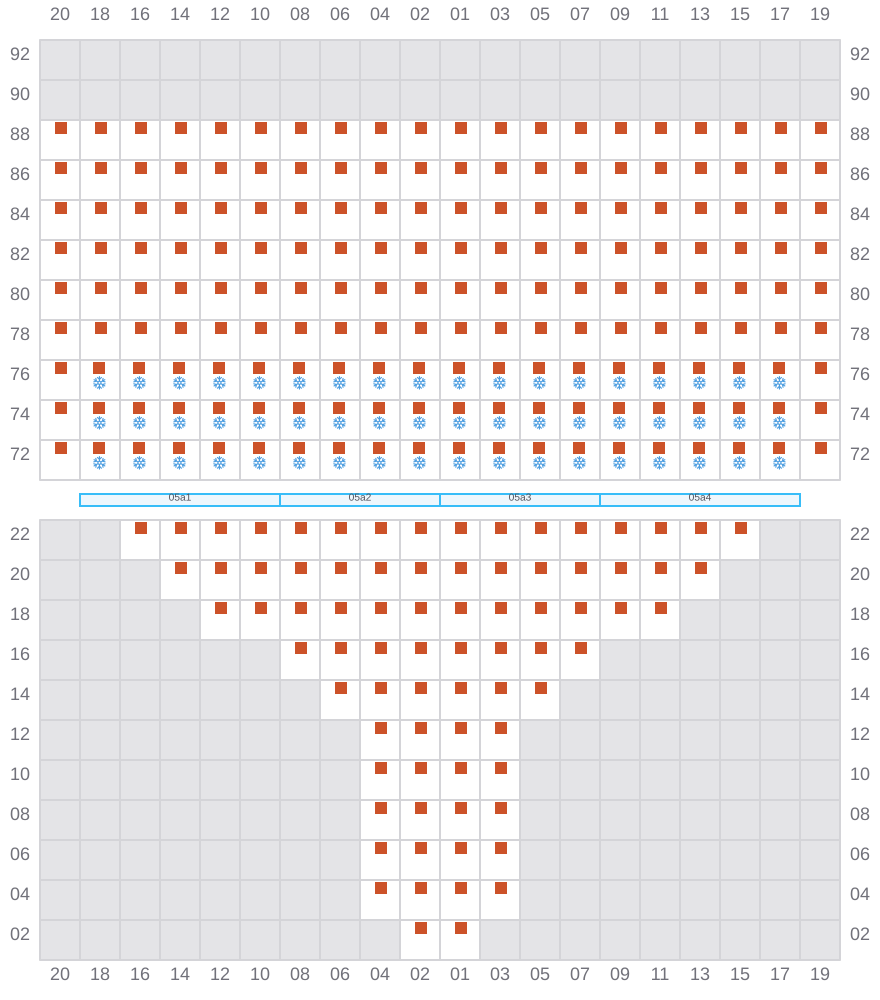

005 (006)
- →
- → / ?
- →
007
- ←
- → / ?
- →

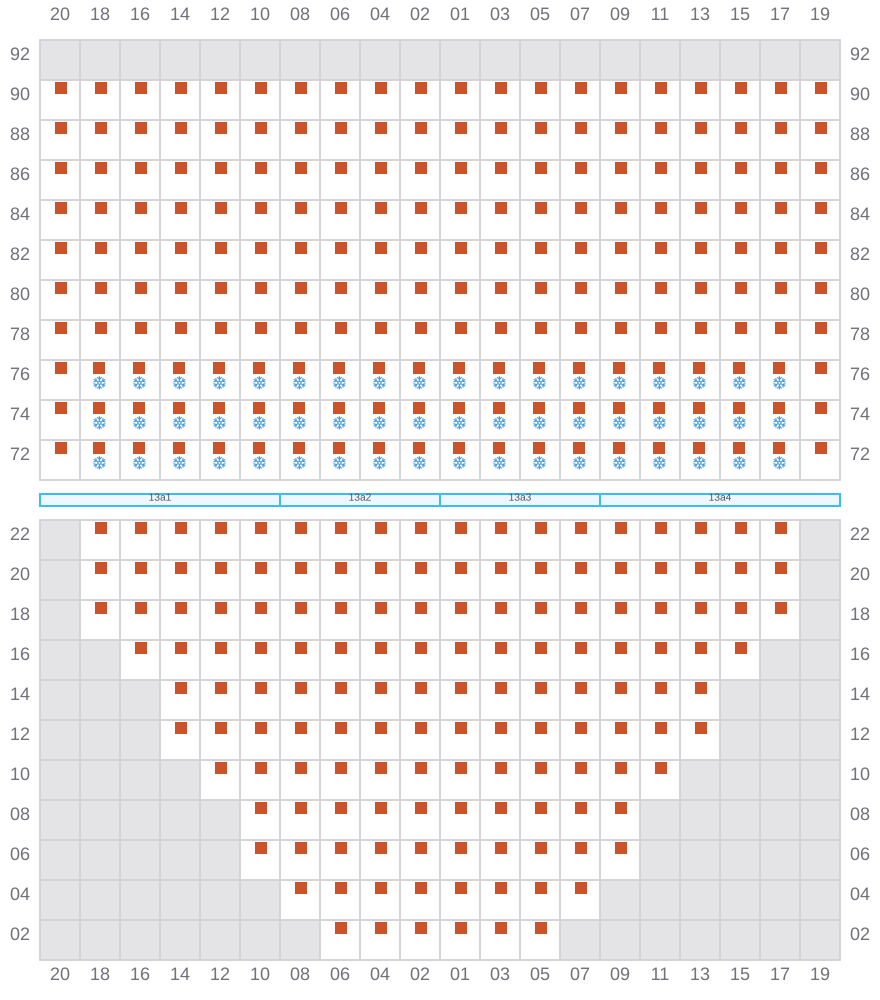

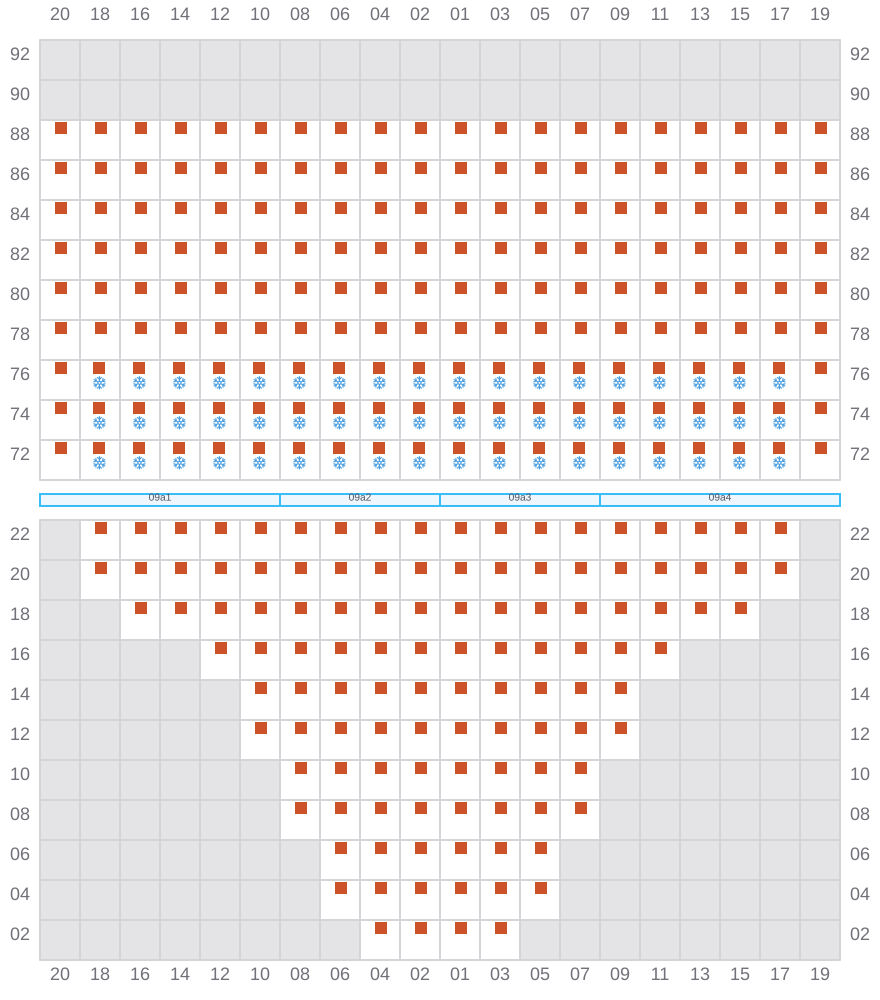

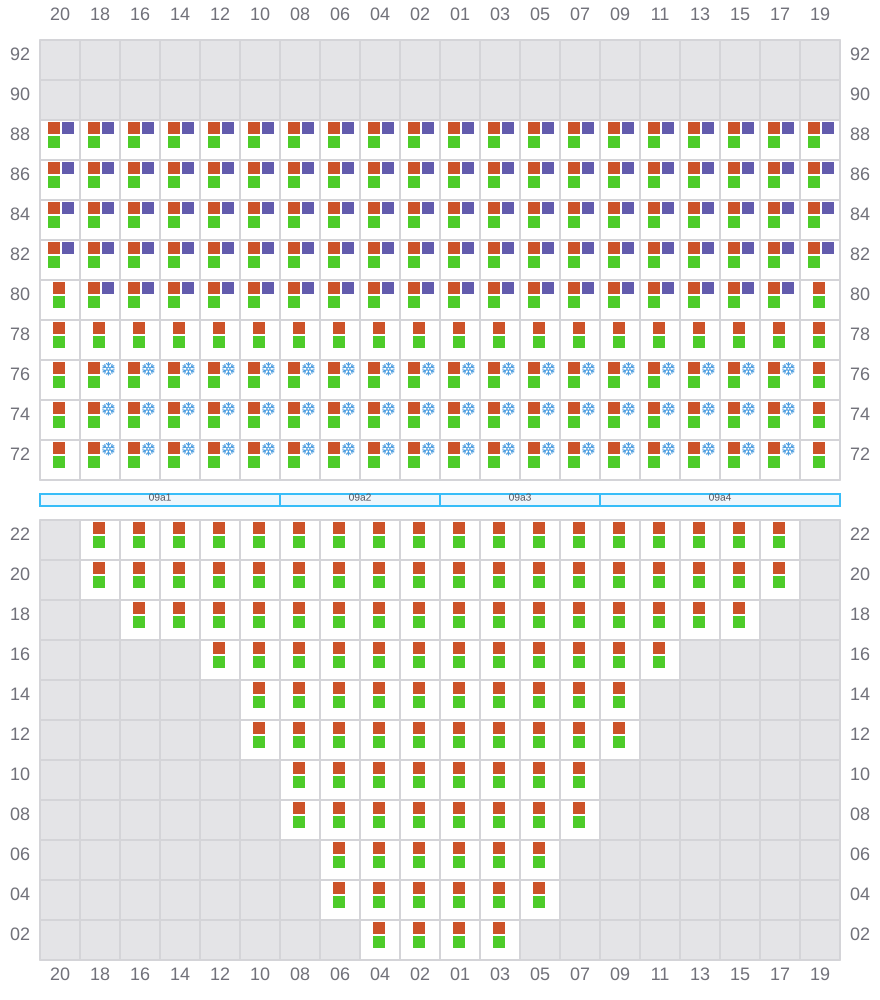

009 (010)
- →
- → / ?
- →
011
- ←
- → / ?
- →

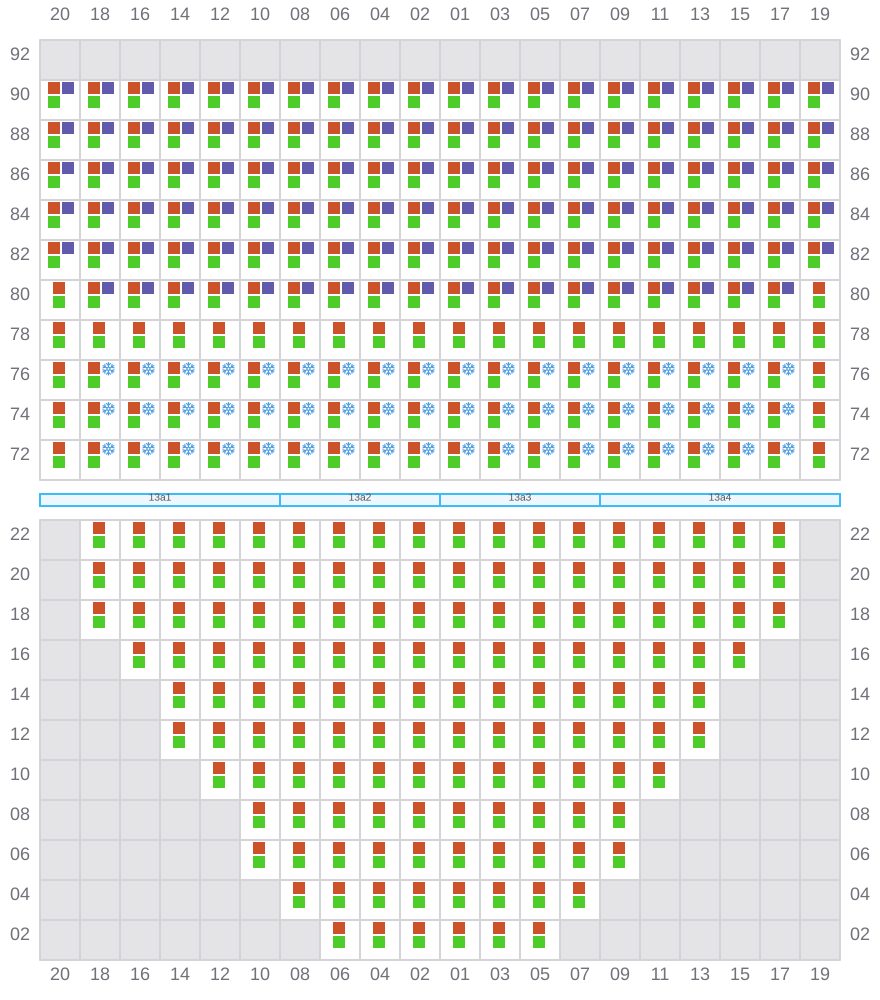

013 (014)
- →
- → / ?
- →
015
- ←
- → / ?
- →

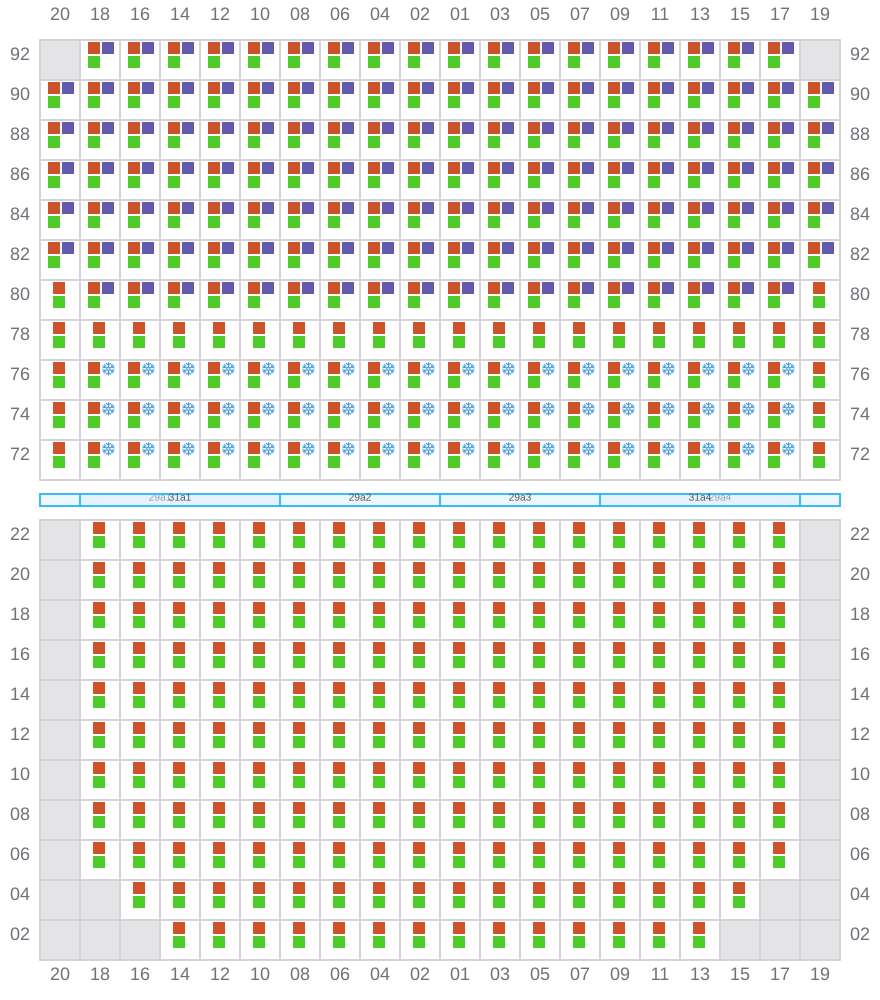

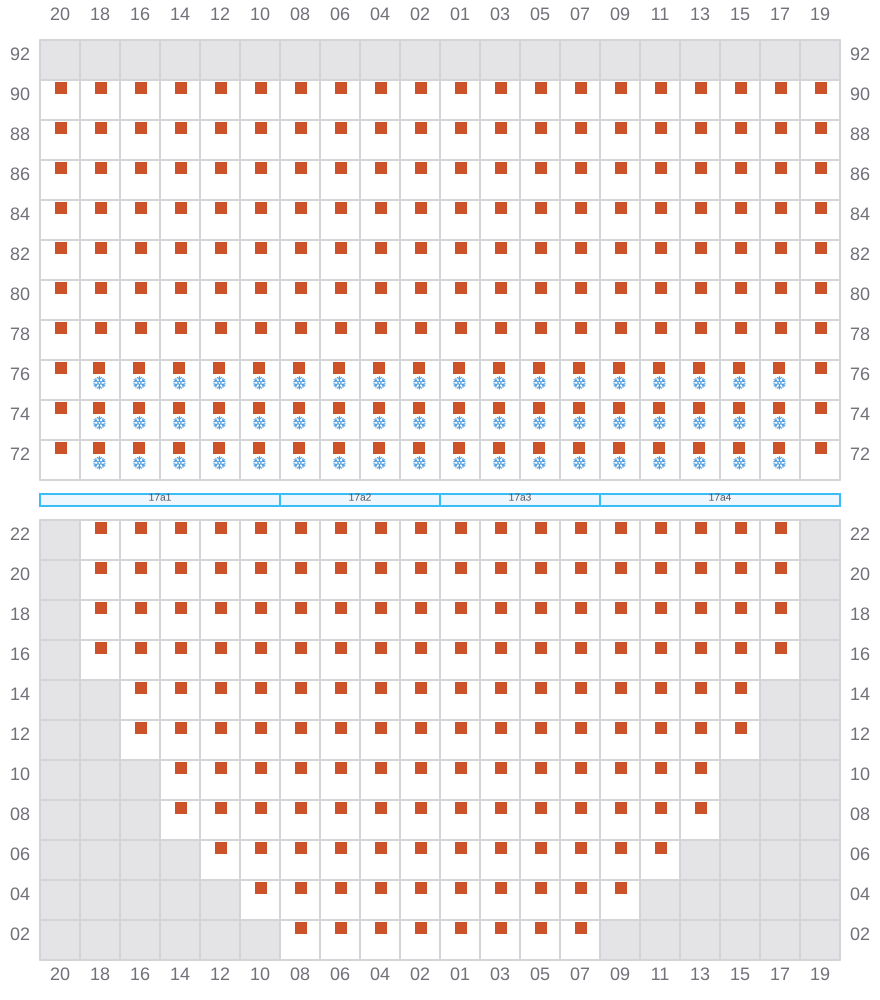

017 (018)
- →
- → / ?
- →
019
- ←
- → / ?
- →

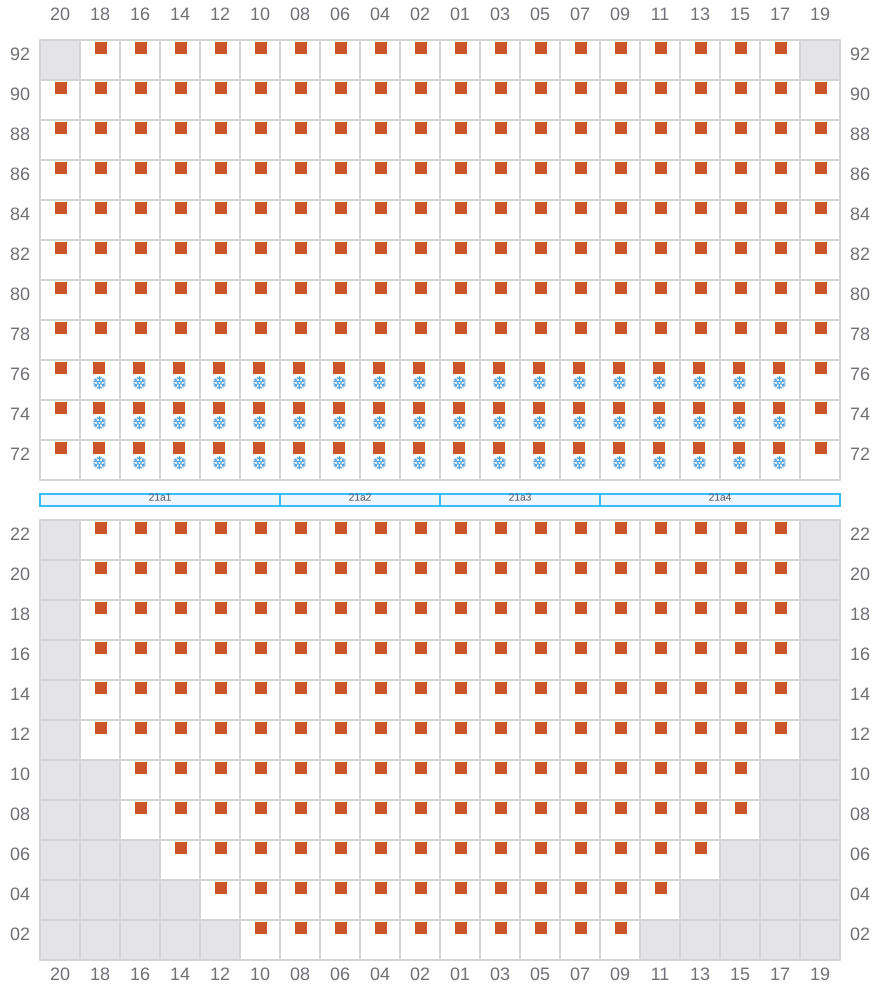

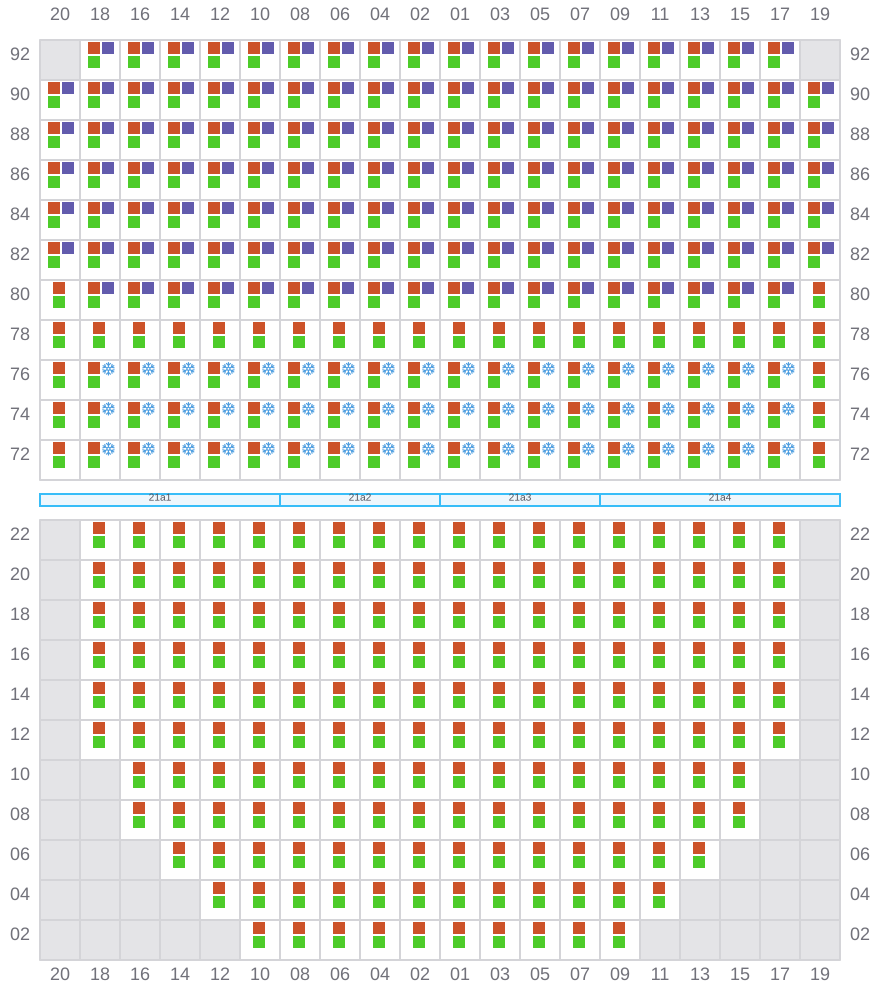

021 (022)
- →
- → / ?
- →
023
- ←
- → / ?
- →

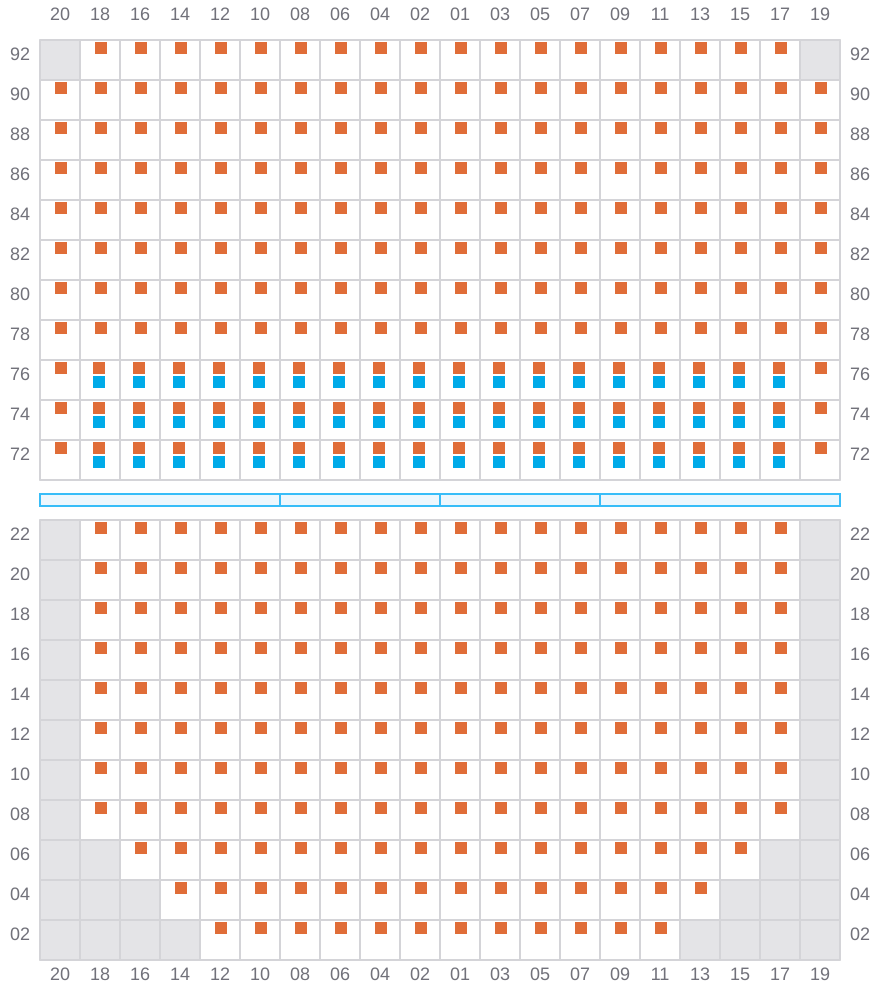

025 (026)
- →
- → / ?
- →
027
- ←
- → / ?
- →

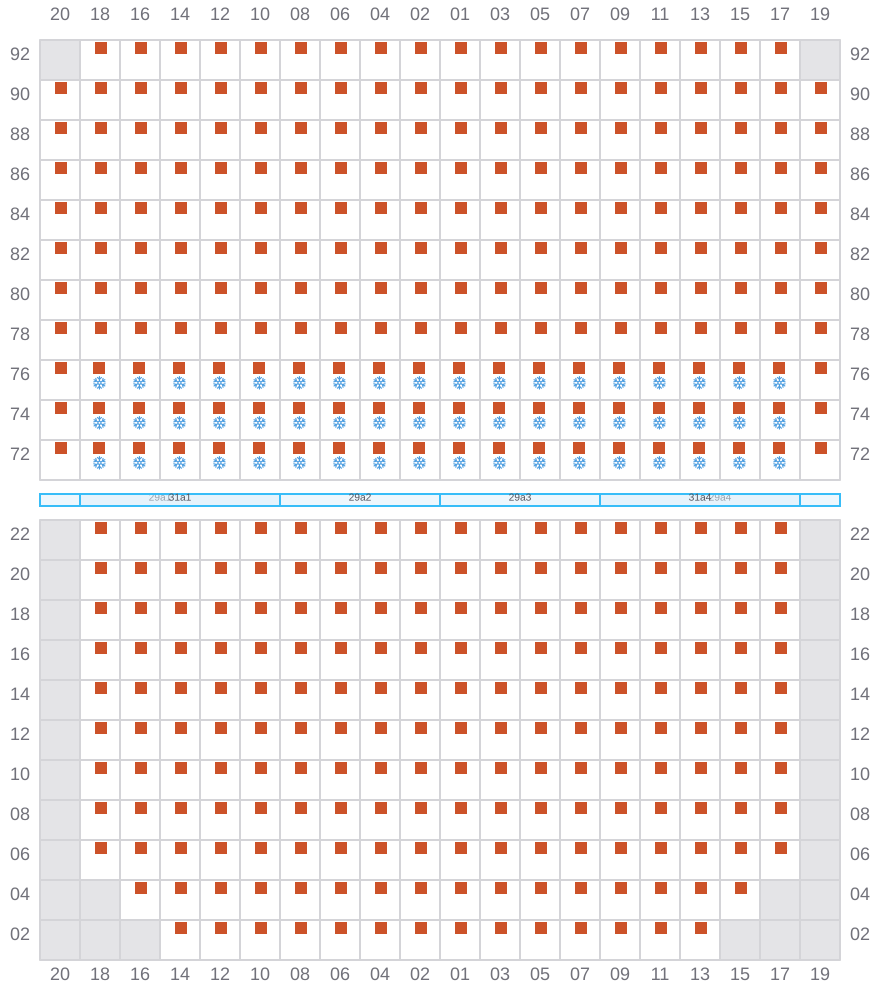

029 (030)
- →
- → / ?
- →
031
- ←
- → / ?
- →

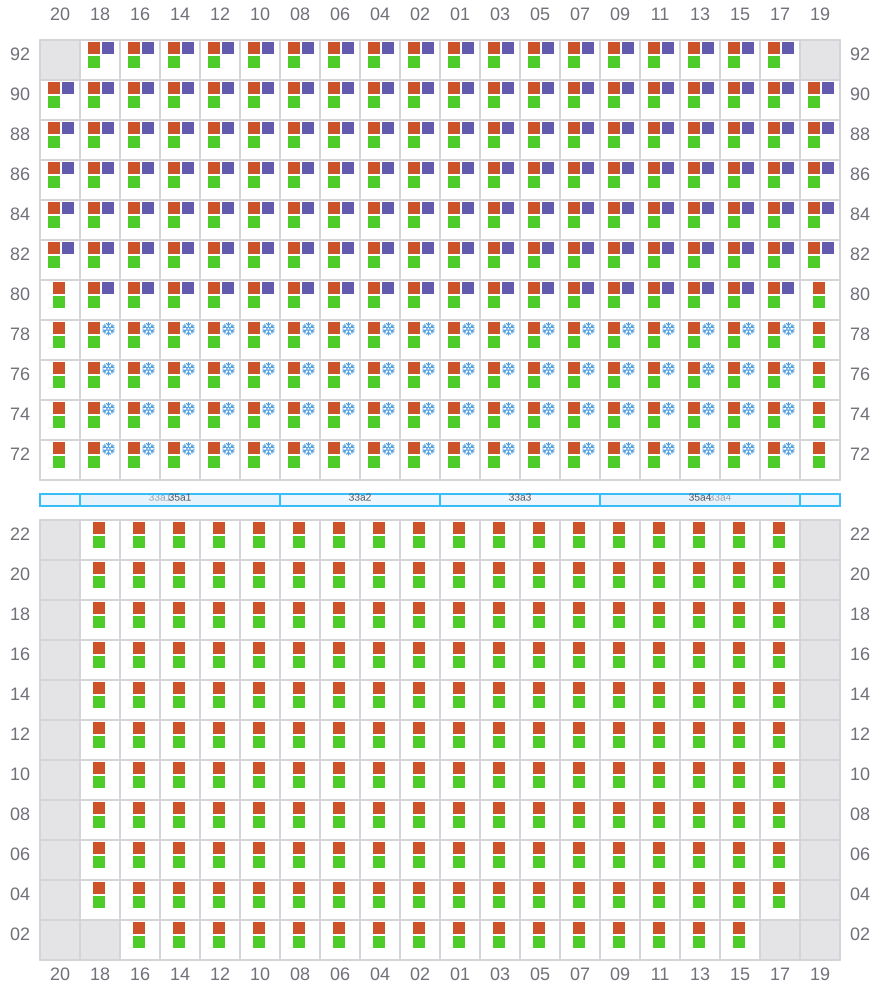

033 (034)
- →
- → / ?
- →
035
- ←
- → / ?
- →
037 (038)
- →
- → / ?
- →
039
- ←
- → / ?
- →
041 (042)
- →
- → / ?
- →
043
- ←
- → / ?
- →

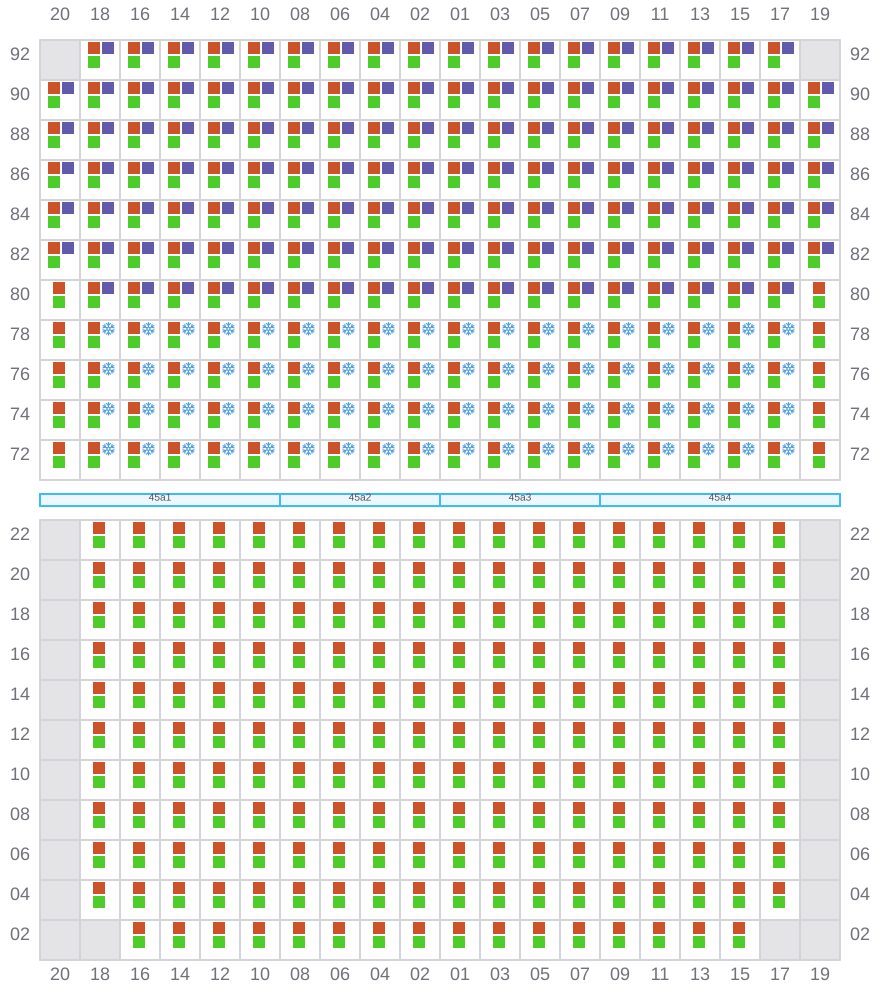

045 (046)
- →
- → / ?
- →
047
- ←
- → / ?
- →
049 (050)
- →
- → / ?
- →
051
- ←
- → / ?
- →
053 (054)
- →
- → / ?
- →
055
- ←
- → / ?
- →
057 (058)
- →
- → / ?
- →

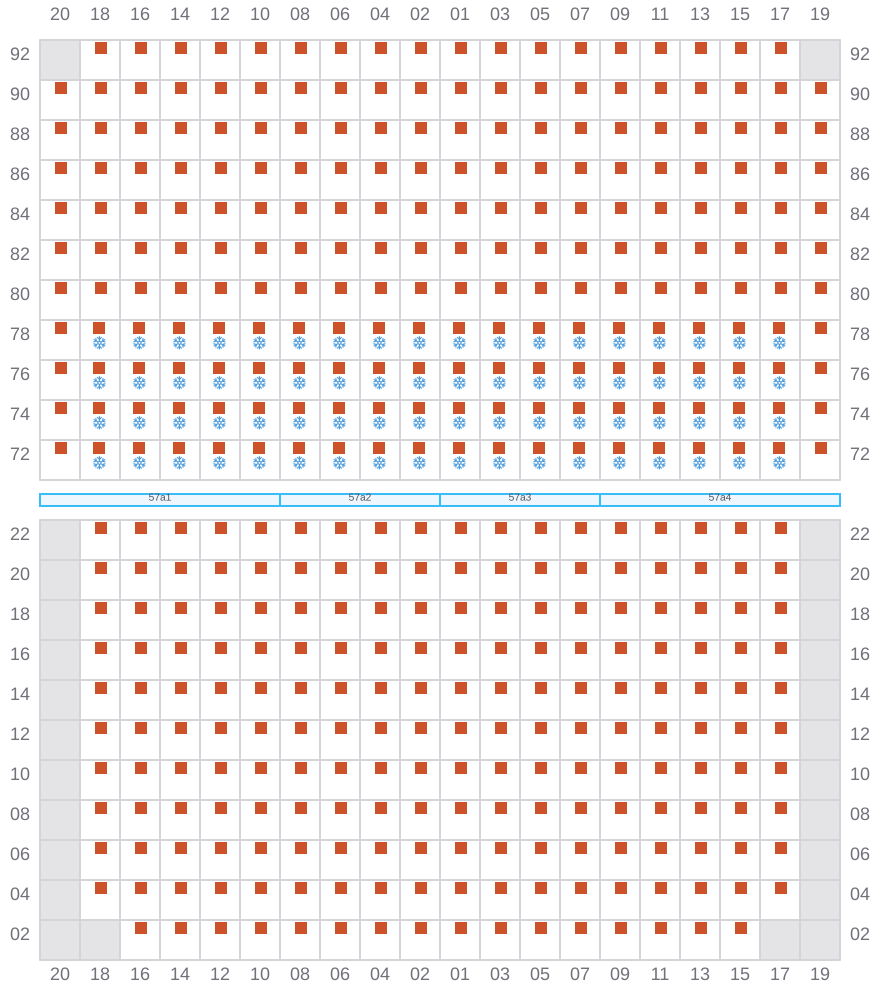

059
- ←
- → / ?
- →
061 (062)
- →
- → / ?
- →
063
- ←
- → / ?
- →

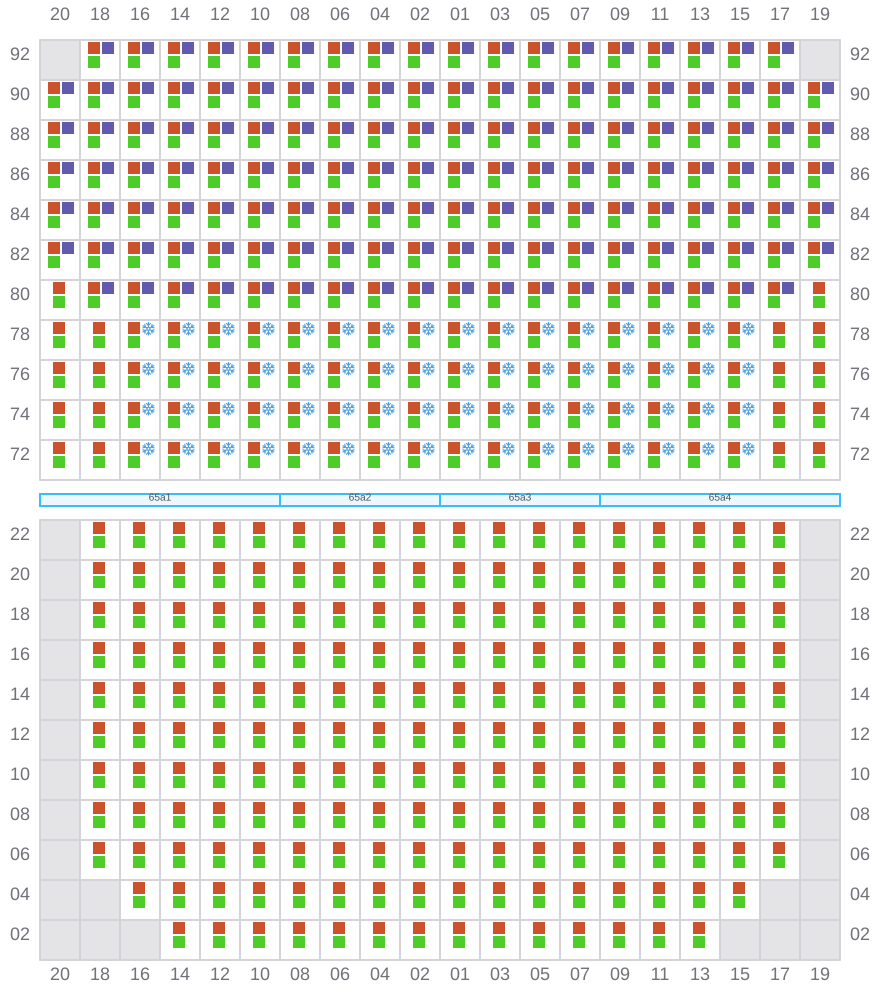

065 (066)
- →
- → / ?
- →

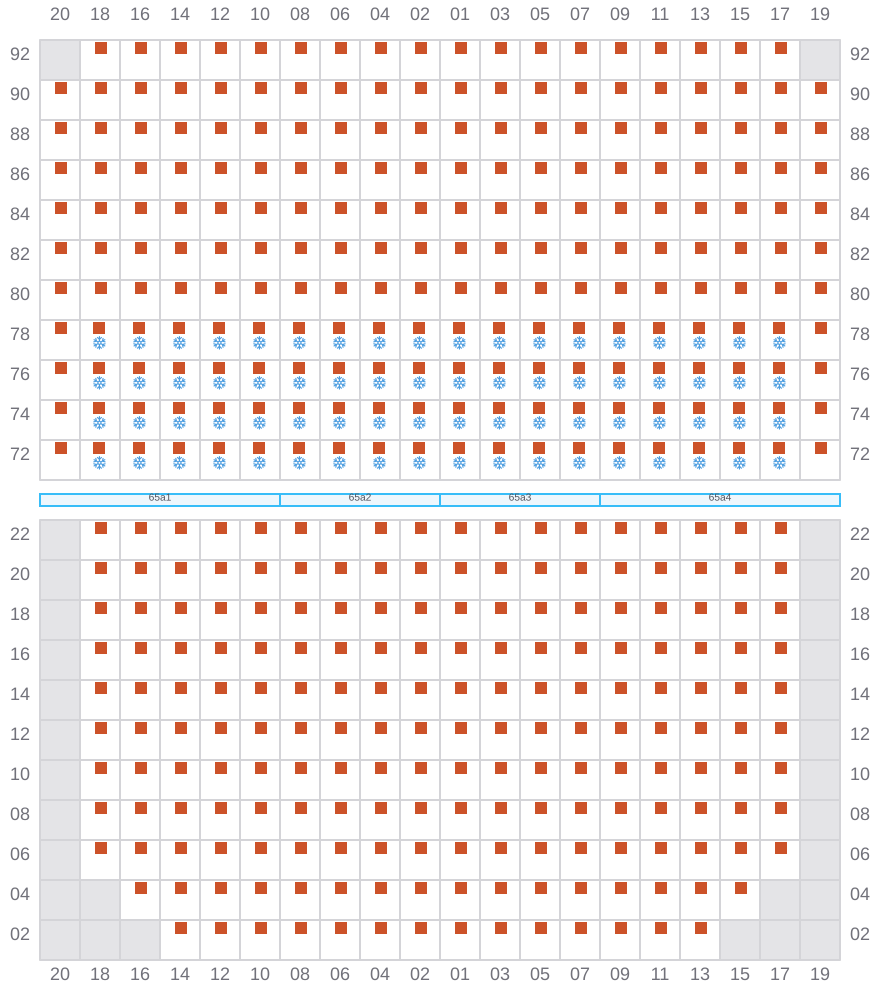

067
- ←
- → / ?
- →

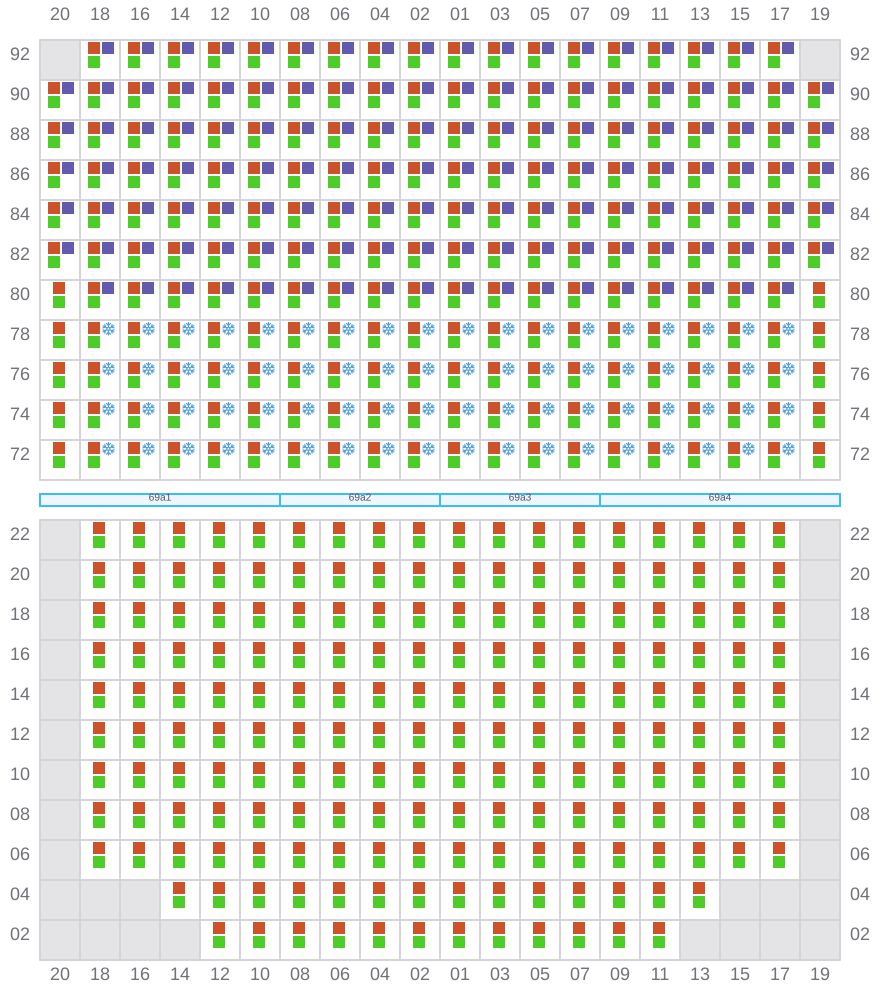

069 (070)
- →
- → / ?
- →

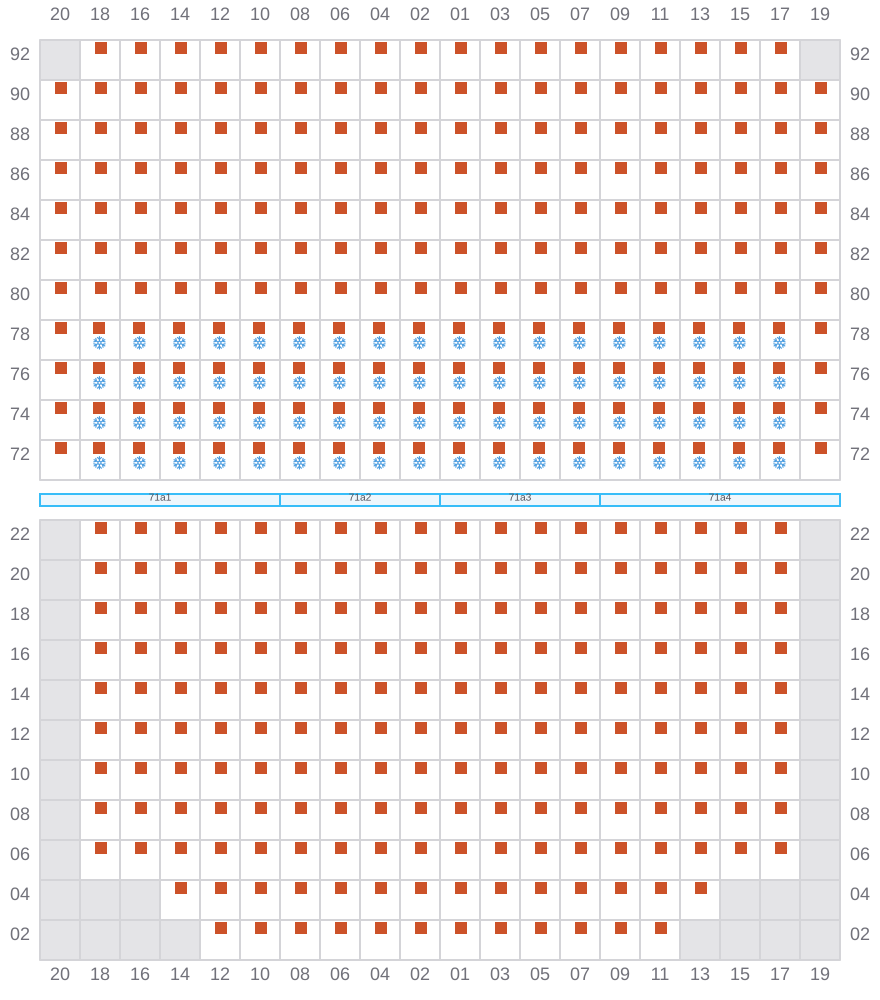

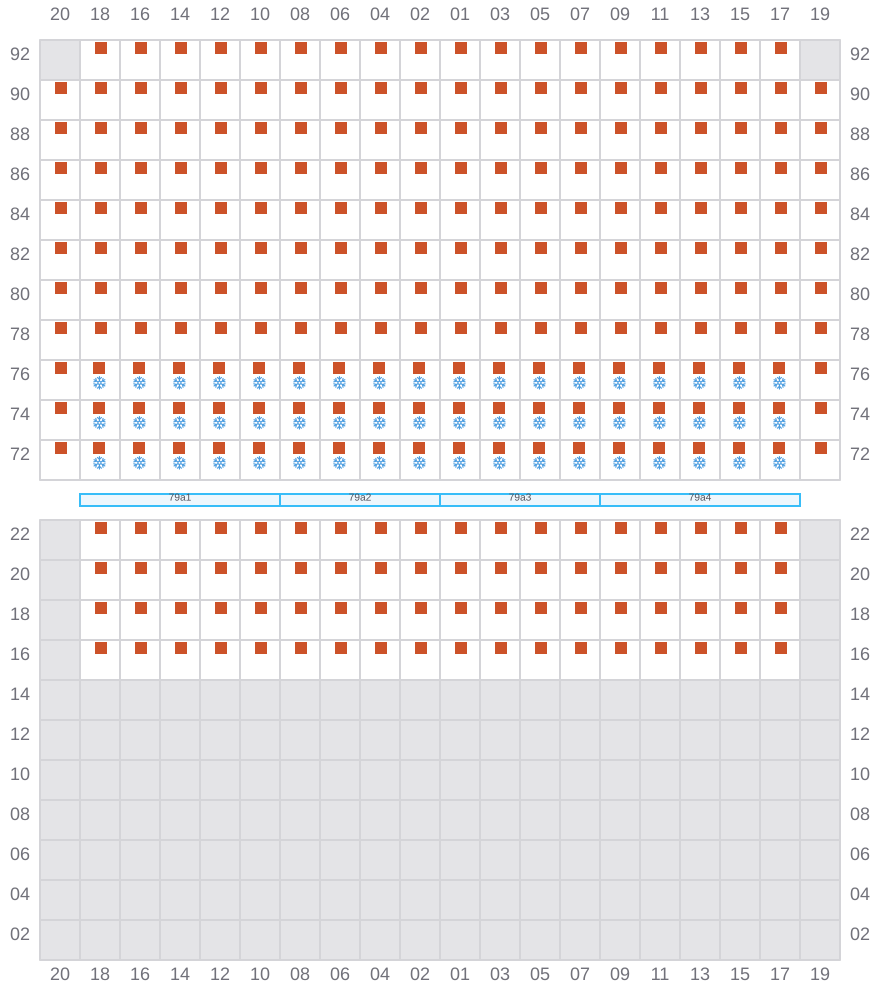

071
- ←
- → / ?
- →
073 (074)
- →
- → / ?
- →

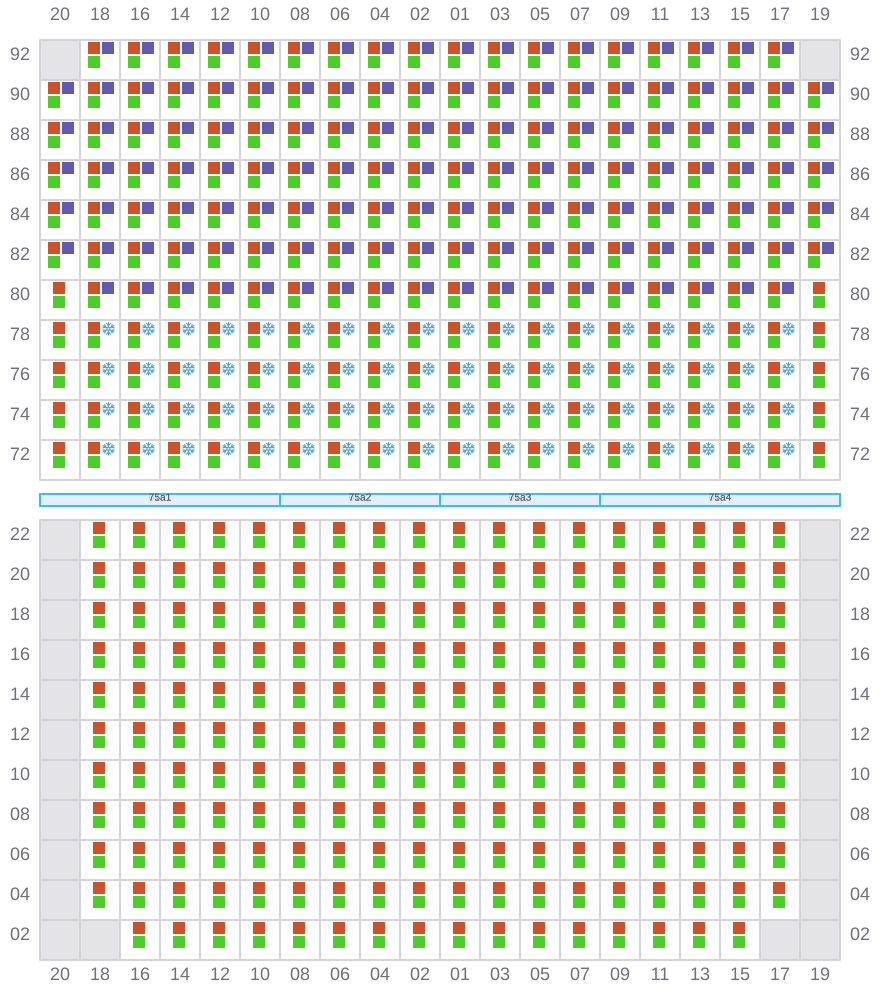

075
- ←
- → / ?
- →

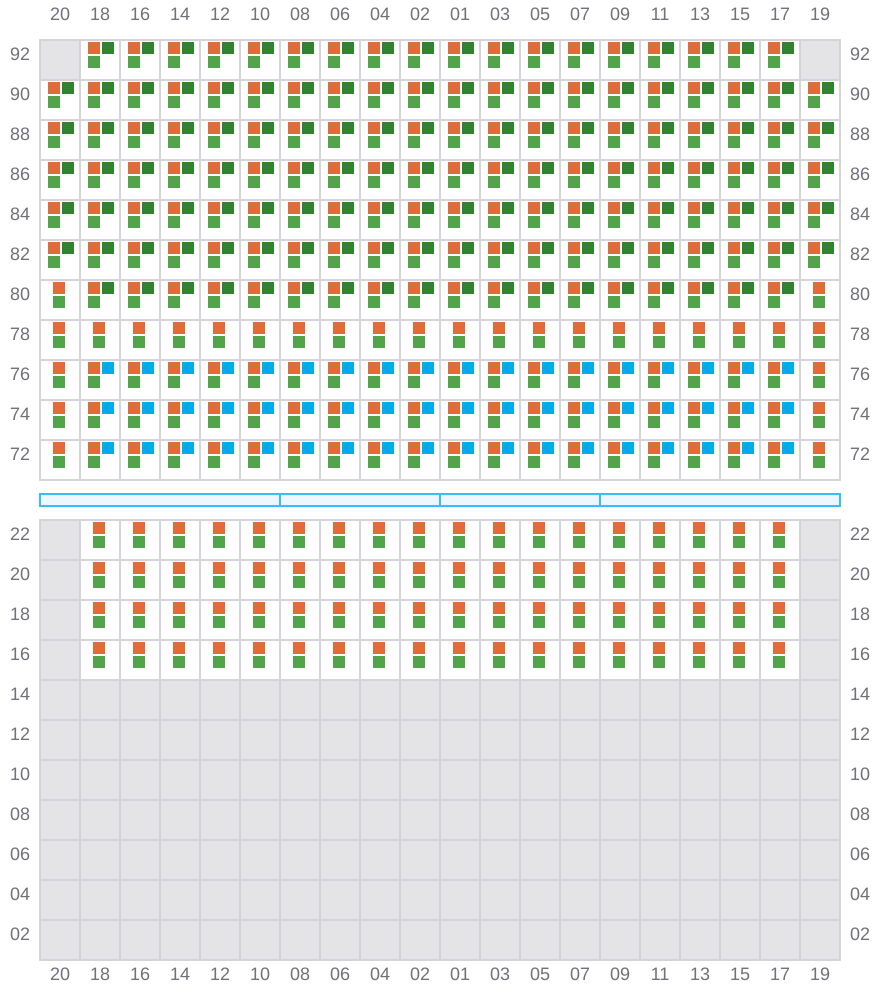

077 (078)
- →
- → / ?
- →
079
- ←
- → / ?
- →

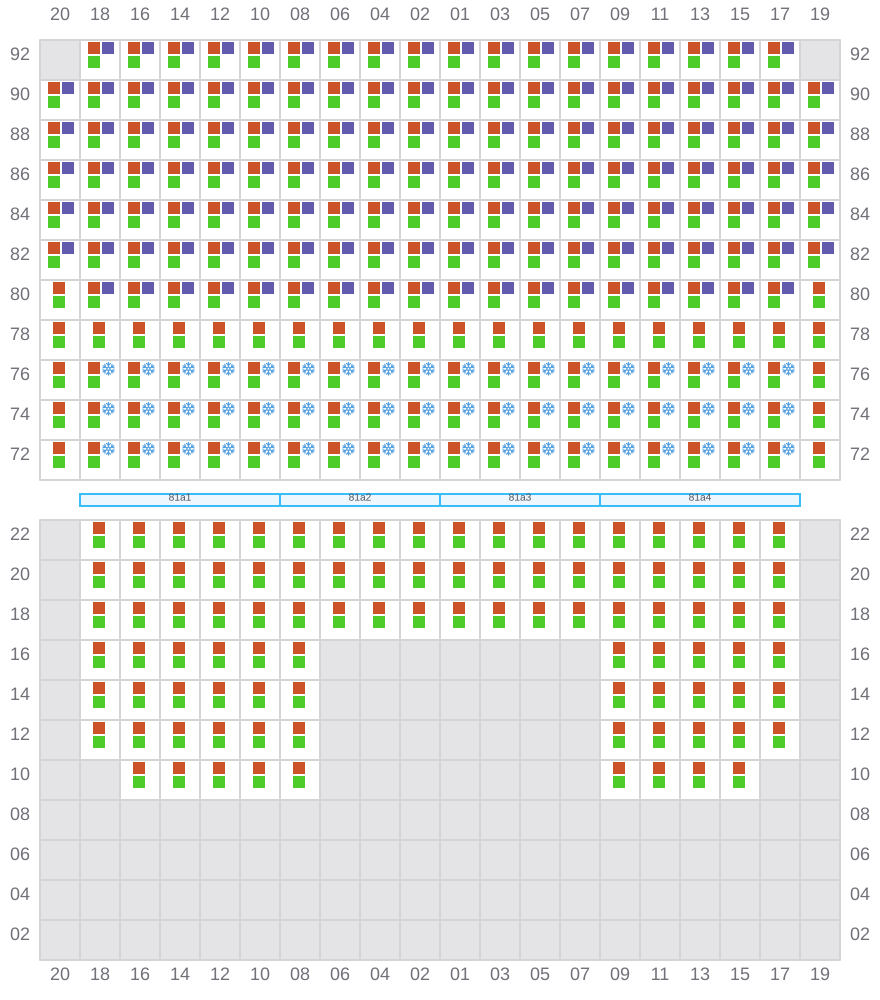

081 (082)
- →
- → / ?
- →
083
- ←
- →

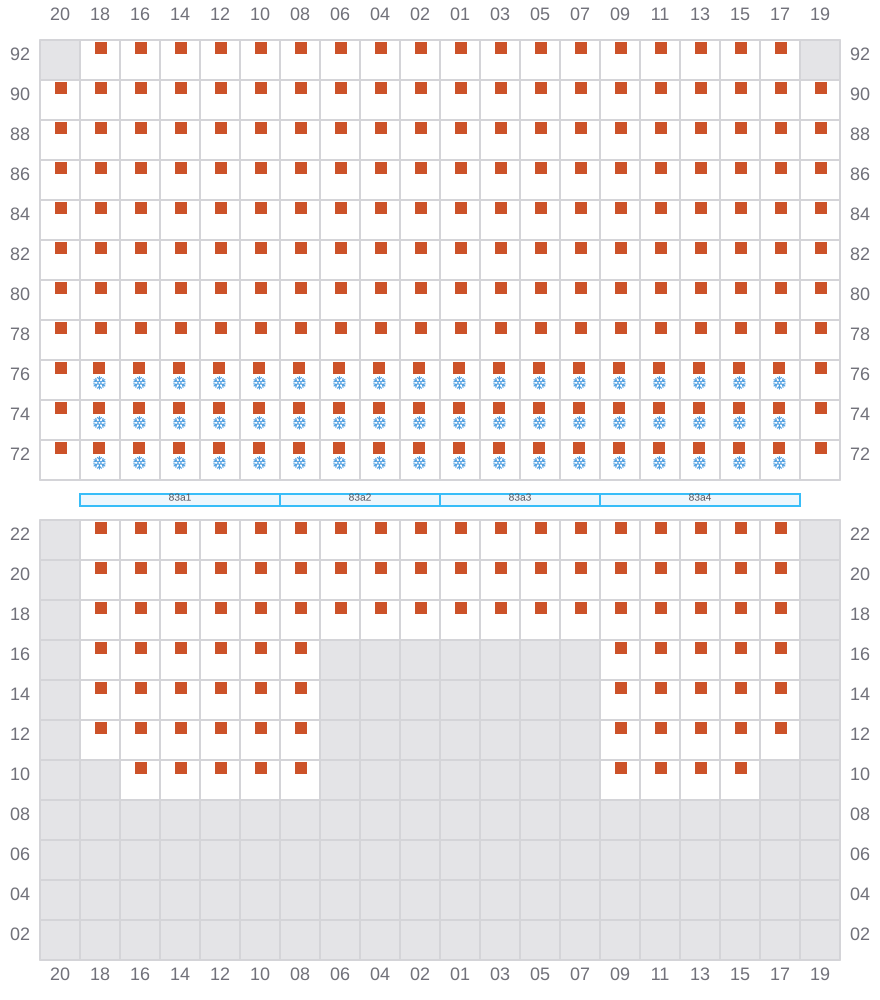

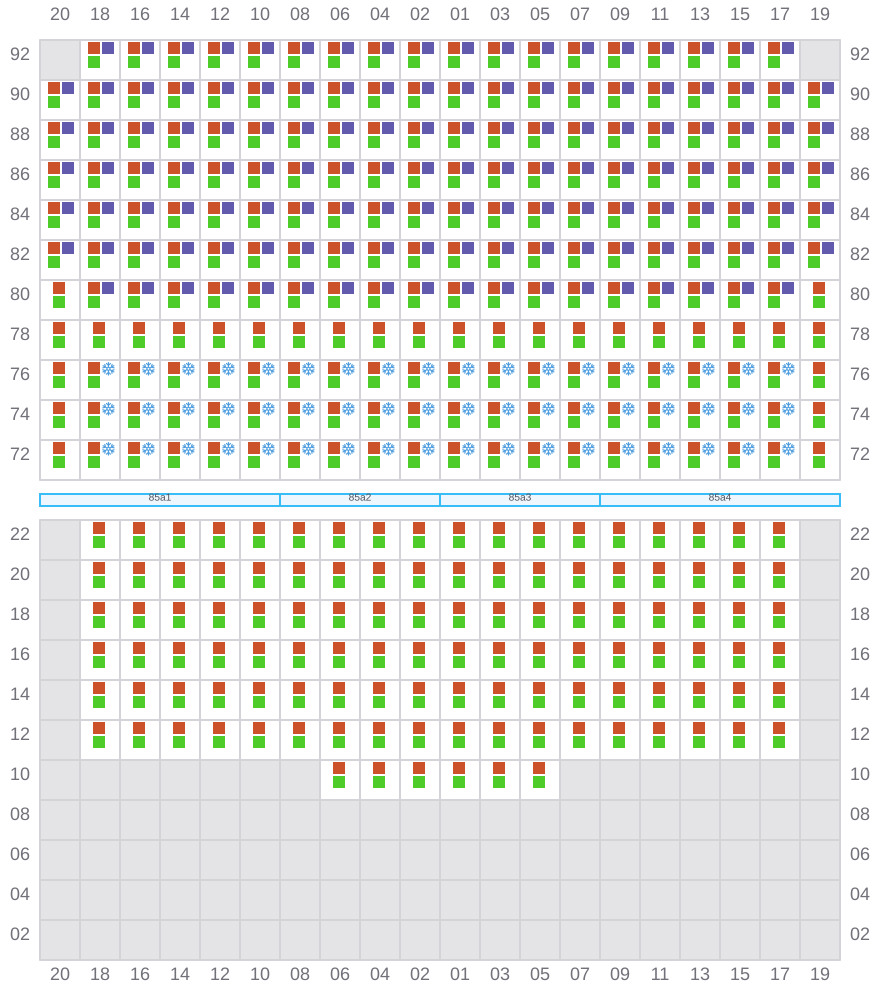

085 (086)
- →
- → / ?
- →

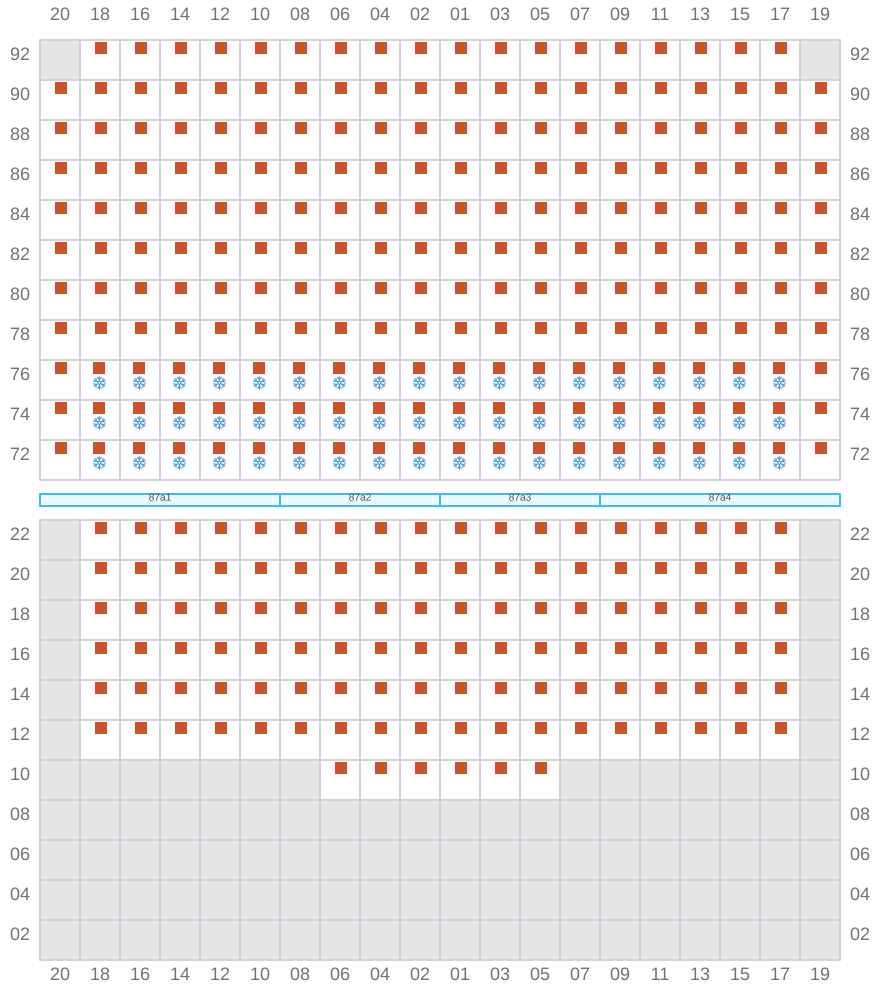

087
- ←
- → / ?
- →

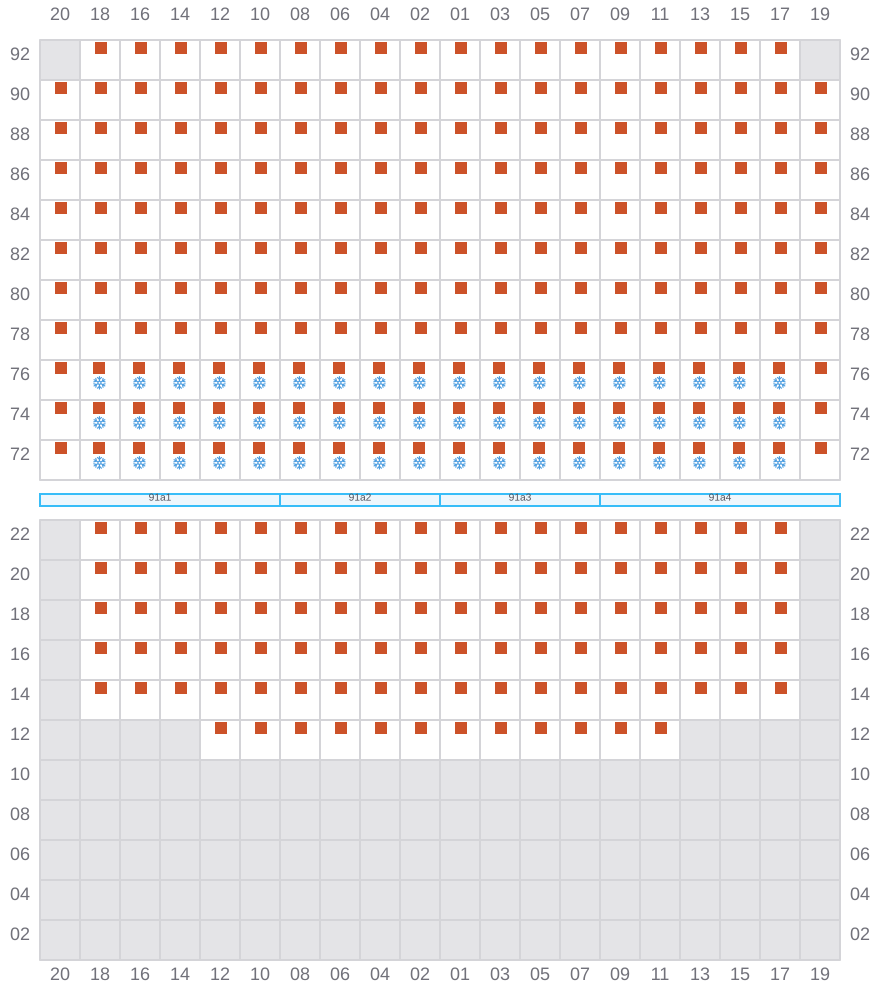

089 (090)
- →
- → / ?
- →
091
- ←
- → / ?
- →
093 (094)
- → / ?
- → / ?
- → / ?
