APL SENTOSA
9632040 | 9HA5180 | 9632040 by ********* Last update: Tue Apr 02 2024
General Info
Ship Name:APL SENTOSA
IMO Code:9632040
Call Sign:9HA5180
Line Operator:9632040
Class Name for Sister Ships:TEMASEK
Year Built:2014
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):352.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:085
Max ISO Row:20
Center Line Row:No
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:13,896
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

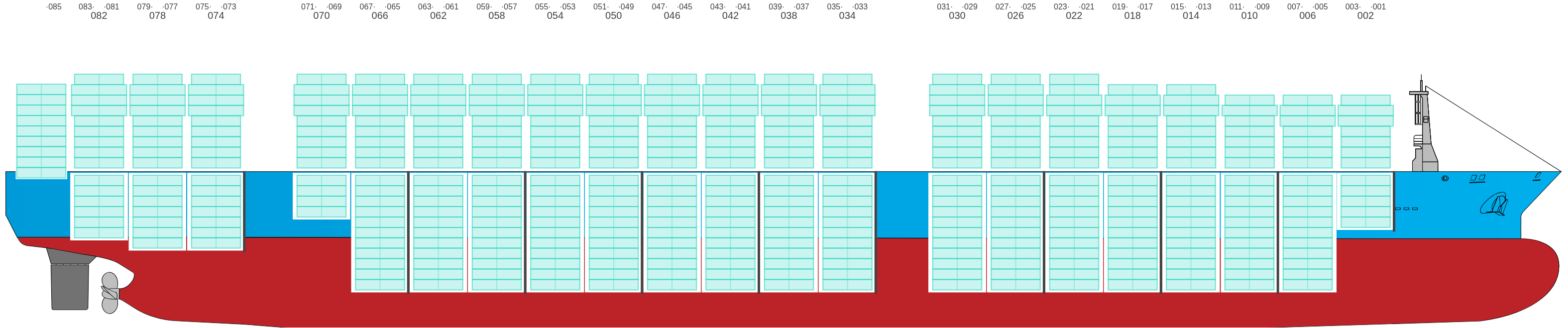

Side View
![Side view of APL SENTOSA](/vessel-images/ce22760f-6654-418d-bc65-ebca9d96d4c9-sideView.png?v=1712083957214)
Hatch-Covers View
![Deck view of APL SENTOSA](/vessel-images/ce22760f-6654-418d-bc65-ebca9d96d4c9-deckView.png?v=1712083957214)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

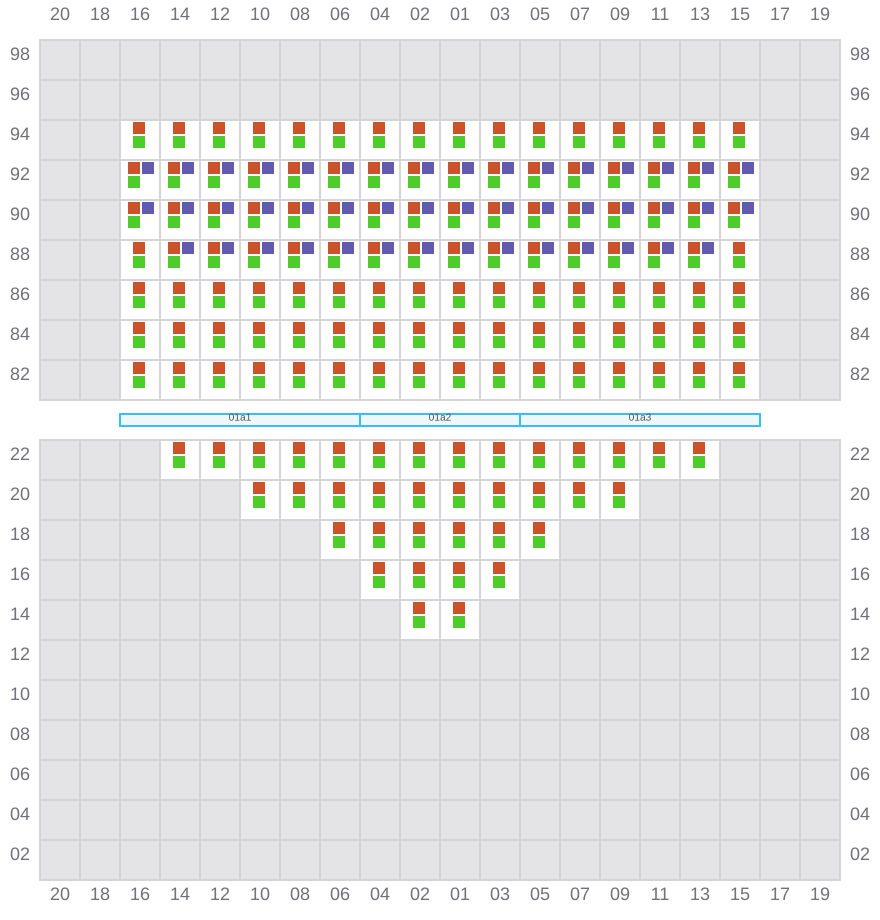

001 (002)
- →
![Bay 001 view and slots of APL SENTOSA](/vessel-images/ce22760f-6654-418d-bc65-ebca9d96d4c9-b001.png?v=1712083957214)

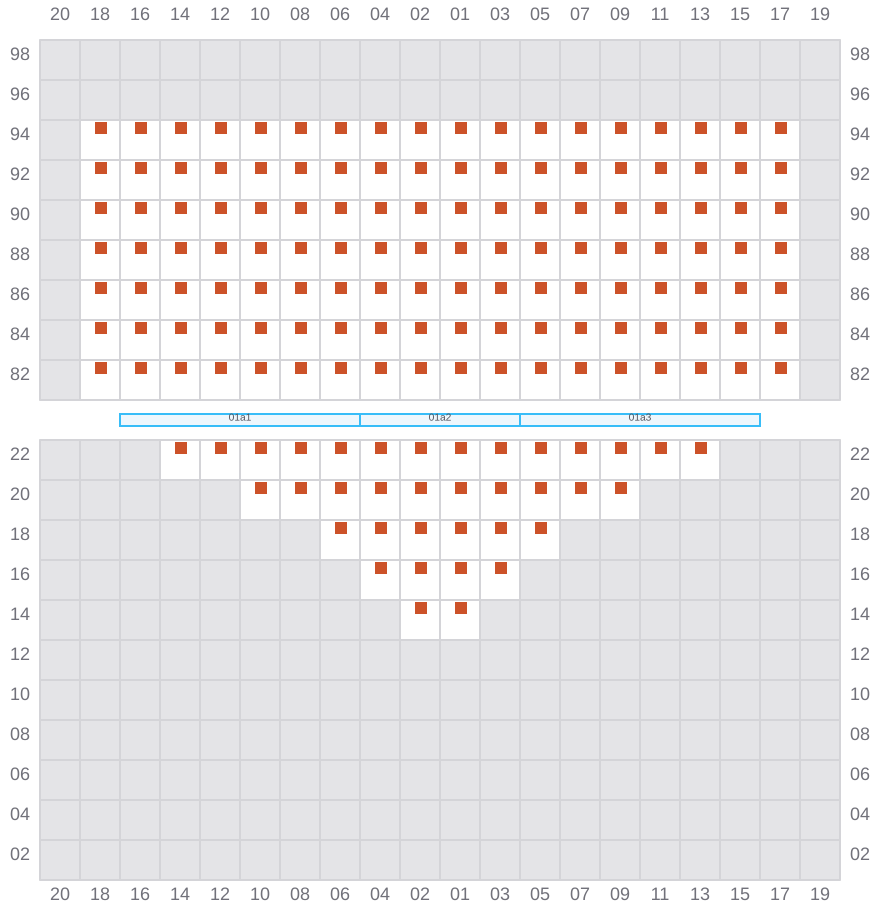

003
- ←
![Bay 003 view and slots of APL SENTOSA](/vessel-images/ce22760f-6654-418d-bc65-ebca9d96d4c9-b003.png?v=1712083957214)

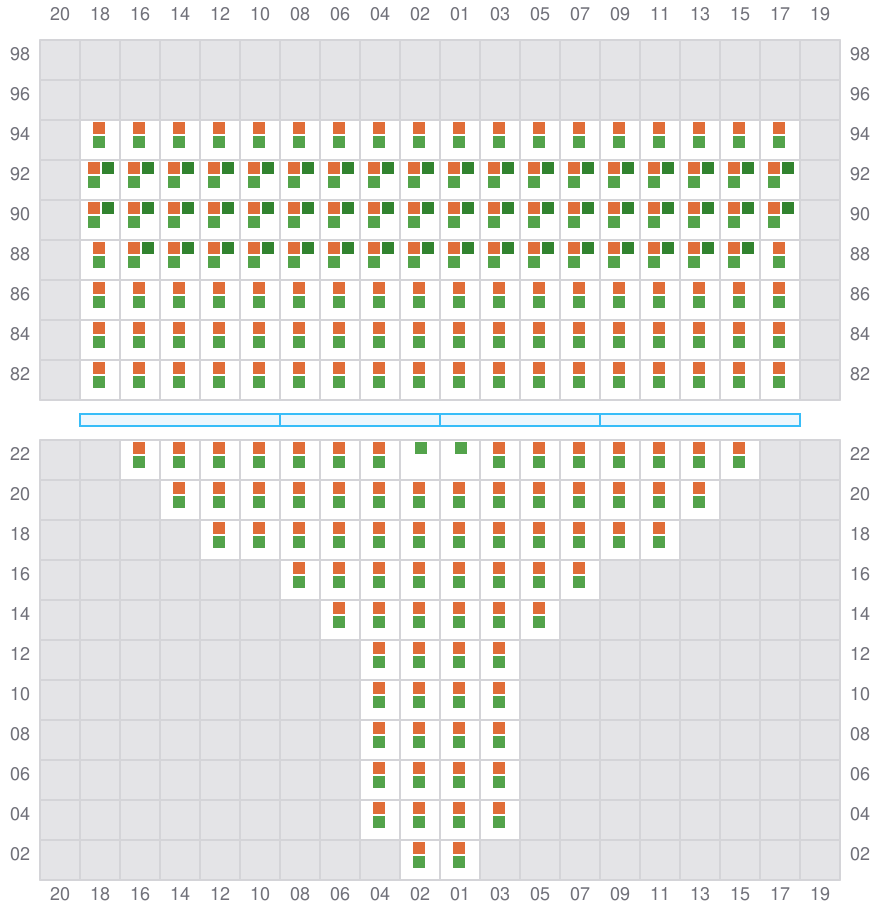

005 (006)
- →
- → / ?
![Bay 005 view and slots of APL SENTOSA](/vessel-images/ce22760f-6654-418d-bc65-ebca9d96d4c9-b005.png?v=1712083957214)

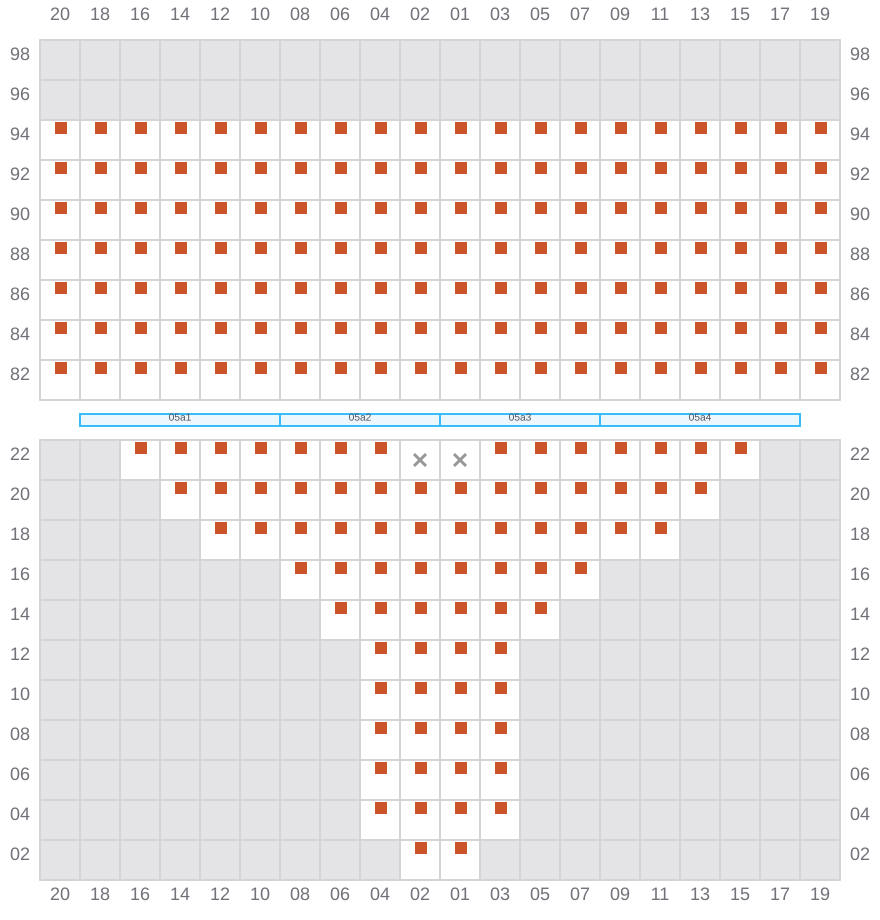

007
- ←
- → / ?
![Bay 007 view and slots of APL SENTOSA](/vessel-images/ce22760f-6654-418d-bc65-ebca9d96d4c9-b007.png?v=1712083957214)
009 (010)
- →
- → / ?
![Bay 009 view and slots of APL SENTOSA](/vessel-images/ce22760f-6654-418d-bc65-ebca9d96d4c9-b009.png?v=1712083957214)

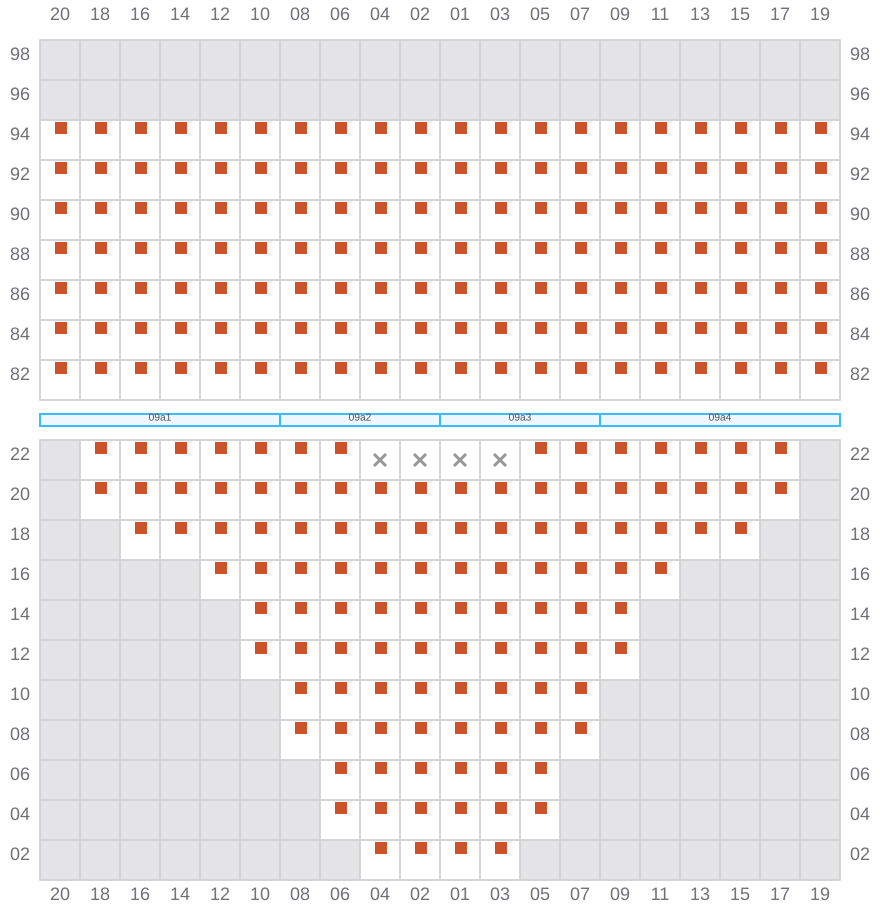

011
- ←
- → / ?
![Bay 011 view and slots of APL SENTOSA](/vessel-images/ce22760f-6654-418d-bc65-ebca9d96d4c9-b011.png?v=1712083957214)

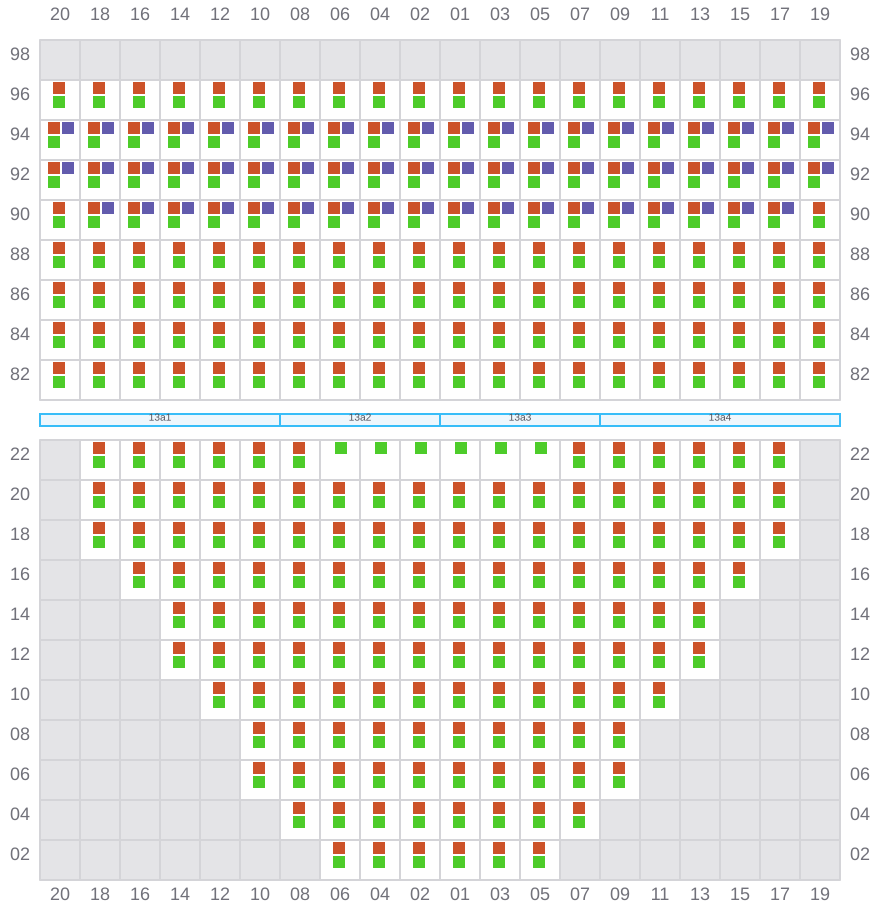

013 (014)
- →
- → / ?
![Bay 013 view and slots of APL SENTOSA](/vessel-images/ce22760f-6654-418d-bc65-ebca9d96d4c9-b013.png?v=1712083957214)

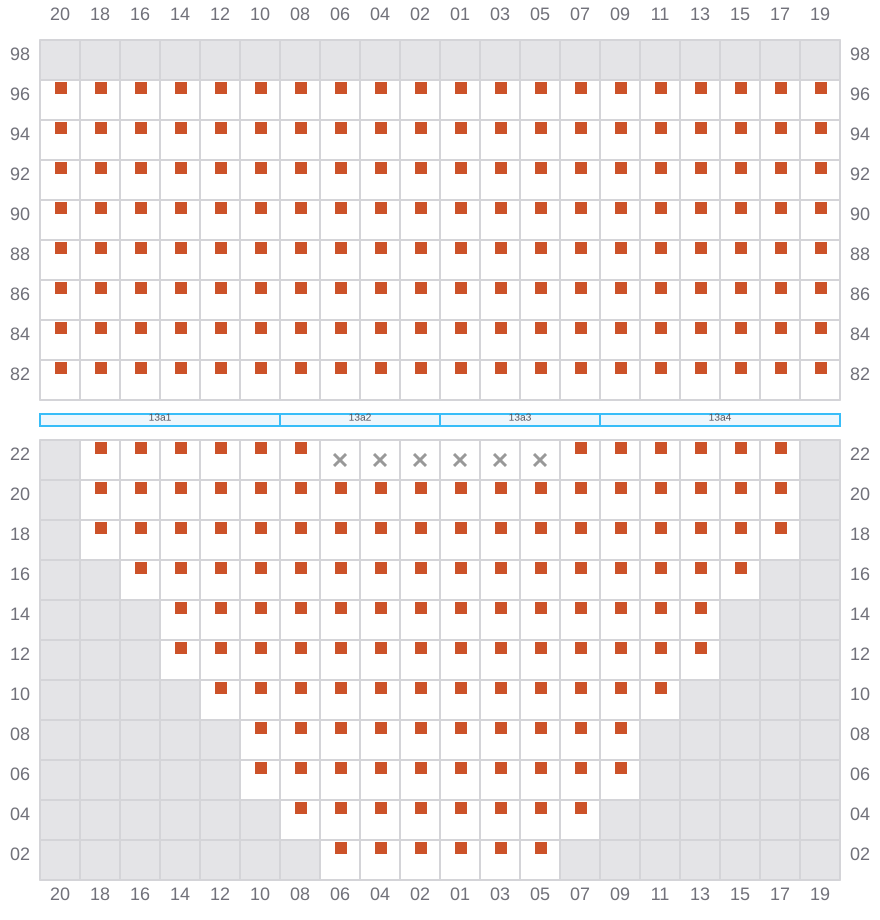

015
- ←
- → / ?
![Bay 015 view and slots of APL SENTOSA](/vessel-images/ce22760f-6654-418d-bc65-ebca9d96d4c9-b015.png?v=1712083957214)

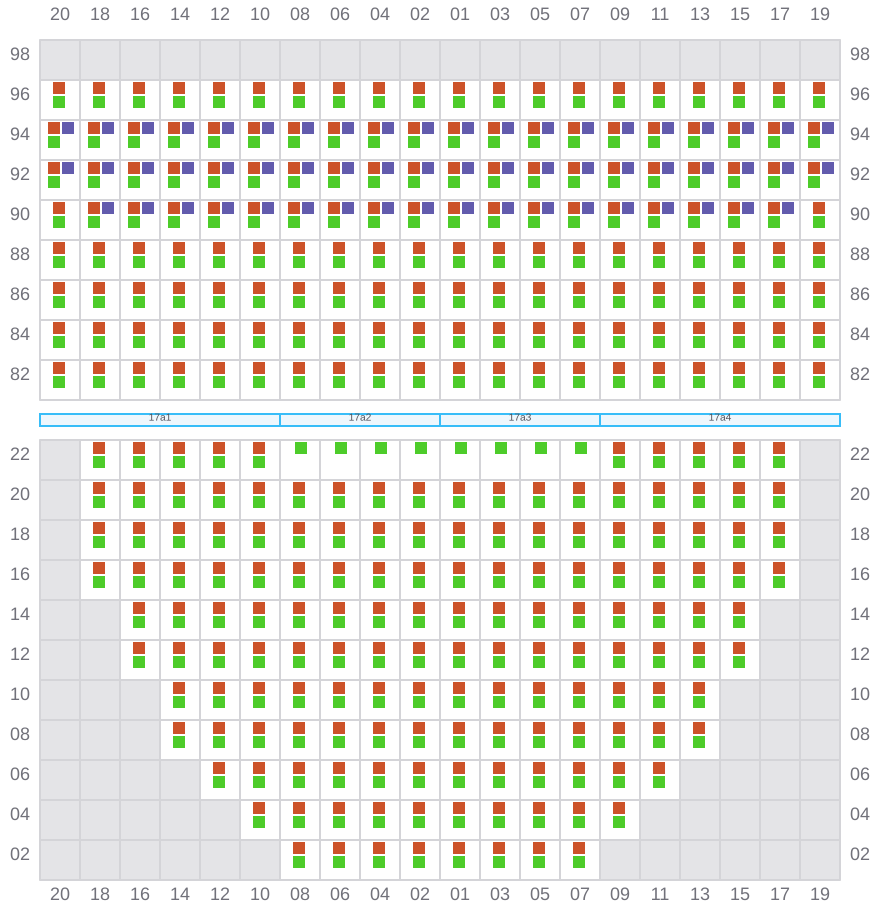

017 (018)
- →
- → / ?
![Bay 017 view and slots of APL SENTOSA](/vessel-images/ce22760f-6654-418d-bc65-ebca9d96d4c9-b017.png?v=1712083957214)

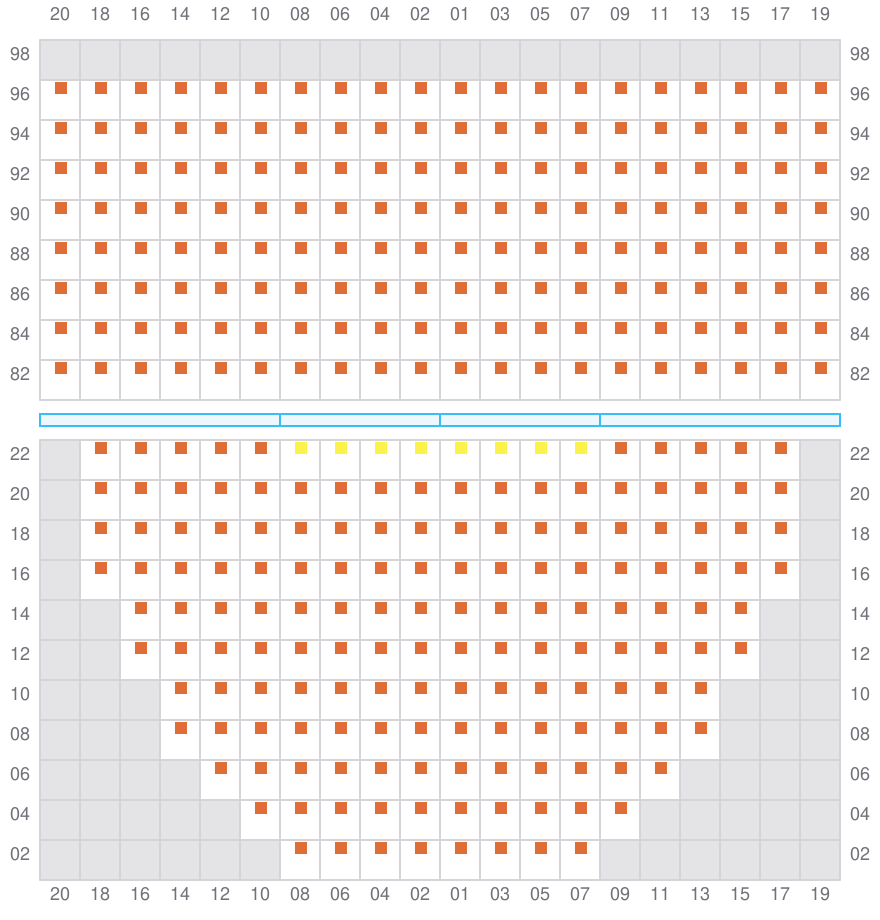

019
- ←
- → / ?
![Bay 019 view and slots of APL SENTOSA](/vessel-images/ce22760f-6654-418d-bc65-ebca9d96d4c9-b019.png?v=1712083957214)

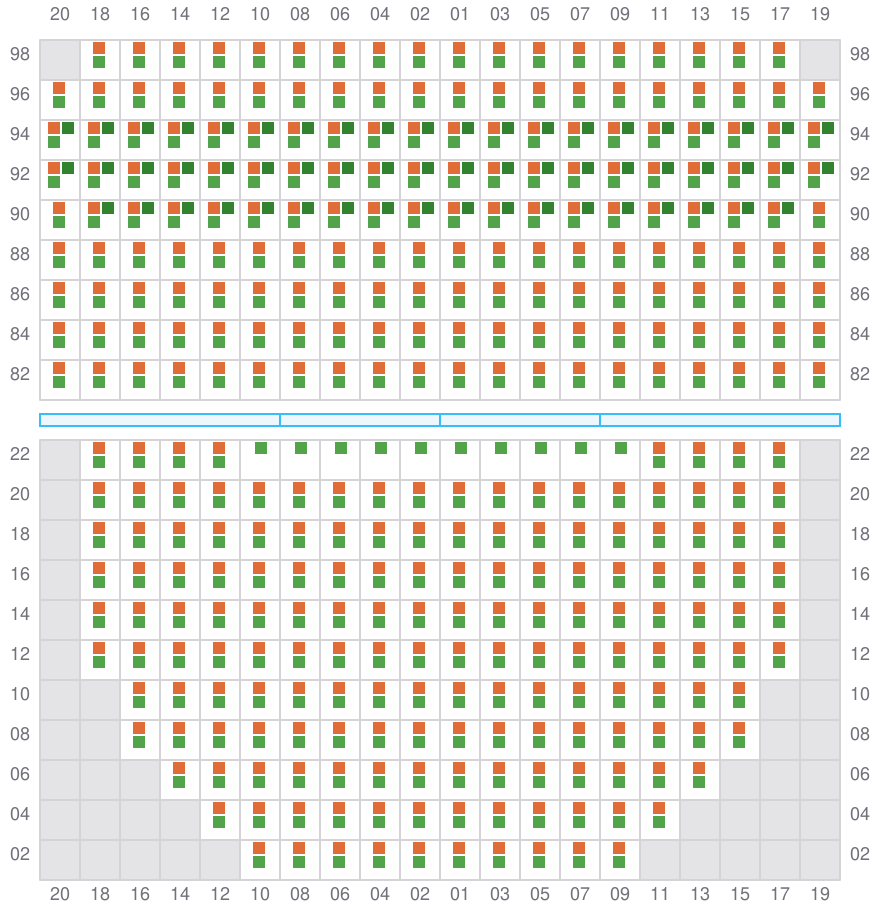

021 (022)
- →
- → / ?
![Bay 021 view and slots of APL SENTOSA](/vessel-images/ce22760f-6654-418d-bc65-ebca9d96d4c9-b021.png?v=1712083957214)

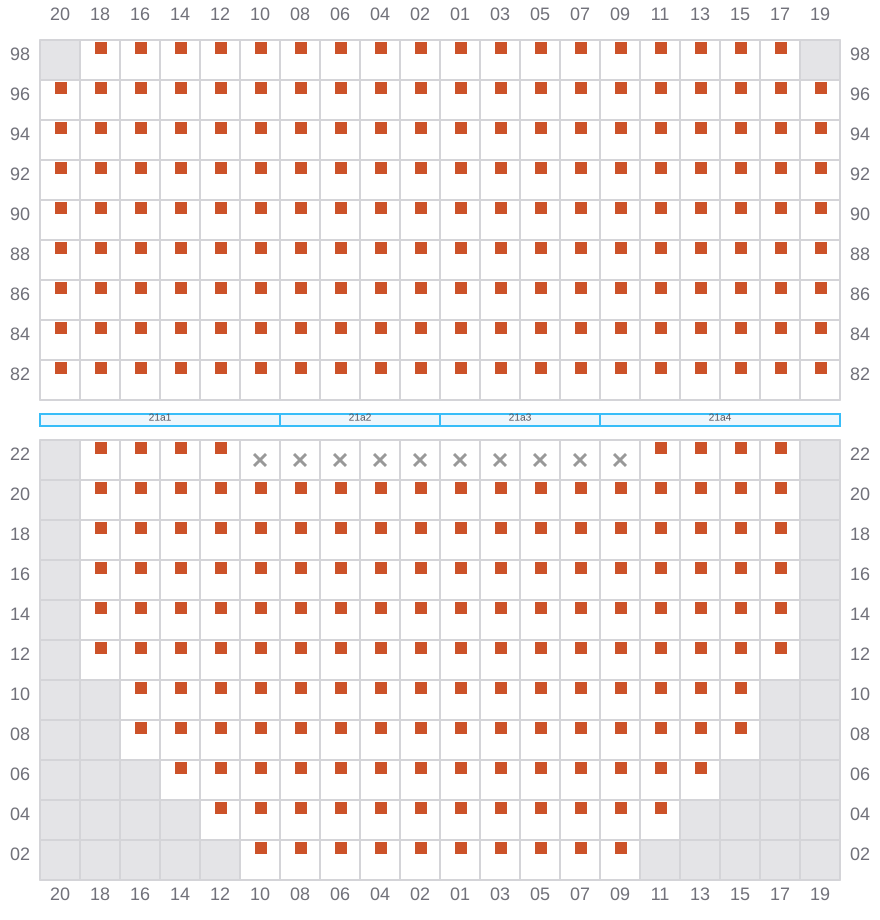

023
- ←
- → / ?
![Bay 023 view and slots of APL SENTOSA](/vessel-images/ce22760f-6654-418d-bc65-ebca9d96d4c9-b023.png?v=1712083957214)

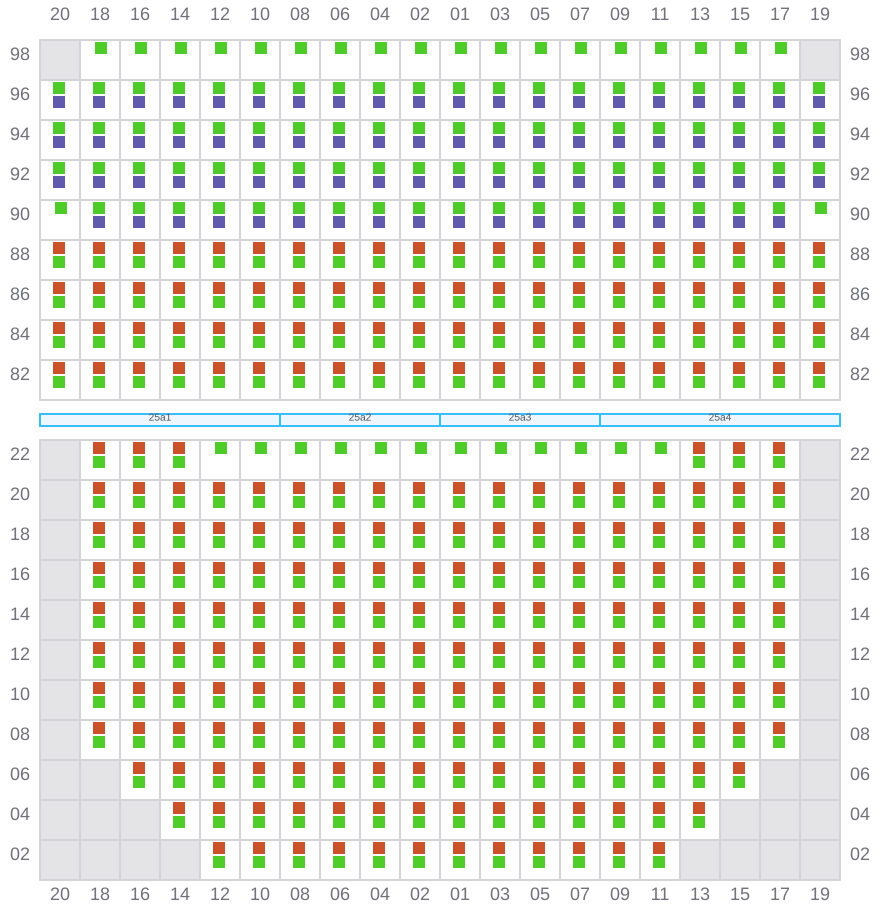

025 (026)
- →
- → / ?
![Bay 025 view and slots of APL SENTOSA](/vessel-images/ce22760f-6654-418d-bc65-ebca9d96d4c9-b025.png?v=1712083957214)

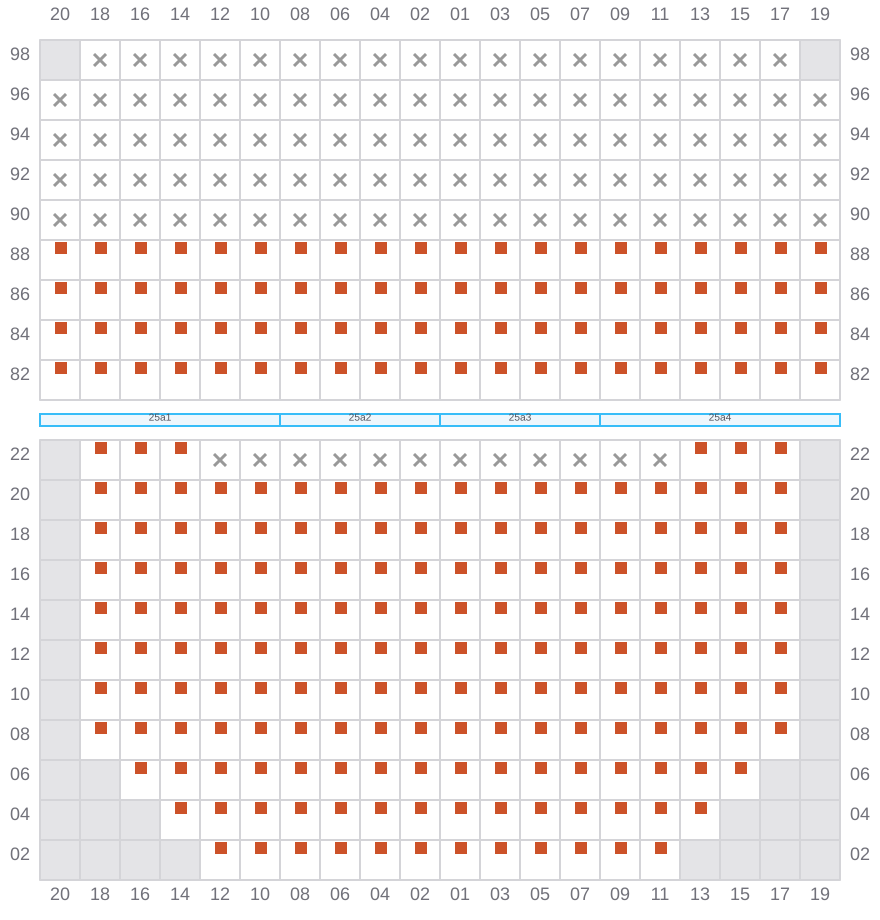

027
- ←
- → / ?
![Bay 027 view and slots of APL SENTOSA](/vessel-images/ce22760f-6654-418d-bc65-ebca9d96d4c9-b027.png?v=1712083957214)

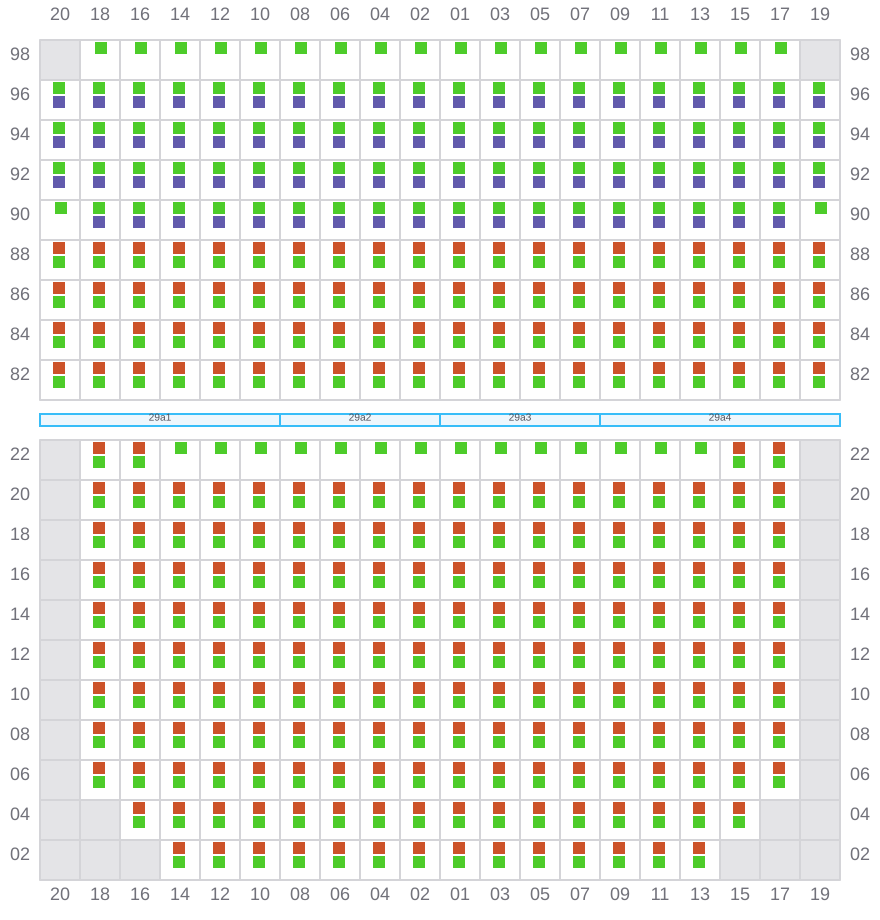

029 (030)
- →
![Bay 029 view and slots of APL SENTOSA](/vessel-images/ce22760f-6654-418d-bc65-ebca9d96d4c9-b029.png?v=1712083957214)

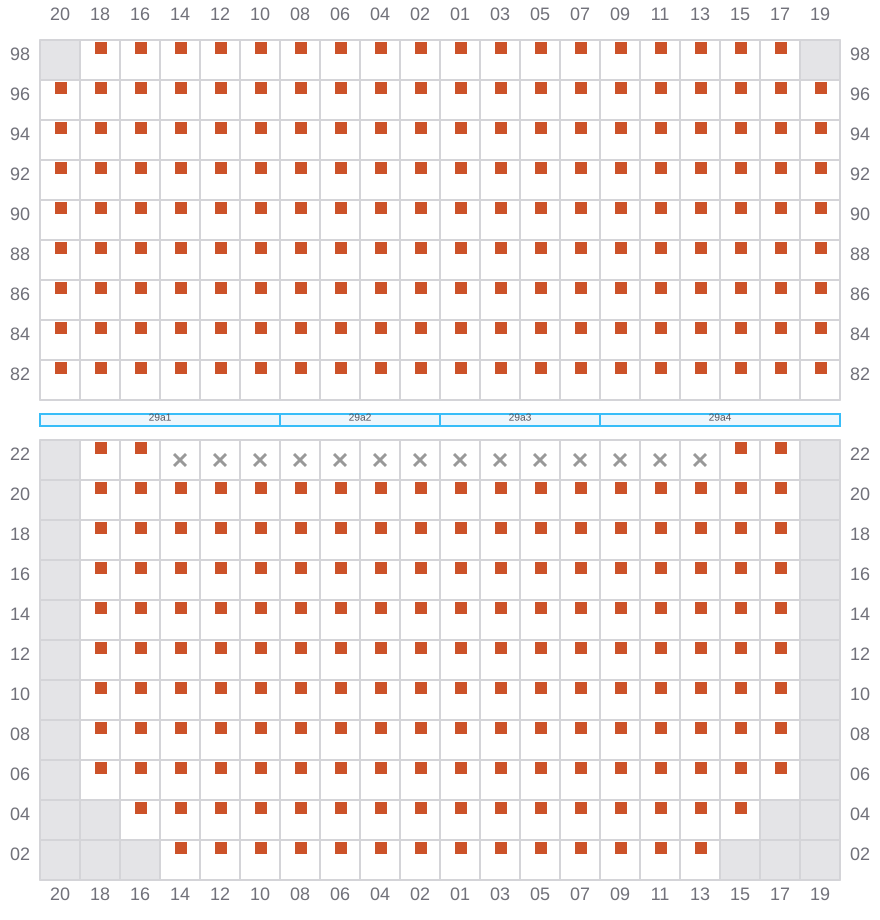

031
- ←
![Bay 031 view and slots of APL SENTOSA](/vessel-images/ce22760f-6654-418d-bc65-ebca9d96d4c9-b031.png?v=1712083957214)
033 (034)
- →
- → / ?
![Bay 033 view and slots of APL SENTOSA](/vessel-images/ce22760f-6654-418d-bc65-ebca9d96d4c9-b033.png?v=1712083957214)

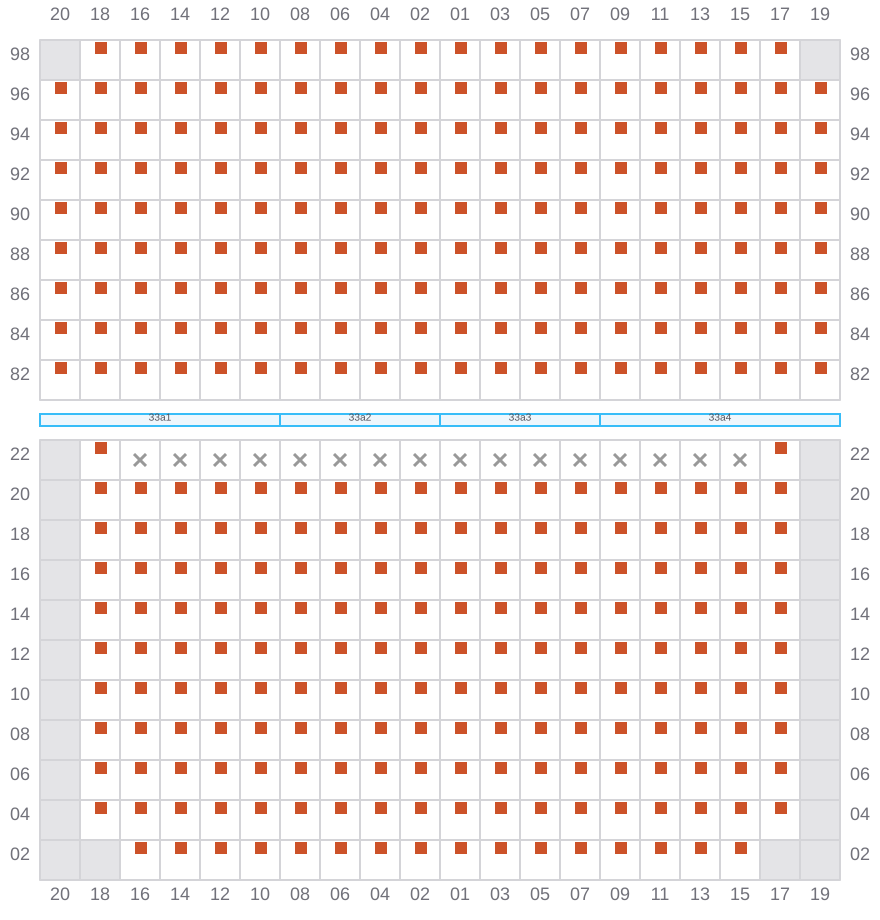

035
- ←
- → / ?
![Bay 035 view and slots of APL SENTOSA](/vessel-images/ce22760f-6654-418d-bc65-ebca9d96d4c9-b035.png?v=1712083957214)

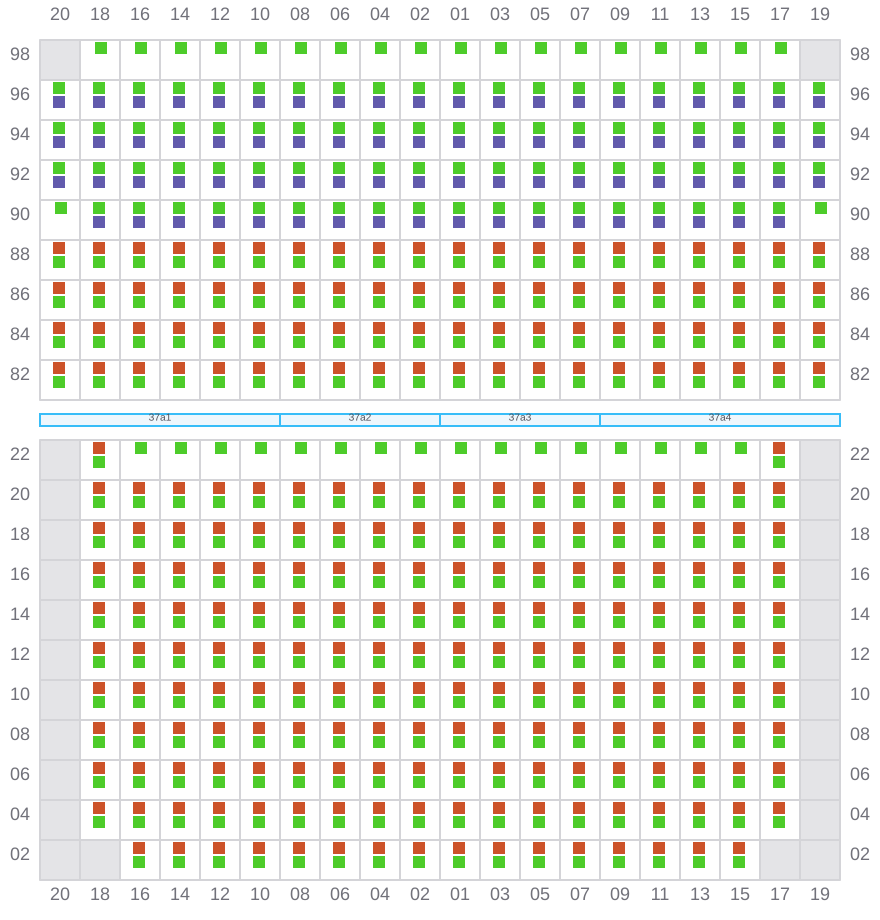

037 (038)
- →
- → / ?
![Bay 037 view and slots of APL SENTOSA](/vessel-images/ce22760f-6654-418d-bc65-ebca9d96d4c9-b037.png?v=1712083957214)

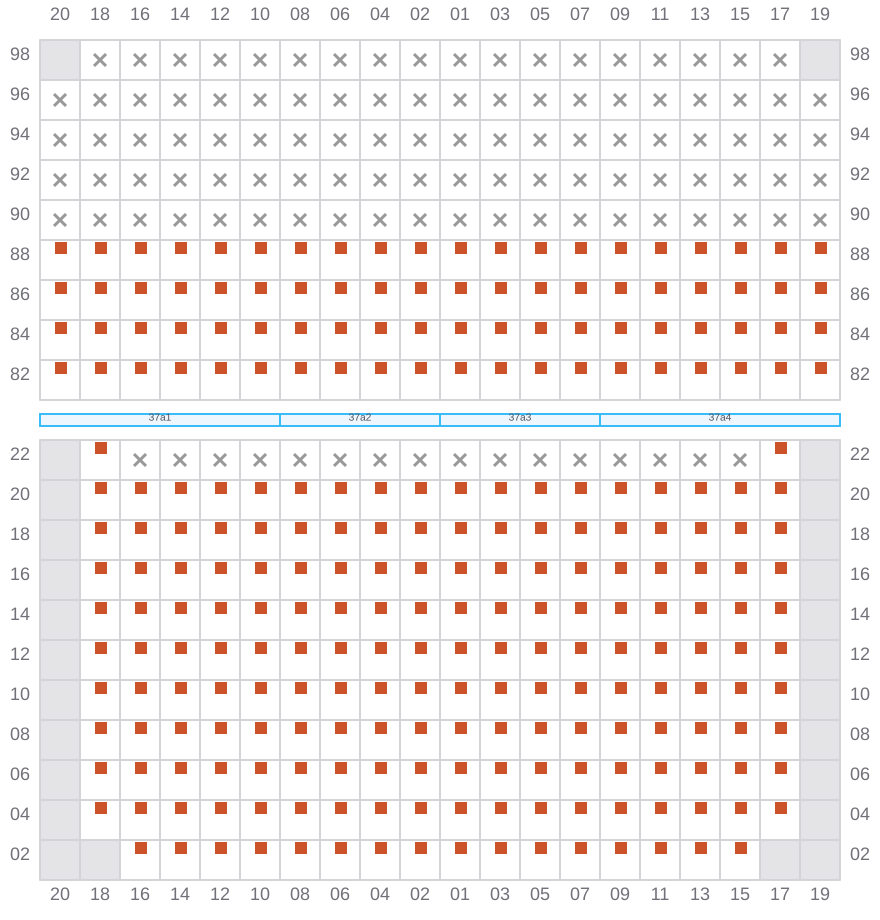

039
- ←
- → / ?
![Bay 039 view and slots of APL SENTOSA](/vessel-images/ce22760f-6654-418d-bc65-ebca9d96d4c9-b039.png?v=1712083957214)

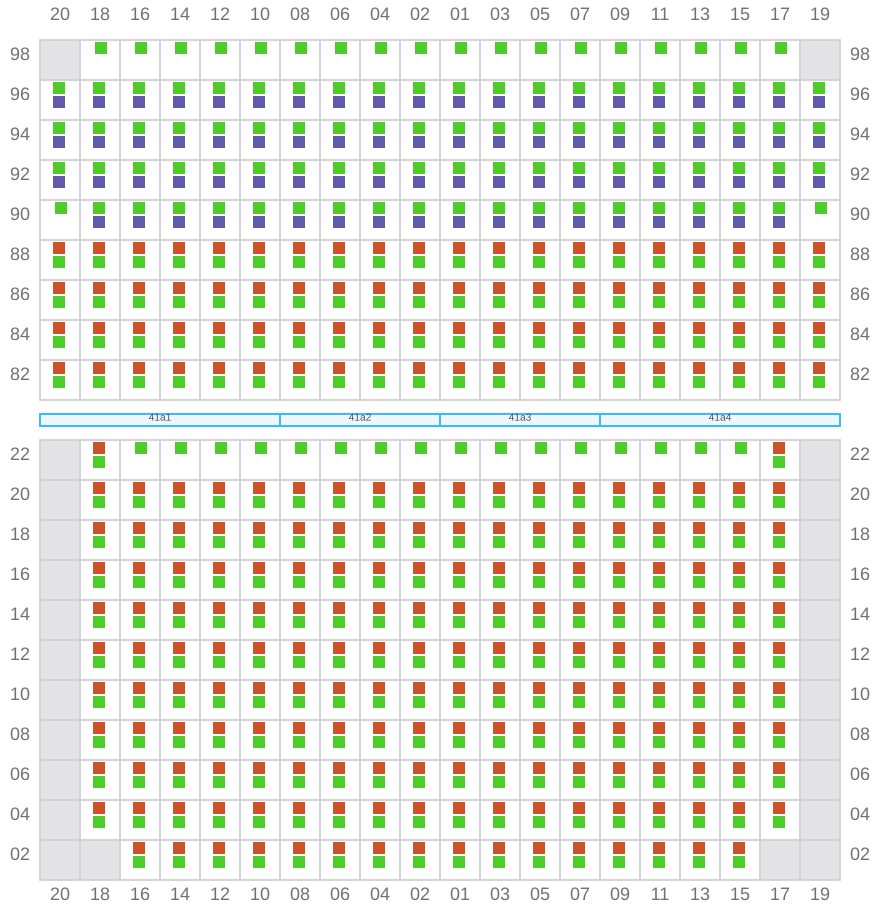

041 (042)
- →
- → / ?
![Bay 041 view and slots of APL SENTOSA](/vessel-images/ce22760f-6654-418d-bc65-ebca9d96d4c9-b041.png?v=1712083957214)
043
- ←
- → / ?
![Bay 043 view and slots of APL SENTOSA](/vessel-images/ce22760f-6654-418d-bc65-ebca9d96d4c9-b043.png?v=1712083957214)

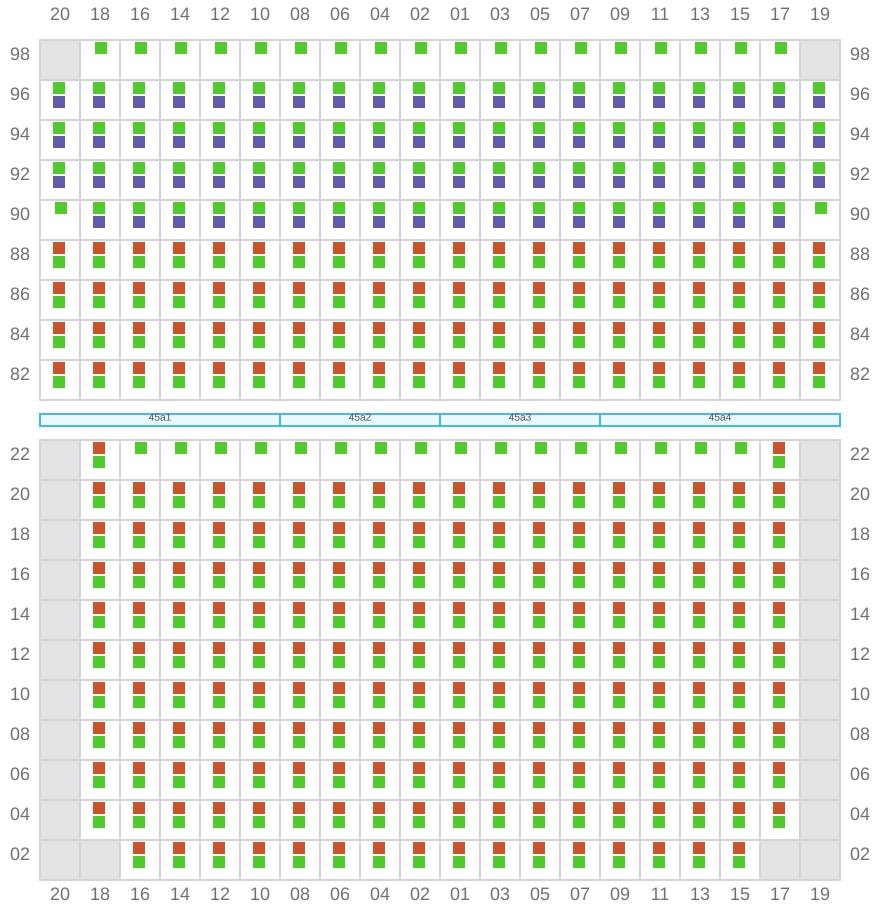

045 (046)
- →
- → / ?
![Bay 045 view and slots of APL SENTOSA](/vessel-images/ce22760f-6654-418d-bc65-ebca9d96d4c9-b045.png?v=1712083957214)

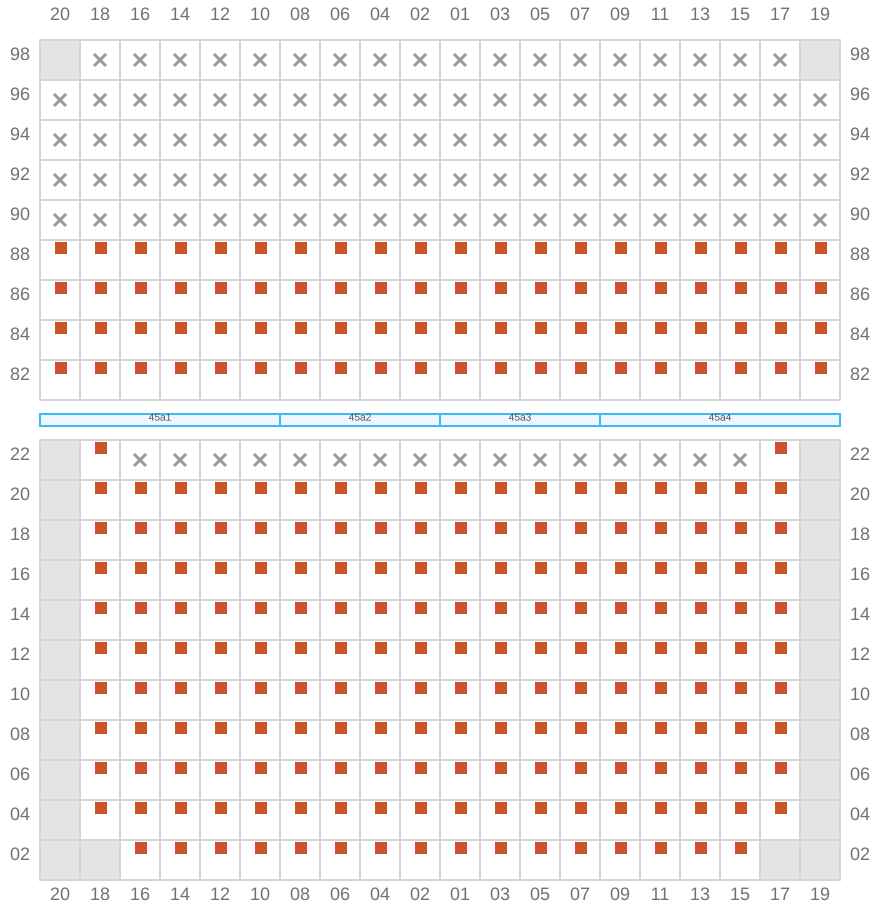

047
- ←
- → / ?
![Bay 047 view and slots of APL SENTOSA](/vessel-images/ce22760f-6654-418d-bc65-ebca9d96d4c9-b047.png?v=1712083957214)
049 (050)
- →
- → / ?
![Bay 049 view and slots of APL SENTOSA](/vessel-images/ce22760f-6654-418d-bc65-ebca9d96d4c9-b049.png?v=1712083957214)

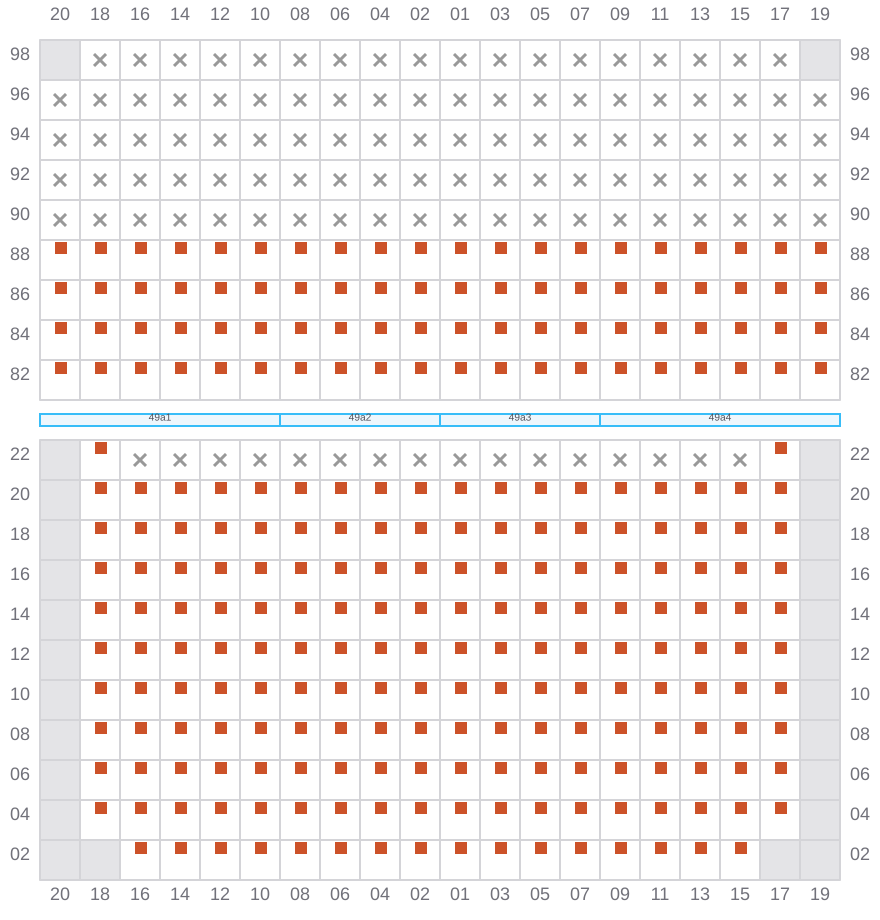

051
- ←
- → / ?
![Bay 051 view and slots of APL SENTOSA](/vessel-images/ce22760f-6654-418d-bc65-ebca9d96d4c9-b051.png?v=1712083957214)
053 (054)
- →
- → / ?
![Bay 053 view and slots of APL SENTOSA](/vessel-images/ce22760f-6654-418d-bc65-ebca9d96d4c9-b053.png?v=1712083957214)
055
- ←
- → / ?
![Bay 055 view and slots of APL SENTOSA](/vessel-images/ce22760f-6654-418d-bc65-ebca9d96d4c9-b055.png?v=1712083957214)
057 (058)
- →
- → / ?
![Bay 057 view and slots of APL SENTOSA](/vessel-images/ce22760f-6654-418d-bc65-ebca9d96d4c9-b057.png?v=1712083957214)
059
- ←
- → / ?
![Bay 059 view and slots of APL SENTOSA](/vessel-images/ce22760f-6654-418d-bc65-ebca9d96d4c9-b059.png?v=1712083957214)

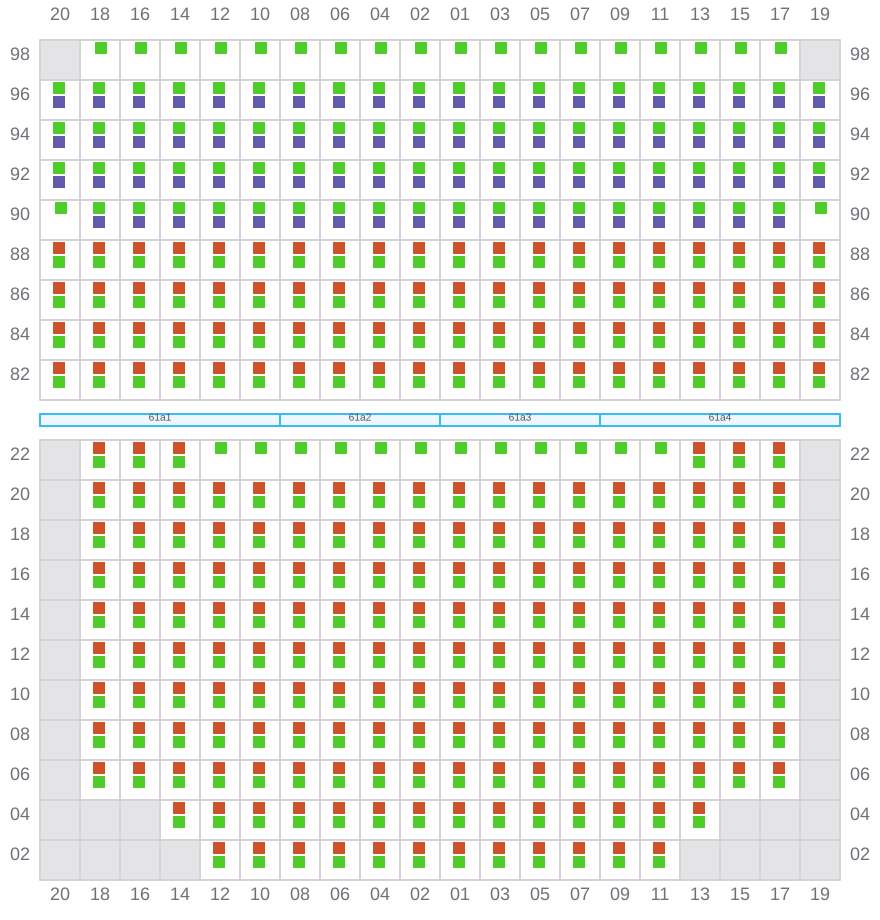

061 (062)
- →
- → / ?
![Bay 061 view and slots of APL SENTOSA](/vessel-images/ce22760f-6654-418d-bc65-ebca9d96d4c9-b061.png?v=1712083957214)

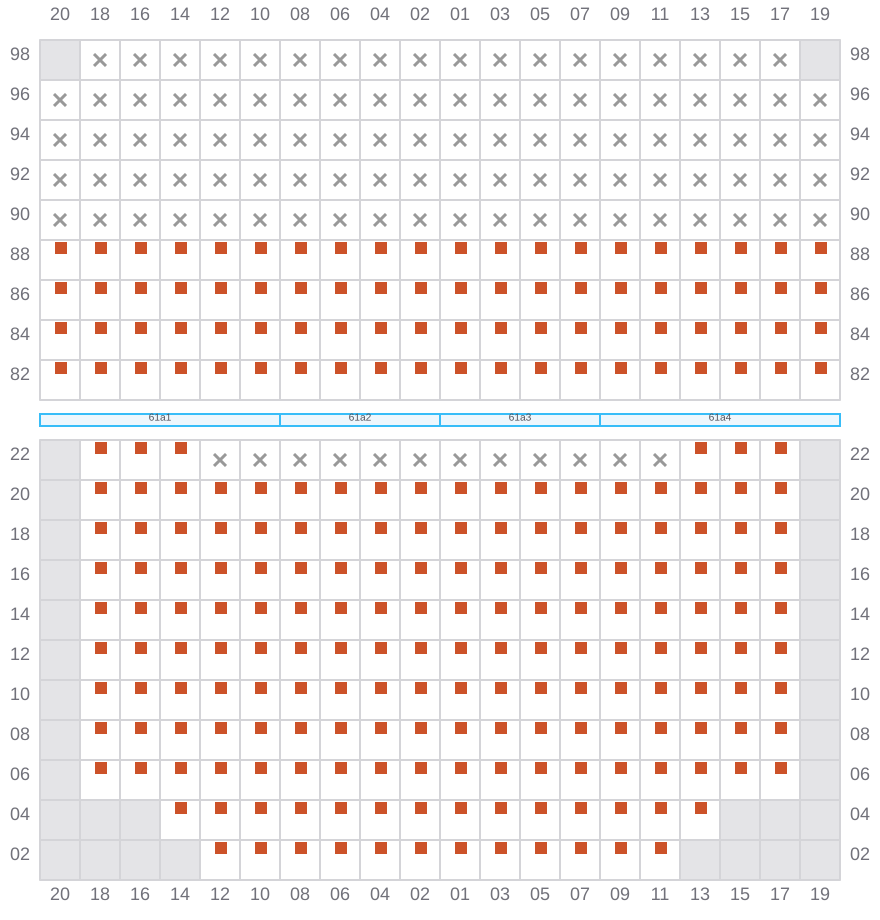

063
- ←
- → / ?
![Bay 063 view and slots of APL SENTOSA](/vessel-images/ce22760f-6654-418d-bc65-ebca9d96d4c9-b063.png?v=1712083957214)
065 (066)
- →
- → / ?
![Bay 065 view and slots of APL SENTOSA](/vessel-images/ce22760f-6654-418d-bc65-ebca9d96d4c9-b065.png?v=1712083957214)

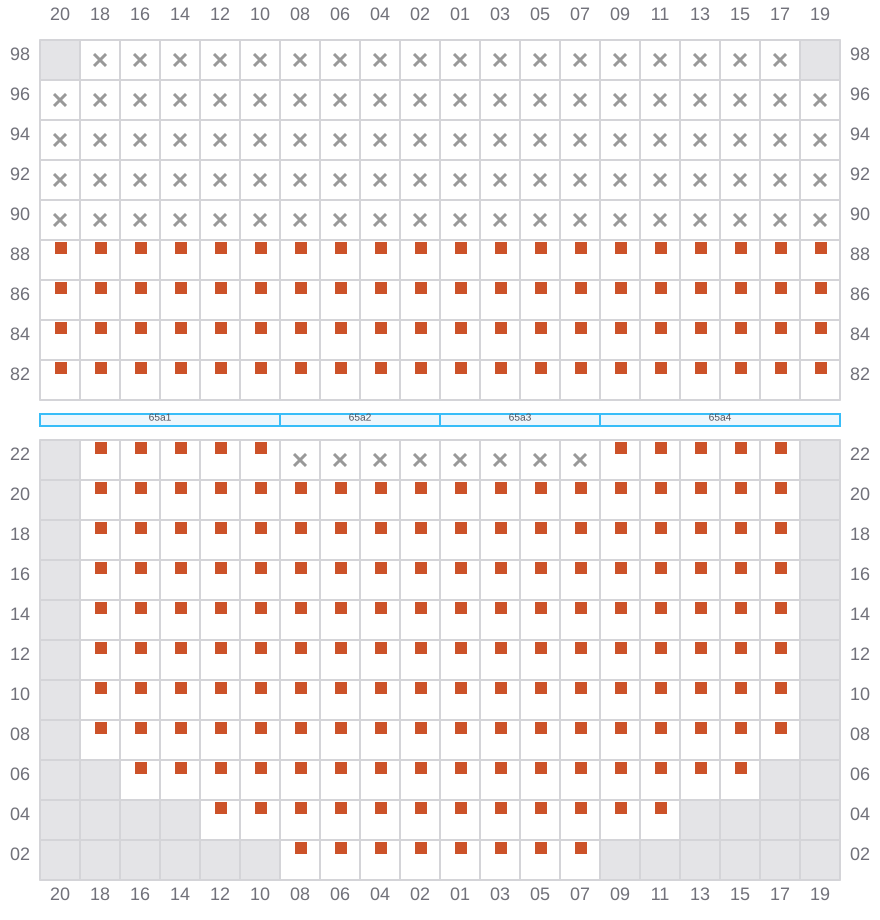

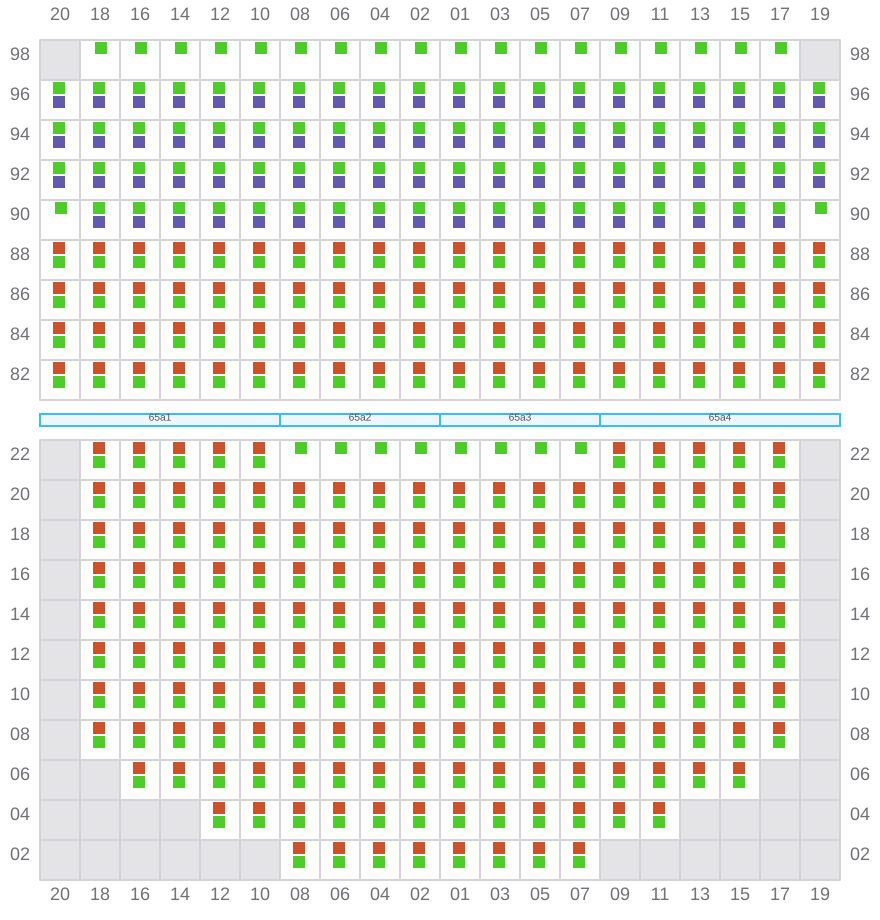

067
- ←
- → / ?
![Bay 067 view and slots of APL SENTOSA](/vessel-images/ce22760f-6654-418d-bc65-ebca9d96d4c9-b067.png?v=1712083957214)

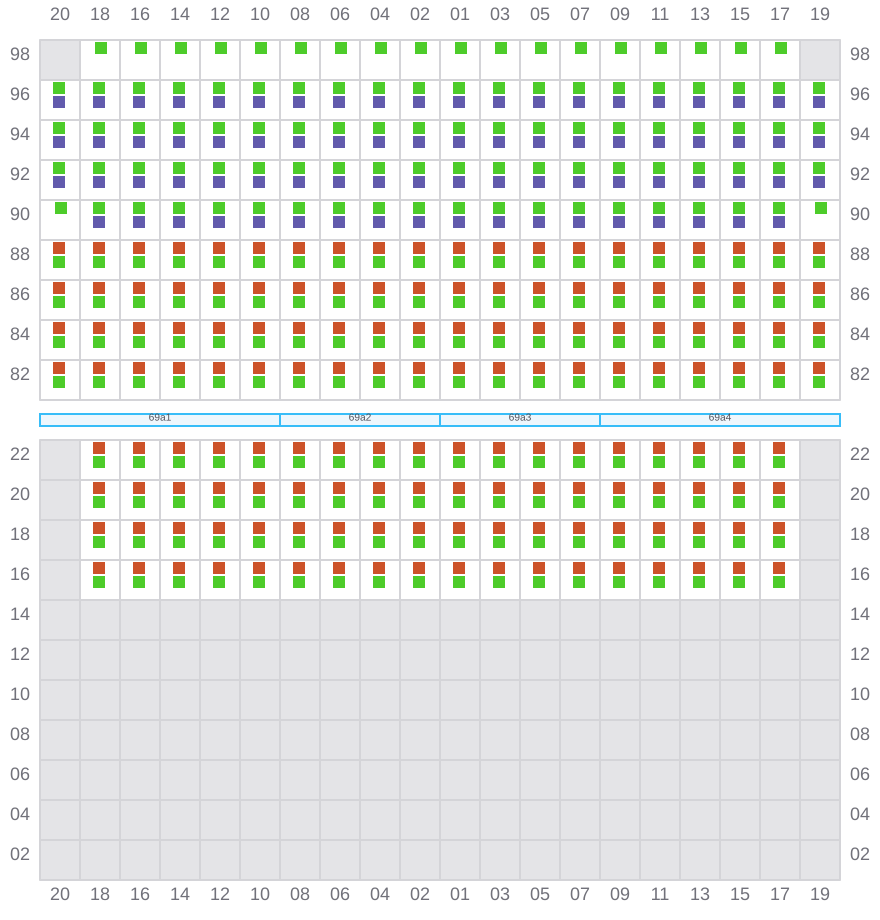

069 (070)
- →
- → / ?
![Bay 069 view and slots of APL SENTOSA](/vessel-images/ce22760f-6654-418d-bc65-ebca9d96d4c9-b069.png?v=1712083957214)
071
- ←
- → / ?
![Bay 071 view and slots of APL SENTOSA](/vessel-images/ce22760f-6654-418d-bc65-ebca9d96d4c9-b071.png?v=1712083957214)

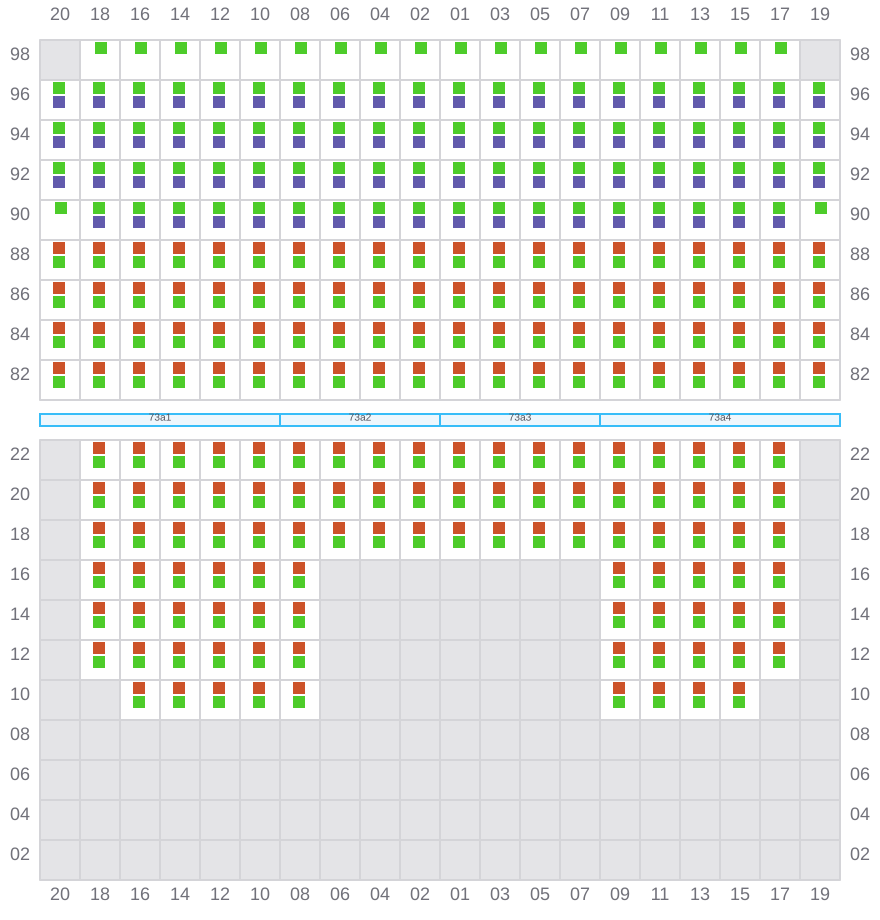

073 (074)
- →
- → / ?
![Bay 073 view and slots of APL SENTOSA](/vessel-images/ce22760f-6654-418d-bc65-ebca9d96d4c9-b073.png?v=1712083957214)

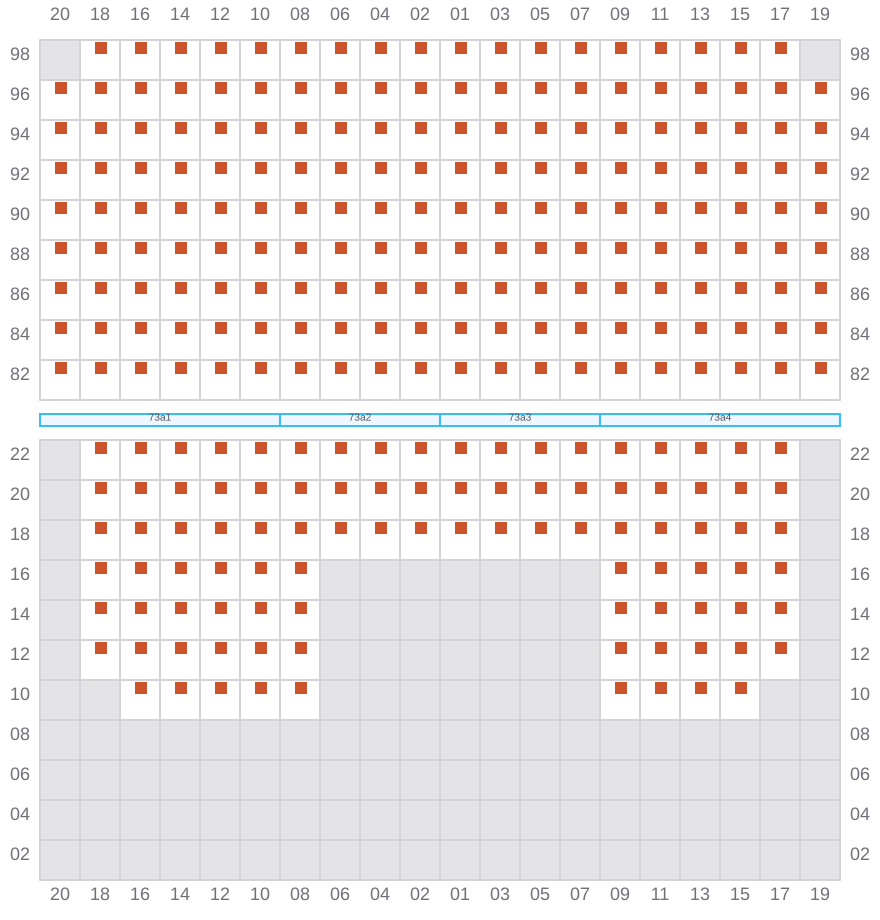

075
- ←
- → / ?
![Bay 075 view and slots of APL SENTOSA](/vessel-images/ce22760f-6654-418d-bc65-ebca9d96d4c9-b075.png?v=1712083957214)

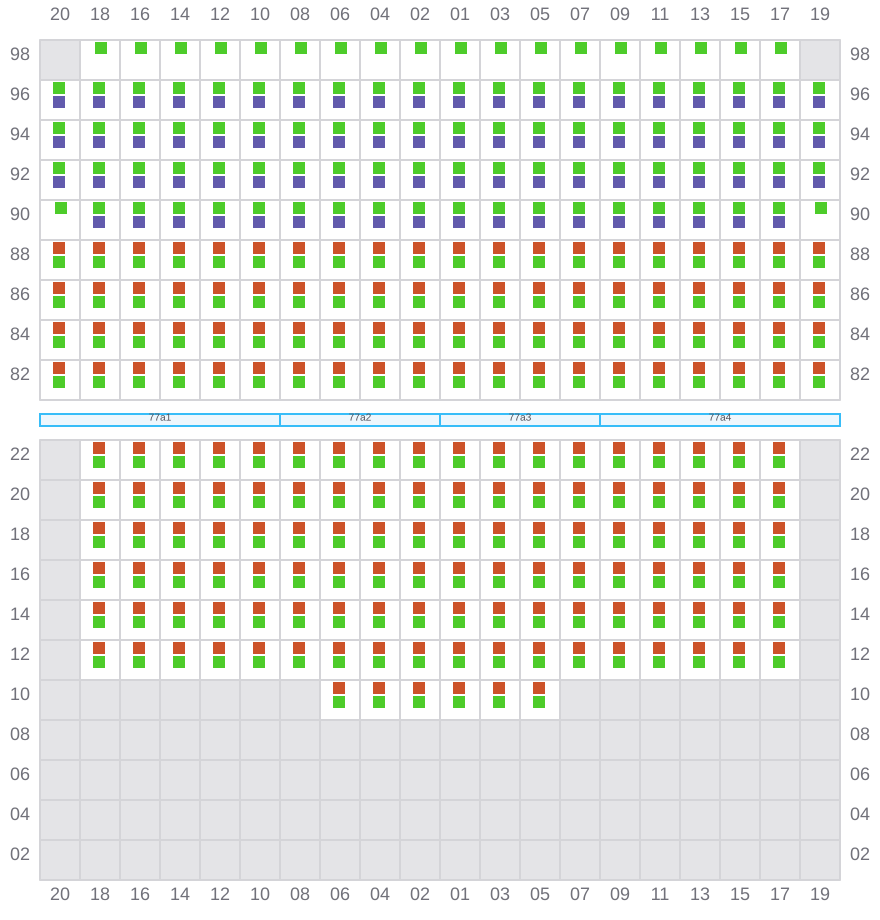

077 (078)
- →
- → / ?
![Bay 077 view and slots of APL SENTOSA](/vessel-images/ce22760f-6654-418d-bc65-ebca9d96d4c9-b077.png?v=1712083957214)

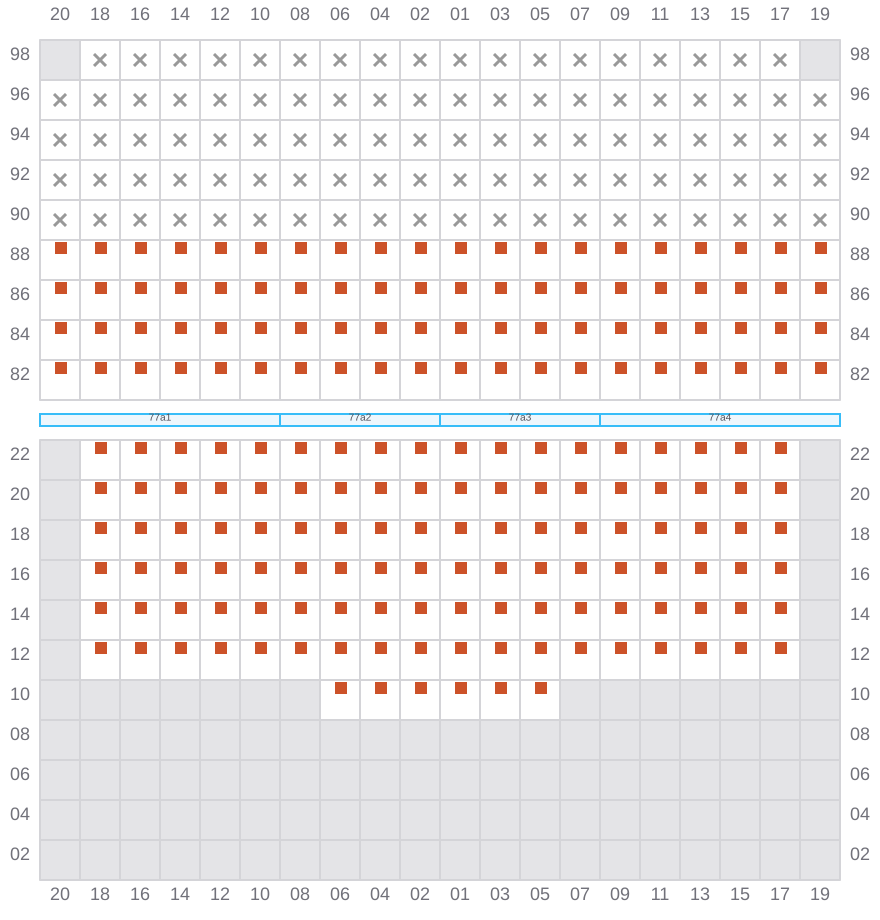

079
- ←
- → / ?
![Bay 079 view and slots of APL SENTOSA](/vessel-images/ce22760f-6654-418d-bc65-ebca9d96d4c9-b079.png?v=1712083957214)

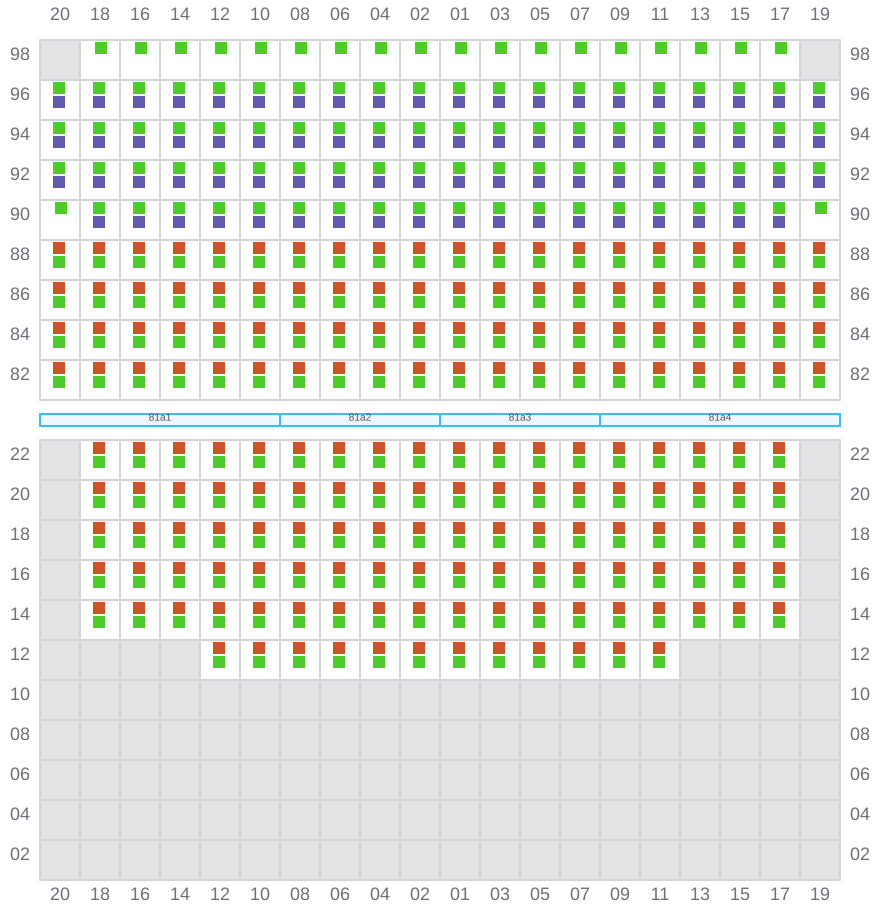

081 (082)
- →
- → / ?
![Bay 081 view and slots of APL SENTOSA](/vessel-images/ce22760f-6654-418d-bc65-ebca9d96d4c9-b081.png?v=1712083957214)

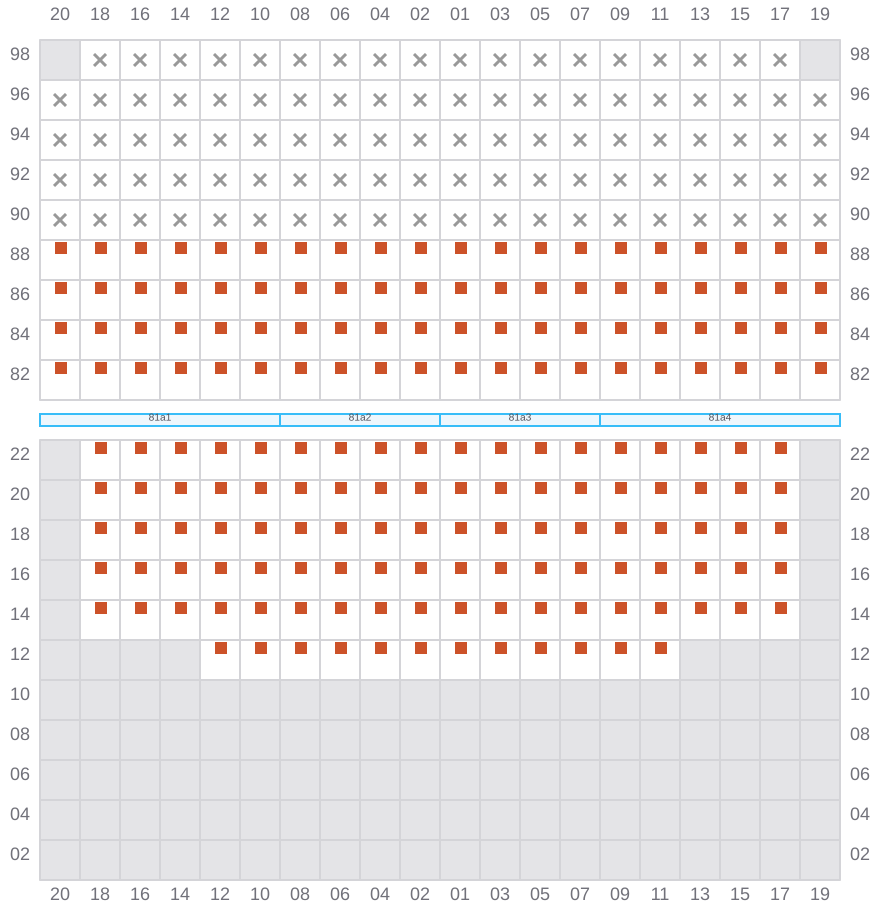

083
- ←
- → / ?
![Bay 083 view and slots of APL SENTOSA](/vessel-images/ce22760f-6654-418d-bc65-ebca9d96d4c9-b083.png?v=1712083957214)
085 (086)
- → / ?
![Bay 085 view and slots of APL SENTOSA](/vessel-images/ce22760f-6654-418d-bc65-ebca9d96d4c9-b085.png?v=1712083957214)
