APL VANCOUVER
9597472 | 9V9915 | 9597472 by ********* Last update: Wed Apr 03 2024
General Info
Ship Name:APL VANCOUVER
IMO Code:9597472
Call Sign:9V9915
Line Operator:9597472
Class Name for Sister Ships:APL
Year Built:2013
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:073
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:20
Min Below ISO Tier:02
Total TEU:9,396
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

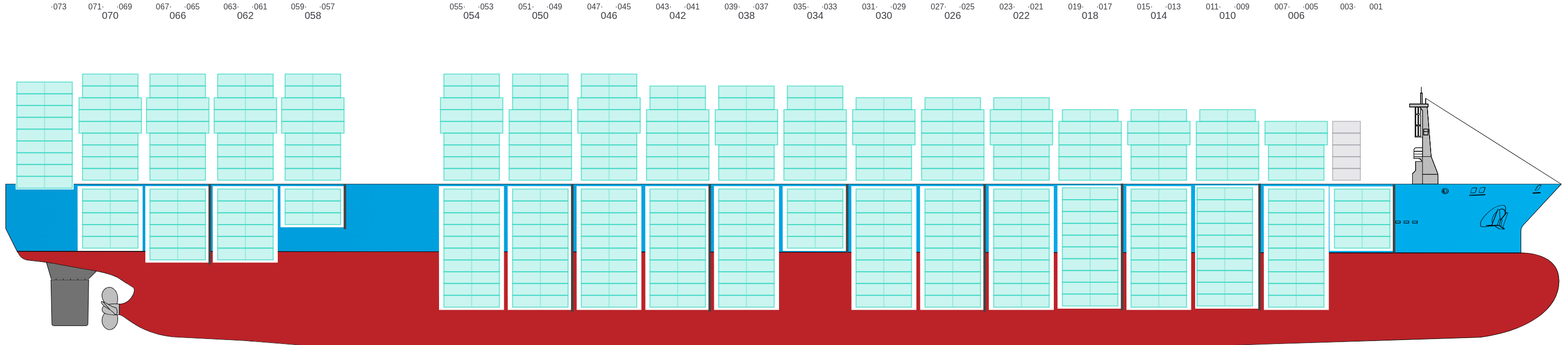

Side View
![Side view of APL VANCOUVER](/vessel-images/89f3e852-382d-45b6-b41a-b063dfb8e495-sideView.png?v=1712166102098)
Hatch-Covers View
![Deck view of APL VANCOUVER](/vessel-images/89f3e852-382d-45b6-b41a-b063dfb8e495-deckView.png?v=1712166102098)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

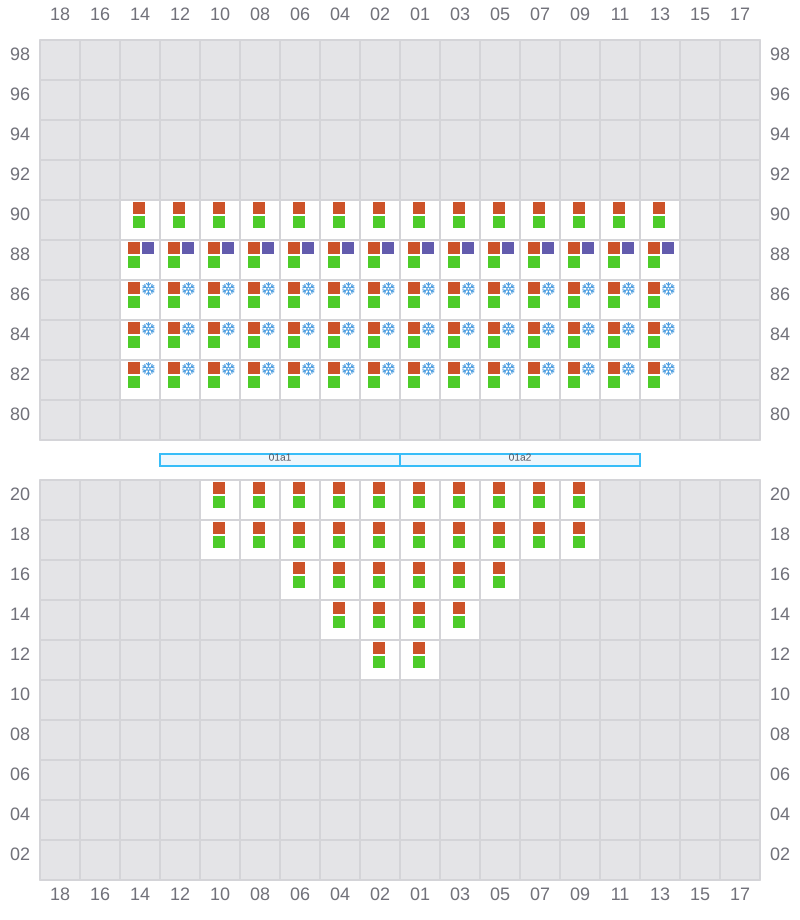

001 (002)
- ? / →
- → / ?
![Bay 001 view and slots of APL VANCOUVER](/vessel-images/89f3e852-382d-45b6-b41a-b063dfb8e495-b001.png?v=1712166102098)

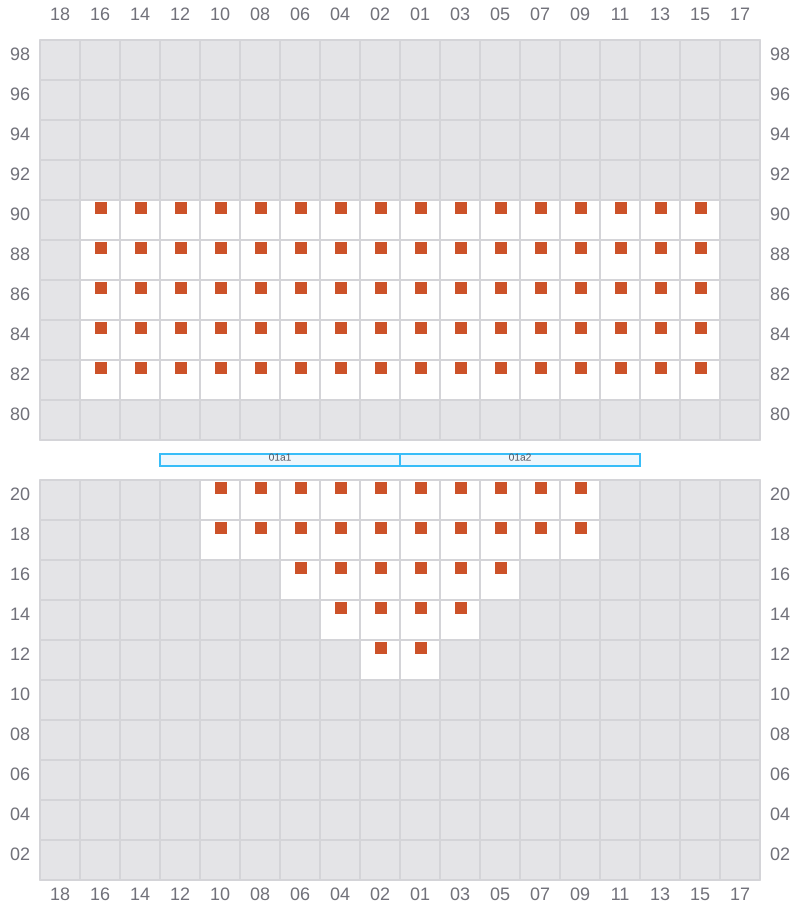

003
- ←
![Bay 003 view and slots of APL VANCOUVER](/vessel-images/89f3e852-382d-45b6-b41a-b063dfb8e495-b003.png?v=1712166102098)

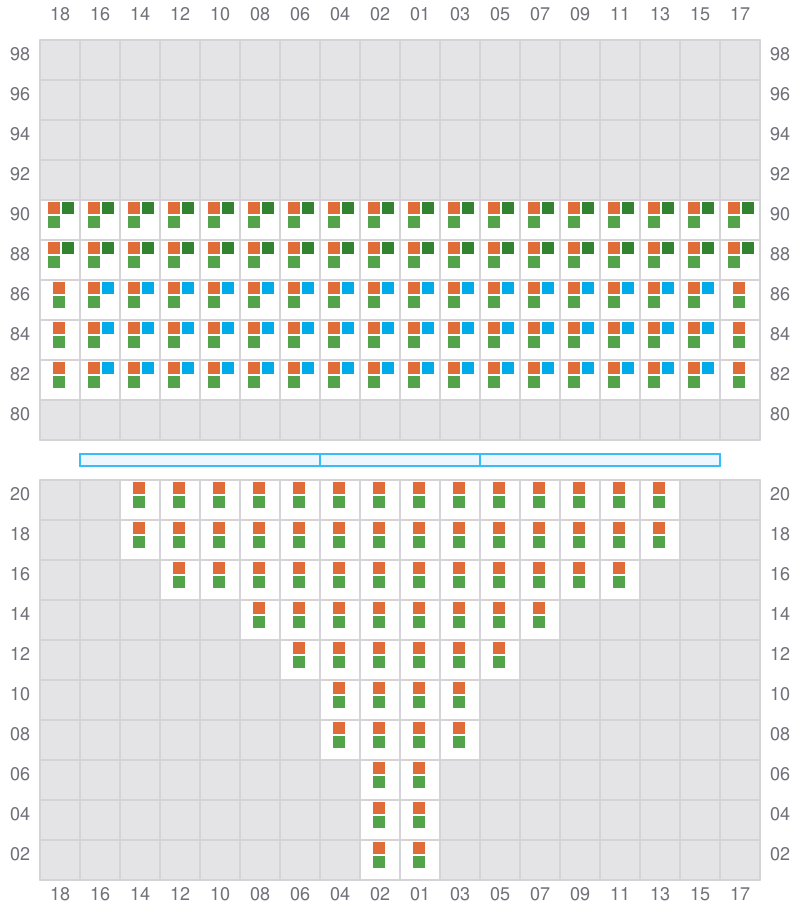

005 (006)
- →
- → / ?
![Bay 005 view and slots of APL VANCOUVER](/vessel-images/89f3e852-382d-45b6-b41a-b063dfb8e495-b005.png?v=1712166102098)

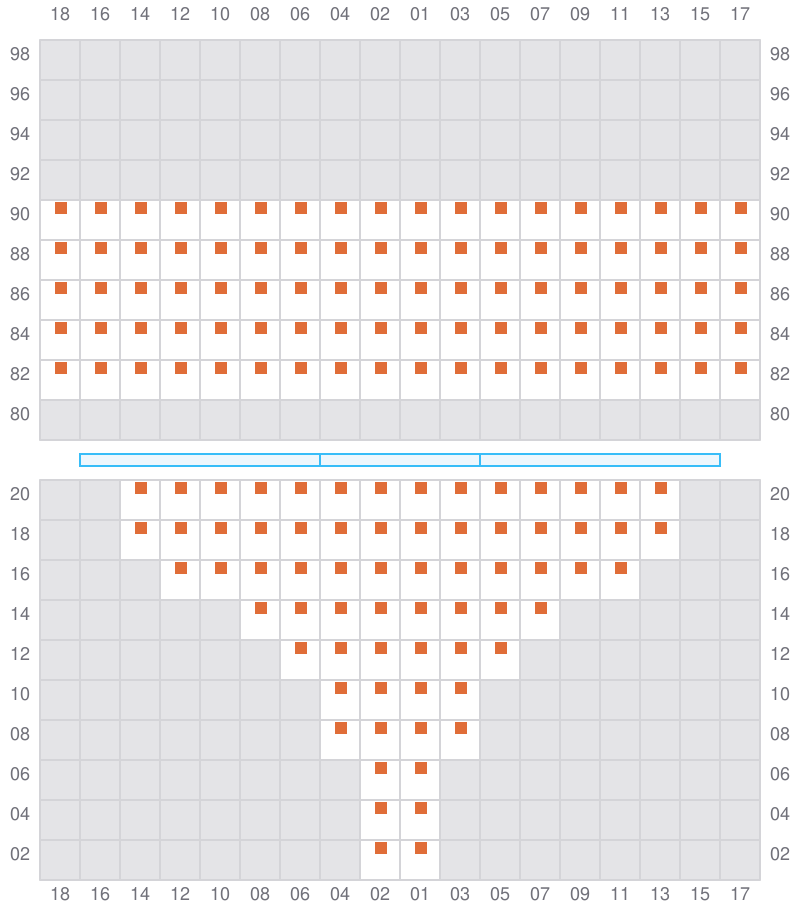

007
- ←
![Bay 007 view and slots of APL VANCOUVER](/vessel-images/89f3e852-382d-45b6-b41a-b063dfb8e495-b007.png?v=1712166102098)

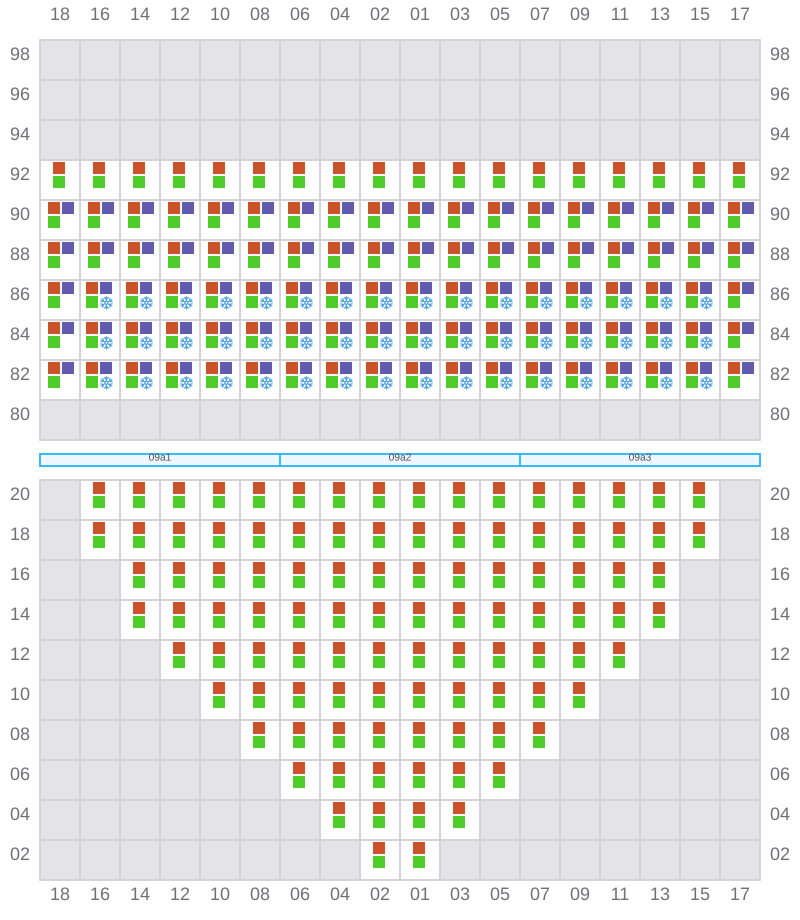

009 (010)
- →
- → / ?
![Bay 009 view and slots of APL VANCOUVER](/vessel-images/89f3e852-382d-45b6-b41a-b063dfb8e495-b009.png?v=1712166102098)

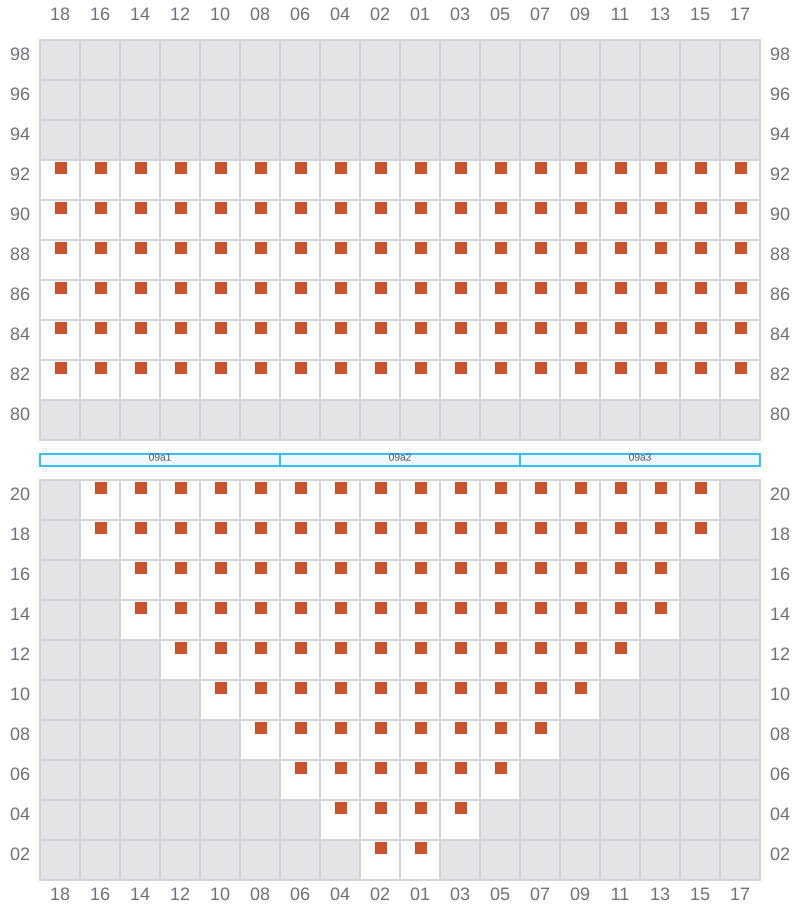

011
- ←
![Bay 011 view and slots of APL VANCOUVER](/vessel-images/89f3e852-382d-45b6-b41a-b063dfb8e495-b011.png?v=1712166102098)

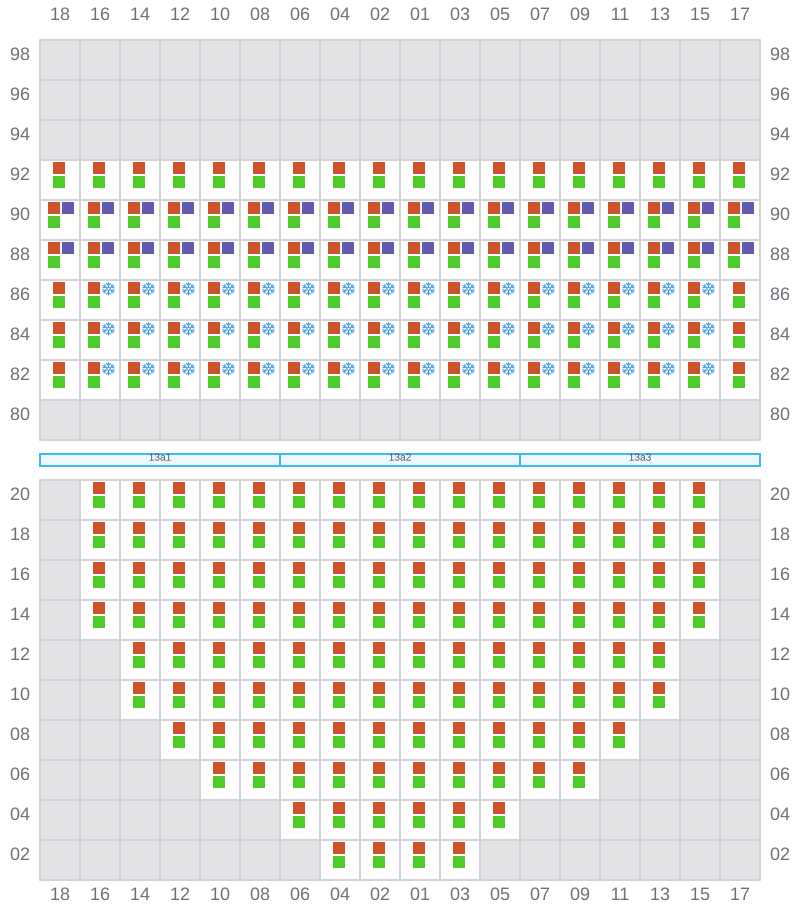

013 (014)
- →
- → / ?
![Bay 013 view and slots of APL VANCOUVER](/vessel-images/89f3e852-382d-45b6-b41a-b063dfb8e495-b013.png?v=1712166102098)

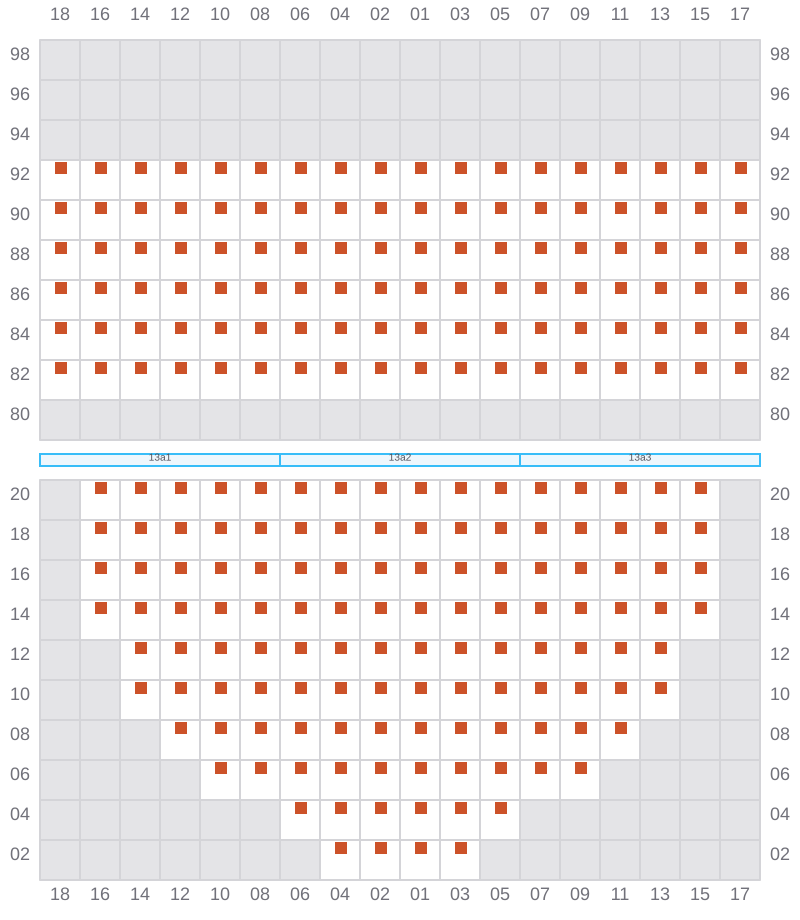

015
- ←
![Bay 015 view and slots of APL VANCOUVER](/vessel-images/89f3e852-382d-45b6-b41a-b063dfb8e495-b015.png?v=1712166102098)

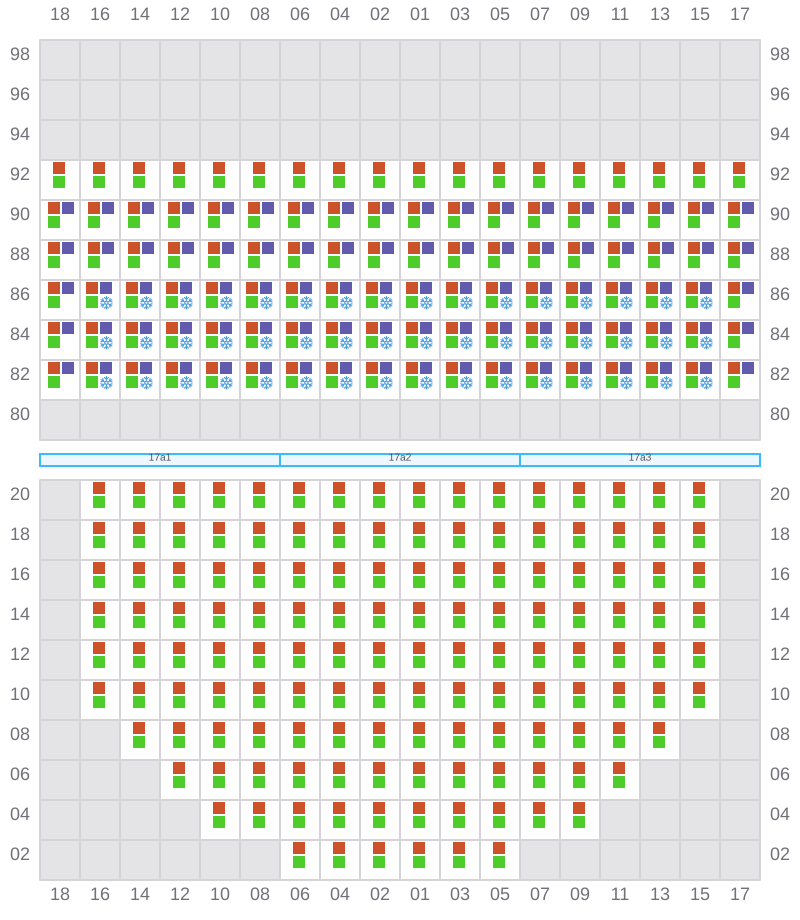

017 (018)
- →
- → / ?
![Bay 017 view and slots of APL VANCOUVER](/vessel-images/89f3e852-382d-45b6-b41a-b063dfb8e495-b017.png?v=1712166102098)

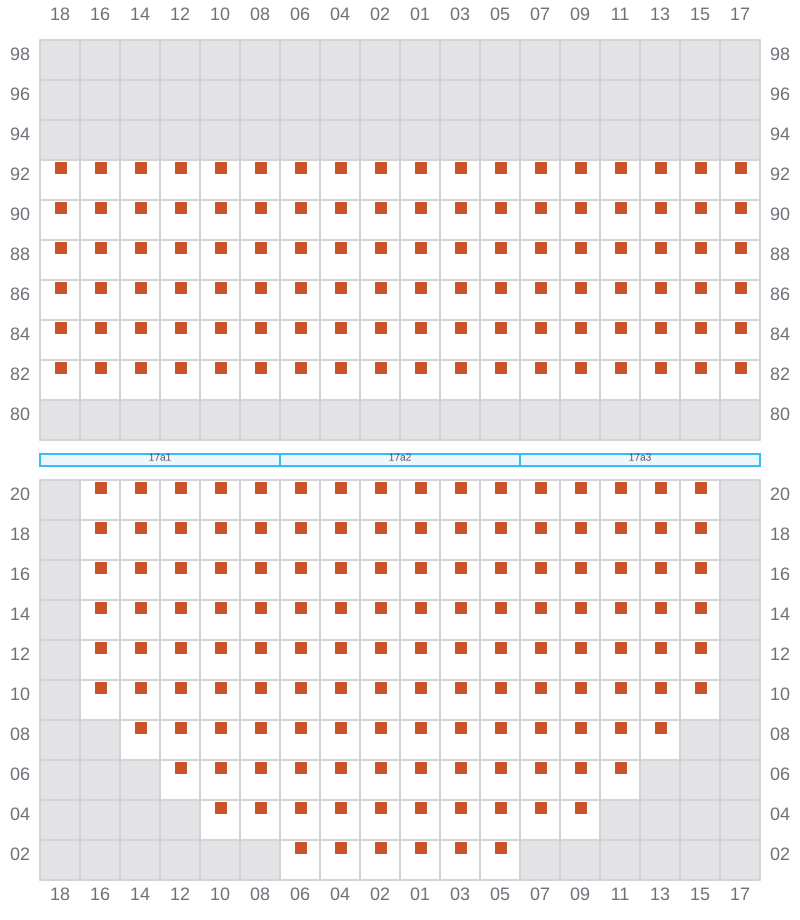

019
- ←
![Bay 019 view and slots of APL VANCOUVER](/vessel-images/89f3e852-382d-45b6-b41a-b063dfb8e495-b019.png?v=1712166102098)
021 (022)
- →
- → / ?
![Bay 021 view and slots of APL VANCOUVER](/vessel-images/89f3e852-382d-45b6-b41a-b063dfb8e495-b021.png?v=1712166102098)

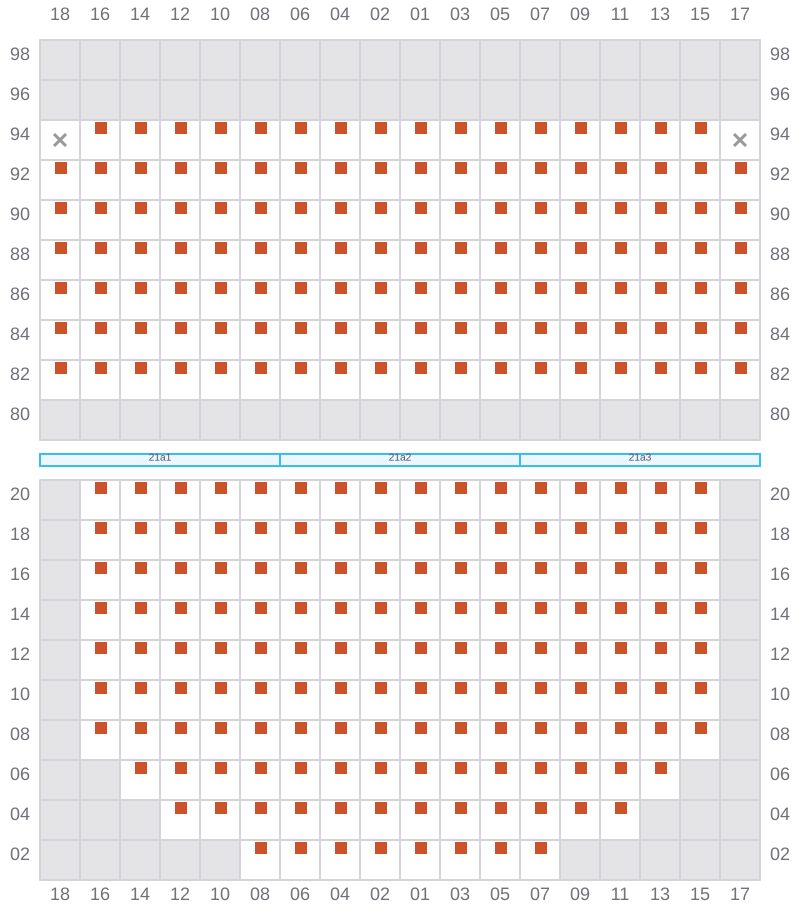

023
- ←
![Bay 023 view and slots of APL VANCOUVER](/vessel-images/89f3e852-382d-45b6-b41a-b063dfb8e495-b023.png?v=1712166102098)

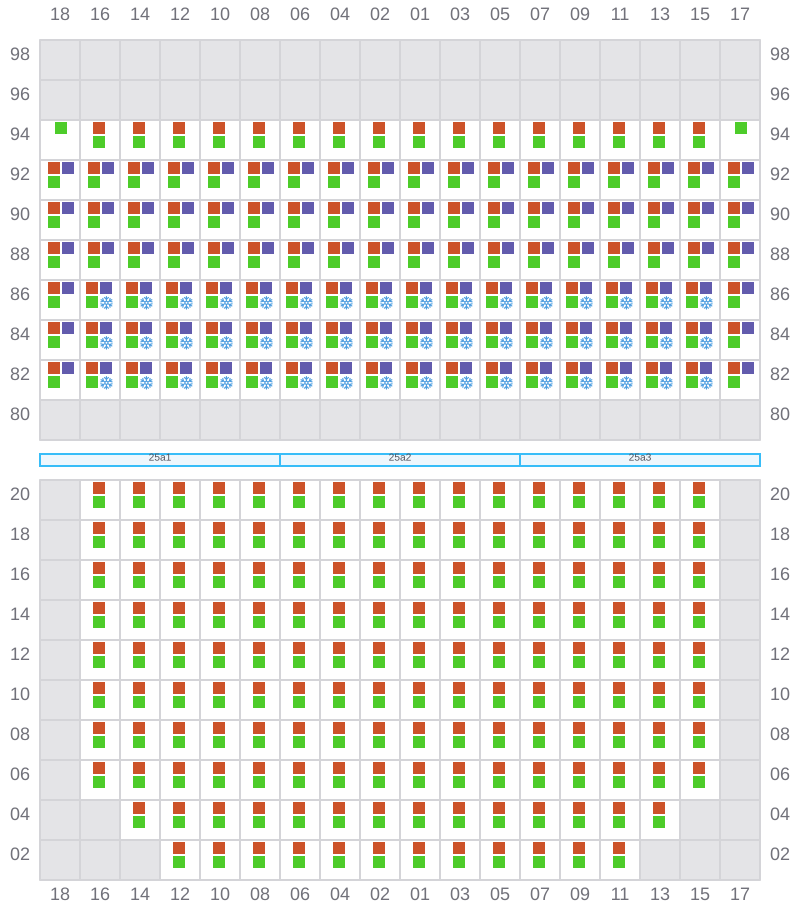

025 (026)
- →
- → / ?
![Bay 025 view and slots of APL VANCOUVER](/vessel-images/89f3e852-382d-45b6-b41a-b063dfb8e495-b025.png?v=1712166102098)
027
- ←
![Bay 027 view and slots of APL VANCOUVER](/vessel-images/89f3e852-382d-45b6-b41a-b063dfb8e495-b027.png?v=1712166102098)

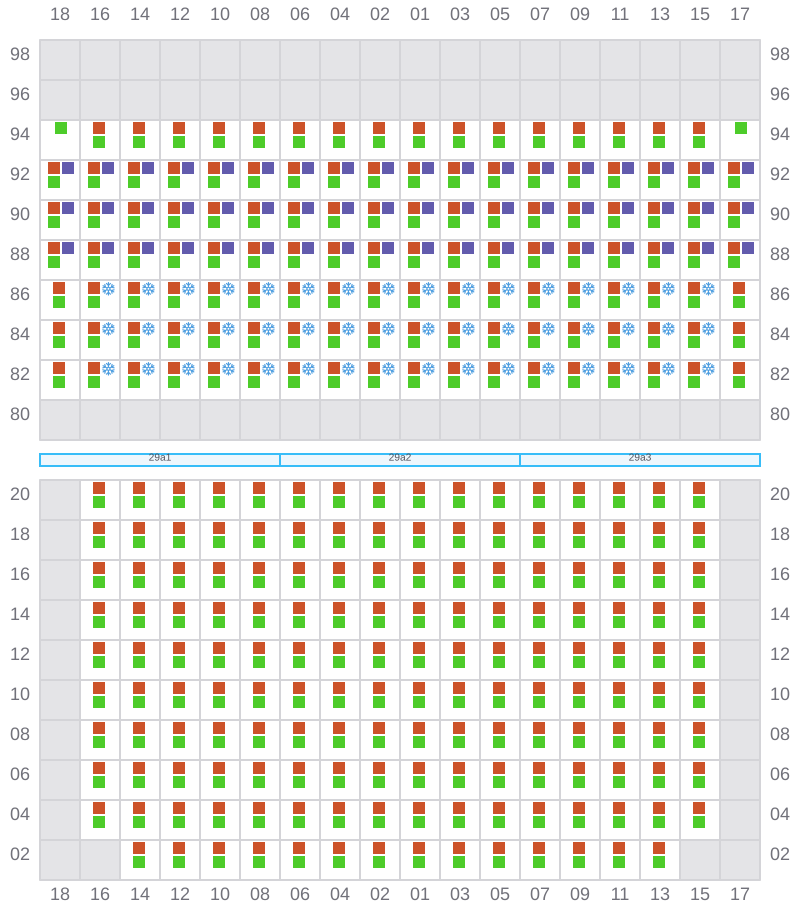

029 (030)
- →
- → / ?
![Bay 029 view and slots of APL VANCOUVER](/vessel-images/89f3e852-382d-45b6-b41a-b063dfb8e495-b029.png?v=1712166102098)

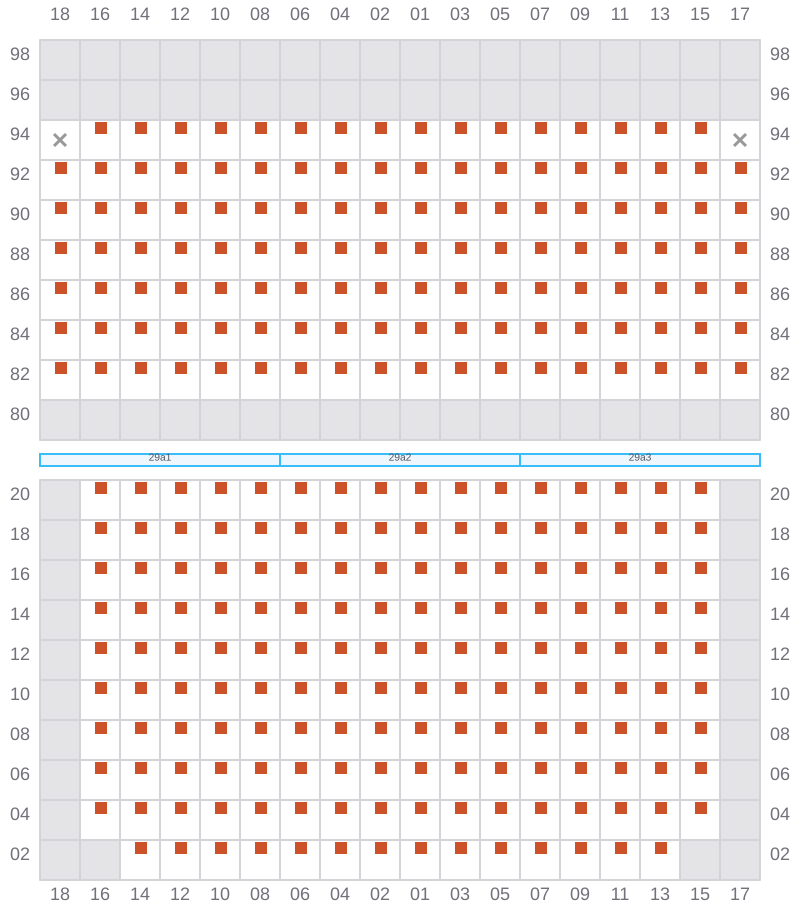

031
- ←
![Bay 031 view and slots of APL VANCOUVER](/vessel-images/89f3e852-382d-45b6-b41a-b063dfb8e495-b031.png?v=1712166102098)

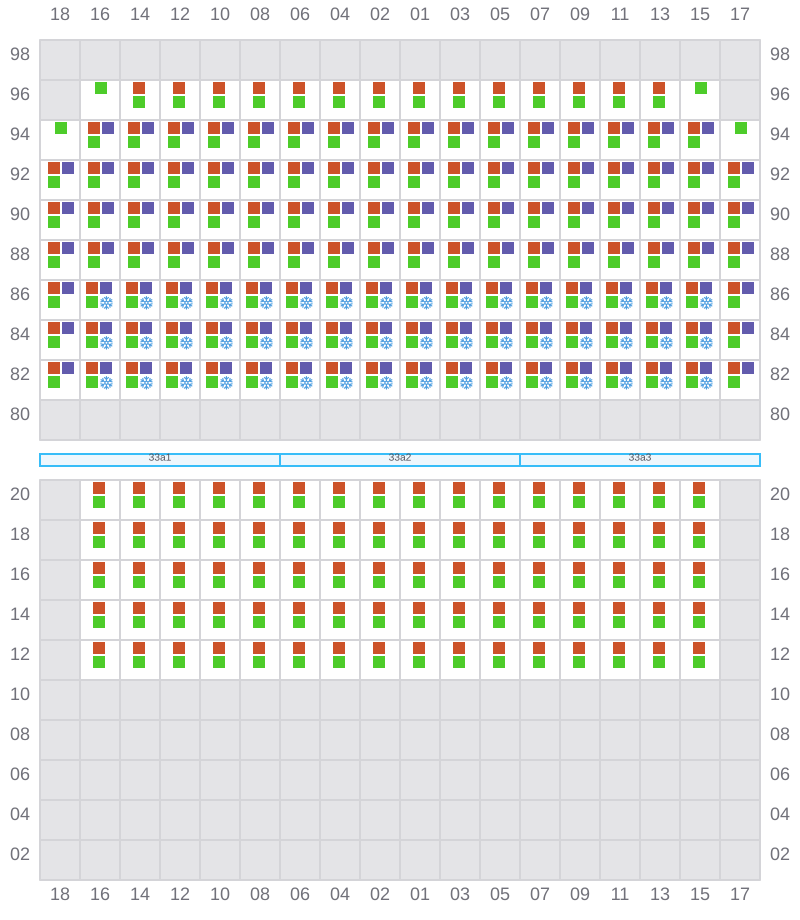

033 (034)
- →
- → / ?
![Bay 033 view and slots of APL VANCOUVER](/vessel-images/89f3e852-382d-45b6-b41a-b063dfb8e495-b033.png?v=1712166102098)

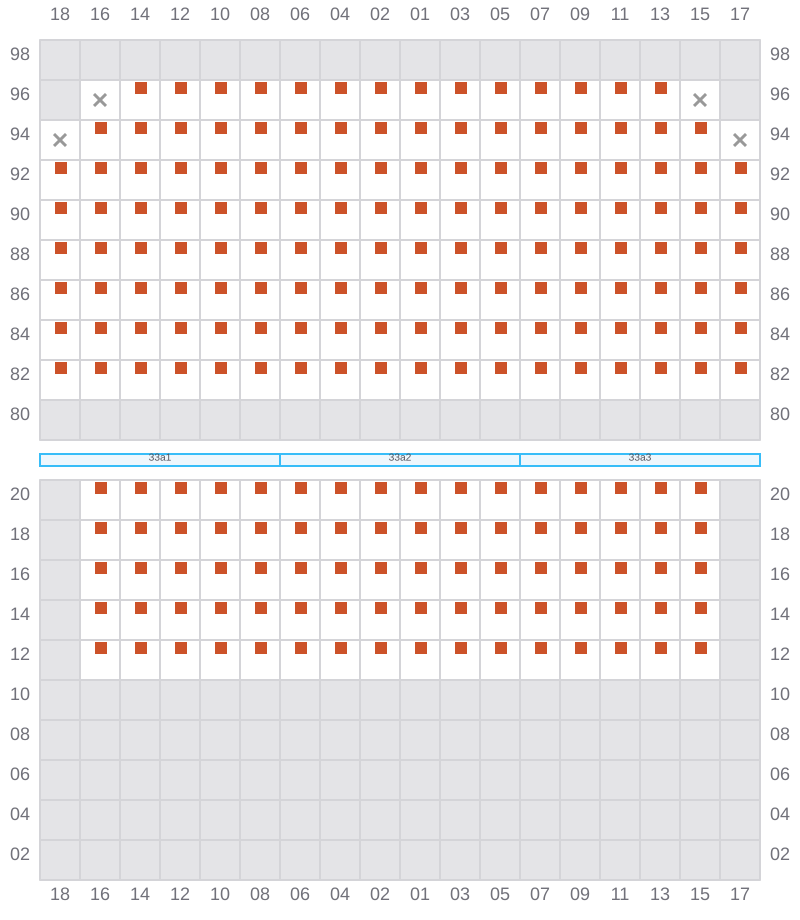

035
- ←
![Bay 035 view and slots of APL VANCOUVER](/vessel-images/89f3e852-382d-45b6-b41a-b063dfb8e495-b035.png?v=1712166102098)

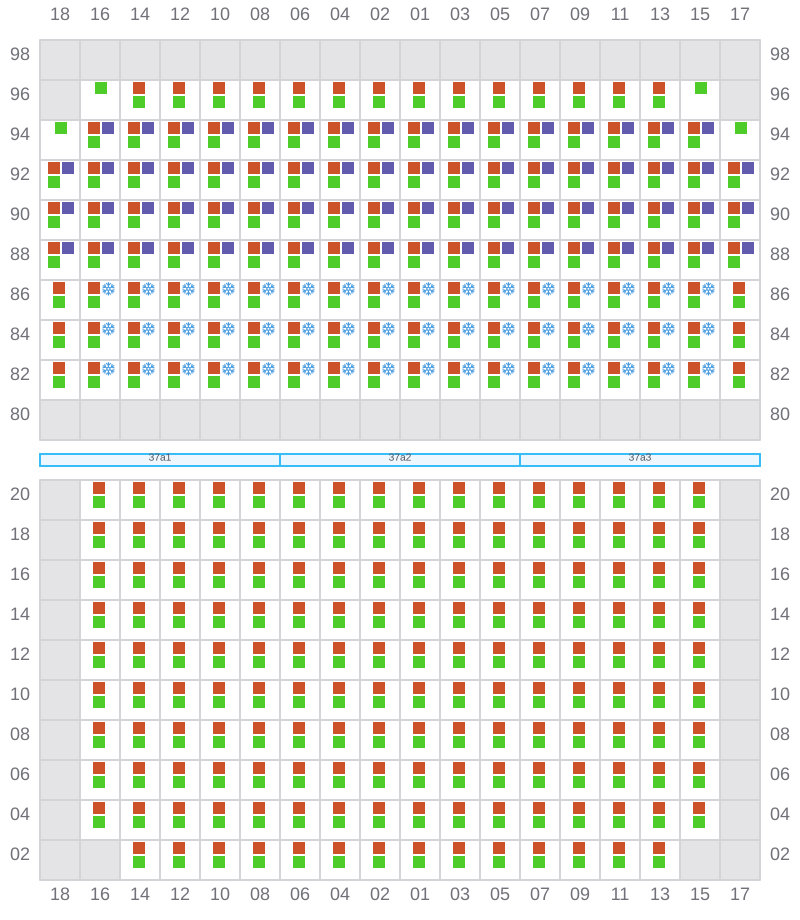

037 (038)
- →
- → / ?
![Bay 037 view and slots of APL VANCOUVER](/vessel-images/89f3e852-382d-45b6-b41a-b063dfb8e495-b037.png?v=1712166102098)

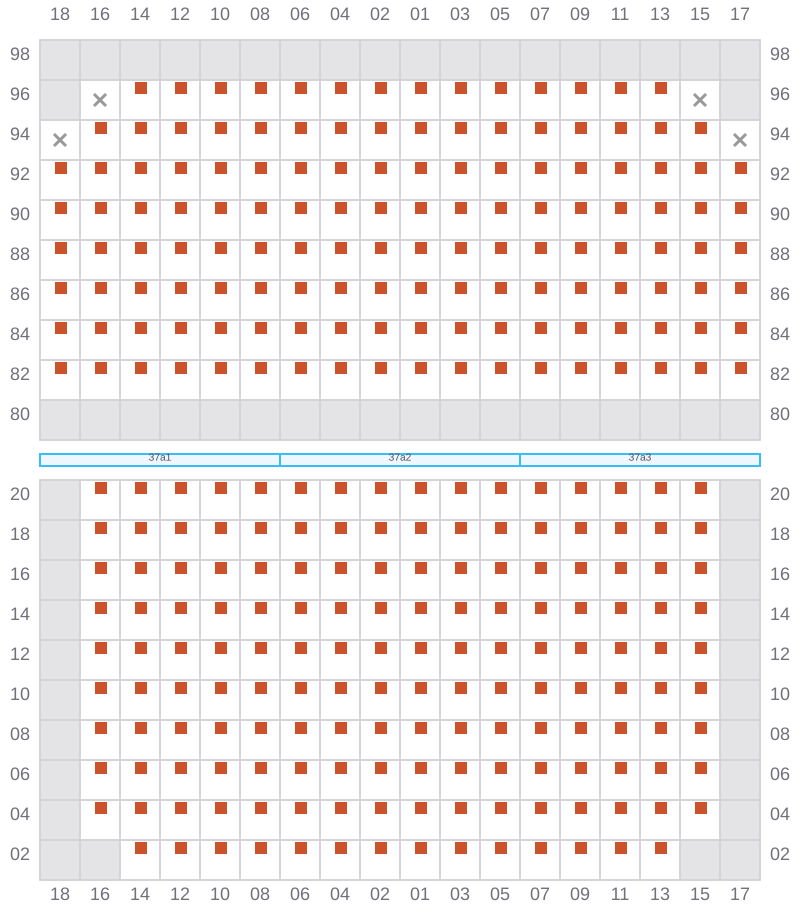

039
- ←
![Bay 039 view and slots of APL VANCOUVER](/vessel-images/89f3e852-382d-45b6-b41a-b063dfb8e495-b039.png?v=1712166102098)
041 (042)
- →
- → / ?
![Bay 041 view and slots of APL VANCOUVER](/vessel-images/89f3e852-382d-45b6-b41a-b063dfb8e495-b041.png?v=1712166102098)

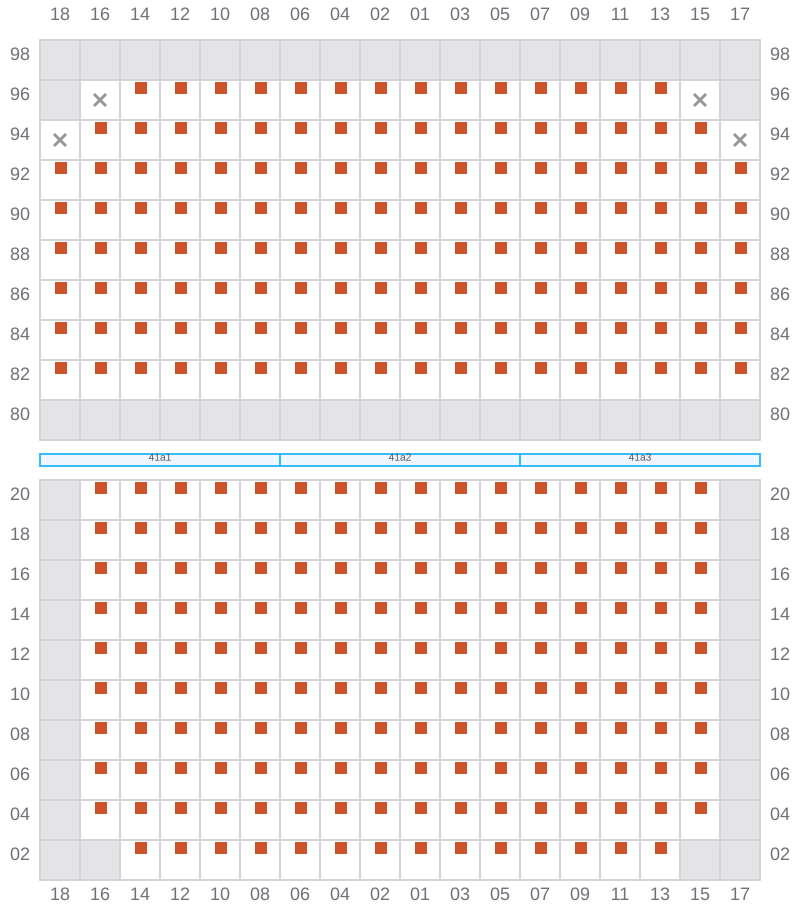

043
- ←
![Bay 043 view and slots of APL VANCOUVER](/vessel-images/89f3e852-382d-45b6-b41a-b063dfb8e495-b043.png?v=1712166102098)

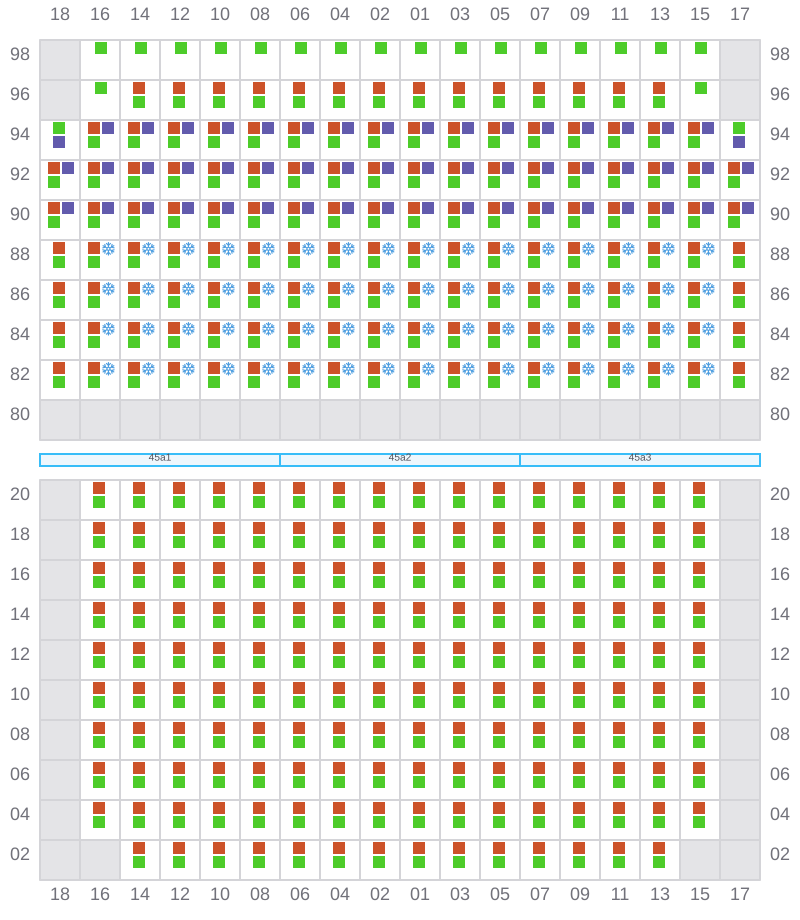

045 (046)
- →
- → / ?
![Bay 045 view and slots of APL VANCOUVER](/vessel-images/89f3e852-382d-45b6-b41a-b063dfb8e495-b045.png?v=1712166102098)

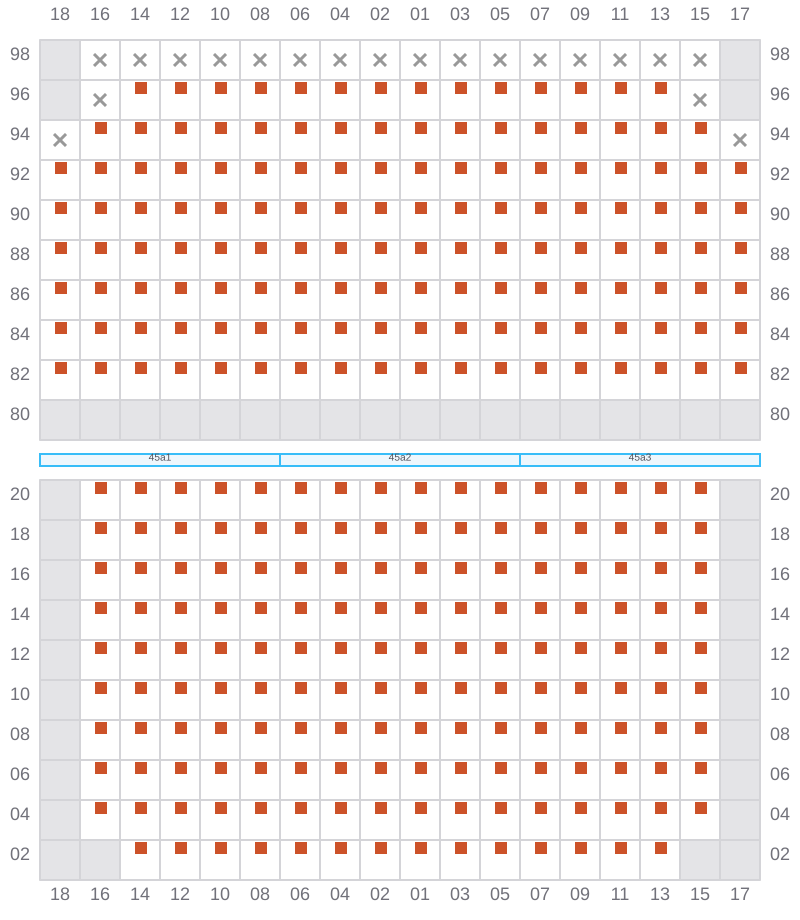

047
- ←
![Bay 047 view and slots of APL VANCOUVER](/vessel-images/89f3e852-382d-45b6-b41a-b063dfb8e495-b047.png?v=1712166102098)

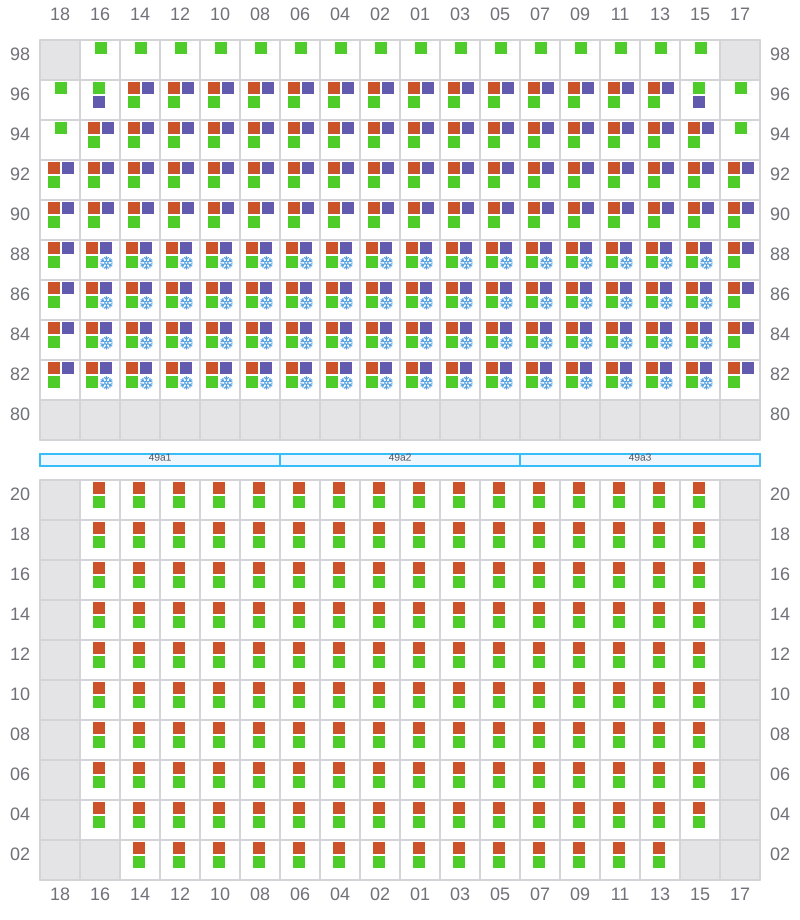

049 (050)
- →
- → / ?
![Bay 049 view and slots of APL VANCOUVER](/vessel-images/89f3e852-382d-45b6-b41a-b063dfb8e495-b049.png?v=1712166102098)

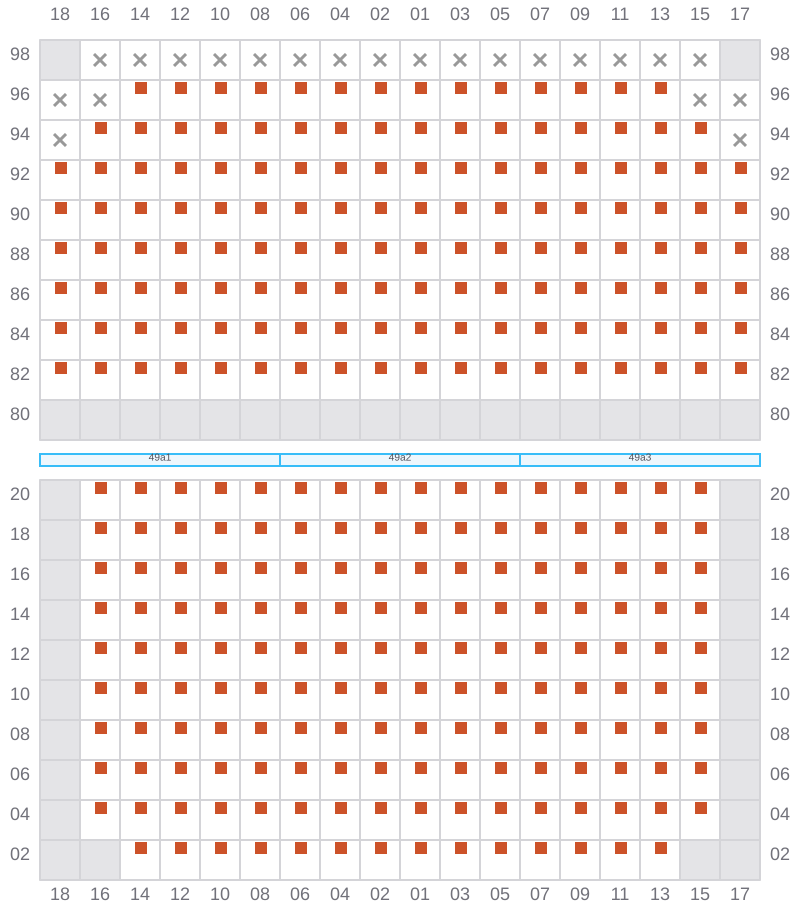

051
- ←
![Bay 051 view and slots of APL VANCOUVER](/vessel-images/89f3e852-382d-45b6-b41a-b063dfb8e495-b051.png?v=1712166102098)

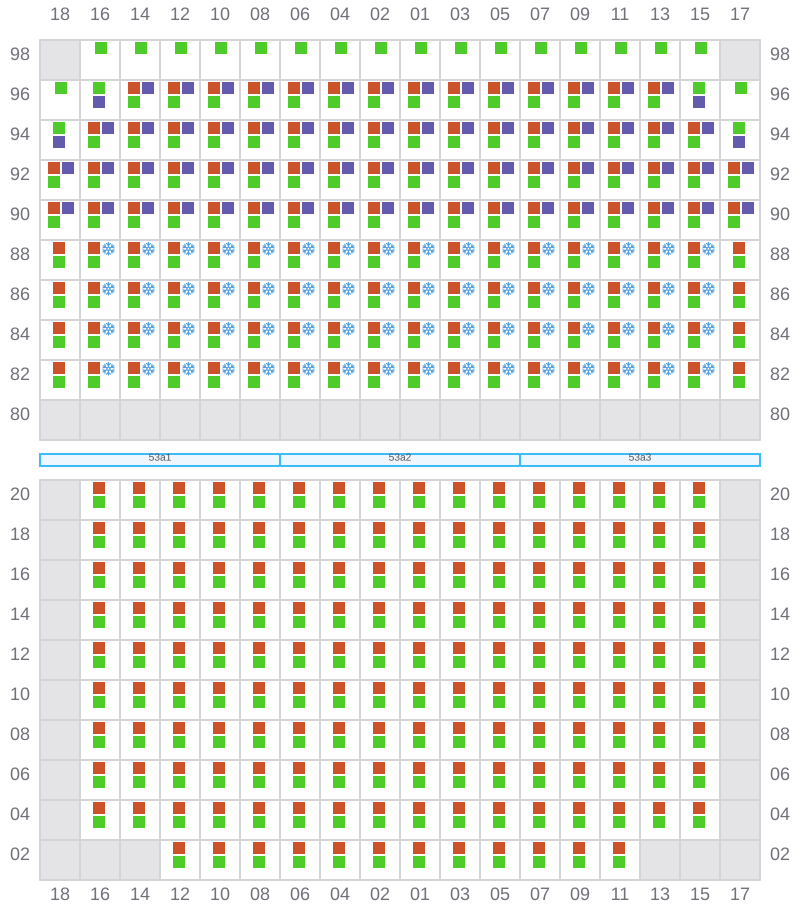

053 (054)
- →
- → / ?
![Bay 053 view and slots of APL VANCOUVER](/vessel-images/89f3e852-382d-45b6-b41a-b063dfb8e495-b053.png?v=1712166102098)

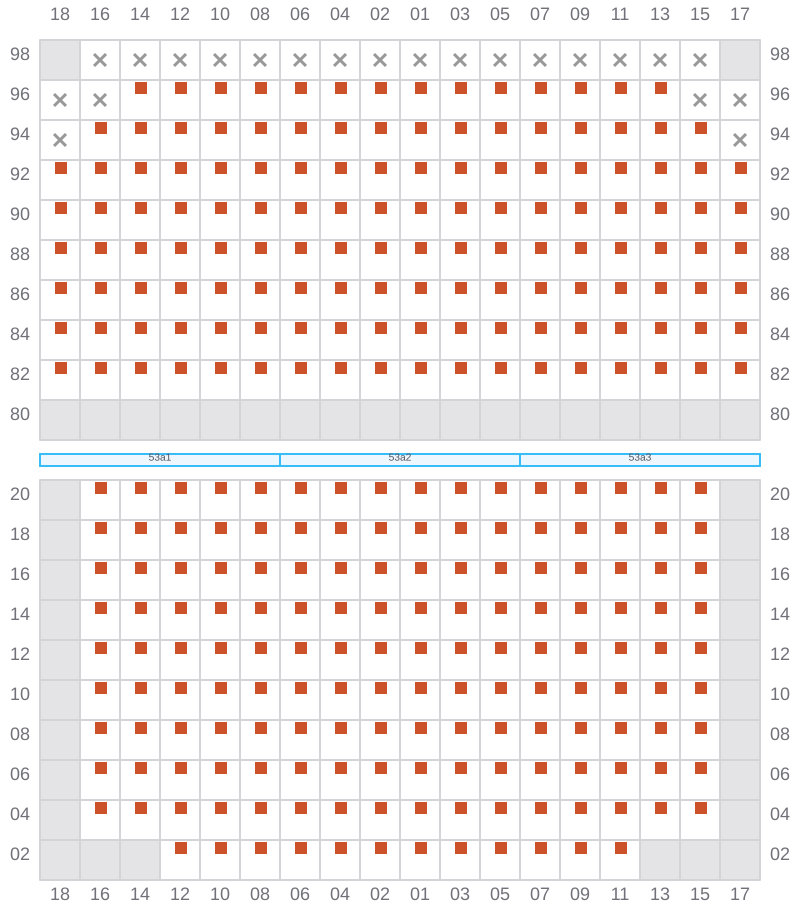

055
- ←
![Bay 055 view and slots of APL VANCOUVER](/vessel-images/89f3e852-382d-45b6-b41a-b063dfb8e495-b055.png?v=1712166102098)

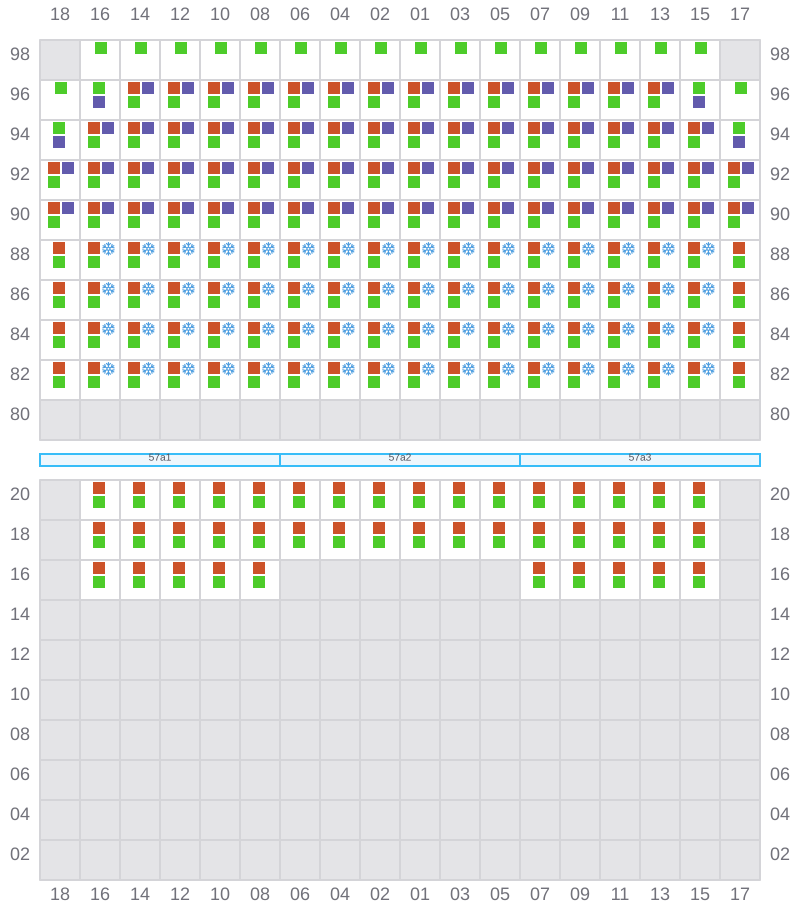

057 (058)
- →
- ← / ?
![Bay 057 view and slots of APL VANCOUVER](/vessel-images/89f3e852-382d-45b6-b41a-b063dfb8e495-b057.png?v=1712166102098)
059
- ←
![Bay 059 view and slots of APL VANCOUVER](/vessel-images/89f3e852-382d-45b6-b41a-b063dfb8e495-b059.png?v=1712166102098)
061 (062)
- →
- ← / ?
![Bay 061 view and slots of APL VANCOUVER](/vessel-images/89f3e852-382d-45b6-b41a-b063dfb8e495-b061.png?v=1712166102098)

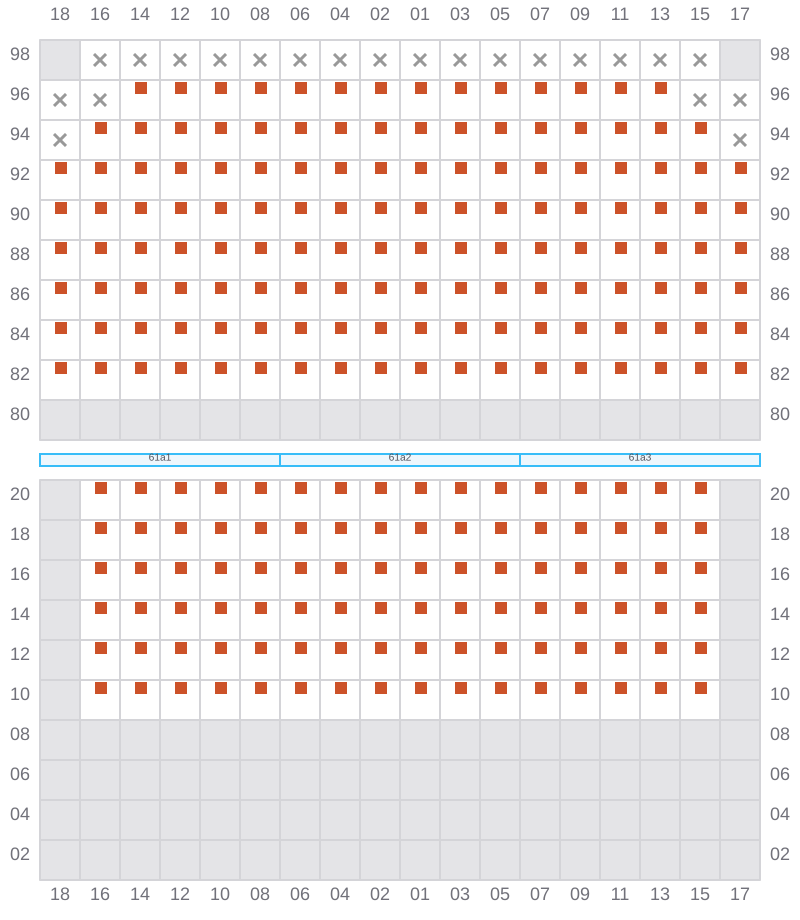

063
- ←
![Bay 063 view and slots of APL VANCOUVER](/vessel-images/89f3e852-382d-45b6-b41a-b063dfb8e495-b063.png?v=1712166102098)
065 (066)
- →
- ← / ?
![Bay 065 view and slots of APL VANCOUVER](/vessel-images/89f3e852-382d-45b6-b41a-b063dfb8e495-b065.png?v=1712166102098)
067
- ←
![Bay 067 view and slots of APL VANCOUVER](/vessel-images/89f3e852-382d-45b6-b41a-b063dfb8e495-b067.png?v=1712166102098)

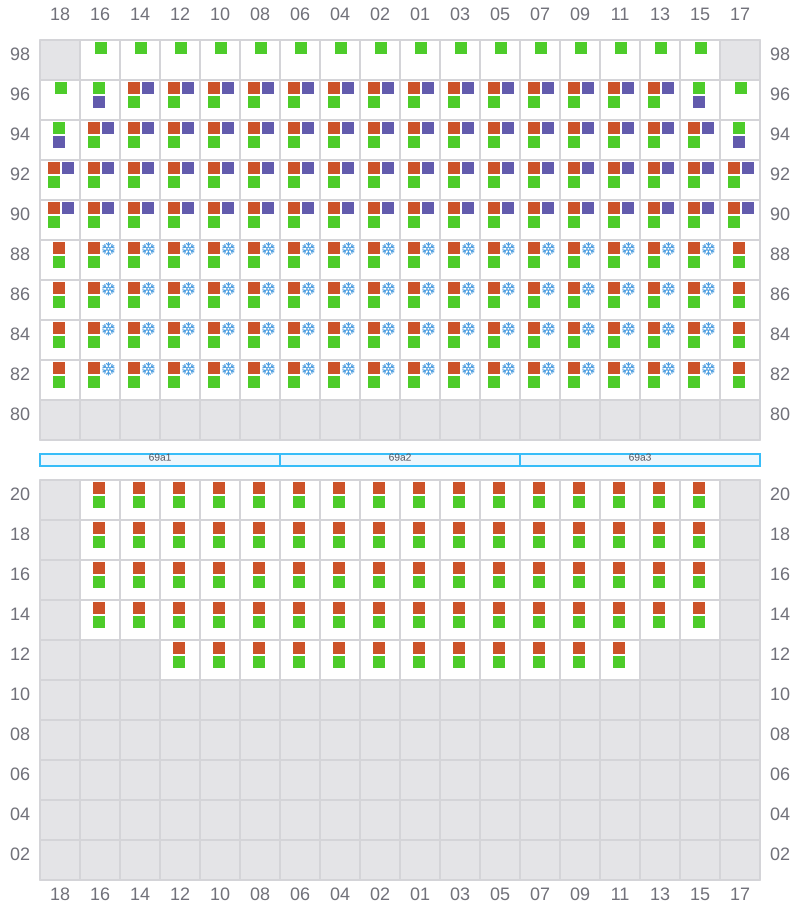

069 (070)
- →
- ← / ?
![Bay 069 view and slots of APL VANCOUVER](/vessel-images/89f3e852-382d-45b6-b41a-b063dfb8e495-b069.png?v=1712166102098)

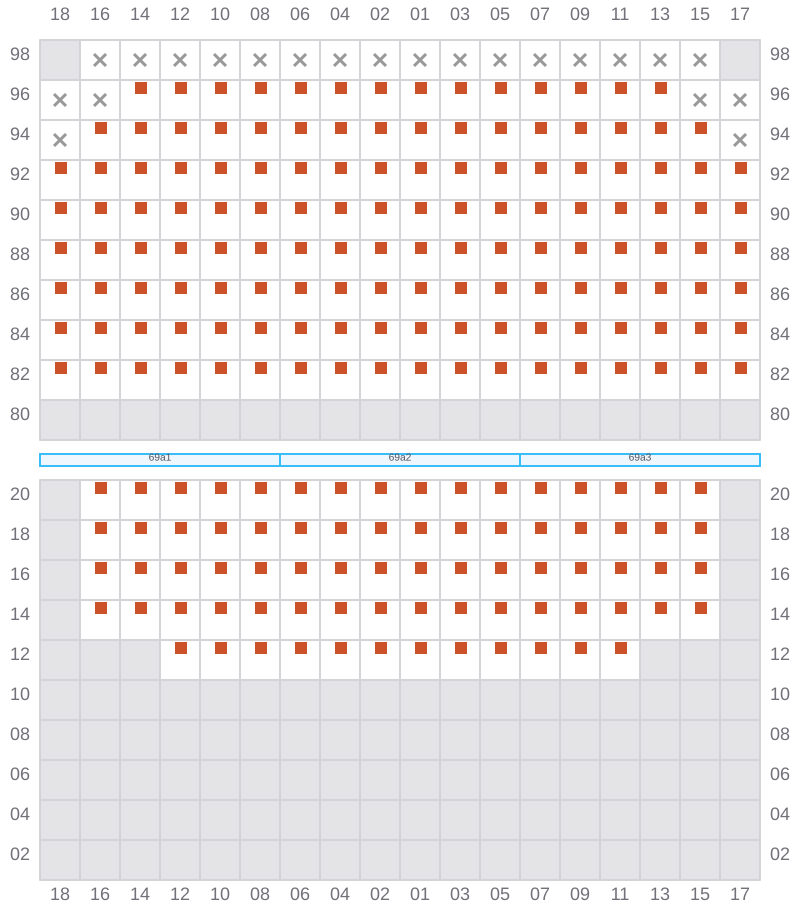

071
- ←
![Bay 071 view and slots of APL VANCOUVER](/vessel-images/89f3e852-382d-45b6-b41a-b063dfb8e495-b071.png?v=1712166102098)

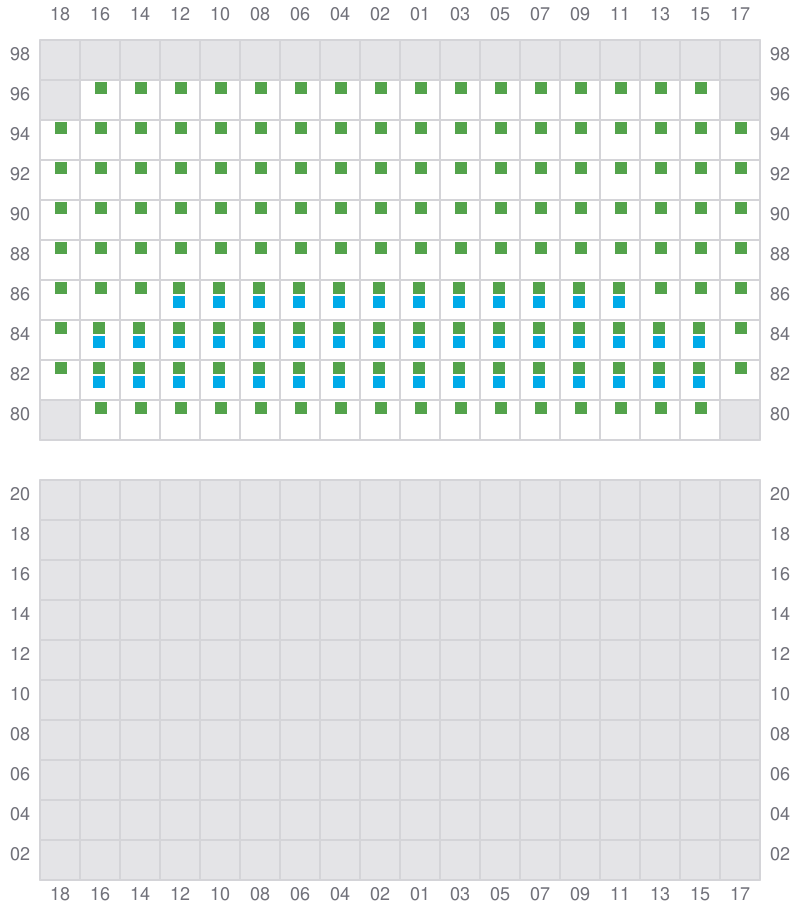

073 (074)
- → / ?
- ← / ?
![Bay 073 view and slots of APL VANCOUVER](/vessel-images/89f3e852-382d-45b6-b41a-b063dfb8e495-b073.png?v=1712166102098)
