APL VANDA
9631993 | S6LT8 | APL by *********************** Last update: Tue Feb 04 2025

General Info

Ship Name:APL VANDA
IMO Code:9631993
Call Sign:S6LT8
Line Operator:APL
Class Name for Sister Ships:AVDA
Year Built:2013
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:093
Max ISO Row:20
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:72
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:17,292

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Known
TCG Data:100%

Side View

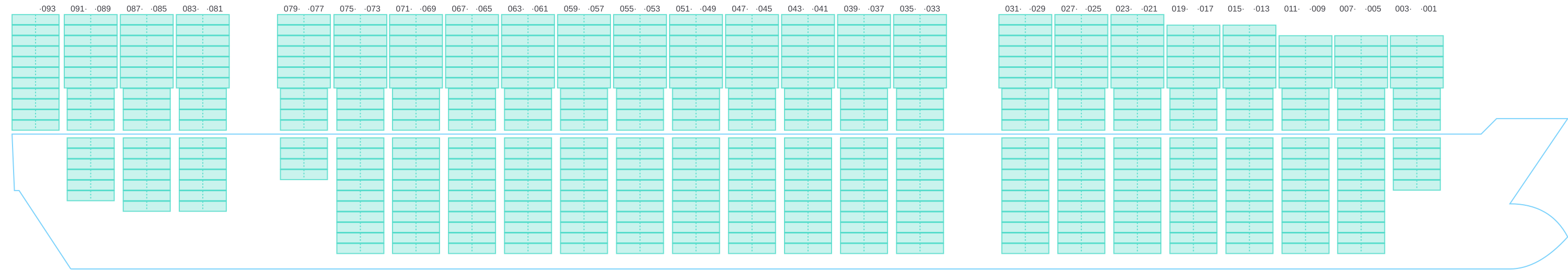

Side view of APL VANDA

Hatch-Covers View

Deck view of APL VANDA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

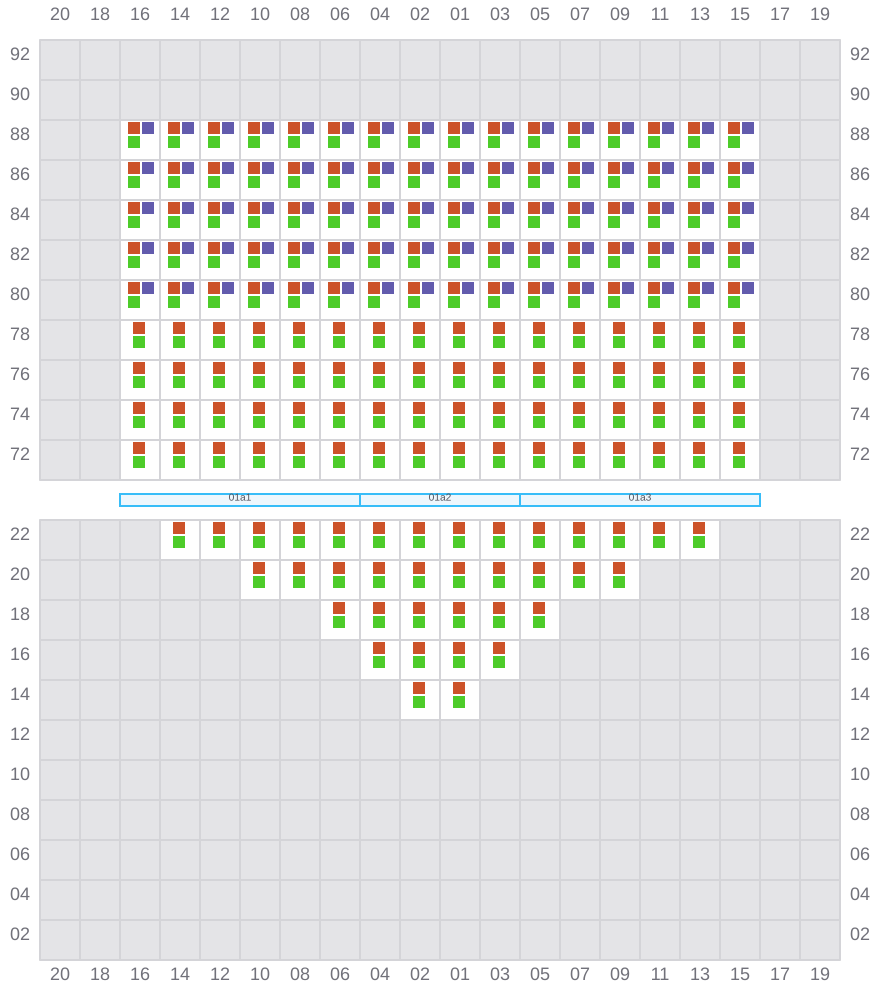

Bay 001 view and slots of APL VANDA

003

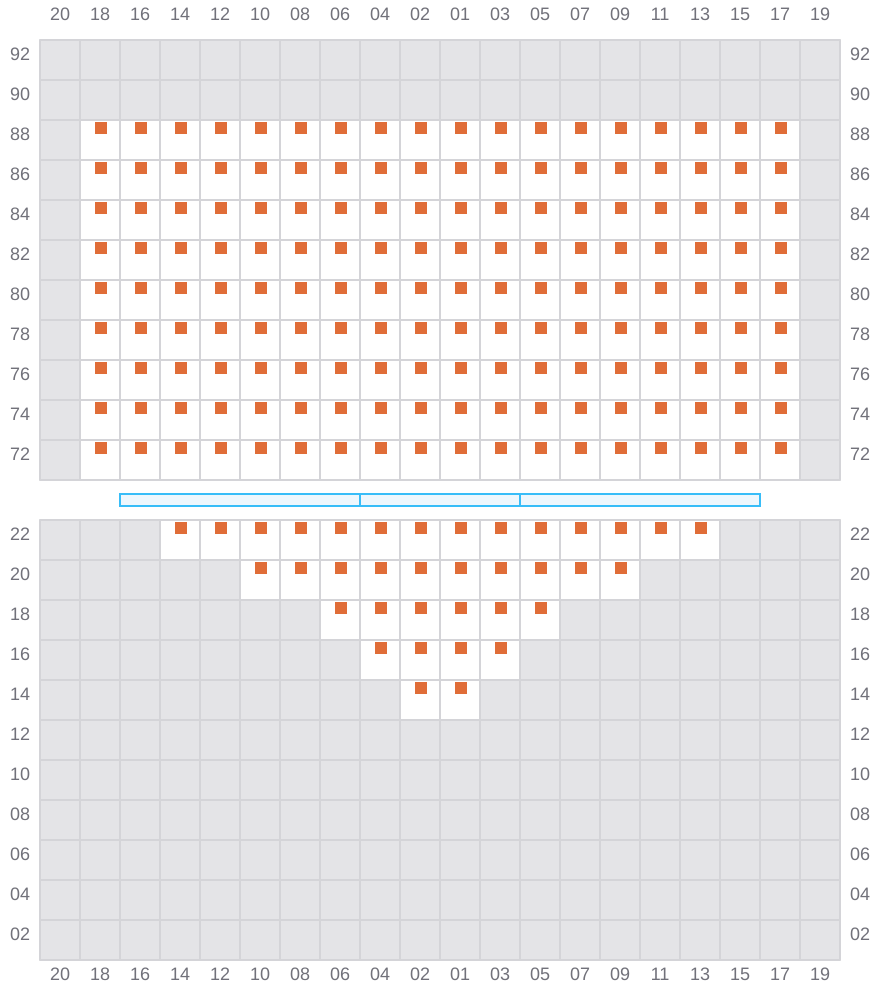

Bay 003 view and slots of APL VANDA

005 (006)

  • / ?

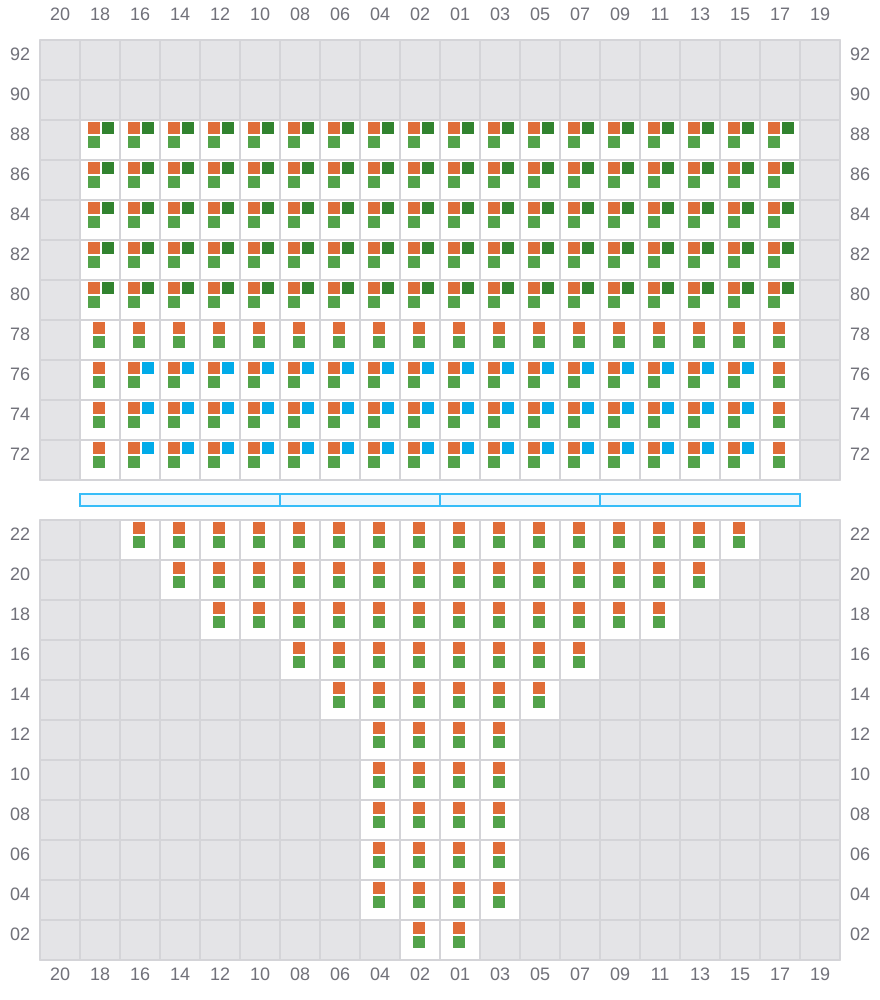

Bay 005 view and slots of APL VANDA

007

  • / ?
Bay 007 view and slots of APL VANDA

009 (010)

  • / ?
Bay 009 view and slots of APL VANDA

011

  • / ?

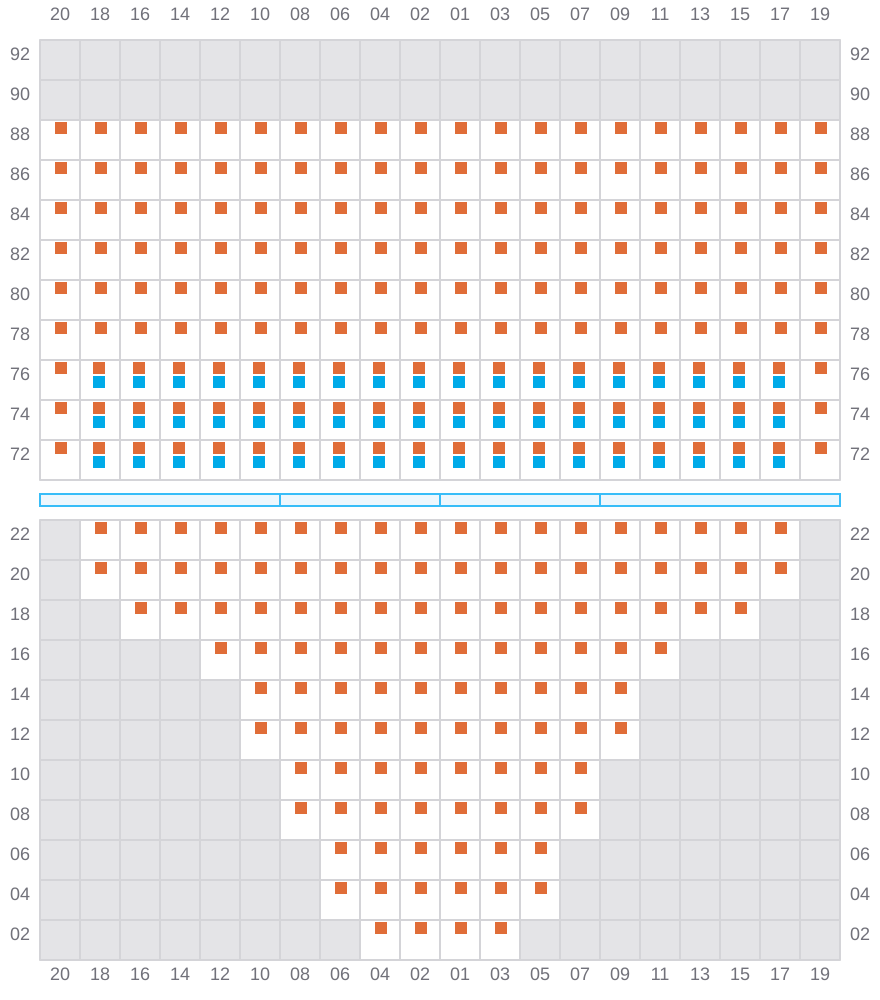

Bay 011 view and slots of APL VANDA

013 (014)

  • / ?

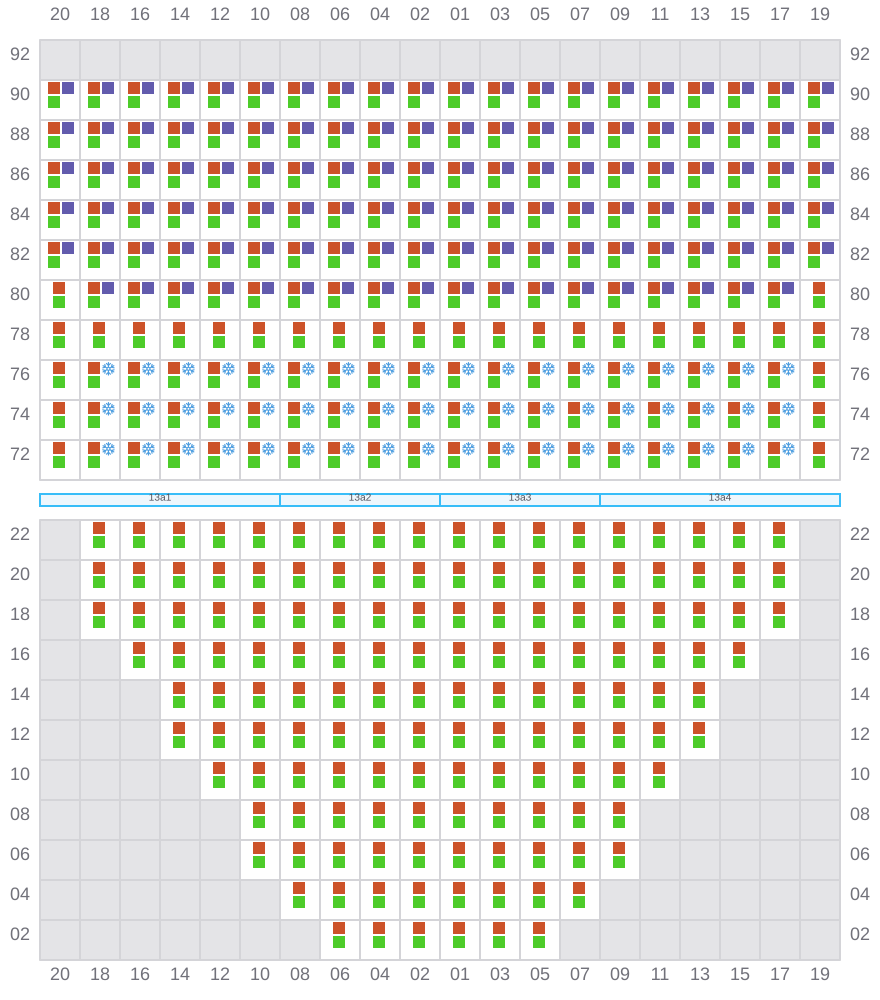

Bay 013 view and slots of APL VANDA

015

  • / ?
Bay 015 view and slots of APL VANDA

017 (018)

  • / ?

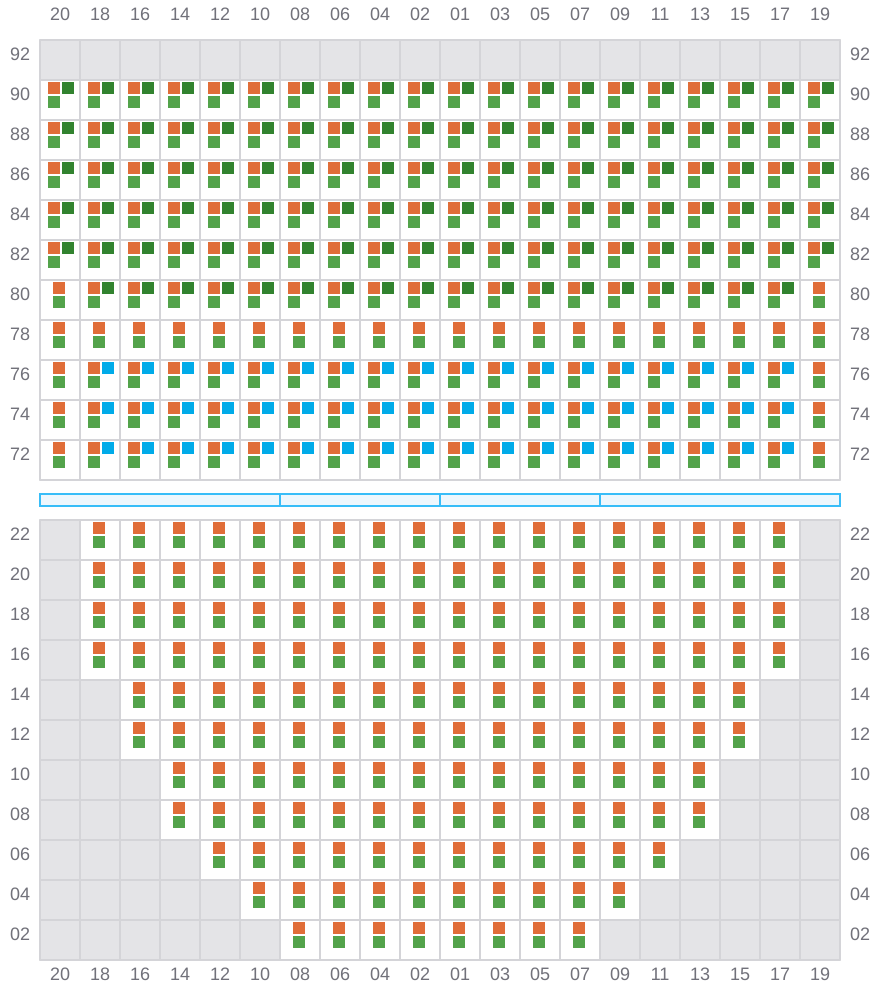

Bay 017 view and slots of APL VANDA

019

  • / ?

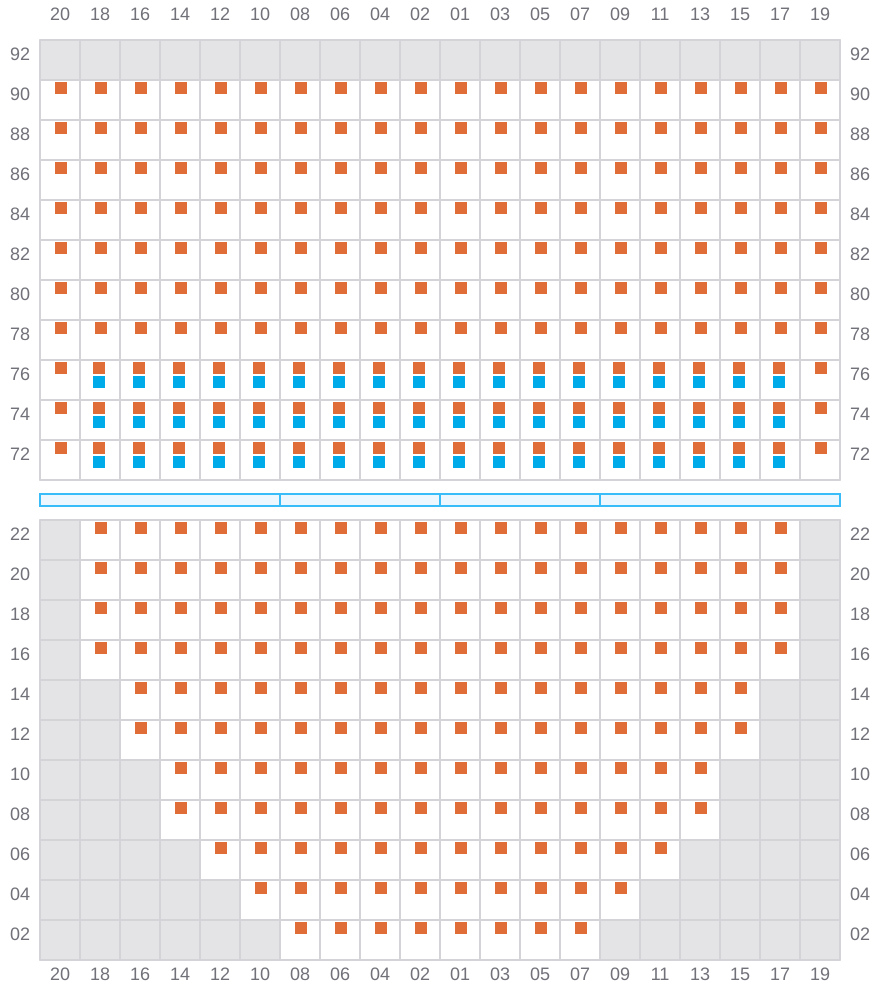

Bay 019 view and slots of APL VANDA

021 (022)

  • / ?

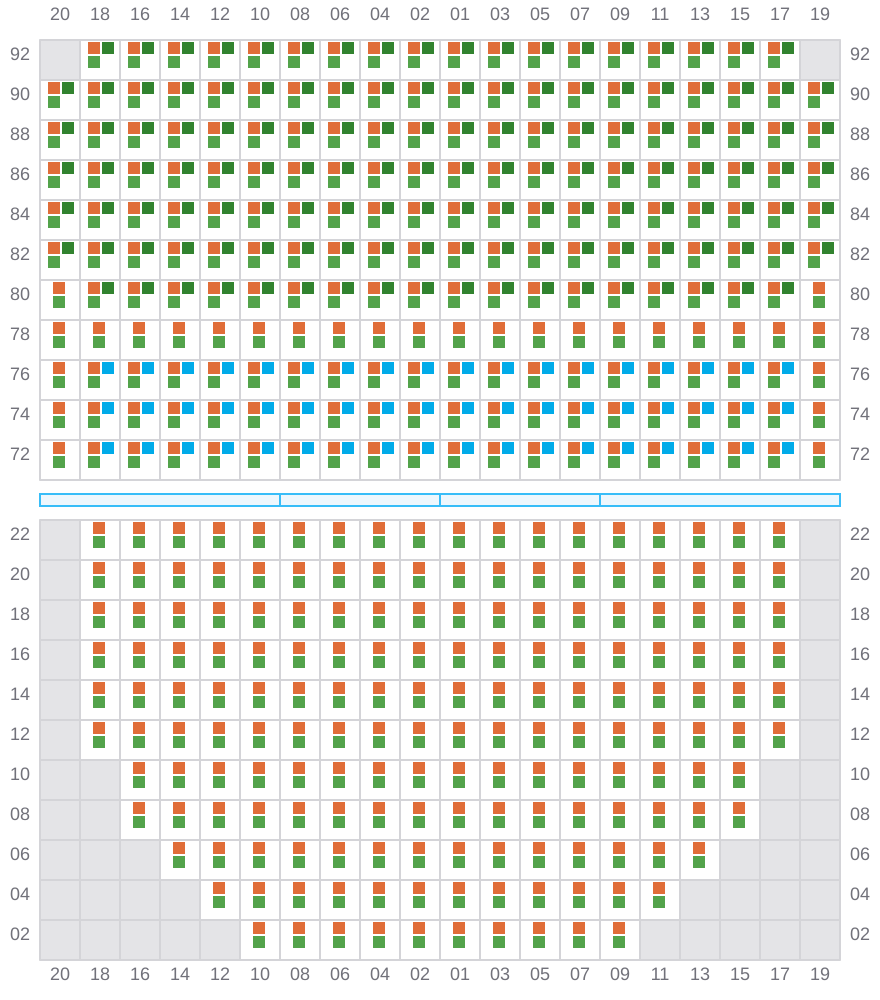

Bay 021 view and slots of APL VANDA

023

  • / ?

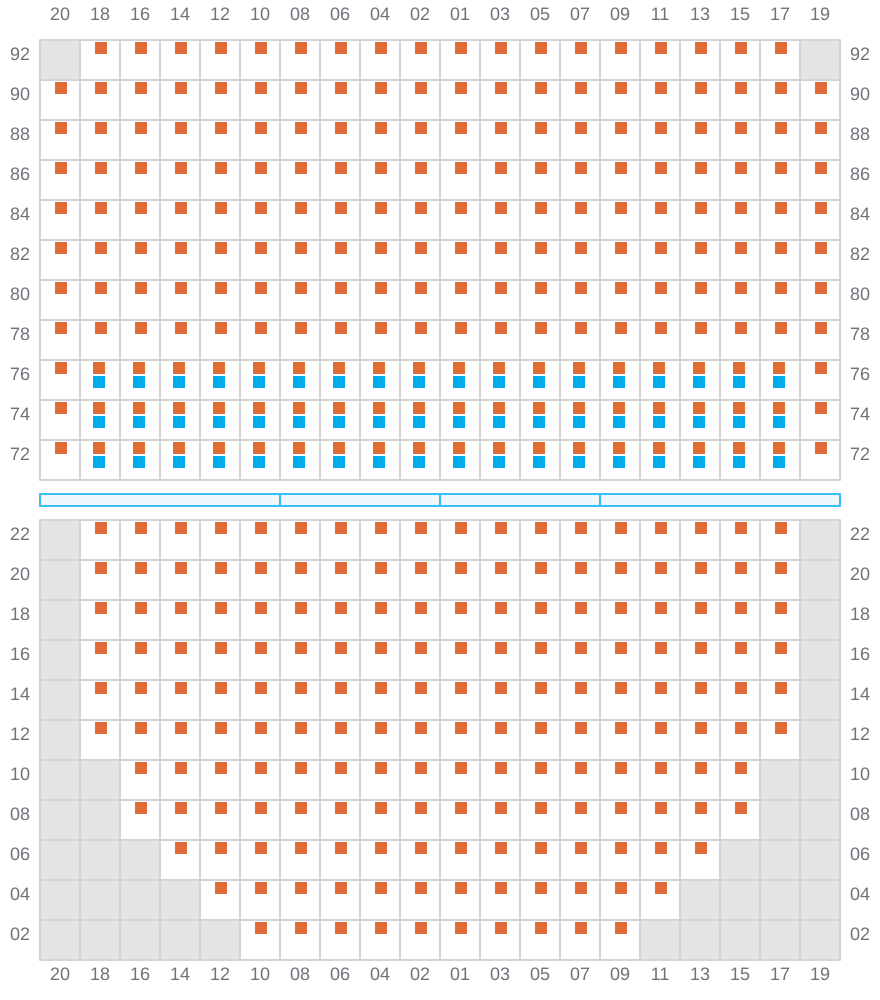

Bay 023 view and slots of APL VANDA

025 (026)

  • / ?

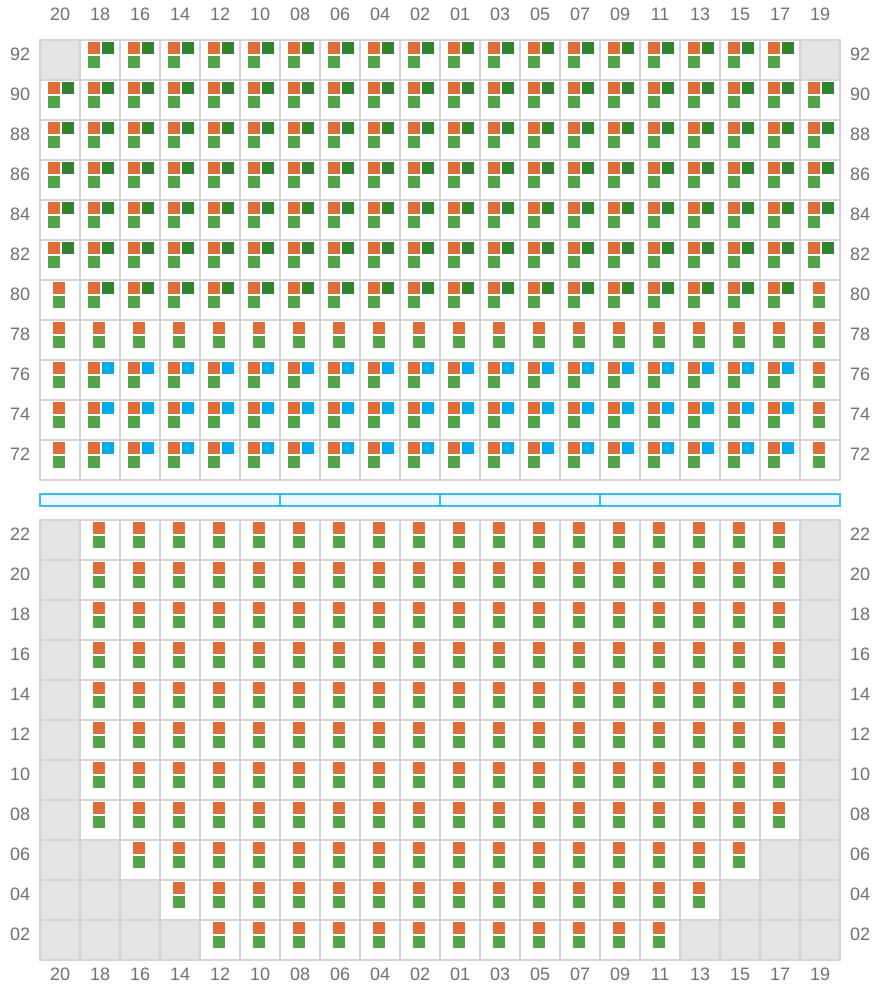

Bay 025 view and slots of APL VANDA

027

  • / ?

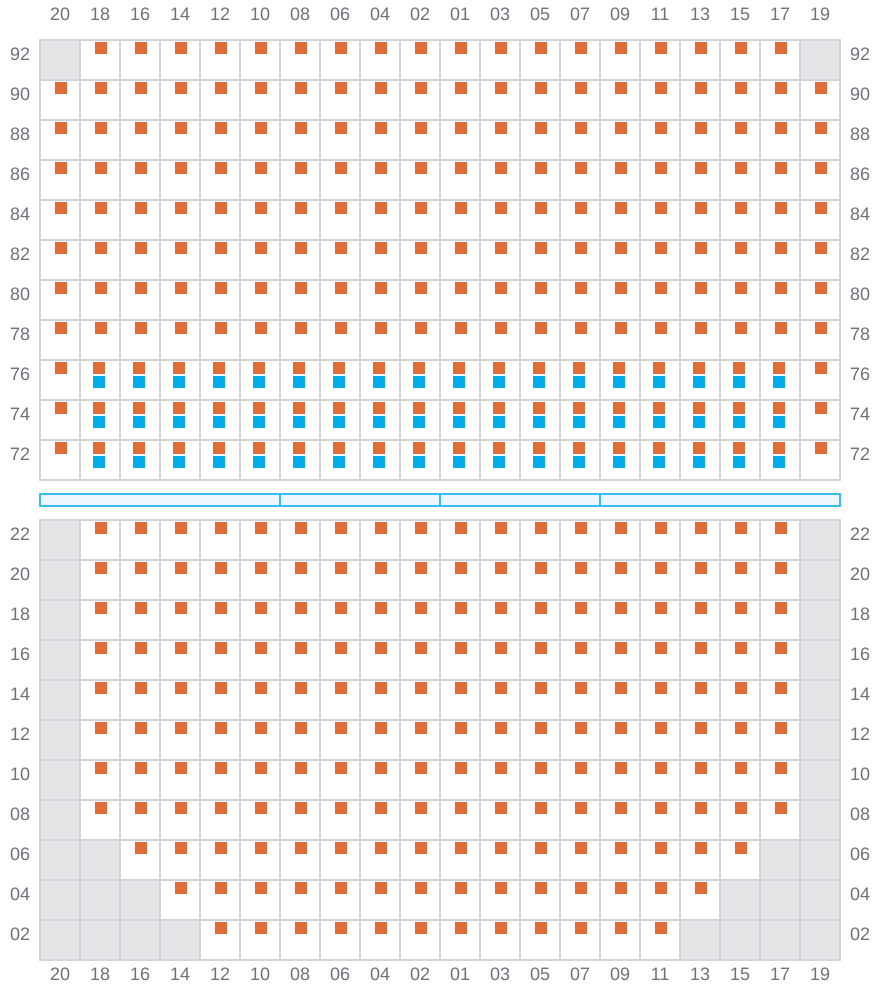

Bay 027 view and slots of APL VANDA

029 (030)

  • / ?

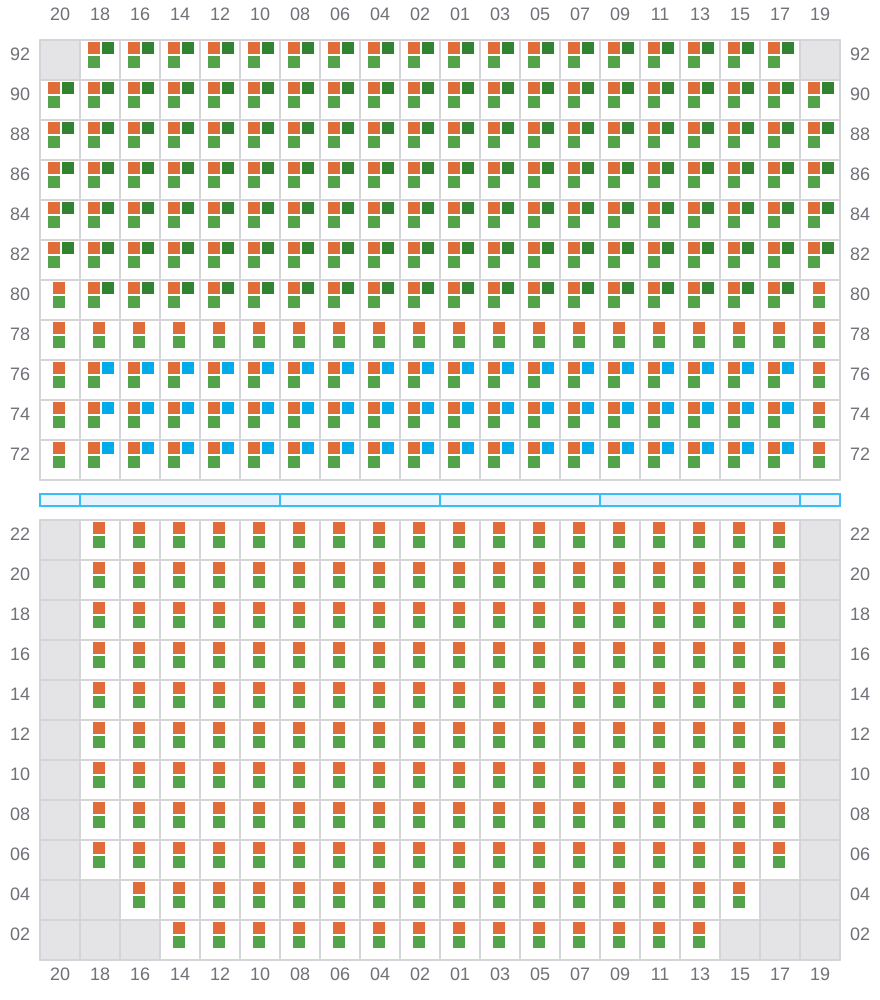

Bay 029 view and slots of APL VANDA

031

  • / ?

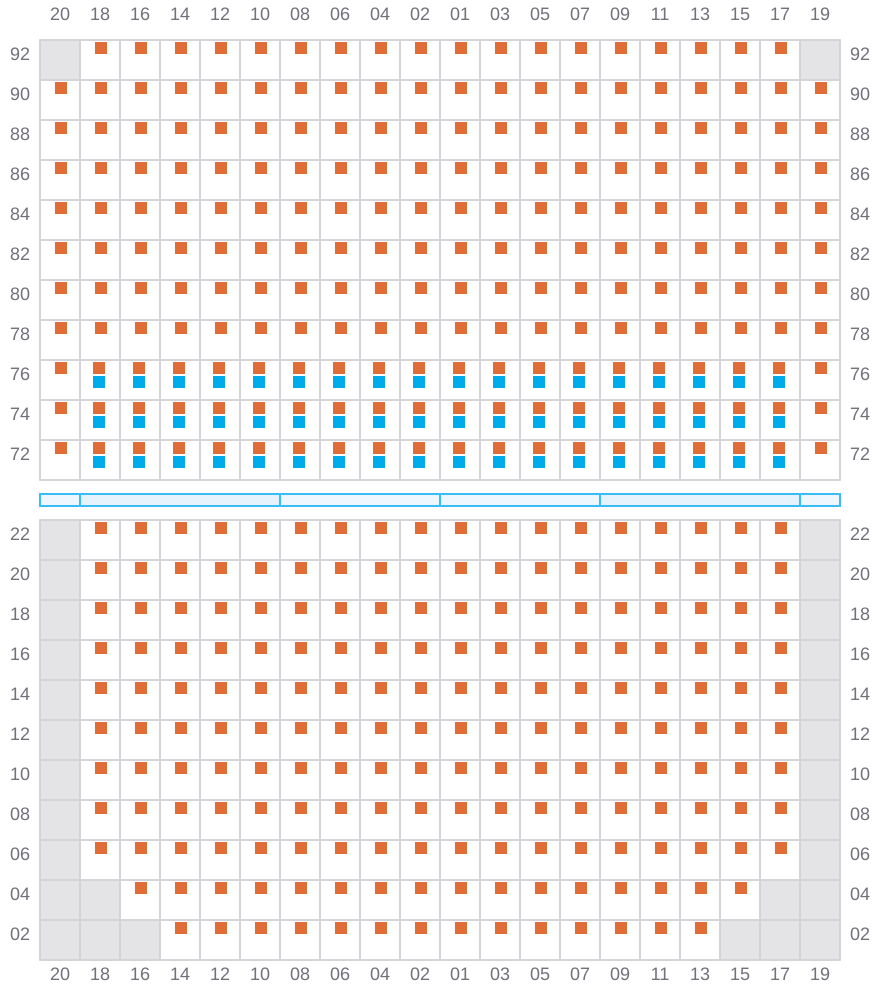

Bay 031 view and slots of APL VANDA

033 (034)

  • / ?

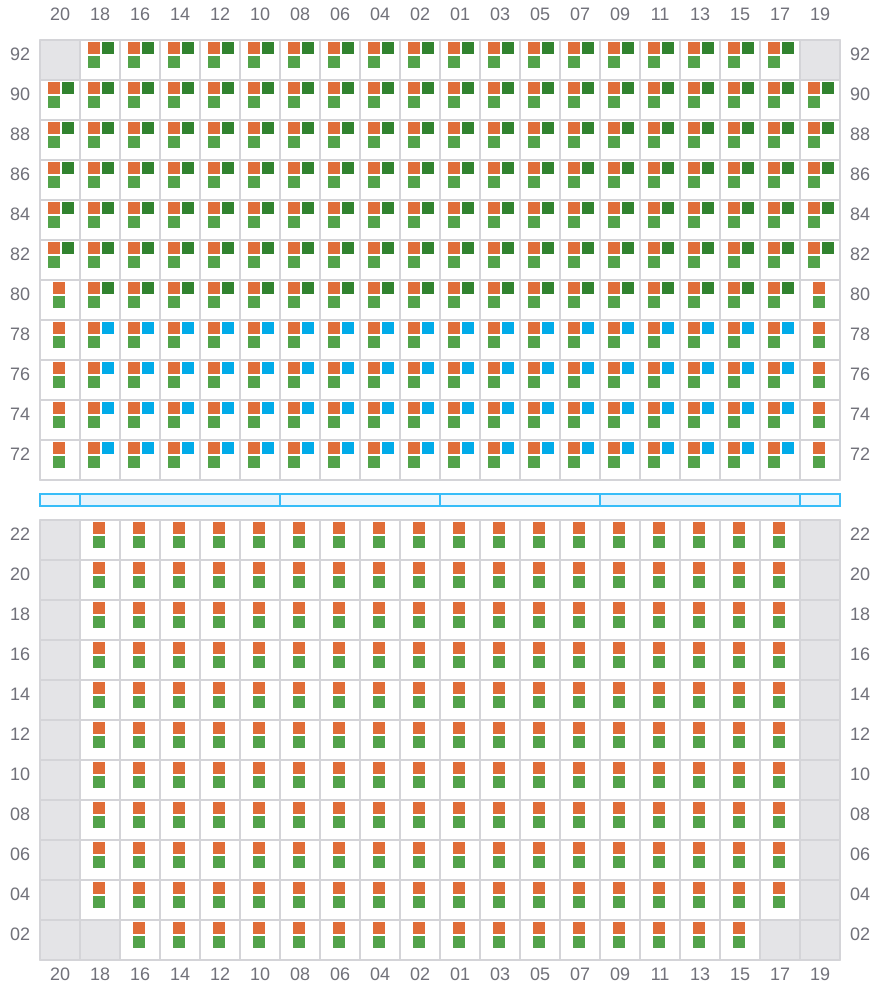

Bay 033 view and slots of APL VANDA

035

  • / ?

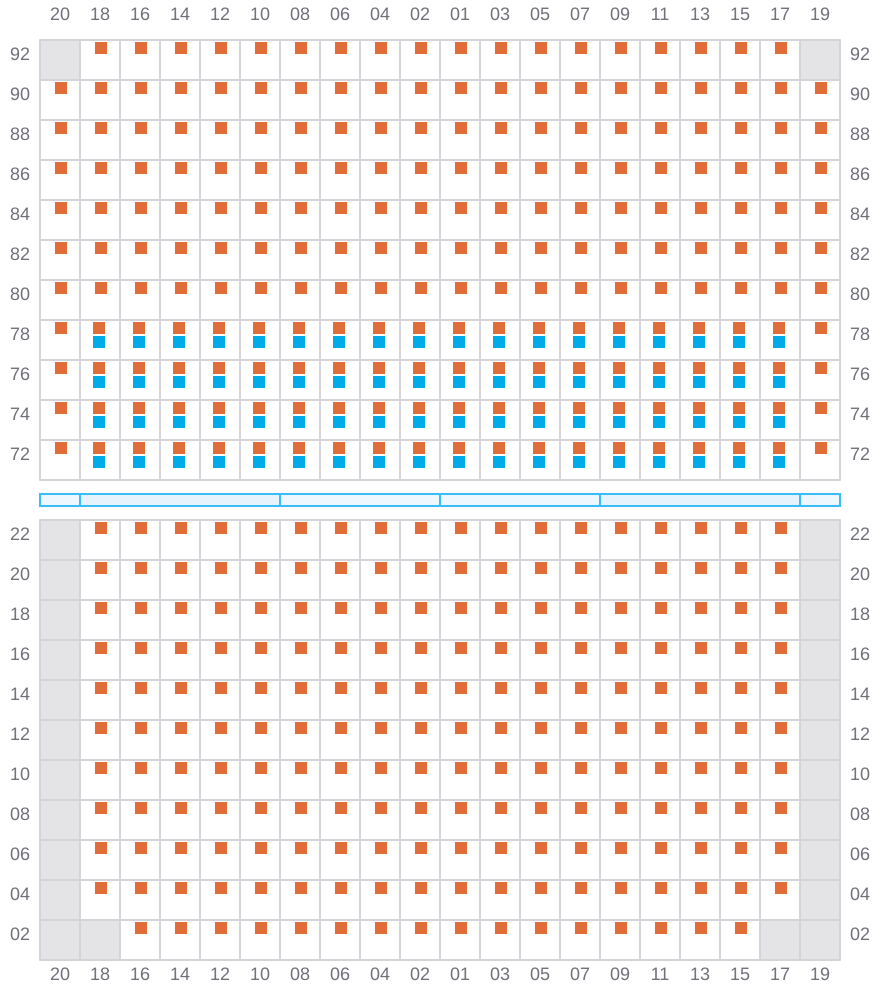

Bay 035 view and slots of APL VANDA

037 (038)

  • / ?
Bay 037 view and slots of APL VANDA

039

  • / ?
Bay 039 view and slots of APL VANDA

041 (042)

  • / ?

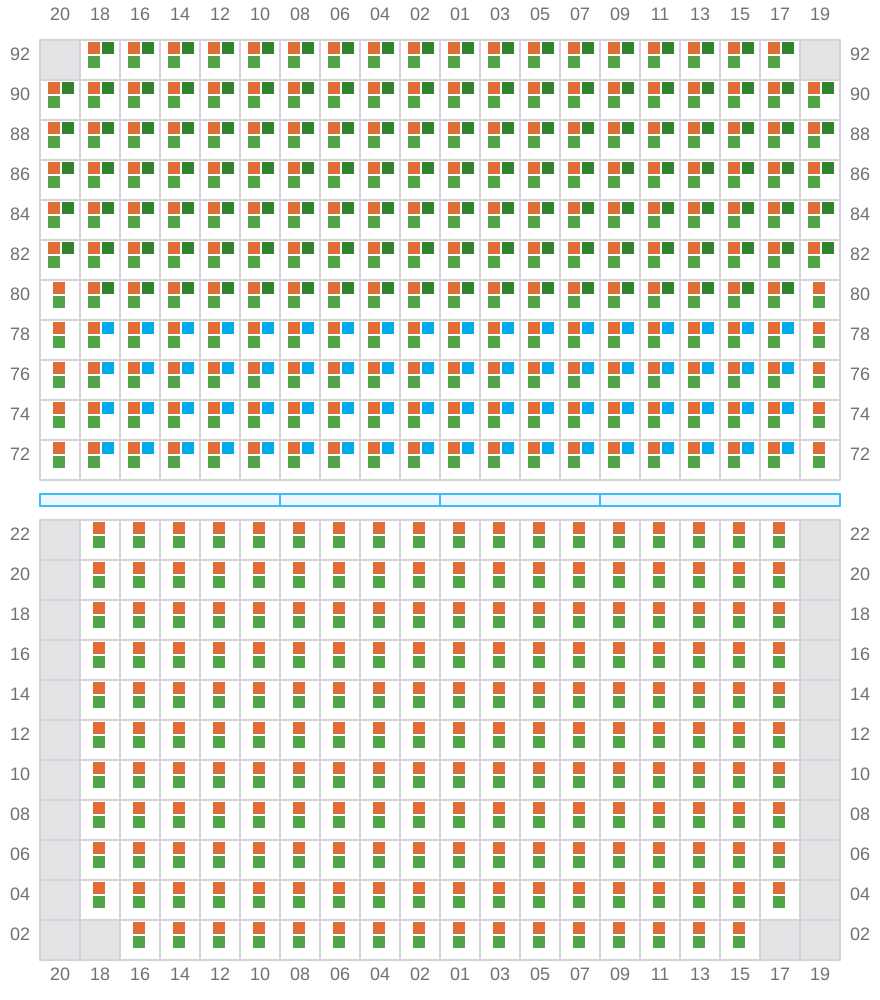

Bay 041 view and slots of APL VANDA

043

  • / ?
Bay 043 view and slots of APL VANDA

045 (046)

  • / ?
Bay 045 view and slots of APL VANDA

047

  • / ?
Bay 047 view and slots of APL VANDA

049 (050)

  • / ?
Bay 049 view and slots of APL VANDA

051

  • / ?
Bay 051 view and slots of APL VANDA

053 (054)

  • / ?
Bay 053 view and slots of APL VANDA

055

  • / ?
Bay 055 view and slots of APL VANDA

057 (058)

  • / ?
Bay 057 view and slots of APL VANDA

059

  • / ?
Bay 059 view and slots of APL VANDA

061 (062)

  • / ?

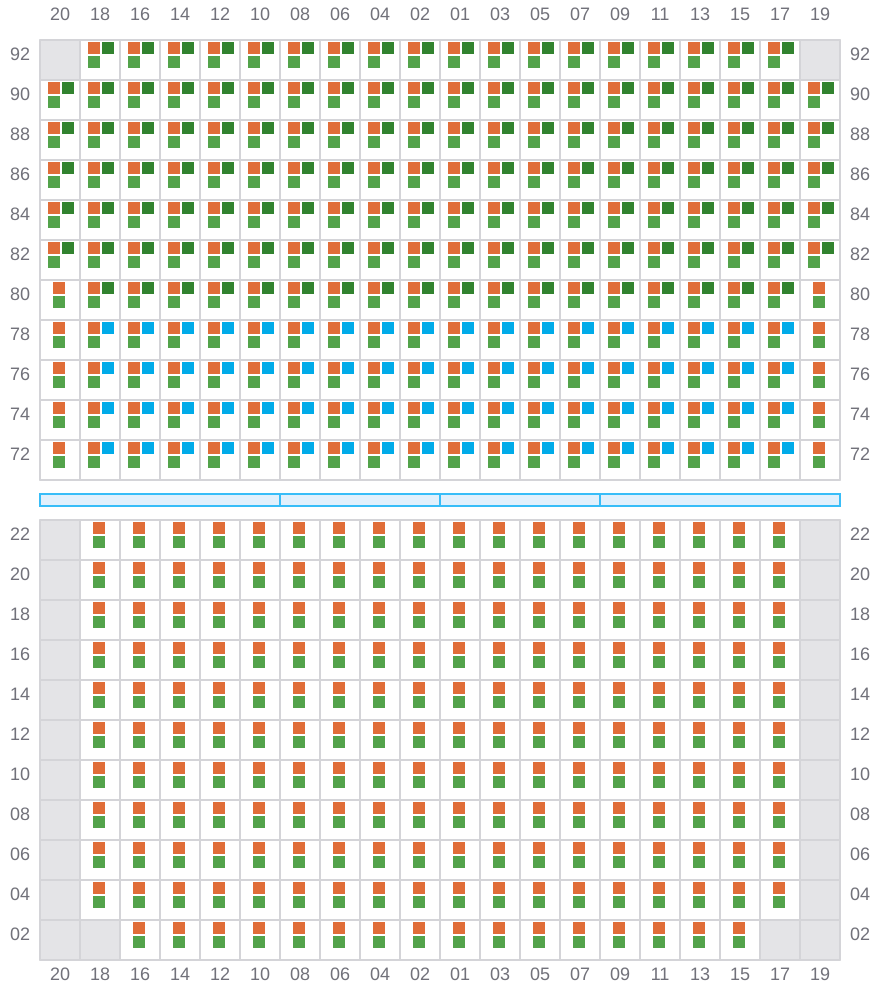

Bay 061 view and slots of APL VANDA

063

  • / ?

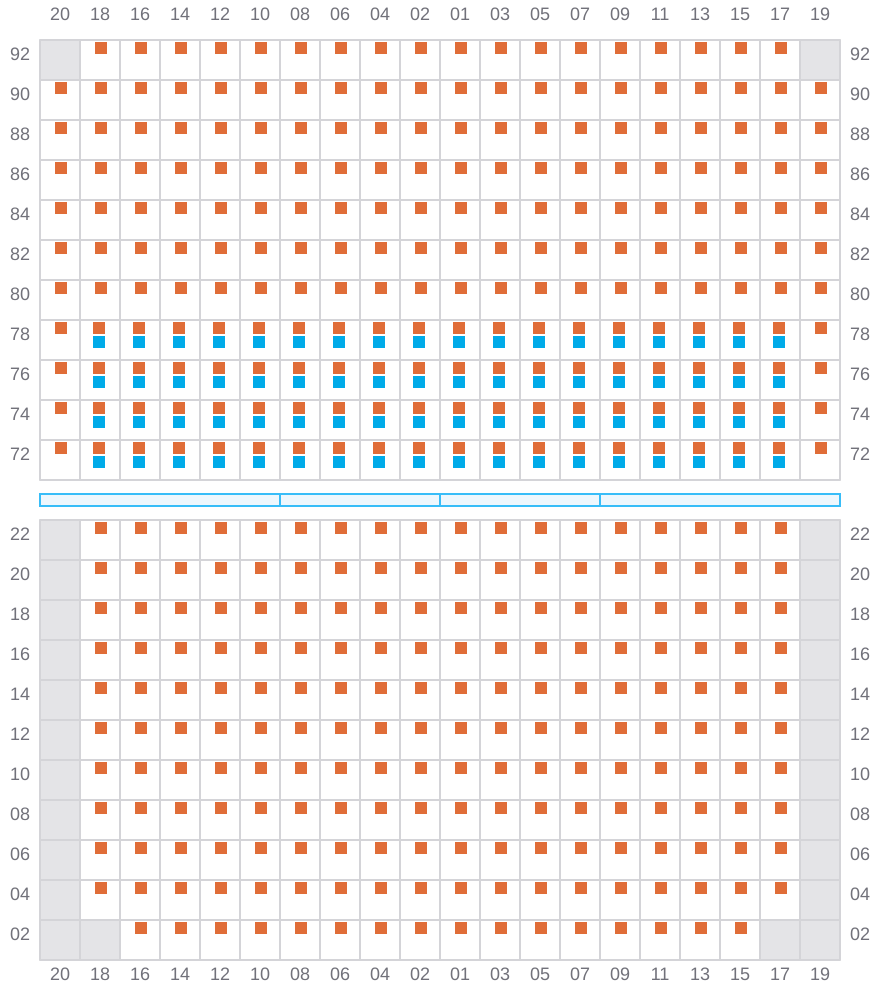

Bay 063 view and slots of APL VANDA

065 (066)

  • / ?

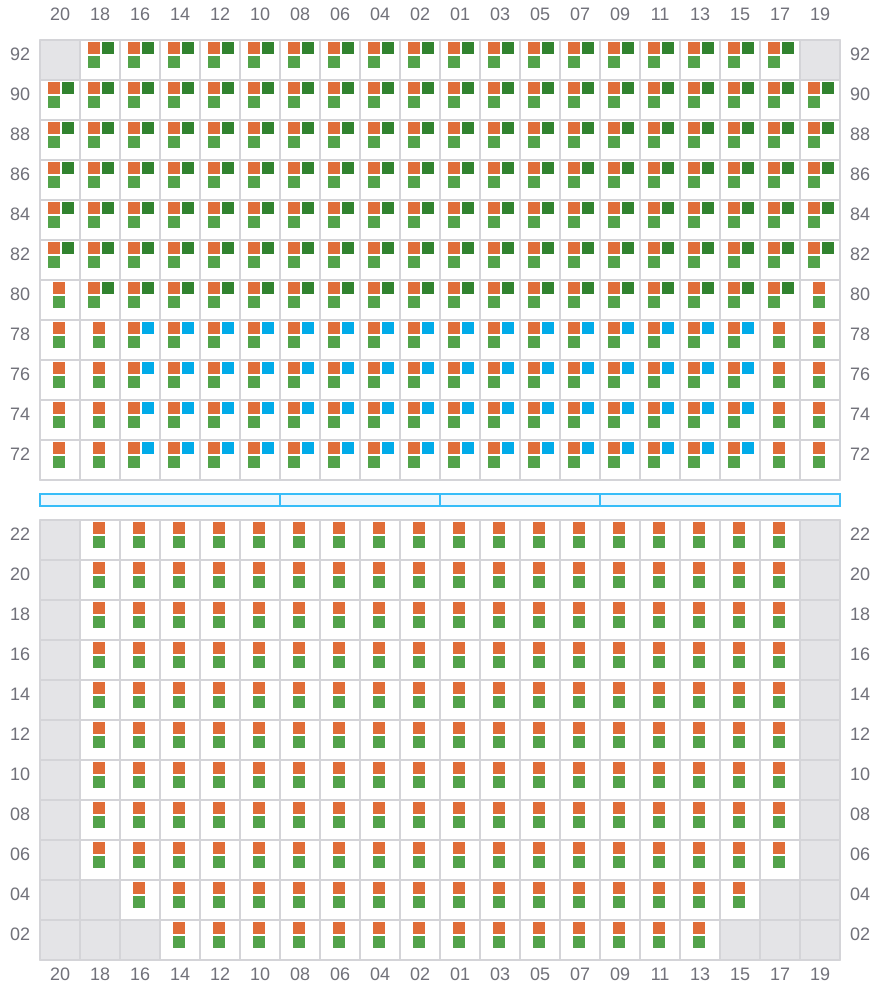

Bay 065 view and slots of APL VANDA

067

  • / ?

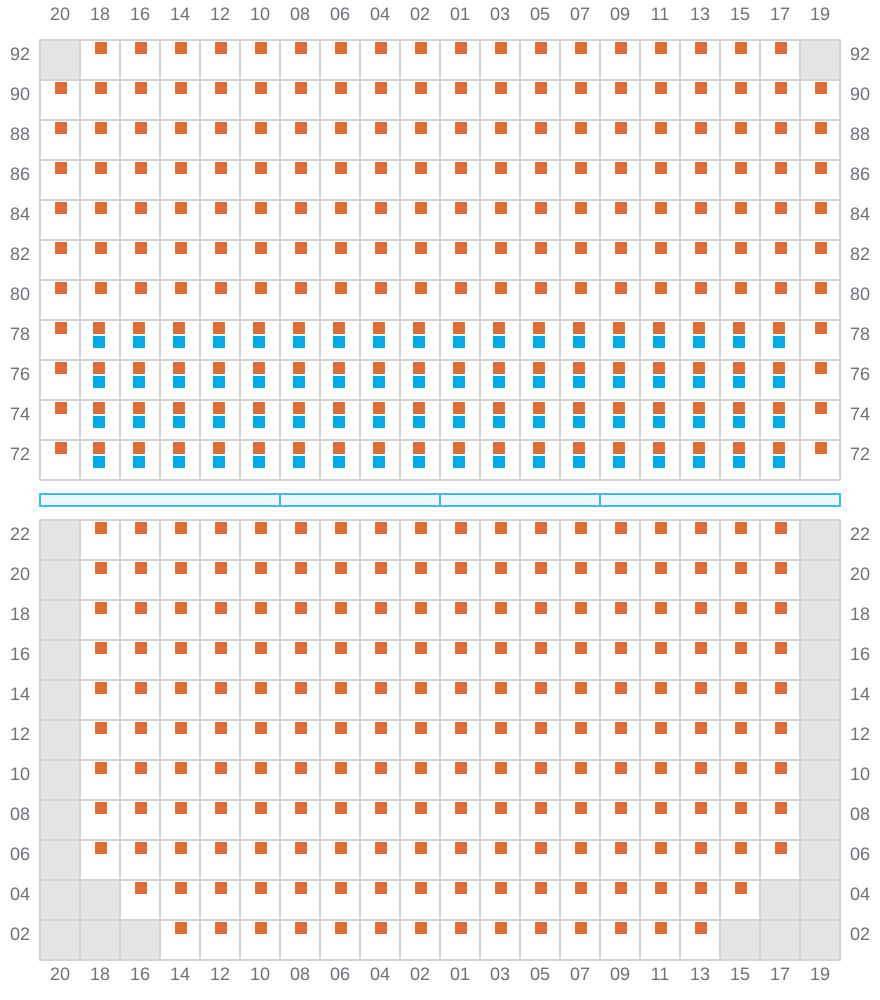

Bay 067 view and slots of APL VANDA

069 (070)

  • / ?

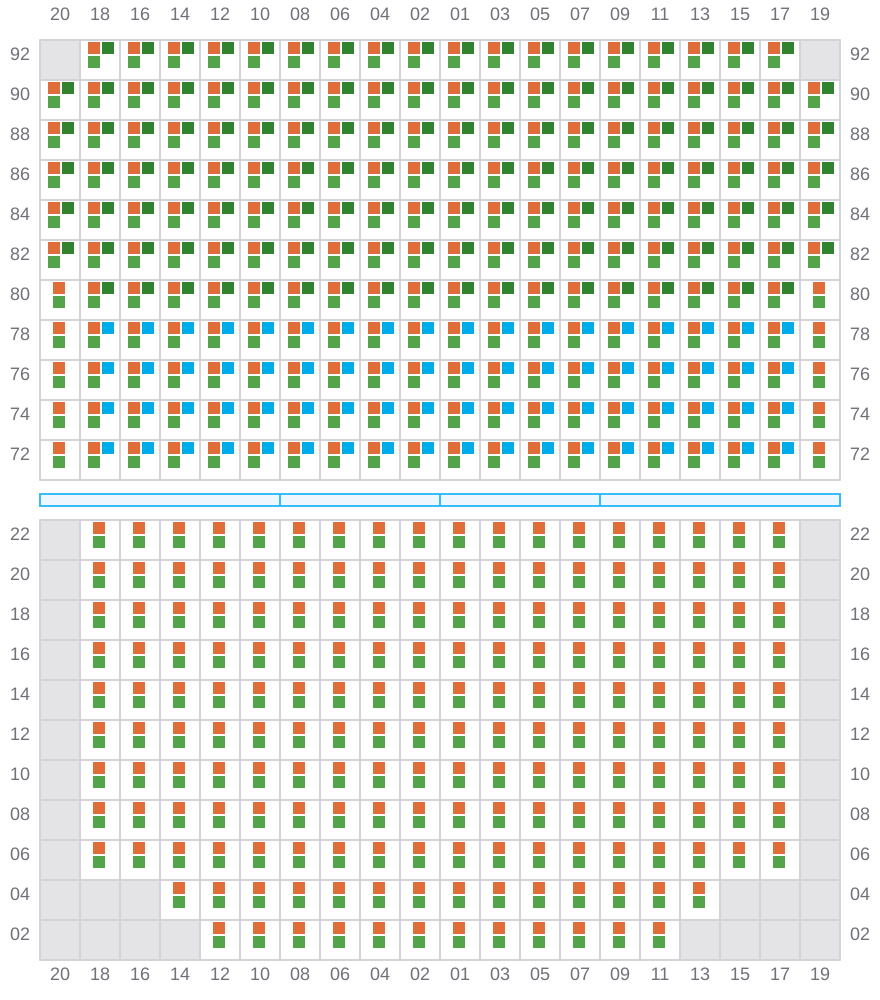

Bay 069 view and slots of APL VANDA

071

  • / ?
Bay 071 view and slots of APL VANDA

073 (074)

  • / ?

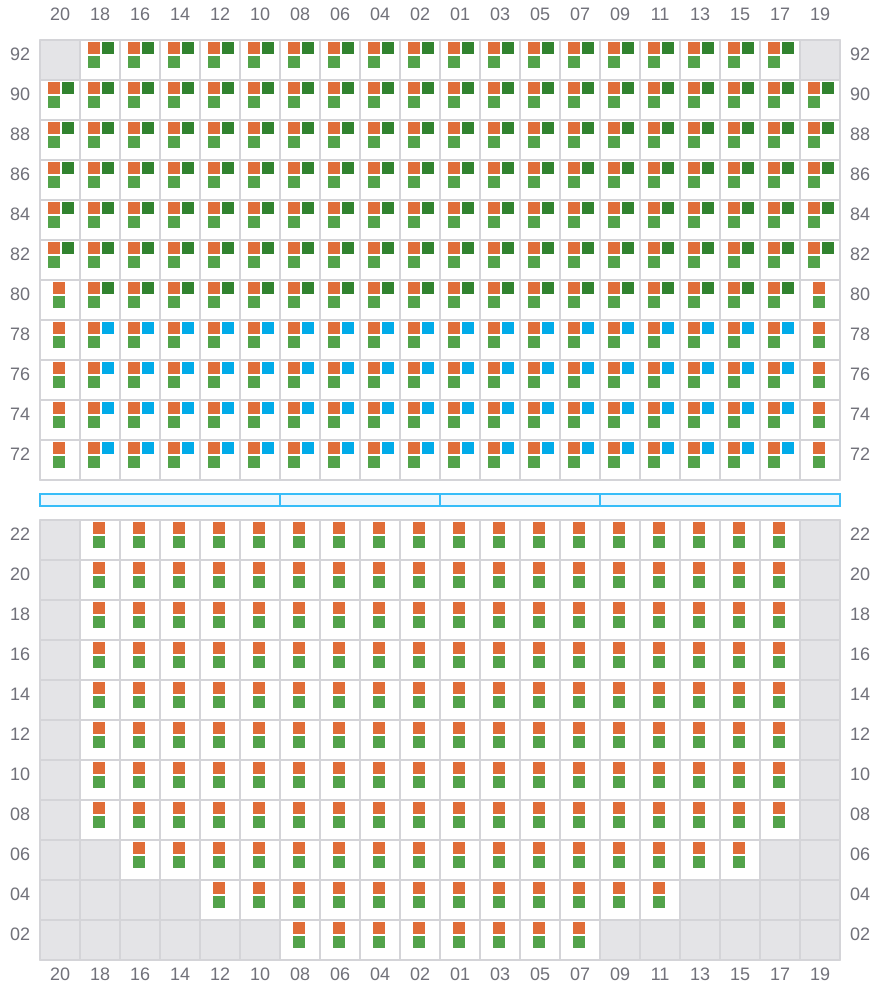

Bay 073 view and slots of APL VANDA

075

  • / ?

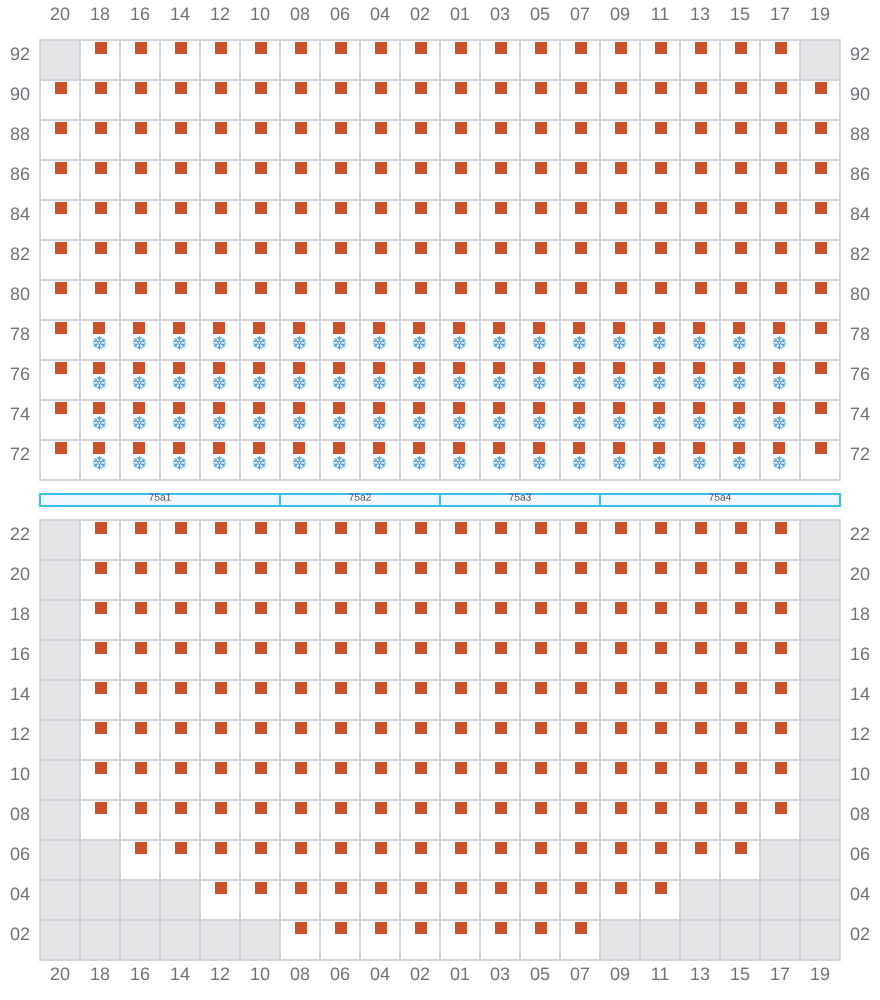

Bay 075 view and slots of APL VANDA

077 (078)

  • / ?
Bay 077 view and slots of APL VANDA

079

  • / ?

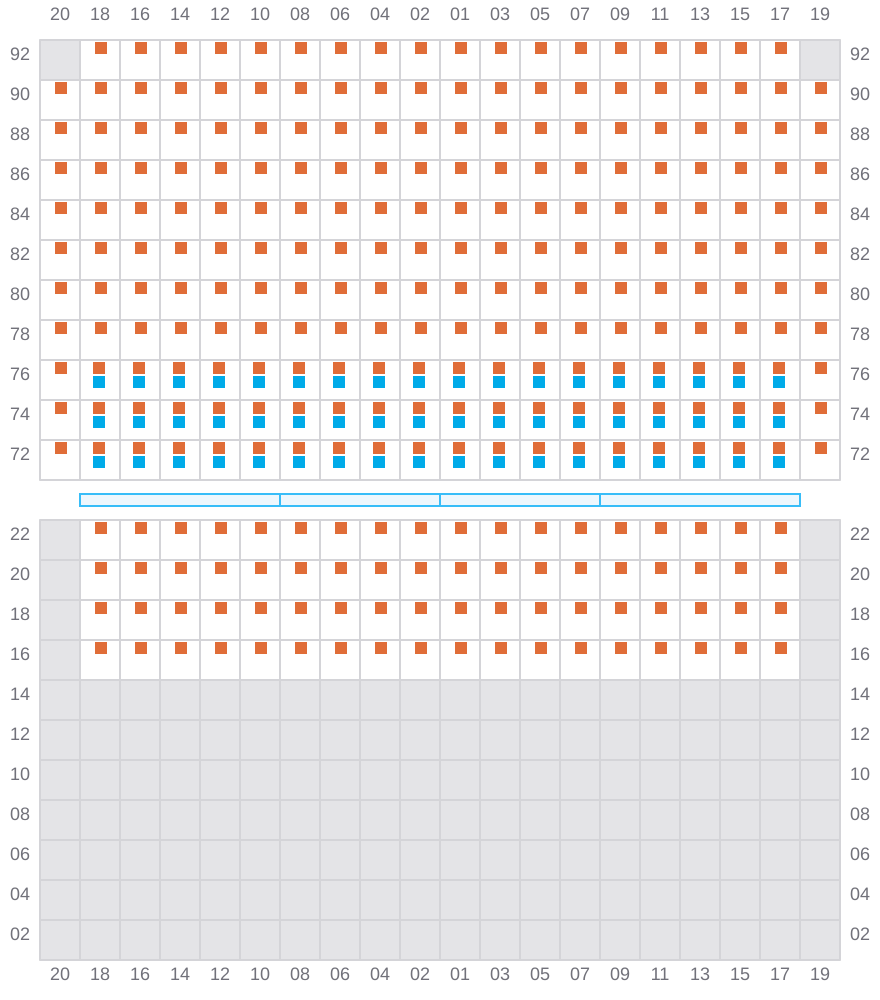

Bay 079 view and slots of APL VANDA

081 (082)

  • / ?

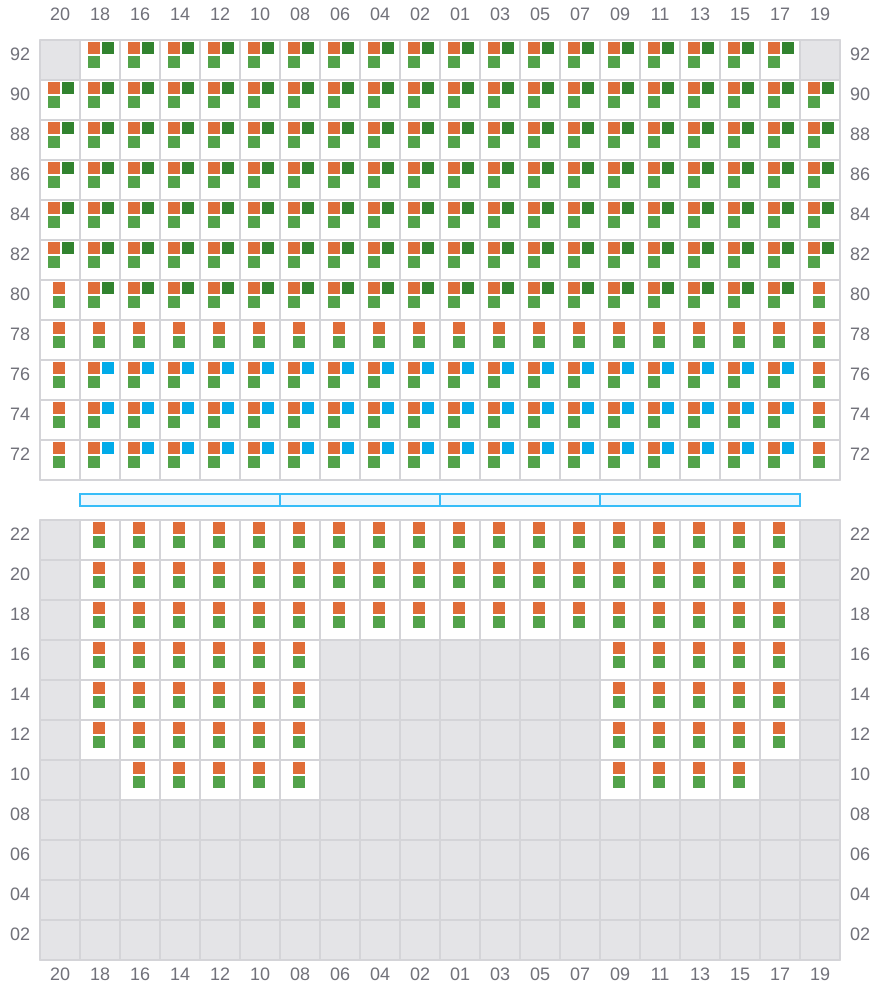

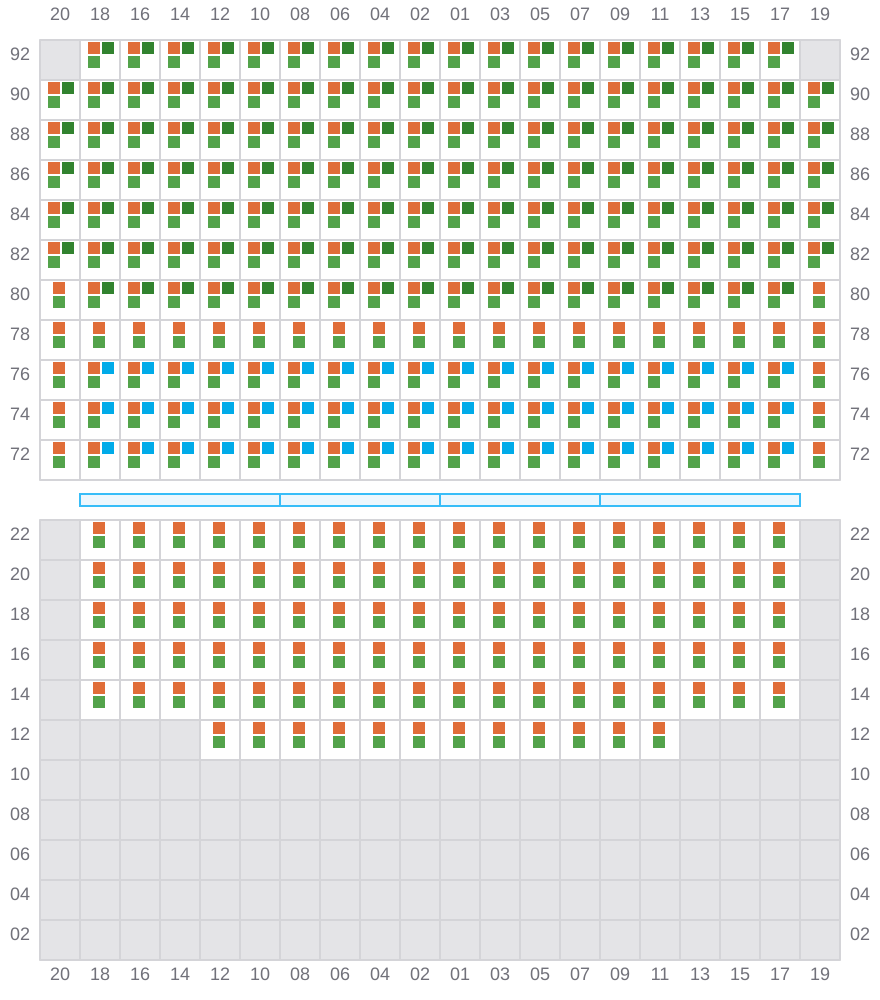

Bay 081 view and slots of APL VANDA

083

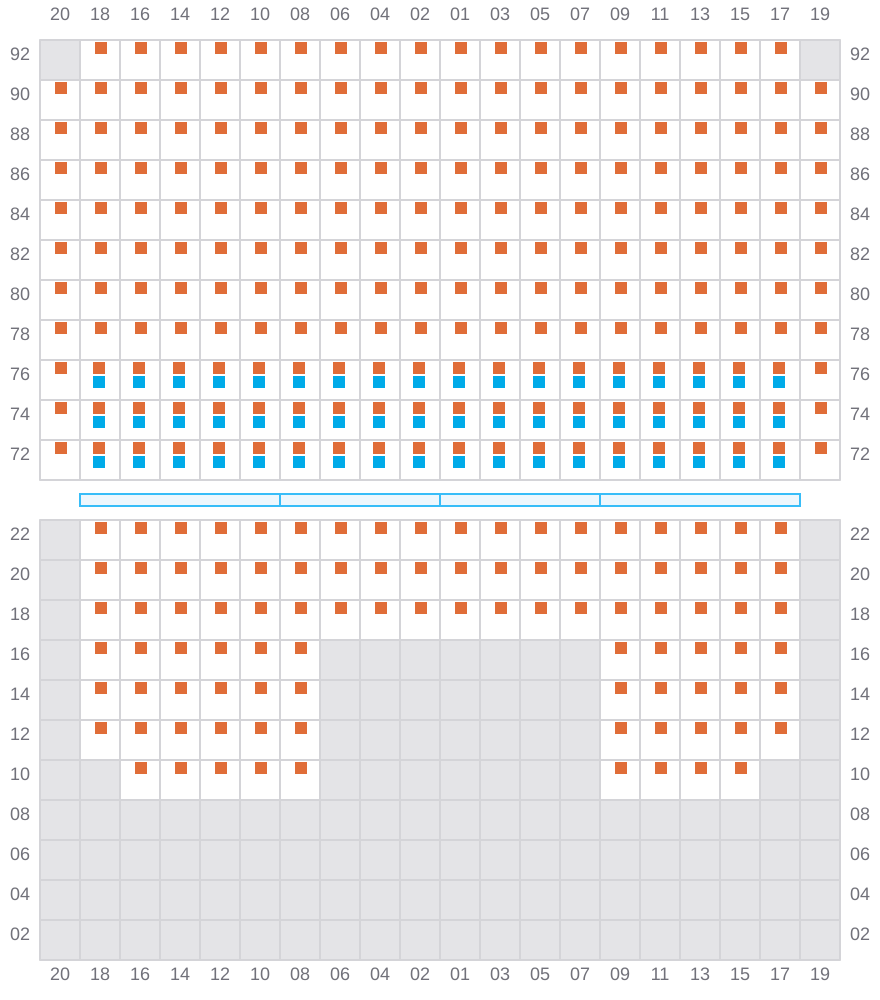

Bay 083 view and slots of APL VANDA

085 (086)

  • / ?
Bay 085 view and slots of APL VANDA

087

  • / ?
Bay 087 view and slots of APL VANDA

089 (090)

  • / ?
Bay 089 view and slots of APL VANDA

091

  • / ?

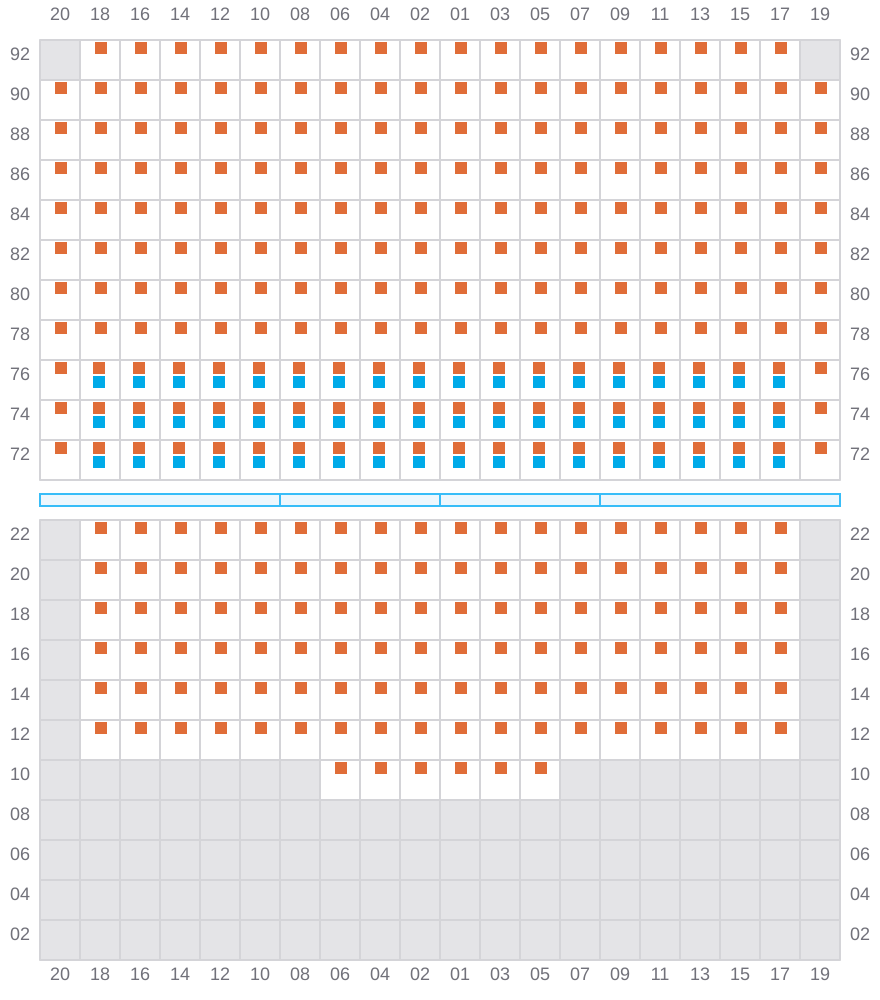

Bay 091 view and slots of APL VANDA

093 (094)

  • / ?
  • / ?

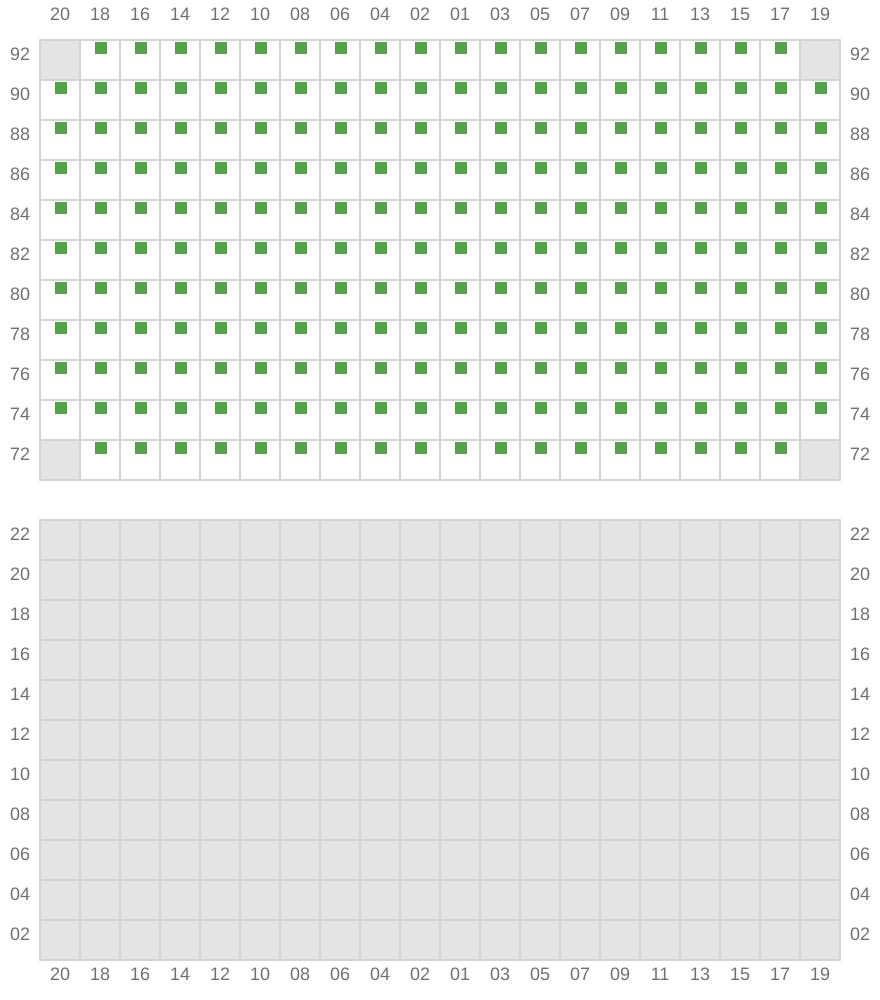

Bay 093 view and slots of APL VANDA
