ARGENTINO II
9262871 | LW3131 | 9262871 by ********* Last update: Thu Jul 18 2024

General Info

Ship Name:ARGENTINO II
IMO Code:9262871
Call Sign:LW3131
Line Operator:9262871
Class Name for Sister Ships:SSA
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:031
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,054

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of ARGENTINO II

Hatch-Covers View

Deck view of ARGENTINO II

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

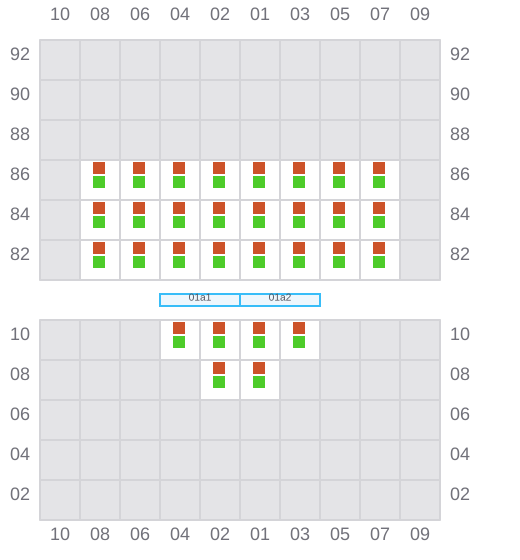

Bay 001 view and slots of ARGENTINO II

003

Bay 003 view and slots of ARGENTINO II

005 (006)

Bay 005 view and slots of ARGENTINO II

007

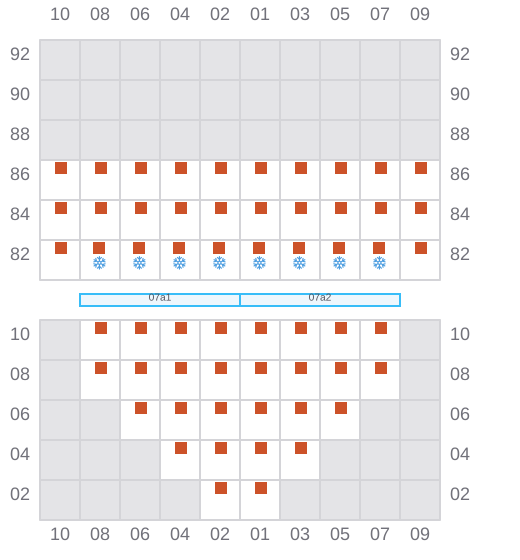

Bay 007 view and slots of ARGENTINO II

009 (010)

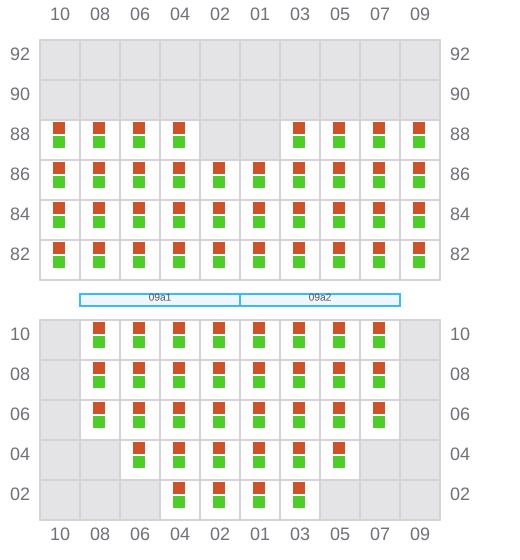

Bay 009 view and slots of ARGENTINO II

011

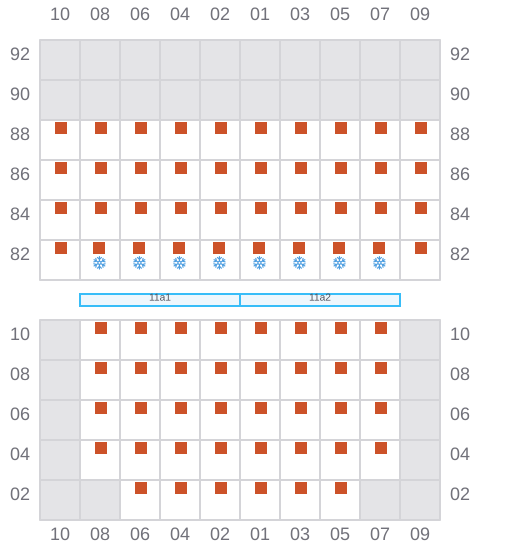

Bay 011 view and slots of ARGENTINO II

013 (014)

Bay 013 view and slots of ARGENTINO II

015

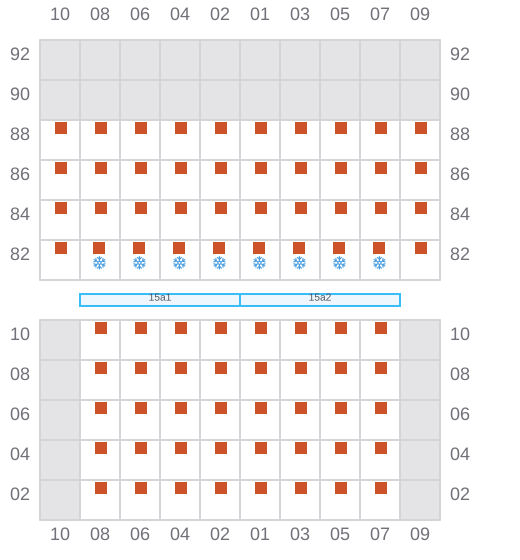

Bay 015 view and slots of ARGENTINO II

017 (018)

Bay 017 view and slots of ARGENTINO II

019

Bay 019 view and slots of ARGENTINO II

021 (022)

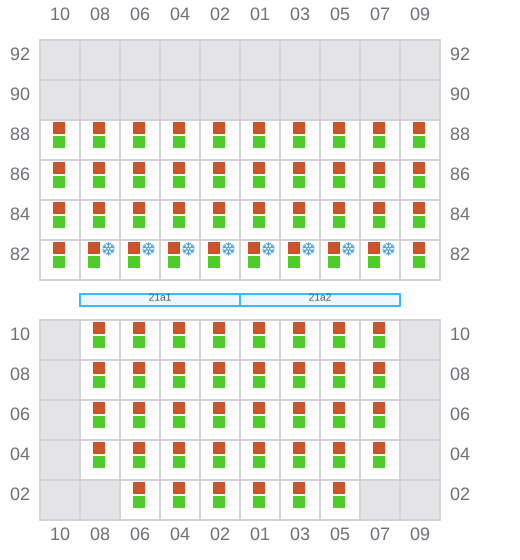

Bay 021 view and slots of ARGENTINO II

023

Bay 023 view and slots of ARGENTINO II

025 (026)

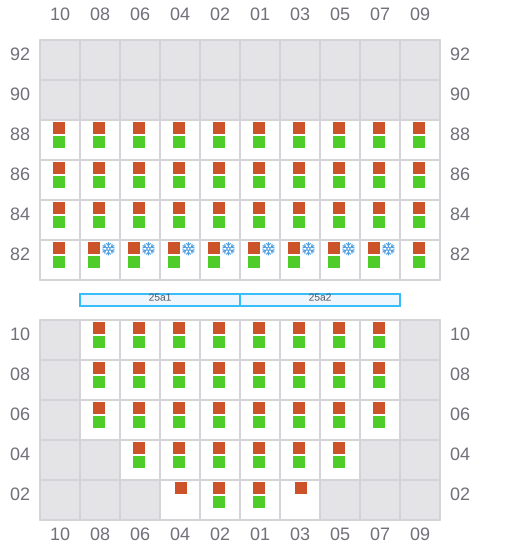

Bay 025 view and slots of ARGENTINO II

027

Bay 027 view and slots of ARGENTINO II

029 (030)

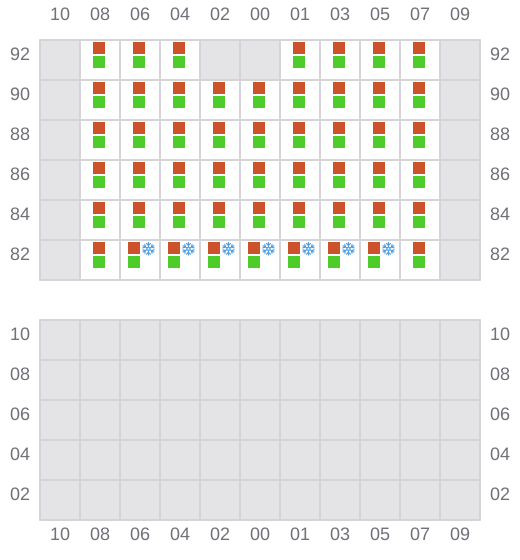

Bay 029 view and slots of ARGENTINO II

031

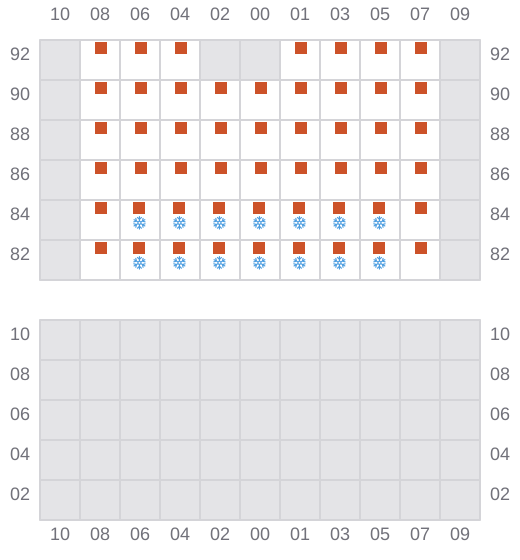

Bay 031 view and slots of ARGENTINO II
