ARIANA A
9320142 | V7A4670 | CMA by ************************** Last update: Thu Jun 15 2023
General Info
Ship Name:ARIANA A
IMO Code:9320142
Call Sign:V7A4670
Line Operator:CMA
Class Name for Sister Ships:ARI
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:045
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:2,717
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

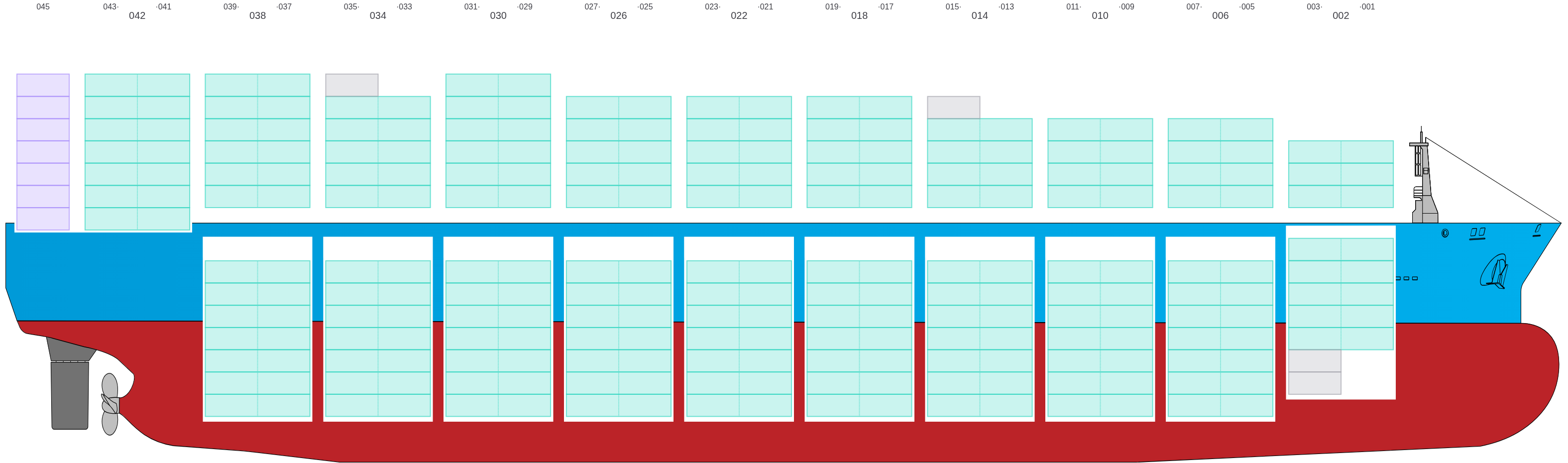

Side View
![Side view of ARIANA A](/vessel-images/2c6adc34-ee08-4f4d-896c-a3f2e8546185-sideView.png?v=1686849579863)
Hatch-Covers View
![Deck view of ARIANA A](/vessel-images/2c6adc34-ee08-4f4d-896c-a3f2e8546185-deckView.png?v=1686849579863)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

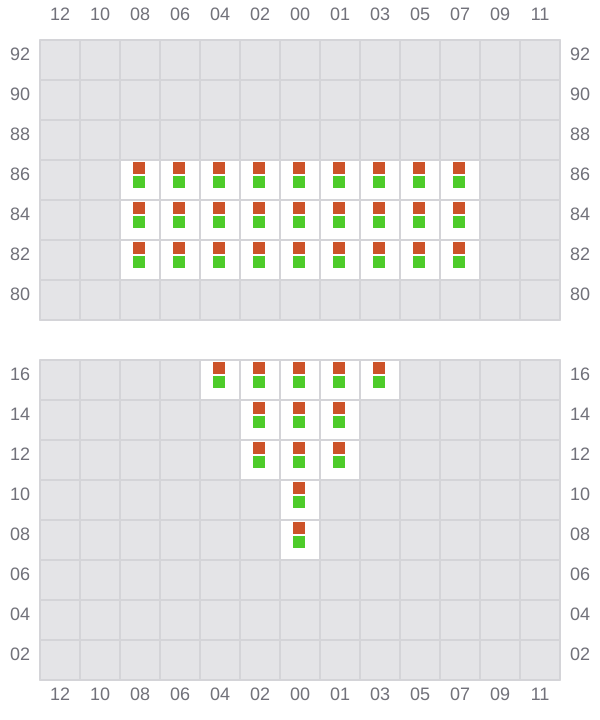

001 (002)
- →
![Bay 001 view and slots of ARIANA A](/vessel-images/2c6adc34-ee08-4f4d-896c-a3f2e8546185-b001.png?v=1686849579863)

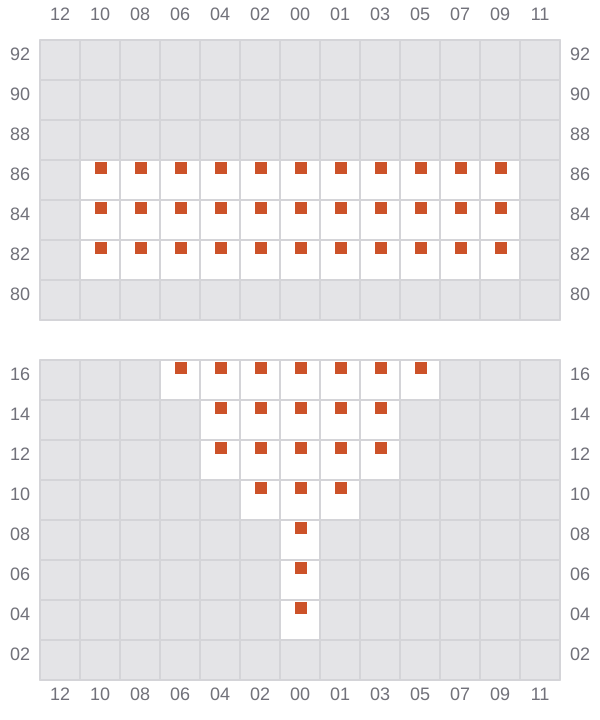

003
- ←
![Bay 003 view and slots of ARIANA A](/vessel-images/2c6adc34-ee08-4f4d-896c-a3f2e8546185-b003.png?v=1686849579863)

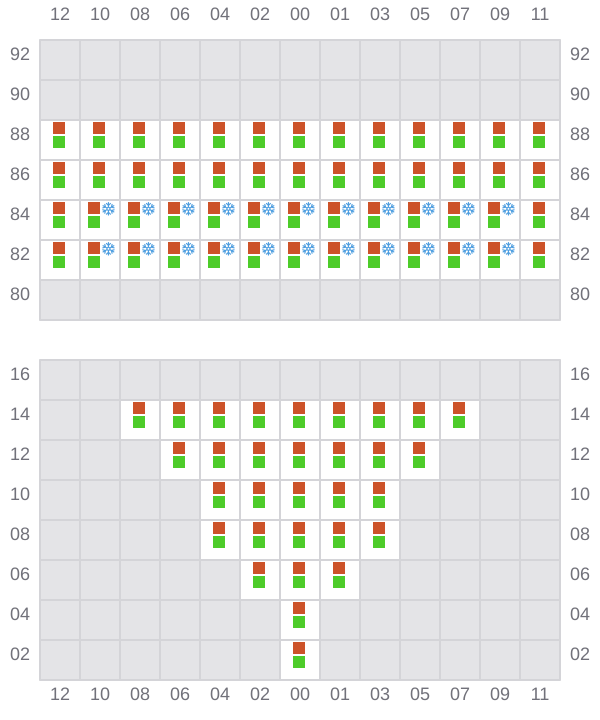

005 (006)
- →
![Bay 005 view and slots of ARIANA A](/vessel-images/2c6adc34-ee08-4f4d-896c-a3f2e8546185-b005.png?v=1686849579863)

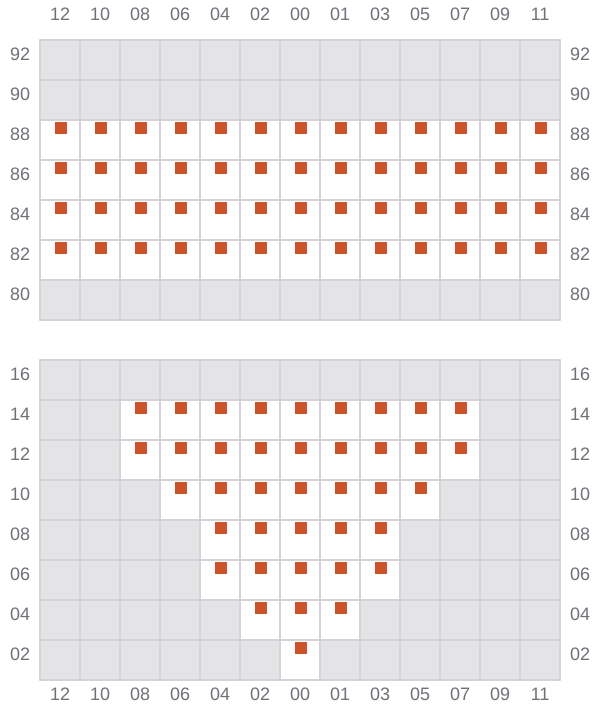

007
- ←
![Bay 007 view and slots of ARIANA A](/vessel-images/2c6adc34-ee08-4f4d-896c-a3f2e8546185-b007.png?v=1686849579863)

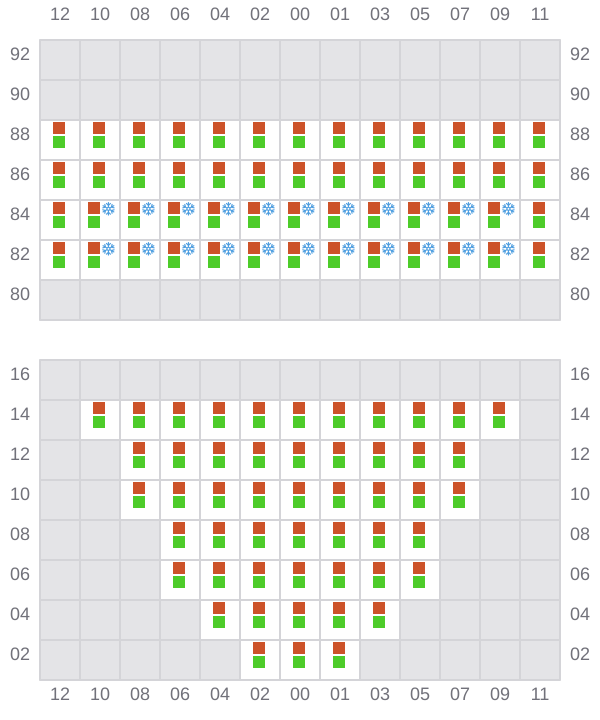

009 (010)
- →
![Bay 009 view and slots of ARIANA A](/vessel-images/2c6adc34-ee08-4f4d-896c-a3f2e8546185-b009.png?v=1686849579863)

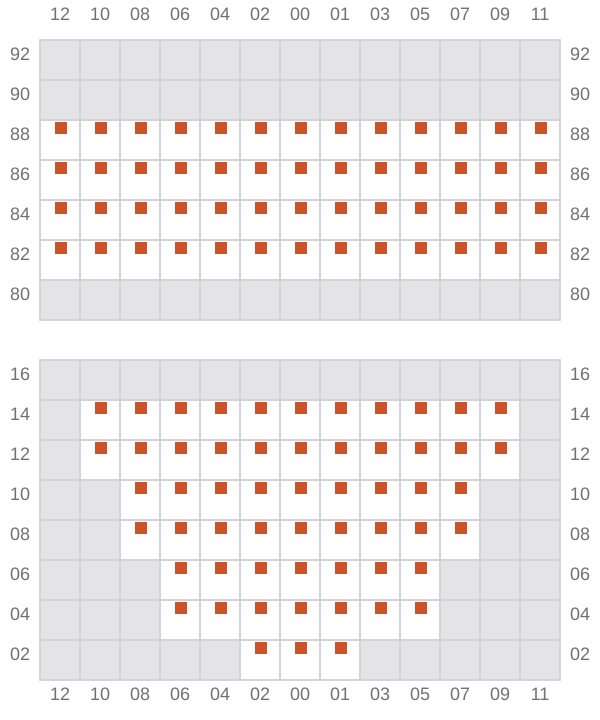

011
- ←
![Bay 011 view and slots of ARIANA A](/vessel-images/2c6adc34-ee08-4f4d-896c-a3f2e8546185-b011.png?v=1686849579863)

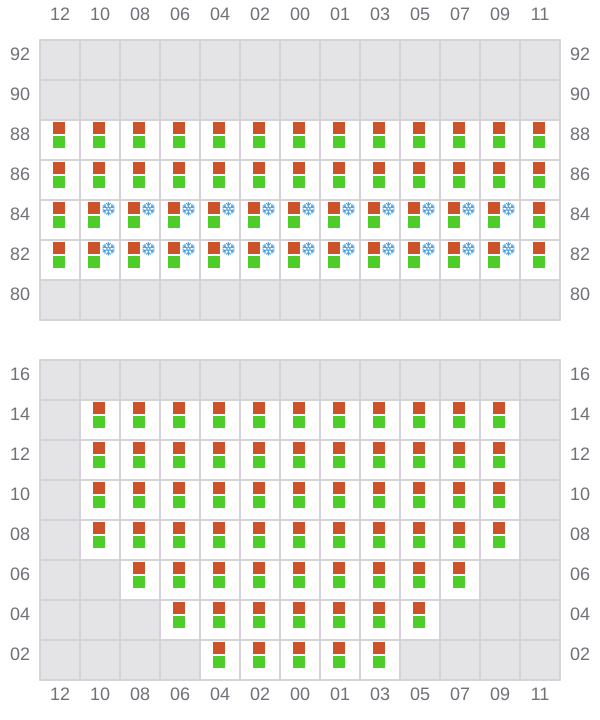

013 (014)
- →
![Bay 013 view and slots of ARIANA A](/vessel-images/2c6adc34-ee08-4f4d-896c-a3f2e8546185-b013.png?v=1686849579863)

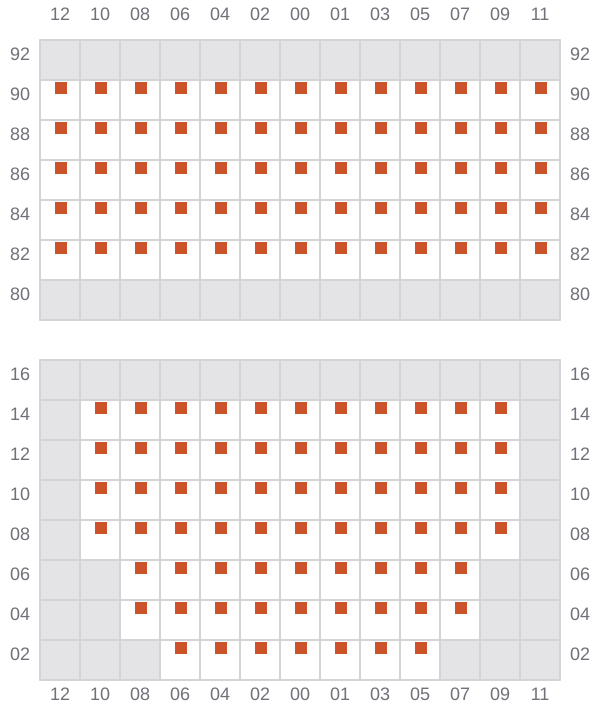

015
- ←
![Bay 015 view and slots of ARIANA A](/vessel-images/2c6adc34-ee08-4f4d-896c-a3f2e8546185-b015.png?v=1686849579863)

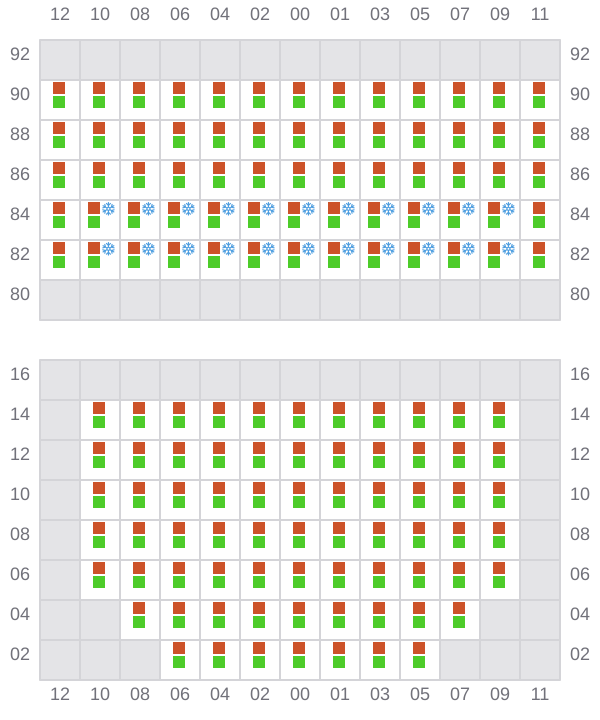

017 (018)
- →
![Bay 017 view and slots of ARIANA A](/vessel-images/2c6adc34-ee08-4f4d-896c-a3f2e8546185-b017.png?v=1686849579863)
019
- ←
![Bay 019 view and slots of ARIANA A](/vessel-images/2c6adc34-ee08-4f4d-896c-a3f2e8546185-b019.png?v=1686849579863)
021 (022)
- →
![Bay 021 view and slots of ARIANA A](/vessel-images/2c6adc34-ee08-4f4d-896c-a3f2e8546185-b021.png?v=1686849579863)

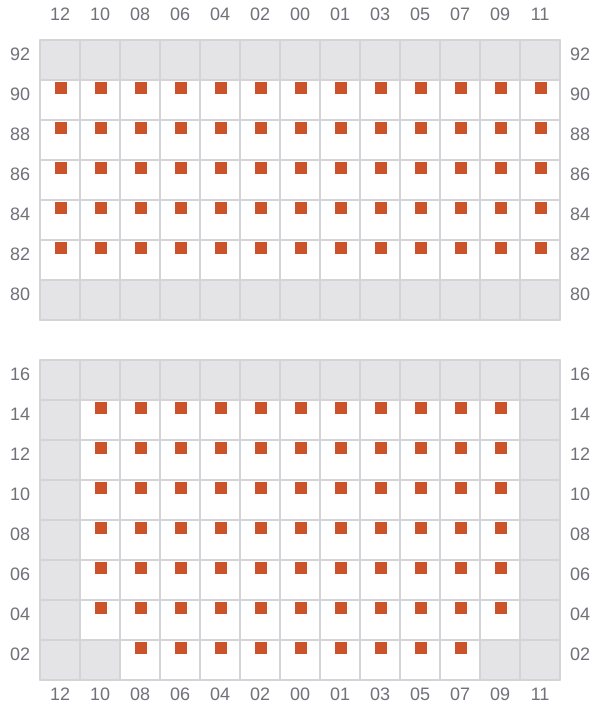

023
- ←
![Bay 023 view and slots of ARIANA A](/vessel-images/2c6adc34-ee08-4f4d-896c-a3f2e8546185-b023.png?v=1686849579863)

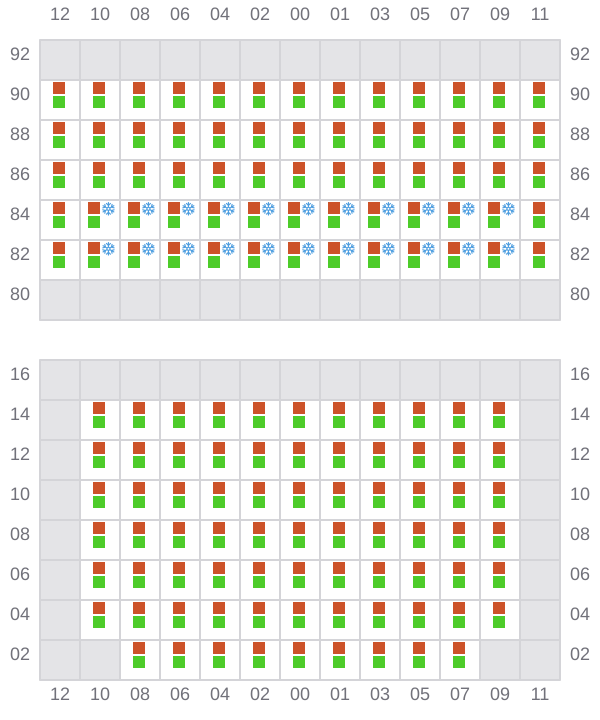

025 (026)
- →
![Bay 025 view and slots of ARIANA A](/vessel-images/2c6adc34-ee08-4f4d-896c-a3f2e8546185-b025.png?v=1686849579863)

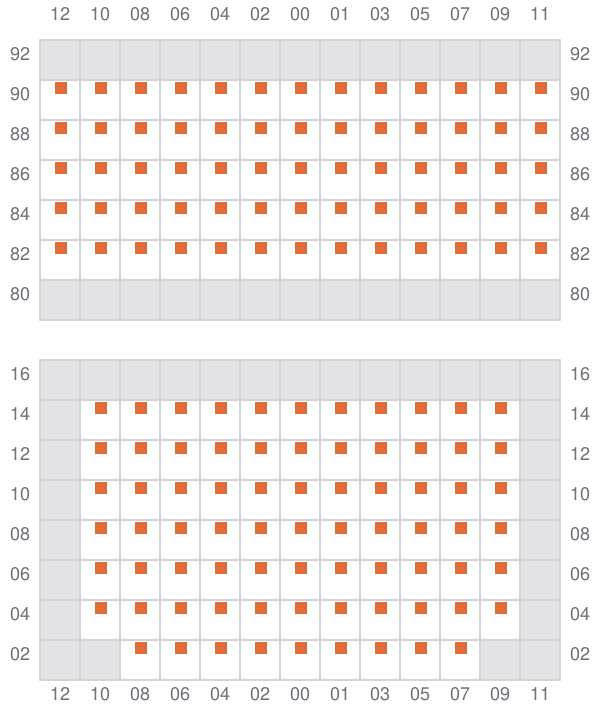

027
- ←
![Bay 027 view and slots of ARIANA A](/vessel-images/2c6adc34-ee08-4f4d-896c-a3f2e8546185-b027.png?v=1686849579863)
029 (030)
- →
![Bay 029 view and slots of ARIANA A](/vessel-images/2c6adc34-ee08-4f4d-896c-a3f2e8546185-b029.png?v=1686849579863)

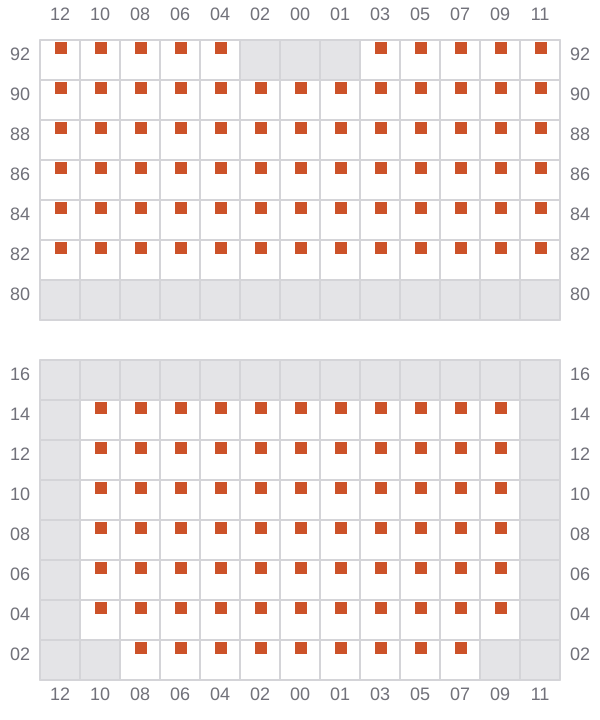

031
- ←
![Bay 031 view and slots of ARIANA A](/vessel-images/2c6adc34-ee08-4f4d-896c-a3f2e8546185-b031.png?v=1686849579863)

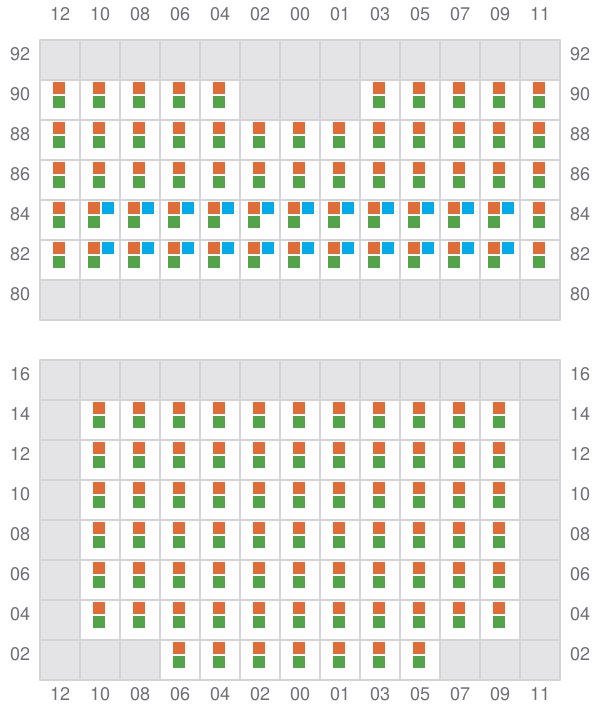

033 (034)
- →
![Bay 033 view and slots of ARIANA A](/vessel-images/2c6adc34-ee08-4f4d-896c-a3f2e8546185-b033.png?v=1686849579863)

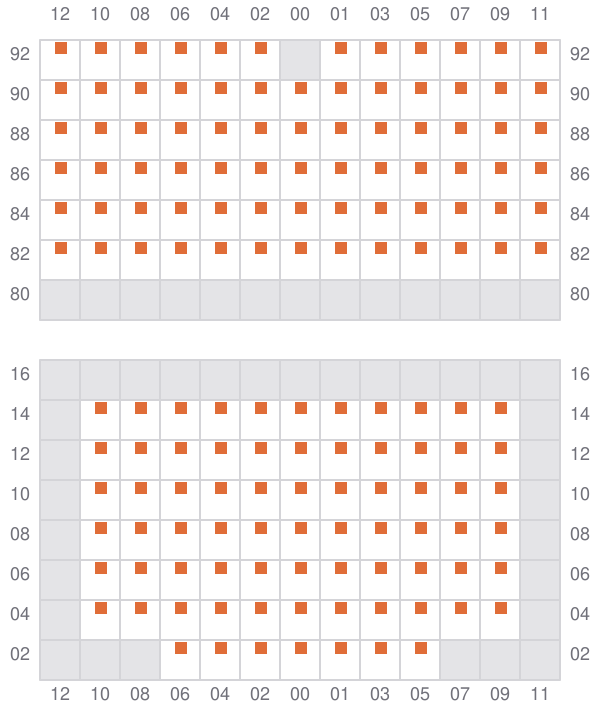

035
- ←
![Bay 035 view and slots of ARIANA A](/vessel-images/2c6adc34-ee08-4f4d-896c-a3f2e8546185-b035.png?v=1686849579863)

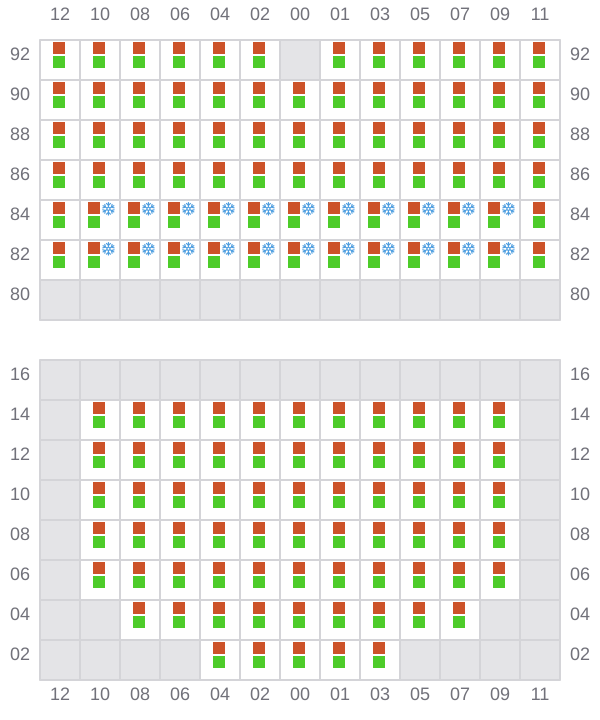

037 (038)
- →
![Bay 037 view and slots of ARIANA A](/vessel-images/2c6adc34-ee08-4f4d-896c-a3f2e8546185-b037.png?v=1686849579863)

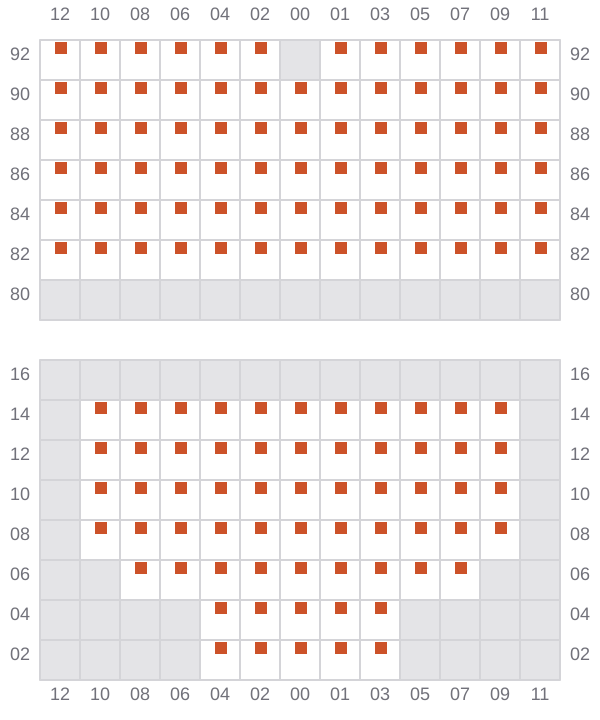

039
- ←
![Bay 039 view and slots of ARIANA A](/vessel-images/2c6adc34-ee08-4f4d-896c-a3f2e8546185-b039.png?v=1686849579863)
041 (042)
- → / ?
![Bay 041 view and slots of ARIANA A](/vessel-images/2c6adc34-ee08-4f4d-896c-a3f2e8546185-b041.png?v=1686849579863)
043
- ← / ?
![Bay 043 view and slots of ARIANA A](/vessel-images/2c6adc34-ee08-4f4d-896c-a3f2e8546185-b043.png?v=1686849579863)

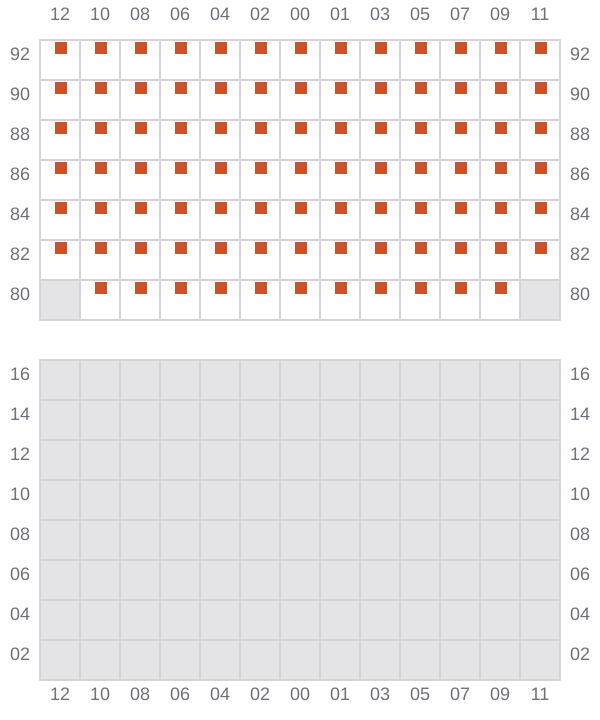

045
![Bay 045 view and slots of ARIANA A](/vessel-images/2c6adc34-ee08-4f4d-896c-a3f2e8546185-b045.png?v=1686849579863)
