ARICA EXPRESS
9495765 | D5KV6 | HLC by *********************** Last update: Mon Feb 03 2025

General Info

Ship Name:ARICA EXPRESS
IMO Code:9495765
Call Sign:D5KV6
Line Operator:HLC
Class Name for Sister Ships:HARE
Year Built:2013
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:057
Max ISO Row:14
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,642

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

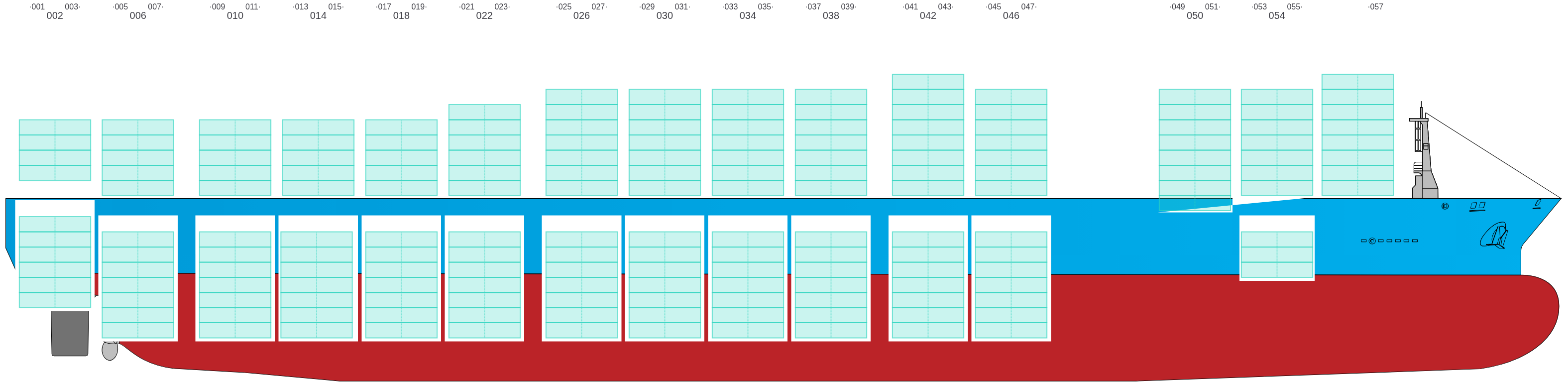

Side view of ARICA EXPRESS

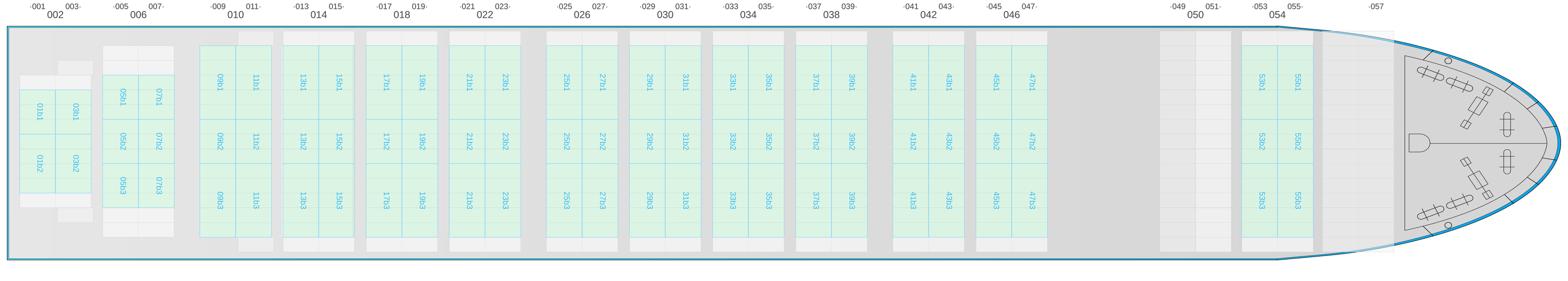

Hatch-Covers View

Deck view of ARICA EXPRESS

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

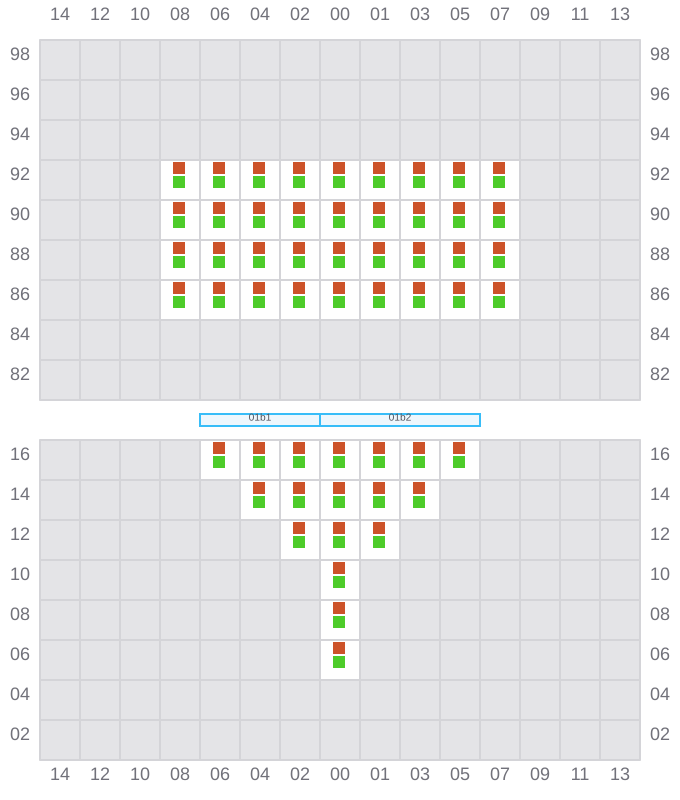

001 (002)

Bay 001 view and slots of ARICA EXPRESS

003

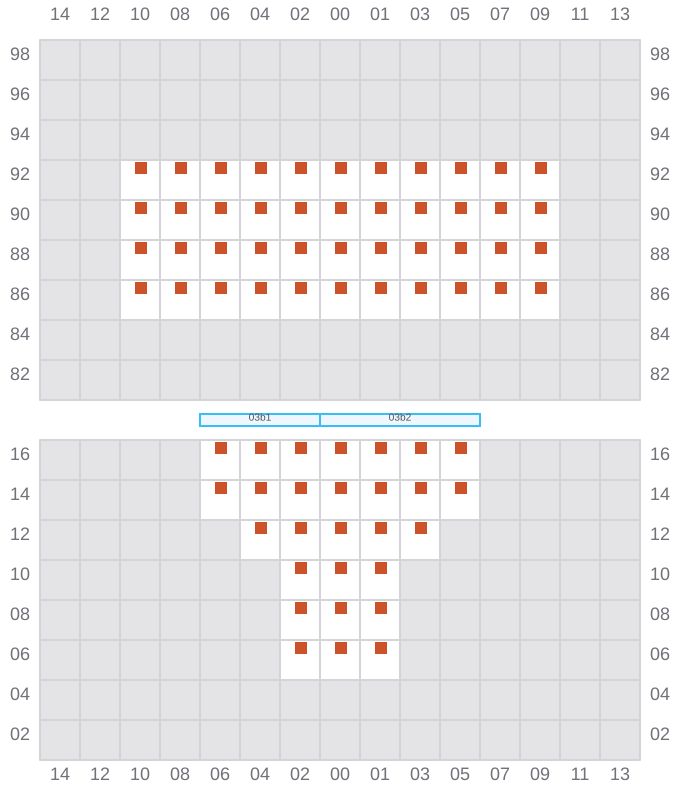

Bay 003 view and slots of ARICA EXPRESS

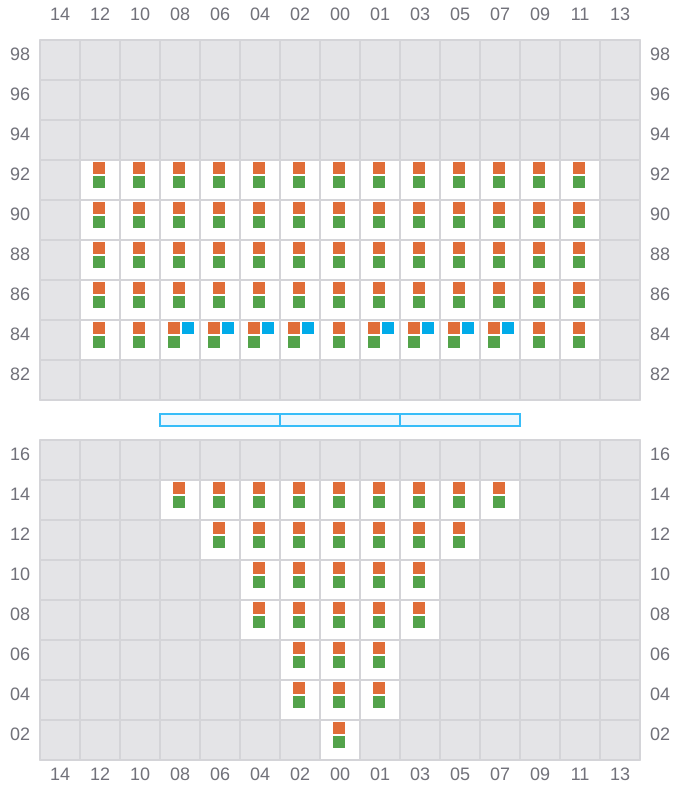

005 (006)

  • / ?
Bay 005 view and slots of ARICA EXPRESS

007

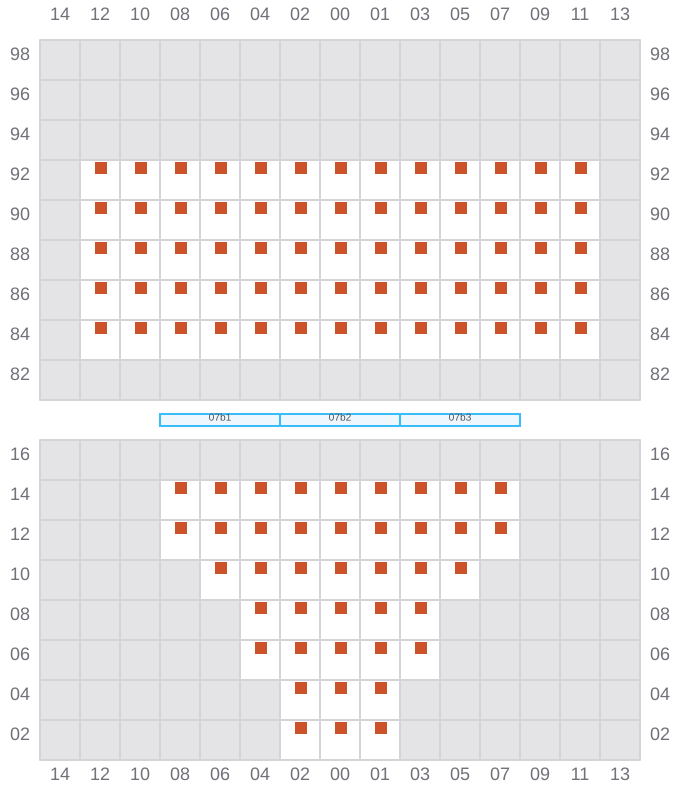

Bay 007 view and slots of ARICA EXPRESS

009 (010)

  • / ?

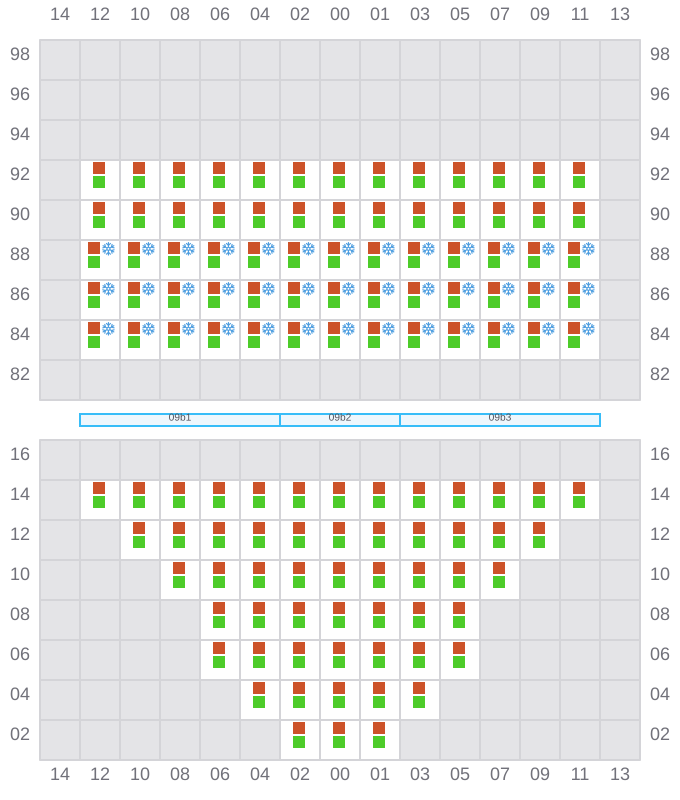

Bay 009 view and slots of ARICA EXPRESS

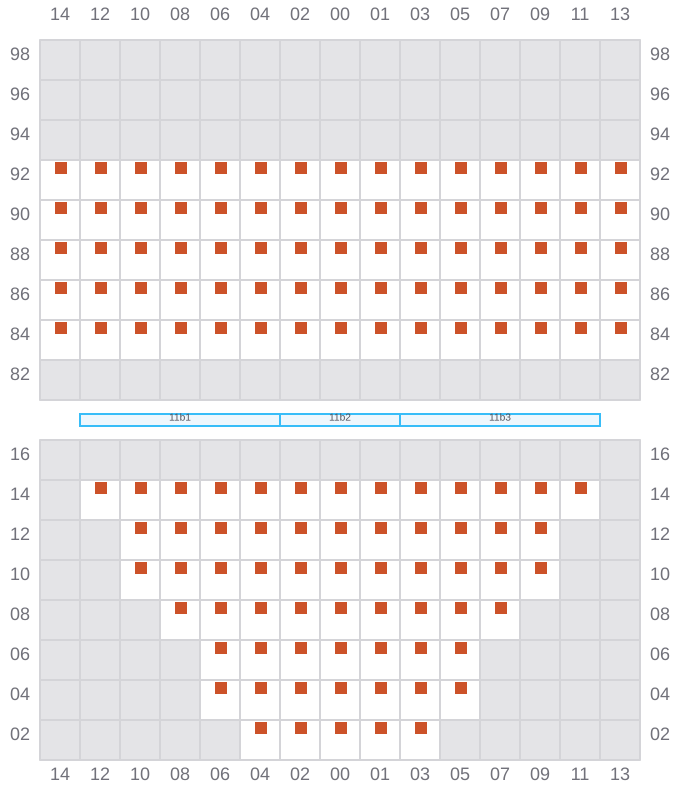

011

Bay 011 view and slots of ARICA EXPRESS

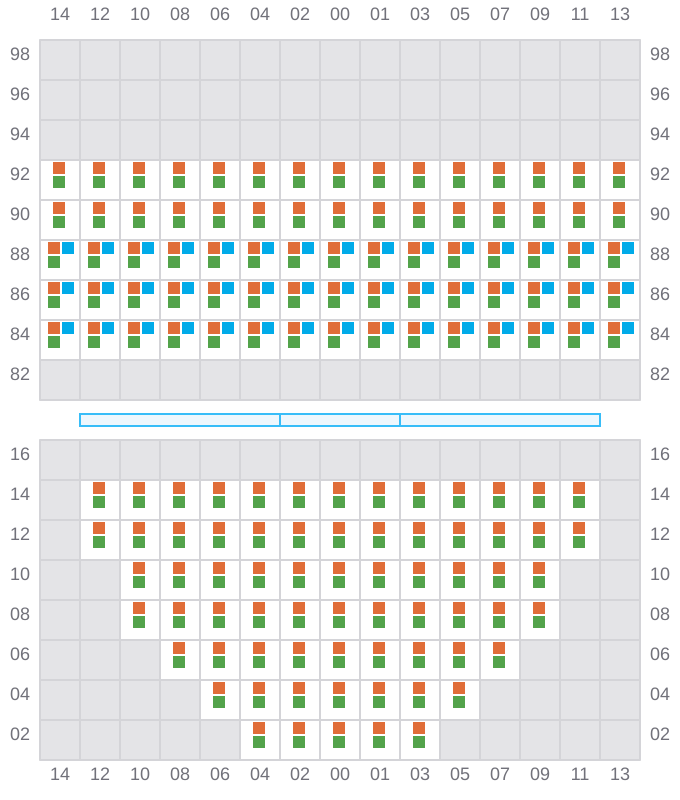

013 (014)

  • / ?
Bay 013 view and slots of ARICA EXPRESS

015

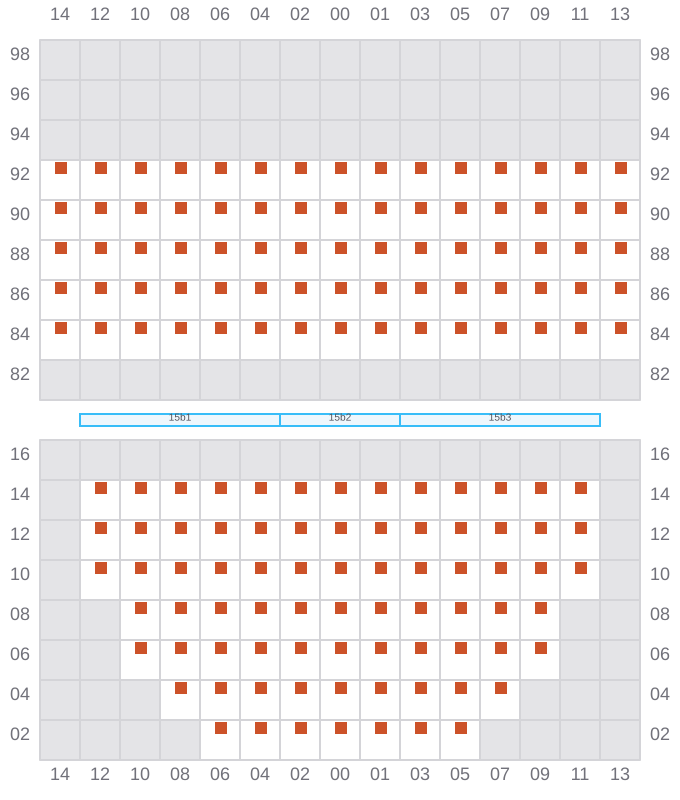

Bay 015 view and slots of ARICA EXPRESS

017 (018)

  • / ?

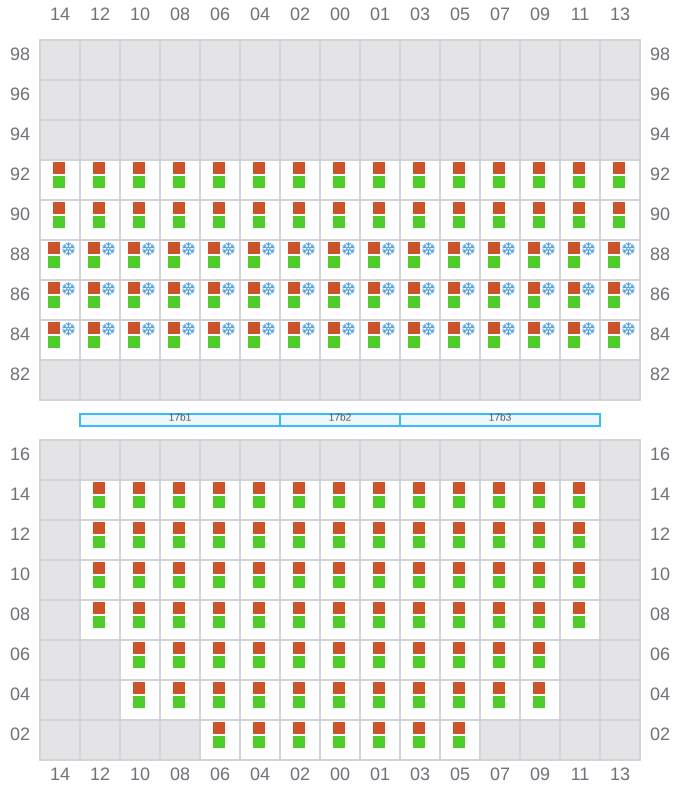

Bay 017 view and slots of ARICA EXPRESS

019

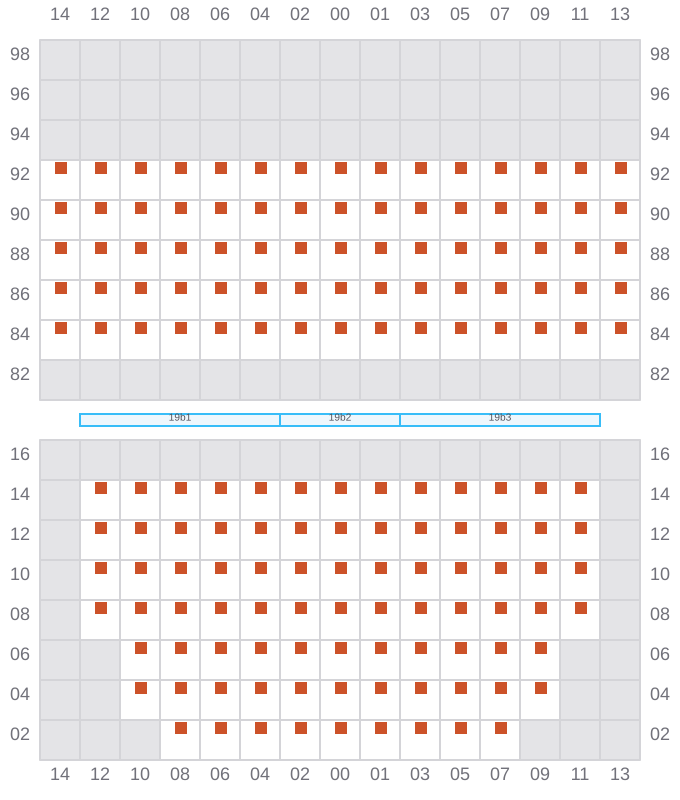

Bay 019 view and slots of ARICA EXPRESS

021 (022)

  • / ?
Bay 021 view and slots of ARICA EXPRESS

023

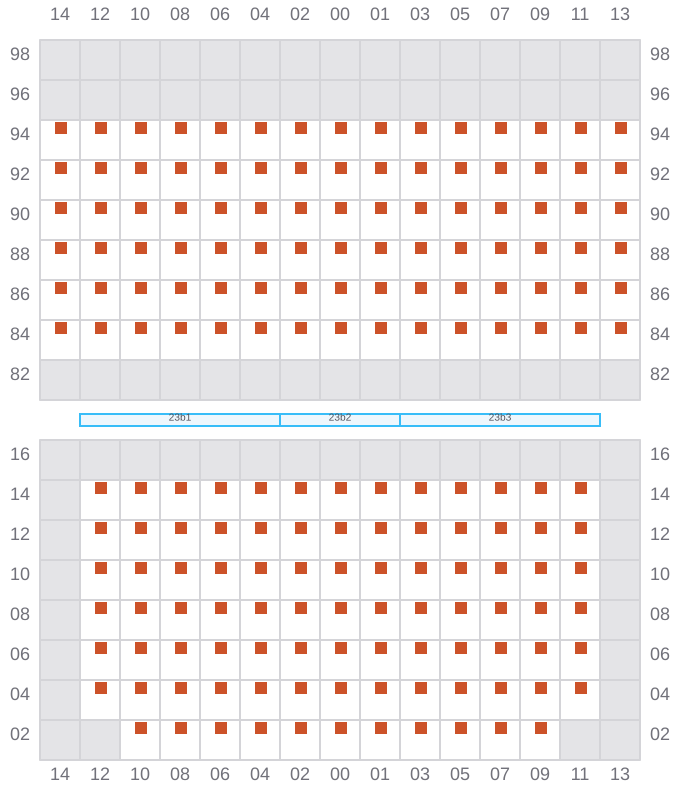

Bay 023 view and slots of ARICA EXPRESS

025 (026)

  • / ?
Bay 025 view and slots of ARICA EXPRESS

027

Bay 027 view and slots of ARICA EXPRESS

029 (030)

  • / ?

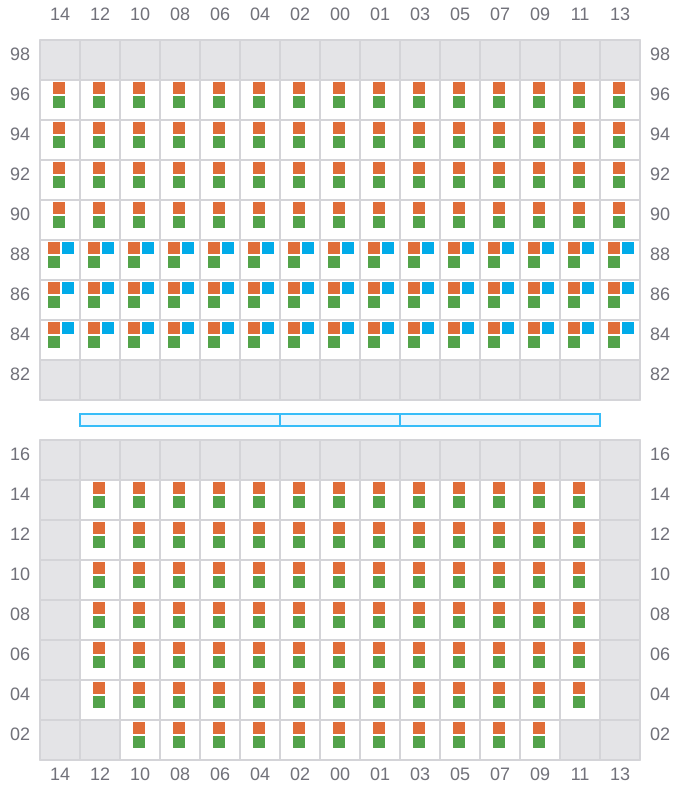

Bay 029 view and slots of ARICA EXPRESS

031

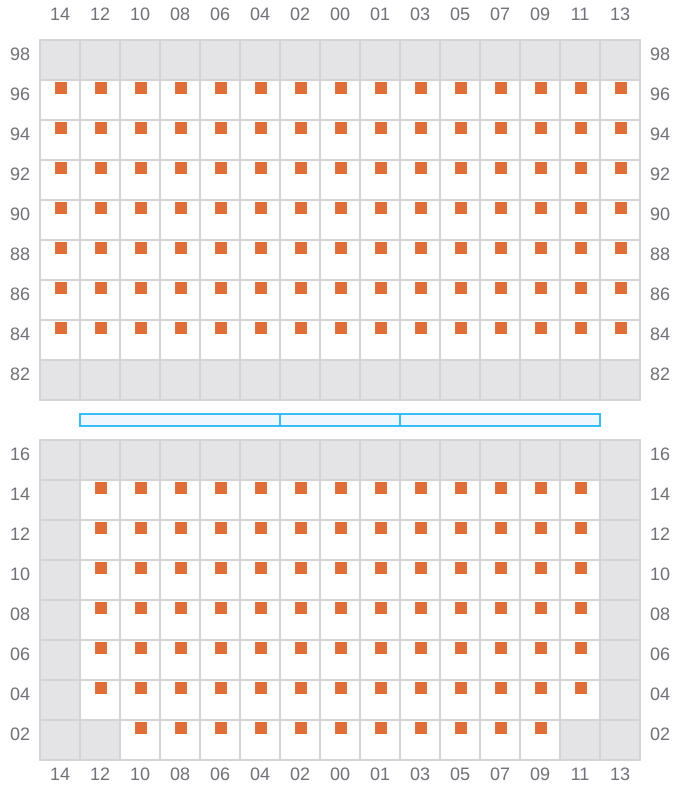

Bay 031 view and slots of ARICA EXPRESS

033 (034)

  • / ?

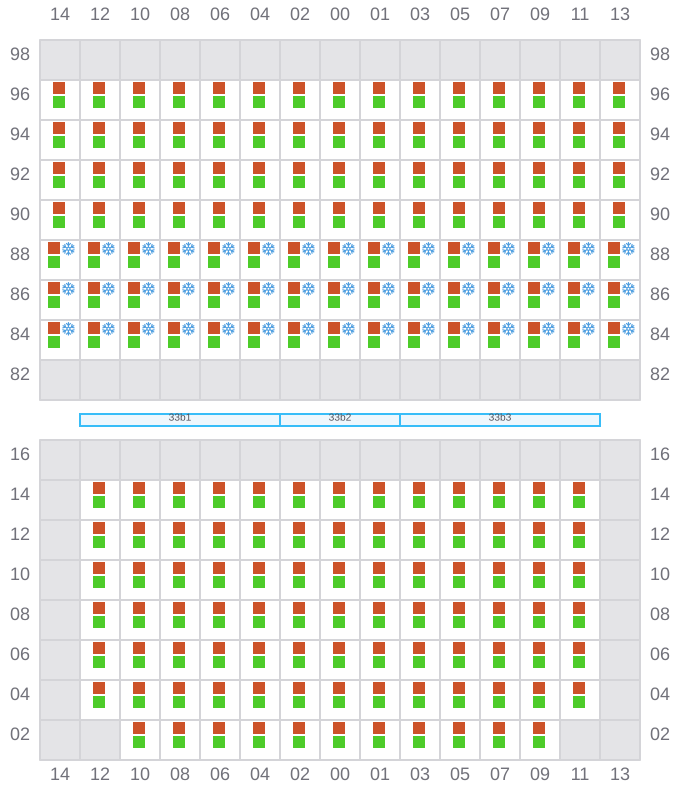

Bay 033 view and slots of ARICA EXPRESS

035

Bay 035 view and slots of ARICA EXPRESS

037 (038)

  • / ?
Bay 037 view and slots of ARICA EXPRESS

039

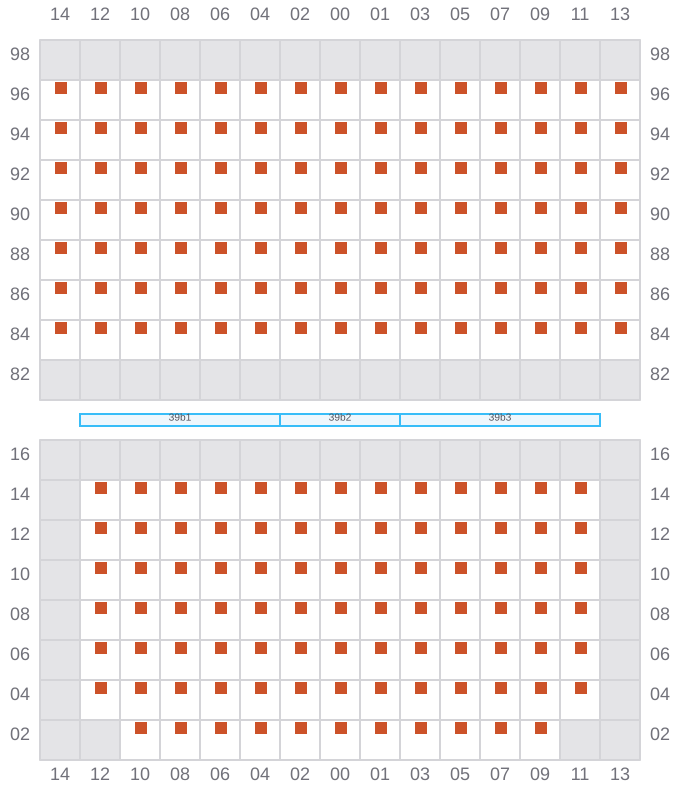

Bay 039 view and slots of ARICA EXPRESS

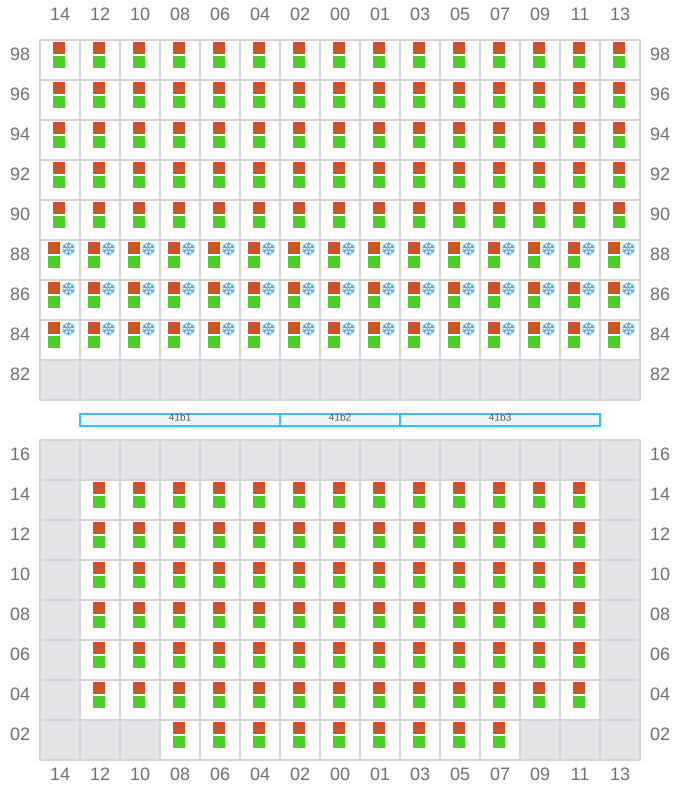

041 (042)

  • / ?
Bay 041 view and slots of ARICA EXPRESS

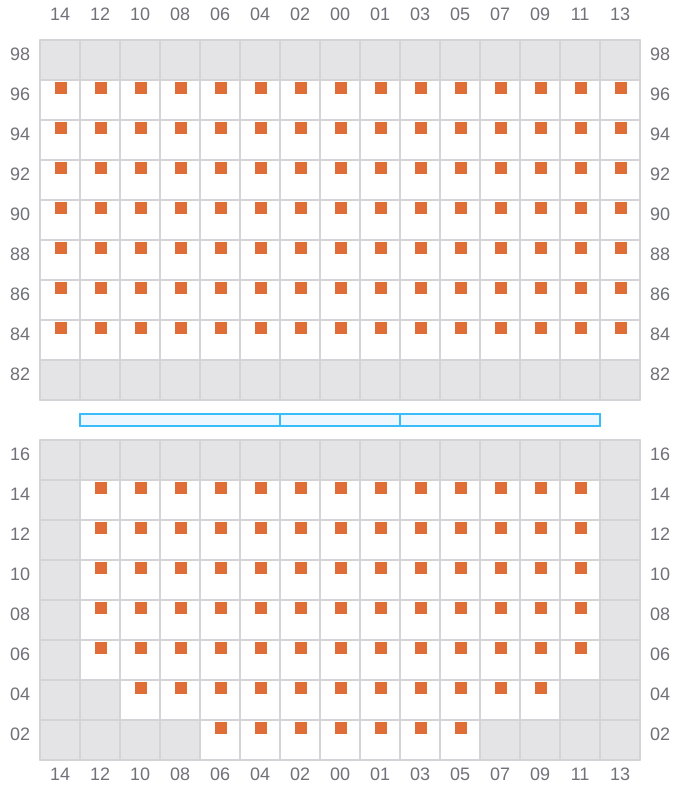

043

Bay 043 view and slots of ARICA EXPRESS

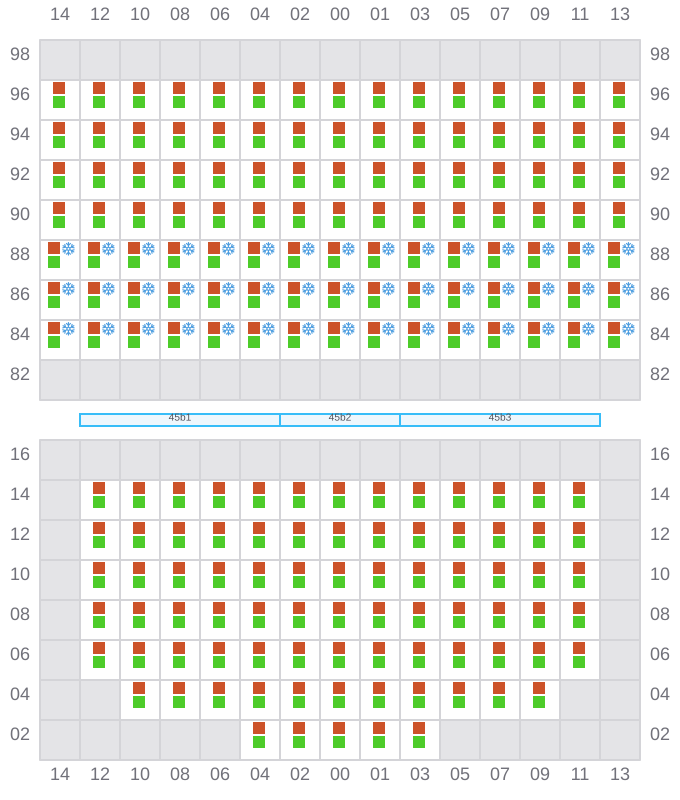

045 (046)

  • / ?
Bay 045 view and slots of ARICA EXPRESS

047

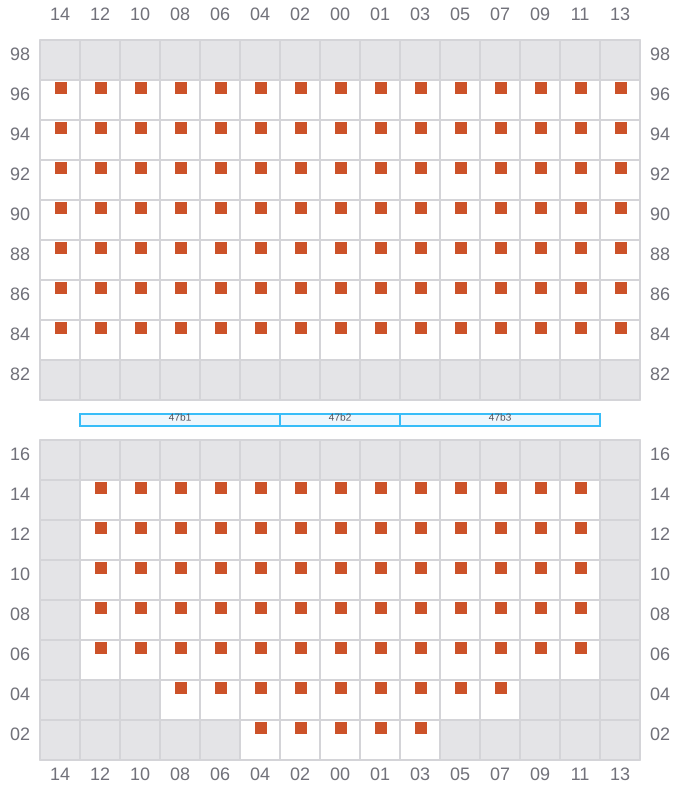

Bay 047 view and slots of ARICA EXPRESS

049 (050)

  • / ?
  • / ?

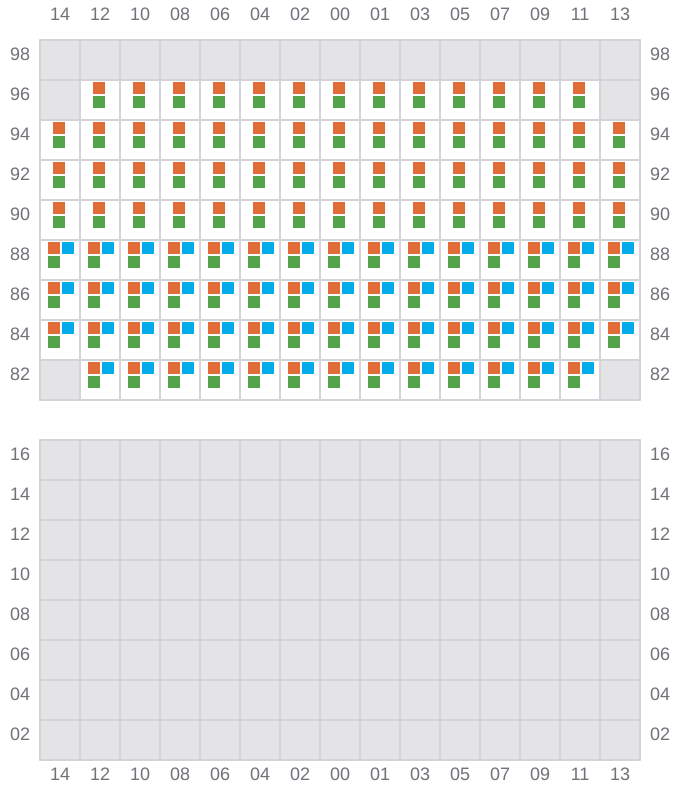

Bay 049 view and slots of ARICA EXPRESS

051

  • / ?

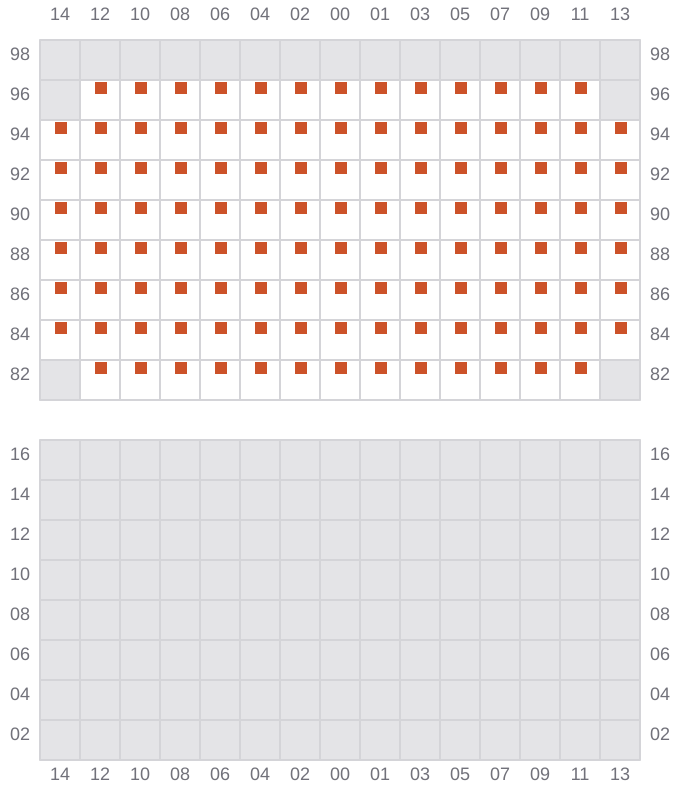

Bay 051 view and slots of ARICA EXPRESS

053 (054)

  • / ?

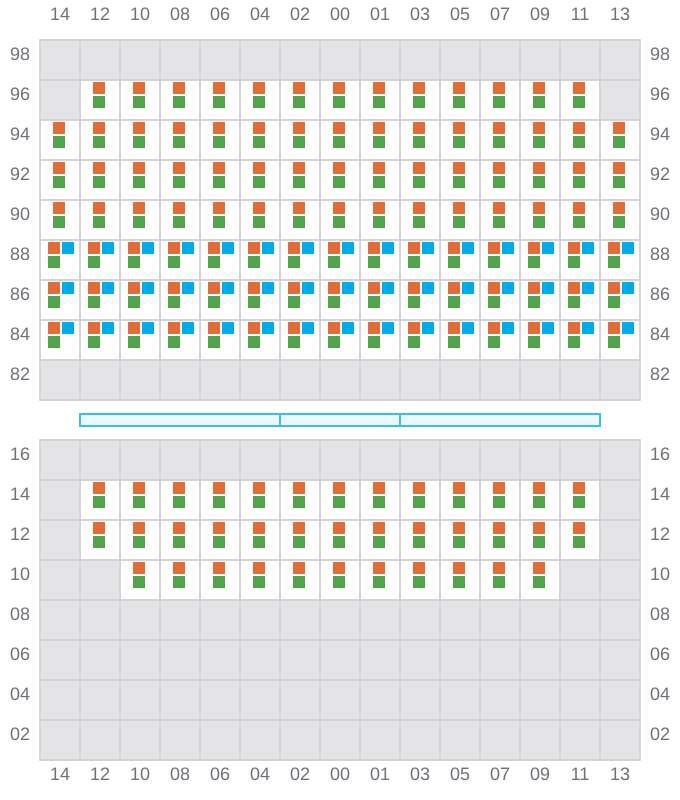

Bay 053 view and slots of ARICA EXPRESS

055

Bay 055 view and slots of ARICA EXPRESS

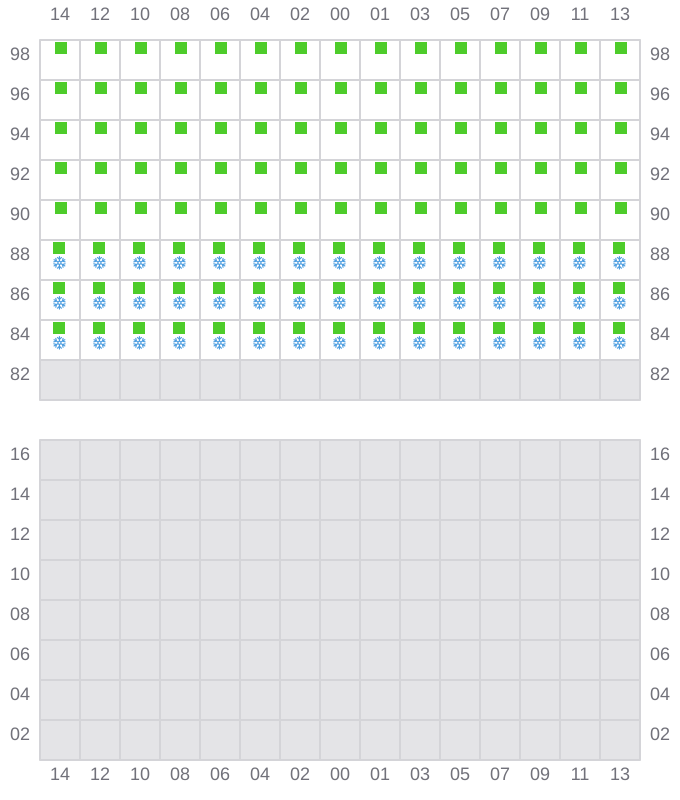

057 (058)

  • / ?
  • / ?
Bay 057 view and slots of ARICA EXPRESS
