ARIES
9123518 | J8B5410 | 9123518 by ********* Last update: Thu Mar 07 2024
General Info
Ship Name:ARIES
IMO Code:9123518
Call Sign:J8B5410
Line Operator:9123518
Class Name for Sister Ships:13L
Year Built:1996
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:025
Max ISO Row:06
Center Line Row:Yes
Max Above ISO Tier:88
Min Above ISO Tier:80
Max Below ISO Tier:06
Min Below ISO Tier:02
Total TEU:478
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
![Side view of ARIES](/vessel-images/18d20701-d937-459e-b168-388db89e8373-sideView.png?v=1709840370829)
Hatch-Covers View
![Deck view of ARIES](/vessel-images/18d20701-d937-459e-b168-388db89e8373-deckView.png?v=1709840370829)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

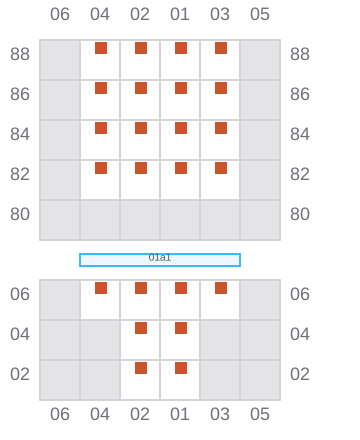

001
![Bay 001 view and slots of ARIES](/vessel-images/18d20701-d937-459e-b168-388db89e8373-b001.png?v=1709840370829)

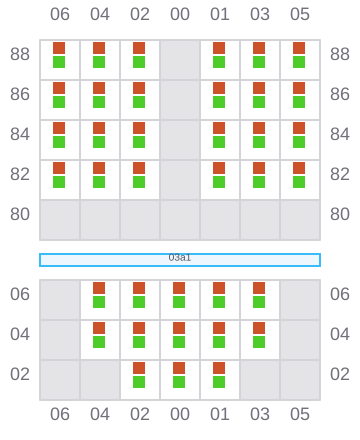

003 (004)
- →
![Bay 003 view and slots of ARIES](/vessel-images/18d20701-d937-459e-b168-388db89e8373-b003.png?v=1709840370829)

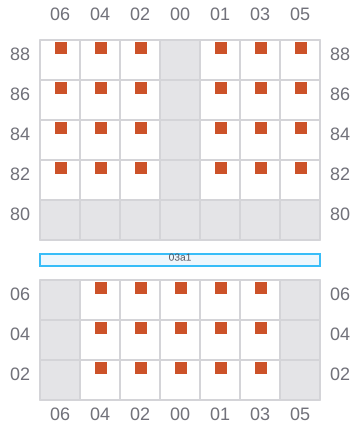

005
- ←
![Bay 005 view and slots of ARIES](/vessel-images/18d20701-d937-459e-b168-388db89e8373-b005.png?v=1709840370829)
007 (008)
- →
![Bay 007 view and slots of ARIES](/vessel-images/18d20701-d937-459e-b168-388db89e8373-b007.png?v=1709840370829)

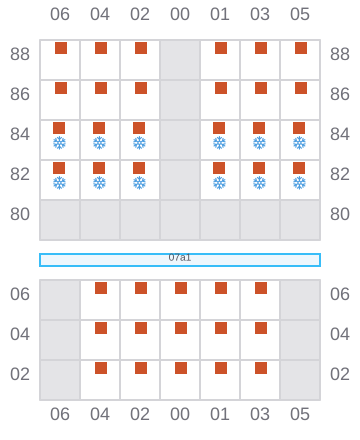

009
- ? / ←
- → / ?
![Bay 009 view and slots of ARIES](/vessel-images/18d20701-d937-459e-b168-388db89e8373-b009.png?v=1709840370829)

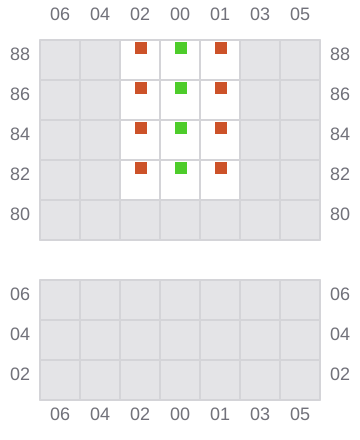

011 (010)
- ← / ?
![Bay 011 view and slots of ARIES](/vessel-images/18d20701-d937-459e-b168-388db89e8373-b011.png?v=1709840370829)
013 (014)
- →
![Bay 013 view and slots of ARIES](/vessel-images/18d20701-d937-459e-b168-388db89e8373-b013.png?v=1709840370829)
015
- ←
![Bay 015 view and slots of ARIES](/vessel-images/18d20701-d937-459e-b168-388db89e8373-b015.png?v=1709840370829)

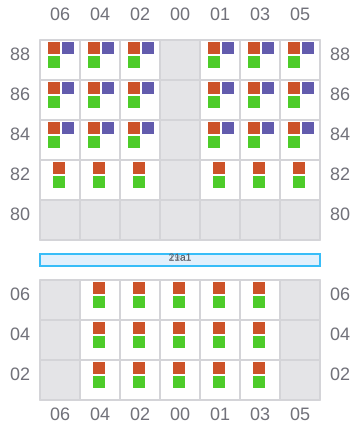

017 (018)
- →
![Bay 017 view and slots of ARIES](/vessel-images/18d20701-d937-459e-b168-388db89e8373-b017.png?v=1709840370829)
019
- ←
- → / ?
![Bay 019 view and slots of ARIES](/vessel-images/18d20701-d937-459e-b168-388db89e8373-b019.png?v=1709840370829)

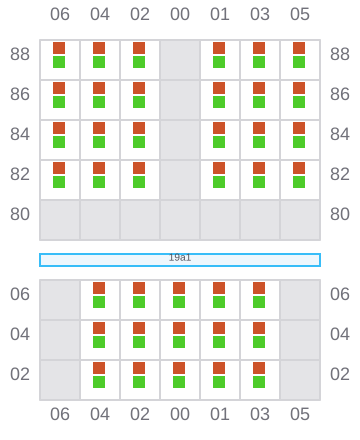

021 (022)
- →
![Bay 021 view and slots of ARIES](/vessel-images/18d20701-d937-459e-b168-388db89e8373-b021.png?v=1709840370829)
023
- ←
- → / ?
![Bay 023 view and slots of ARIES](/vessel-images/18d20701-d937-459e-b168-388db89e8373-b023.png?v=1709840370829)

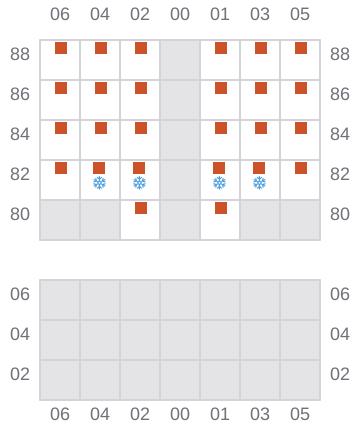

025
- → / ?
![Bay 025 view and slots of ARIES](/vessel-images/18d20701-d937-459e-b168-388db89e8373-b025.png?v=1709840370829)
