ARMADA SEJATI
9031727 | PMUJ | 9031727 by ********* Last update: Thu Aug 15 2024

General Info

Ship Name:ARMADA SEJATI
IMO Code:9031727
Call Sign:PMUJ
Line Operator:9031727
Class Name for Sister Ships:MSL
Year Built:1991
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:023
Max ISO Row:06
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:745

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

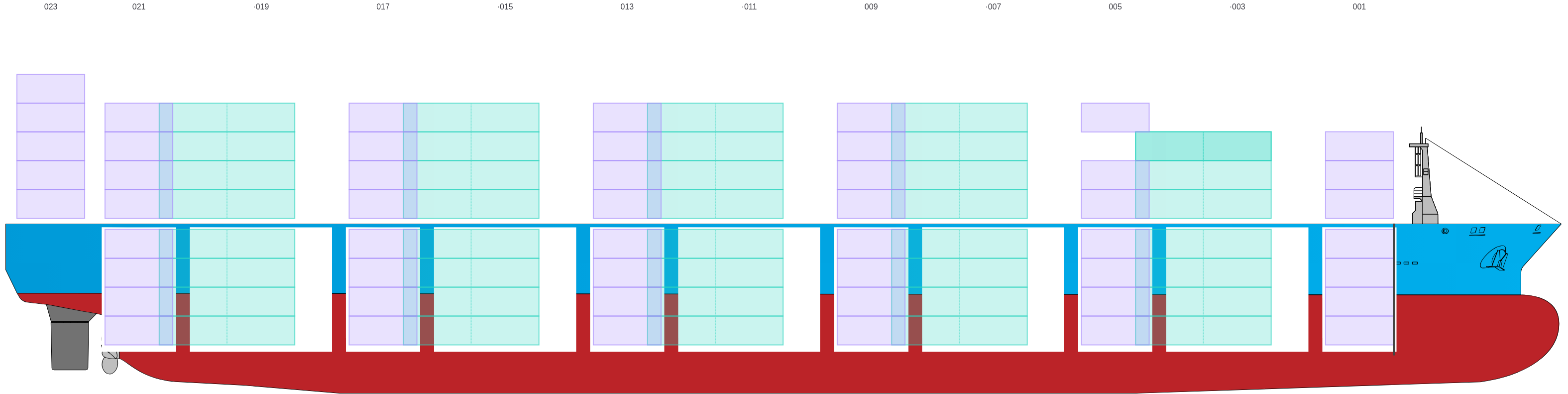

Side view of ARMADA SEJATI

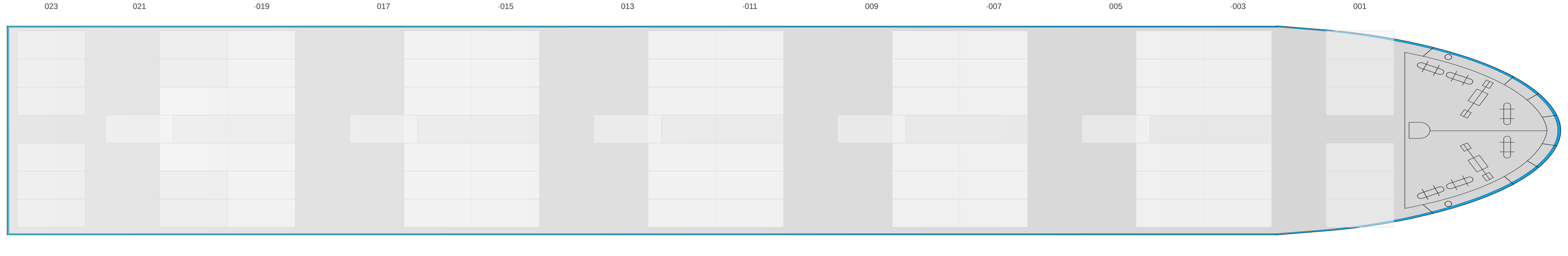

Hatch-Covers View

Deck view of ARMADA SEJATI

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

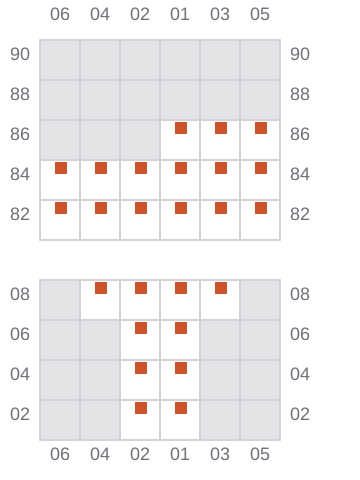

Bay 001 view and slots of ARMADA SEJATI

003 (004)

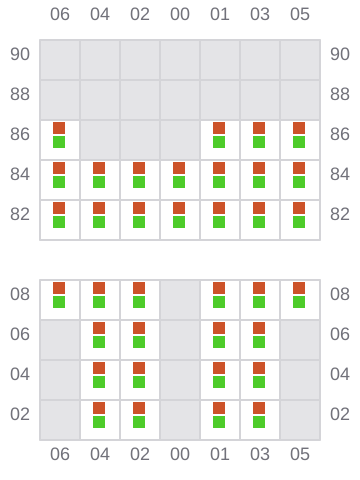

Bay 003 view and slots of ARMADA SEJATI

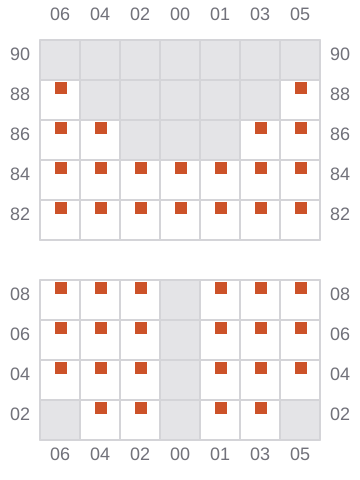

005

Bay 005 view and slots of ARMADA SEJATI

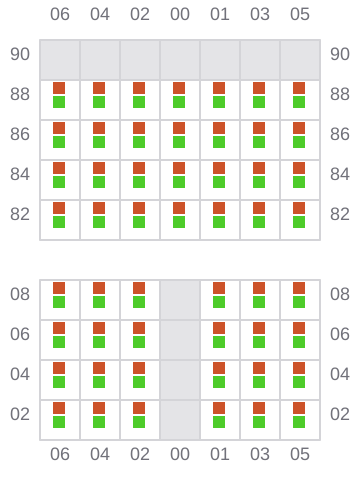

007 (008)

Bay 007 view and slots of ARMADA SEJATI

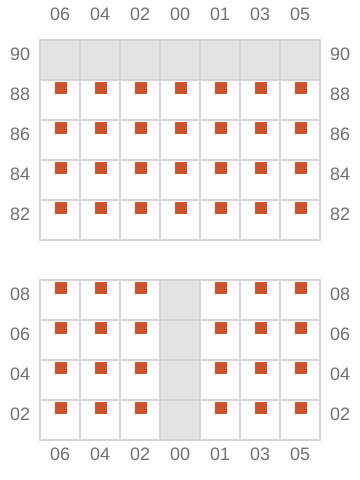

009

Bay 009 view and slots of ARMADA SEJATI

011 (012)

Bay 011 view and slots of ARMADA SEJATI

013

Bay 013 view and slots of ARMADA SEJATI

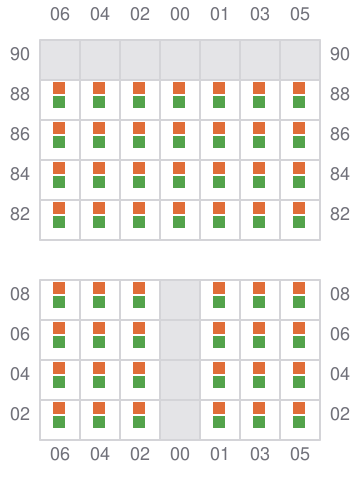

015 (016)

Bay 015 view and slots of ARMADA SEJATI

017

Bay 017 view and slots of ARMADA SEJATI

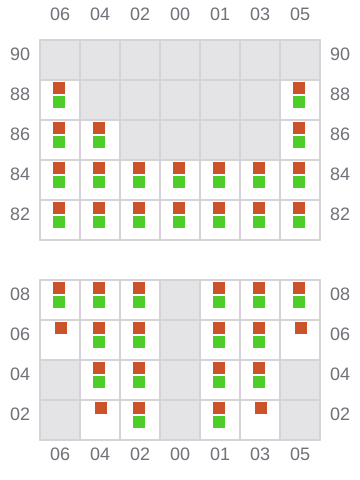

019 (020)

Bay 019 view and slots of ARMADA SEJATI

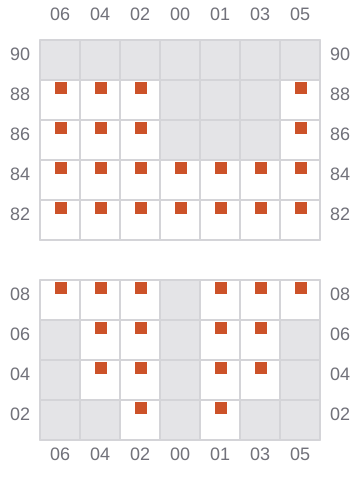

021

Bay 021 view and slots of ARMADA SEJATI

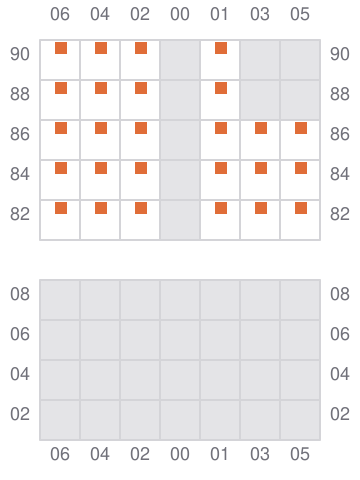

023

Bay 023 view and slots of ARMADA SEJATI
