ARSOS
9395123 | 5BAQ2 | 9395123 by ********* Last update: Sun Mar 24 2024
General Info
Ship Name:ARSOS
IMO Code:9395123
Call Sign:5BAQ2
Line Operator:9395123
Class Name for Sister Ships:94A
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:031
Max ISO Row:10
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,292
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

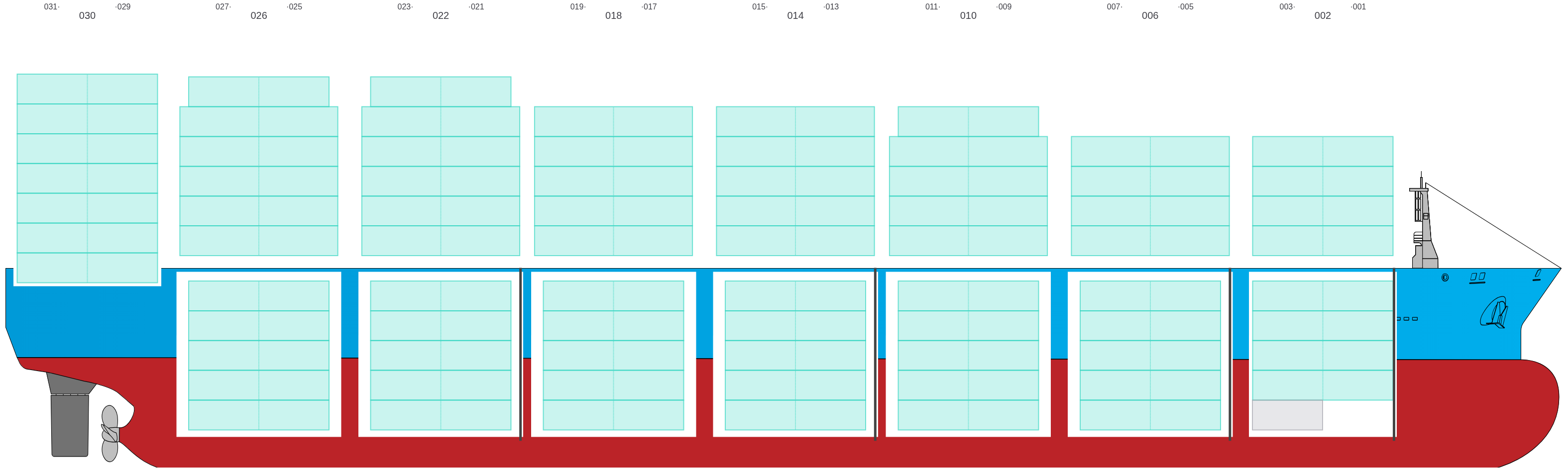

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

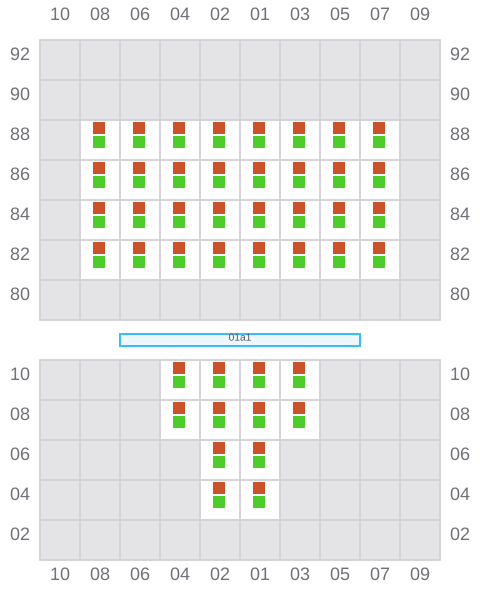

001 (002)
- →

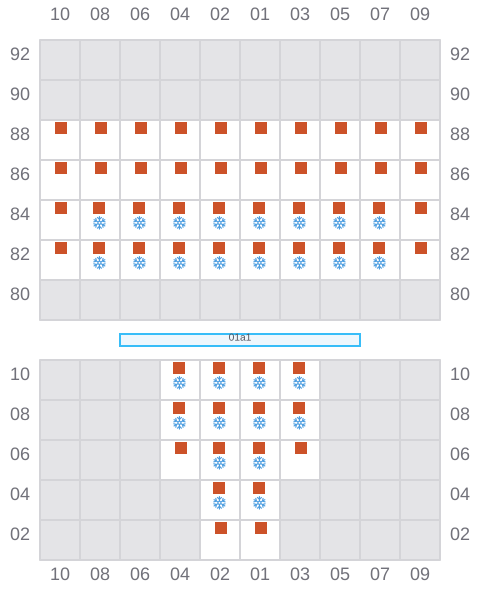

003
- ←
- →

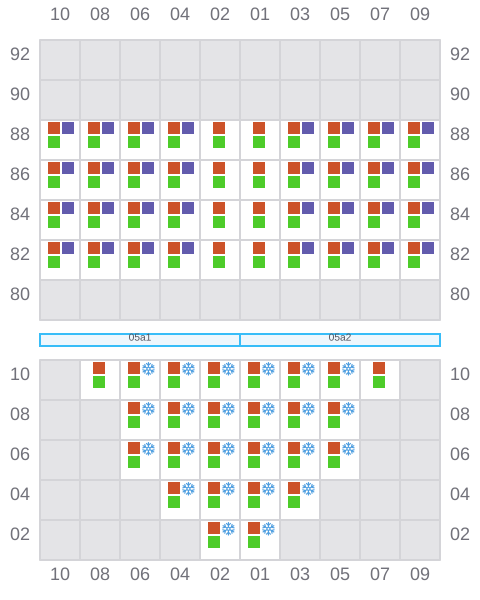

005 (006)
- →
- ? / ←

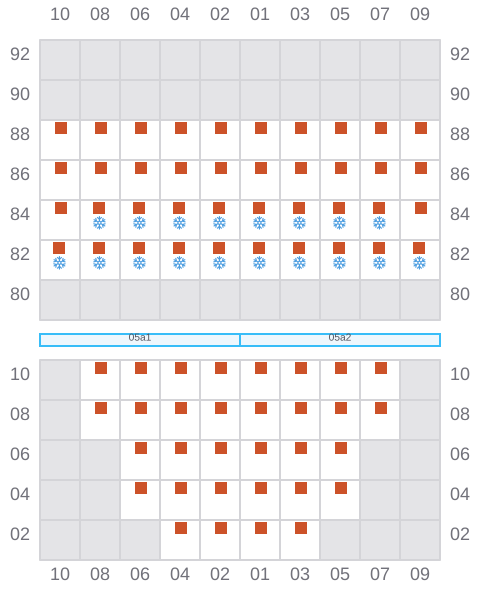

007
- ←
- → / ?

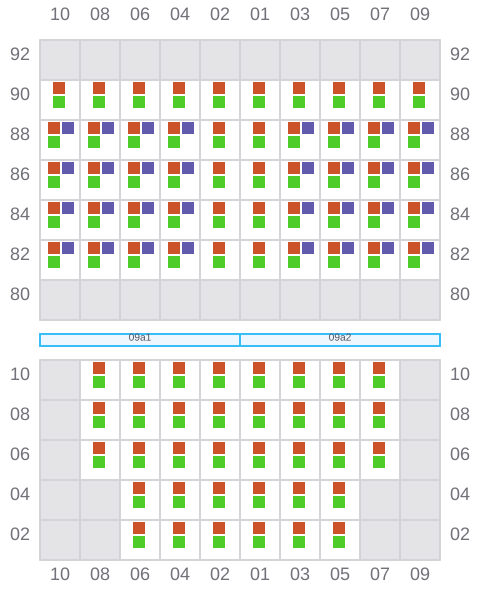

009 (010)
- →

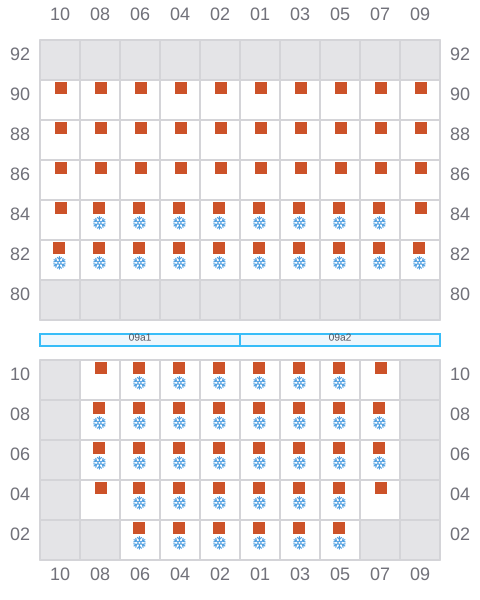

011
- ←
- →

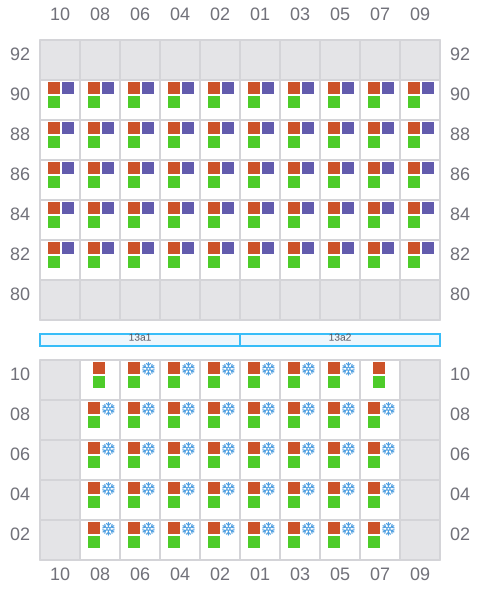

013 (014)
- →
- ? / ←

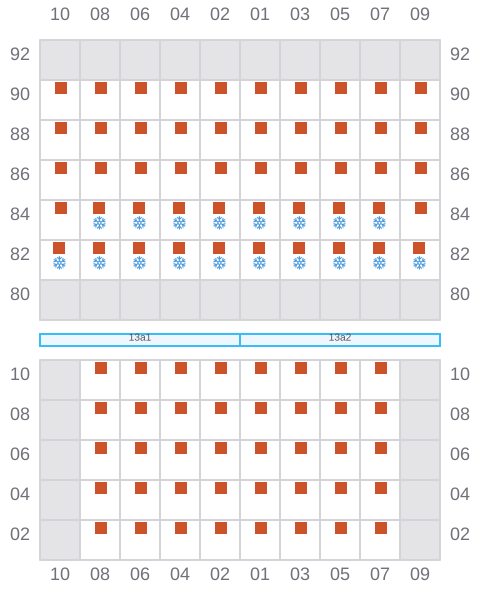

015
- ←
- → / ?

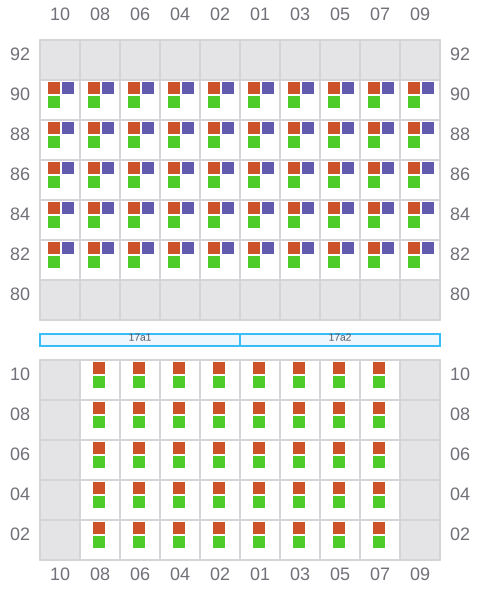

017 (018)
- →

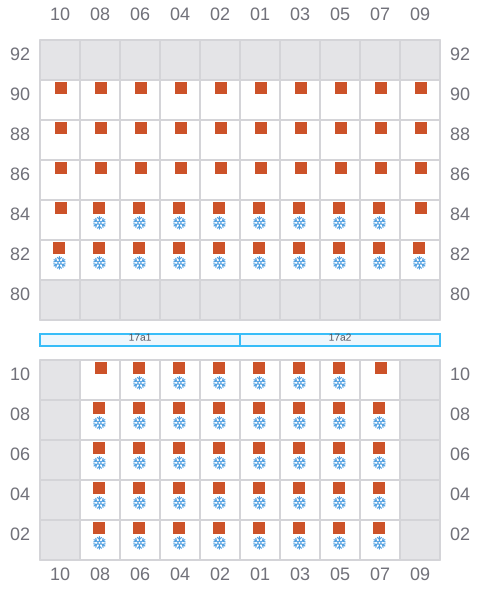

019
- ←
- →

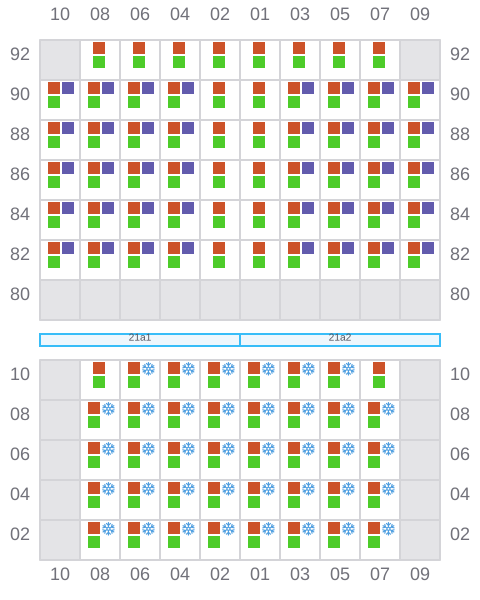

021 (022)
- →
- ? / ←

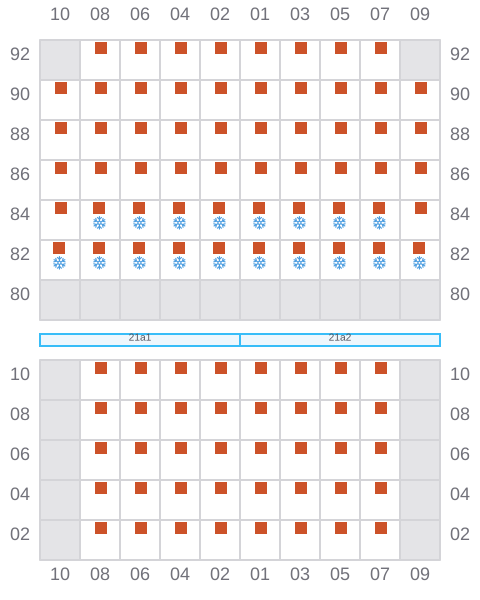

023
- ←
- → / ?

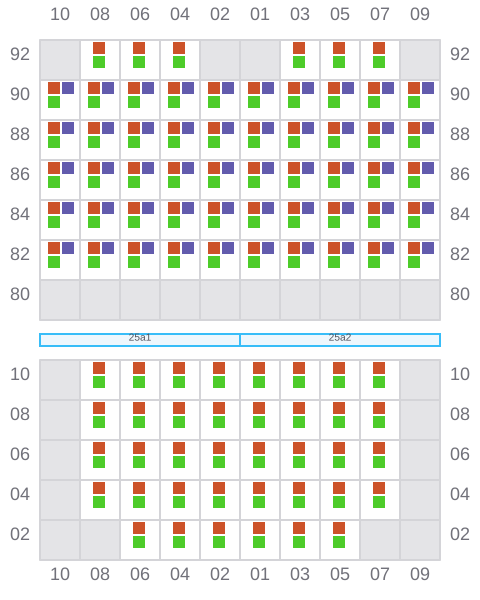

025 (026)
- →

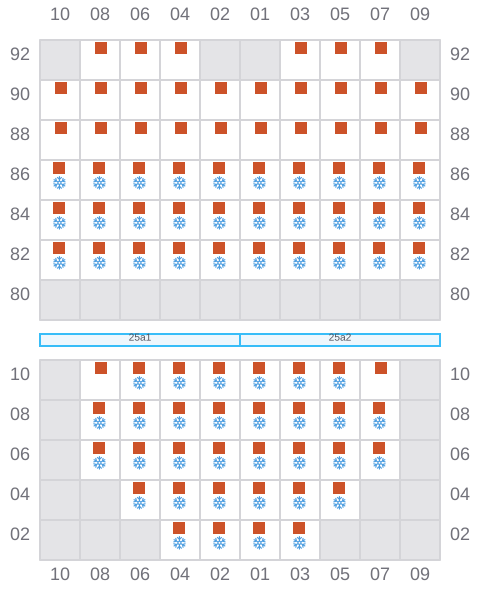

027
- ←
- →

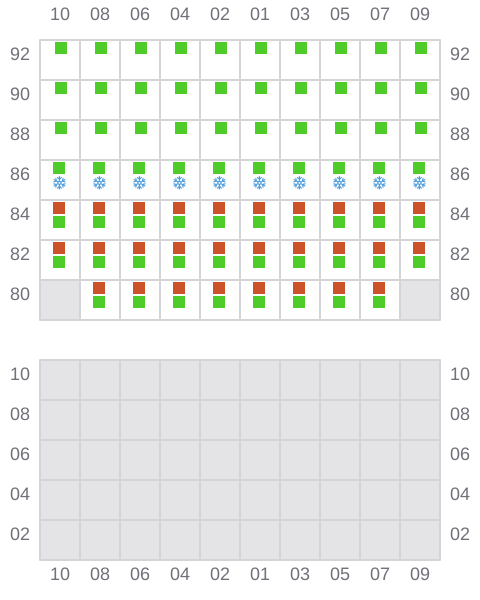

029 (030)
- → / ?
- → / ?

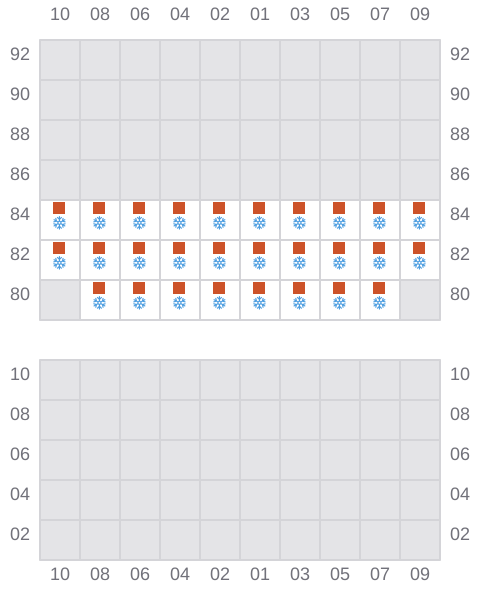

031
- ← / ?
- → / ?
