ARTEMIS
9366225 | YLPT | 9366225 by ********* Last update: Sat Mar 23 2024
General Info
Ship Name:ARTEMIS
IMO Code:9366225
Call Sign:YLPT
Line Operator:9366225
Class Name for Sister Ships:YANGFAN 966
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):130.00
LOA (Length Overall):139.10
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:029
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:964
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

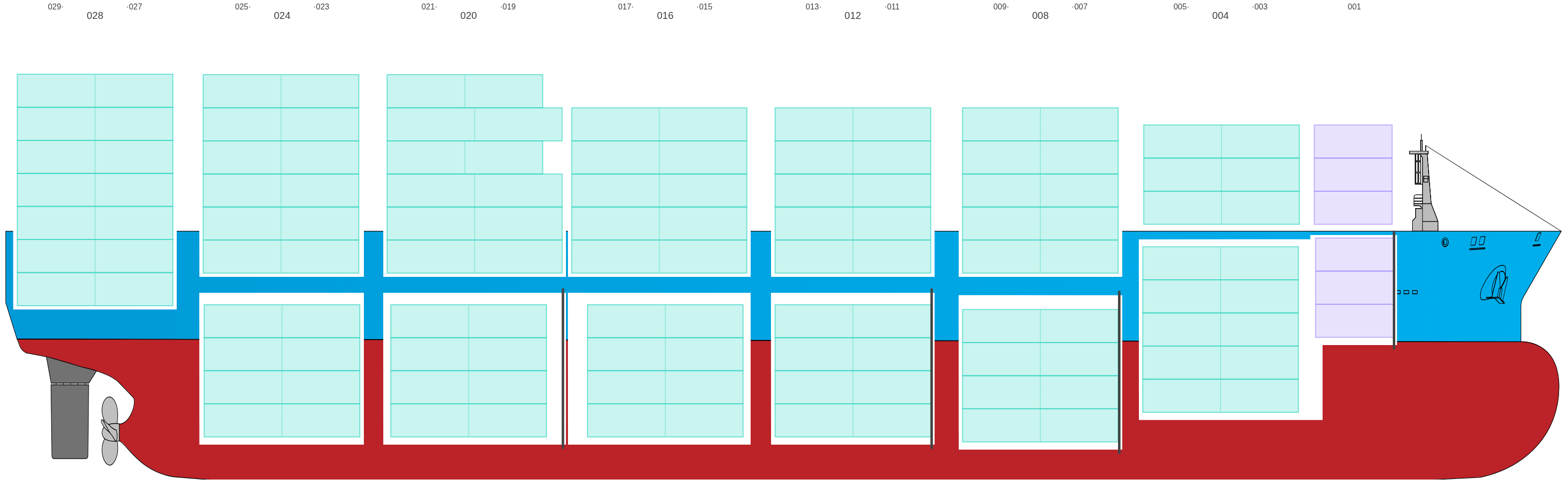

Side View
![Side view of ARTEMIS](/vessel-images/5a3ca7e4-a3c2-457c-8409-8817b20cd29b-sideView.png?v=1711218504191)

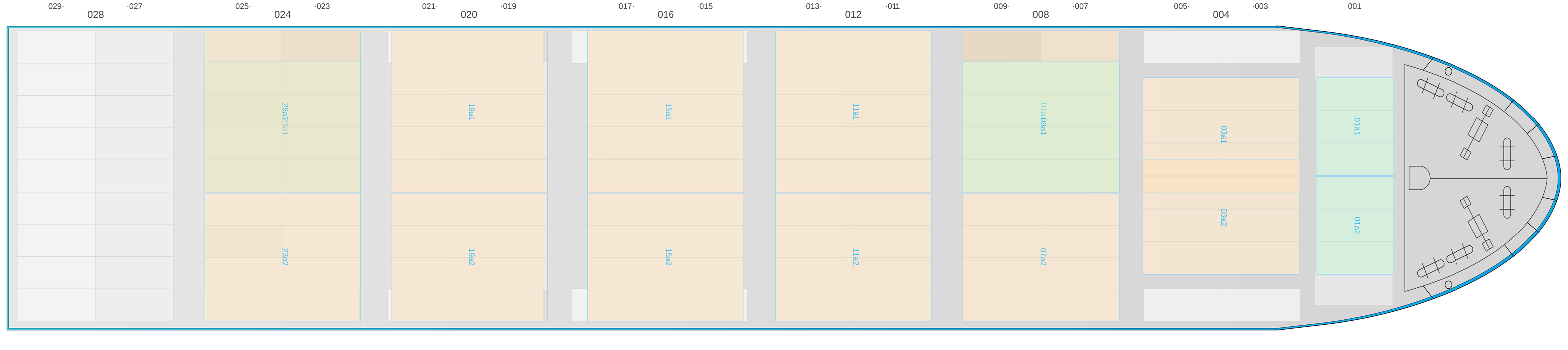

Hatch-Covers View
![Deck view of ARTEMIS](/vessel-images/5a3ca7e4-a3c2-457c-8409-8817b20cd29b-deckView.png?v=1711218504191)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

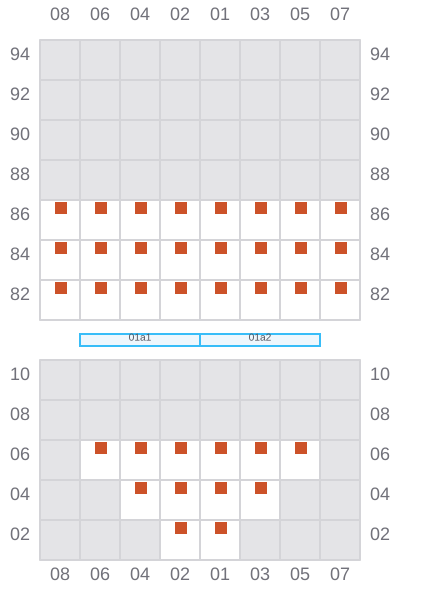

001
![Bay 001 view and slots of ARTEMIS](/vessel-images/5a3ca7e4-a3c2-457c-8409-8817b20cd29b-b001.png?v=1711218504191)

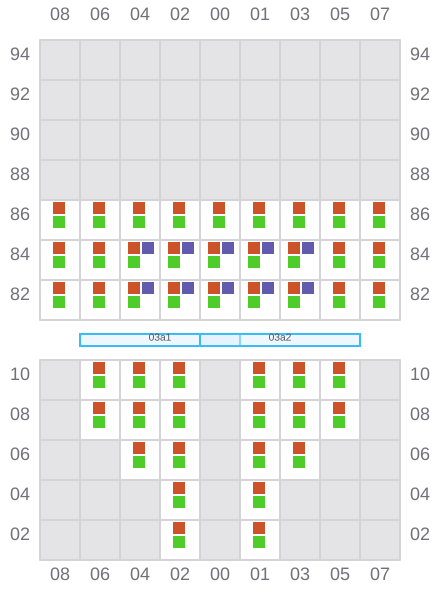

003 (004)
- →
![Bay 003 view and slots of ARTEMIS](/vessel-images/5a3ca7e4-a3c2-457c-8409-8817b20cd29b-b003.png?v=1711218504191)
005
- ←
- → / ?
![Bay 005 view and slots of ARTEMIS](/vessel-images/5a3ca7e4-a3c2-457c-8409-8817b20cd29b-b005.png?v=1711218504191)
007 (008)
- →
- ? / ←
![Bay 007 view and slots of ARTEMIS](/vessel-images/5a3ca7e4-a3c2-457c-8409-8817b20cd29b-b007.png?v=1711218504191)

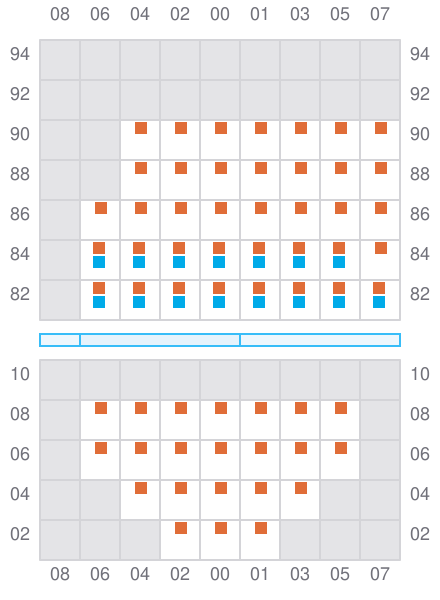

009
- ←
- → / ?
![Bay 009 view and slots of ARTEMIS](/vessel-images/5a3ca7e4-a3c2-457c-8409-8817b20cd29b-b009.png?v=1711218504191)

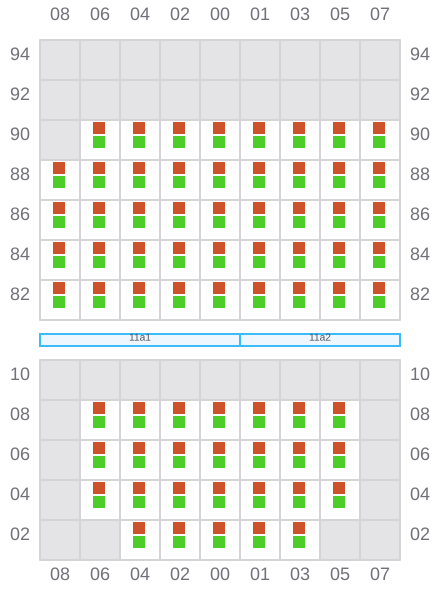

011 (012)
- →
![Bay 011 view and slots of ARTEMIS](/vessel-images/5a3ca7e4-a3c2-457c-8409-8817b20cd29b-b011.png?v=1711218504191)

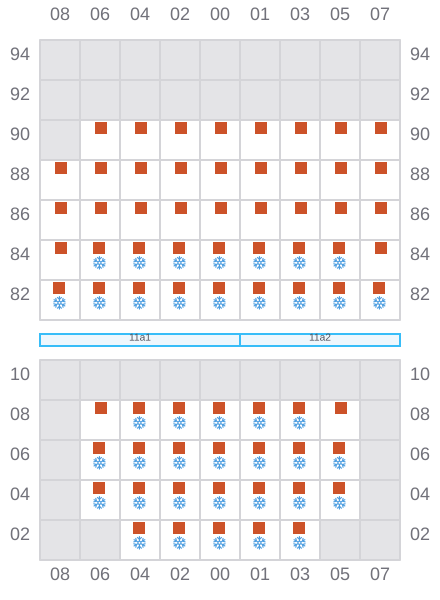

013
- ←
- →
![Bay 013 view and slots of ARTEMIS](/vessel-images/5a3ca7e4-a3c2-457c-8409-8817b20cd29b-b013.png?v=1711218504191)

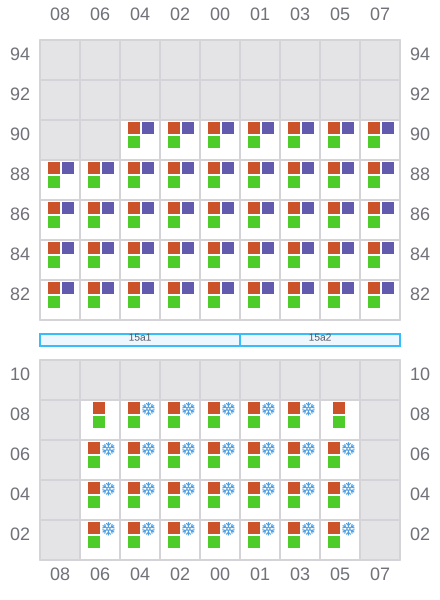

015 (016)
- →
- ←
![Bay 015 view and slots of ARTEMIS](/vessel-images/5a3ca7e4-a3c2-457c-8409-8817b20cd29b-b015.png?v=1711218504191)

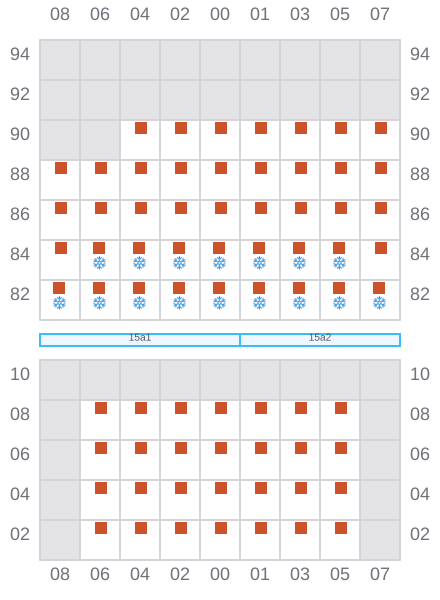

017
- ←
- → / ?
![Bay 017 view and slots of ARTEMIS](/vessel-images/5a3ca7e4-a3c2-457c-8409-8817b20cd29b-b017.png?v=1711218504191)

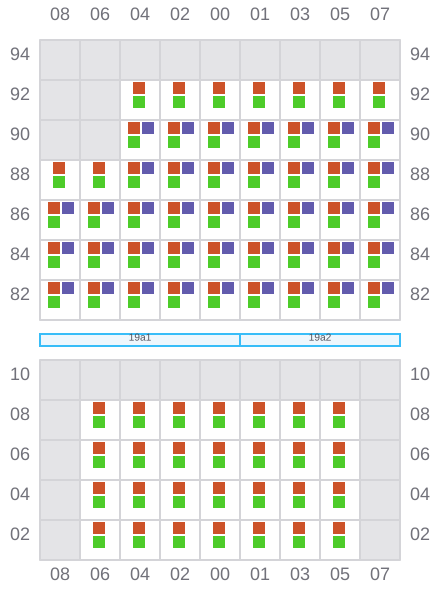

019 (020)
- →
![Bay 019 view and slots of ARTEMIS](/vessel-images/5a3ca7e4-a3c2-457c-8409-8817b20cd29b-b019.png?v=1711218504191)

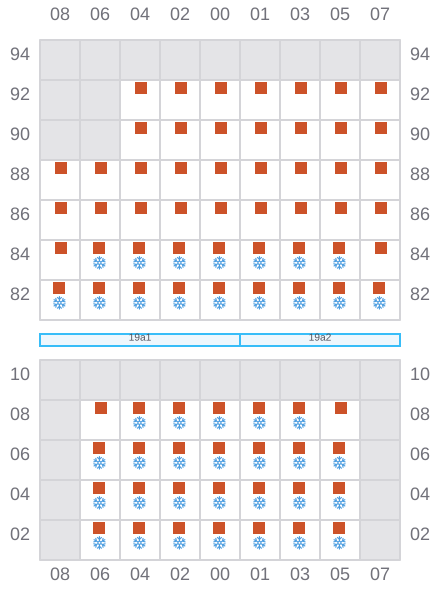

021
- ←
- →
![Bay 021 view and slots of ARTEMIS](/vessel-images/5a3ca7e4-a3c2-457c-8409-8817b20cd29b-b021.png?v=1711218504191)

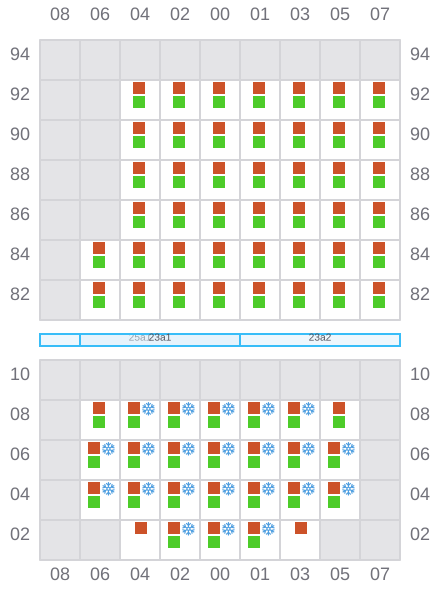

023 (024)
- →
- ? / ←
![Bay 023 view and slots of ARTEMIS](/vessel-images/5a3ca7e4-a3c2-457c-8409-8817b20cd29b-b023.png?v=1711218504191)

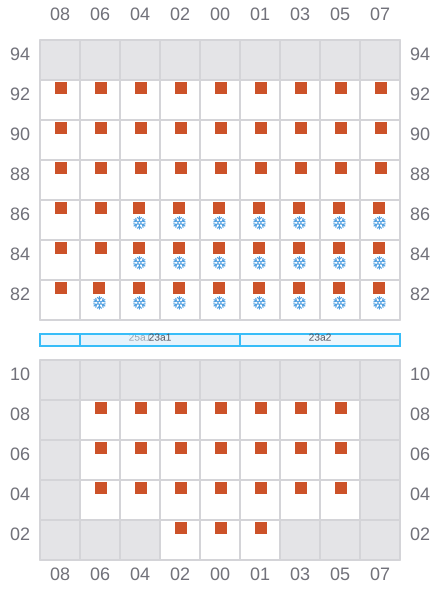

025
- ←
- → / ?
![Bay 025 view and slots of ARTEMIS](/vessel-images/5a3ca7e4-a3c2-457c-8409-8817b20cd29b-b025.png?v=1711218504191)

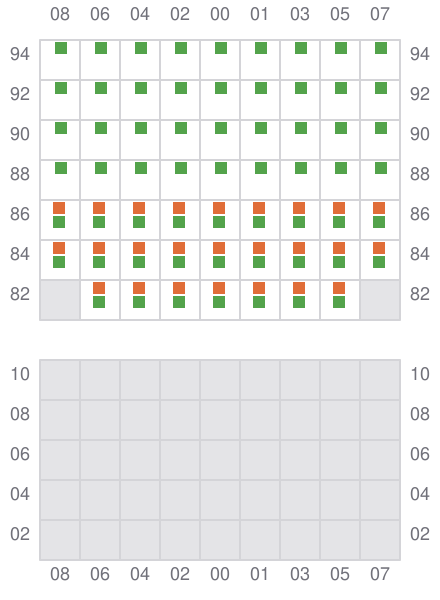

027 (028)
- → / ?
![Bay 027 view and slots of ARTEMIS](/vessel-images/5a3ca7e4-a3c2-457c-8409-8817b20cd29b-b027.png?v=1711218504191)

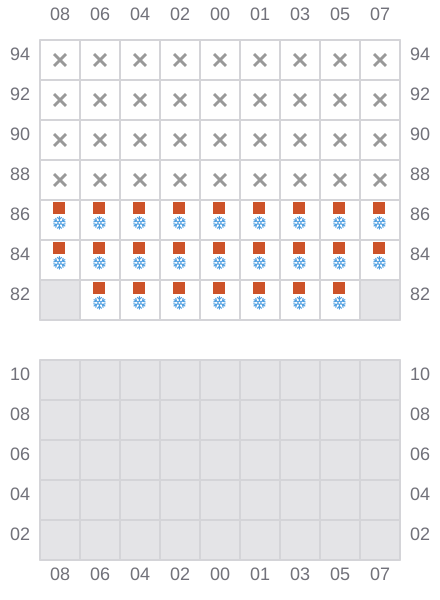

029
- ← / ?
- → / ?
![Bay 029 view and slots of ARTEMIS](/vessel-images/5a3ca7e4-a3c2-457c-8409-8817b20cd29b-b029.png?v=1711218504191)
