AS ALVA
9337030 | A8PN7 | 9337030 by ********* Last update: Fri Mar 22 2024
General Info
Ship Name:AS ALVA
IMO Code:9337030
Call Sign:A8PN7
Line Operator:9337030
Class Name for Sister Ships:11C
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:039
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,011
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

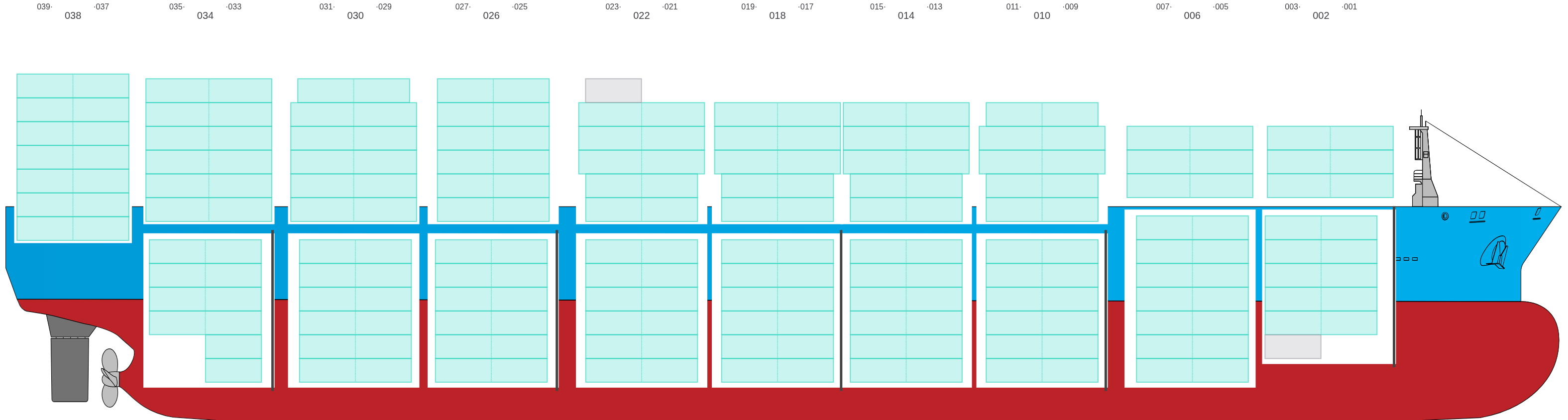

Side View
![Side view of AS ALVA](/vessel-images/0fdcebd3-d623-4350-95f2-9ae079da5e42-sideView.png?v=1711132962068)
Hatch-Covers View
![Deck view of AS ALVA](/vessel-images/0fdcebd3-d623-4350-95f2-9ae079da5e42-deckView.png?v=1711132962068)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

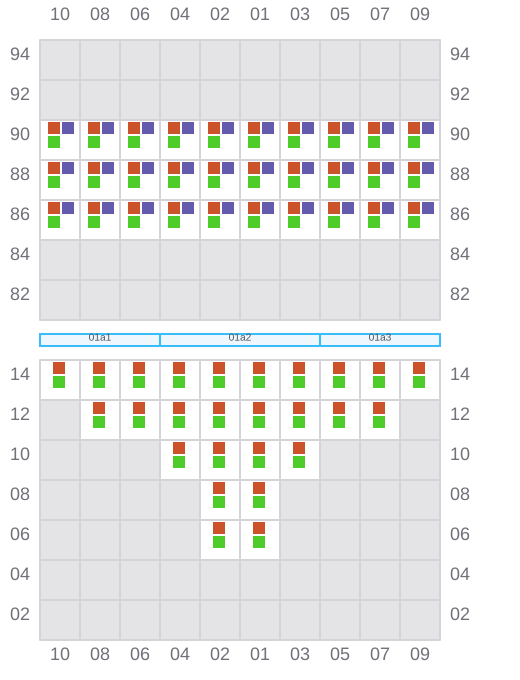

001 (002)
- →
![Bay 001 view and slots of AS ALVA](/vessel-images/0fdcebd3-d623-4350-95f2-9ae079da5e42-b001.png?v=1711132962068)

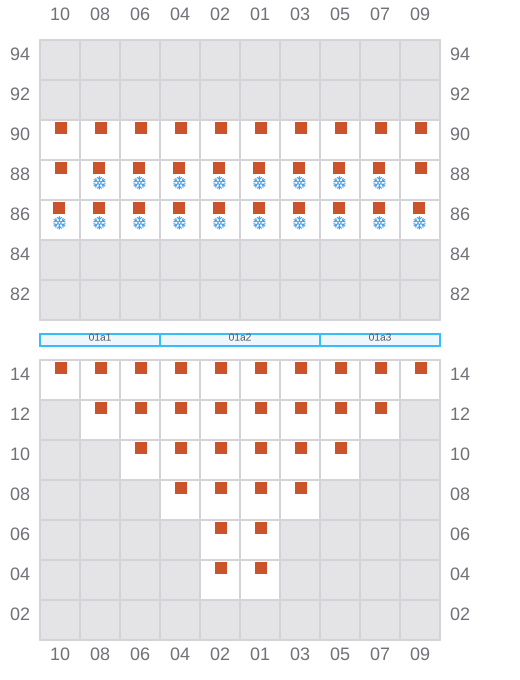

003
- ←
- → / ?
![Bay 003 view and slots of AS ALVA](/vessel-images/0fdcebd3-d623-4350-95f2-9ae079da5e42-b003.png?v=1711132962068)

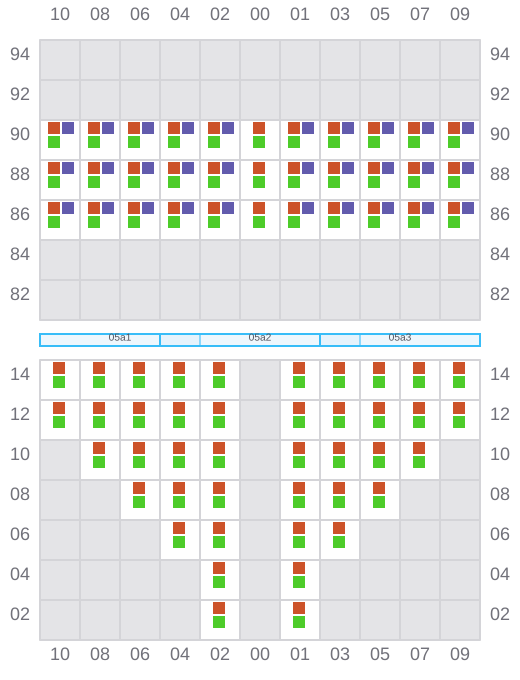

005 (006)
- →
![Bay 005 view and slots of AS ALVA](/vessel-images/0fdcebd3-d623-4350-95f2-9ae079da5e42-b005.png?v=1711132962068)

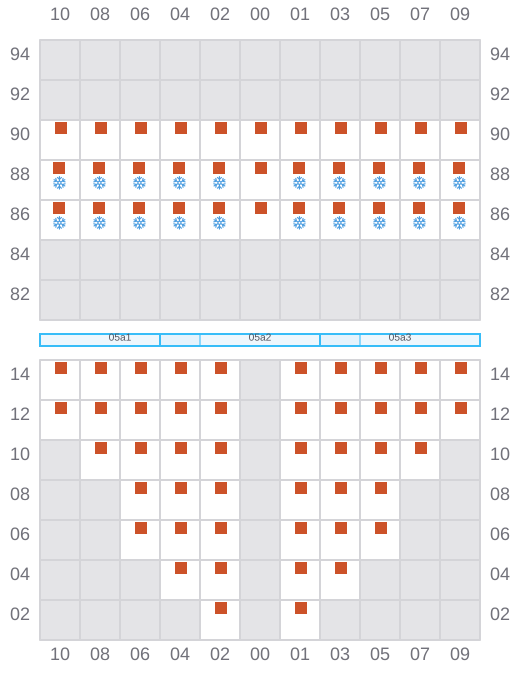

007
- ←
- → / ?
![Bay 007 view and slots of AS ALVA](/vessel-images/0fdcebd3-d623-4350-95f2-9ae079da5e42-b007.png?v=1711132962068)

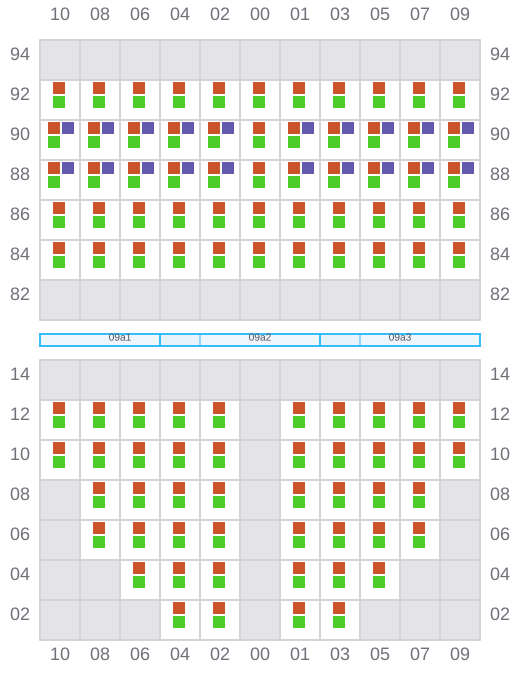

009 (010)
- →
![Bay 009 view and slots of AS ALVA](/vessel-images/0fdcebd3-d623-4350-95f2-9ae079da5e42-b009.png?v=1711132962068)

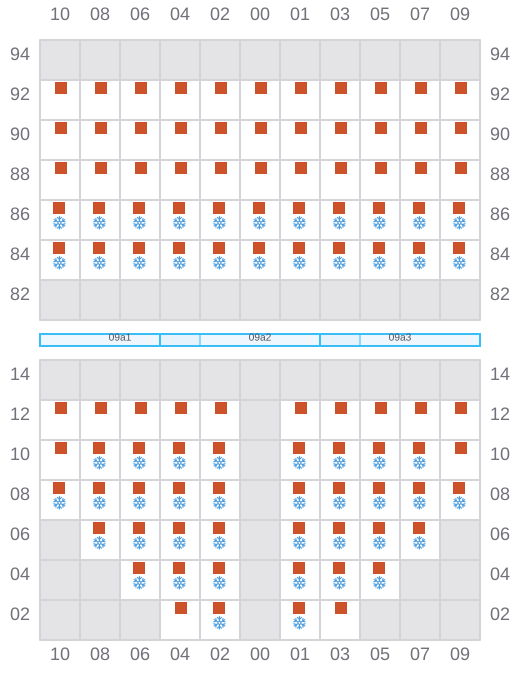

011
- ←
- → / ?
![Bay 011 view and slots of AS ALVA](/vessel-images/0fdcebd3-d623-4350-95f2-9ae079da5e42-b011.png?v=1711132962068)

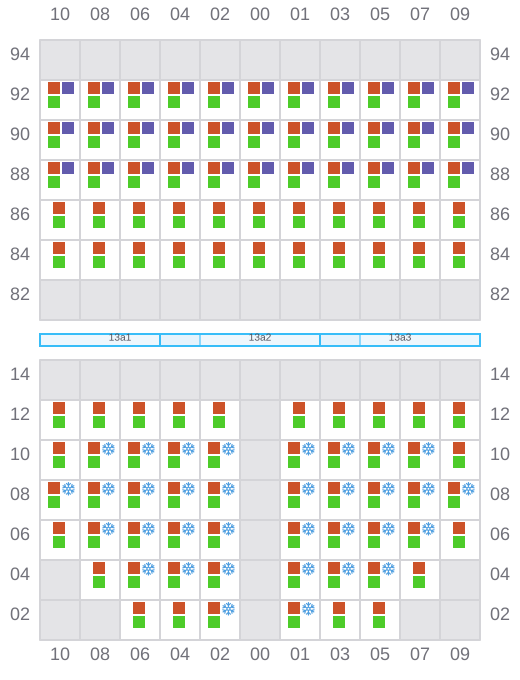

013 (014)
- →
- ? / ←
![Bay 013 view and slots of AS ALVA](/vessel-images/0fdcebd3-d623-4350-95f2-9ae079da5e42-b013.png?v=1711132962068)

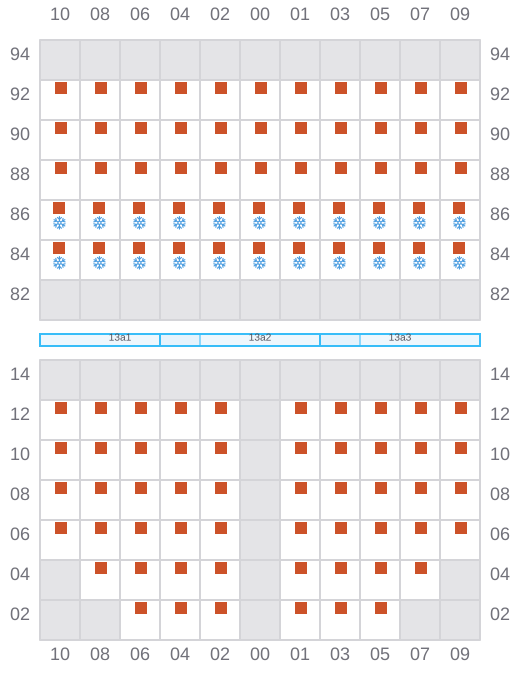

015
- ←
- → / ?
![Bay 015 view and slots of AS ALVA](/vessel-images/0fdcebd3-d623-4350-95f2-9ae079da5e42-b015.png?v=1711132962068)

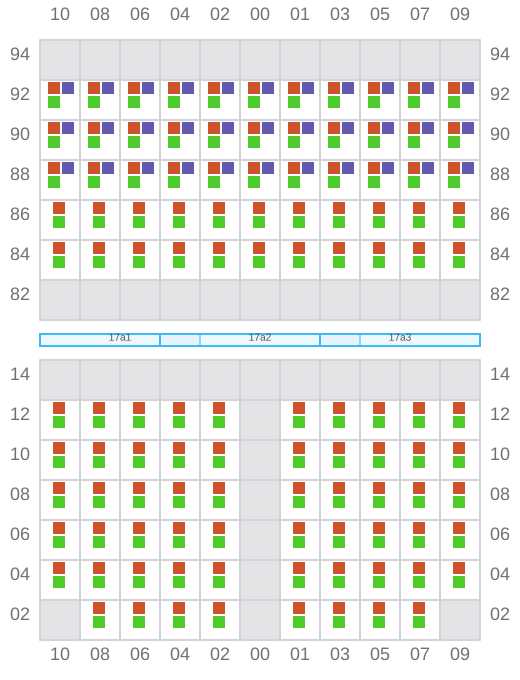

017 (018)
- →
![Bay 017 view and slots of AS ALVA](/vessel-images/0fdcebd3-d623-4350-95f2-9ae079da5e42-b017.png?v=1711132962068)

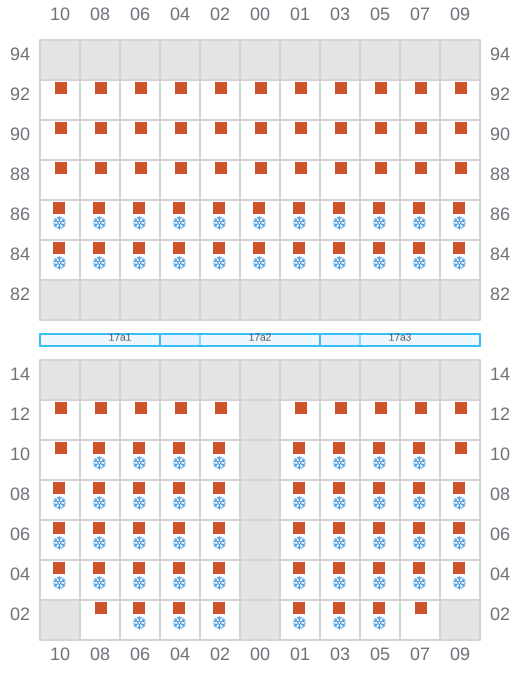

019
- ←
- →
![Bay 019 view and slots of AS ALVA](/vessel-images/0fdcebd3-d623-4350-95f2-9ae079da5e42-b019.png?v=1711132962068)

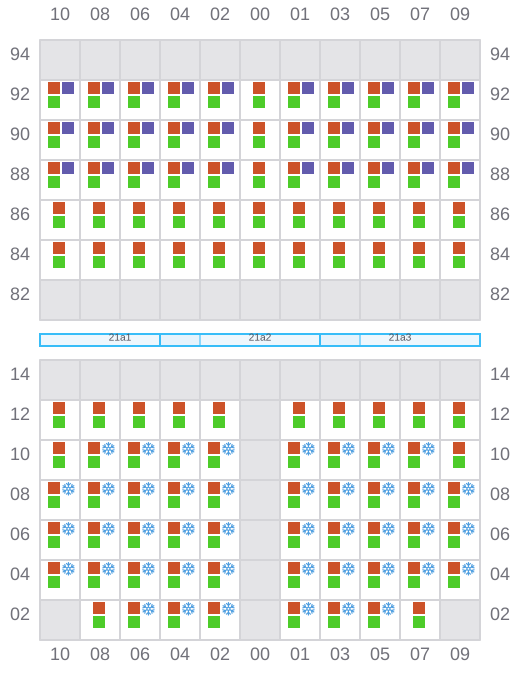

021 (022)
- →
- ? / ←
![Bay 021 view and slots of AS ALVA](/vessel-images/0fdcebd3-d623-4350-95f2-9ae079da5e42-b021.png?v=1711132962068)

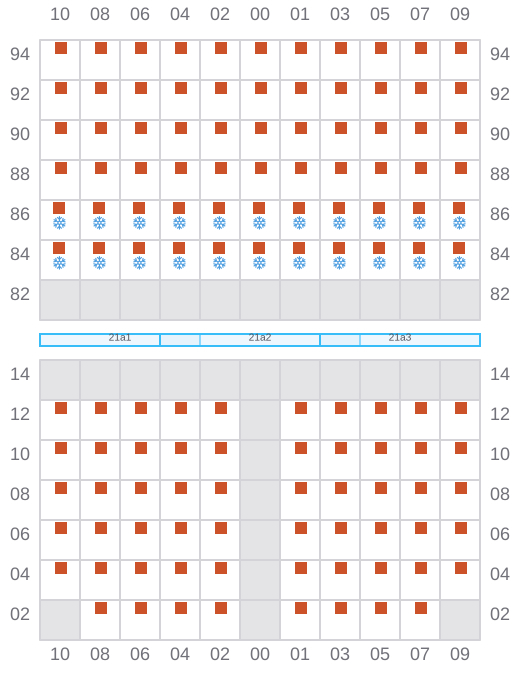

023
- ←
- → / ?
![Bay 023 view and slots of AS ALVA](/vessel-images/0fdcebd3-d623-4350-95f2-9ae079da5e42-b023.png?v=1711132962068)

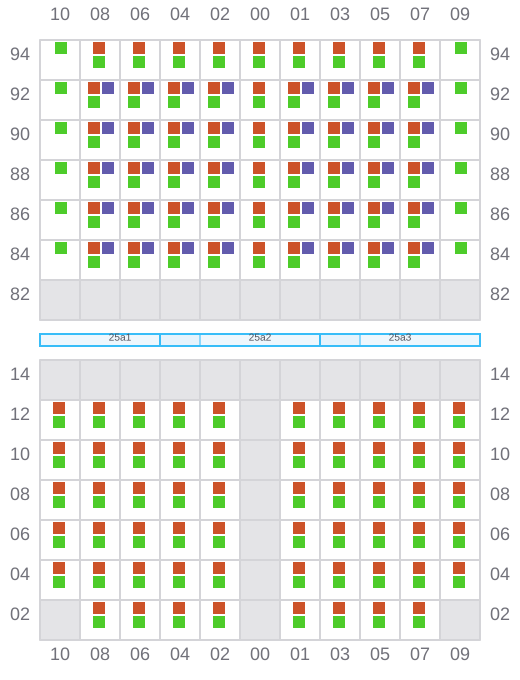

025 (026)
- →
![Bay 025 view and slots of AS ALVA](/vessel-images/0fdcebd3-d623-4350-95f2-9ae079da5e42-b025.png?v=1711132962068)

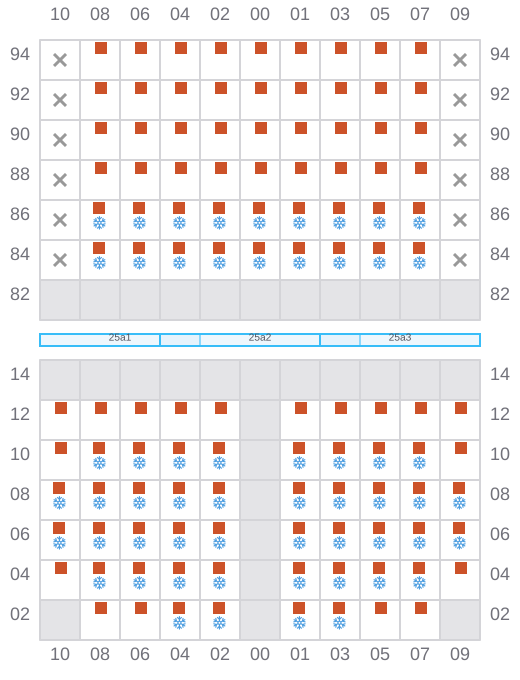

027
- ←
- →
![Bay 027 view and slots of AS ALVA](/vessel-images/0fdcebd3-d623-4350-95f2-9ae079da5e42-b027.png?v=1711132962068)

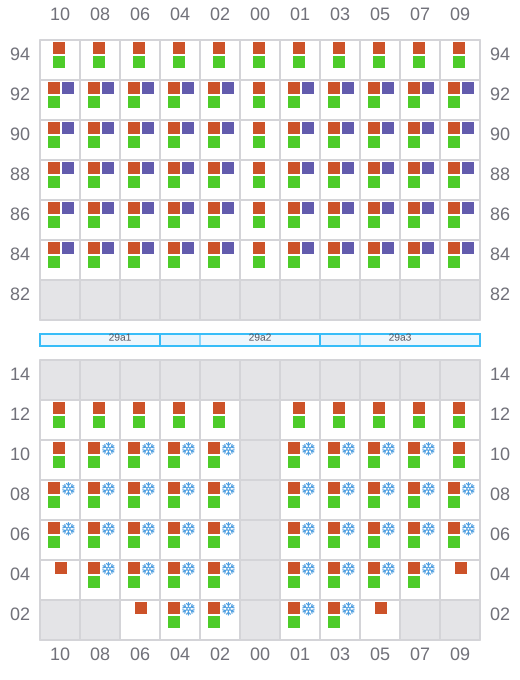

029 (030)
- →
- ? / ←
![Bay 029 view and slots of AS ALVA](/vessel-images/0fdcebd3-d623-4350-95f2-9ae079da5e42-b029.png?v=1711132962068)

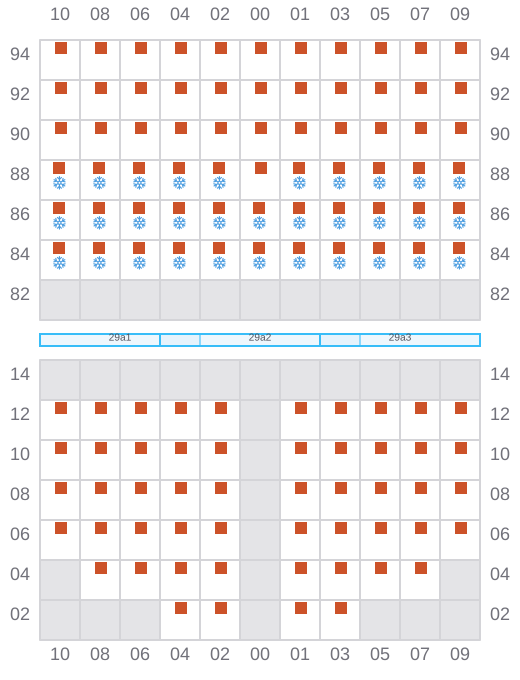

031
- ←
- → / ?
![Bay 031 view and slots of AS ALVA](/vessel-images/0fdcebd3-d623-4350-95f2-9ae079da5e42-b031.png?v=1711132962068)

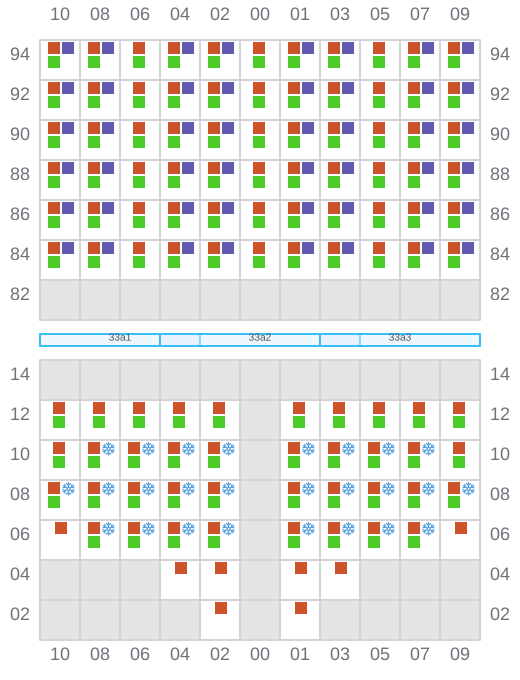

033 (034)
- →
- ? / ←
![Bay 033 view and slots of AS ALVA](/vessel-images/0fdcebd3-d623-4350-95f2-9ae079da5e42-b033.png?v=1711132962068)

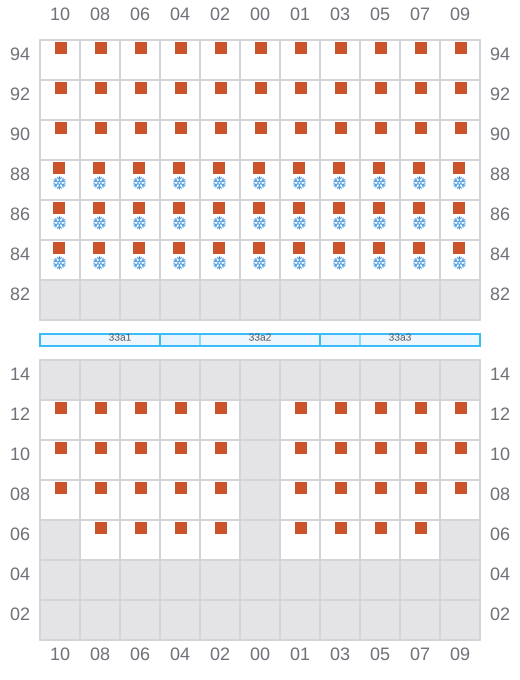

035
- ←
- → / ?
![Bay 035 view and slots of AS ALVA](/vessel-images/0fdcebd3-d623-4350-95f2-9ae079da5e42-b035.png?v=1711132962068)

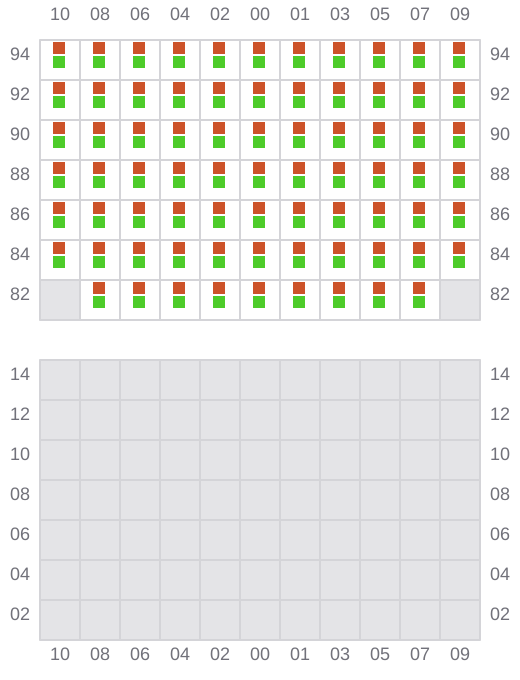

037 (038)
- → / ?
![Bay 037 view and slots of AS ALVA](/vessel-images/0fdcebd3-d623-4350-95f2-9ae079da5e42-b037.png?v=1711132962068)

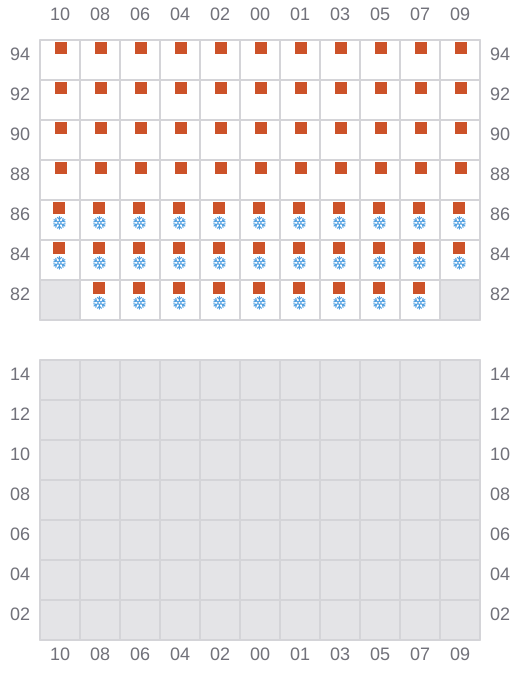

039
- ← / ?
- → / ?
![Bay 039 view and slots of AS ALVA](/vessel-images/0fdcebd3-d623-4350-95f2-9ae079da5e42-b039.png?v=1711132962068)
