AS CALIFORNIA
9342695 | CQAA2 | 9342695 by ********* Last update: Fri Jun 21 2024

General Info

Ship Name:AS CALIFORNIA
IMO Code:9342695
Call Sign:CQAA2
Line Operator:9342695
Class Name for Sister Ships:MCC
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:049
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:2,824

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of AS CALIFORNIA

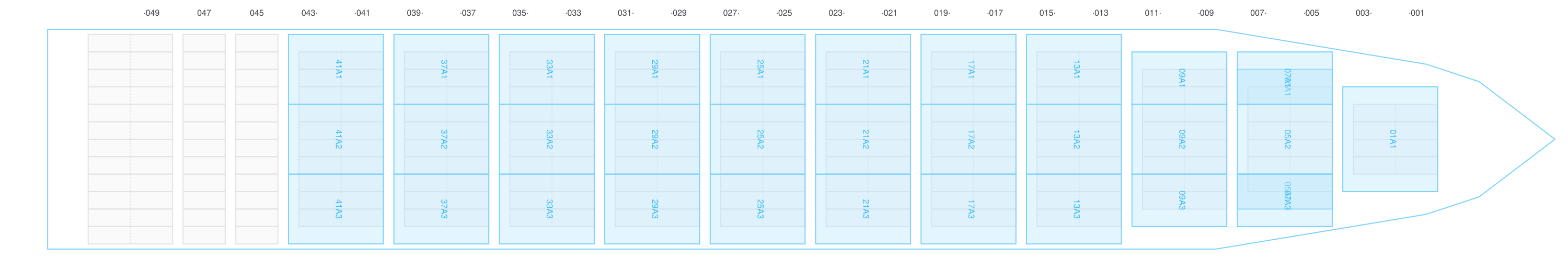

Hatch-Covers View

Deck view of AS CALIFORNIA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

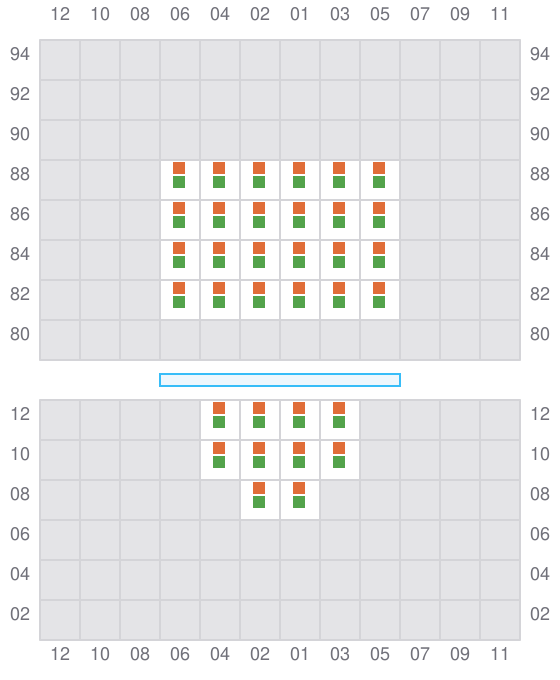

001 (002)

Bay 001 view and slots of AS CALIFORNIA

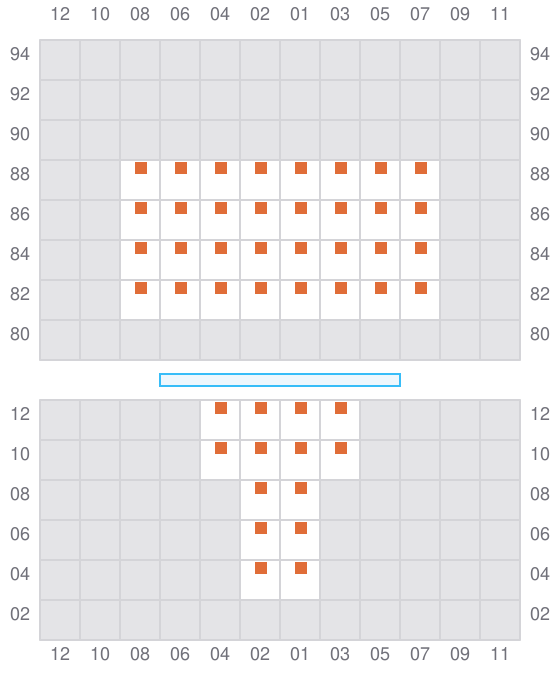

003

  • / ?
Bay 003 view and slots of AS CALIFORNIA

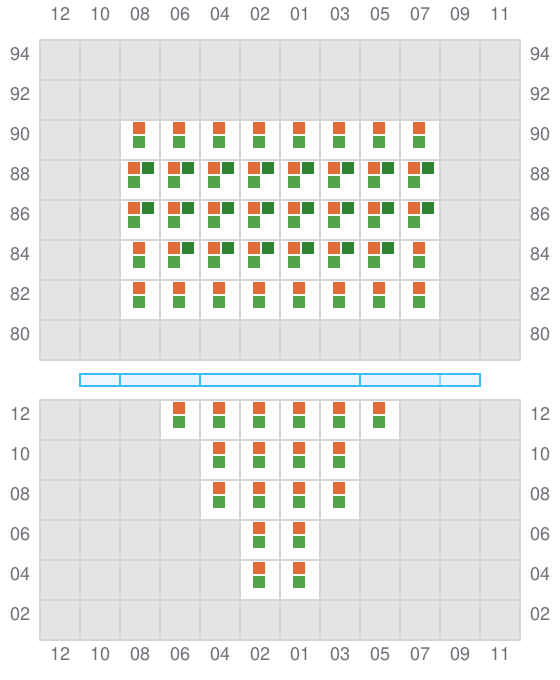

005 (006)

Bay 005 view and slots of AS CALIFORNIA

007

  • / ?

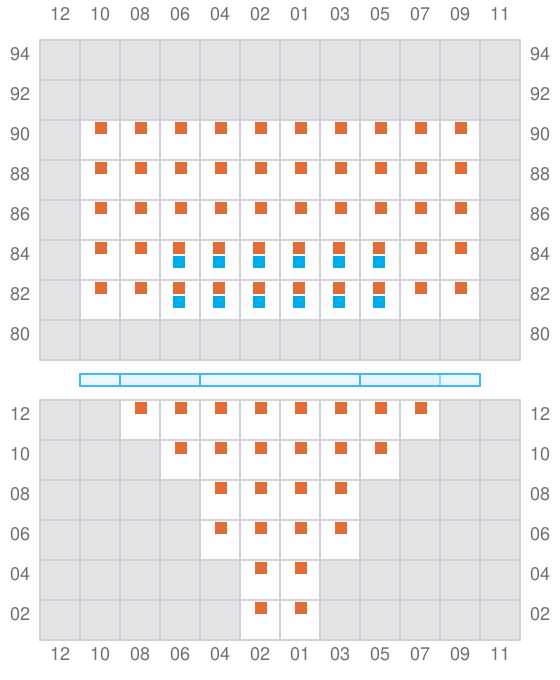

Bay 007 view and slots of AS CALIFORNIA

009 (010)

  • / ?

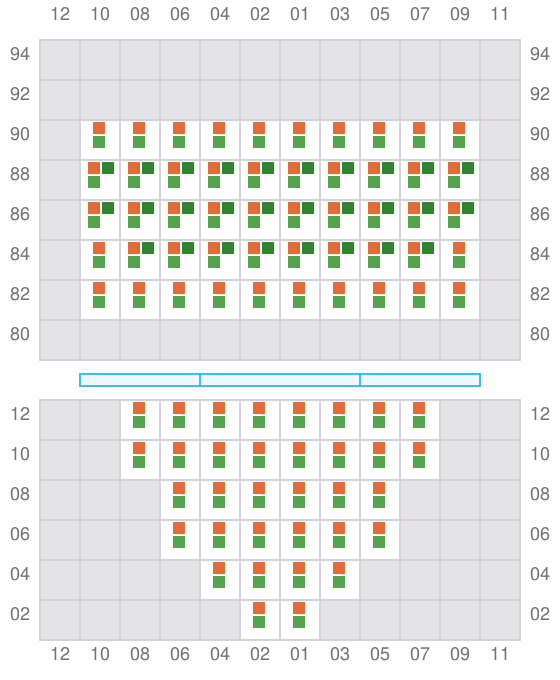

Bay 009 view and slots of AS CALIFORNIA

011

  • / ?

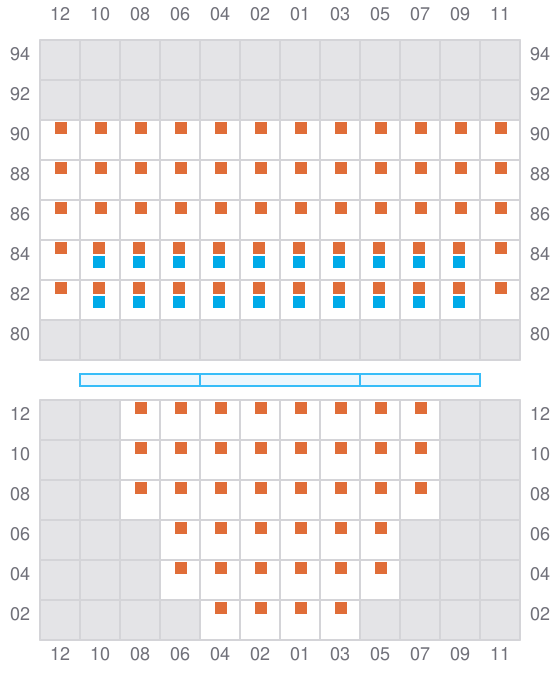

Bay 011 view and slots of AS CALIFORNIA

013 (014)

  • / ?

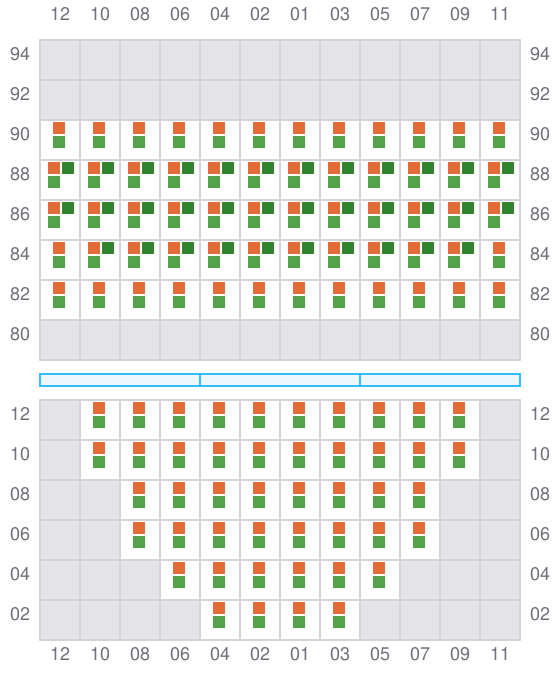

Bay 013 view and slots of AS CALIFORNIA

015

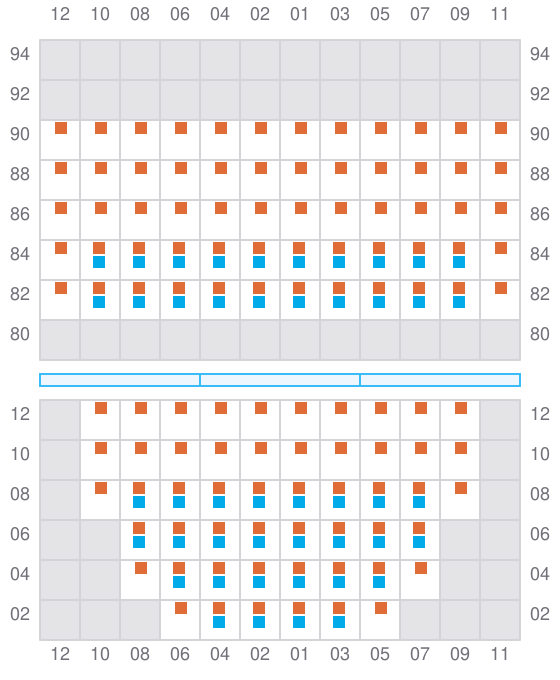

Bay 015 view and slots of AS CALIFORNIA

017 (018)

Bay 017 view and slots of AS CALIFORNIA

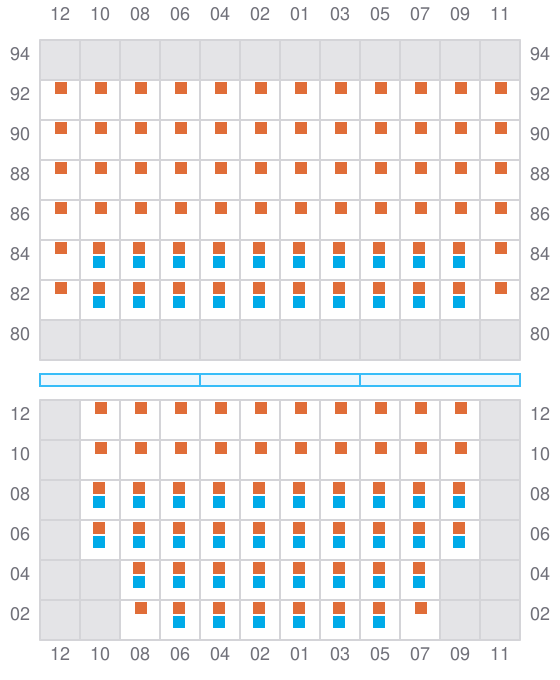

019

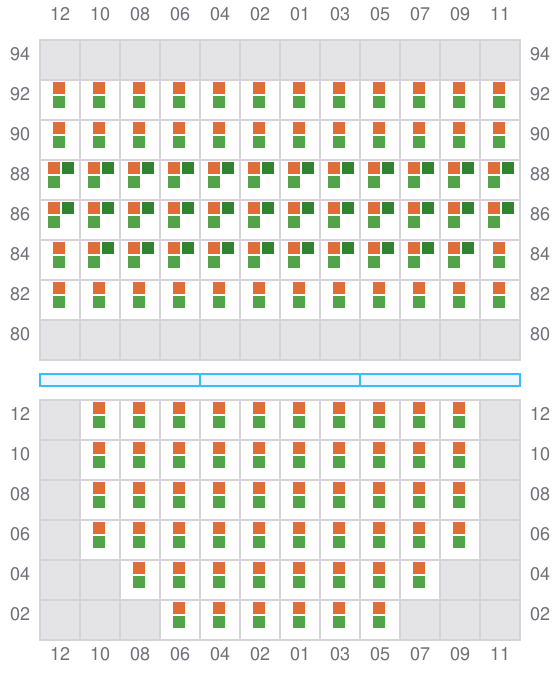

Bay 019 view and slots of AS CALIFORNIA

021 (022)

Bay 021 view and slots of AS CALIFORNIA

023

Bay 023 view and slots of AS CALIFORNIA

025 (026)

Bay 025 view and slots of AS CALIFORNIA

027

Bay 027 view and slots of AS CALIFORNIA

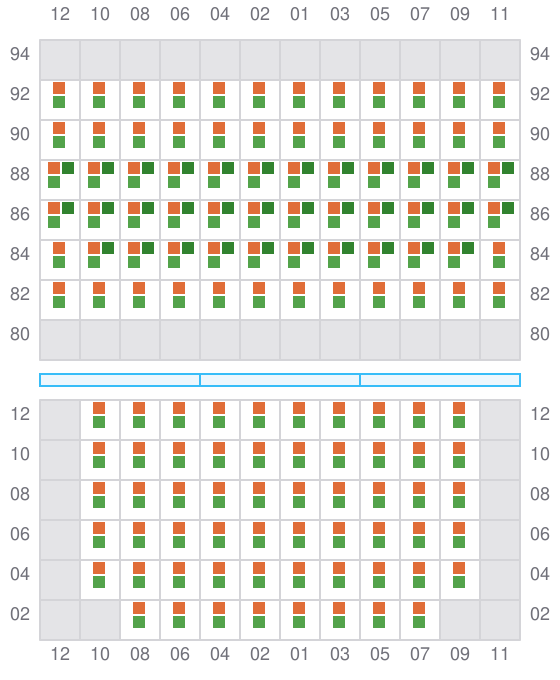

029 (030)

Bay 029 view and slots of AS CALIFORNIA

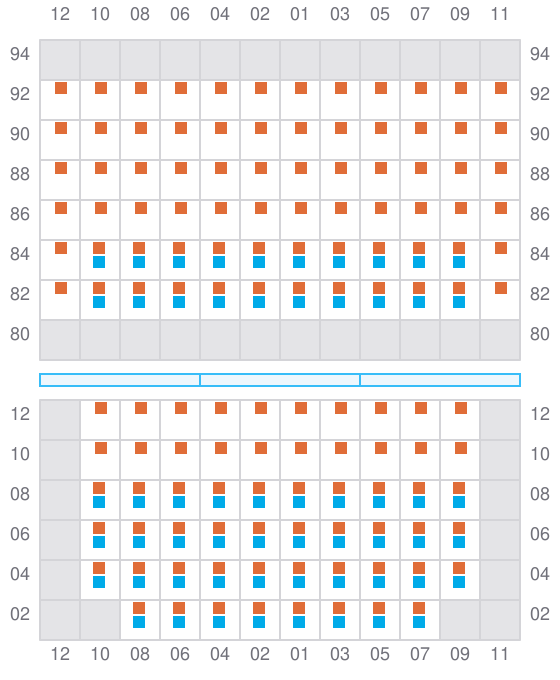

031

Bay 031 view and slots of AS CALIFORNIA

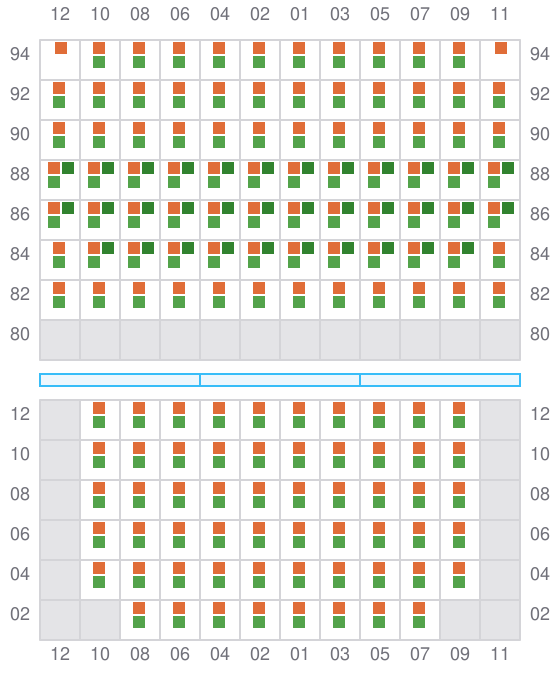

033 (034)

Bay 033 view and slots of AS CALIFORNIA

035

Bay 035 view and slots of AS CALIFORNIA

037 (038)

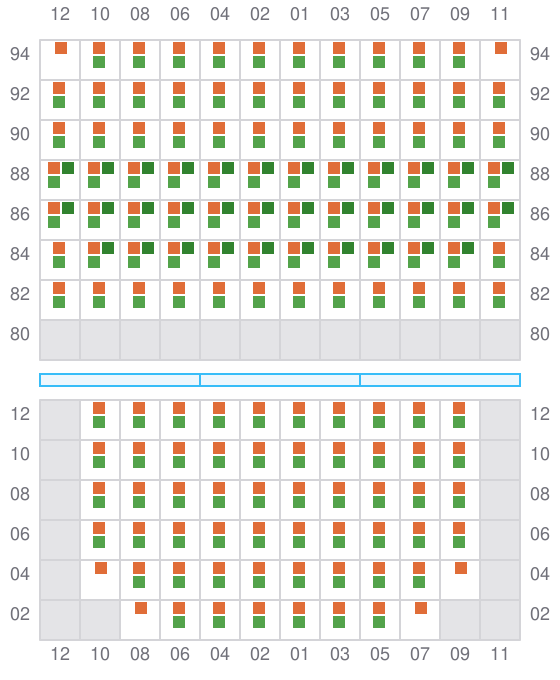

Bay 037 view and slots of AS CALIFORNIA

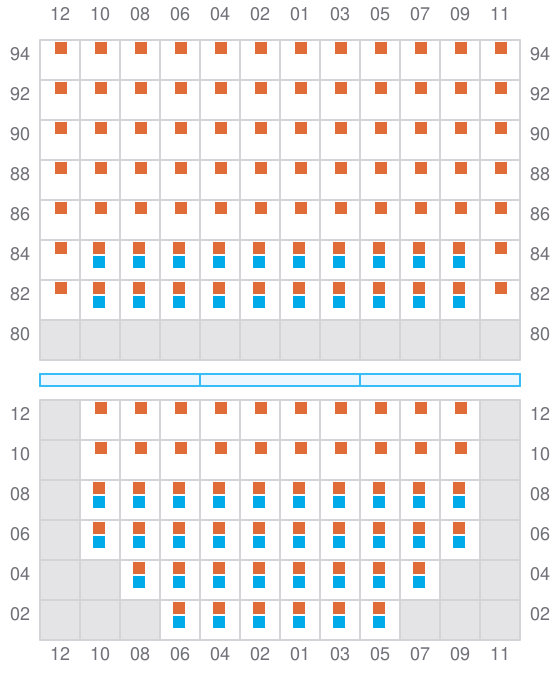

039

Bay 039 view and slots of AS CALIFORNIA

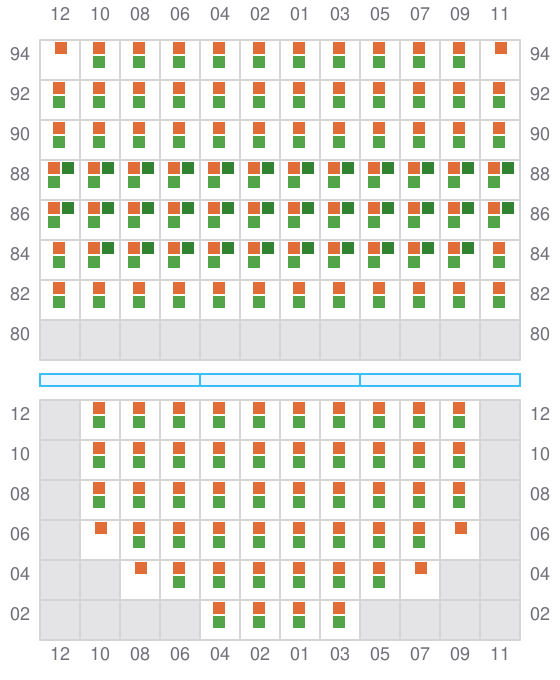

041 (042)

  • / ?
Bay 041 view and slots of AS CALIFORNIA

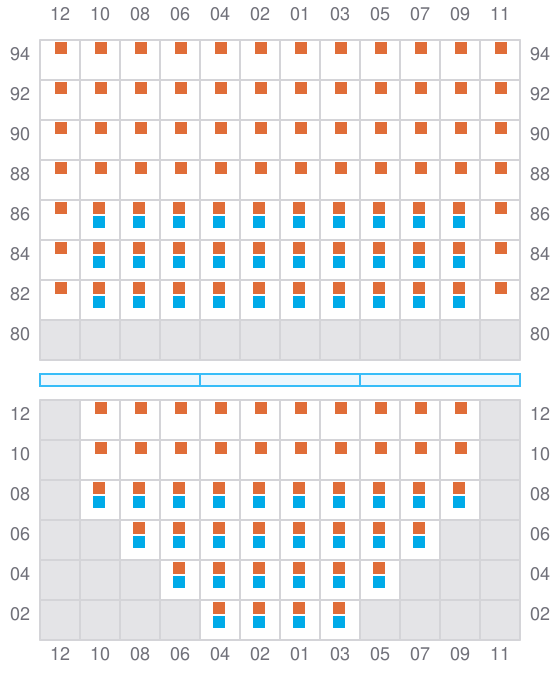

043

Bay 043 view and slots of AS CALIFORNIA

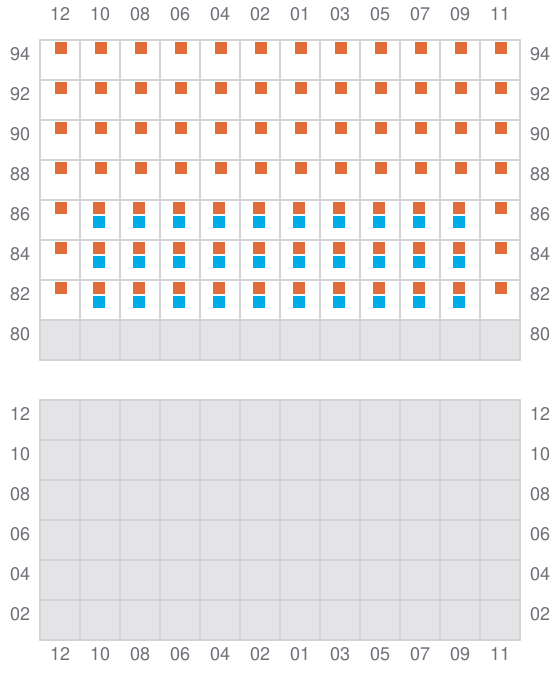

045

  • / ?
Bay 045 view and slots of AS CALIFORNIA

047

  • / ?

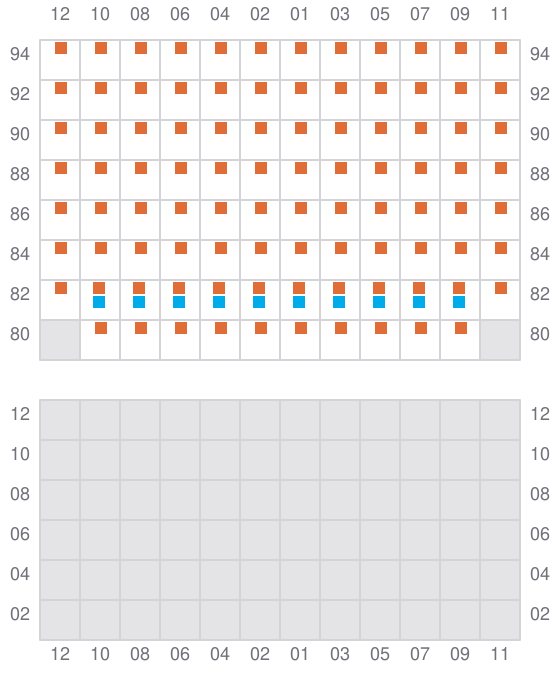

Bay 047 view and slots of AS CALIFORNIA

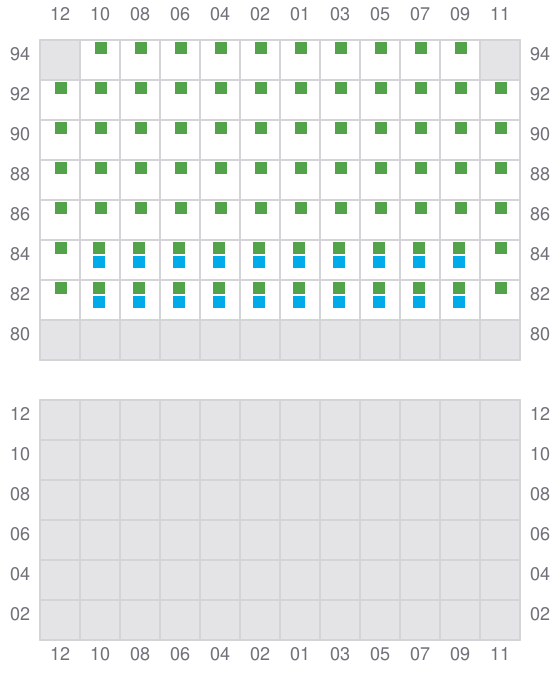

049 (050)

  • / ?
Bay 049 view and slots of AS CALIFORNIA
