AS CARELIA
9309409 | CQIX2 | 9309409 by ********* Last update: Wed Apr 10 2024

General Info

Ship Name:AS CARELIA
IMO Code:9309409
Call Sign:CQIX2
Line Operator:9309409
Class Name for Sister Ships:CMA
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:049
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,824

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of AS CARELIA

Hatch-Covers View

Deck view of AS CARELIA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

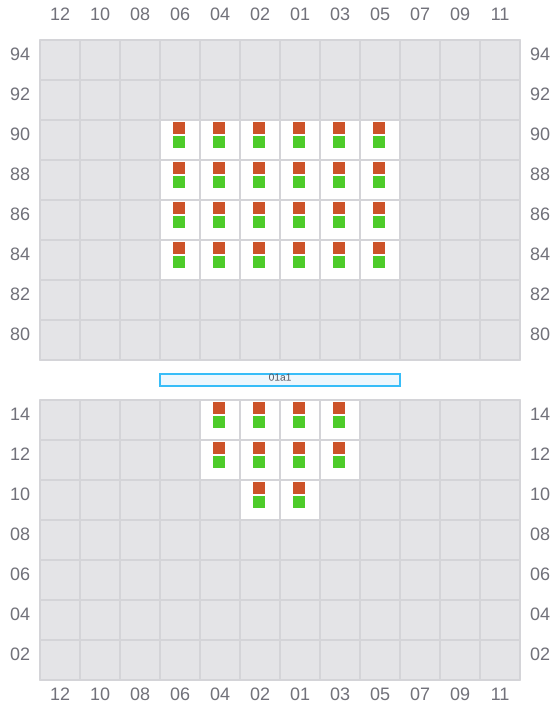

001 (002)

Bay 001 view and slots of AS CARELIA

003

Bay 003 view and slots of AS CARELIA

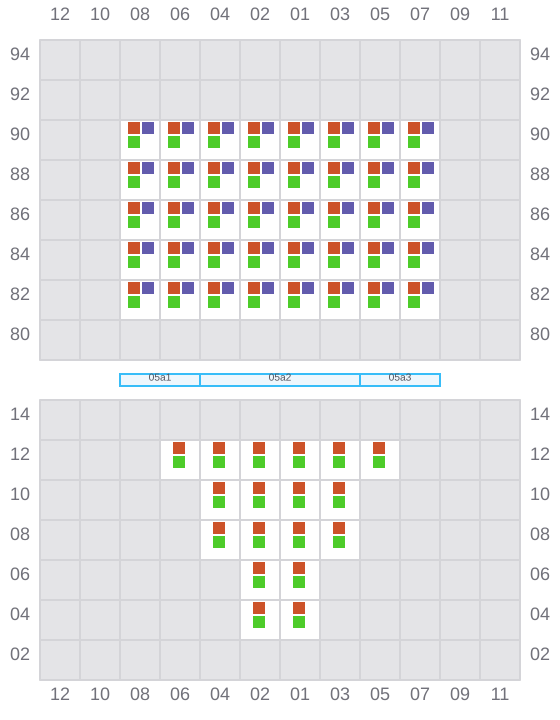

005 (006)

Bay 005 view and slots of AS CARELIA

007

Bay 007 view and slots of AS CARELIA

009 (010)

Bay 009 view and slots of AS CARELIA

011

Bay 011 view and slots of AS CARELIA

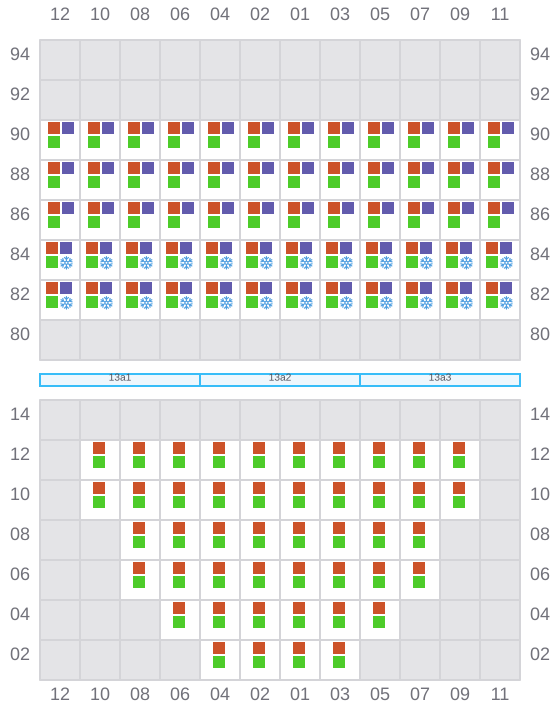

013 (014)

Bay 013 view and slots of AS CARELIA

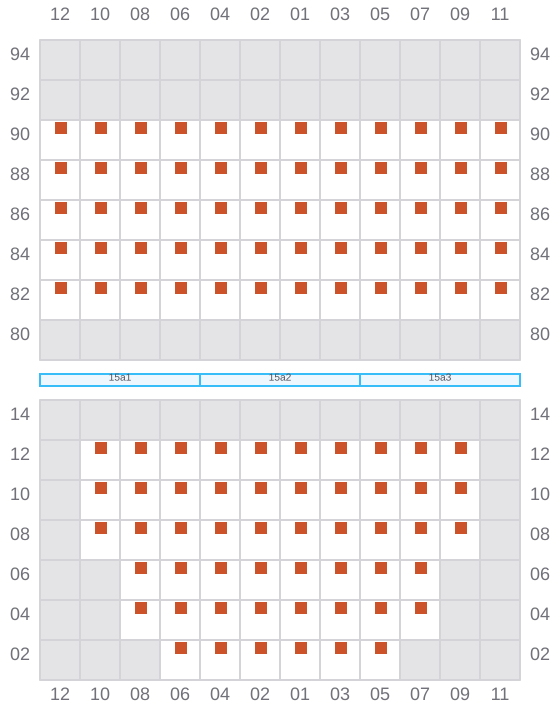

015

Bay 015 view and slots of AS CARELIA

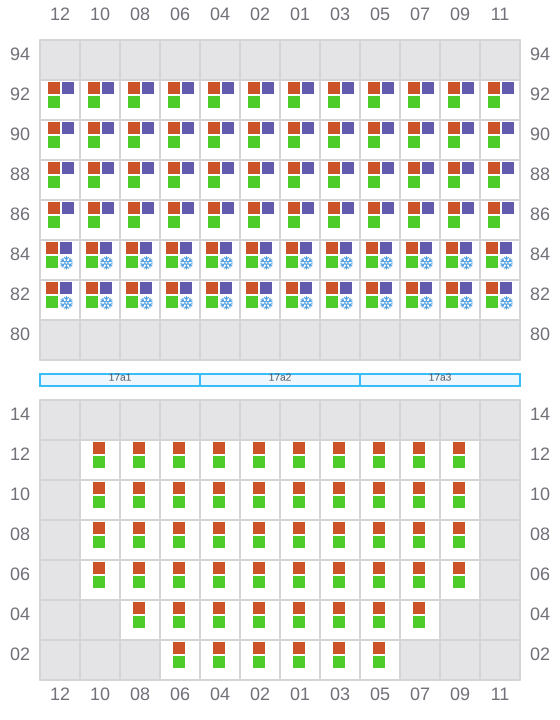

017 (018)

Bay 017 view and slots of AS CARELIA

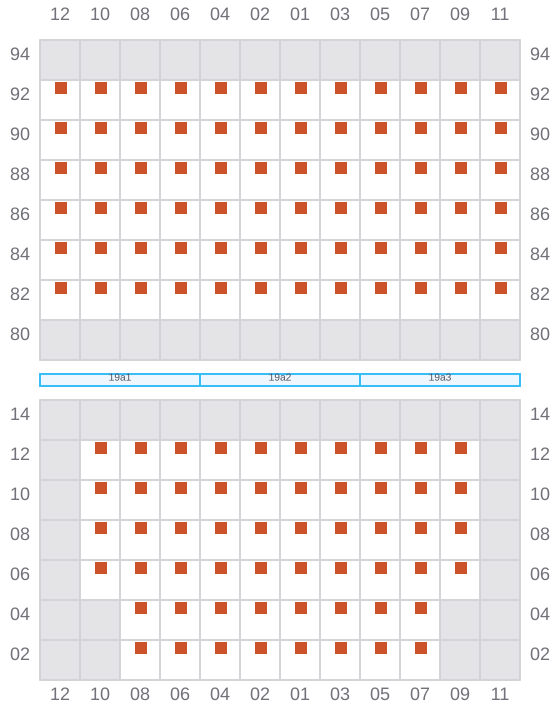

019

Bay 019 view and slots of AS CARELIA

021 (022)

Bay 021 view and slots of AS CARELIA

023

Bay 023 view and slots of AS CARELIA

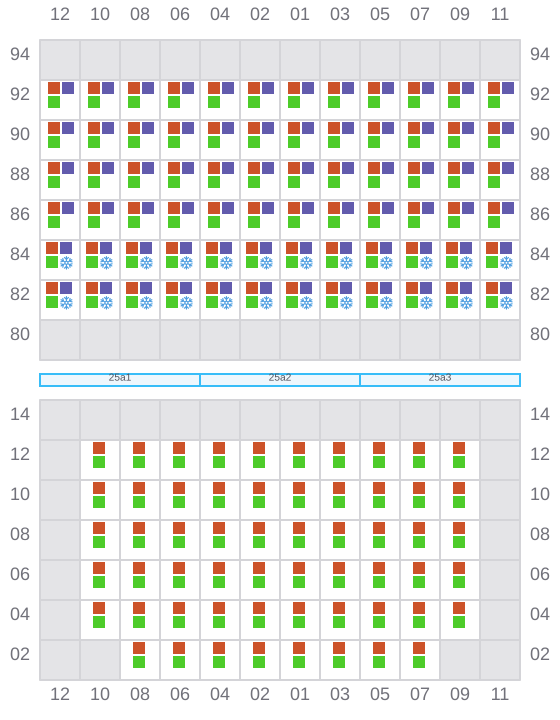

025 (026)

Bay 025 view and slots of AS CARELIA

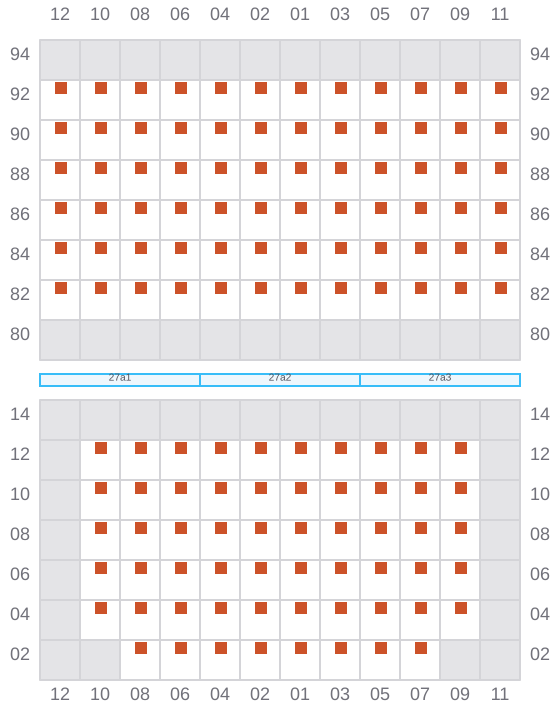

027

Bay 027 view and slots of AS CARELIA

029 (030)

Bay 029 view and slots of AS CARELIA

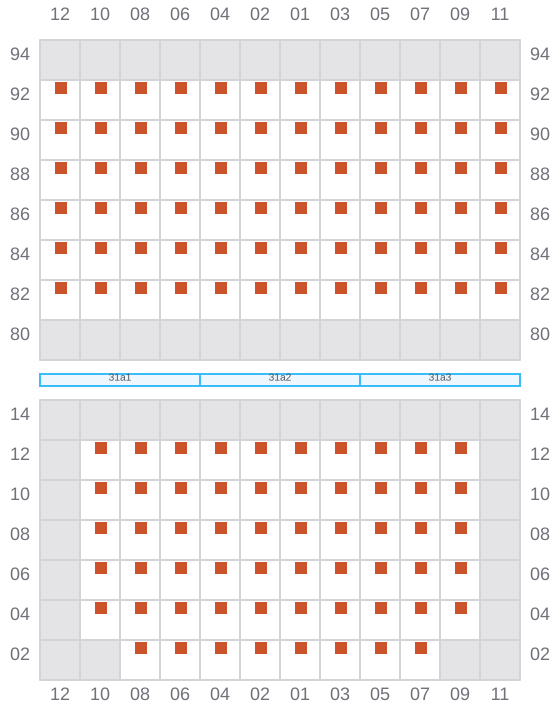

031

Bay 031 view and slots of AS CARELIA

033 (034)

Bay 033 view and slots of AS CARELIA

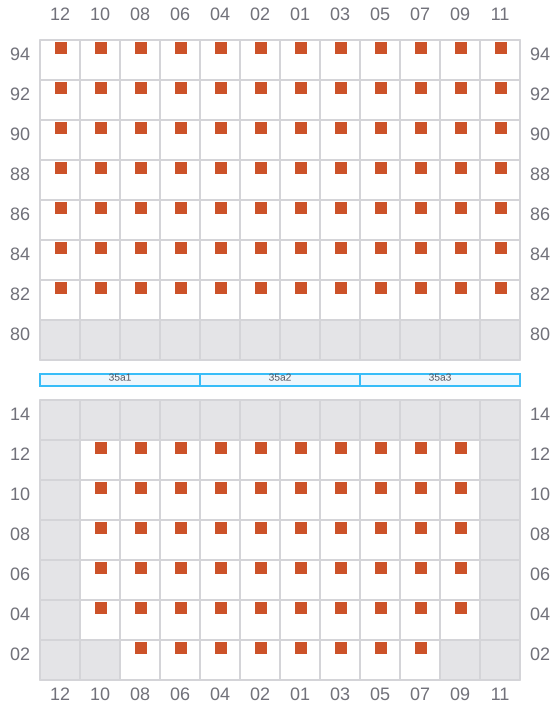

035

Bay 035 view and slots of AS CARELIA

037 (038)

Bay 037 view and slots of AS CARELIA

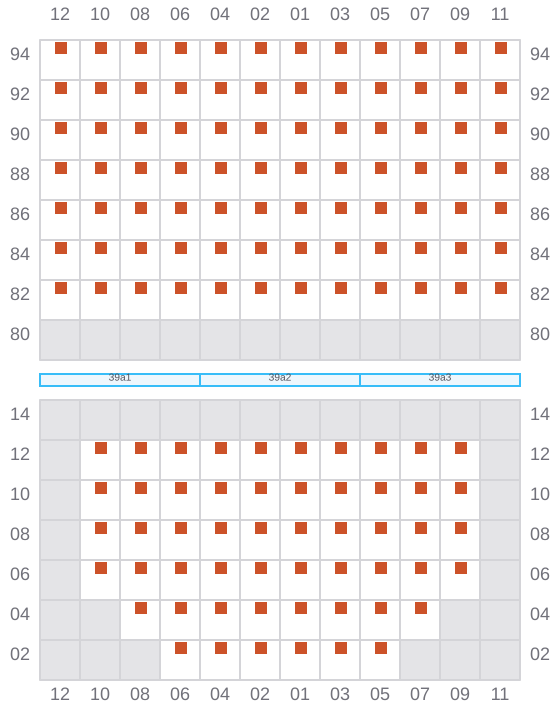

039

Bay 039 view and slots of AS CARELIA

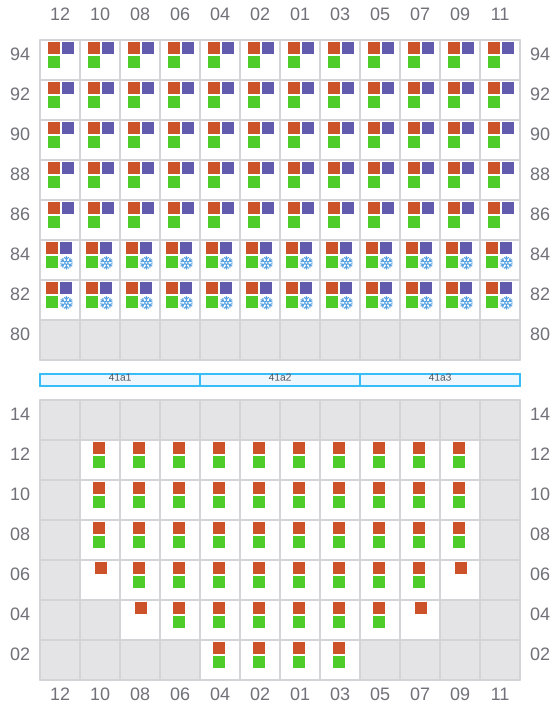

041 (042)

Bay 041 view and slots of AS CARELIA

043

Bay 043 view and slots of AS CARELIA

045 (046)

Bay 045 view and slots of AS CARELIA

047

Bay 047 view and slots of AS CARELIA

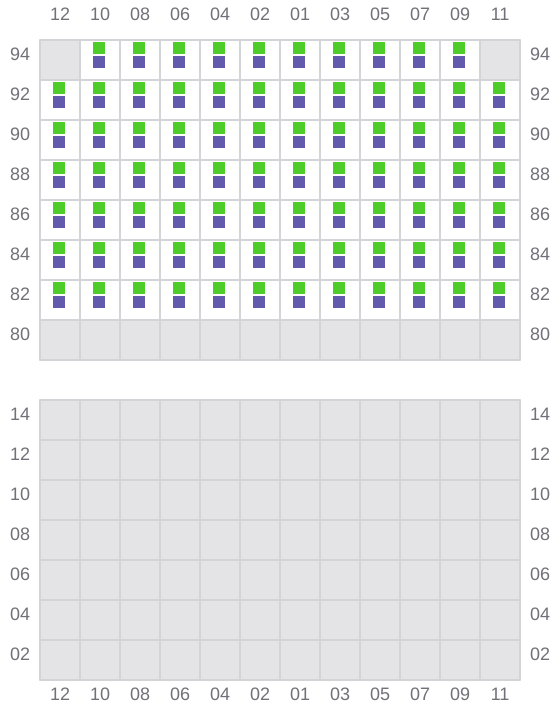

049 (050)

Bay 049 view and slots of AS CARELIA
