AS CAROLINA
9314935 | CQAC7 | 9314935 by ********* Last update: Mon Apr 08 2024
General Info
Ship Name:AS CAROLINA
IMO Code:9314935
Call Sign:CQAC7
Line Operator:9314935
Class Name for Sister Ships:CMA CGM VIOLET
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:051
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,832
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

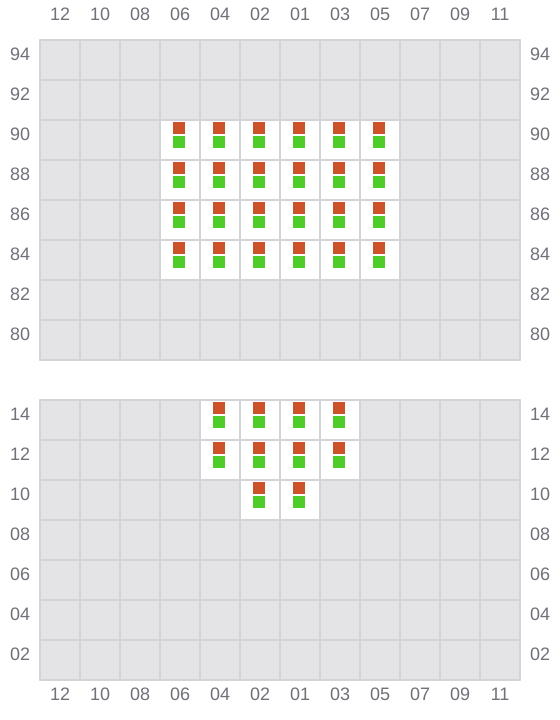

001 (002)
- →

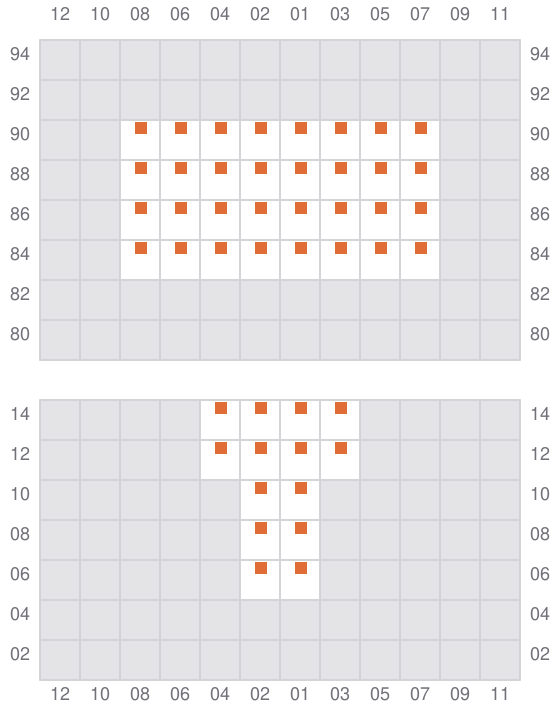

003
- ←

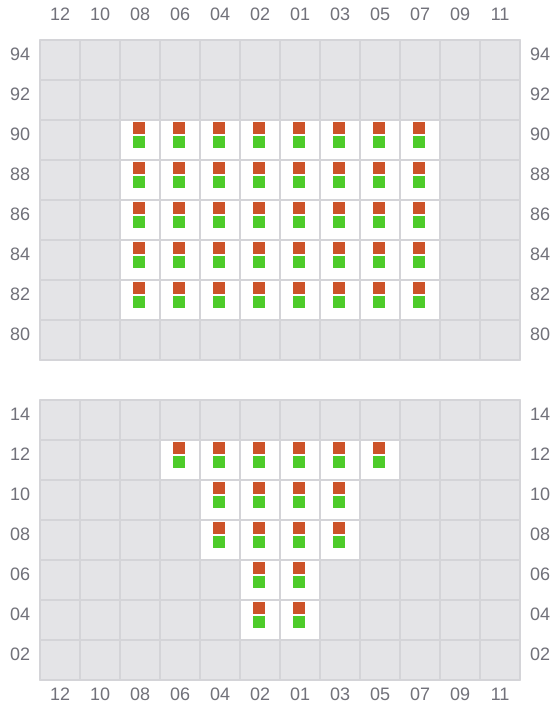

005 (006)
- →

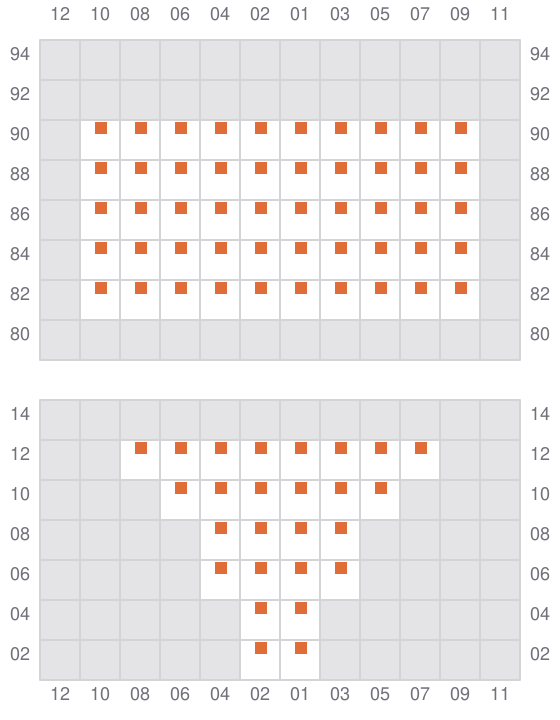

007
- ←

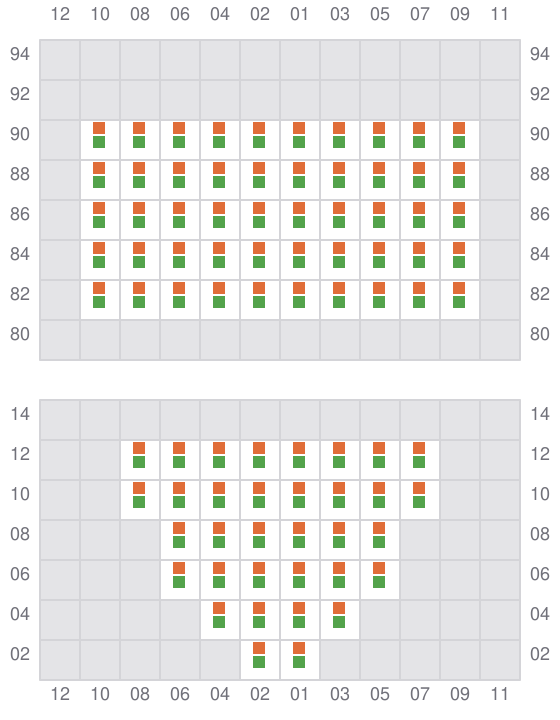

009 (010)
- →

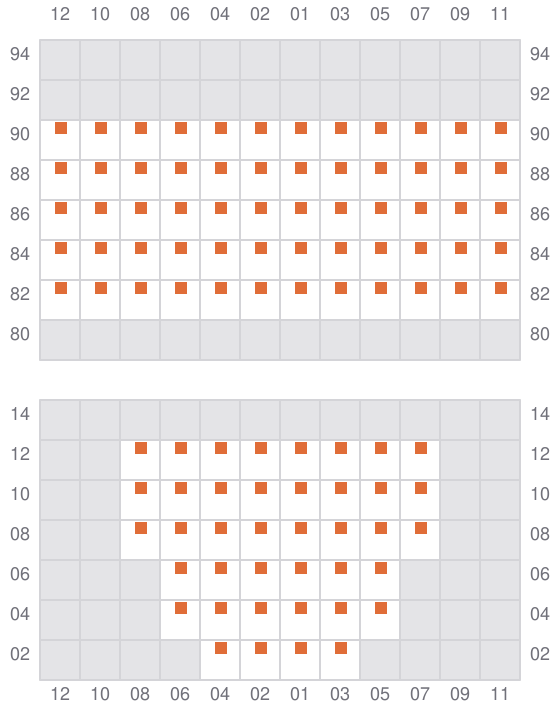

011
- ←

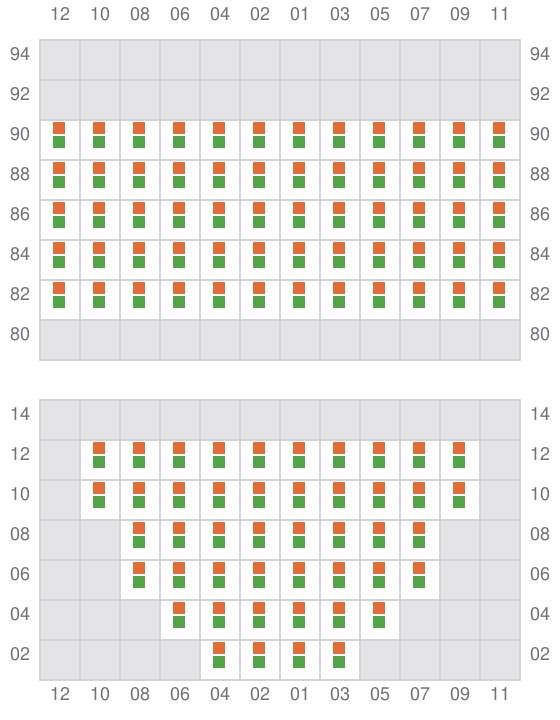

013 (014)
- →

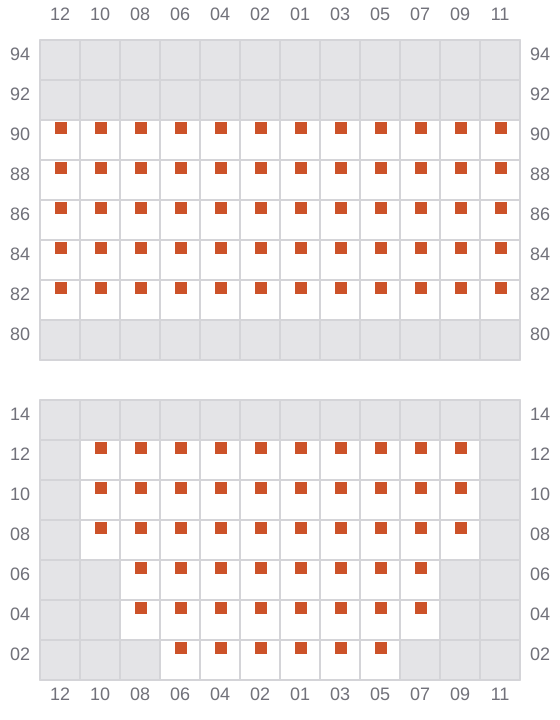

015
- ←

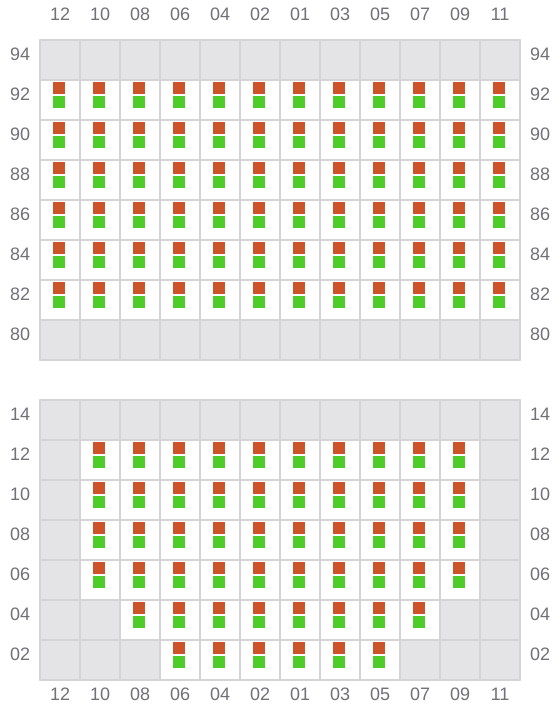

017 (018)
- →

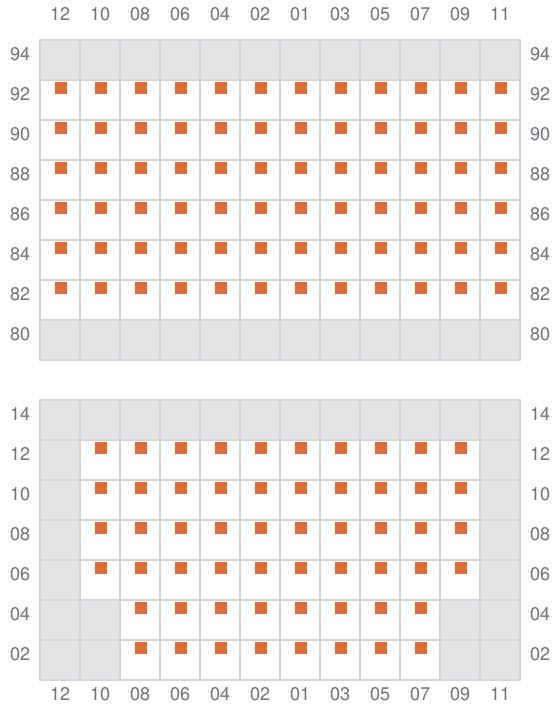

019
- ←

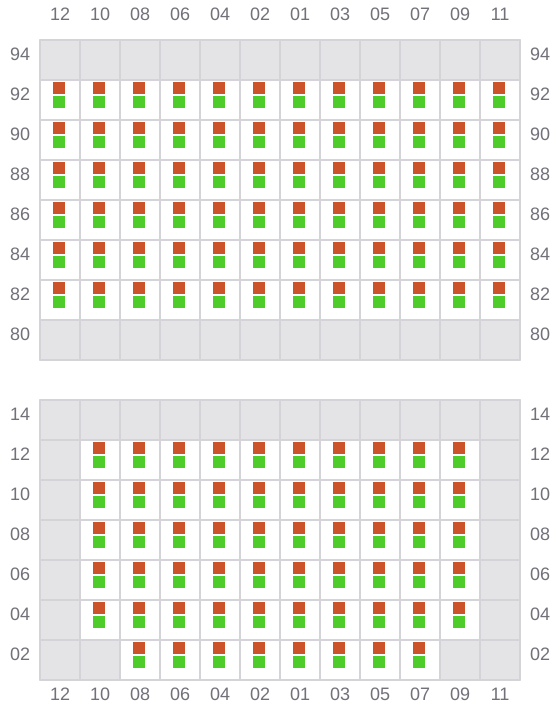

021 (022)
- →
023
- ←
025 (026)
- →

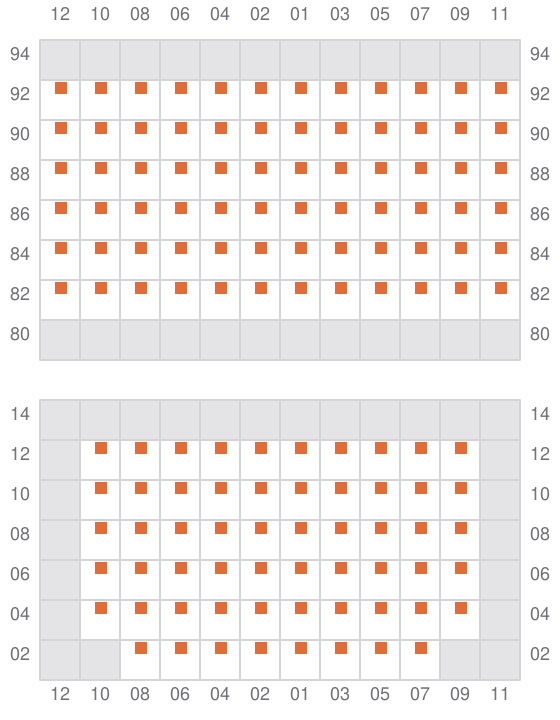

027
- ←
029 (030)
- →

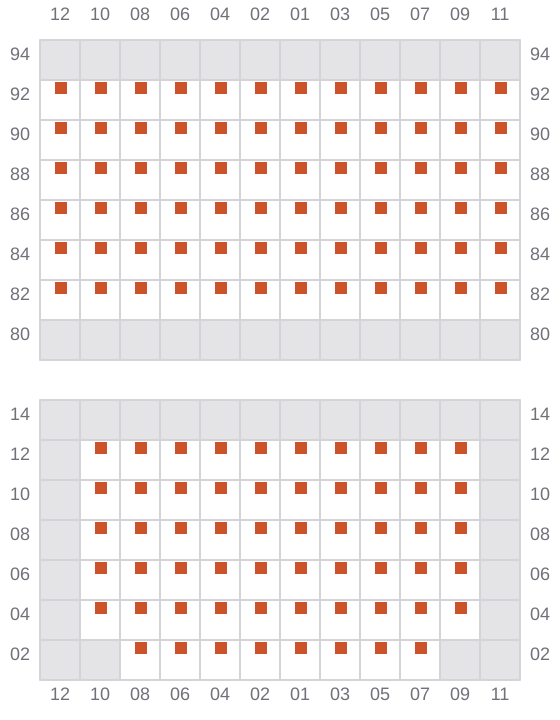

031
- ←

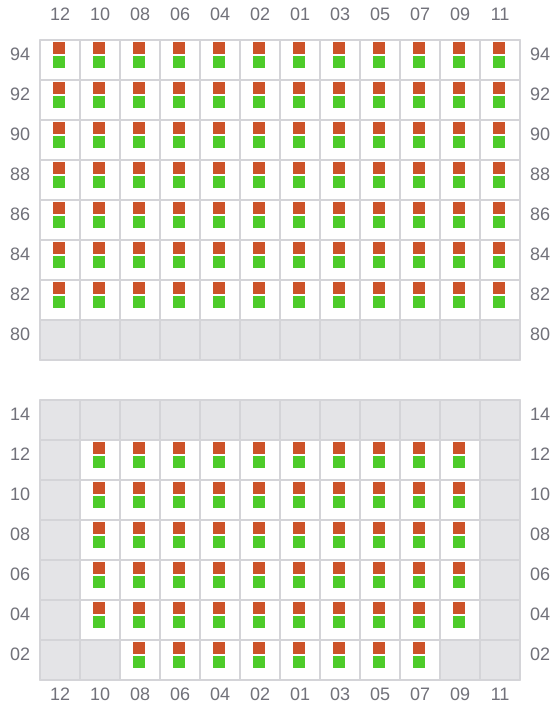

033 (034)
- →

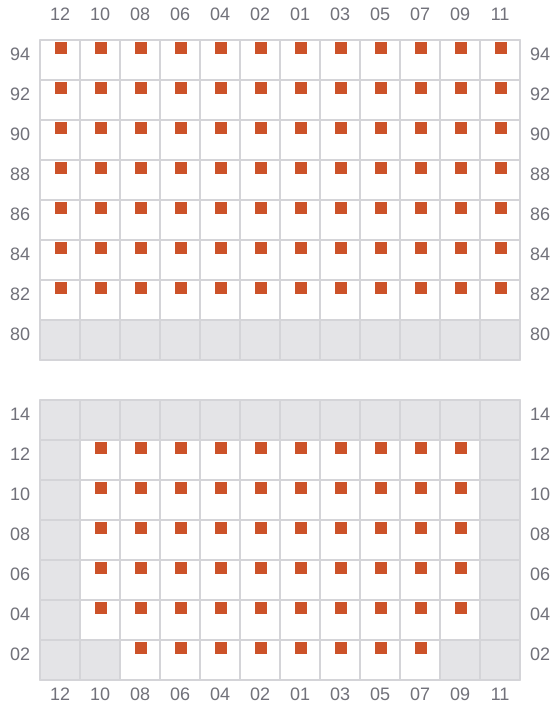

035
- ←

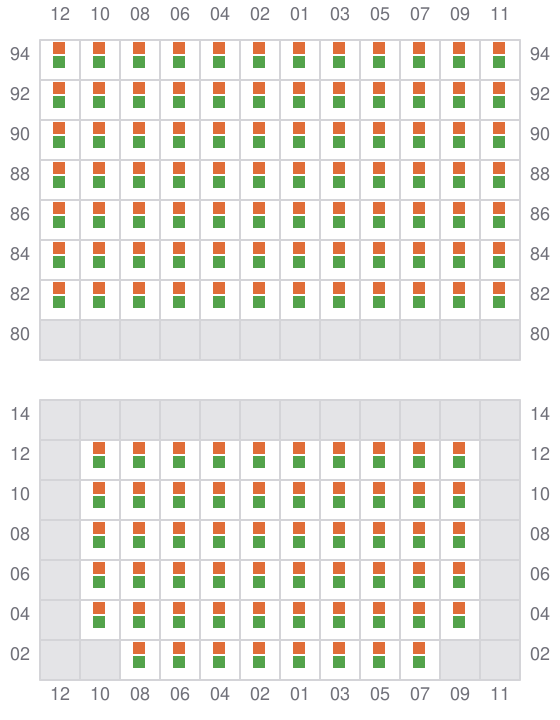

037 (038)
- →

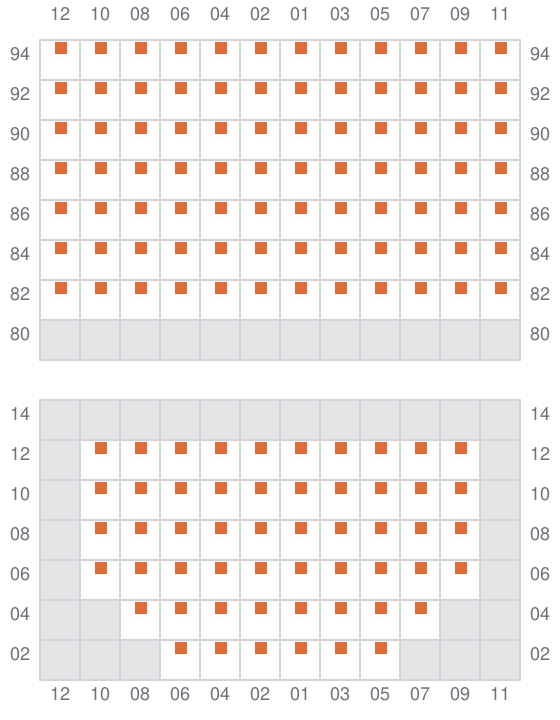

039
- ←

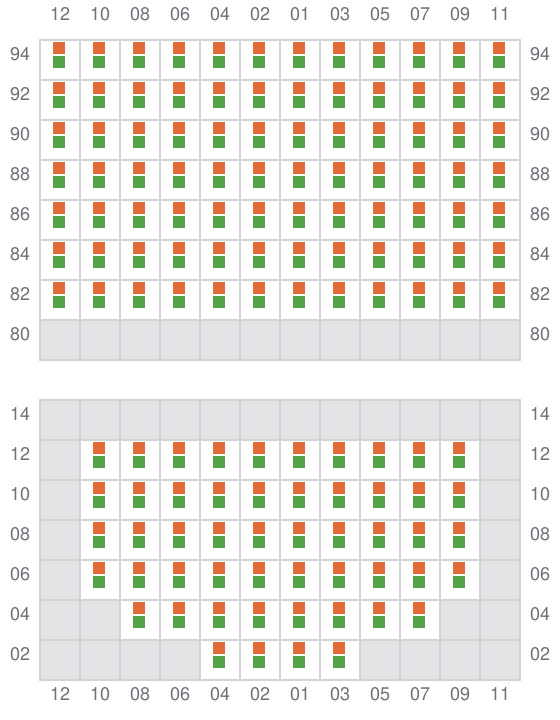

041 (042)
- →

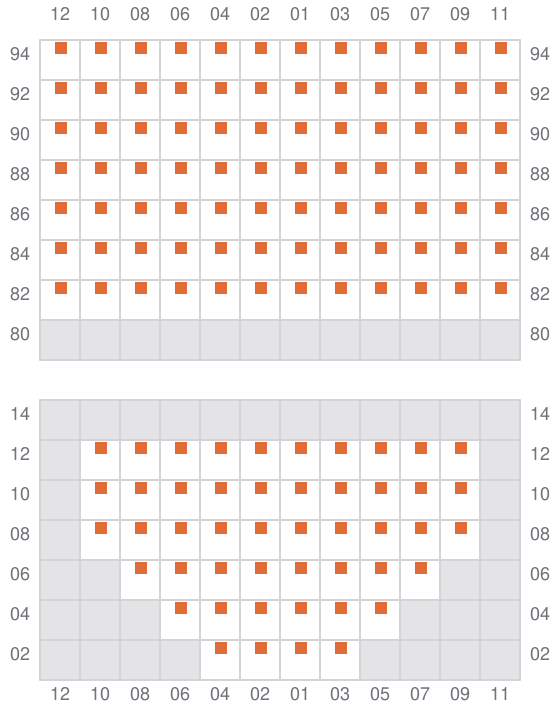

043
- ←
045 (046)
- → / ?

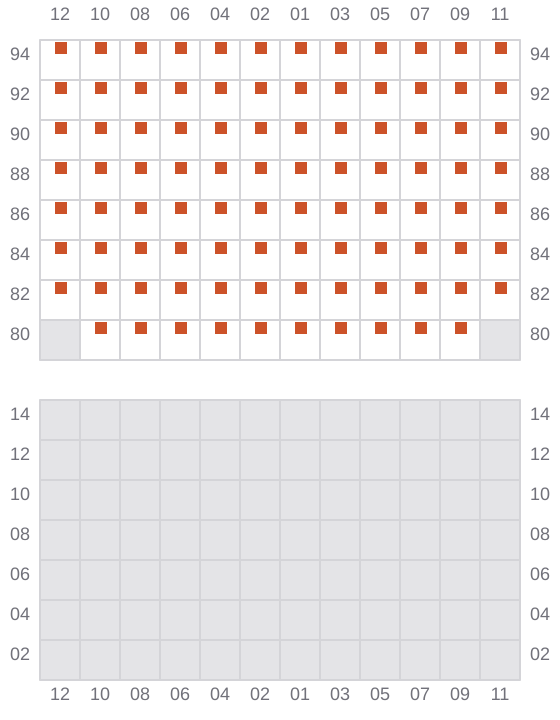

047
- ← / ?

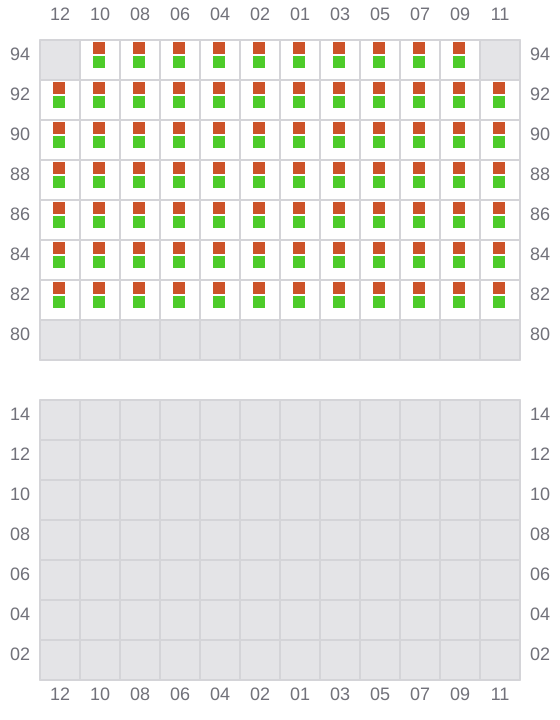

049 (050)
- → / ?

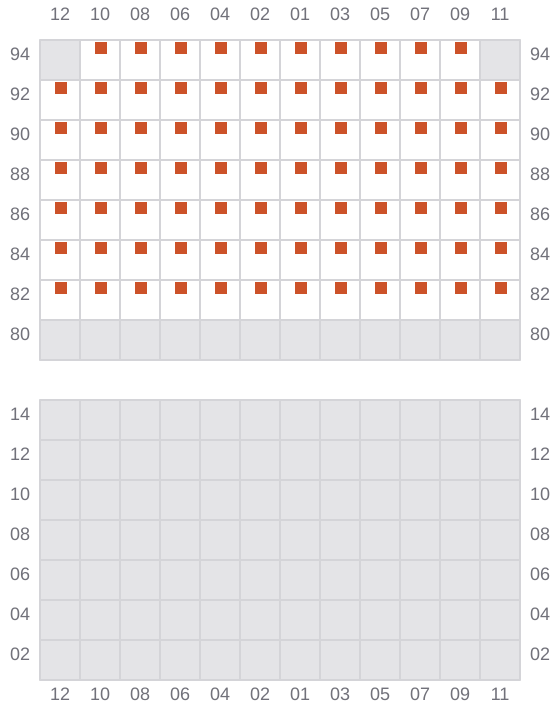

051
- ← / ?
