AS CLARITA
9300972 | CQIW3 | 9300972 by ********* Last update: Thu Jun 20 2024

General Info

Ship Name:AS CLARITA
IMO Code:9300972
Call Sign:CQIW3
Line Operator:9300972
Class Name for Sister Ships:MCC
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:045
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,958

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

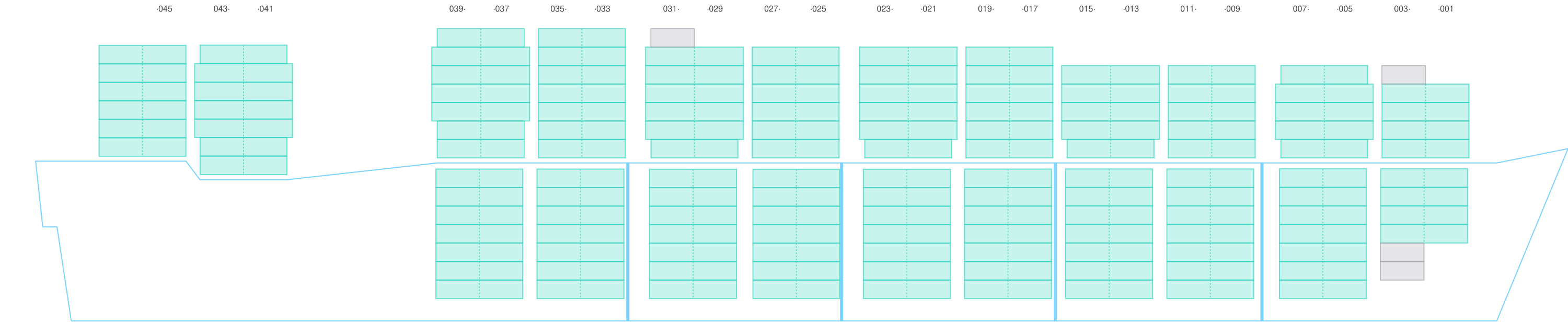

Side View

Side view of AS CLARITA

Hatch-Covers View

Deck view of AS CLARITA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

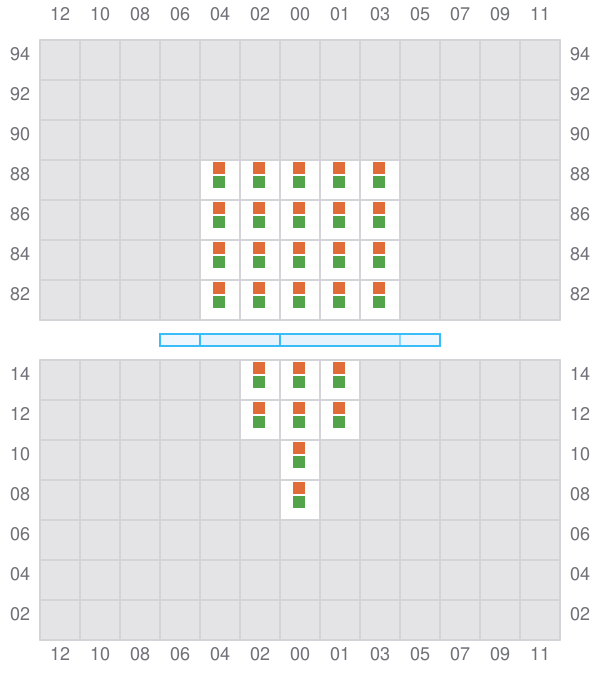

Bay 001 view and slots of AS CLARITA

003

  • ←

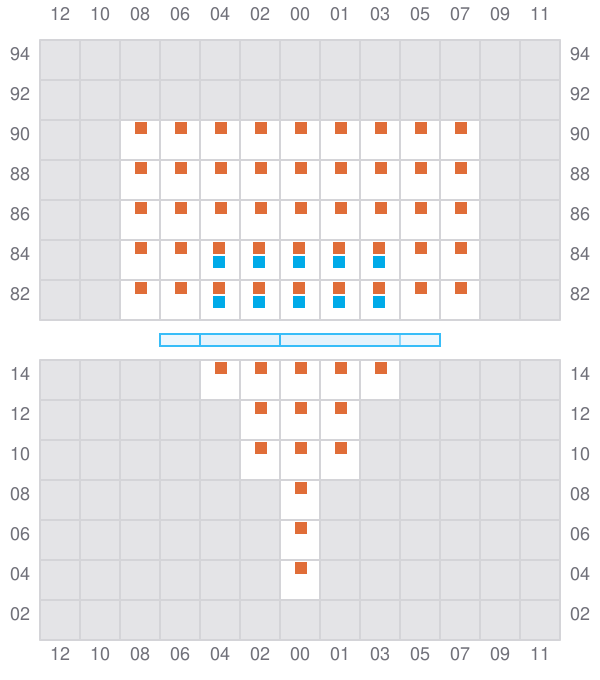

Bay 003 view and slots of AS CLARITA

005 (006)

  • →
  • ← / ?

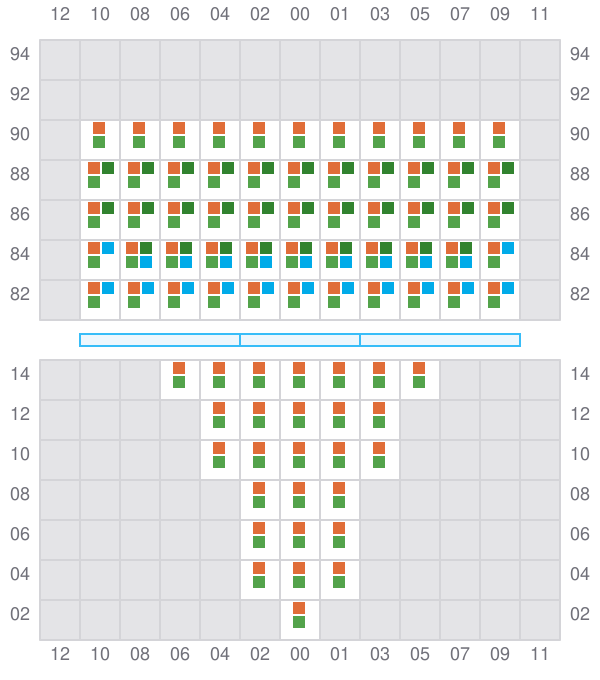

Bay 005 view and slots of AS CLARITA

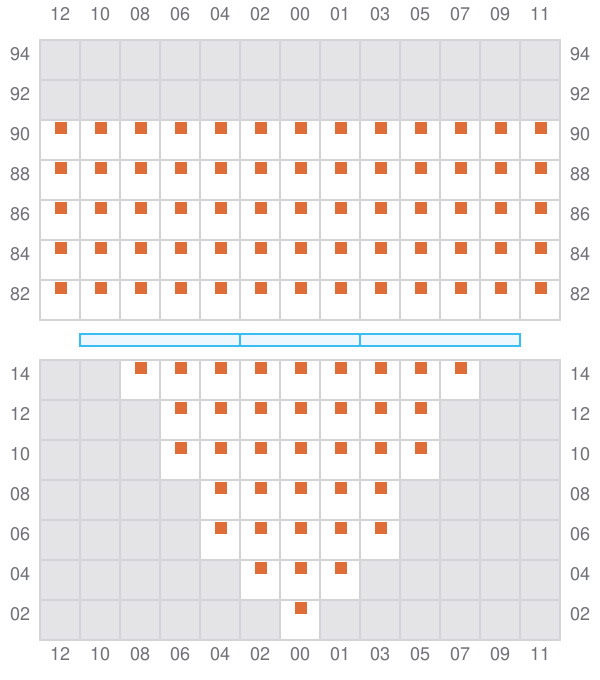

007

  • ←
  • ? / →
Bay 007 view and slots of AS CLARITA

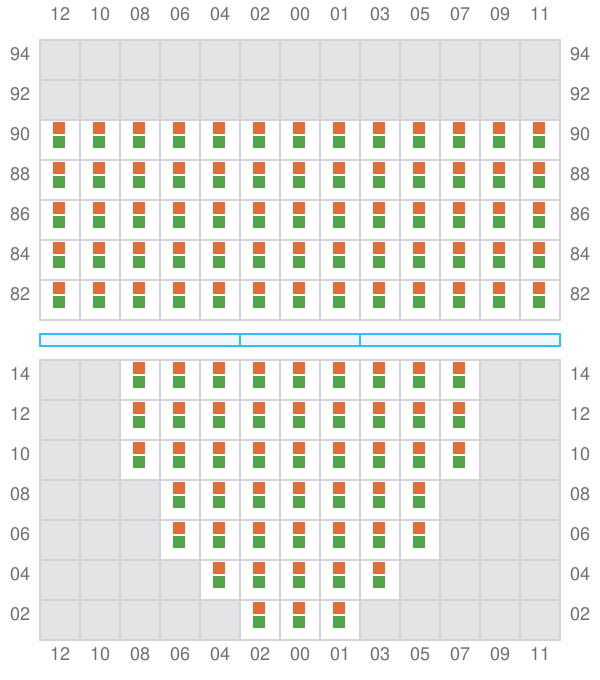

009 (010)

  • →
Bay 009 view and slots of AS CLARITA

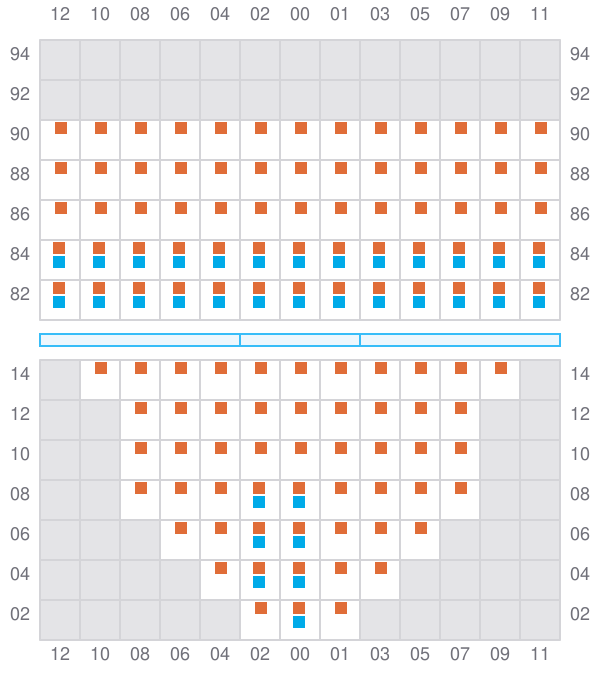

011

  • ←
  • →
Bay 011 view and slots of AS CLARITA

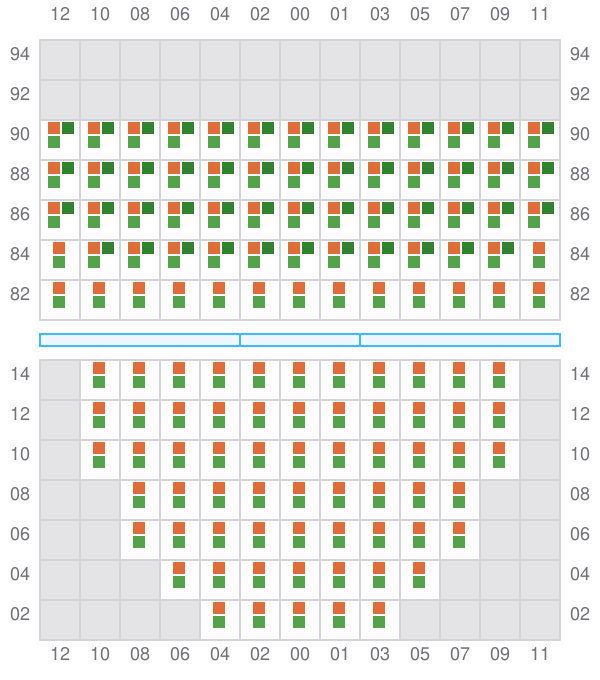

013 (014)

  • →
Bay 013 view and slots of AS CLARITA

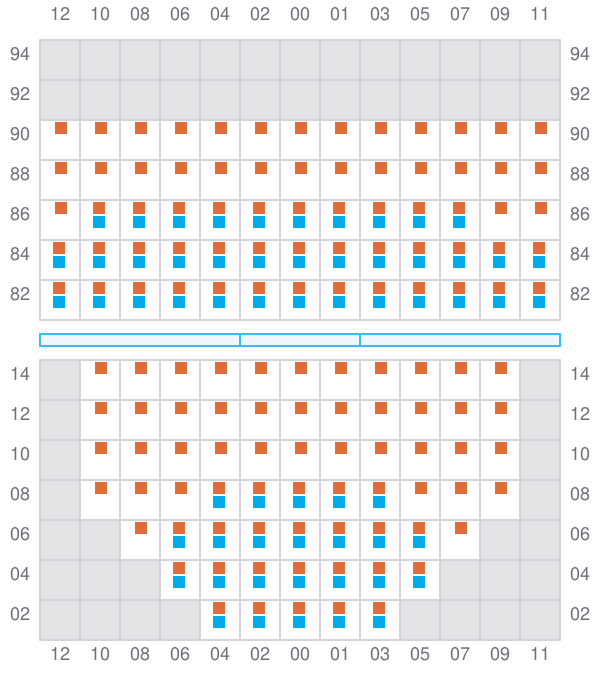

015

  • ←
  • →
Bay 015 view and slots of AS CLARITA

017 (018)

  • →

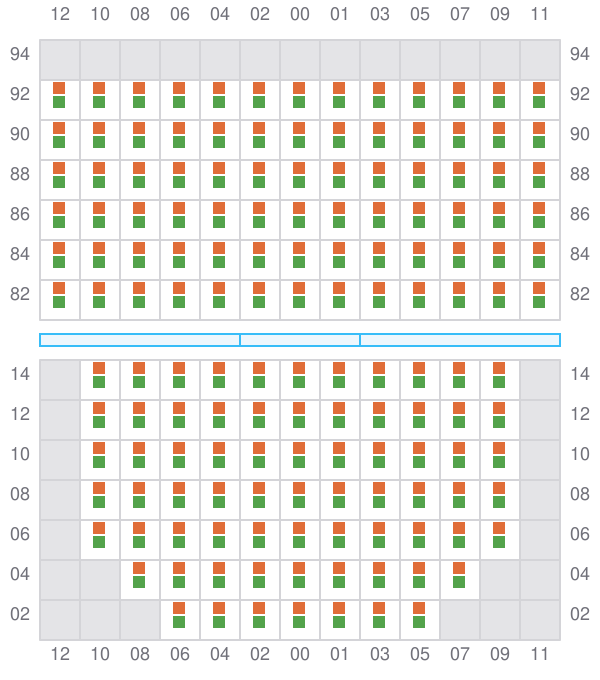

Bay 017 view and slots of AS CLARITA

019

  • ←
  • →

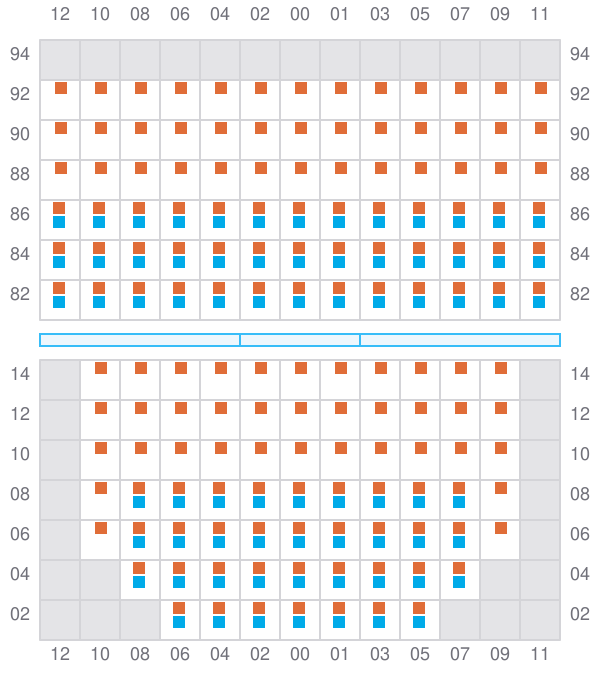

Bay 019 view and slots of AS CLARITA

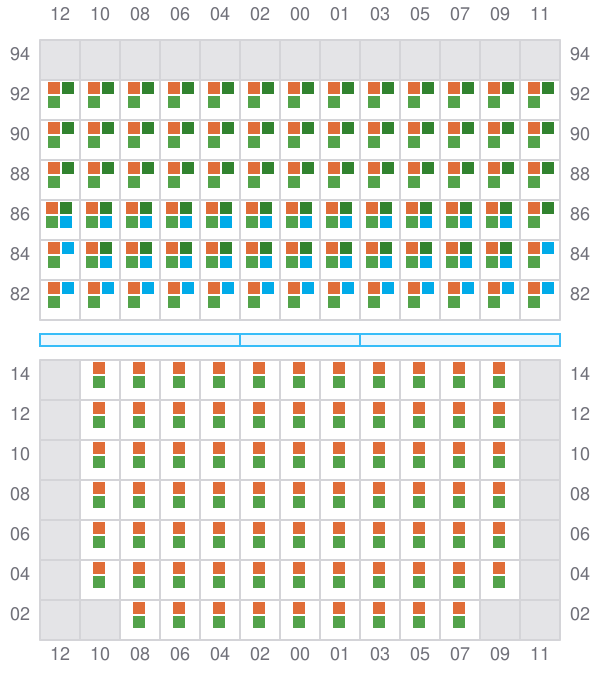

021 (022)

  • →
  • ← / ?
Bay 021 view and slots of AS CLARITA

023

  • ←
  • ? / →

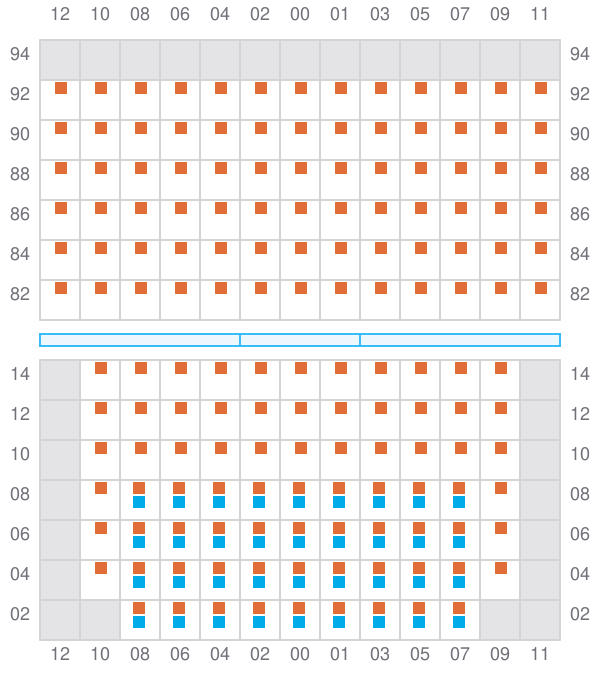

Bay 023 view and slots of AS CLARITA

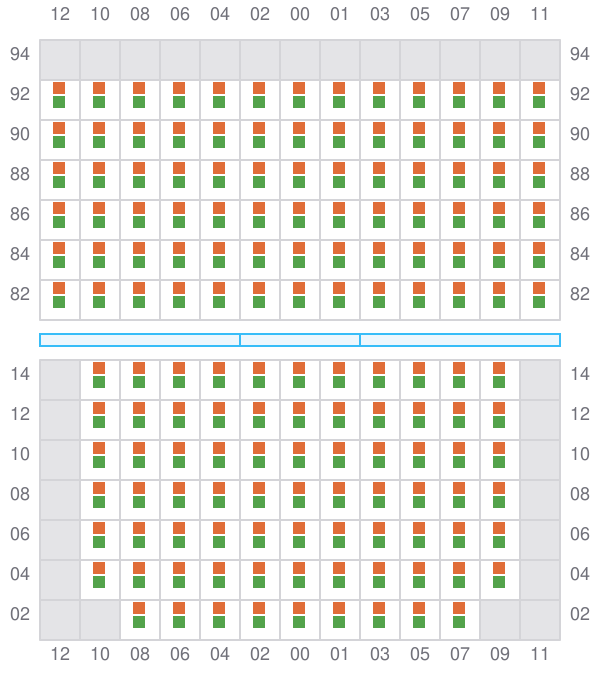

025 (026)

  • →
Bay 025 view and slots of AS CLARITA

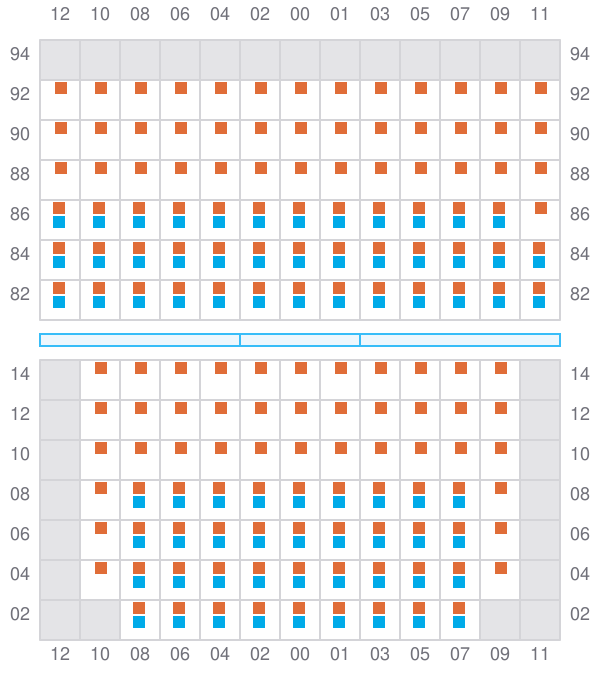

027

  • ←
  • →
Bay 027 view and slots of AS CLARITA

029 (030)

  • →
  • ← / ?
Bay 029 view and slots of AS CLARITA

031

  • ←
  • ? / →

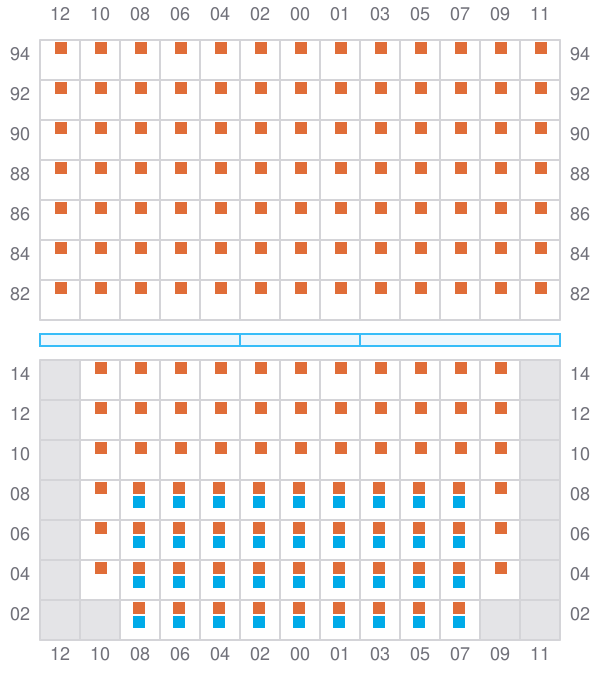

Bay 031 view and slots of AS CLARITA

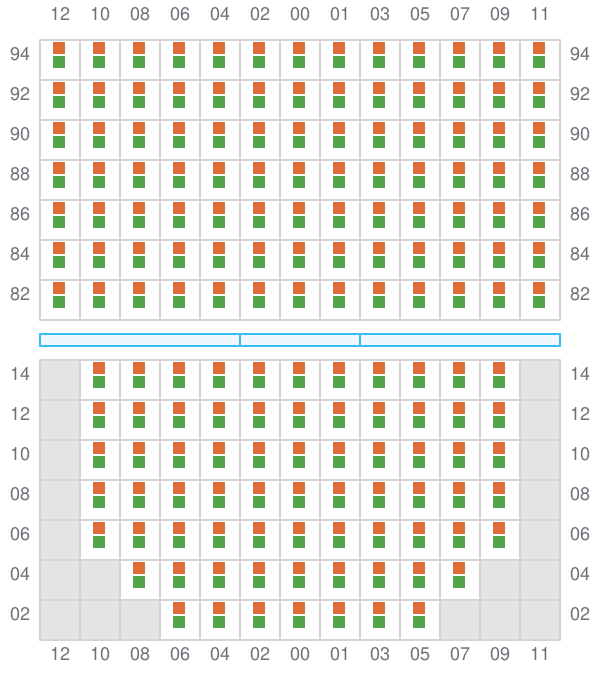

033 (034)

  • →
Bay 033 view and slots of AS CLARITA

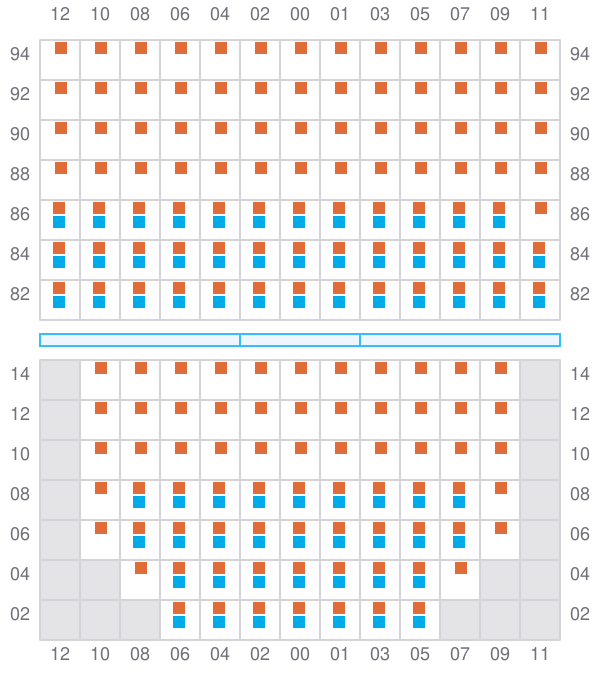

035

  • ←
  • →
Bay 035 view and slots of AS CLARITA

037 (038)

  • →
Bay 037 view and slots of AS CLARITA

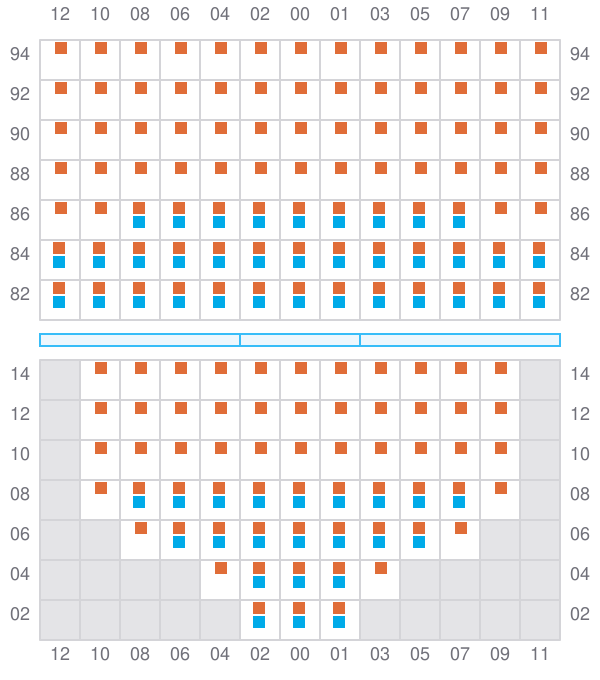

039

  • ←
  • →

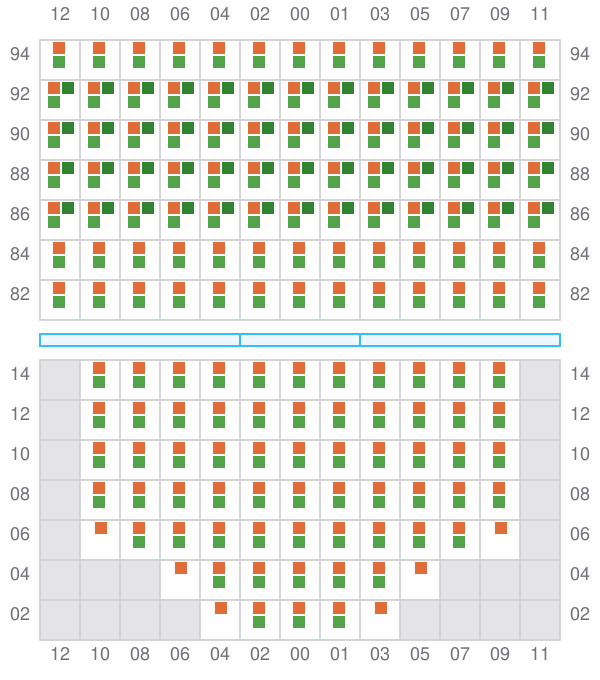

Bay 039 view and slots of AS CLARITA

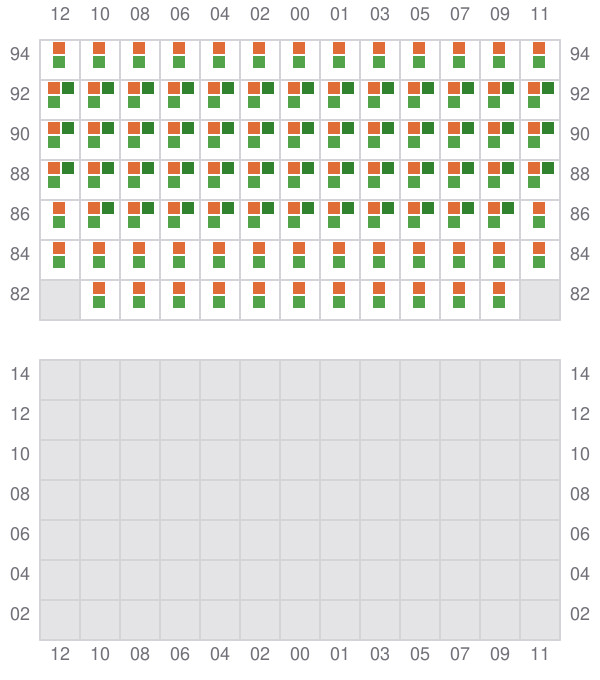

041 (042)

  • → / ?
  • ← / ?
Bay 041 view and slots of AS CLARITA

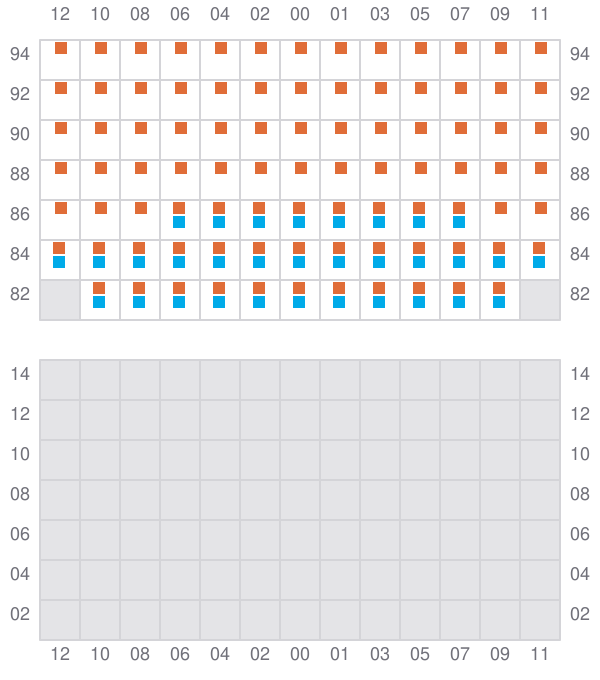

043

  • ← / ?
Bay 043 view and slots of AS CLARITA

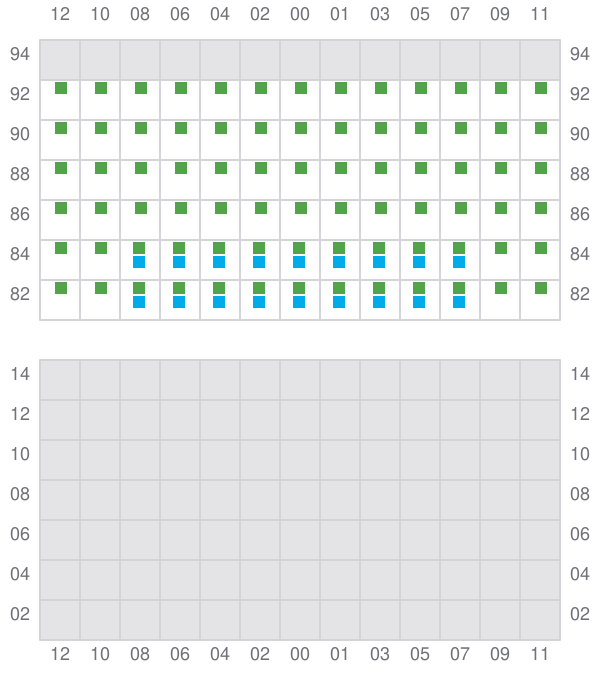

045 (046)

  • → / ?
  • ← / ?
Bay 045 view and slots of AS CLARITA
