AS CLAUDIA
9330549 | D5MS9 | 9330549 by ********* Last update: Wed Jul 31 2024

General Info

Ship Name:AS CLAUDIA
IMO Code:9330549
Call Sign:D5MS9
Line Operator:9330549
Class Name for Sister Ships:MCC
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
40' Bays Location:-

Size Summary

ISO Bays:049
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,824

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of AS CLAUDIA

Hatch-Covers View

Deck view of AS CLAUDIA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001 (002)

  • →

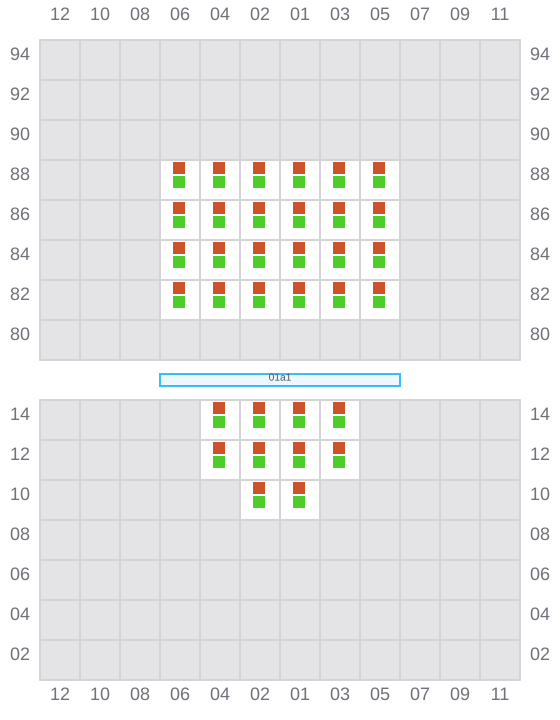

Bay 001 view and slots of AS CLAUDIA

003

  • ←

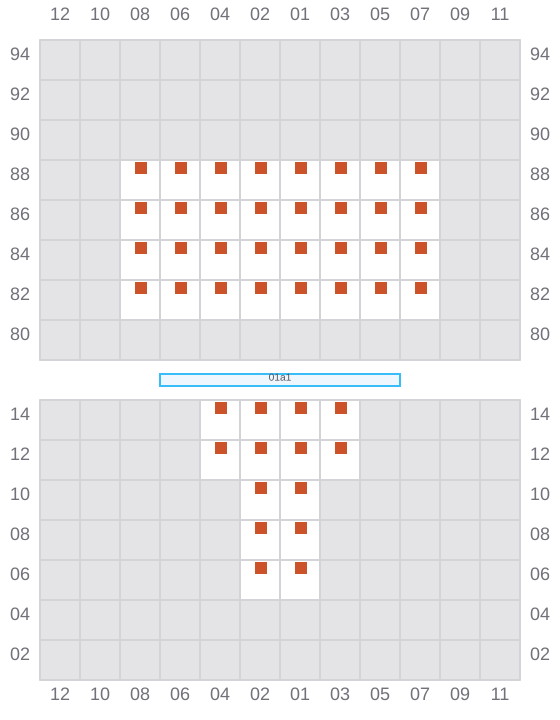

Bay 003 view and slots of AS CLAUDIA

005 (006)

  • →

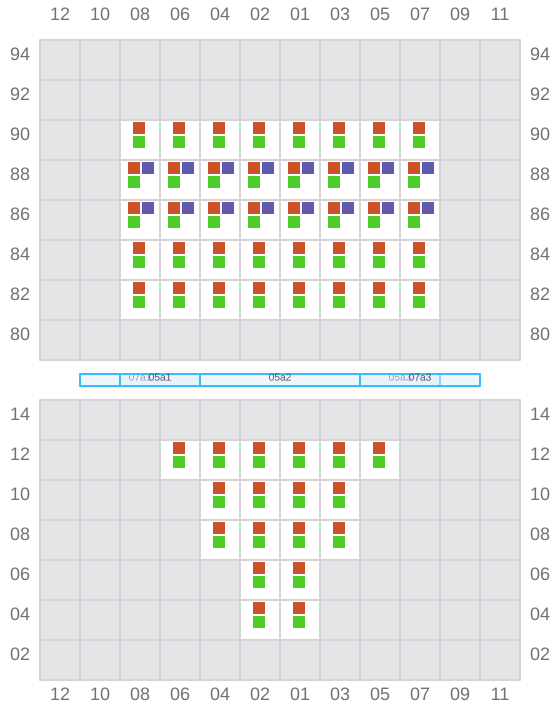

Bay 005 view and slots of AS CLAUDIA

007

  • ←
  • → / ?

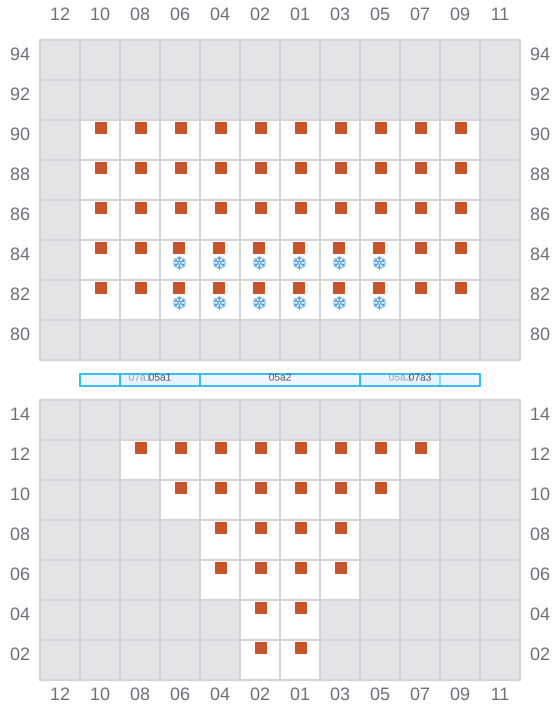

Bay 007 view and slots of AS CLAUDIA

009 (010)

  • →
  • ← / ?

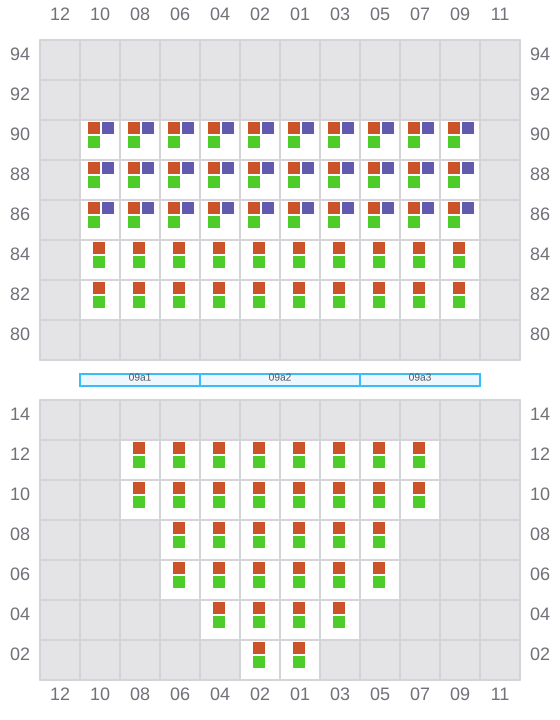

Bay 009 view and slots of AS CLAUDIA

011

  • ←
  • → / ?

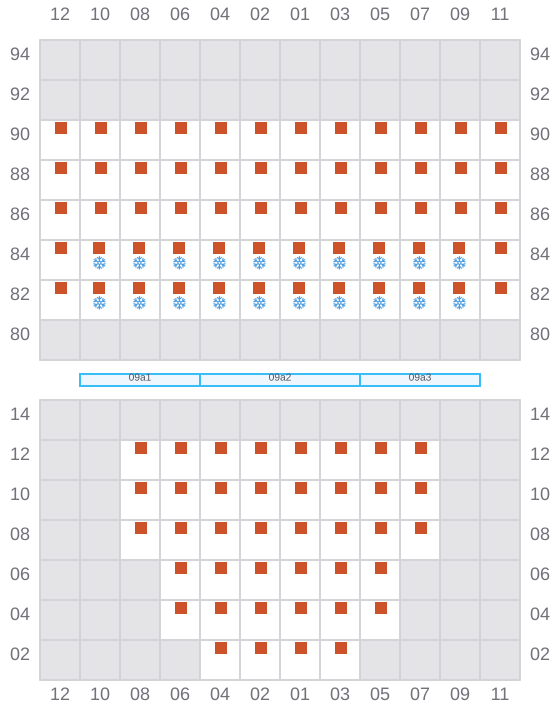

Bay 011 view and slots of AS CLAUDIA

013 (014)

  • →
  • → / ?

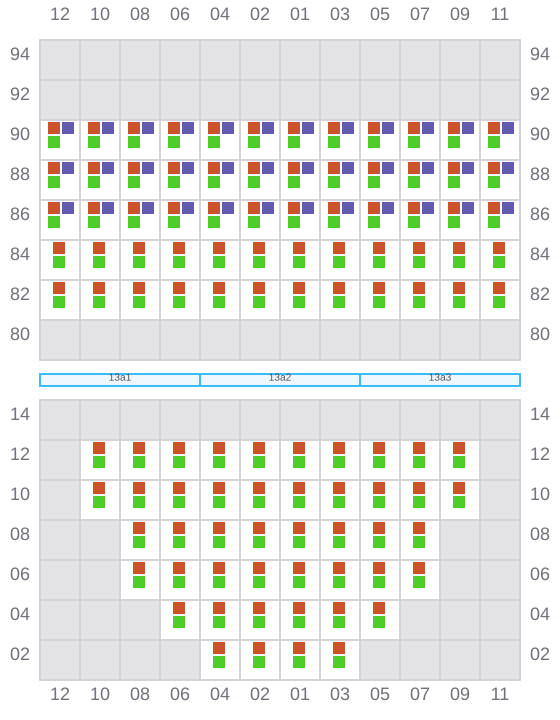

Bay 013 view and slots of AS CLAUDIA

015

  • ←
  • →

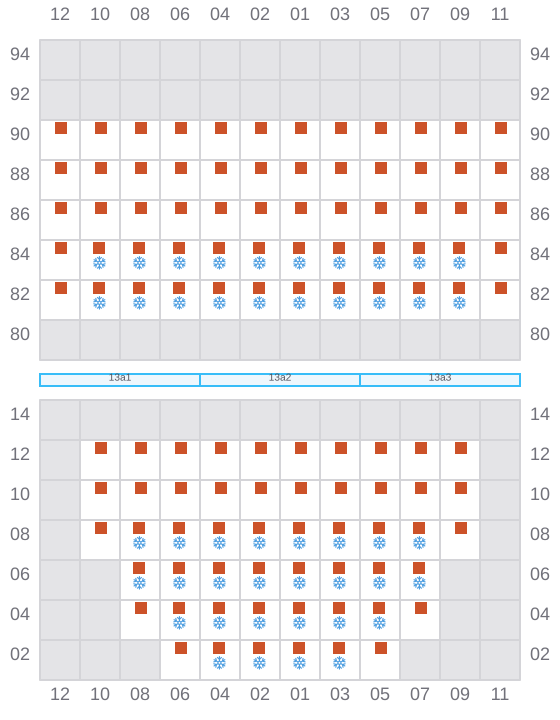

Bay 015 view and slots of AS CLAUDIA

017 (018)

  • →
Bay 017 view and slots of AS CLAUDIA

019

  • ←
  • →

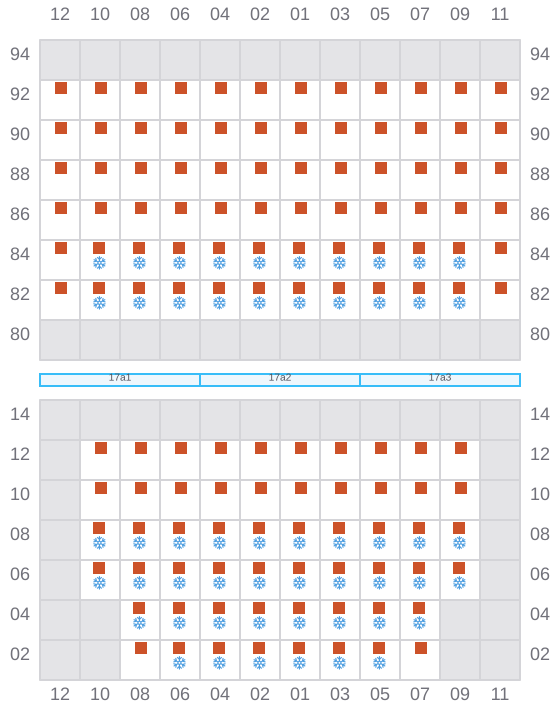

Bay 019 view and slots of AS CLAUDIA

021 (022)

  • →
Bay 021 view and slots of AS CLAUDIA

023

  • ←
  • →
Bay 023 view and slots of AS CLAUDIA

025 (026)

  • →

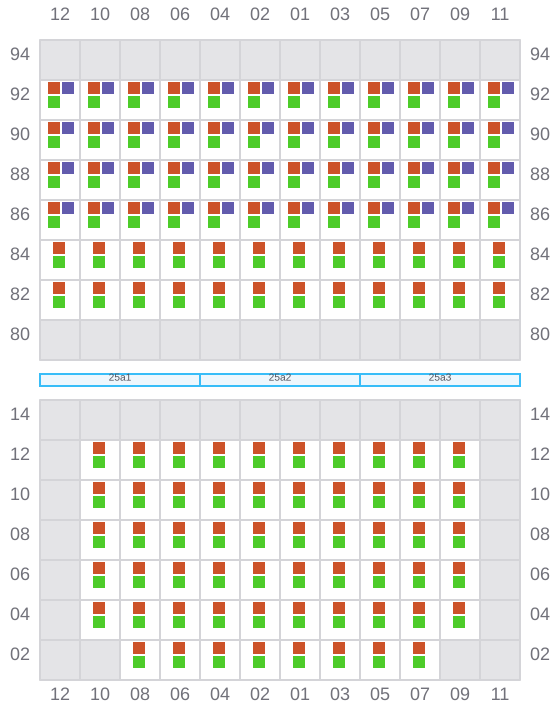

Bay 025 view and slots of AS CLAUDIA

027

  • ←
  • →
Bay 027 view and slots of AS CLAUDIA

029 (030)

  • →

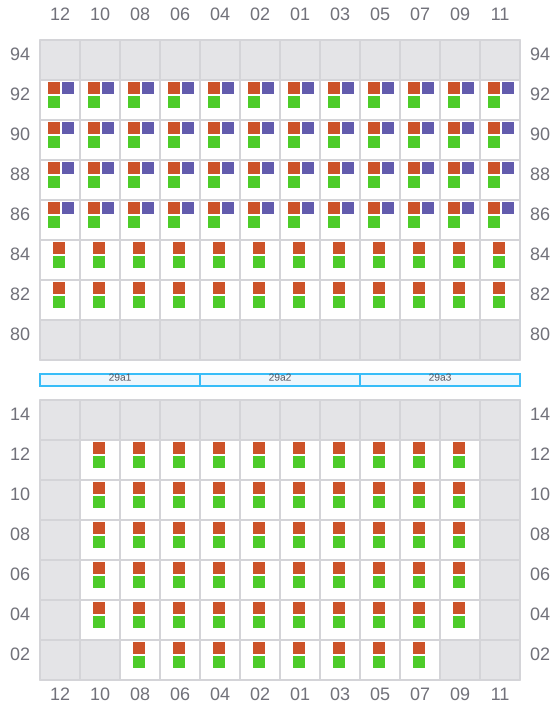

Bay 029 view and slots of AS CLAUDIA

031

  • ←
  • →
Bay 031 view and slots of AS CLAUDIA

033 (034)

  • →

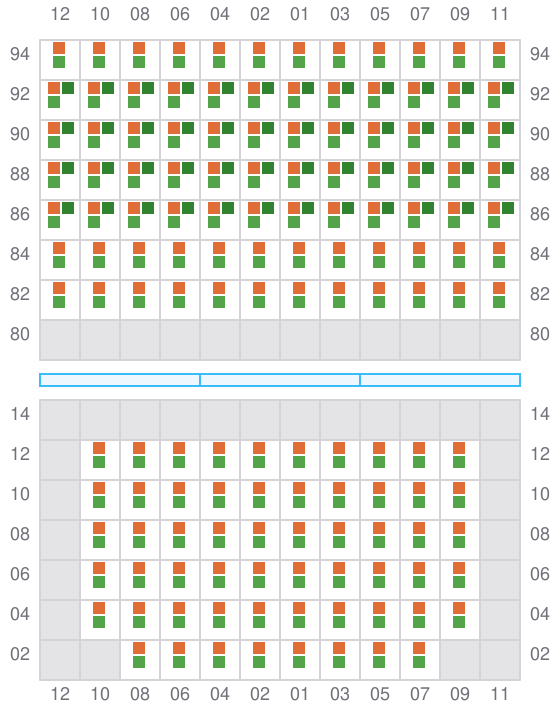

Bay 033 view and slots of AS CLAUDIA

035

  • ←
  • →

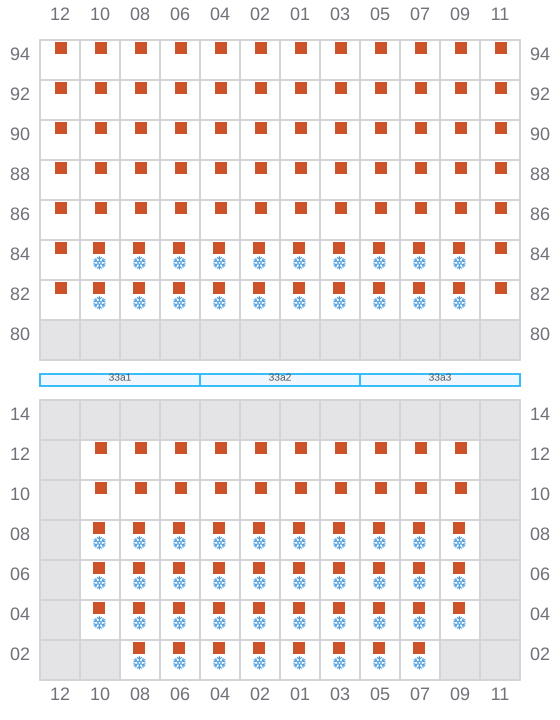

Bay 035 view and slots of AS CLAUDIA

037 (038)

  • →

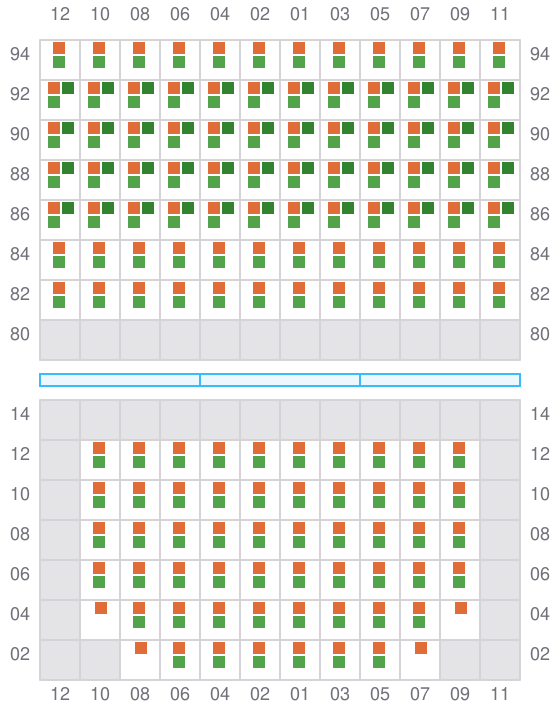

Bay 037 view and slots of AS CLAUDIA

039

  • ←
  • →

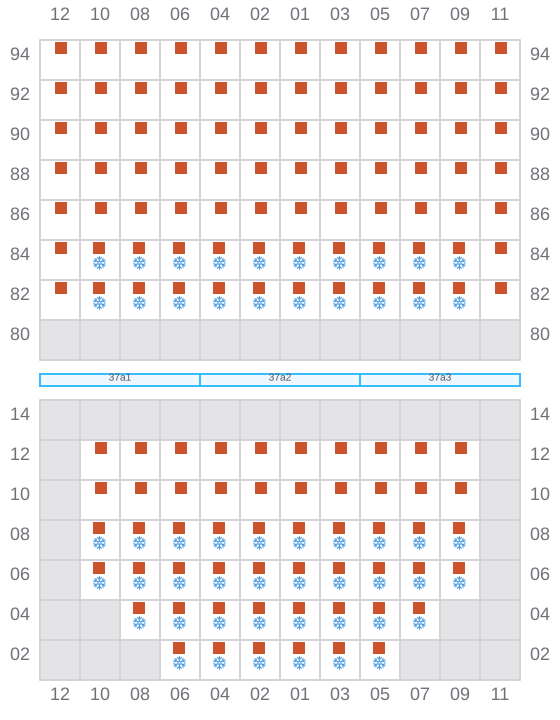

Bay 039 view and slots of AS CLAUDIA

041 (042)

  • →
  • ← / ?

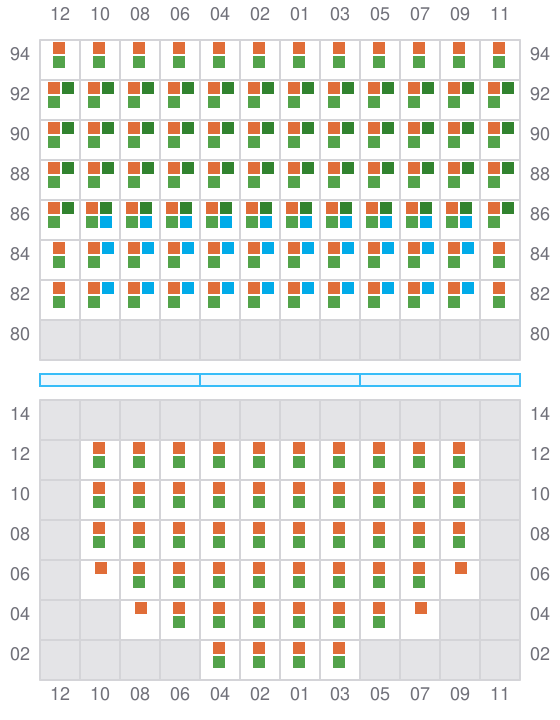

Bay 041 view and slots of AS CLAUDIA

043

  • ←
  • →

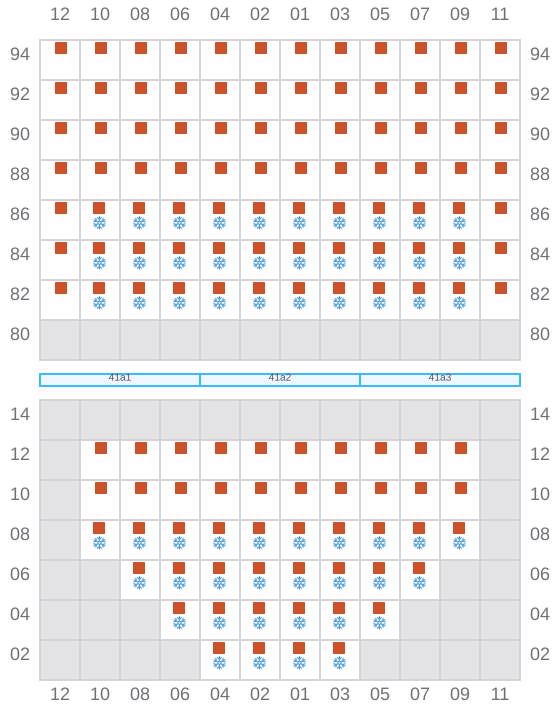

Bay 043 view and slots of AS CLAUDIA

045 (046)

  • → / ?
  • ← / ?

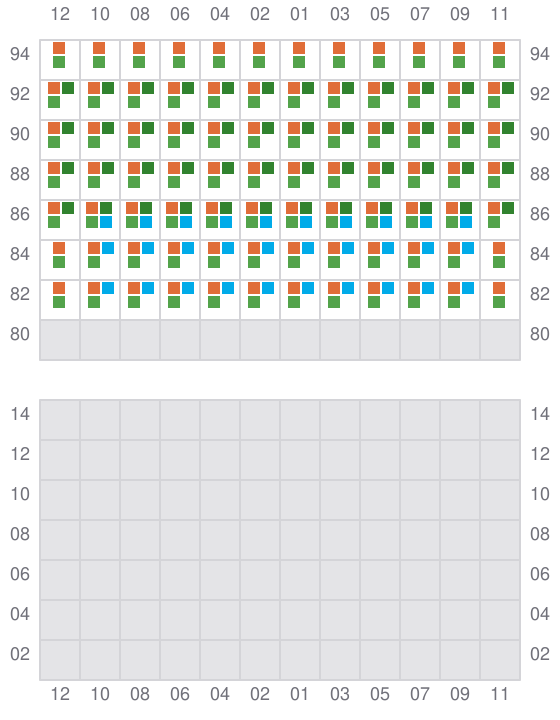

Bay 045 view and slots of AS CLAUDIA

047

  • ← / ?
  • → / ?

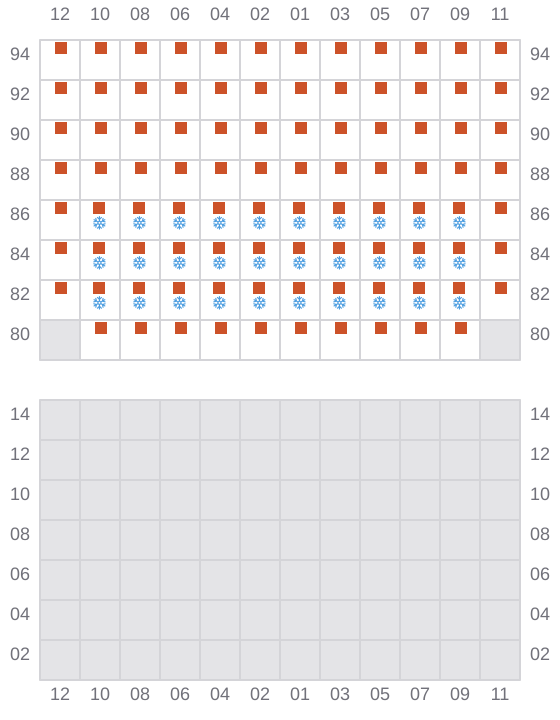

Bay 047 view and slots of AS CLAUDIA

049 (050)

  • → / ?
  • ← / ?

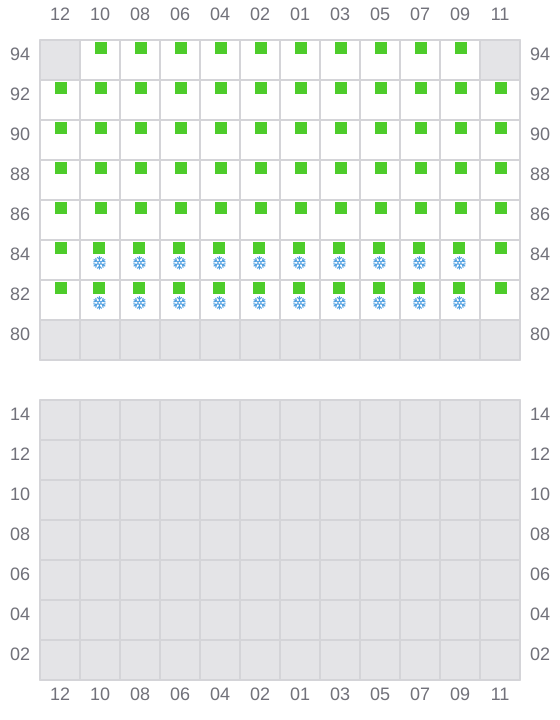

Bay 049 view and slots of AS CLAUDIA
