AS COLUMBIA
9320037 | CQIU6 | 9320037 by ********* Last update: Fri Jun 14 2024

General Info

Ship Name:AS COLUMBIA
IMO Code:9320037
Call Sign:CQIU6
Line Operator:9320037
Class Name for Sister Ships:MCC
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:049
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,745

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of AS COLUMBIA

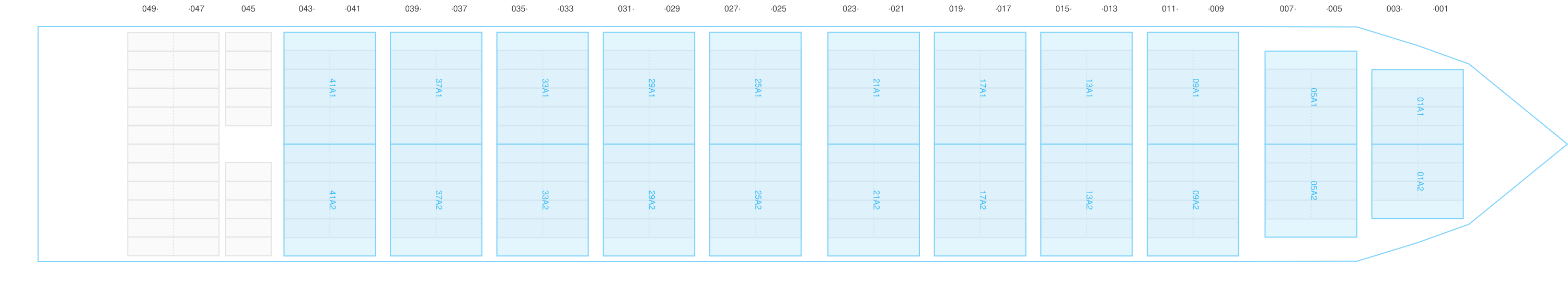

Hatch-Covers View

Deck view of AS COLUMBIA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

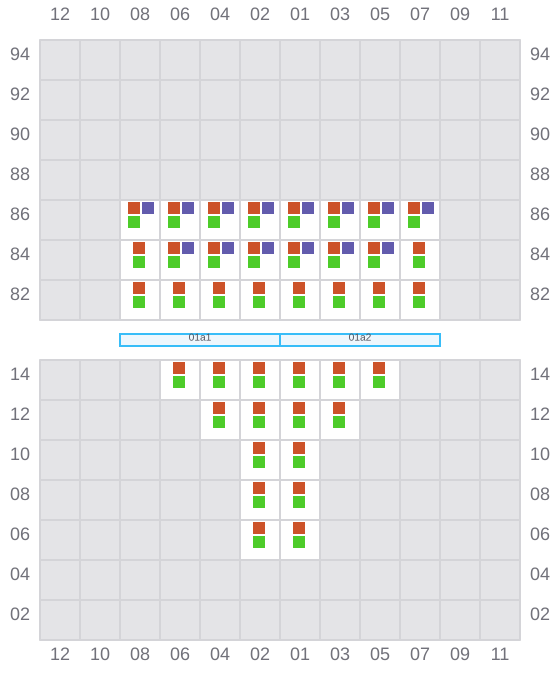

001 (002)

  • →
Bay 001 view and slots of AS COLUMBIA

003

  • ←

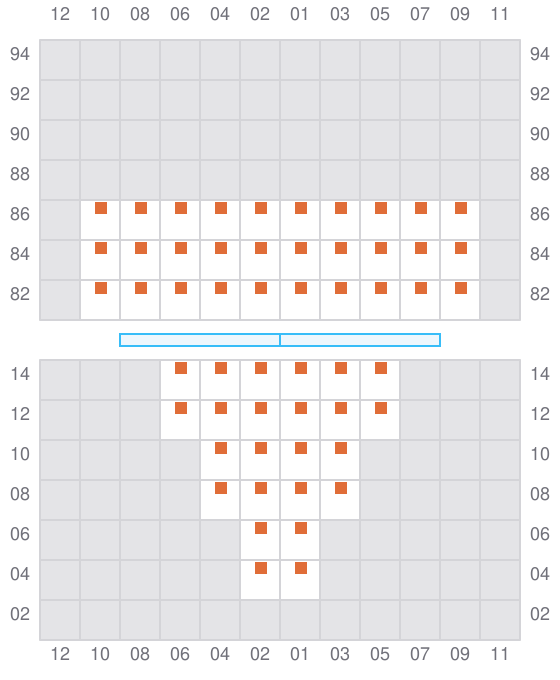

Bay 003 view and slots of AS COLUMBIA

005 (006)

  • →

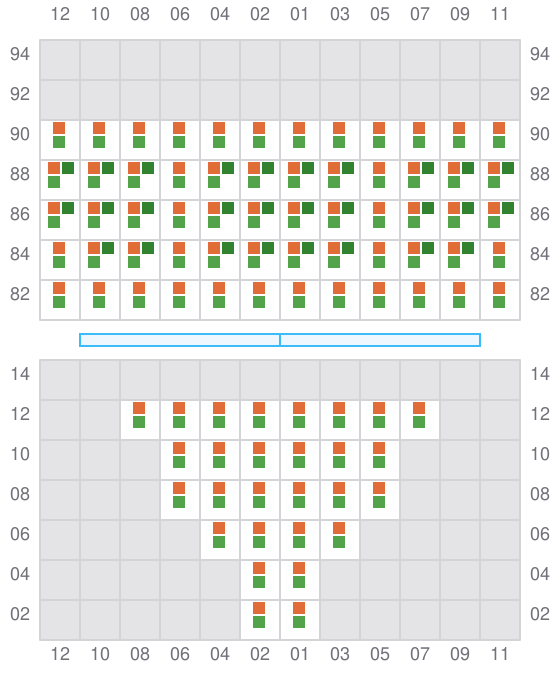

Bay 005 view and slots of AS COLUMBIA

007

  • ←
  • → / ?

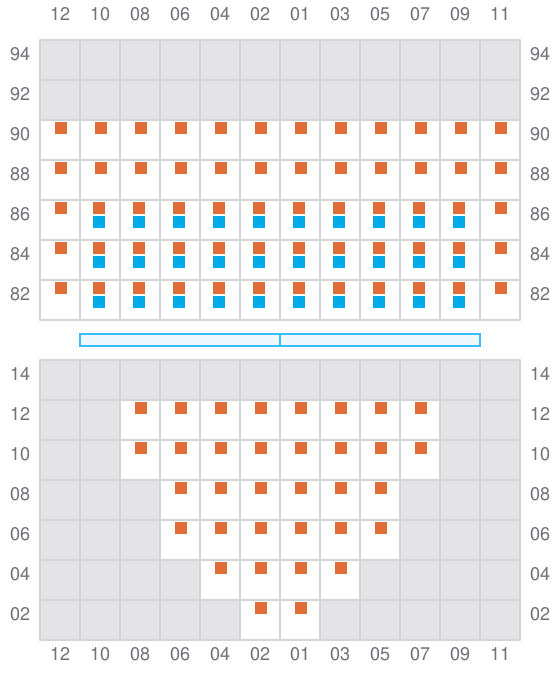

Bay 007 view and slots of AS COLUMBIA

009 (010)

  • →

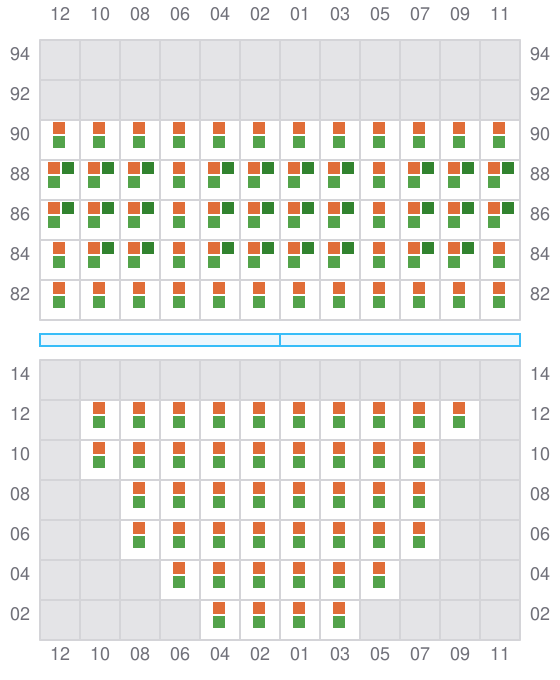

Bay 009 view and slots of AS COLUMBIA

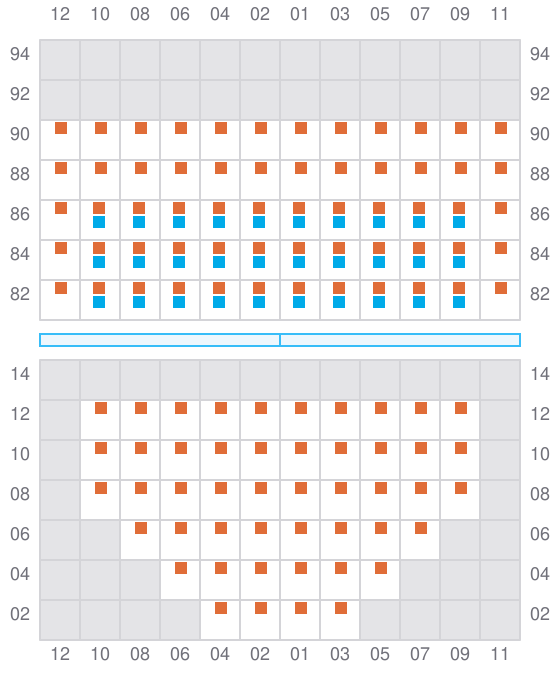

011

  • ←
  • → / ?
Bay 011 view and slots of AS COLUMBIA

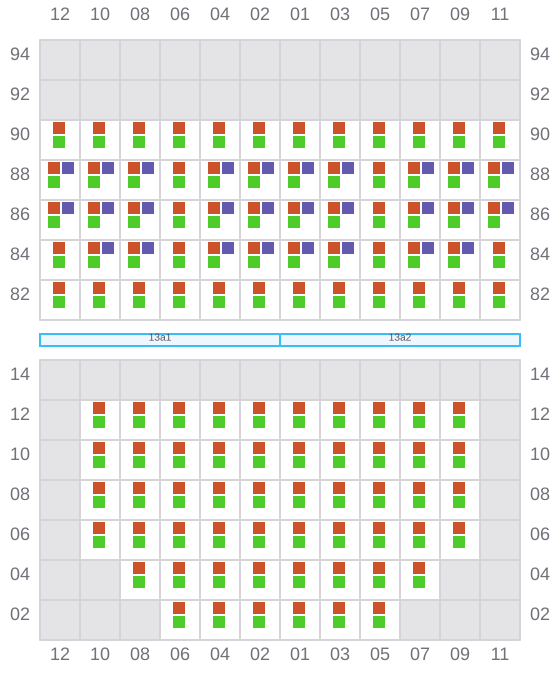

013 (014)

  • →
Bay 013 view and slots of AS COLUMBIA

015

  • ←
  • → / ?

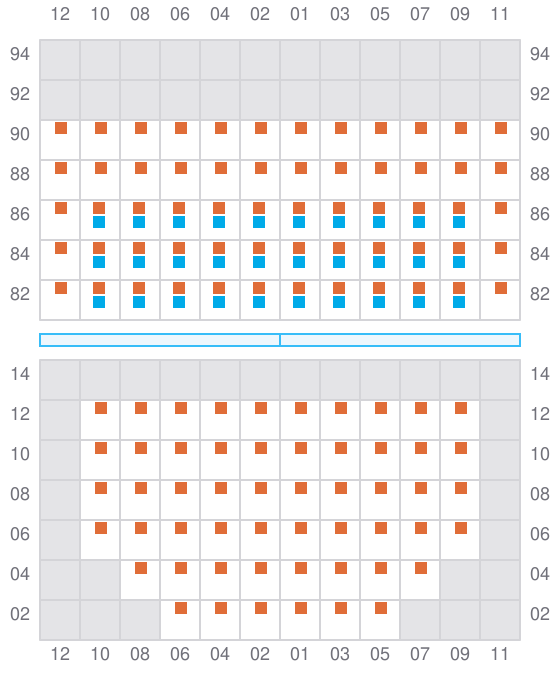

Bay 015 view and slots of AS COLUMBIA

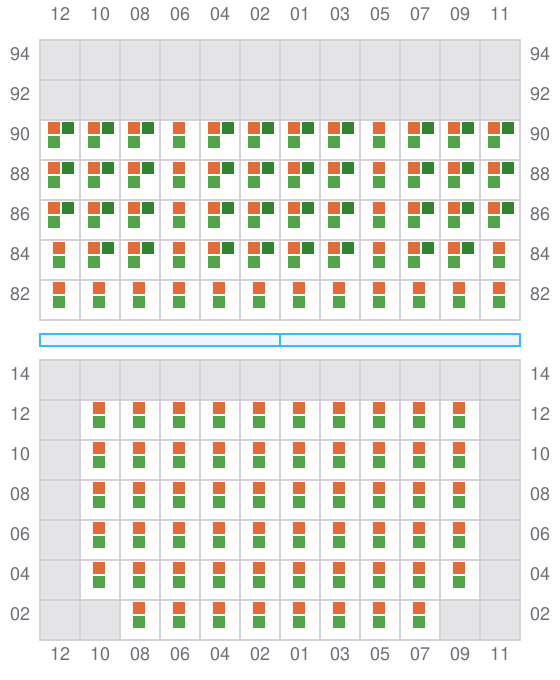

017 (018)

  • →
Bay 017 view and slots of AS COLUMBIA

019

  • ←
  • →

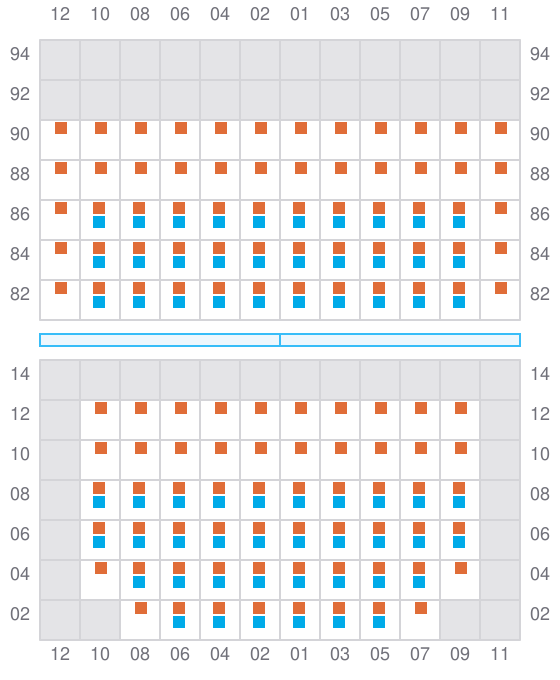

Bay 019 view and slots of AS COLUMBIA

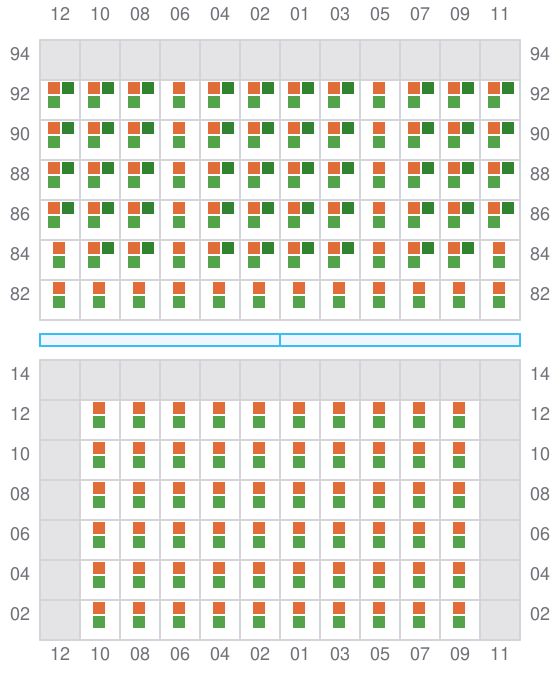

021 (022)

  • →
Bay 021 view and slots of AS COLUMBIA

023

  • ←
  • → / ?
Bay 023 view and slots of AS COLUMBIA

025 (026)

  • →
Bay 025 view and slots of AS COLUMBIA

027

  • ←
  • → / ?

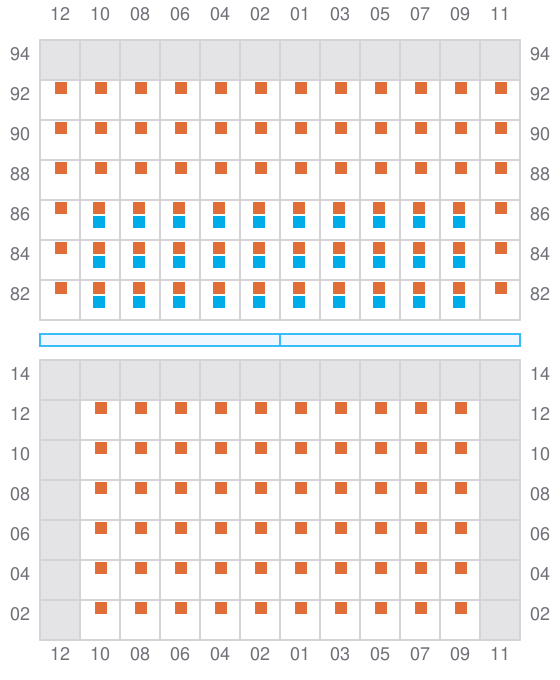

Bay 027 view and slots of AS COLUMBIA

029 (030)

  • →
  • ? / ←

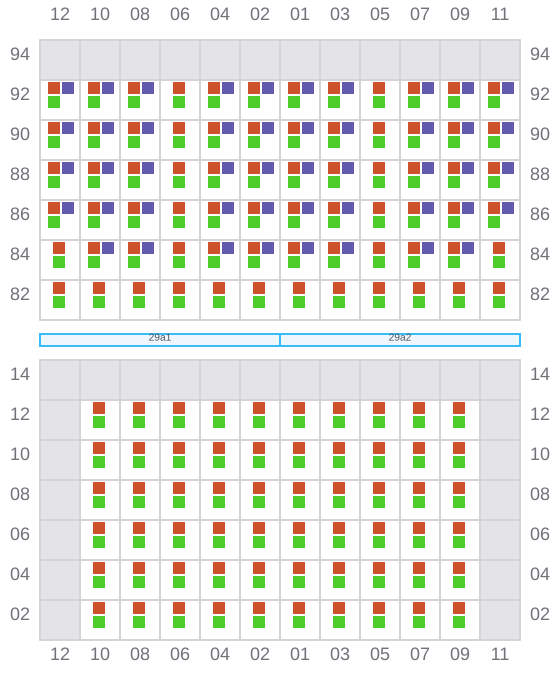

Bay 029 view and slots of AS COLUMBIA

031

  • ←
  • →

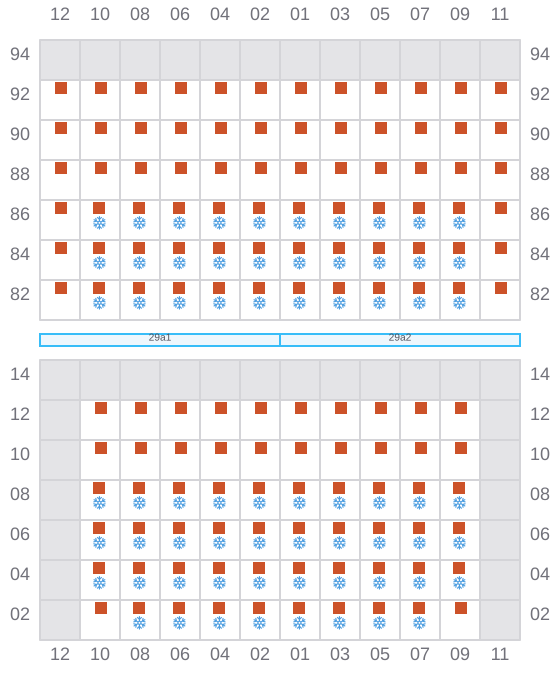

Bay 031 view and slots of AS COLUMBIA

033 (034)

  • →
Bay 033 view and slots of AS COLUMBIA

035

  • ←
  • → / ?

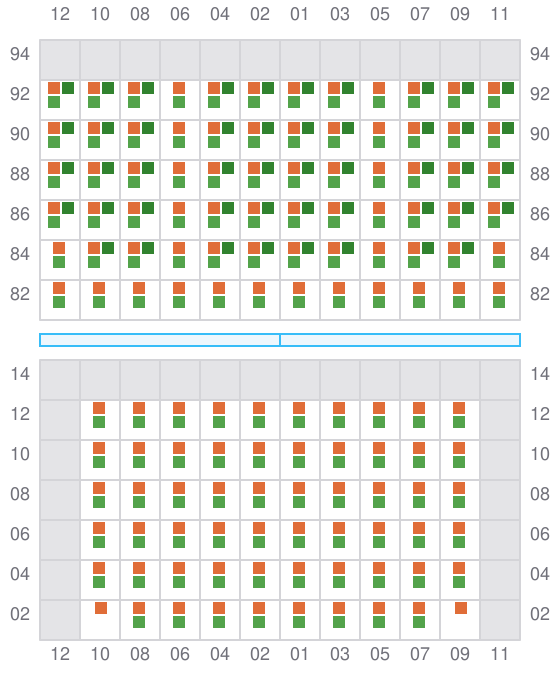

Bay 035 view and slots of AS COLUMBIA

037 (038)

  • →
  • ← / ?

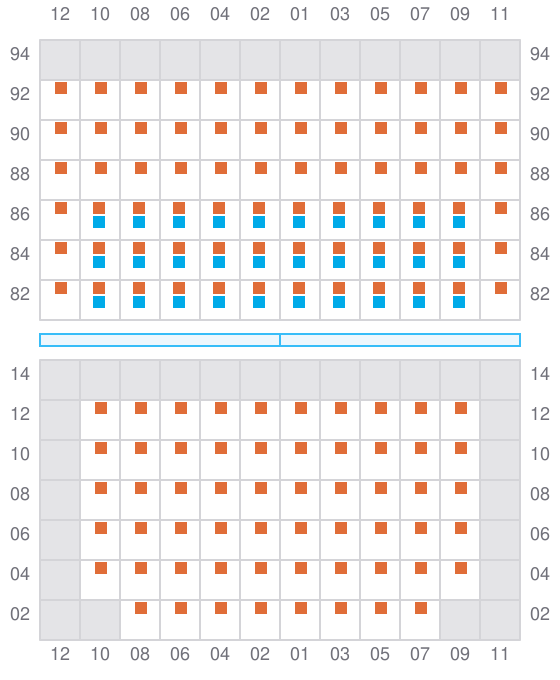

Bay 037 view and slots of AS COLUMBIA

039

  • ←
  • ? / →

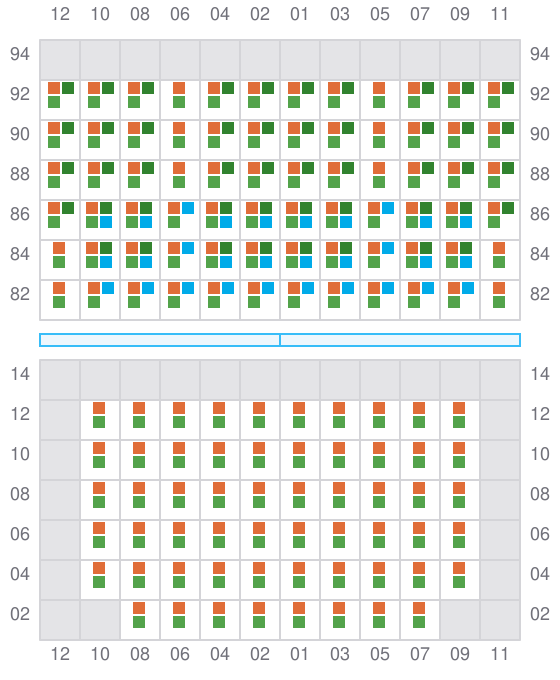

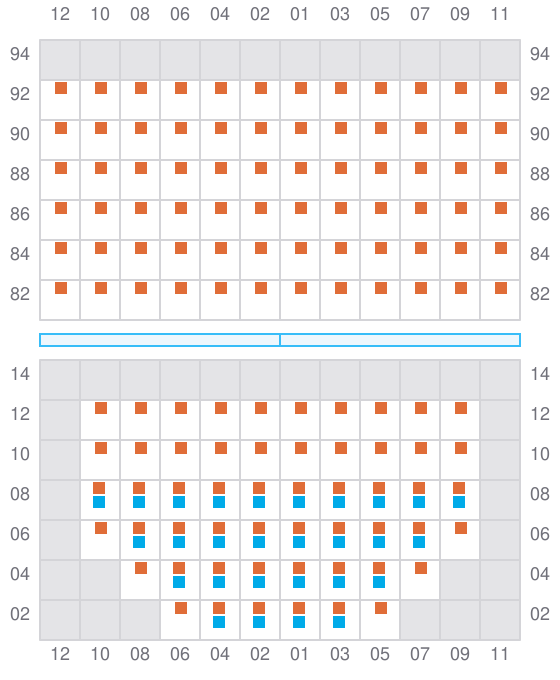

Bay 039 view and slots of AS COLUMBIA

041 (042)

  • →
  • ← / ?
Bay 041 view and slots of AS COLUMBIA

043

  • ←

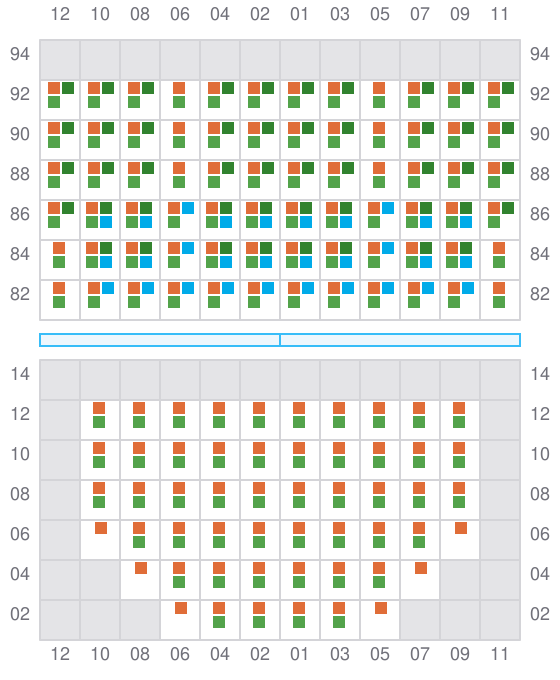

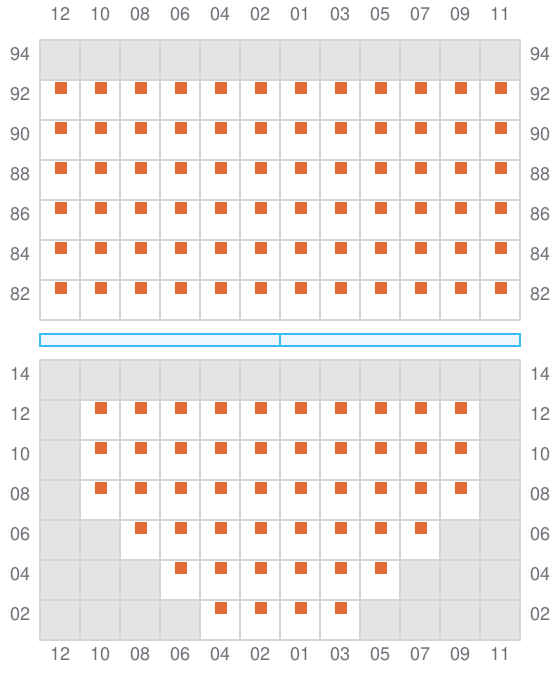

Bay 043 view and slots of AS COLUMBIA

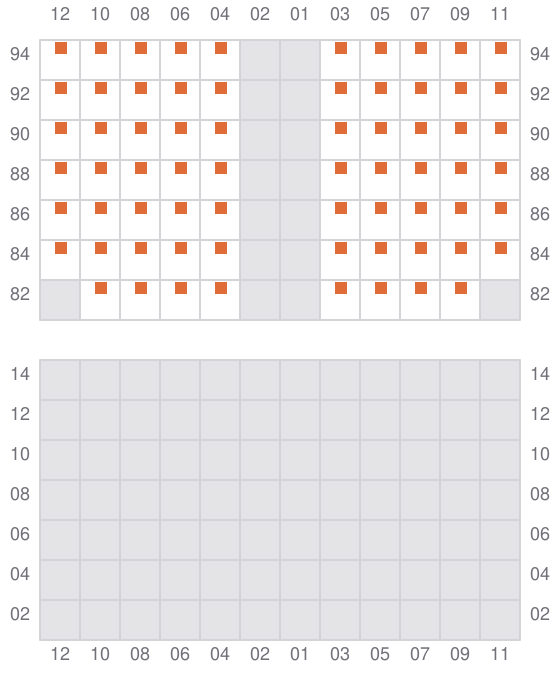

045

Bay 045 view and slots of AS COLUMBIA

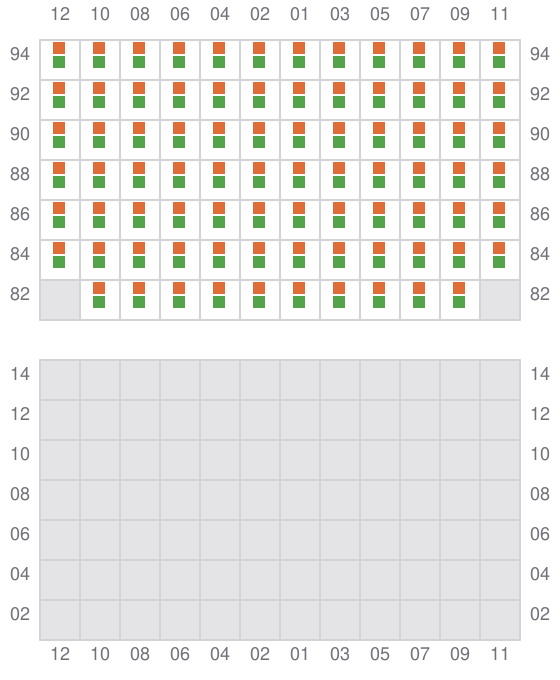

047 (048)

  • → / ?
Bay 047 view and slots of AS COLUMBIA

049

  • ← / ?

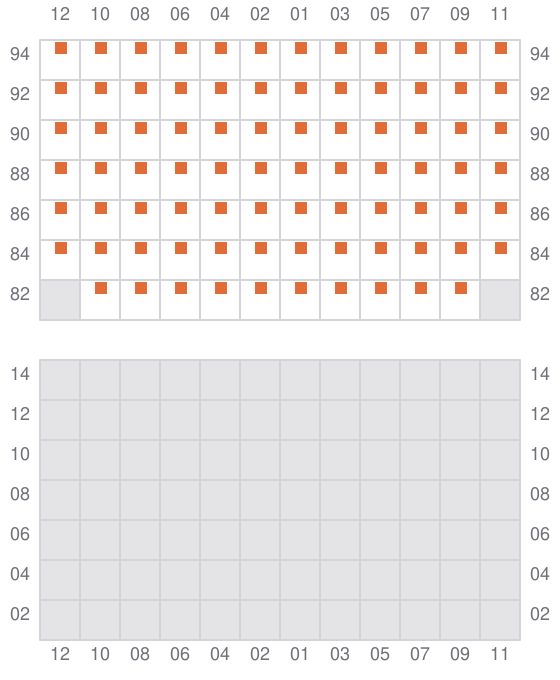

Bay 049 view and slots of AS COLUMBIA
