AS CONSTANTINA
9308390 | 5LDH6 | 9308390 by ********* Last update: Fri May 10 2024
General Info
Ship Name:AS CONSTANTINA
IMO Code:9308390
Call Sign:5LDH6
Line Operator:9308390
Class Name for Sister Ships:CAPE MELVILLE
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):209.62
LOA (Length Overall):221.69
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:049
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,823
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

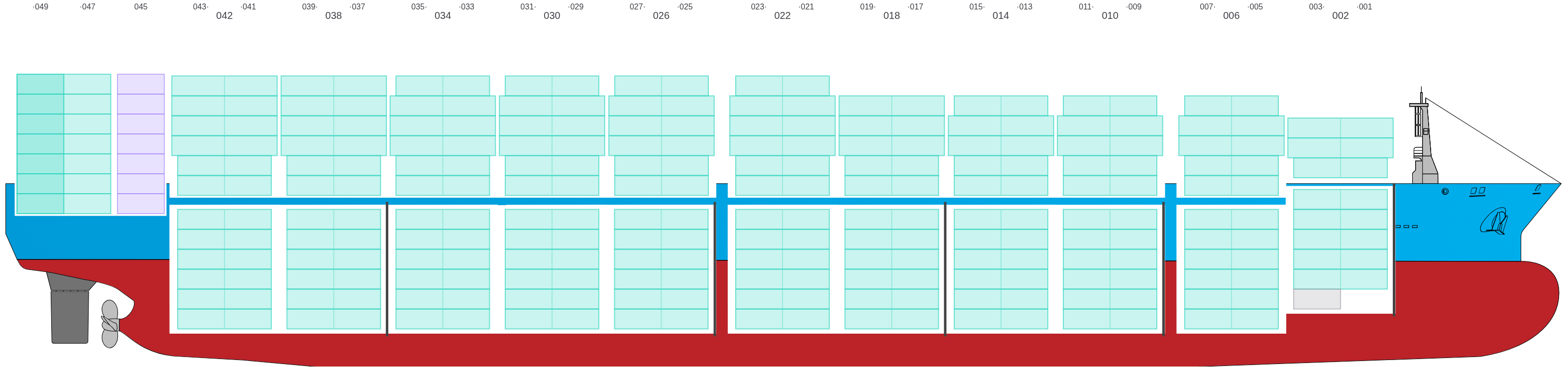

Side View
![Side view of AS CONSTANTINA](/vessel-images/2017b7e7-b09a-4f27-acc5-66931ee32d93-sideView.png?v=1715371477098)
Hatch-Covers View
![Deck view of AS CONSTANTINA](/vessel-images/2017b7e7-b09a-4f27-acc5-66931ee32d93-deckView.png?v=1715371477098)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

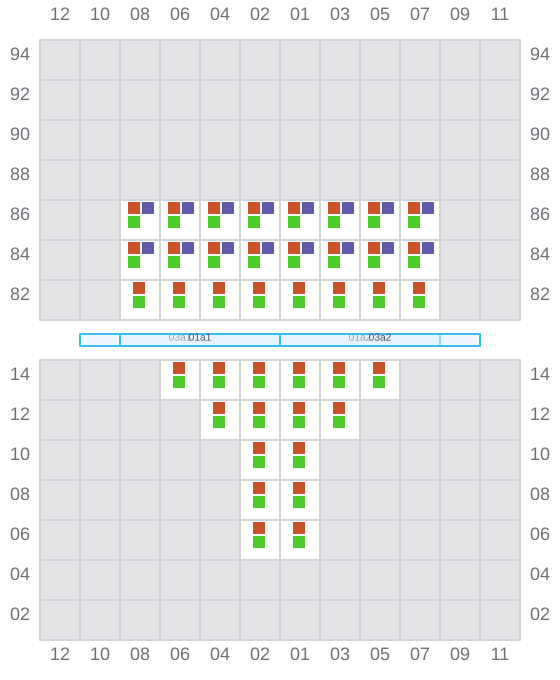

001 (002)
- →
![Bay 001 view and slots of AS CONSTANTINA](/vessel-images/2017b7e7-b09a-4f27-acc5-66931ee32d93-b001.png?v=1715371477098)

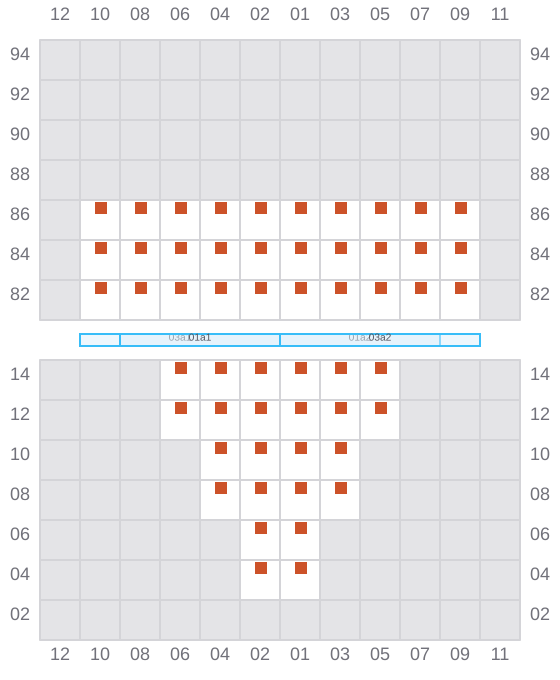

003
- ←
![Bay 003 view and slots of AS CONSTANTINA](/vessel-images/2017b7e7-b09a-4f27-acc5-66931ee32d93-b003.png?v=1715371477098)

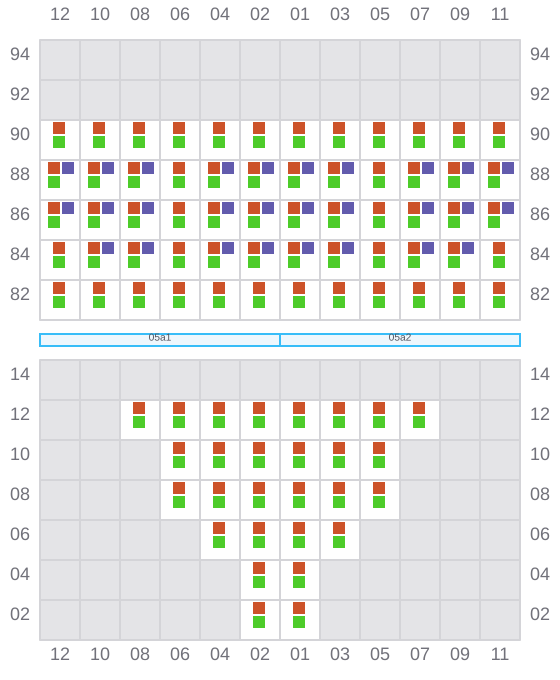

005 (006)
- →
![Bay 005 view and slots of AS CONSTANTINA](/vessel-images/2017b7e7-b09a-4f27-acc5-66931ee32d93-b005.png?v=1715371477098)

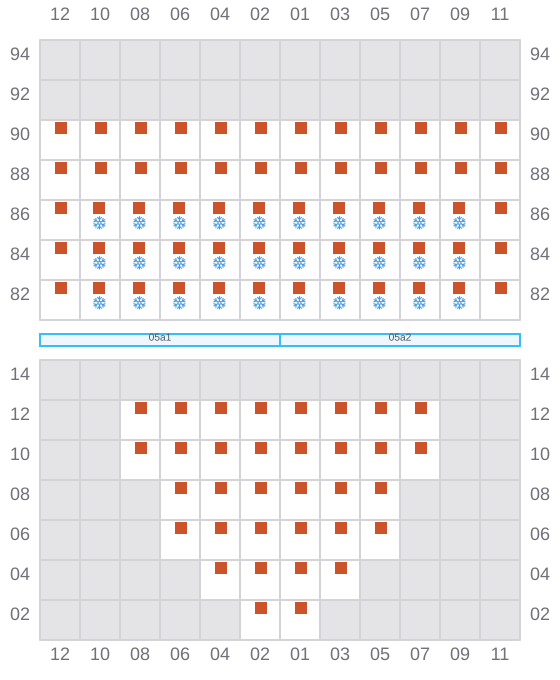

007
- ←
- → / ?
![Bay 007 view and slots of AS CONSTANTINA](/vessel-images/2017b7e7-b09a-4f27-acc5-66931ee32d93-b007.png?v=1715371477098)

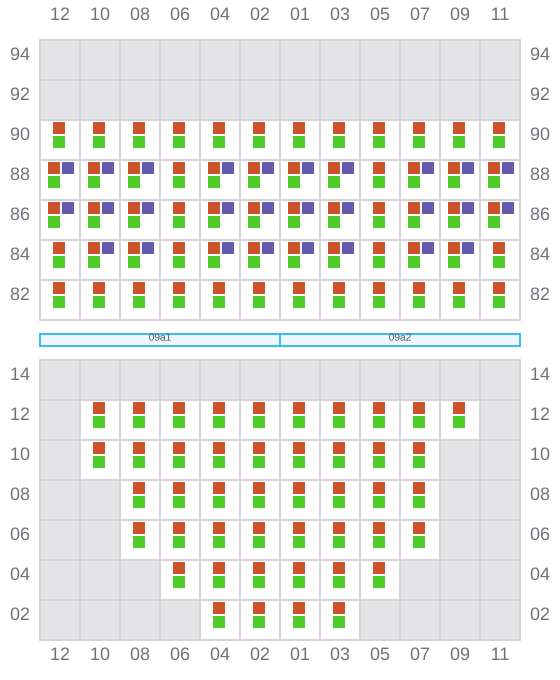

009 (010)
- →
![Bay 009 view and slots of AS CONSTANTINA](/vessel-images/2017b7e7-b09a-4f27-acc5-66931ee32d93-b009.png?v=1715371477098)

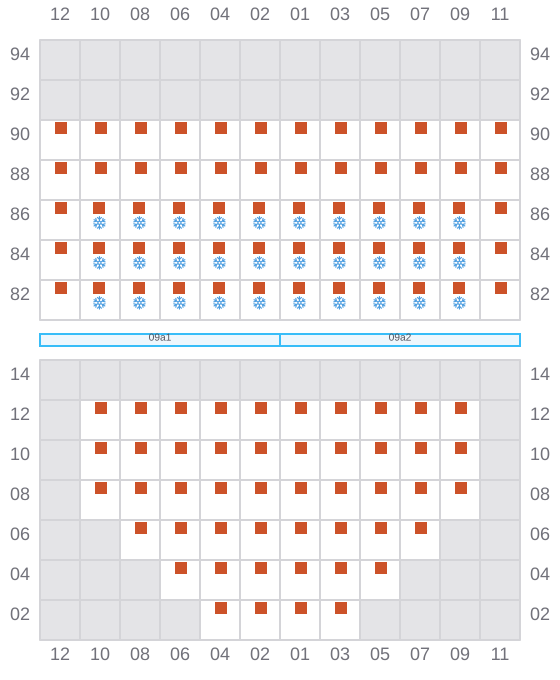

011
- ←
- → / ?
![Bay 011 view and slots of AS CONSTANTINA](/vessel-images/2017b7e7-b09a-4f27-acc5-66931ee32d93-b011.png?v=1715371477098)

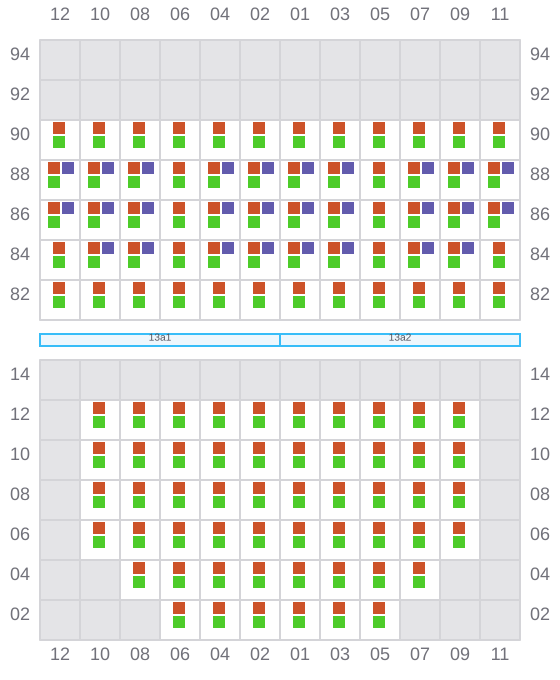

013 (014)
- →
![Bay 013 view and slots of AS CONSTANTINA](/vessel-images/2017b7e7-b09a-4f27-acc5-66931ee32d93-b013.png?v=1715371477098)

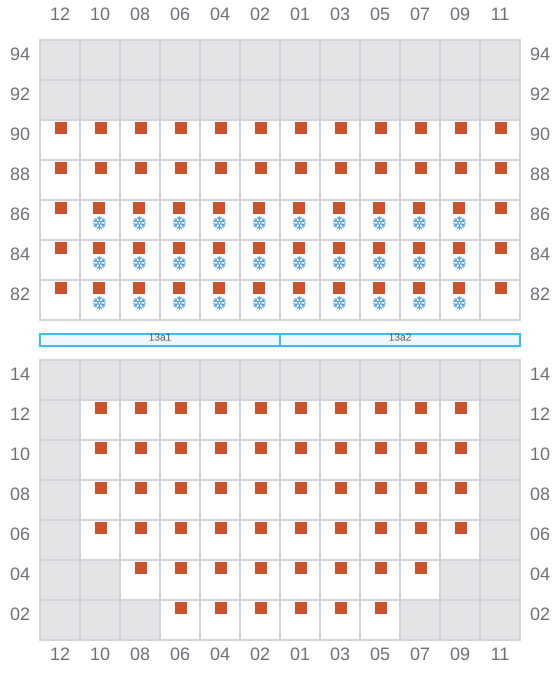

015
- ←
- → / ?
![Bay 015 view and slots of AS CONSTANTINA](/vessel-images/2017b7e7-b09a-4f27-acc5-66931ee32d93-b015.png?v=1715371477098)

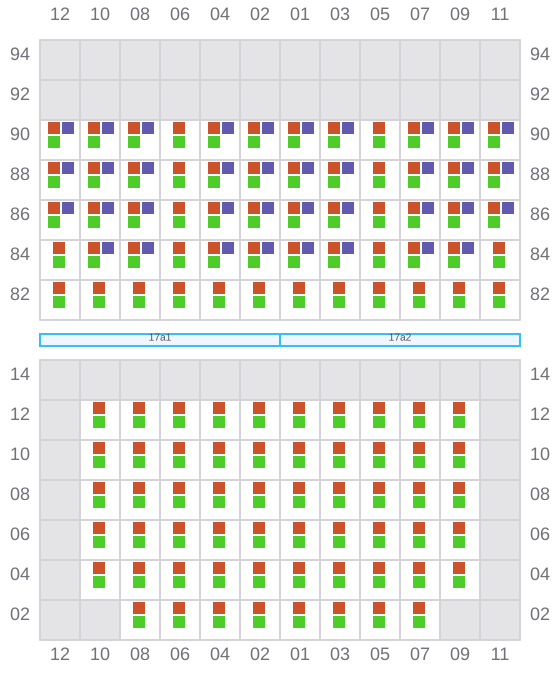

017 (018)
- →
![Bay 017 view and slots of AS CONSTANTINA](/vessel-images/2017b7e7-b09a-4f27-acc5-66931ee32d93-b017.png?v=1715371477098)

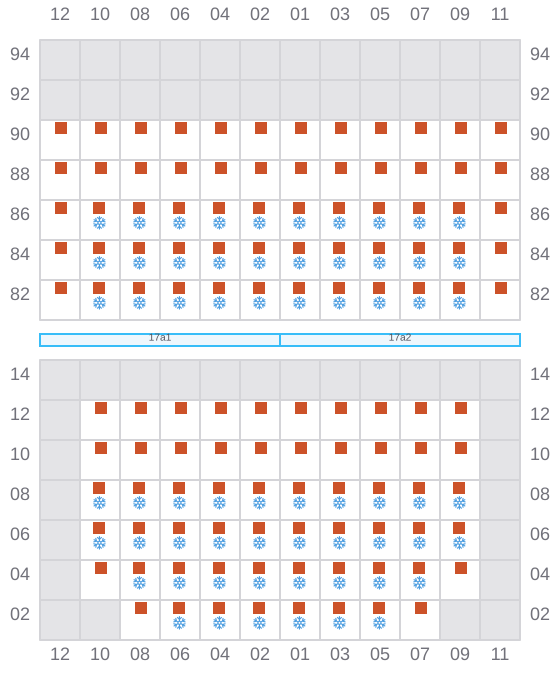

019
- ←
- →
![Bay 019 view and slots of AS CONSTANTINA](/vessel-images/2017b7e7-b09a-4f27-acc5-66931ee32d93-b019.png?v=1715371477098)
021 (022)
- →
![Bay 021 view and slots of AS CONSTANTINA](/vessel-images/2017b7e7-b09a-4f27-acc5-66931ee32d93-b021.png?v=1715371477098)
023
- ←
- → / ?
![Bay 023 view and slots of AS CONSTANTINA](/vessel-images/2017b7e7-b09a-4f27-acc5-66931ee32d93-b023.png?v=1715371477098)
025 (026)
- →
![Bay 025 view and slots of AS CONSTANTINA](/vessel-images/2017b7e7-b09a-4f27-acc5-66931ee32d93-b025.png?v=1715371477098)

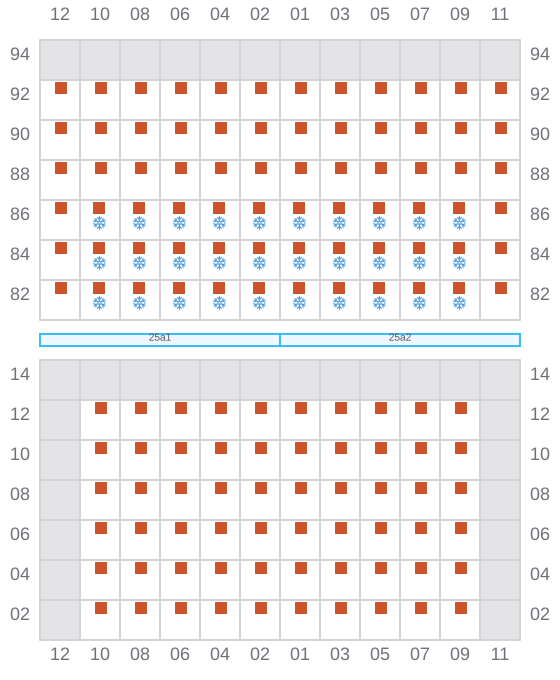

027
- ←
- → / ?
![Bay 027 view and slots of AS CONSTANTINA](/vessel-images/2017b7e7-b09a-4f27-acc5-66931ee32d93-b027.png?v=1715371477098)

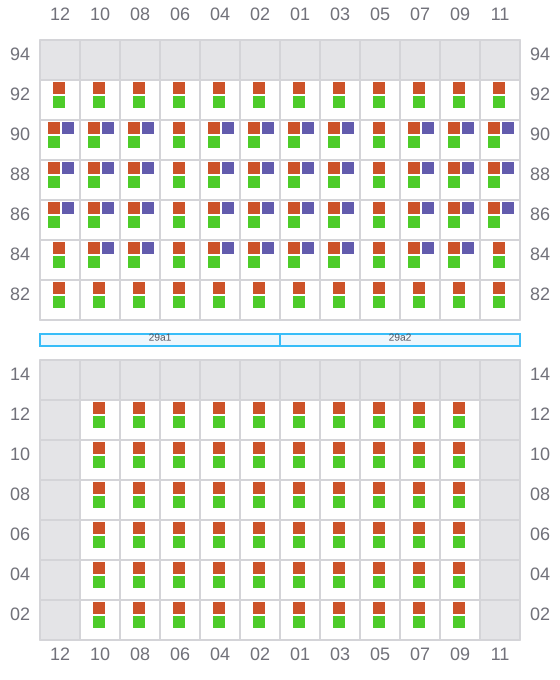

029 (030)
- →
![Bay 029 view and slots of AS CONSTANTINA](/vessel-images/2017b7e7-b09a-4f27-acc5-66931ee32d93-b029.png?v=1715371477098)

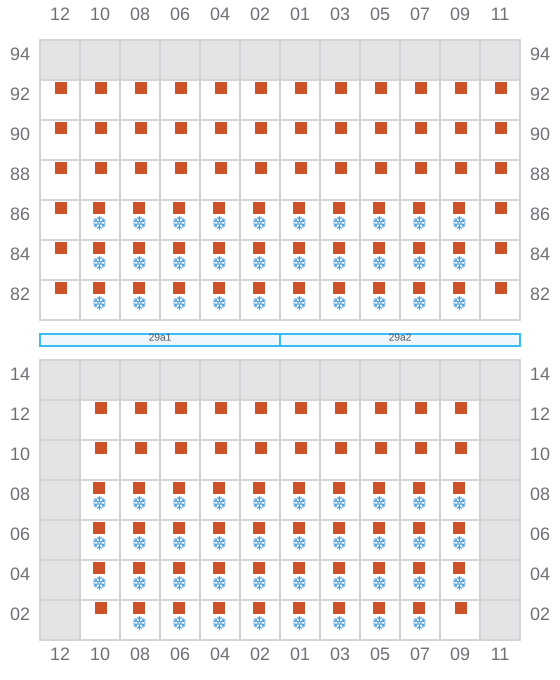

031
- ←
- →
![Bay 031 view and slots of AS CONSTANTINA](/vessel-images/2017b7e7-b09a-4f27-acc5-66931ee32d93-b031.png?v=1715371477098)

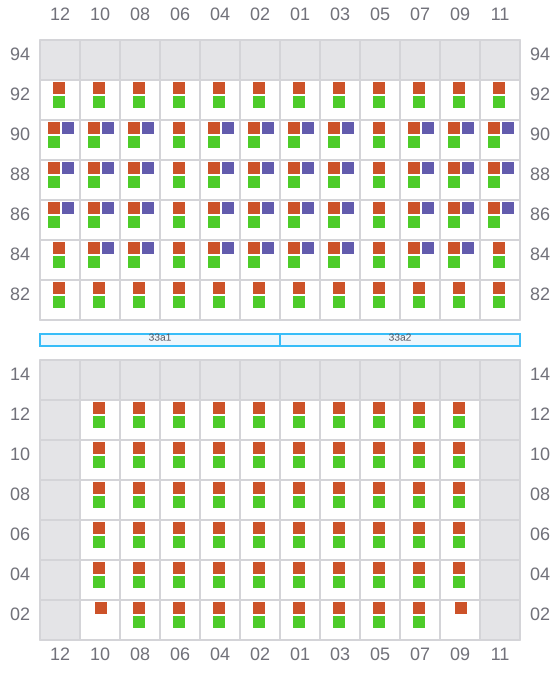

033 (034)
- →
![Bay 033 view and slots of AS CONSTANTINA](/vessel-images/2017b7e7-b09a-4f27-acc5-66931ee32d93-b033.png?v=1715371477098)

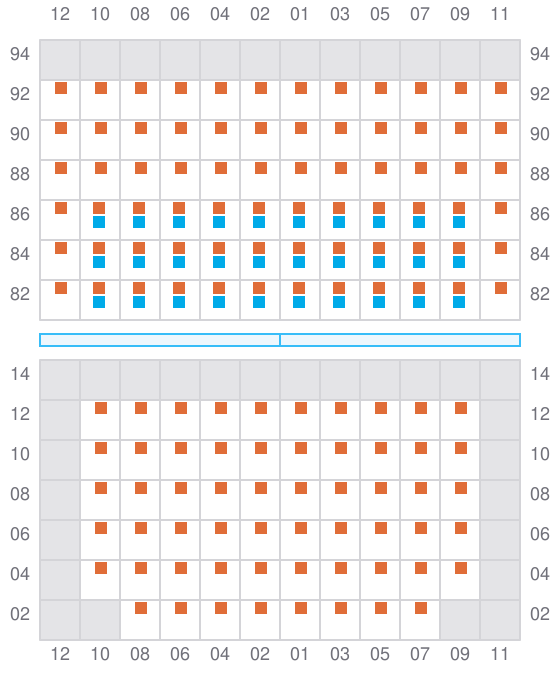

035
- ←
- → / ?
![Bay 035 view and slots of AS CONSTANTINA](/vessel-images/2017b7e7-b09a-4f27-acc5-66931ee32d93-b035.png?v=1715371477098)

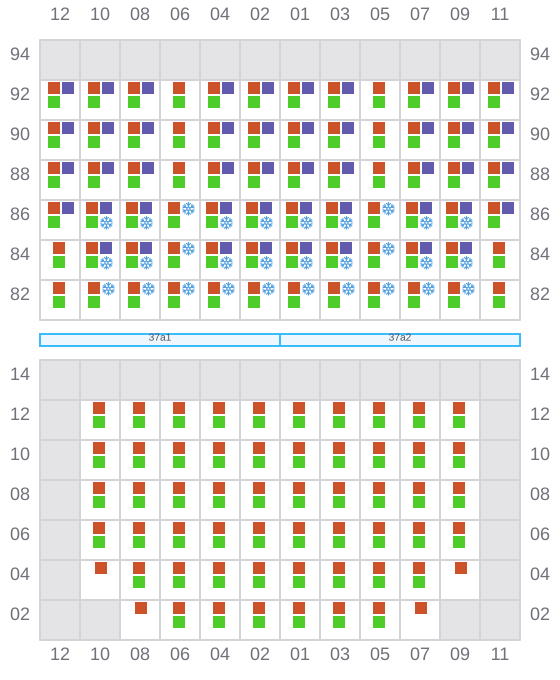

037 (038)
- →
- ← / ?
![Bay 037 view and slots of AS CONSTANTINA](/vessel-images/2017b7e7-b09a-4f27-acc5-66931ee32d93-b037.png?v=1715371477098)

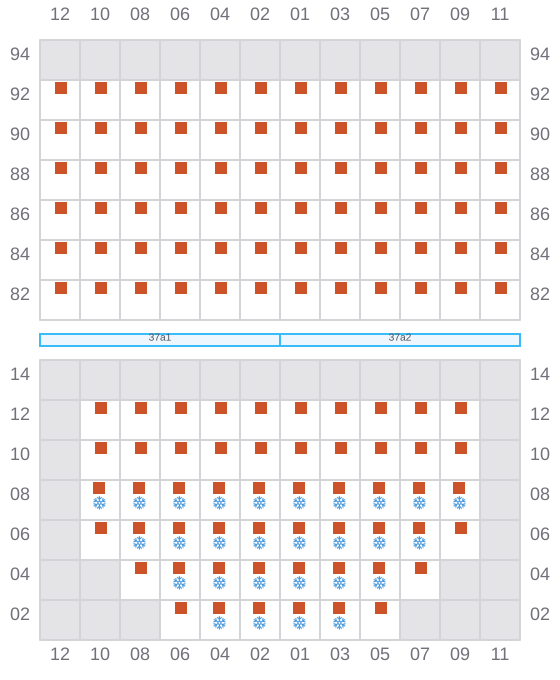

039
- ←
- ? / →
![Bay 039 view and slots of AS CONSTANTINA](/vessel-images/2017b7e7-b09a-4f27-acc5-66931ee32d93-b039.png?v=1715371477098)

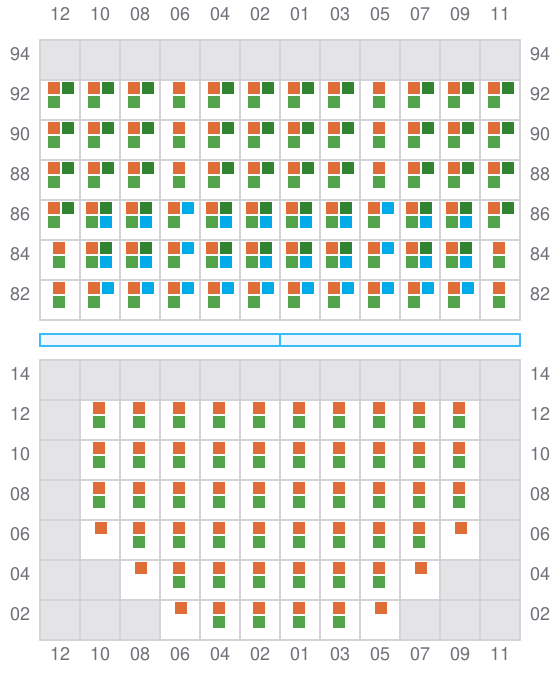

041 (042)
- →
- ← / ?
![Bay 041 view and slots of AS CONSTANTINA](/vessel-images/2017b7e7-b09a-4f27-acc5-66931ee32d93-b041.png?v=1715371477098)

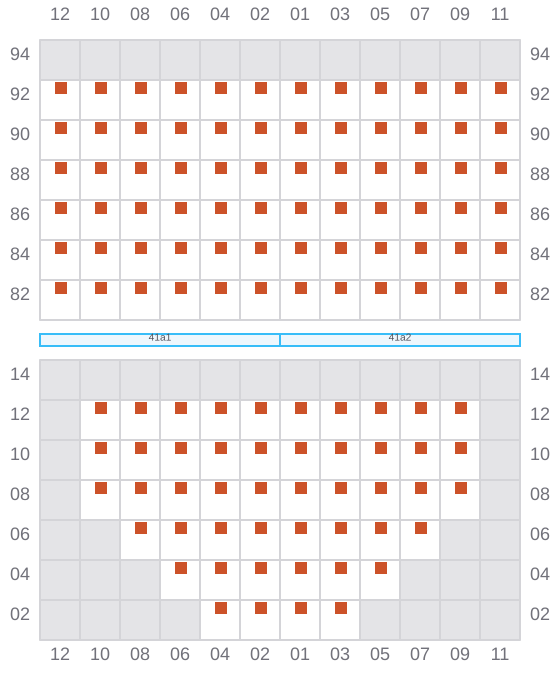

043
- ←
![Bay 043 view and slots of AS CONSTANTINA](/vessel-images/2017b7e7-b09a-4f27-acc5-66931ee32d93-b043.png?v=1715371477098)

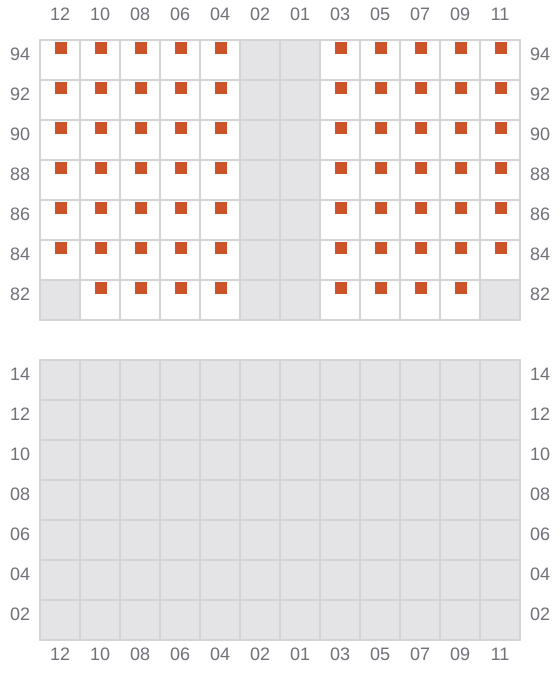

045
![Bay 045 view and slots of AS CONSTANTINA](/vessel-images/2017b7e7-b09a-4f27-acc5-66931ee32d93-b045.png?v=1715371477098)

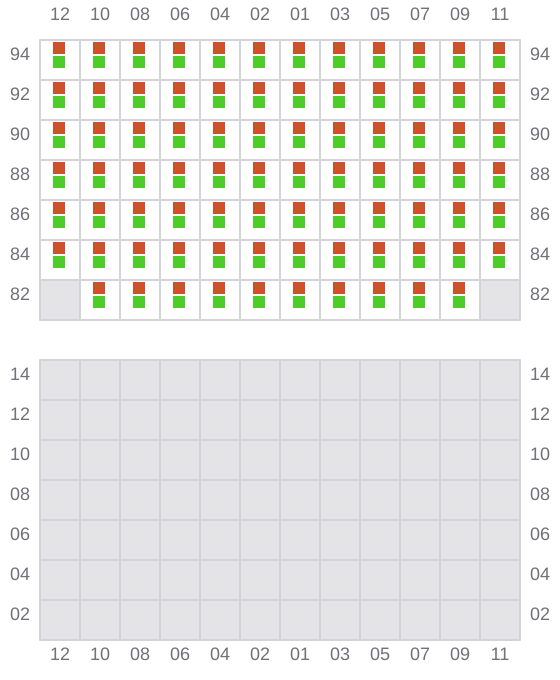

047 (048)
- → / ?
![Bay 047 view and slots of AS CONSTANTINA](/vessel-images/2017b7e7-b09a-4f27-acc5-66931ee32d93-b047.png?v=1715371477098)

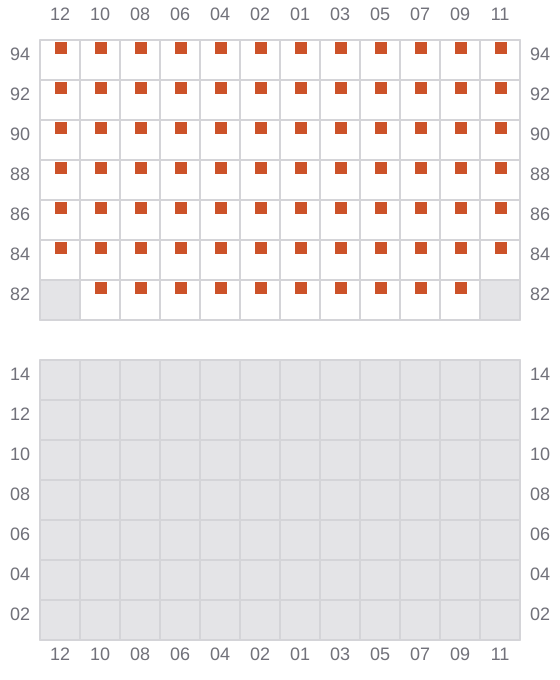

049
- → / ?
![Bay 049 view and slots of AS CONSTANTINA](/vessel-images/2017b7e7-b09a-4f27-acc5-66931ee32d93-b049.png?v=1715371477098)
