AS FABRIZIA
9395135 | CQIU3 | 939513 by ********* Last update: Fri Apr 12 2024
General Info
Ship Name:AS FABRIZIA
IMO Code:9395135
Call Sign:CQIU3
Line Operator:939513
Class Name for Sister Ships:CMA
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:031
Max ISO Row:10
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,292
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

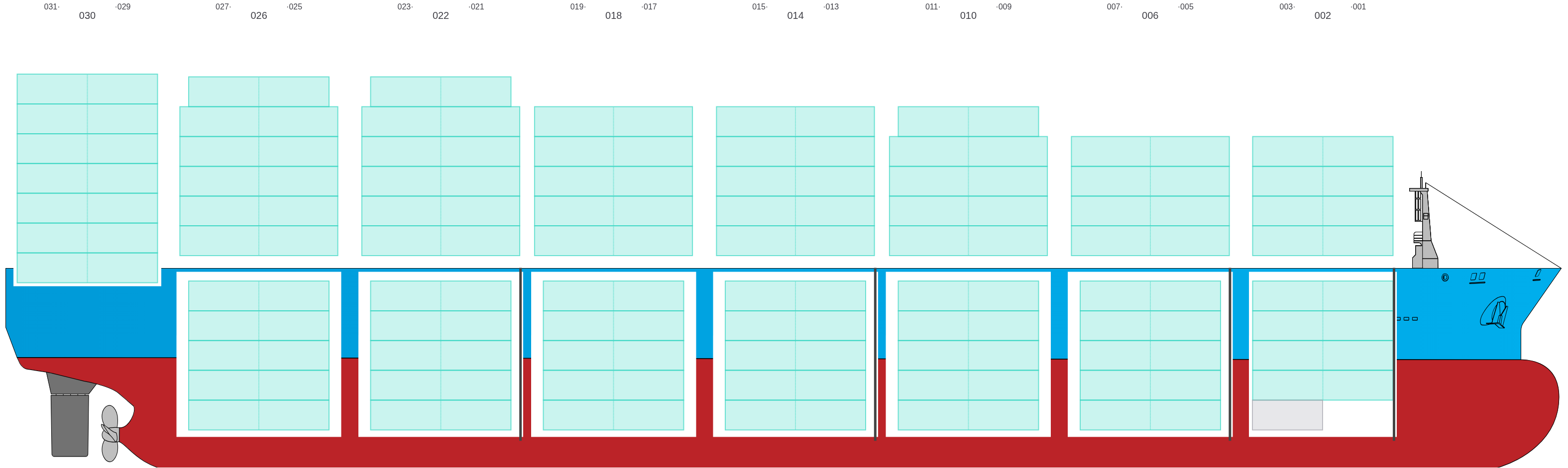

Side View
![Side view of AS FABRIZIA](/vessel-images/28e22aeb-7ae2-49e1-a365-f8184b41b4f3-sideView.png?v=1712948274366)
Hatch-Covers View
![Deck view of AS FABRIZIA](/vessel-images/28e22aeb-7ae2-49e1-a365-f8184b41b4f3-deckView.png?v=1712948274366)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

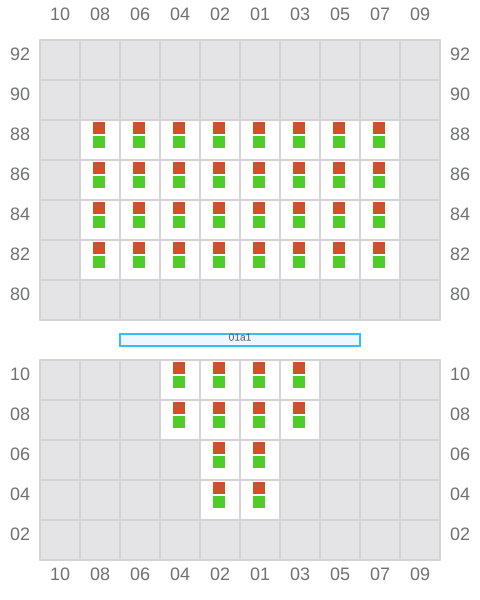

001 (002)
- →
![Bay 001 view and slots of AS FABRIZIA](/vessel-images/28e22aeb-7ae2-49e1-a365-f8184b41b4f3-b001.png?v=1712948274366)

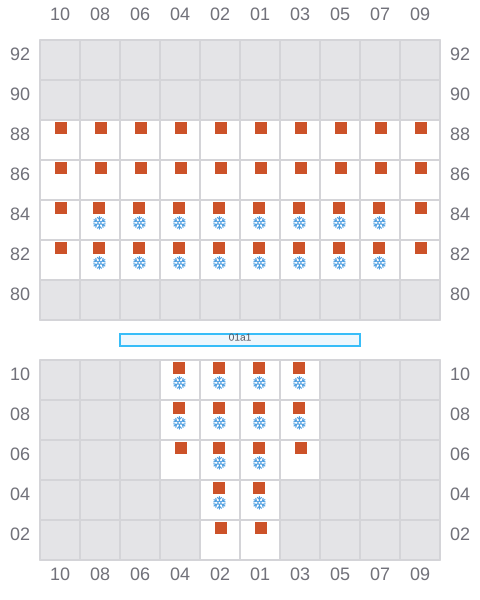

003
- ←
- →
![Bay 003 view and slots of AS FABRIZIA](/vessel-images/28e22aeb-7ae2-49e1-a365-f8184b41b4f3-b003.png?v=1712948274366)

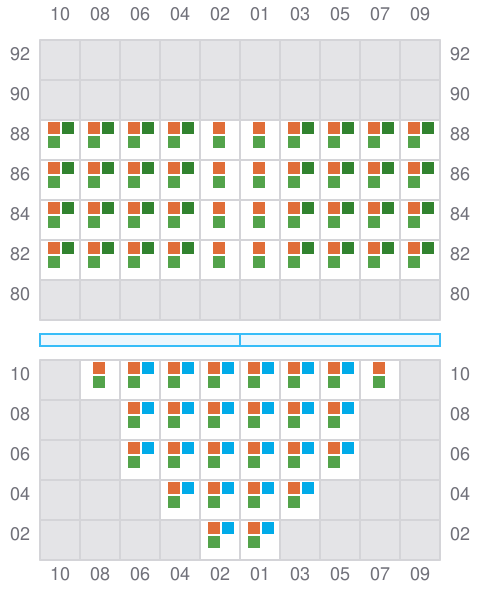

005 (006)
- →
- ? / ←
![Bay 005 view and slots of AS FABRIZIA](/vessel-images/28e22aeb-7ae2-49e1-a365-f8184b41b4f3-b005.png?v=1712948274366)

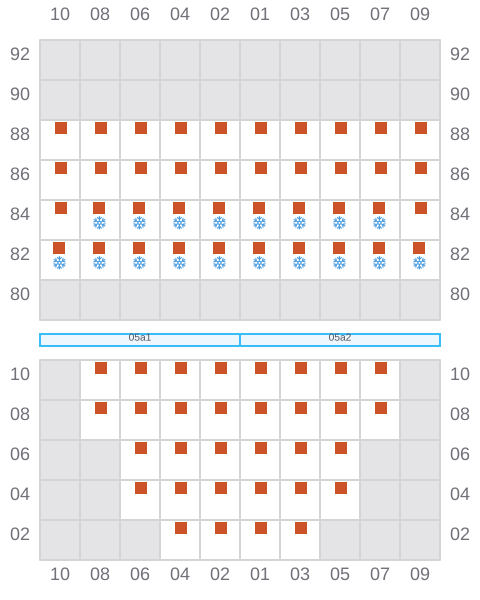

007
- ←
- → / ?
![Bay 007 view and slots of AS FABRIZIA](/vessel-images/28e22aeb-7ae2-49e1-a365-f8184b41b4f3-b007.png?v=1712948274366)

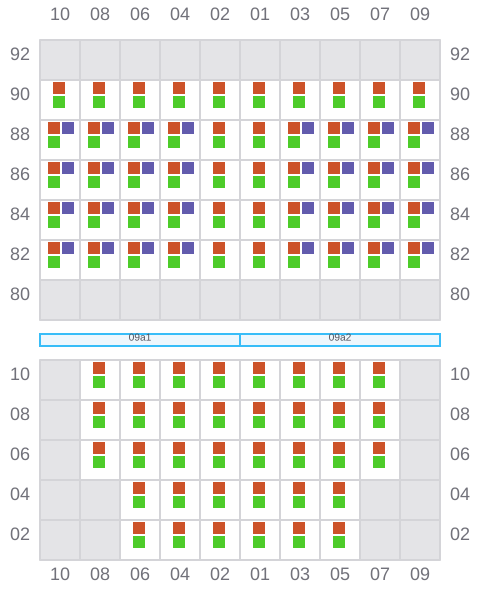

009 (010)
- →
![Bay 009 view and slots of AS FABRIZIA](/vessel-images/28e22aeb-7ae2-49e1-a365-f8184b41b4f3-b009.png?v=1712948274366)

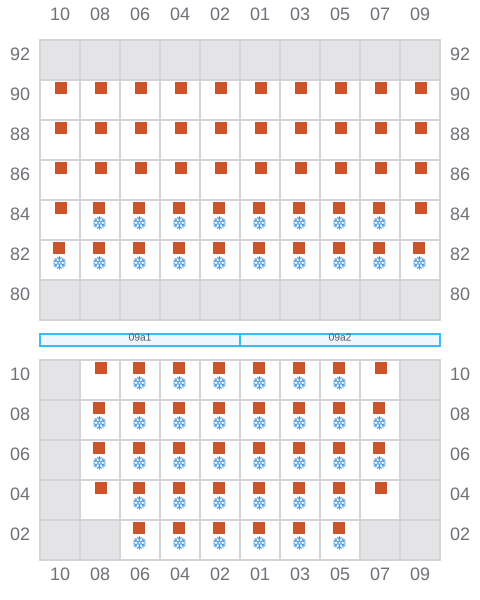

011
- ←
- →
![Bay 011 view and slots of AS FABRIZIA](/vessel-images/28e22aeb-7ae2-49e1-a365-f8184b41b4f3-b011.png?v=1712948274366)

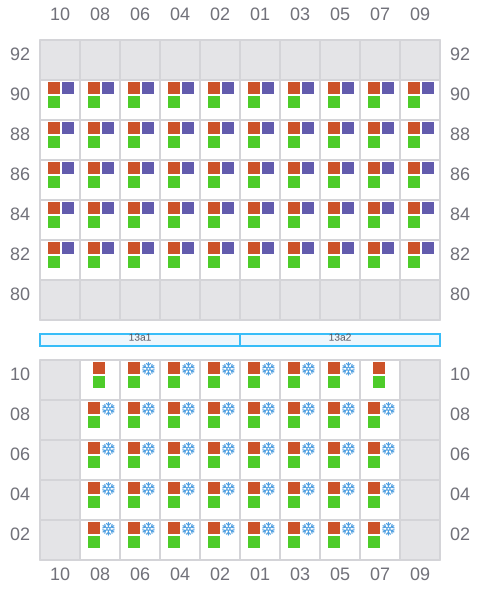

013 (014)
- →
- ? / ←
![Bay 013 view and slots of AS FABRIZIA](/vessel-images/28e22aeb-7ae2-49e1-a365-f8184b41b4f3-b013.png?v=1712948274366)
015
- ←
- → / ?
![Bay 015 view and slots of AS FABRIZIA](/vessel-images/28e22aeb-7ae2-49e1-a365-f8184b41b4f3-b015.png?v=1712948274366)

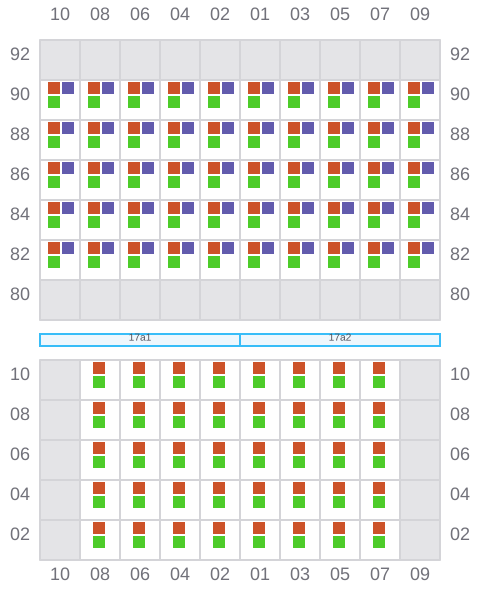

017 (018)
- →
![Bay 017 view and slots of AS FABRIZIA](/vessel-images/28e22aeb-7ae2-49e1-a365-f8184b41b4f3-b017.png?v=1712948274366)

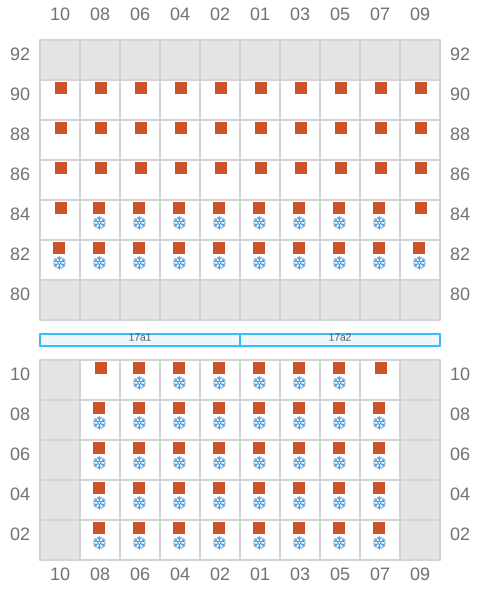

019
- ←
- →
![Bay 019 view and slots of AS FABRIZIA](/vessel-images/28e22aeb-7ae2-49e1-a365-f8184b41b4f3-b019.png?v=1712948274366)

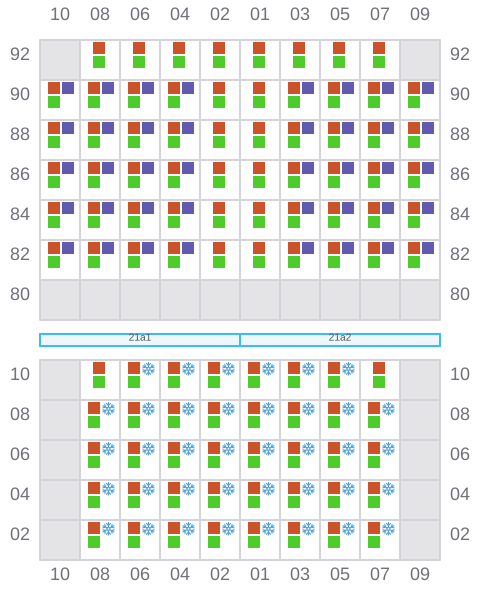

021 (022)
- →
- ? / ←
![Bay 021 view and slots of AS FABRIZIA](/vessel-images/28e22aeb-7ae2-49e1-a365-f8184b41b4f3-b021.png?v=1712948274366)

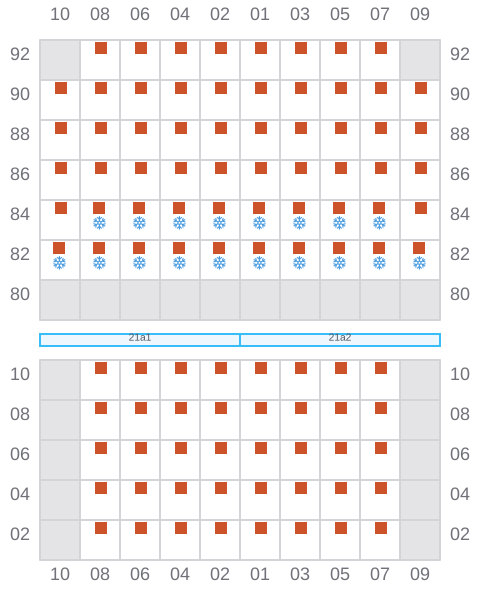

023
- ←
- → / ?
![Bay 023 view and slots of AS FABRIZIA](/vessel-images/28e22aeb-7ae2-49e1-a365-f8184b41b4f3-b023.png?v=1712948274366)

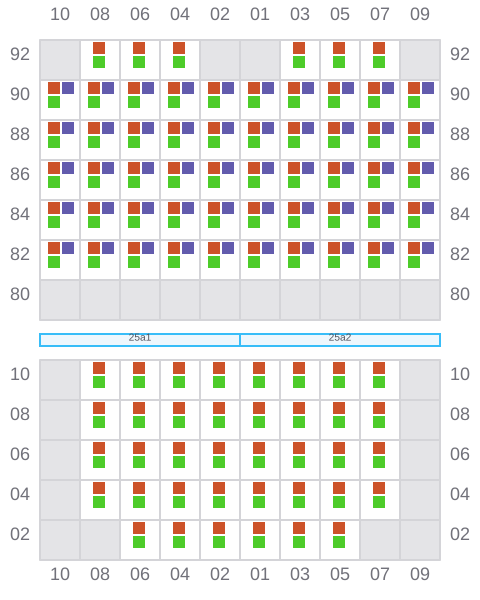

025 (026)
- →
![Bay 025 view and slots of AS FABRIZIA](/vessel-images/28e22aeb-7ae2-49e1-a365-f8184b41b4f3-b025.png?v=1712948274366)

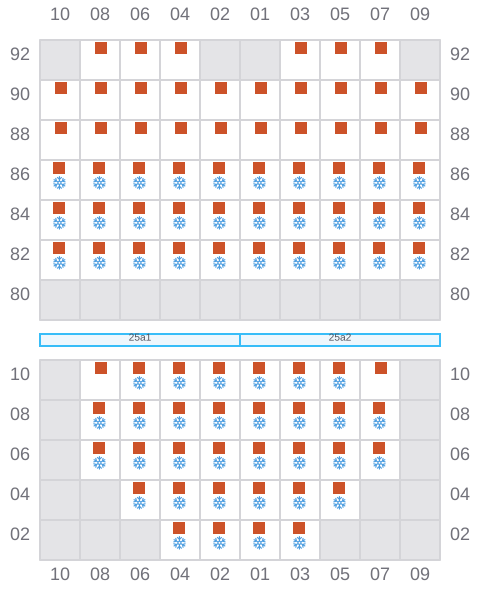

027
- ←
- →
![Bay 027 view and slots of AS FABRIZIA](/vessel-images/28e22aeb-7ae2-49e1-a365-f8184b41b4f3-b027.png?v=1712948274366)

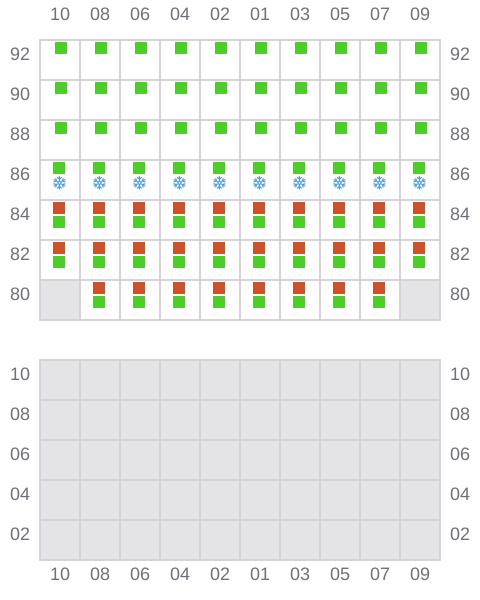

029 (030)
- → / ?
- → / ?
![Bay 029 view and slots of AS FABRIZIA](/vessel-images/28e22aeb-7ae2-49e1-a365-f8184b41b4f3-b029.png?v=1712948274366)

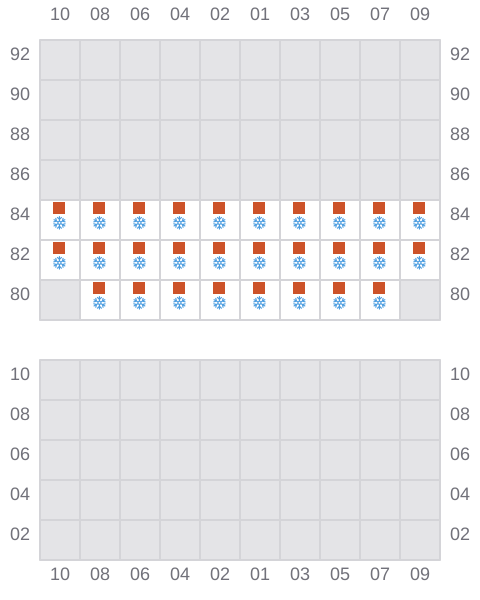

031
- ← / ?
- → / ?
![Bay 031 view and slots of AS FABRIZIA](/vessel-images/28e22aeb-7ae2-49e1-a365-f8184b41b4f3-b031.png?v=1712948274366)
