AS FENJA
9292450 | D5QK8 | 9292450 by ********* Last update: Fri Jun 21 2024

General Info

Ship Name:AS FENJA
IMO Code:9292450
Call Sign:D5QK8
Line Operator:9292450
Class Name for Sister Ships:MCC
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:035
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,213

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

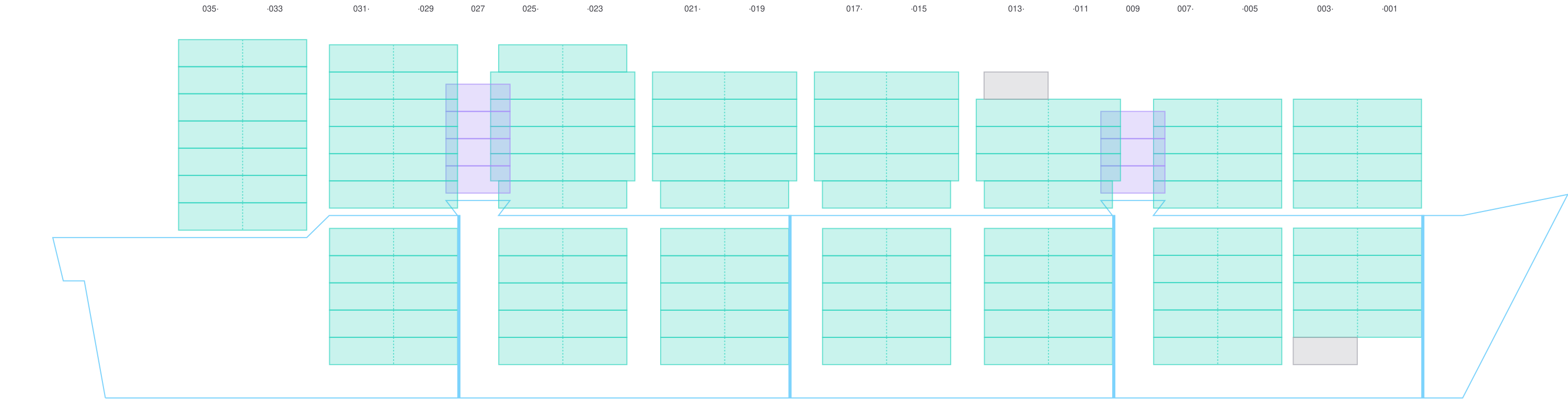

Side View

Side view of AS FENJA

Hatch-Covers View

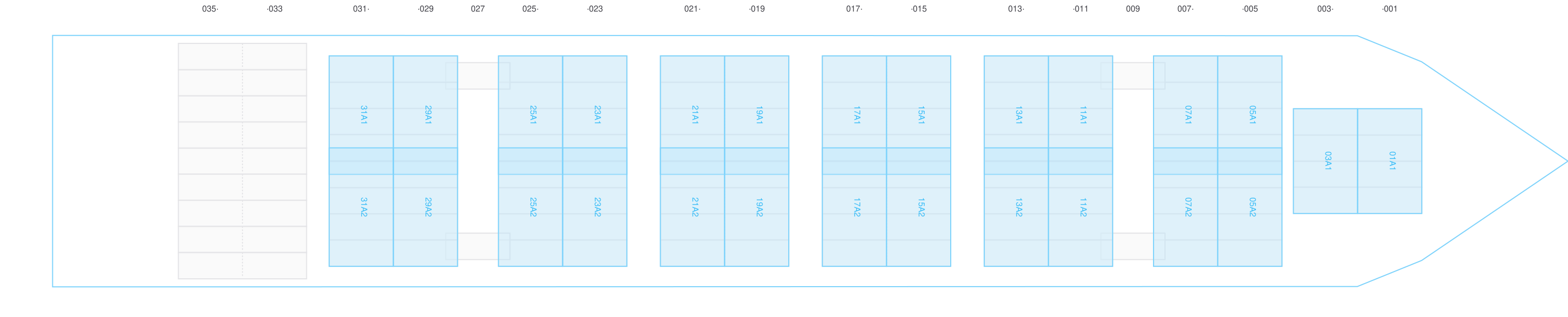

Deck view of AS FENJA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

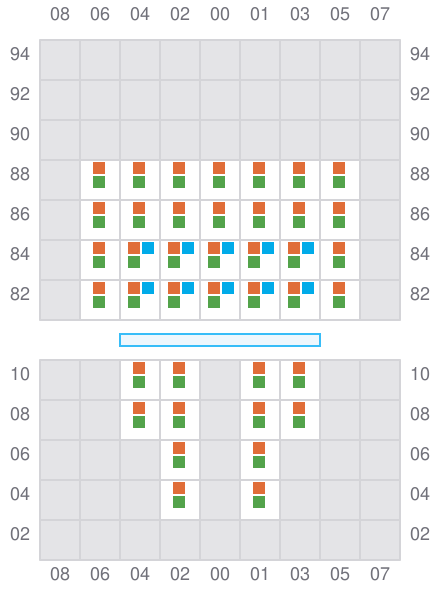

001 (002)

  • →
Bay 001 view and slots of AS FENJA

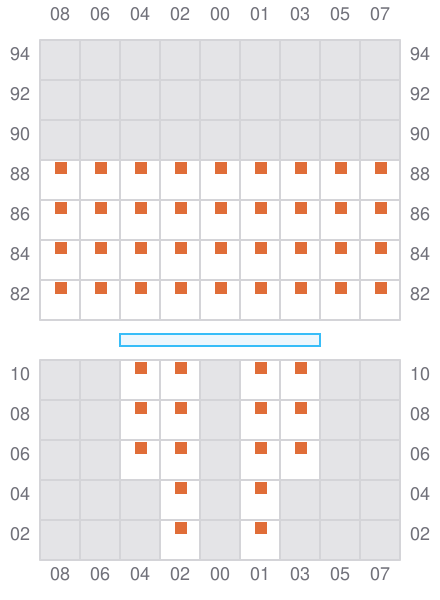

003

  • ←
Bay 003 view and slots of AS FENJA

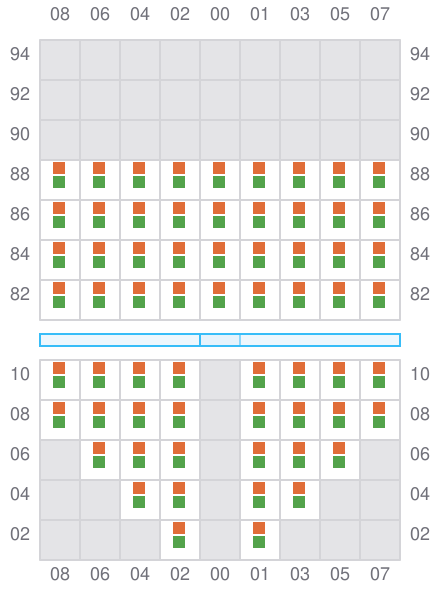

005 (006)

  • →
Bay 005 view and slots of AS FENJA

007

  • ←
  • → / ?

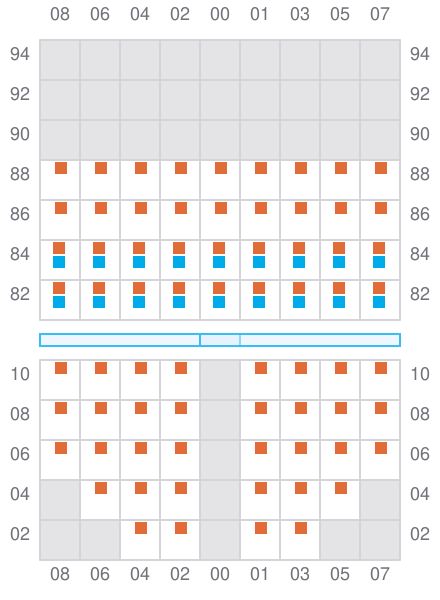

Bay 007 view and slots of AS FENJA

009

Bay 009 view and slots of AS FENJA

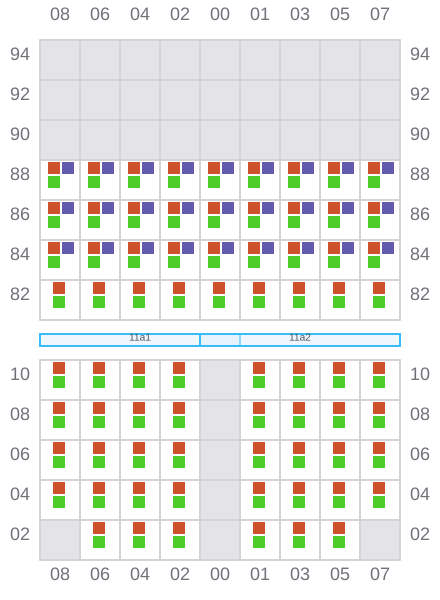

011 (012)

  • →
Bay 011 view and slots of AS FENJA

013

  • ←
  • →

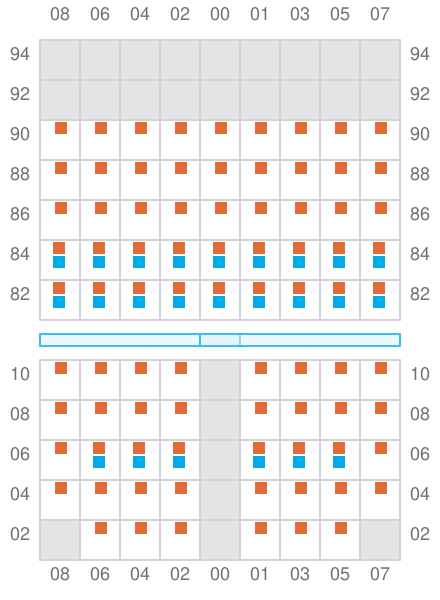

Bay 013 view and slots of AS FENJA

015 (016)

  • →
  • ←

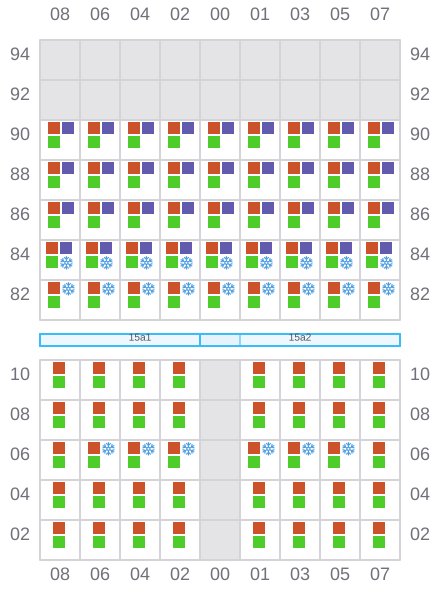

Bay 015 view and slots of AS FENJA

017

  • ←

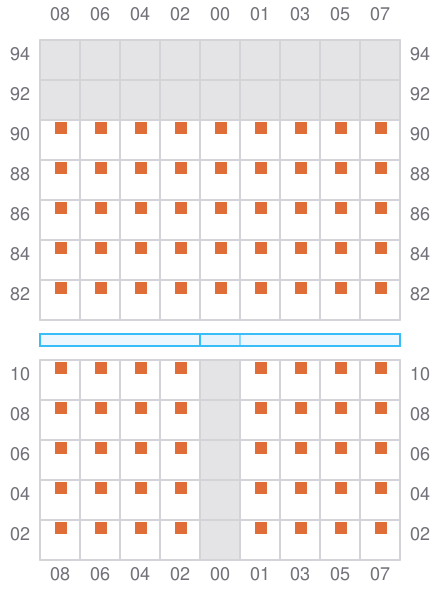

Bay 017 view and slots of AS FENJA

019 (020)

  • →

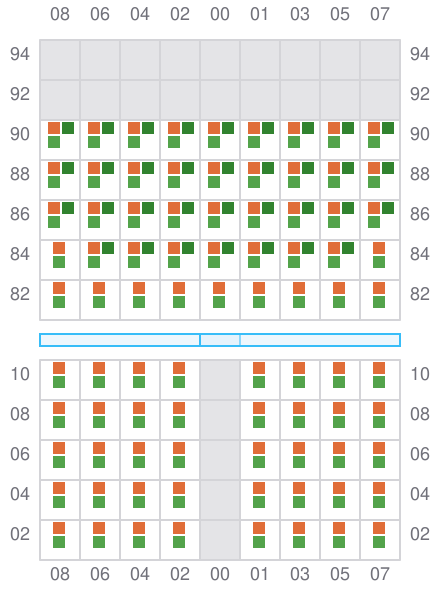

Bay 019 view and slots of AS FENJA

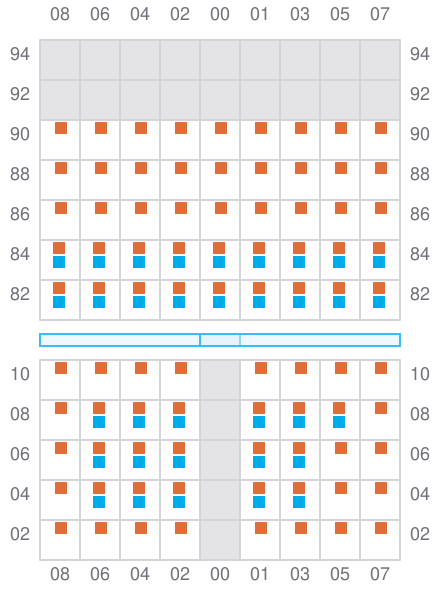

021

  • ←
  • →
Bay 021 view and slots of AS FENJA

023 (024)

  • →
  • ←

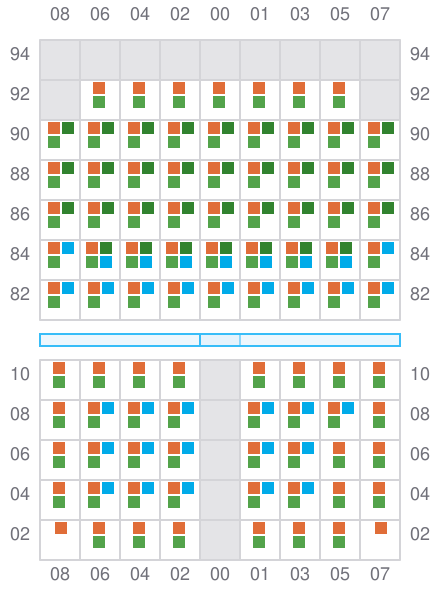

Bay 023 view and slots of AS FENJA

025

  • ←

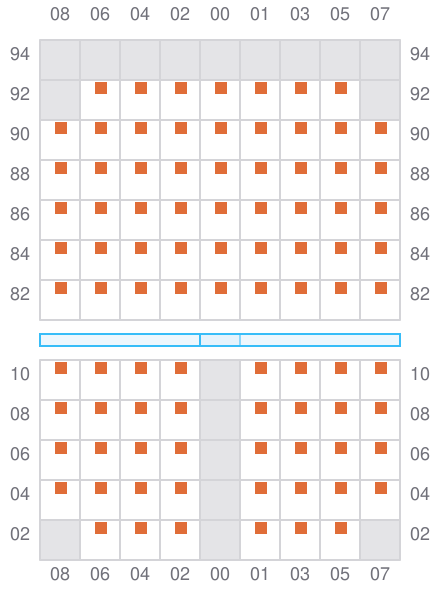

Bay 025 view and slots of AS FENJA

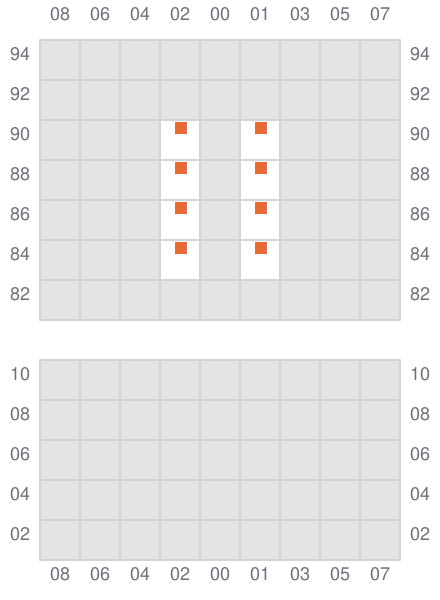

027

Bay 027 view and slots of AS FENJA

029 (030)

  • →

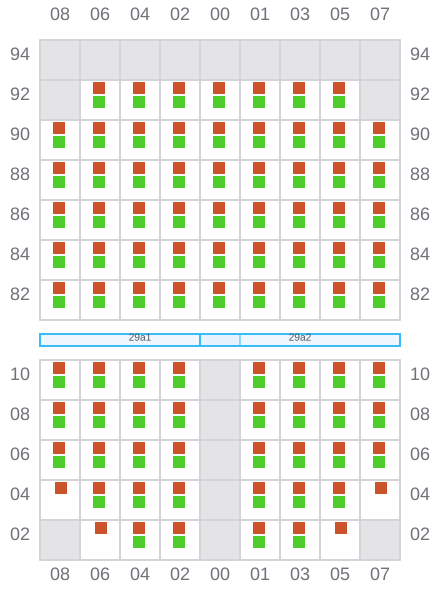

Bay 029 view and slots of AS FENJA

031

  • ←
  • → / ?

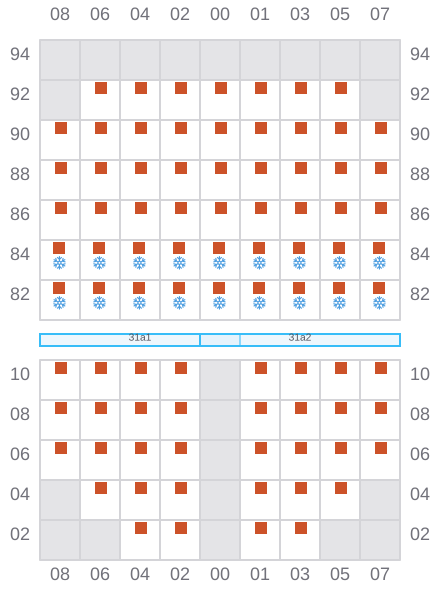

Bay 031 view and slots of AS FENJA

033 (034)

  • → / ?

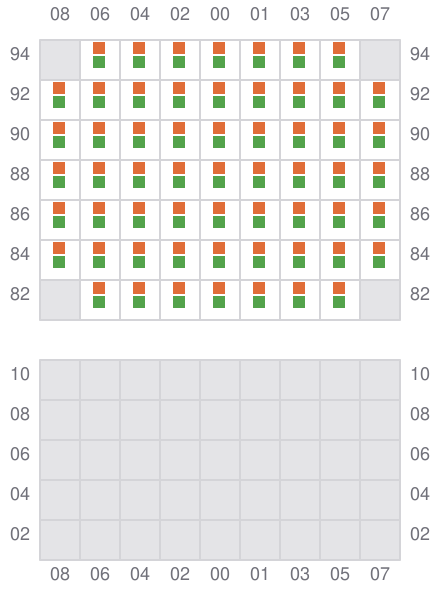

Bay 033 view and slots of AS FENJA

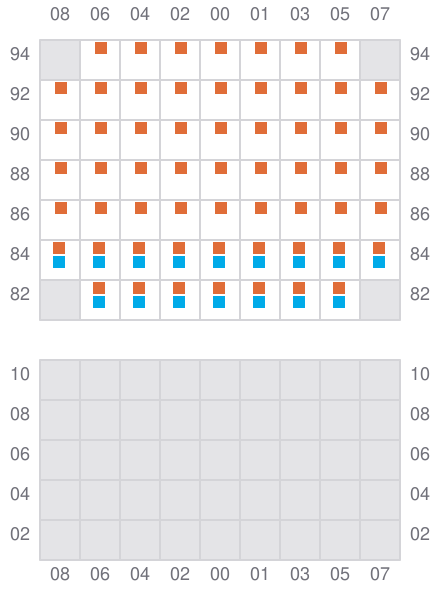

035

  • ← / ?
  • → / ?
Bay 035 view and slots of AS FENJA
