AS FILIPPA
9368742 | CQIZ4 | 9368742 by ********* Last update: Wed Jun 12 2024

General Info

Ship Name:AS FILIPPA
IMO Code:9368742
Call Sign:CQIZ4
Line Operator:9368742
Class Name for Sister Ships:MSK
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:033
Max ISO Row:10
Center Line Row:No
Max Above ISO Tier:90
Min Above ISO Tier:78
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,962

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

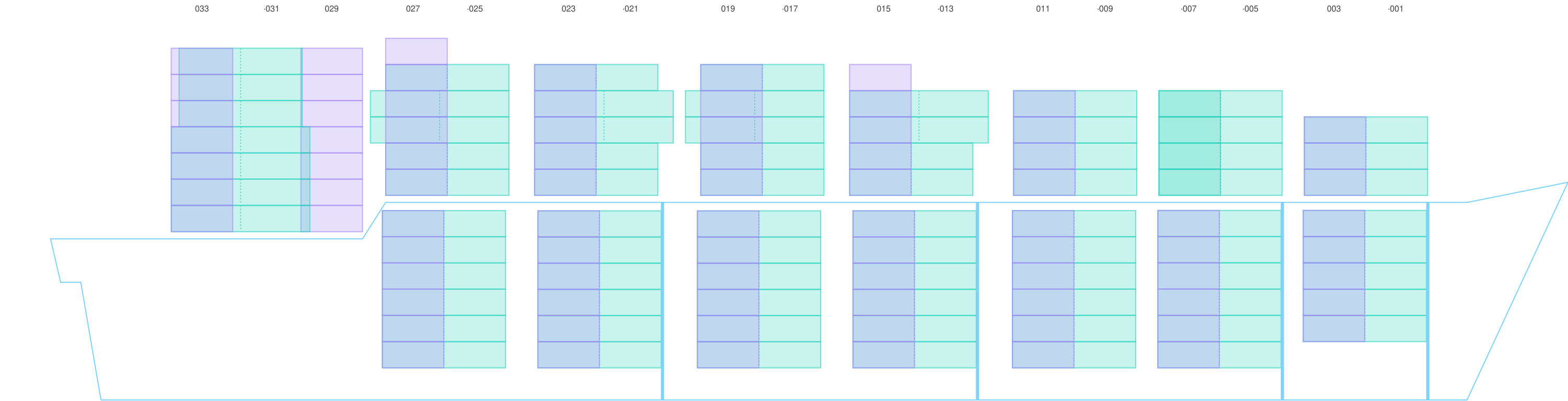

Side view of AS FILIPPA

Hatch-Covers View

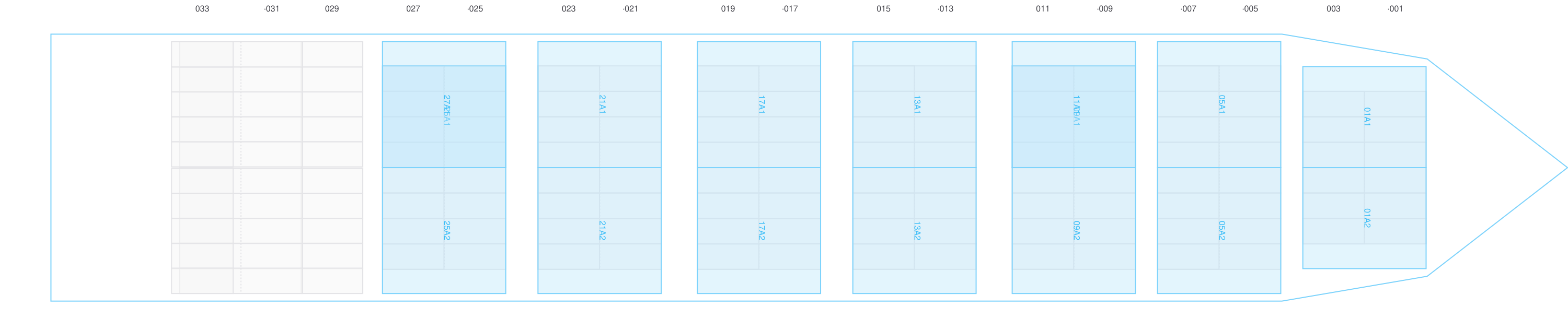

Deck view of AS FILIPPA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • / ?

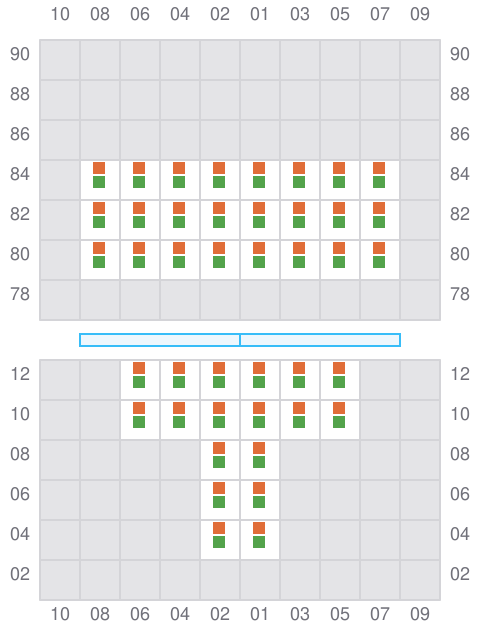

Bay 001 view and slots of AS FILIPPA

003

  • / ?

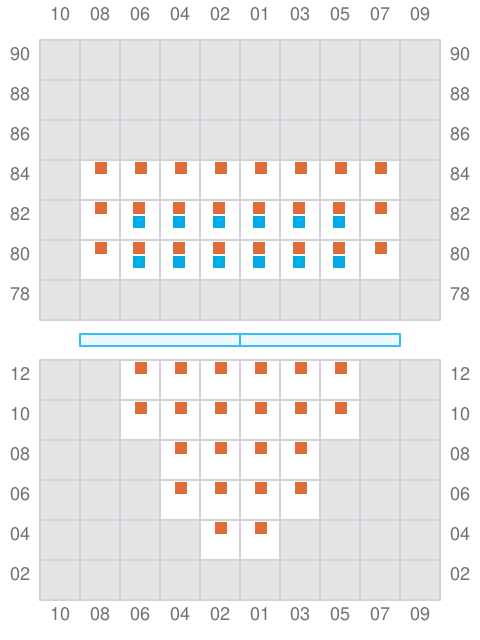

Bay 003 view and slots of AS FILIPPA

005 (006)

  • / ?

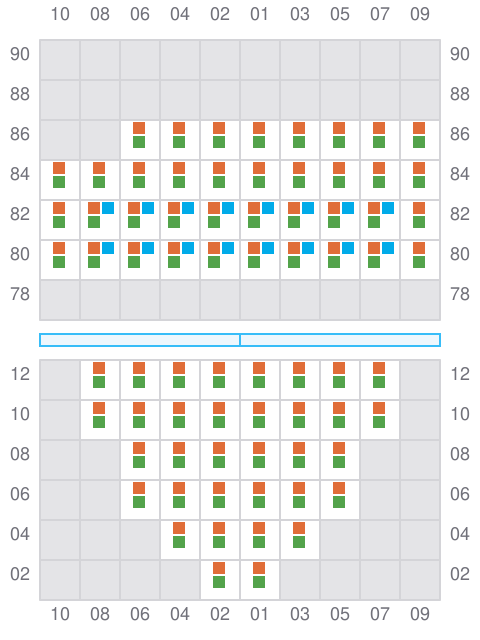

Bay 005 view and slots of AS FILIPPA

007

  • / ?

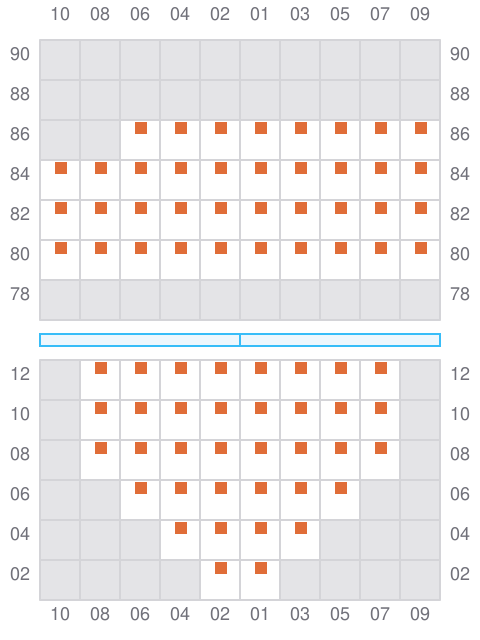

Bay 007 view and slots of AS FILIPPA

009 (010)

  • /
Bay 009 view and slots of AS FILIPPA

011

  • / ?

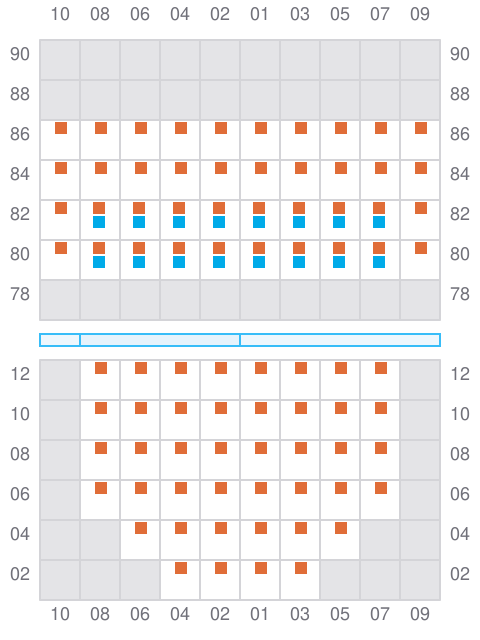

Bay 011 view and slots of AS FILIPPA

013 (014)

  • / ?

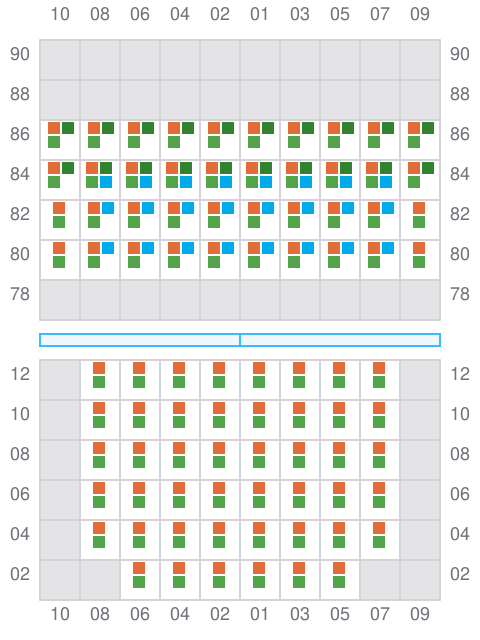

Bay 013 view and slots of AS FILIPPA

015

  • ? /

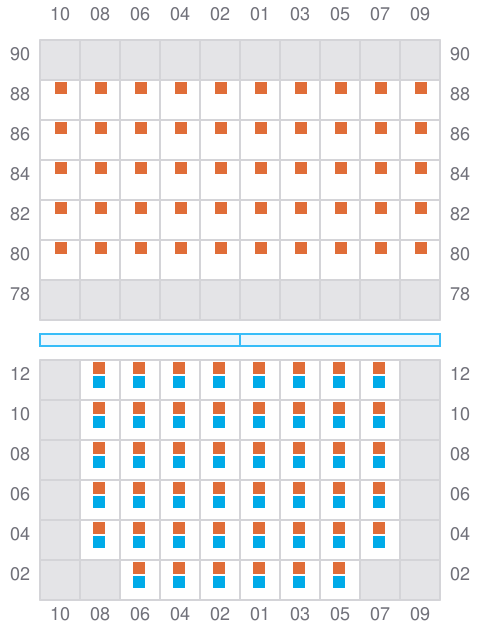

Bay 015 view and slots of AS FILIPPA

017 (018)

  • /

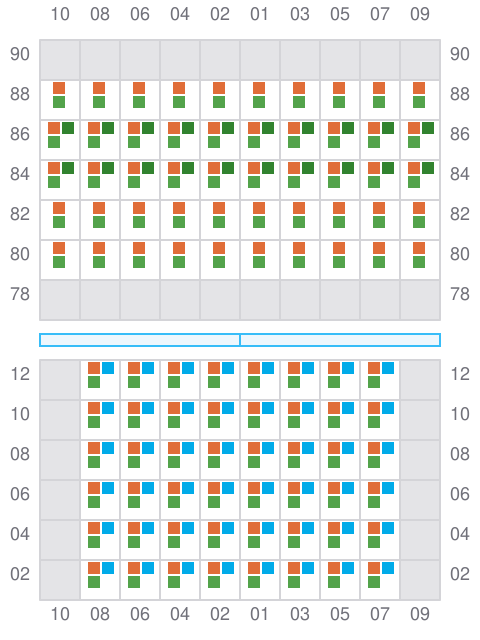

Bay 017 view and slots of AS FILIPPA

019

  • / ?

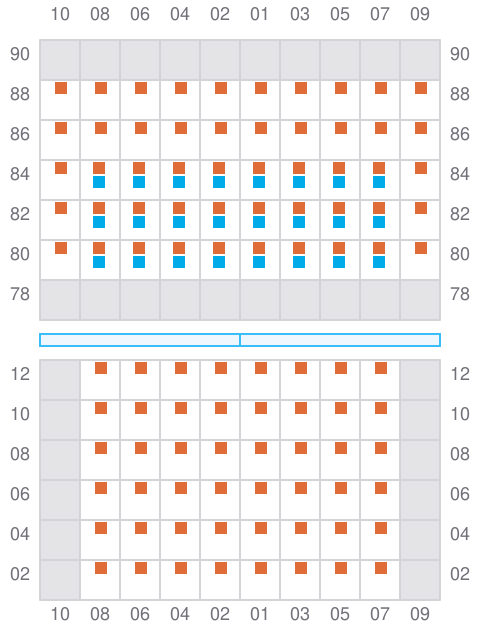

Bay 019 view and slots of AS FILIPPA

021 (022)

  • / ?

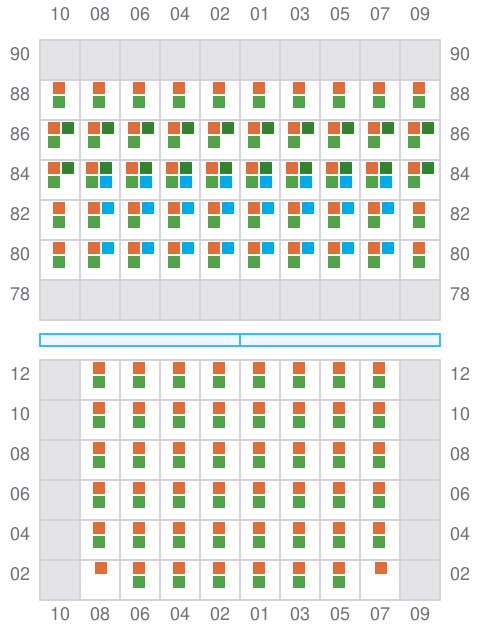

Bay 021 view and slots of AS FILIPPA

023

  • ? /
Bay 023 view and slots of AS FILIPPA

025 (026)

  • /

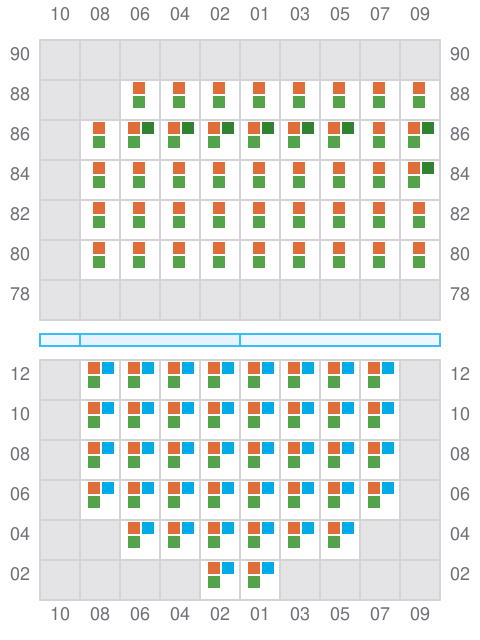

Bay 025 view and slots of AS FILIPPA

027

  • / ?

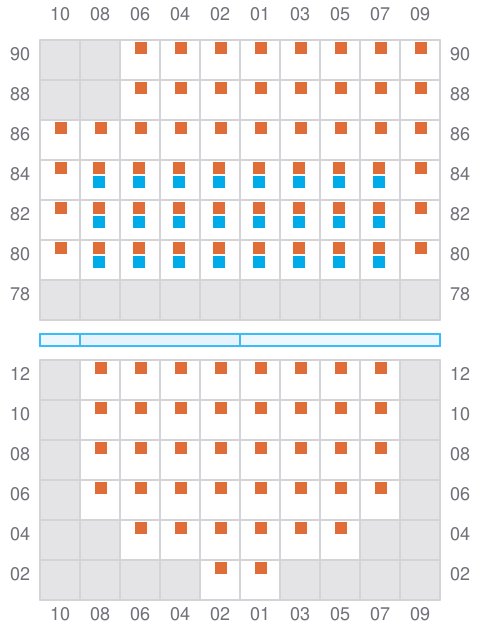

Bay 027 view and slots of AS FILIPPA

029

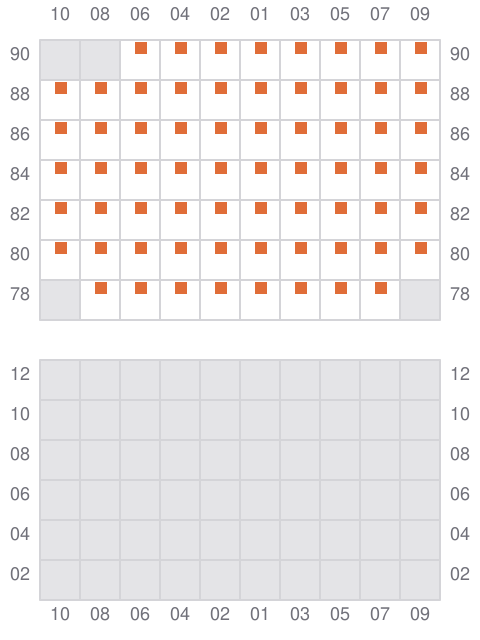

Bay 029 view and slots of AS FILIPPA

031 (032)

Bay 031 view and slots of AS FILIPPA

033

  • / ?

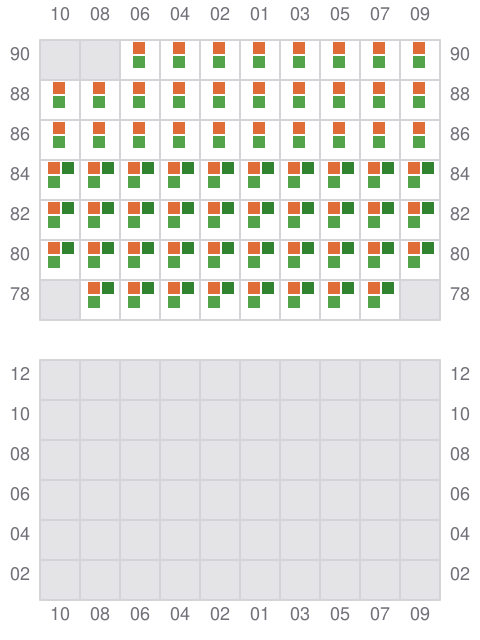

Bay 033 view and slots of AS FILIPPA
