AS FLORIANA
9437115 | CQFU | 9437115 by ********* Last update: Tue May 21 2024
General Info
Ship Name:AS FLORIANA
IMO Code:9437115
Call Sign:CQFU
Line Operator:9437115
Class Name for Sister Ships:MEDONTARIO
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:031
Max ISO Row:10
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,288
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

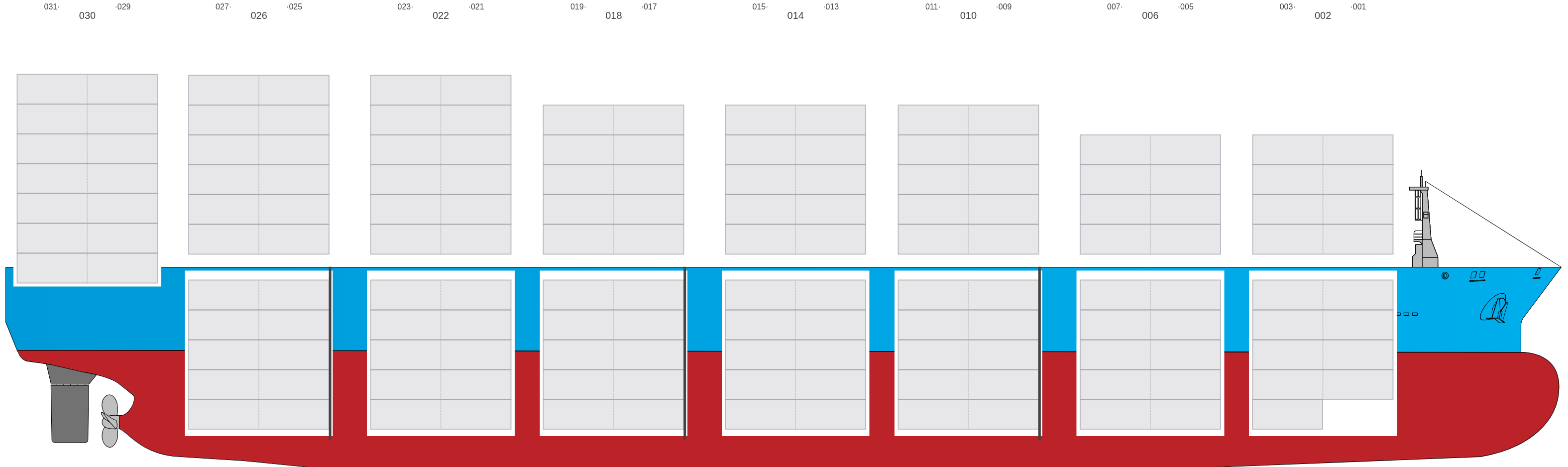

Side View
![Side view of AS FLORIANA](/vessel-images/a59f2949-dbbe-4c1b-a711-e521d60eb0c6-sideView.png?v=1716311485796)
Hatch-Covers View
![Deck view of AS FLORIANA](/vessel-images/a59f2949-dbbe-4c1b-a711-e521d60eb0c6-deckView.png?v=1716311485796)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

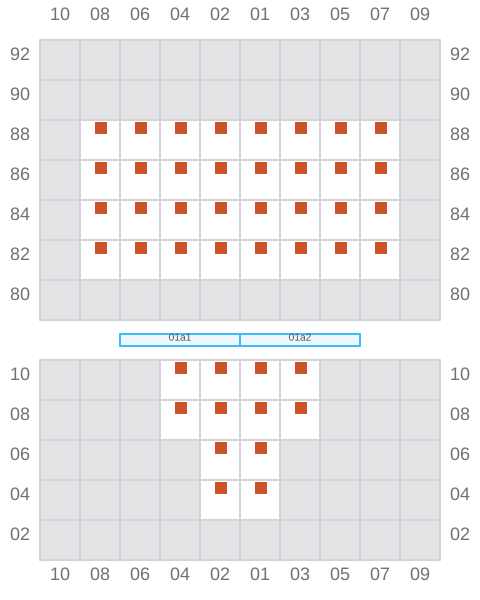

001
- →
- →
![Bay 001 view and slots of AS FLORIANA](/vessel-images/a59f2949-dbbe-4c1b-a711-e521d60eb0c6-b001.png?v=1716311485796)

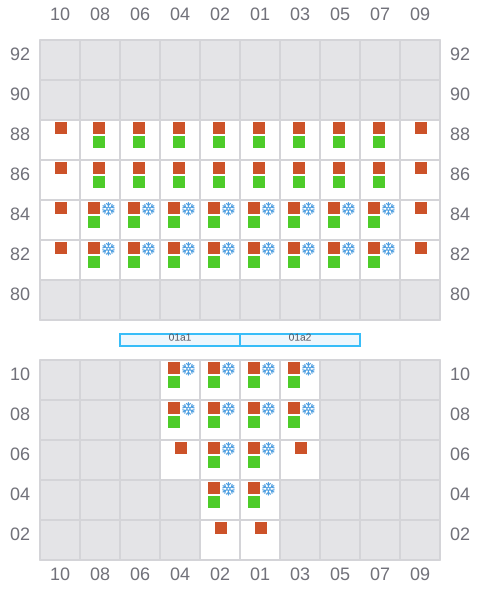

003 (002)
- ←
- →
- →
![Bay 003 view and slots of AS FLORIANA](/vessel-images/a59f2949-dbbe-4c1b-a711-e521d60eb0c6-b003.png?v=1716311485796)

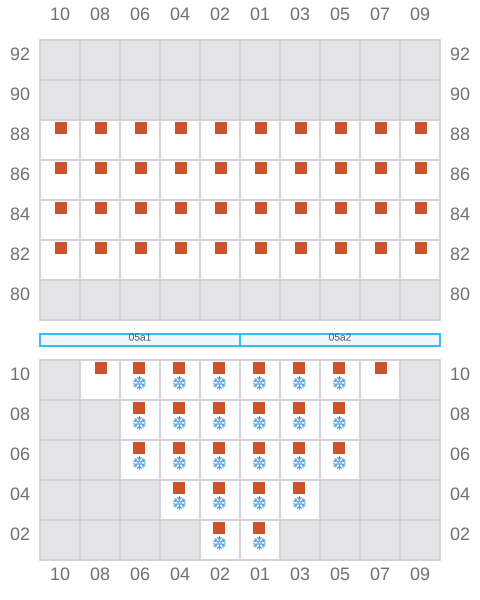

005
- →
- ? / ←
- →
![Bay 005 view and slots of AS FLORIANA](/vessel-images/a59f2949-dbbe-4c1b-a711-e521d60eb0c6-b005.png?v=1716311485796)

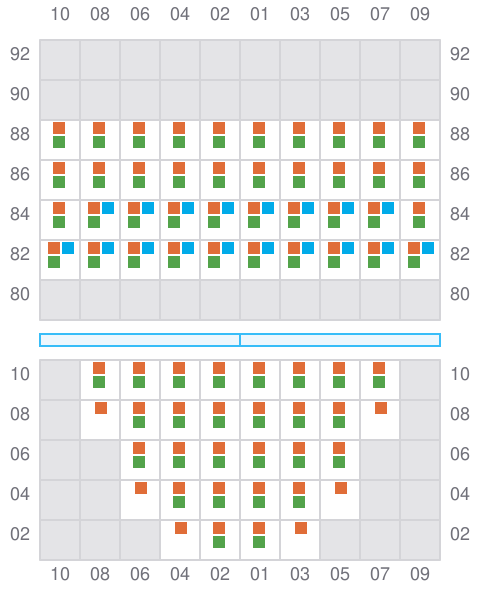

007 (006)
- ←
- → / ?
- →
![Bay 007 view and slots of AS FLORIANA](/vessel-images/a59f2949-dbbe-4c1b-a711-e521d60eb0c6-b007.png?v=1716311485796)
009
- →
- →
![Bay 009 view and slots of AS FLORIANA](/vessel-images/a59f2949-dbbe-4c1b-a711-e521d60eb0c6-b009.png?v=1716311485796)

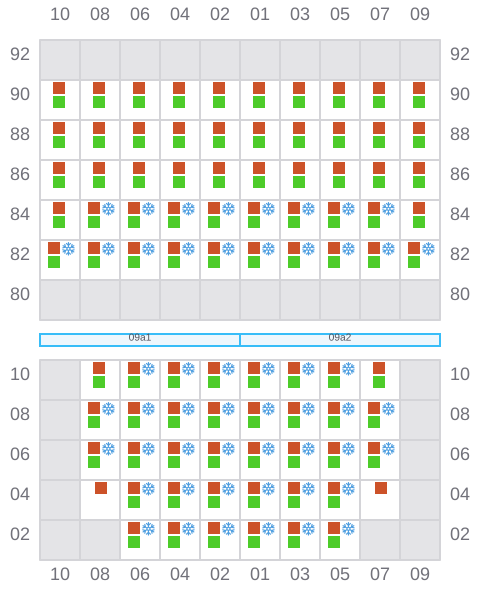

011 (010)
- ←
- →
- →
![Bay 011 view and slots of AS FLORIANA](/vessel-images/a59f2949-dbbe-4c1b-a711-e521d60eb0c6-b011.png?v=1716311485796)

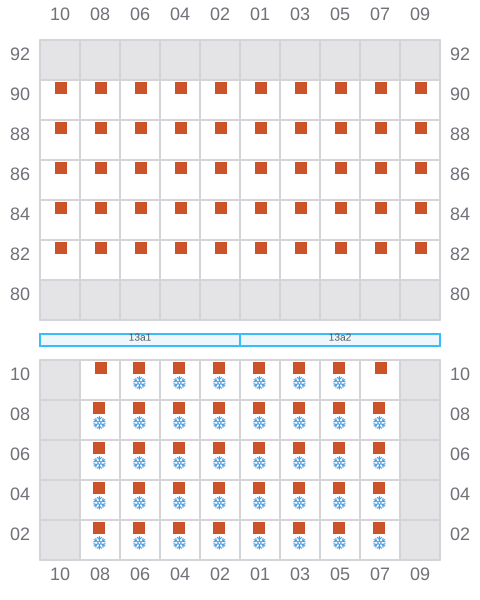

013
- →
- ? / ←
- →
![Bay 013 view and slots of AS FLORIANA](/vessel-images/a59f2949-dbbe-4c1b-a711-e521d60eb0c6-b013.png?v=1716311485796)

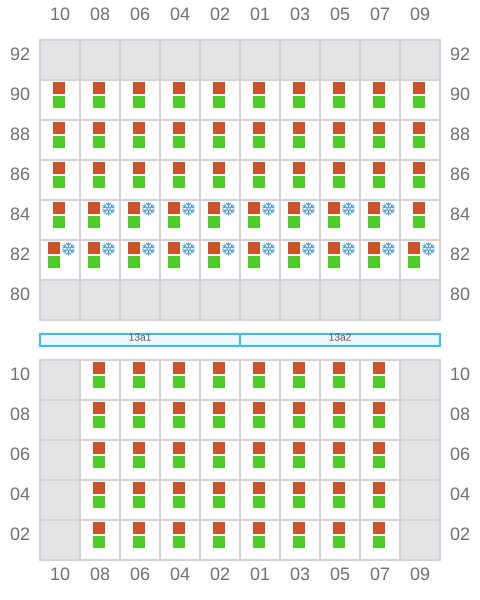

015 (014)
- ←
- → / ?
- →
![Bay 015 view and slots of AS FLORIANA](/vessel-images/a59f2949-dbbe-4c1b-a711-e521d60eb0c6-b015.png?v=1716311485796)

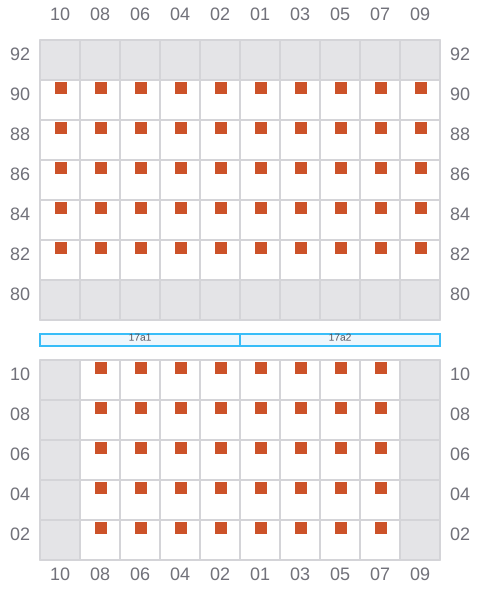

017
- →
- →
![Bay 017 view and slots of AS FLORIANA](/vessel-images/a59f2949-dbbe-4c1b-a711-e521d60eb0c6-b017.png?v=1716311485796)

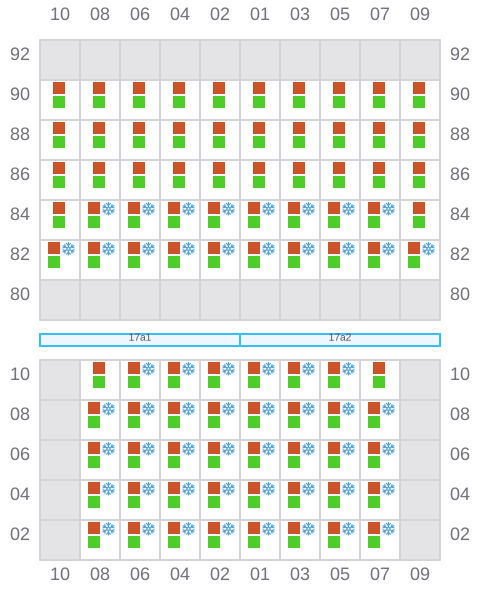

019 (018)
- ←
- →
- →
![Bay 019 view and slots of AS FLORIANA](/vessel-images/a59f2949-dbbe-4c1b-a711-e521d60eb0c6-b019.png?v=1716311485796)

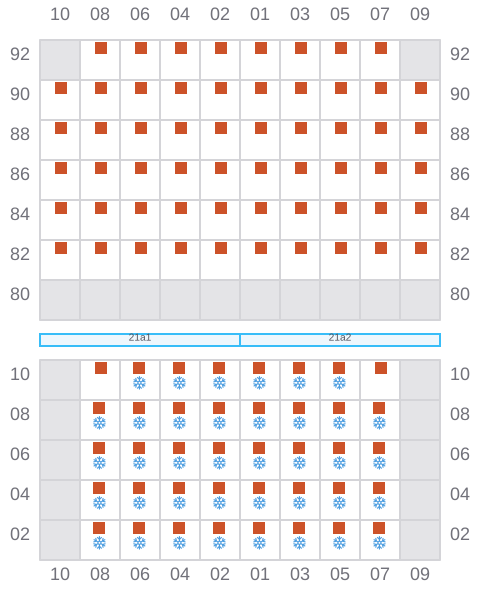

021
- →
- ? / ←
- →
![Bay 021 view and slots of AS FLORIANA](/vessel-images/a59f2949-dbbe-4c1b-a711-e521d60eb0c6-b021.png?v=1716311485796)

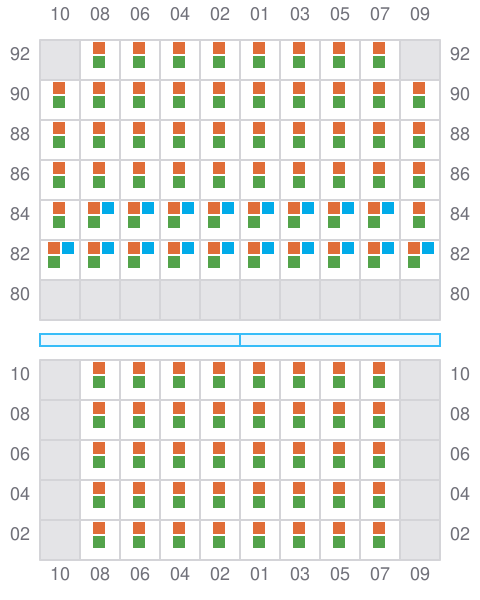

023 (022)
- ←
- → / ?
- →
![Bay 023 view and slots of AS FLORIANA](/vessel-images/a59f2949-dbbe-4c1b-a711-e521d60eb0c6-b023.png?v=1716311485796)

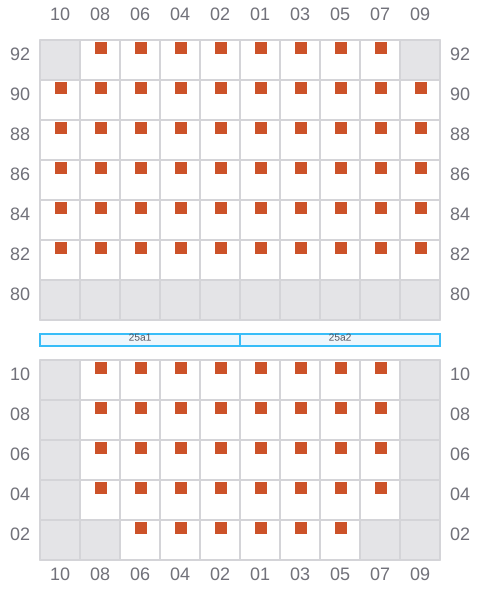

025
- →
- →
![Bay 025 view and slots of AS FLORIANA](/vessel-images/a59f2949-dbbe-4c1b-a711-e521d60eb0c6-b025.png?v=1716311485796)

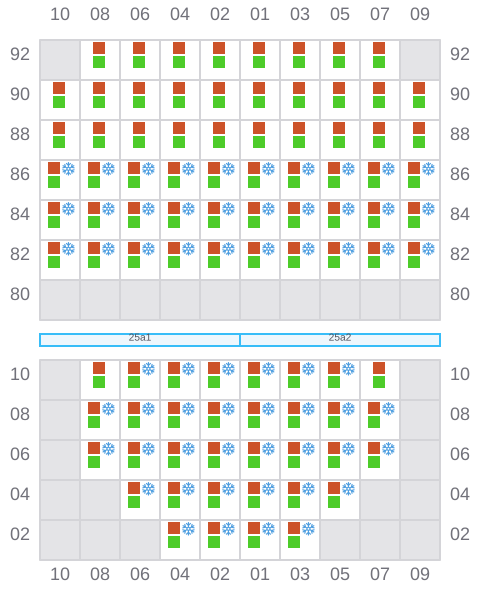

027 (026)
- ←
- ? / →
- →
![Bay 027 view and slots of AS FLORIANA](/vessel-images/a59f2949-dbbe-4c1b-a711-e521d60eb0c6-b027.png?v=1716311485796)

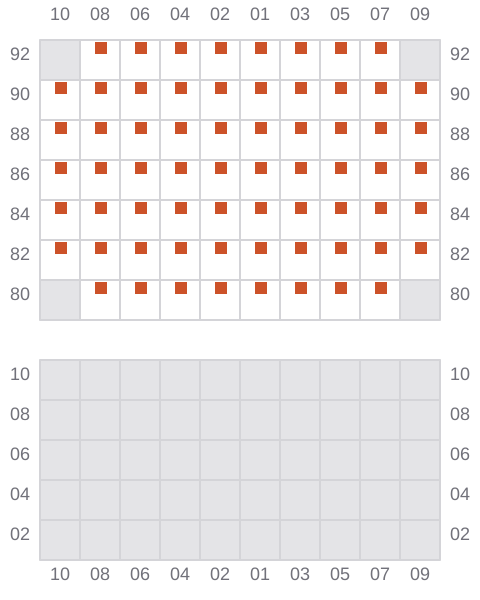

029
- → / ?
- → / ?
![Bay 029 view and slots of AS FLORIANA](/vessel-images/a59f2949-dbbe-4c1b-a711-e521d60eb0c6-b029.png?v=1716311485796)

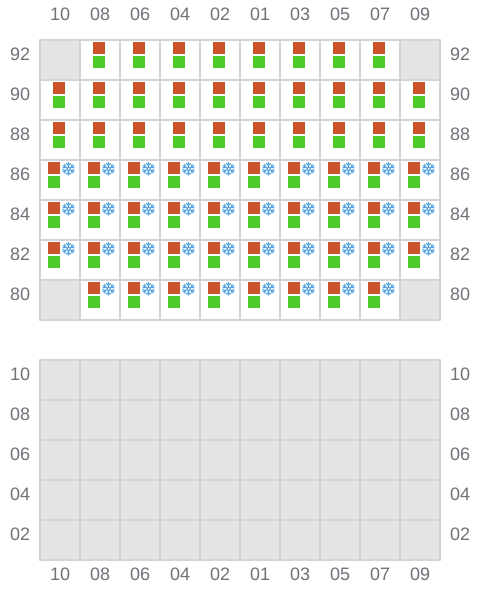

031 (030)
- ← / ?
- → / ?
![Bay 031 view and slots of AS FLORIANA](/vessel-images/a59f2949-dbbe-4c1b-a711-e521d60eb0c6-b031.png?v=1716311485796)
