AS FRANZISKA
9295517 | V2DH3 | 9295517 by ********* Last update: Sun Mar 17 2024
General Info
Ship Name:AS FRANZISKA
IMO Code:9295517
Call Sign:V2DH3
Line Operator:9295517
Class Name for Sister Ships:67B
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:033
Max ISO Row:10
Center Line Row:No
Max Above ISO Tier:90
Min Above ISO Tier:78
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,408
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

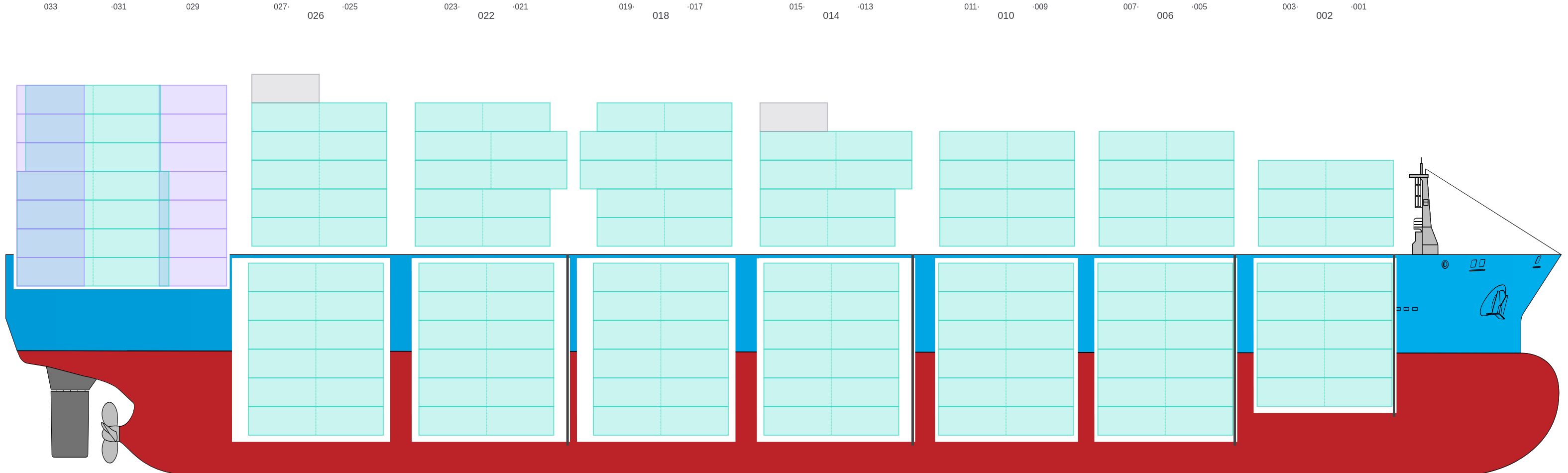

Side View
![Side view of AS FRANZISKA](/vessel-images/e4f17f42-fa1c-4871-b6b5-f67293fbf304-sideView.png?v=1710698080105)

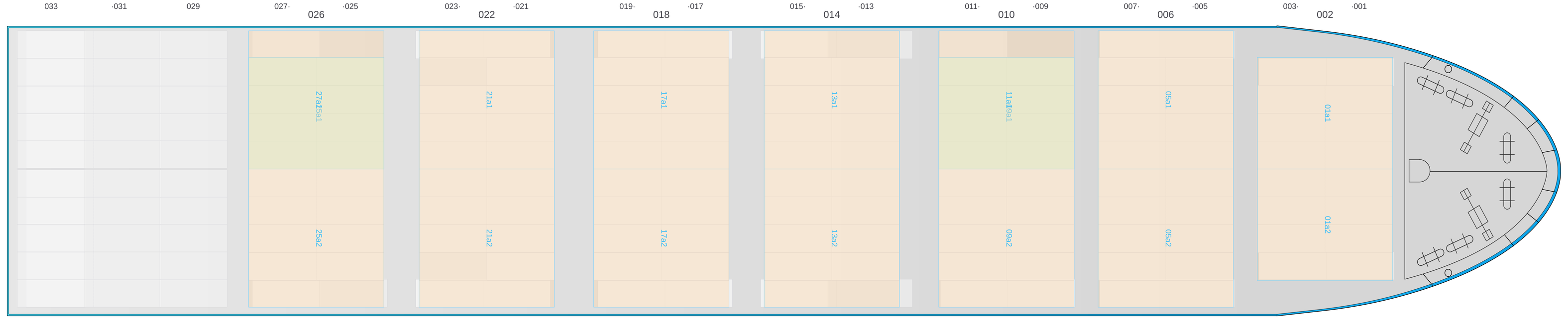

Hatch-Covers View
![Deck view of AS FRANZISKA](/vessel-images/e4f17f42-fa1c-4871-b6b5-f67293fbf304-deckView.png?v=1710698080105)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

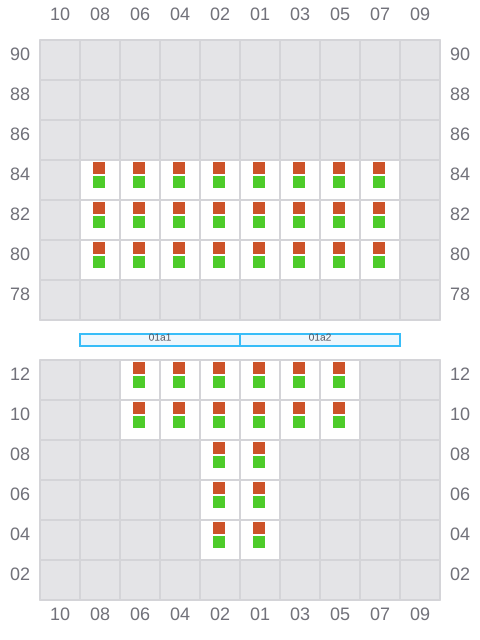

001 (002)
- →
- → / ?
![Bay 001 view and slots of AS FRANZISKA](/vessel-images/e4f17f42-fa1c-4871-b6b5-f67293fbf304-b001.png?v=1710698080105)

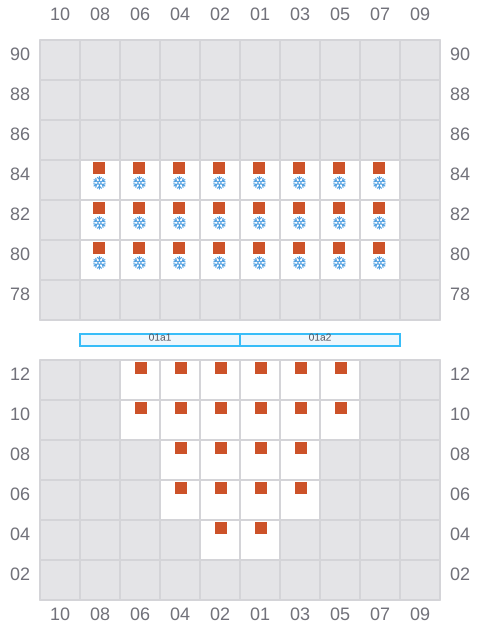

003
- ←
- → / ?
![Bay 003 view and slots of AS FRANZISKA](/vessel-images/e4f17f42-fa1c-4871-b6b5-f67293fbf304-b003.png?v=1710698080105)

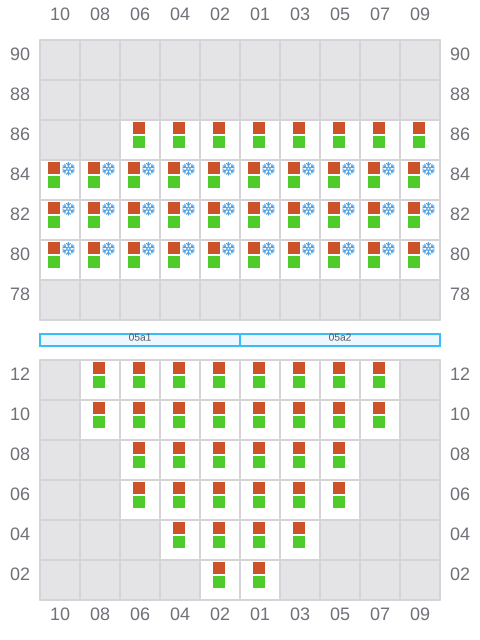

005 (006)
- →
- ← / ?
![Bay 005 view and slots of AS FRANZISKA](/vessel-images/e4f17f42-fa1c-4871-b6b5-f67293fbf304-b005.png?v=1710698080105)

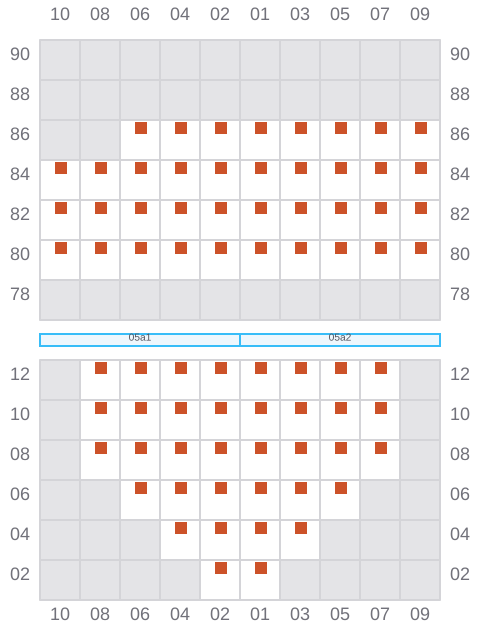

007
- ←
- ← / ?
![Bay 007 view and slots of AS FRANZISKA](/vessel-images/e4f17f42-fa1c-4871-b6b5-f67293fbf304-b007.png?v=1710698080105)

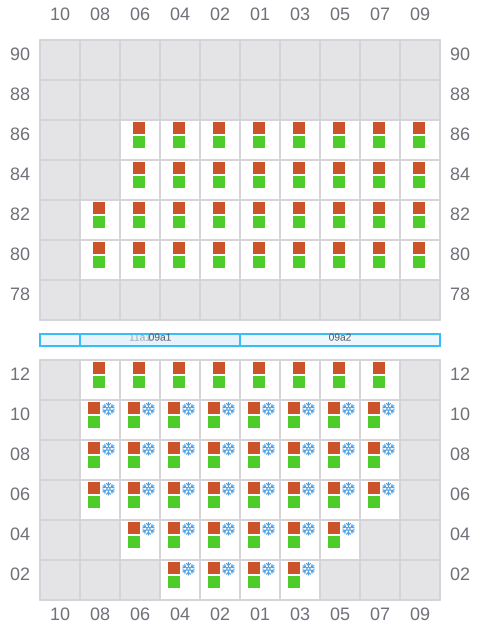

009 (010)
- →
- → / ←
![Bay 009 view and slots of AS FRANZISKA](/vessel-images/e4f17f42-fa1c-4871-b6b5-f67293fbf304-b009.png?v=1710698080105)

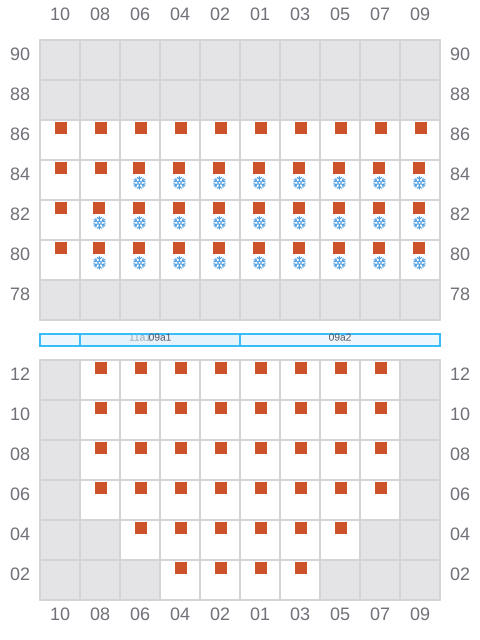

011
- ←
- → / ?
![Bay 011 view and slots of AS FRANZISKA](/vessel-images/e4f17f42-fa1c-4871-b6b5-f67293fbf304-b011.png?v=1710698080105)

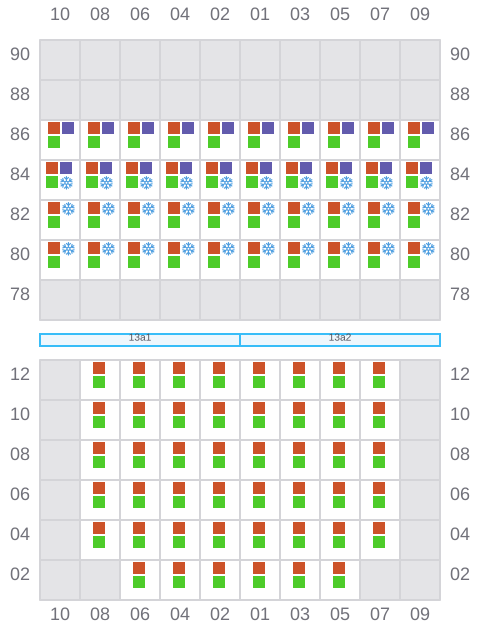

013 (014)
- →
- ← / ?
![Bay 013 view and slots of AS FRANZISKA](/vessel-images/e4f17f42-fa1c-4871-b6b5-f67293fbf304-b013.png?v=1710698080105)

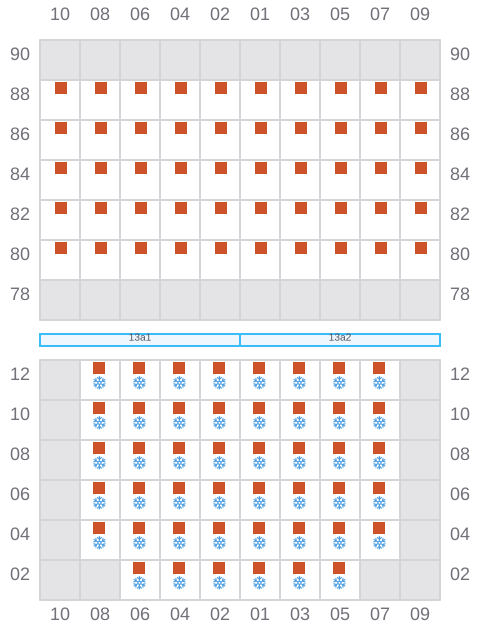

015
- ←
- ? / →
![Bay 015 view and slots of AS FRANZISKA](/vessel-images/e4f17f42-fa1c-4871-b6b5-f67293fbf304-b015.png?v=1710698080105)

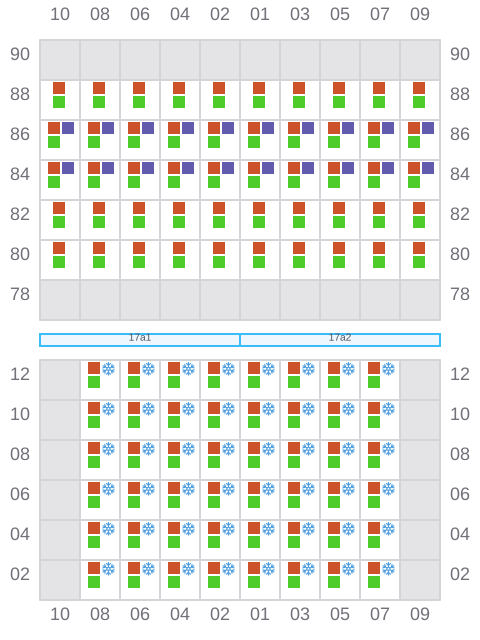

017 (018)
- →
- → / ←
![Bay 017 view and slots of AS FRANZISKA](/vessel-images/e4f17f42-fa1c-4871-b6b5-f67293fbf304-b017.png?v=1710698080105)

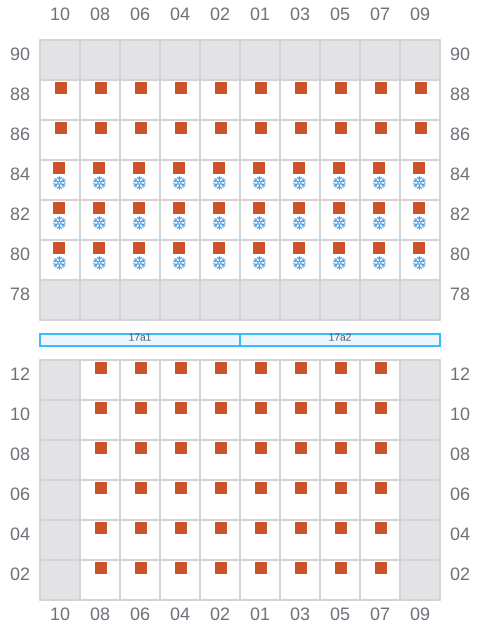

019
- ←
- → / ?
![Bay 019 view and slots of AS FRANZISKA](/vessel-images/e4f17f42-fa1c-4871-b6b5-f67293fbf304-b019.png?v=1710698080105)

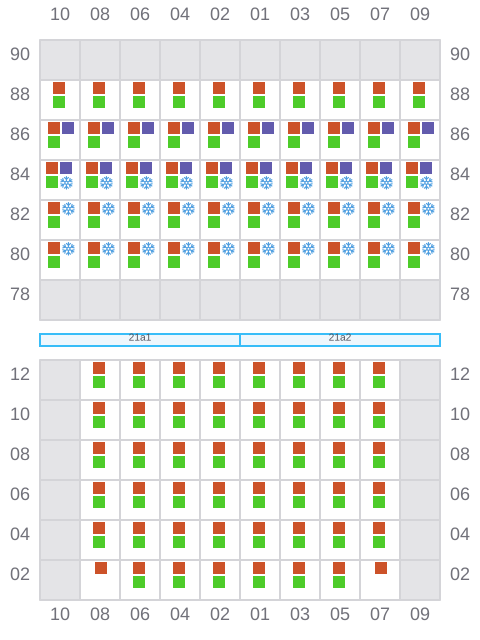

021 (022)
- →
- ← / ?
![Bay 021 view and slots of AS FRANZISKA](/vessel-images/e4f17f42-fa1c-4871-b6b5-f67293fbf304-b021.png?v=1710698080105)

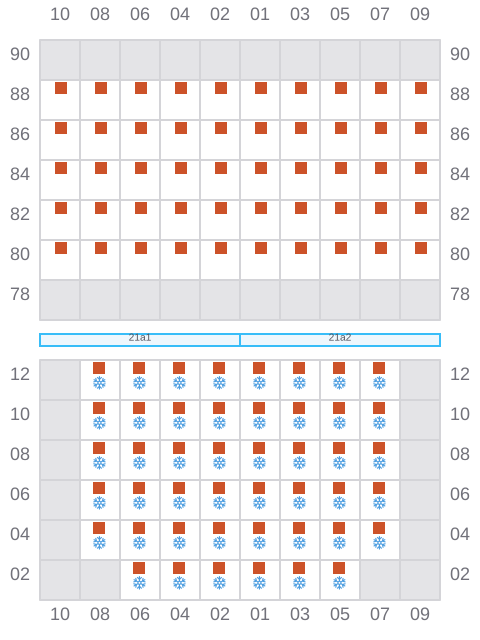

023
- ←
- ? / →
![Bay 023 view and slots of AS FRANZISKA](/vessel-images/e4f17f42-fa1c-4871-b6b5-f67293fbf304-b023.png?v=1710698080105)

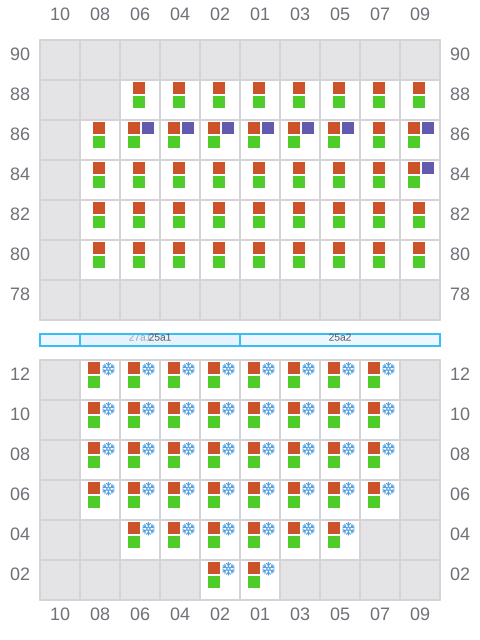

025 (026)
- →
- → / ←
![Bay 025 view and slots of AS FRANZISKA](/vessel-images/e4f17f42-fa1c-4871-b6b5-f67293fbf304-b025.png?v=1710698080105)

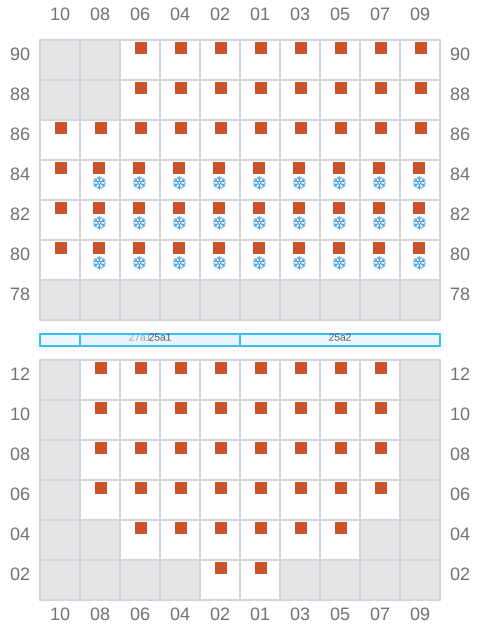

027
- ←
- → / ?
![Bay 027 view and slots of AS FRANZISKA](/vessel-images/e4f17f42-fa1c-4871-b6b5-f67293fbf304-b027.png?v=1710698080105)

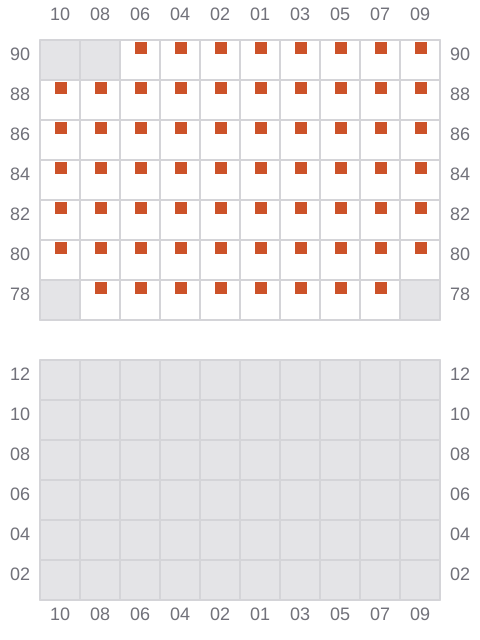

029
![Bay 029 view and slots of AS FRANZISKA](/vessel-images/e4f17f42-fa1c-4871-b6b5-f67293fbf304-b029.png?v=1710698080105)

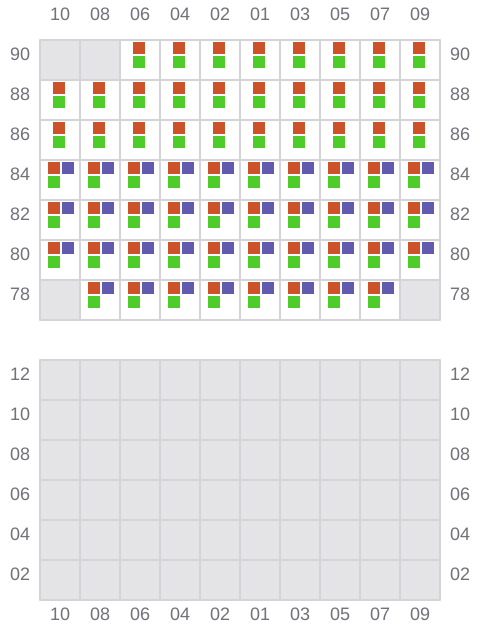

031 (032)
- → / ?
![Bay 031 view and slots of AS FRANZISKA](/vessel-images/e4f17f42-fa1c-4871-b6b5-f67293fbf304-b031.png?v=1710698080105)

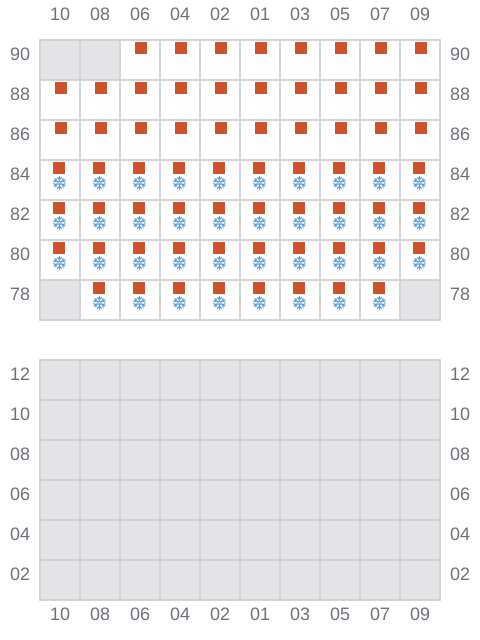

033
- → / ?
![Bay 033 view and slots of AS FRANZISKA](/vessel-images/e4f17f42-fa1c-4871-b6b5-f67293fbf304-b033.png?v=1710698080105)
