AS FREYA
9292436 | D5QK3 | 9292436 by ********* Last update: Wed Jun 19 2024
General Info
Ship Name:AS FREYA
IMO Code:9292436
Call Sign:D5QK3
Line Operator:9292436
Class Name for Sister Ships:SIM
Year Built:2004
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):146.70
LOA (Length Overall):154.54
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:031
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,185
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View

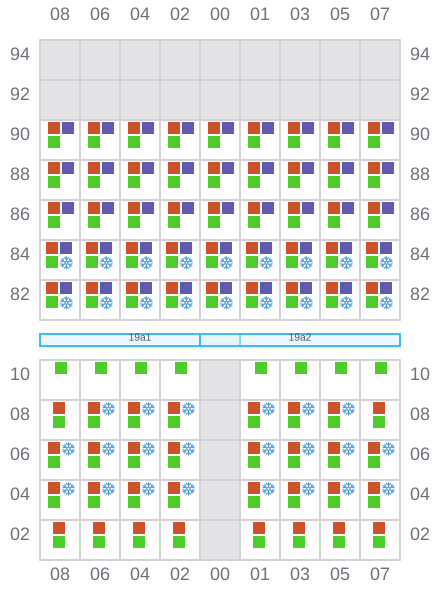

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

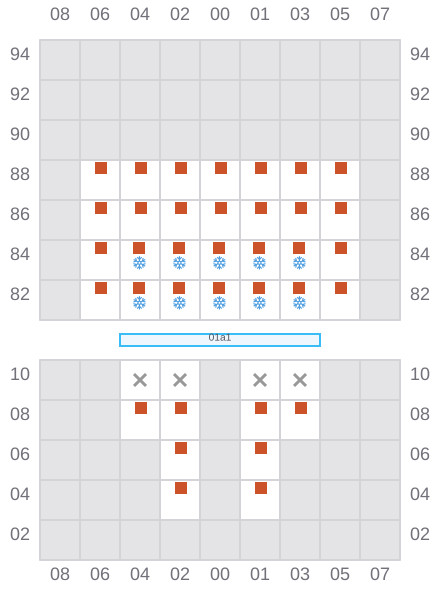

001
- →
003 (002)
- ←

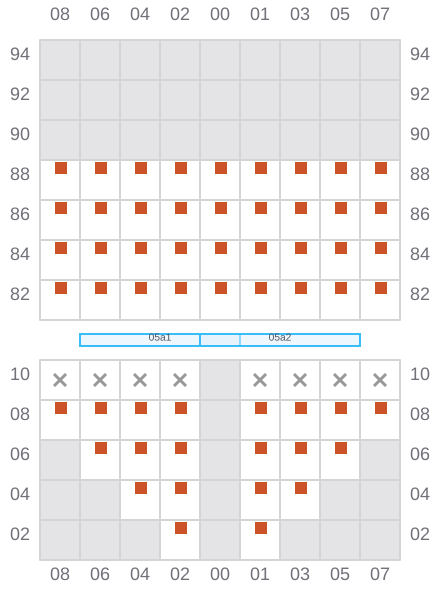

005
- →

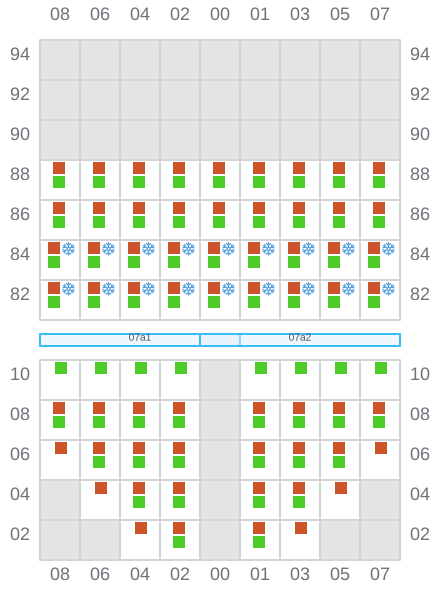

007 (006)
- ←
009
- →

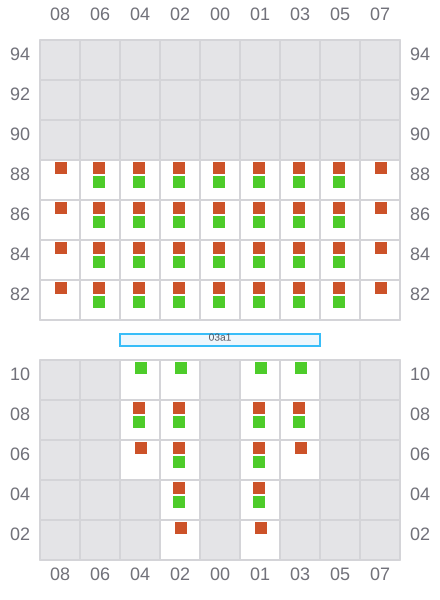

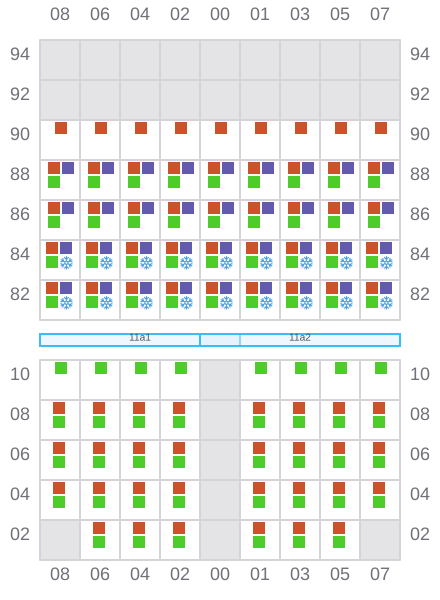

011 (010)
- ←

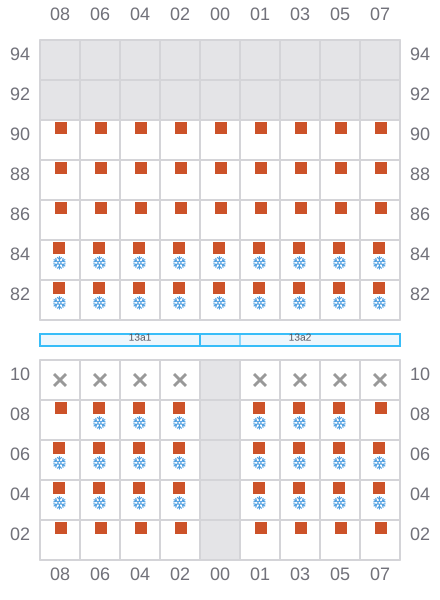

013
- →

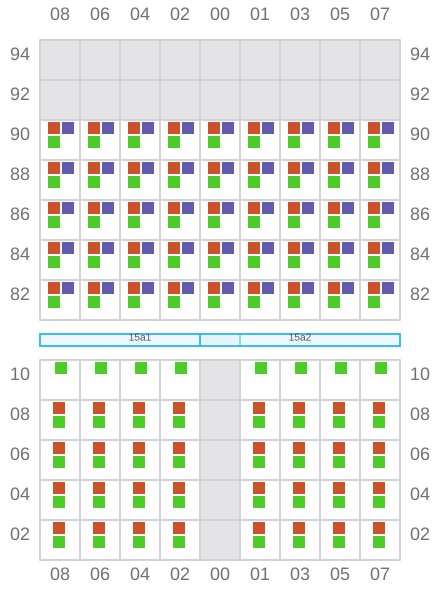

015 (014)
- ←
017
- →
019 (018)
- ←
021
- →

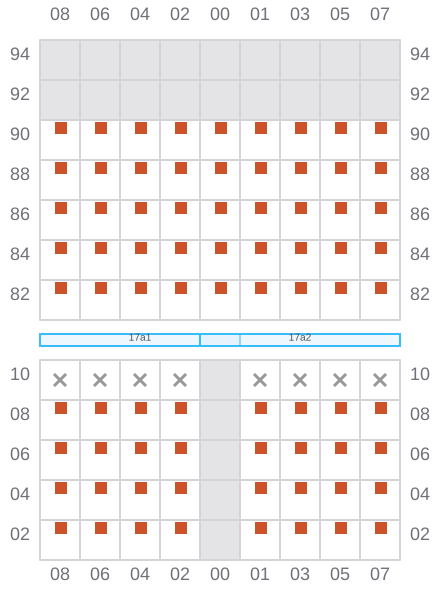

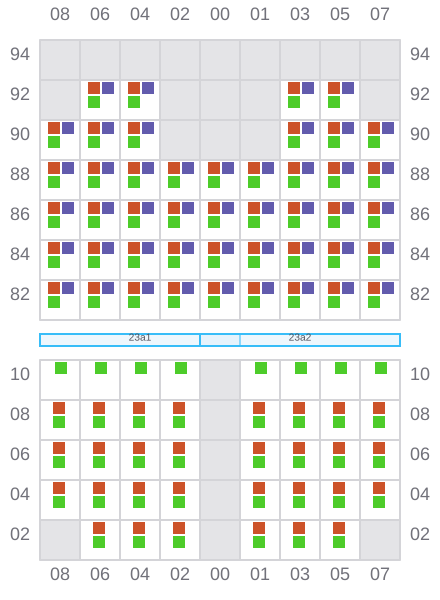

023 (022)
- ←

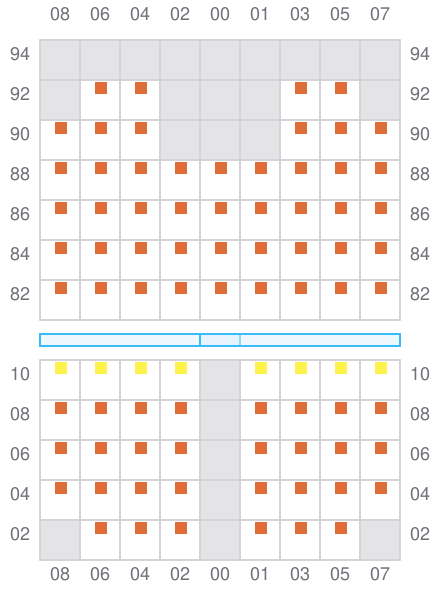

025
- →

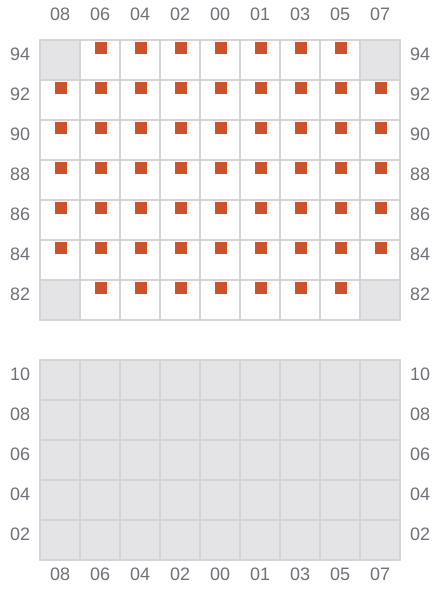

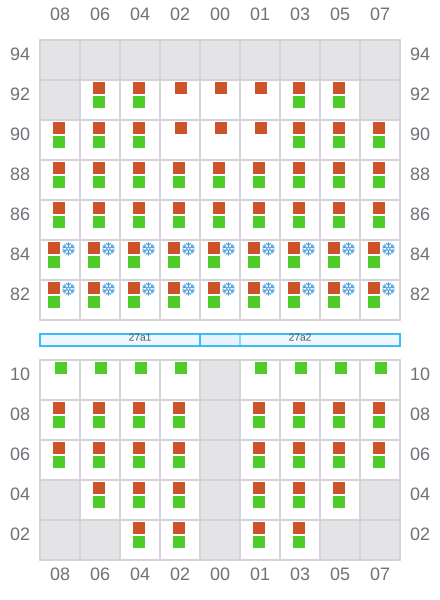

027 (026)
- ←

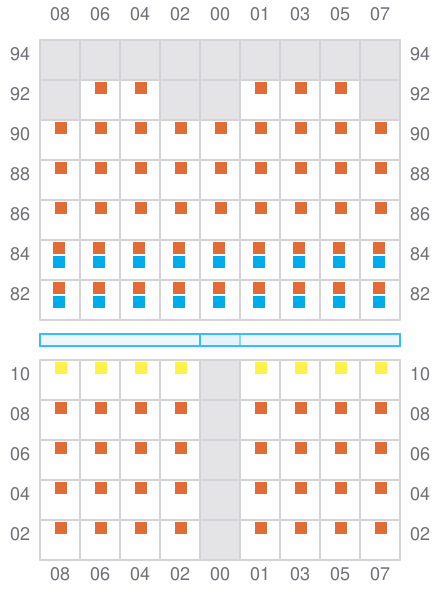

029
- → / ?

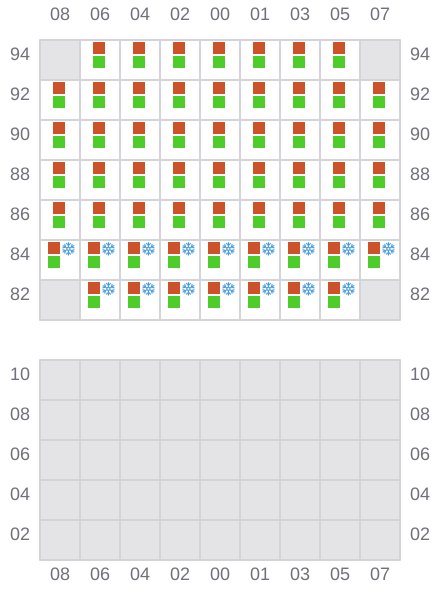

031 (030)
- ← / ?
