AS PAOLA
9312418 | D5RA4 | 9312418 by ********* Last update: Tue May 14 2024

General Info

Ship Name:AS PAOLA
IMO Code:9312418
Call Sign:D5RA4
Line Operator:9312418
Class Name for Sister Ships:NYK FLORESTA
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):195.40
LOA (Length Overall):207.54
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,478

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

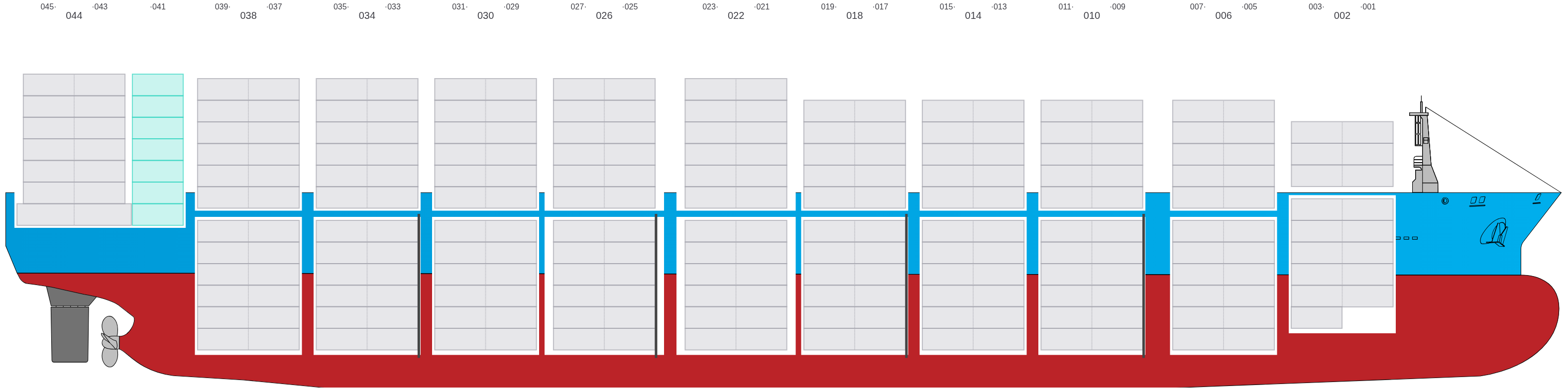

Side View

Side view of AS PAOLA

Hatch-Covers View

Deck view of AS PAOLA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • →

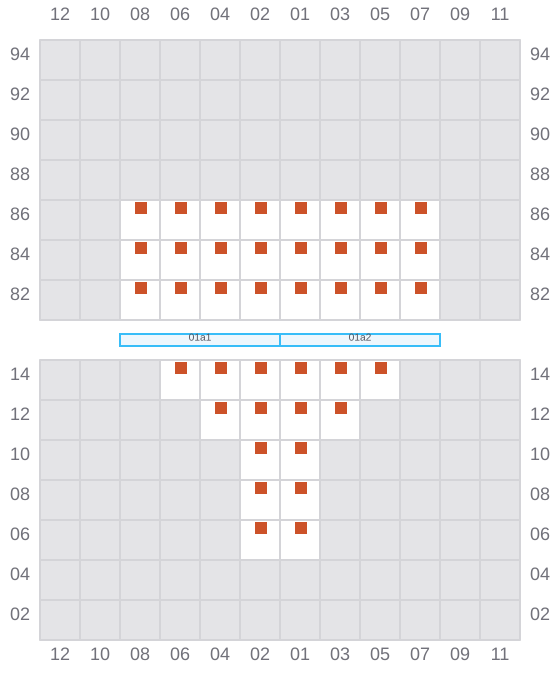

Bay 001 view and slots of AS PAOLA

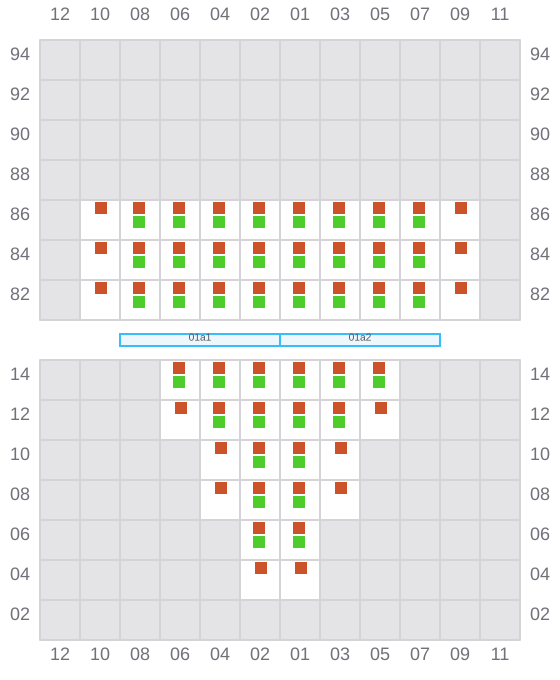

003 (002)

  • ←
Bay 003 view and slots of AS PAOLA

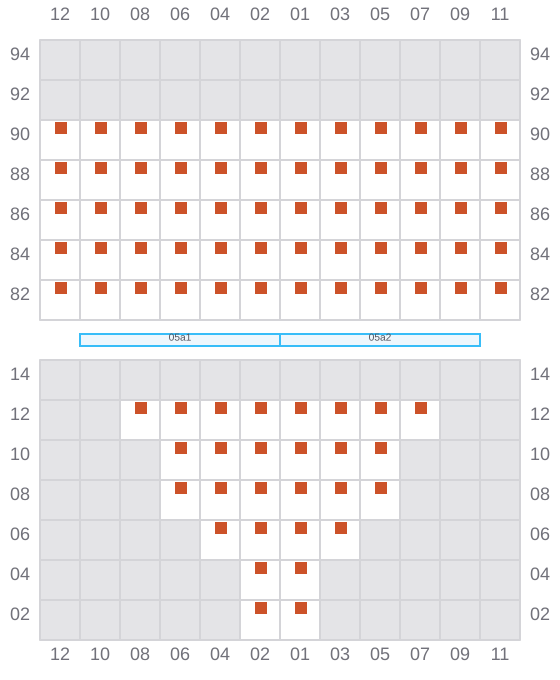

005

  • →
Bay 005 view and slots of AS PAOLA

007 (006)

  • ←

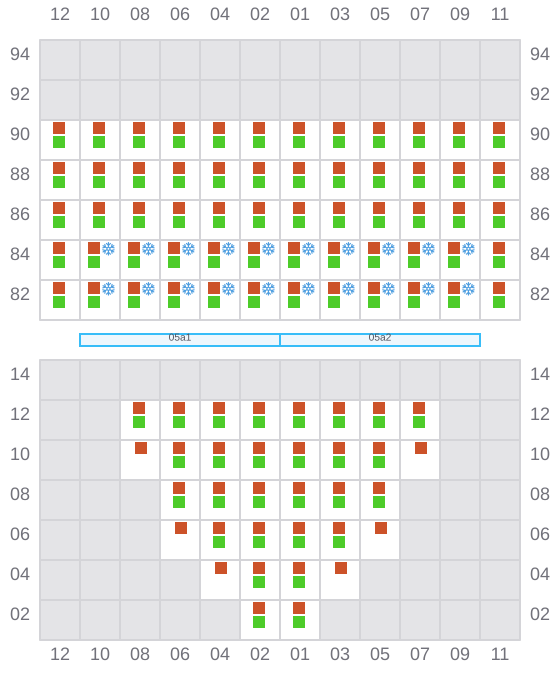

Bay 007 view and slots of AS PAOLA

009

  • →

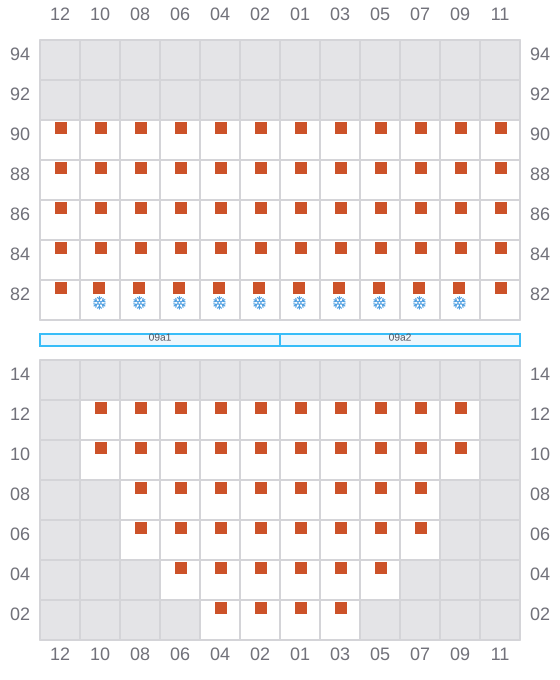

Bay 009 view and slots of AS PAOLA

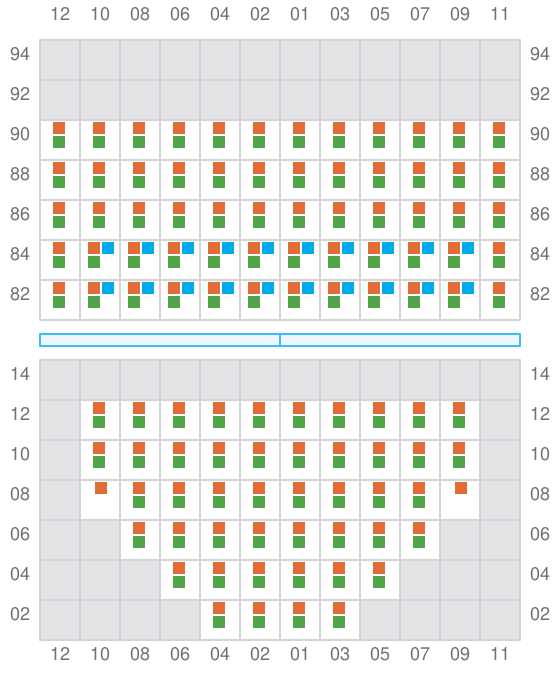

011 (010)

  • ←
Bay 011 view and slots of AS PAOLA

013

  • →

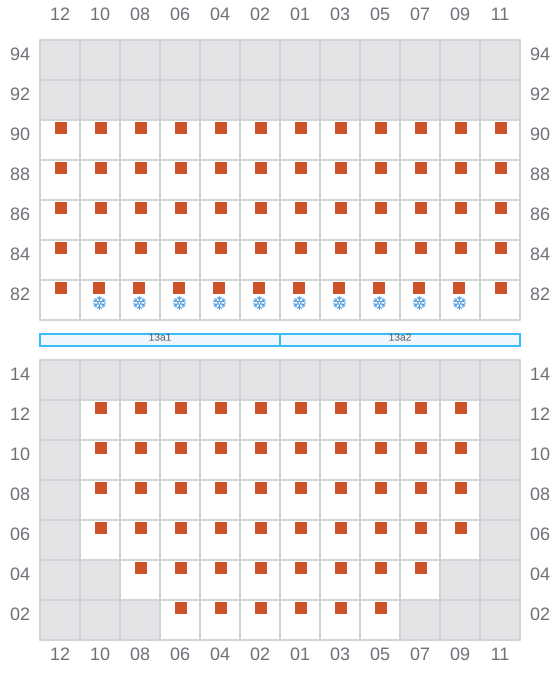

Bay 013 view and slots of AS PAOLA

015 (014)

  • ←

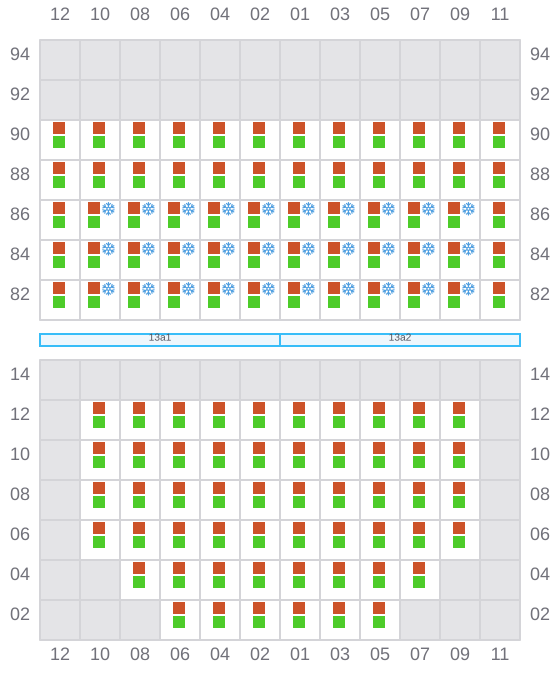

Bay 015 view and slots of AS PAOLA

017

  • →

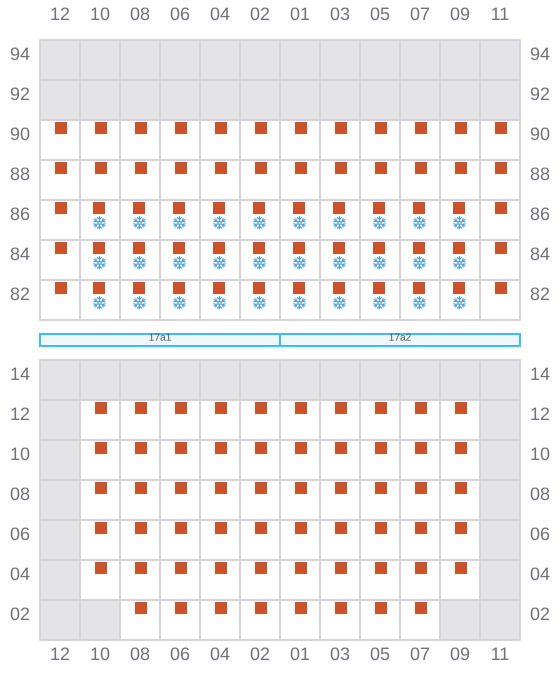

Bay 017 view and slots of AS PAOLA

019 (018)

  • ←

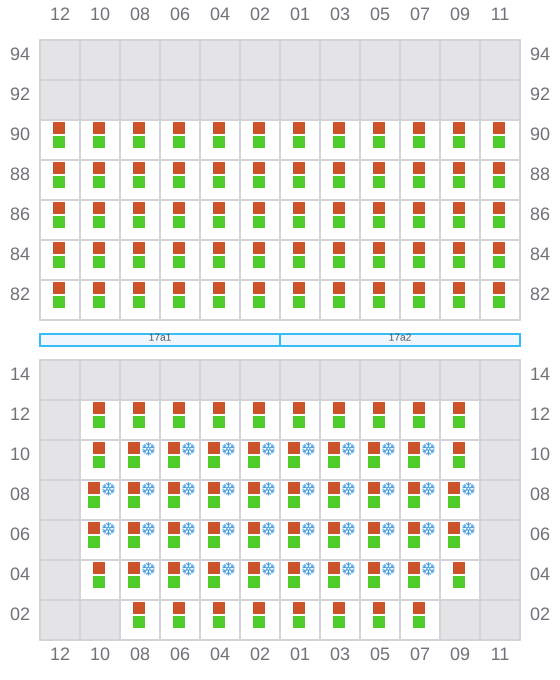

Bay 019 view and slots of AS PAOLA

021

  • →
Bay 021 view and slots of AS PAOLA

023 (022)

  • ←

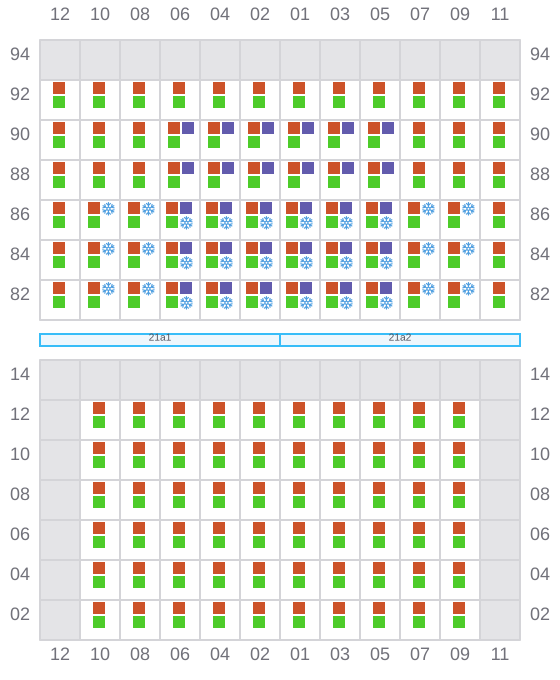

Bay 023 view and slots of AS PAOLA

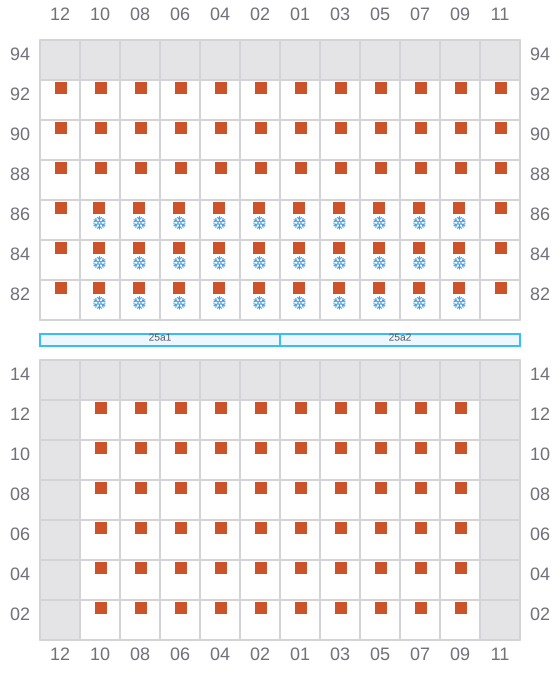

025

  • →
Bay 025 view and slots of AS PAOLA

027 (026)

  • ←

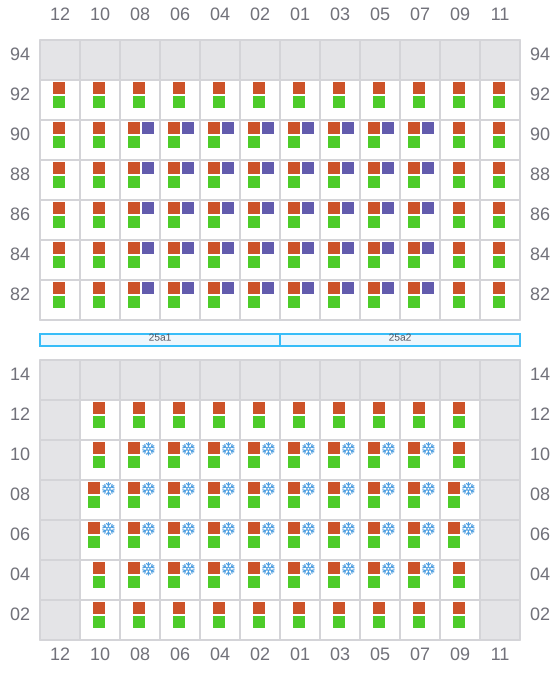

Bay 027 view and slots of AS PAOLA

029

  • →

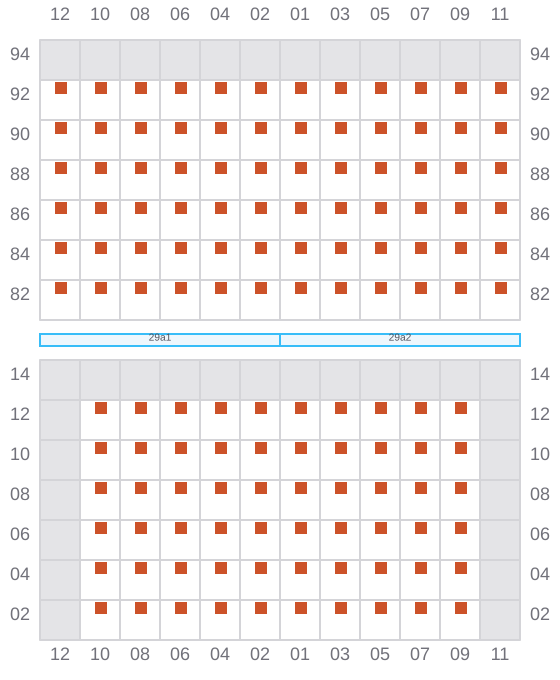

Bay 029 view and slots of AS PAOLA

031 (030)

  • ←

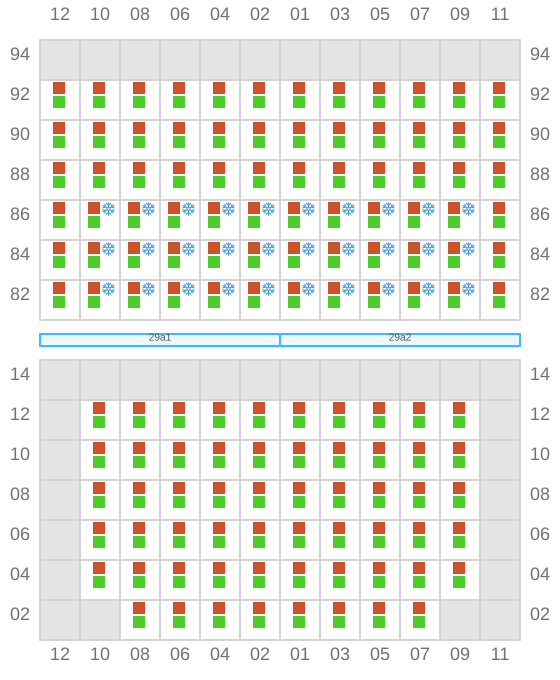

Bay 031 view and slots of AS PAOLA

033

  • →

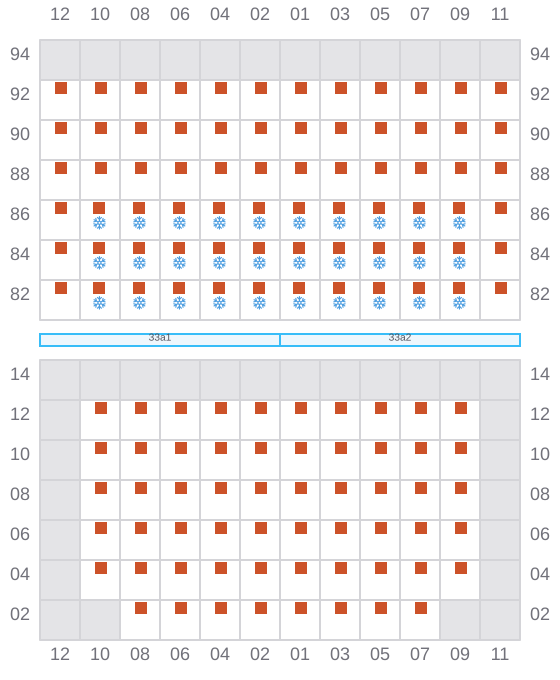

Bay 033 view and slots of AS PAOLA

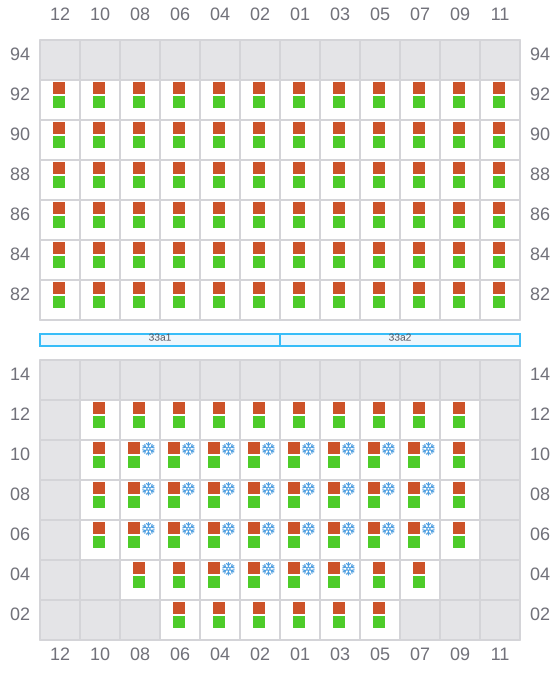

035 (034)

  • ←
Bay 035 view and slots of AS PAOLA

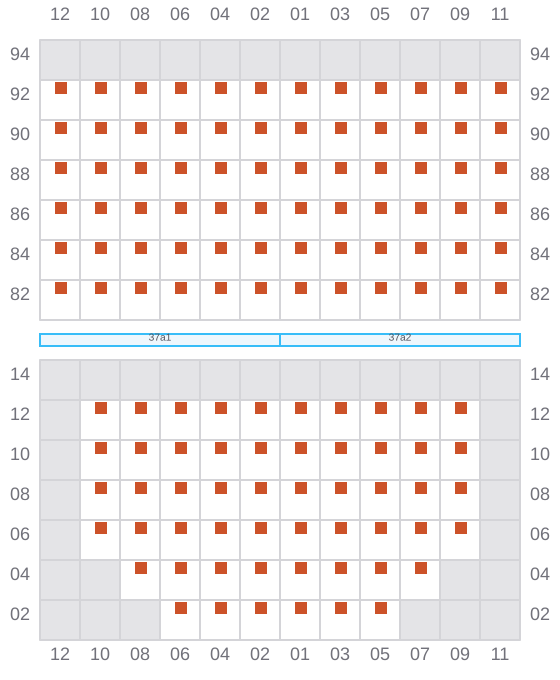

037

  • →
Bay 037 view and slots of AS PAOLA

039 (038)

  • ←

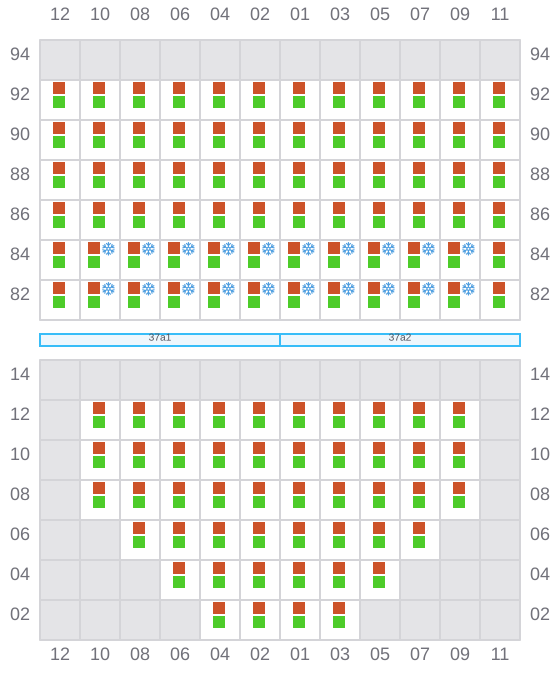

Bay 039 view and slots of AS PAOLA

041

  • → / ?

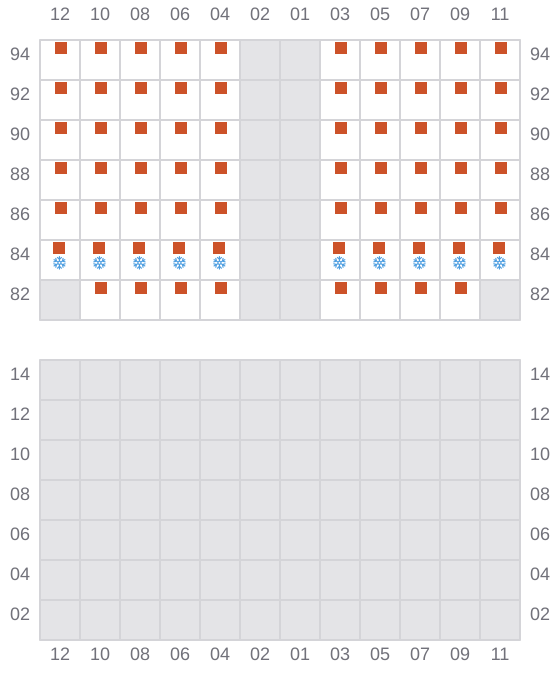

Bay 041 view and slots of AS PAOLA

043

  • → / ?

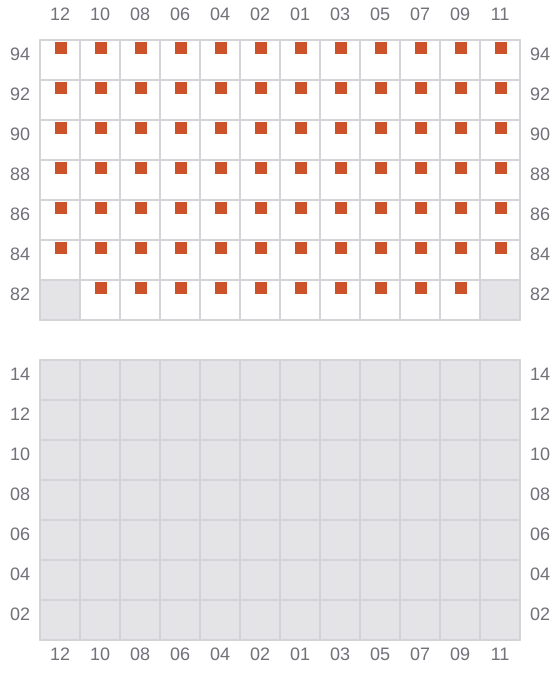

Bay 043 view and slots of AS PAOLA

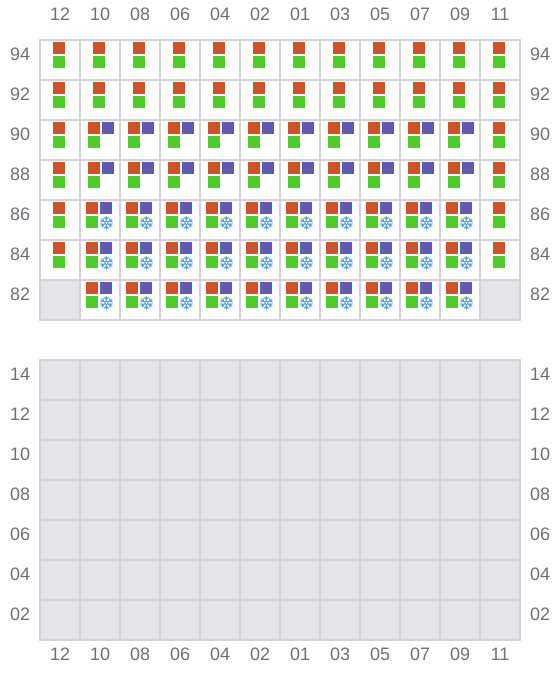

045 (044)

  • ← / ?
Bay 045 view and slots of AS PAOLA
