AS PATRIA
9294525 | CQIX5 | HYUNDAI by ********* Last update: Sun Mar 17 2024
General Info
Ship Name:AS PATRIA
IMO Code:9294525
Call Sign:CQIX5
Line Operator:HYUNDAI
Class Name for Sister Ships:2530
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):199.00
LOA (Length Overall):210.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:047
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,584
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

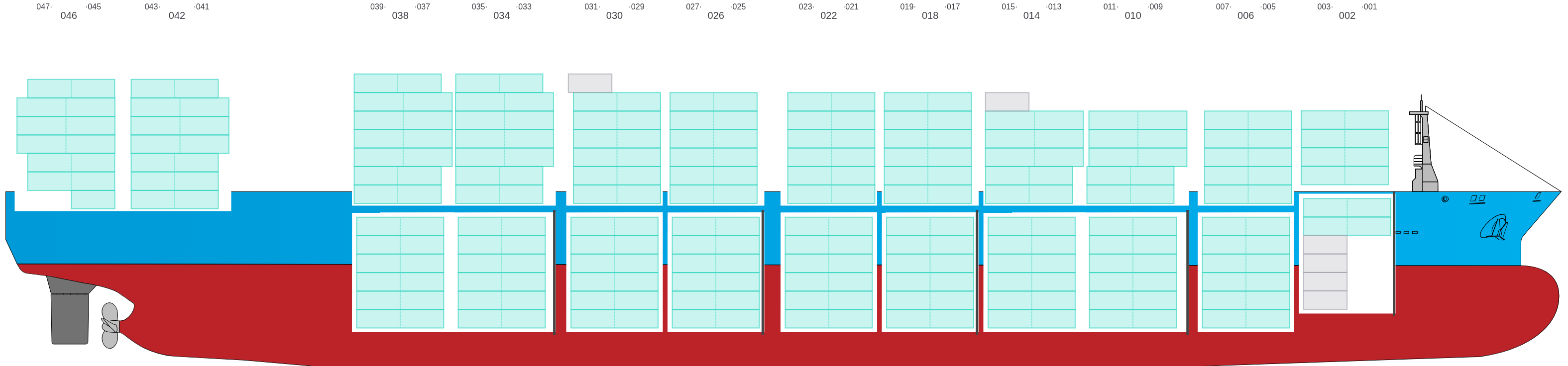

Side View
![Side view of AS PATRIA](/vessel-images/971e6f2e-2a40-4ed8-ae6a-5b161e068774-sideView.png?v=1710697141639)

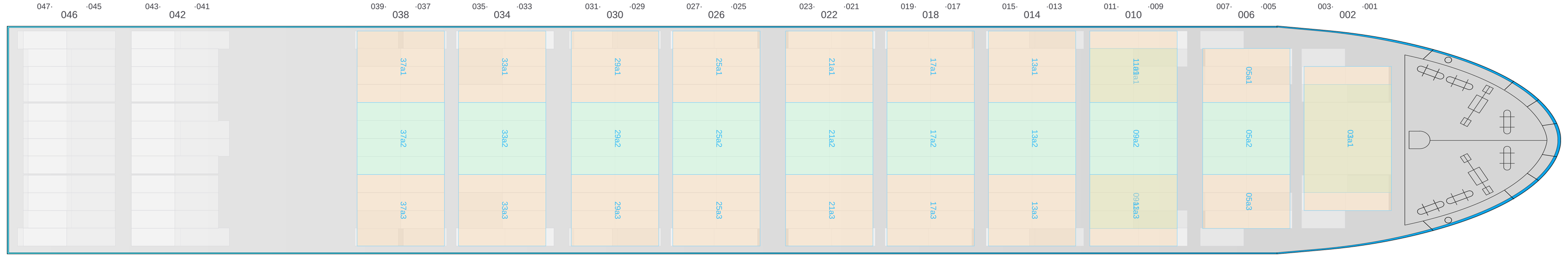

Hatch-Covers View
![Deck view of AS PATRIA](/vessel-images/971e6f2e-2a40-4ed8-ae6a-5b161e068774-deckView.png?v=1710697141639)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

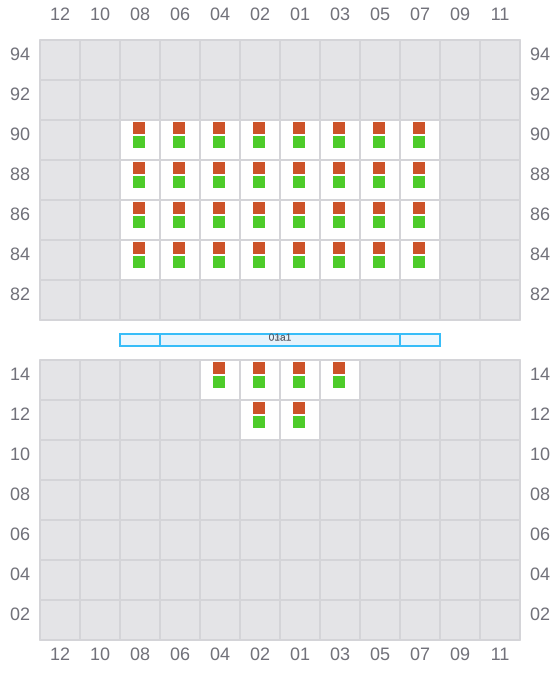

001 (002)
- →
![Bay 001 view and slots of AS PATRIA](/vessel-images/971e6f2e-2a40-4ed8-ae6a-5b161e068774-b001.png?v=1710697141639)

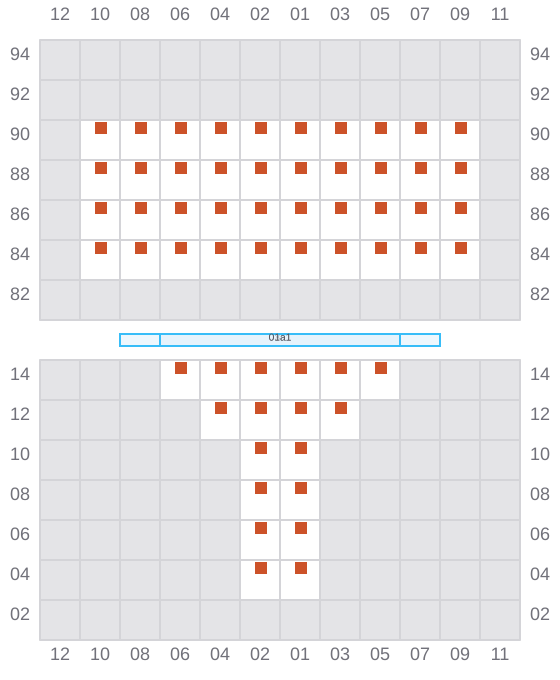

003
- ←
![Bay 003 view and slots of AS PATRIA](/vessel-images/971e6f2e-2a40-4ed8-ae6a-5b161e068774-b003.png?v=1710697141639)

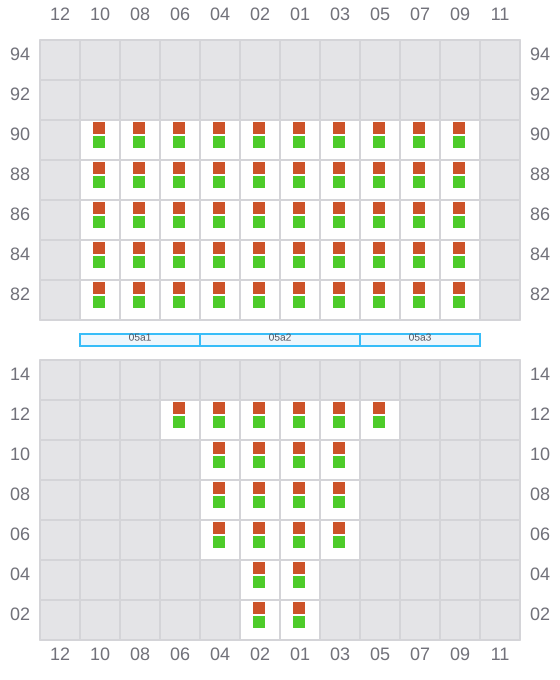

005 (006)
- →
- ← / ?
![Bay 005 view and slots of AS PATRIA](/vessel-images/971e6f2e-2a40-4ed8-ae6a-5b161e068774-b005.png?v=1710697141639)

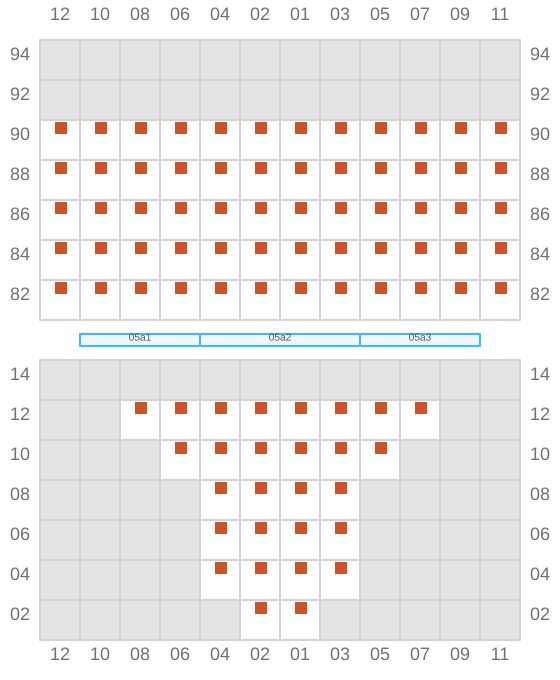

007
- ←
- ? / →
![Bay 007 view and slots of AS PATRIA](/vessel-images/971e6f2e-2a40-4ed8-ae6a-5b161e068774-b007.png?v=1710697141639)

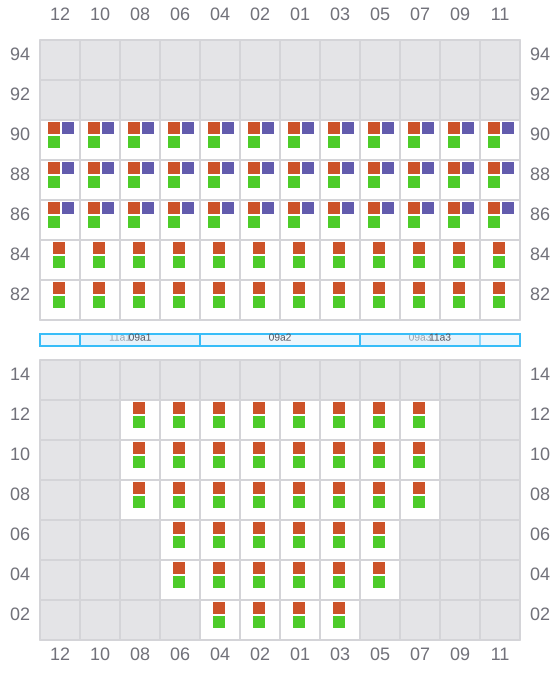

009 (010)
- →
- → / ?
![Bay 009 view and slots of AS PATRIA](/vessel-images/971e6f2e-2a40-4ed8-ae6a-5b161e068774-b009.png?v=1710697141639)

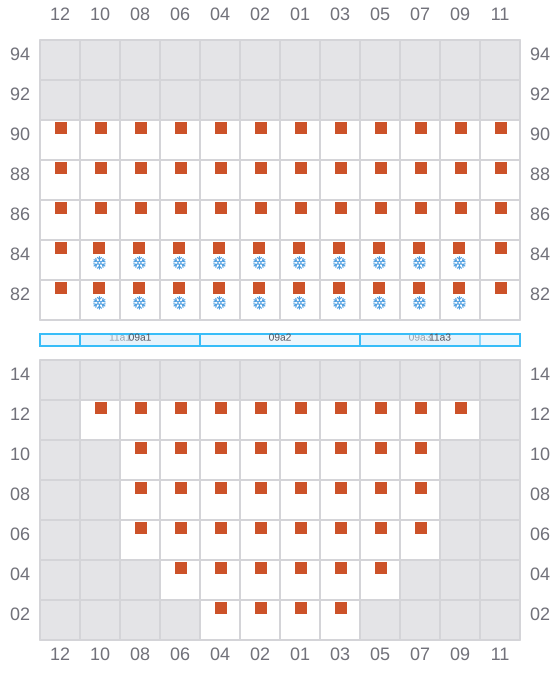

011
- ←
- →
![Bay 011 view and slots of AS PATRIA](/vessel-images/971e6f2e-2a40-4ed8-ae6a-5b161e068774-b011.png?v=1710697141639)
013 (014)
- →
![Bay 013 view and slots of AS PATRIA](/vessel-images/971e6f2e-2a40-4ed8-ae6a-5b161e068774-b013.png?v=1710697141639)

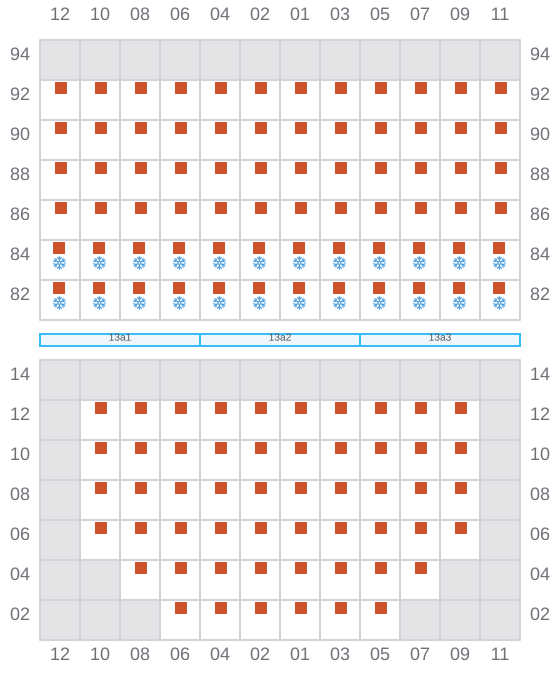

015
- ←
- →
![Bay 015 view and slots of AS PATRIA](/vessel-images/971e6f2e-2a40-4ed8-ae6a-5b161e068774-b015.png?v=1710697141639)

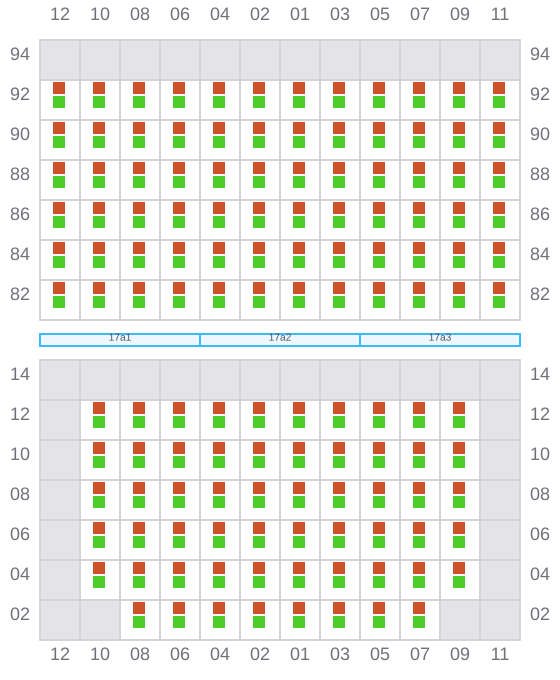

017 (018)
- →
![Bay 017 view and slots of AS PATRIA](/vessel-images/971e6f2e-2a40-4ed8-ae6a-5b161e068774-b017.png?v=1710697141639)

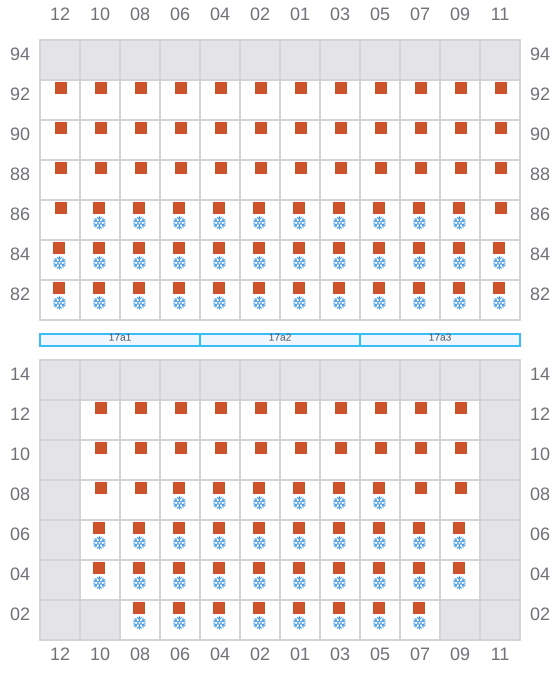

019
- ←
- →
![Bay 019 view and slots of AS PATRIA](/vessel-images/971e6f2e-2a40-4ed8-ae6a-5b161e068774-b019.png?v=1710697141639)

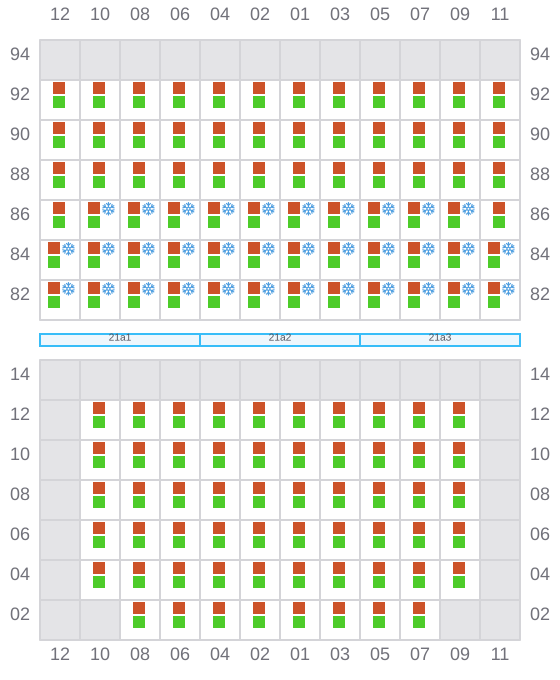

021 (022)
- →
- ← / ?
![Bay 021 view and slots of AS PATRIA](/vessel-images/971e6f2e-2a40-4ed8-ae6a-5b161e068774-b021.png?v=1710697141639)

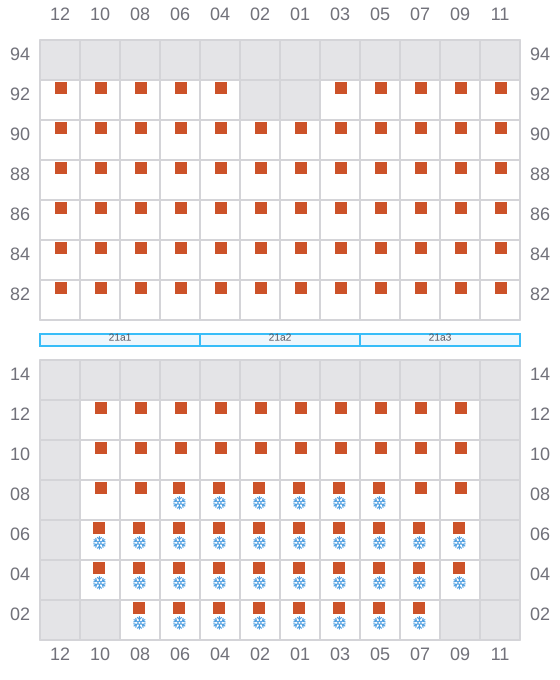

023
- ←
- ? / →
![Bay 023 view and slots of AS PATRIA](/vessel-images/971e6f2e-2a40-4ed8-ae6a-5b161e068774-b023.png?v=1710697141639)

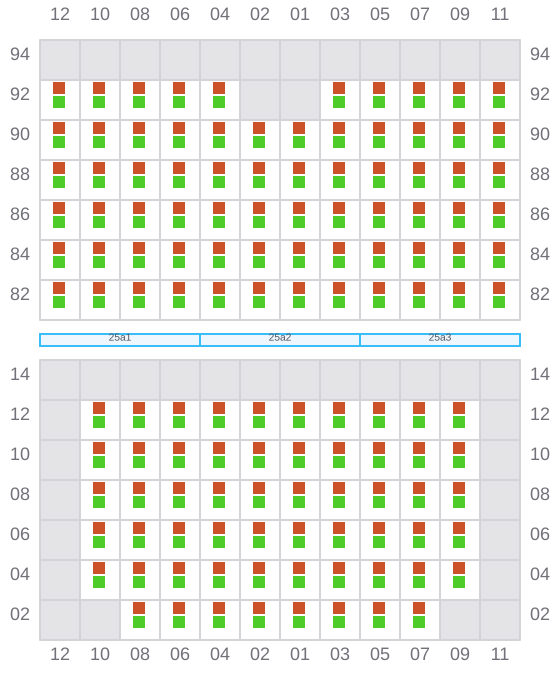

025 (026)
- →
![Bay 025 view and slots of AS PATRIA](/vessel-images/971e6f2e-2a40-4ed8-ae6a-5b161e068774-b025.png?v=1710697141639)

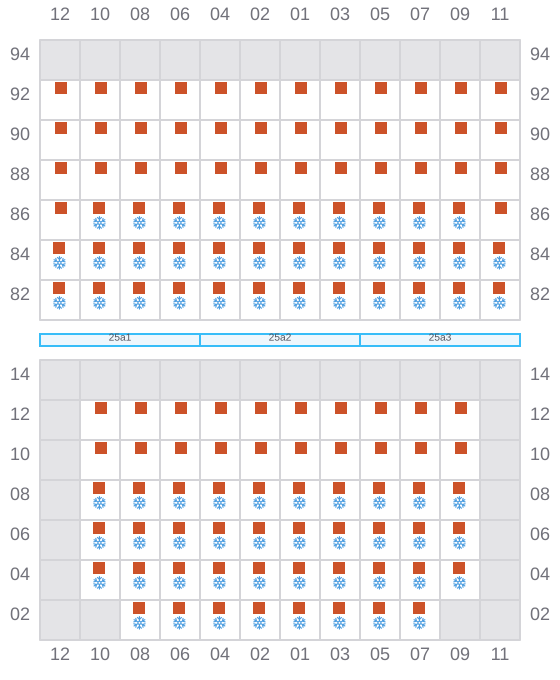

027
- ←
- →
![Bay 027 view and slots of AS PATRIA](/vessel-images/971e6f2e-2a40-4ed8-ae6a-5b161e068774-b027.png?v=1710697141639)

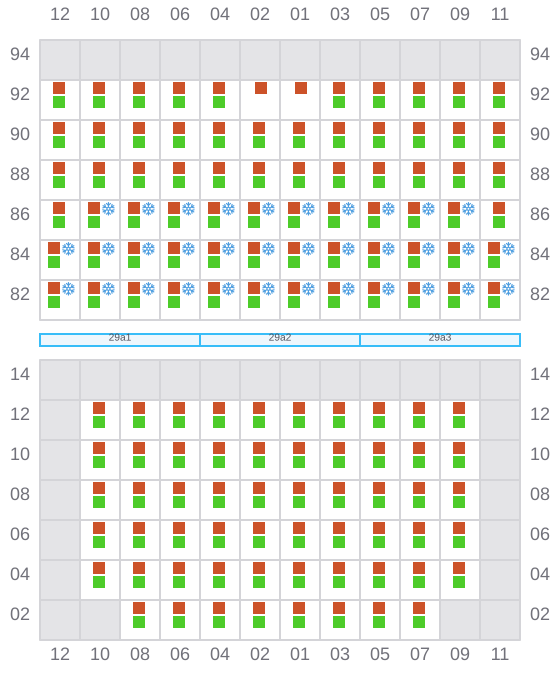

029 (030)
- →
- ← / ?
![Bay 029 view and slots of AS PATRIA](/vessel-images/971e6f2e-2a40-4ed8-ae6a-5b161e068774-b029.png?v=1710697141639)

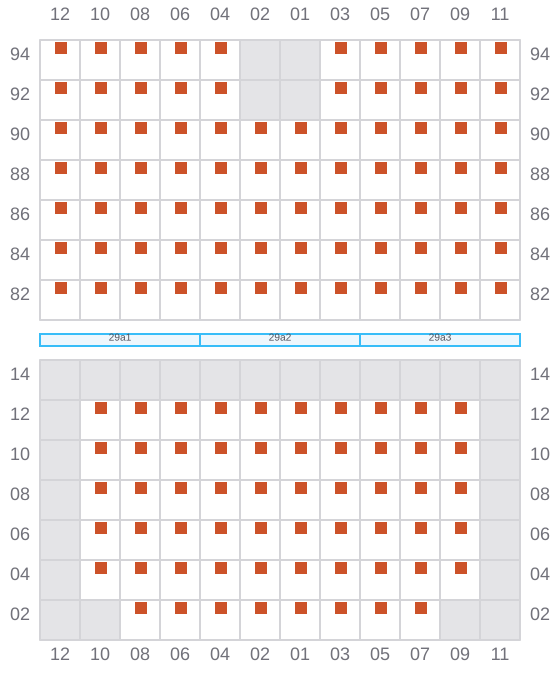

031
- ←
- ? / →
![Bay 031 view and slots of AS PATRIA](/vessel-images/971e6f2e-2a40-4ed8-ae6a-5b161e068774-b031.png?v=1710697141639)

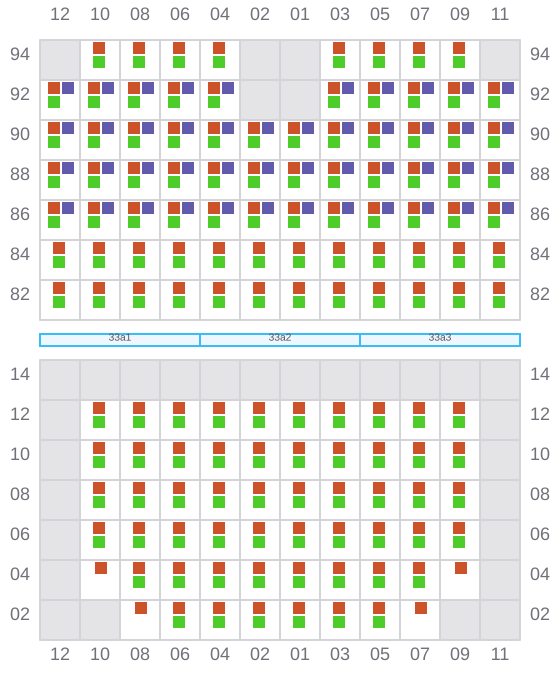

033 (034)
- →
![Bay 033 view and slots of AS PATRIA](/vessel-images/971e6f2e-2a40-4ed8-ae6a-5b161e068774-b033.png?v=1710697141639)

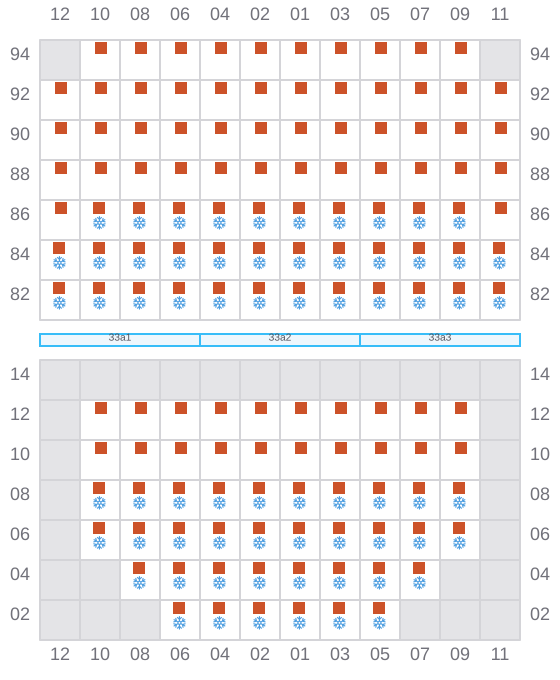

035
- ←
- →
![Bay 035 view and slots of AS PATRIA](/vessel-images/971e6f2e-2a40-4ed8-ae6a-5b161e068774-b035.png?v=1710697141639)

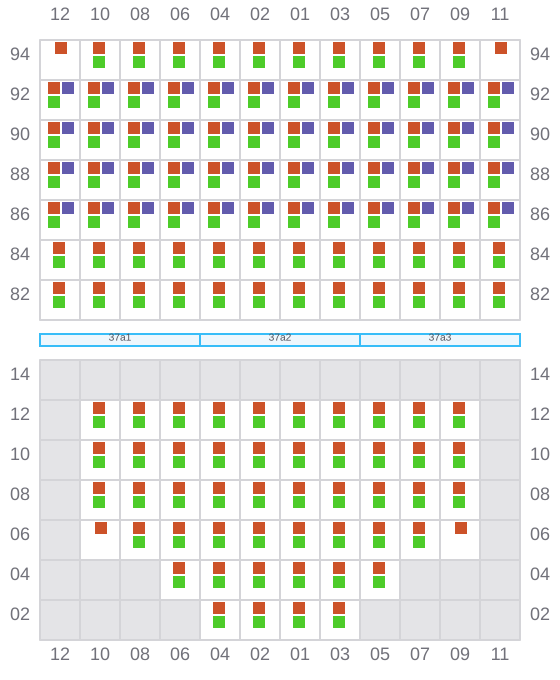

037 (038)
- →
![Bay 037 view and slots of AS PATRIA](/vessel-images/971e6f2e-2a40-4ed8-ae6a-5b161e068774-b037.png?v=1710697141639)

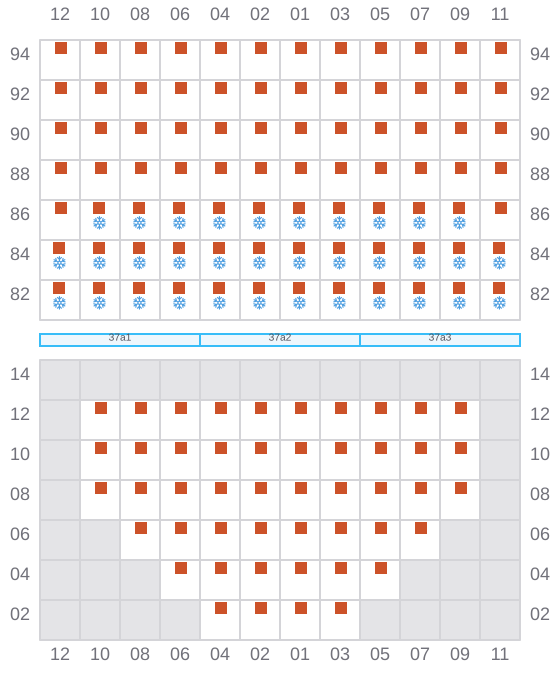

039
- ←
- →
![Bay 039 view and slots of AS PATRIA](/vessel-images/971e6f2e-2a40-4ed8-ae6a-5b161e068774-b039.png?v=1710697141639)

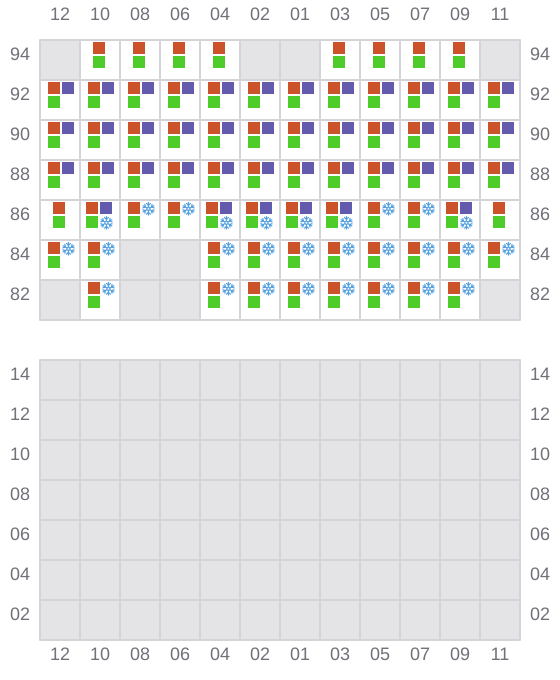

041 (042)
- → / ?
- ← / ?
![Bay 041 view and slots of AS PATRIA](/vessel-images/971e6f2e-2a40-4ed8-ae6a-5b161e068774-b041.png?v=1710697141639)

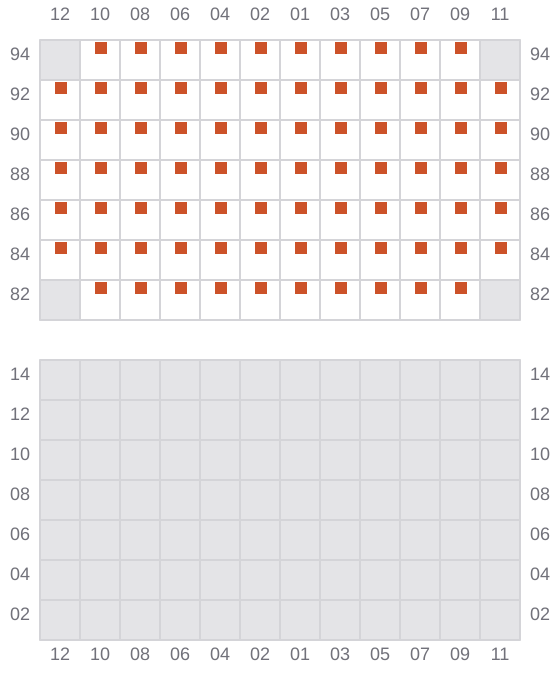

043
- ← / ?
![Bay 043 view and slots of AS PATRIA](/vessel-images/971e6f2e-2a40-4ed8-ae6a-5b161e068774-b043.png?v=1710697141639)

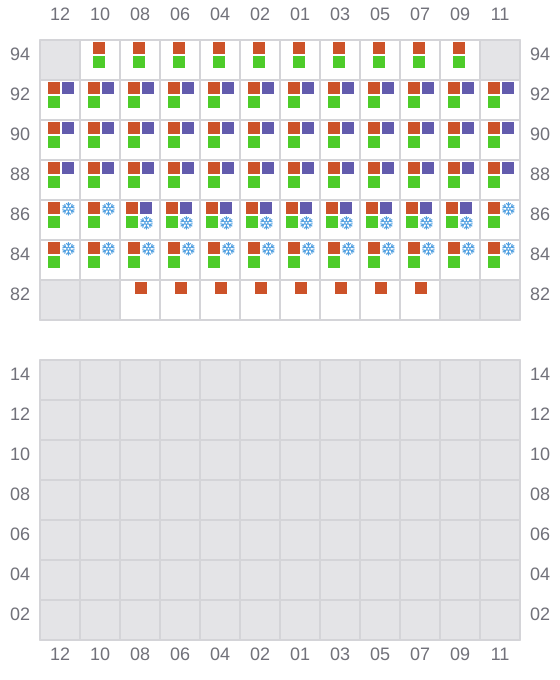

045 (046)
- → / ?
- ← / ?
![Bay 045 view and slots of AS PATRIA](/vessel-images/971e6f2e-2a40-4ed8-ae6a-5b161e068774-b045.png?v=1710697141639)

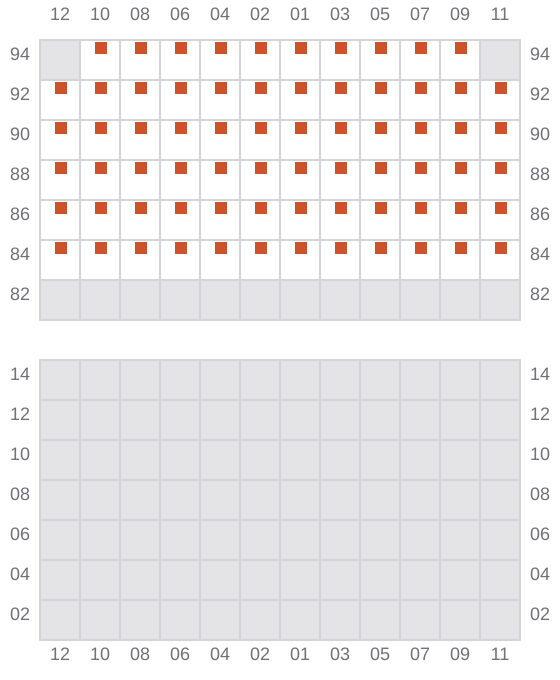

047
- ← / ?
![Bay 047 view and slots of AS PATRIA](/vessel-images/971e6f2e-2a40-4ed8-ae6a-5b161e068774-b047.png?v=1710697141639)
