AS RAGNA
9509774 | CQIX9 | 9509774 by ********* Last update: Tue May 07 2024

General Info

Ship Name:AS RAGNA
IMO Code:9509774
Call Sign:CQIX9
Line Operator:9509774
Class Name for Sister Ships:AS RAGNA
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:035
Max ISO Row:10
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,496

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

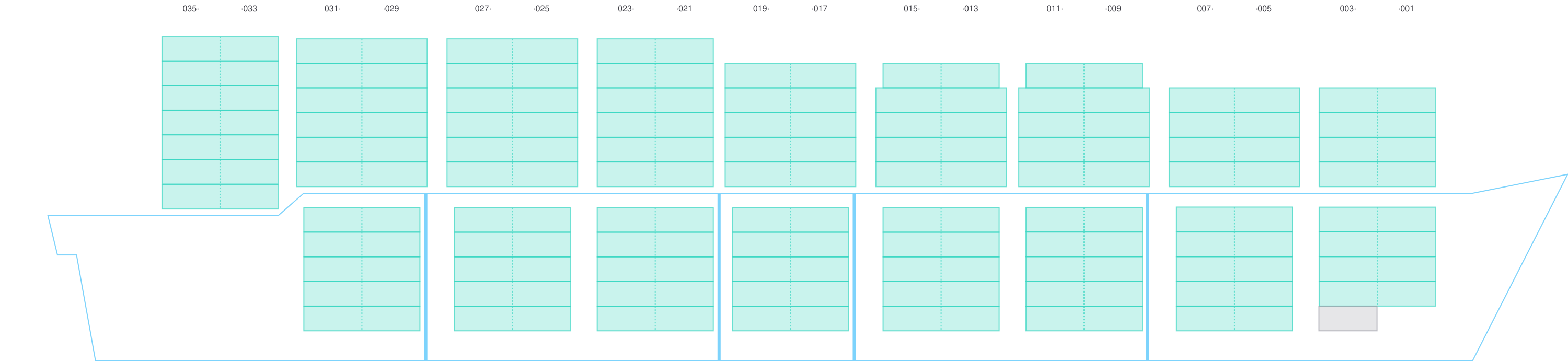

Side View

Side view of AS RAGNA

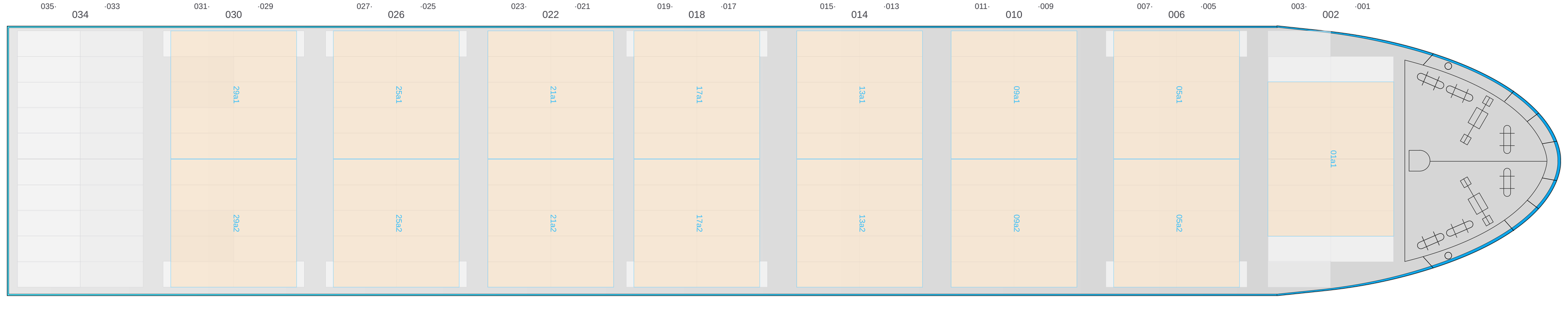

Hatch-Covers View

Deck view of AS RAGNA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

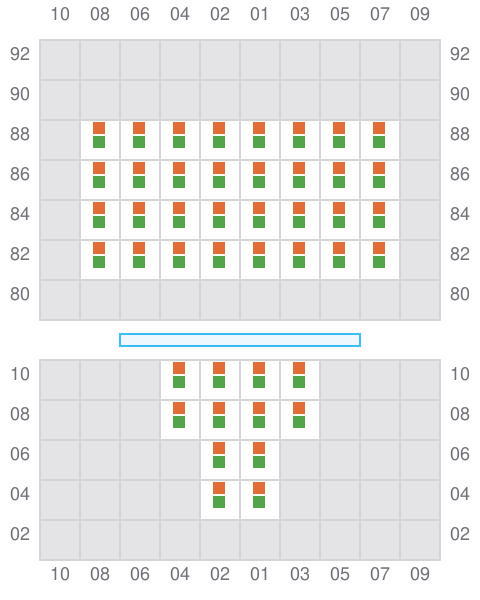

001 (002)

Bay 001 view and slots of AS RAGNA

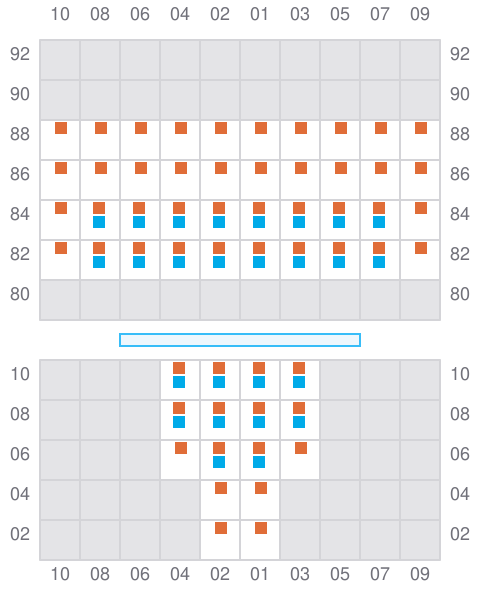

003

Bay 003 view and slots of AS RAGNA

005 (006)

  • ? /

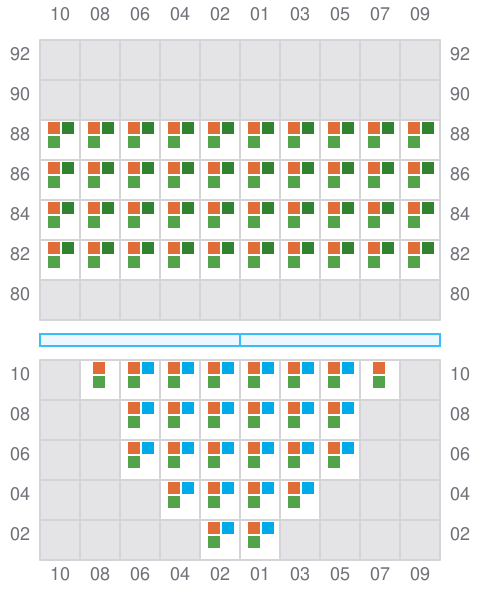

Bay 005 view and slots of AS RAGNA

007

  • / ?

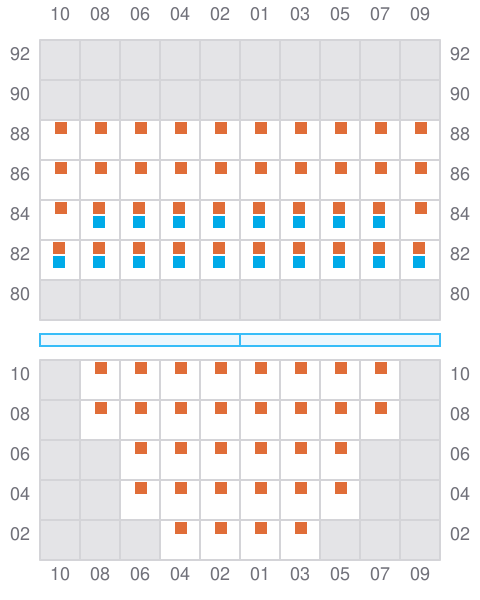

Bay 007 view and slots of AS RAGNA

009 (010)

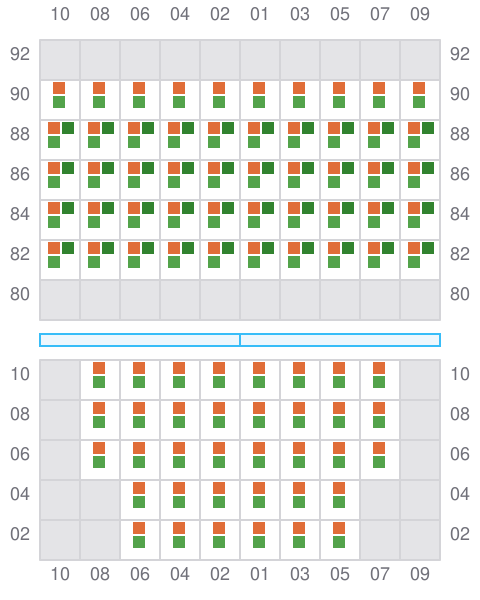

Bay 009 view and slots of AS RAGNA

011

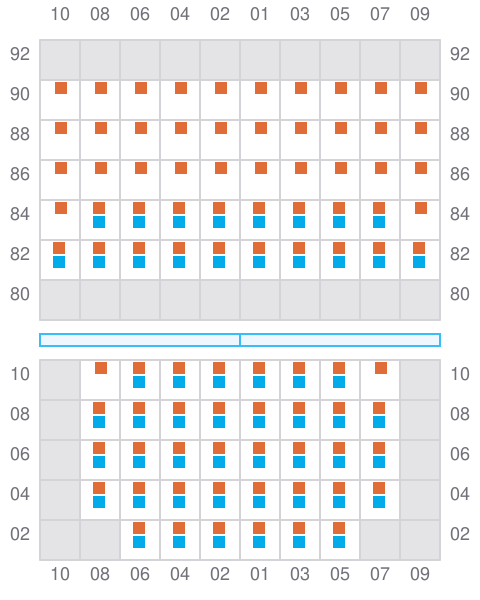

Bay 011 view and slots of AS RAGNA

013 (014)

  • ? /

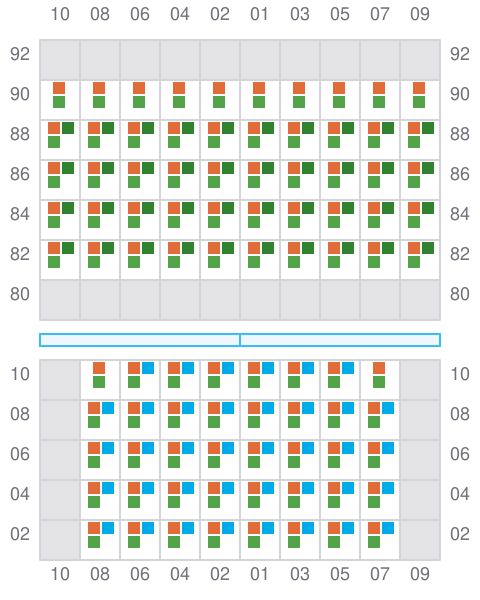

Bay 013 view and slots of AS RAGNA

015

  • / ?

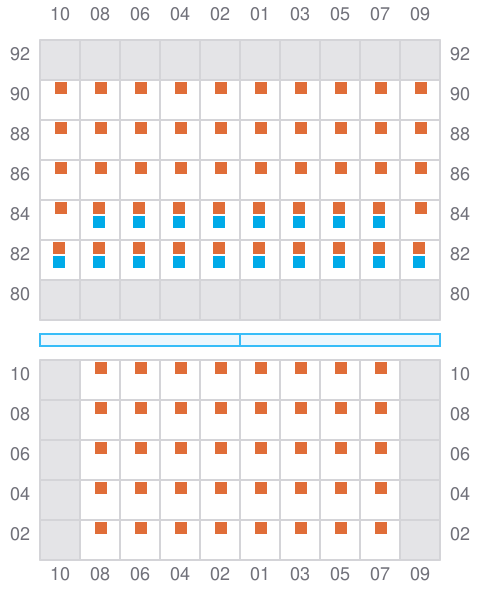

Bay 015 view and slots of AS RAGNA

017 (018)

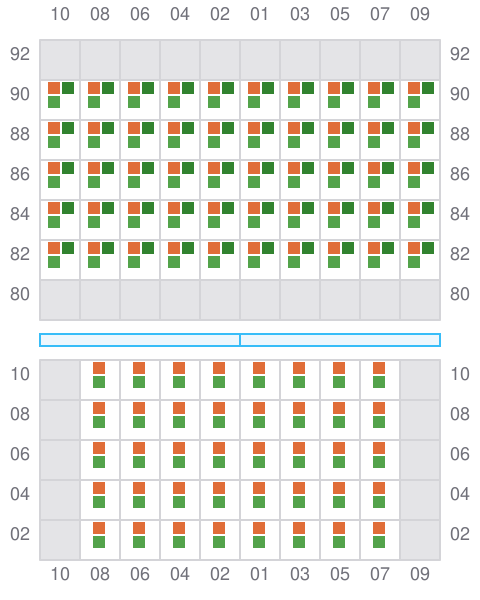

Bay 017 view and slots of AS RAGNA

019

  • ? /

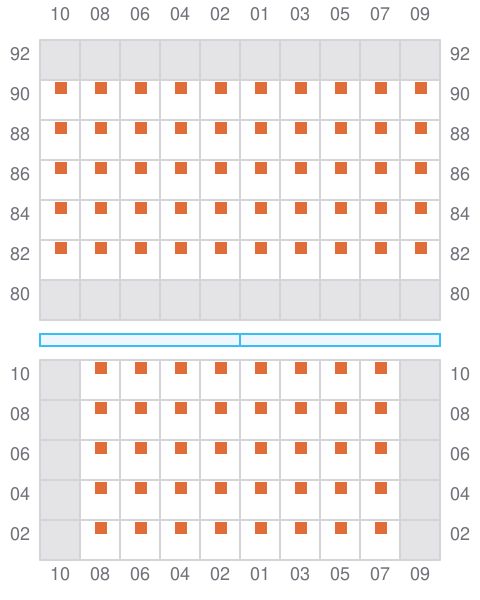

Bay 019 view and slots of AS RAGNA

021 (022)

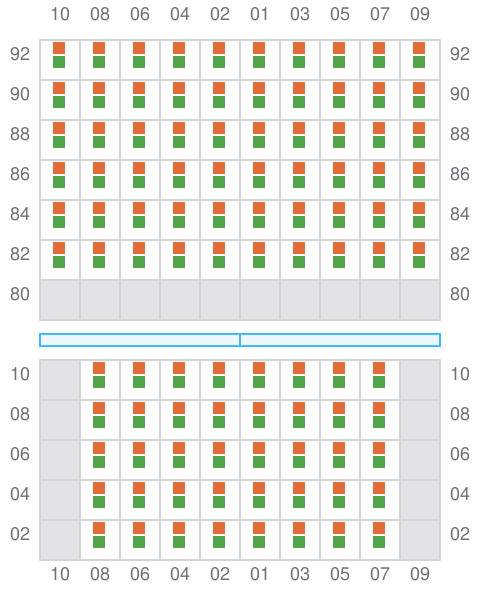

Bay 021 view and slots of AS RAGNA

023

Bay 023 view and slots of AS RAGNA

025 (026)

  • ? /

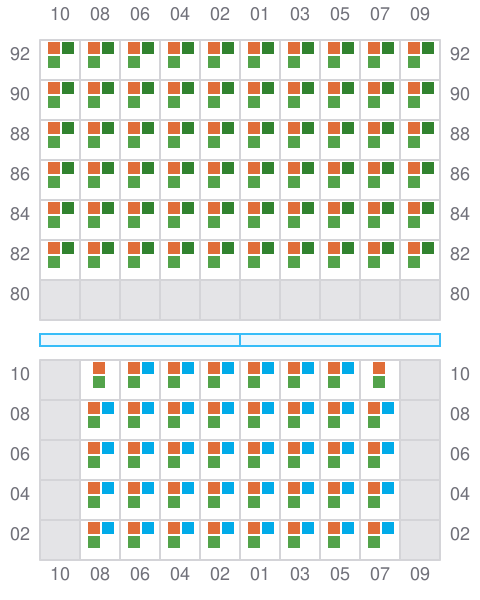

Bay 025 view and slots of AS RAGNA

027

  • / ?

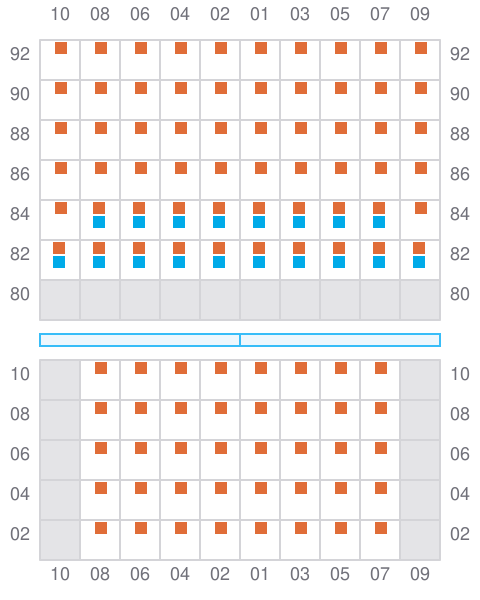

Bay 027 view and slots of AS RAGNA

029 (030)

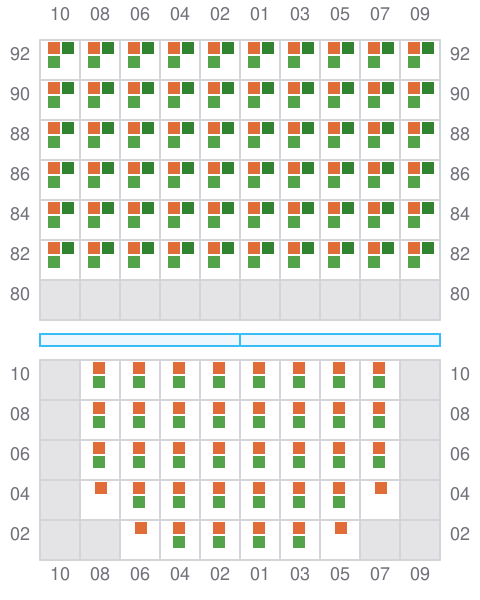

Bay 029 view and slots of AS RAGNA

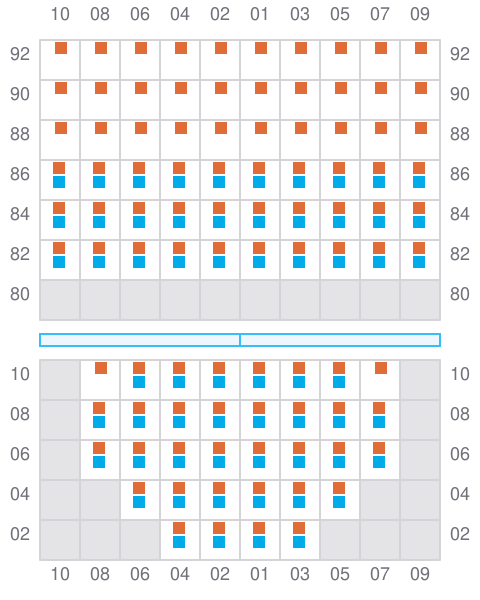

031

Bay 031 view and slots of AS RAGNA

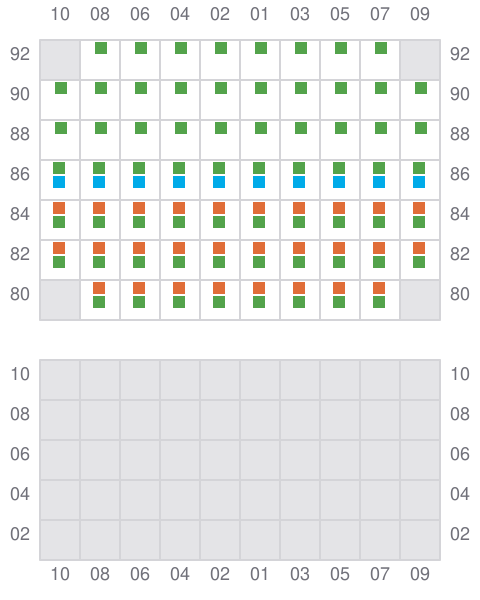

033 (034)

  • / ?
Bay 033 view and slots of AS RAGNA

035

  • / ?

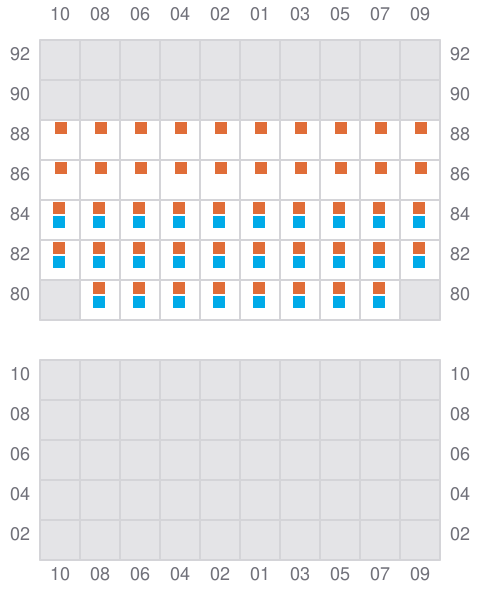

Bay 035 view and slots of AS RAGNA
