AS SAMANTA
9410260 | D5PZ3 | 9410260 by ********* Last update: Mon Mar 25 2024
General Info
Ship Name:AS SAMANTA
IMO Code:9410260
Call Sign:D5PZ3
Line Operator:9410260
Class Name for Sister Ships:60A
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:033
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,713
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

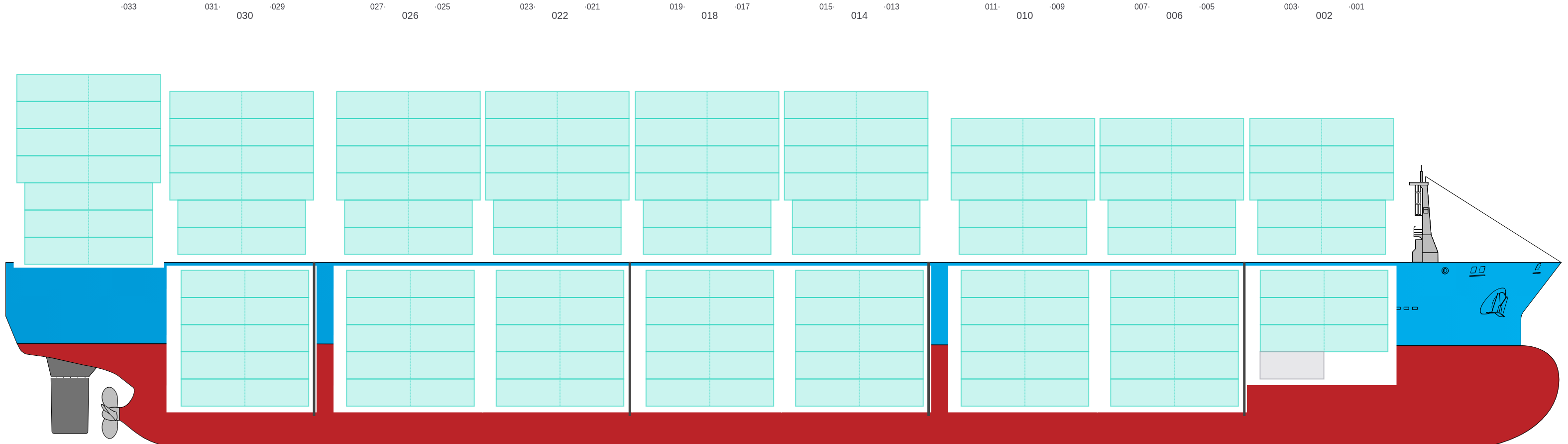

Side View

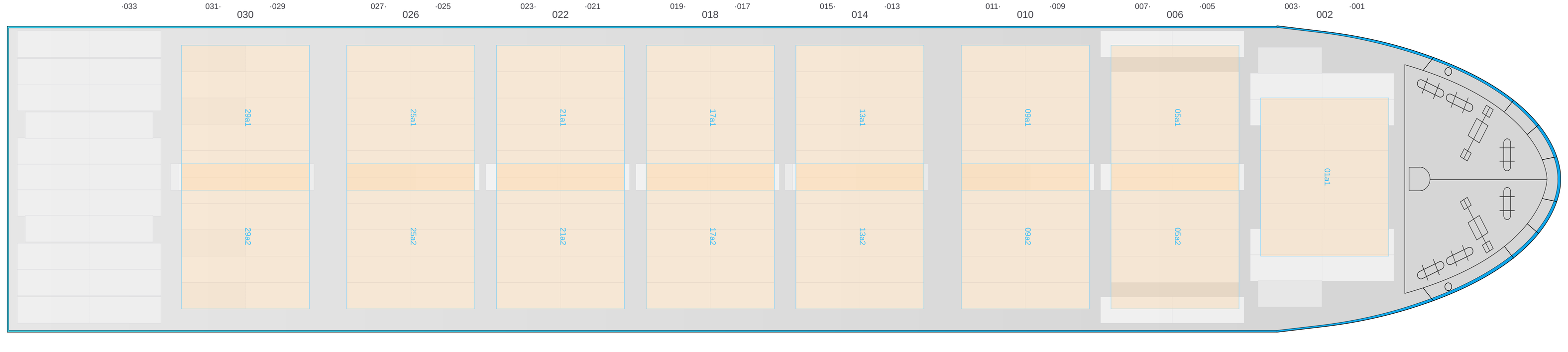

Hatch-Covers View

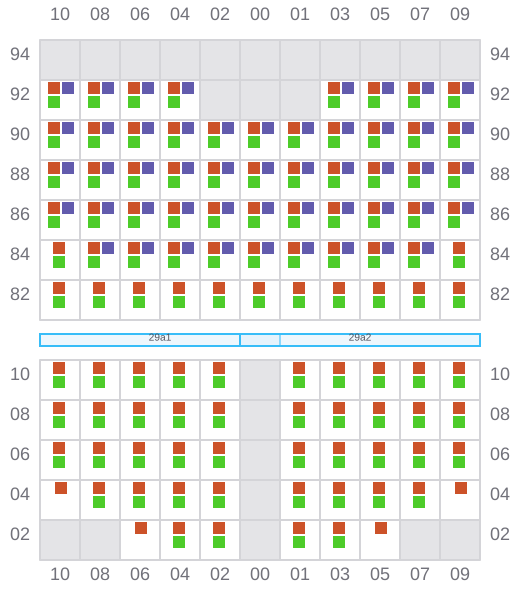

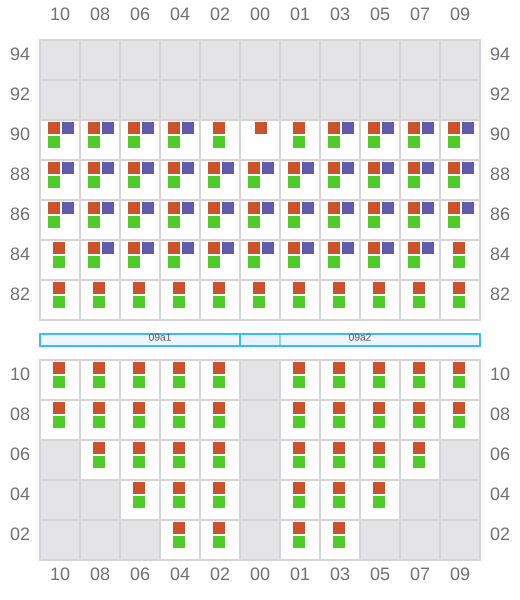

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

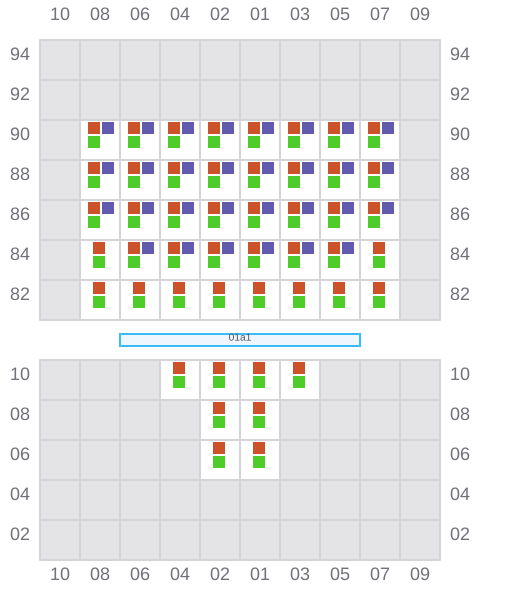

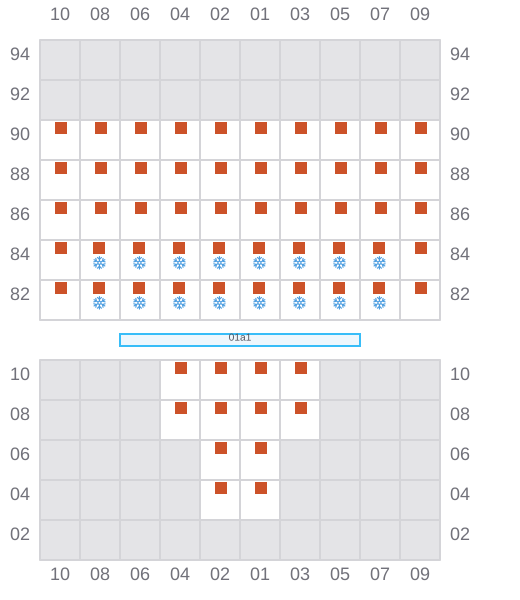

001 (002)
- →

003
- ←
- → / ?

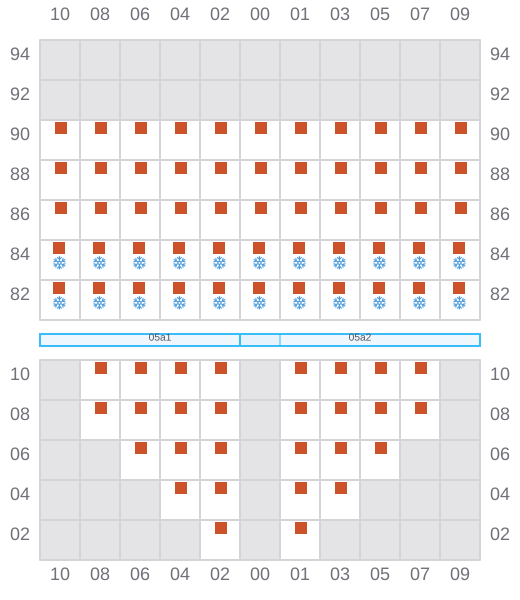

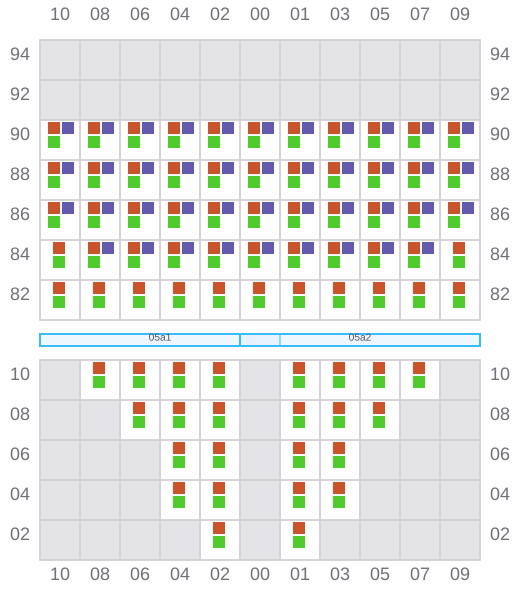

005 (006)
- →

007
- ←
- → / ?

009 (010)
- →

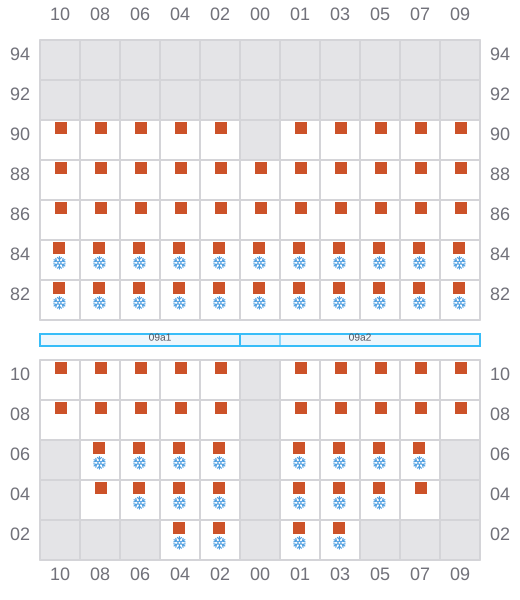

011
- ←
- →

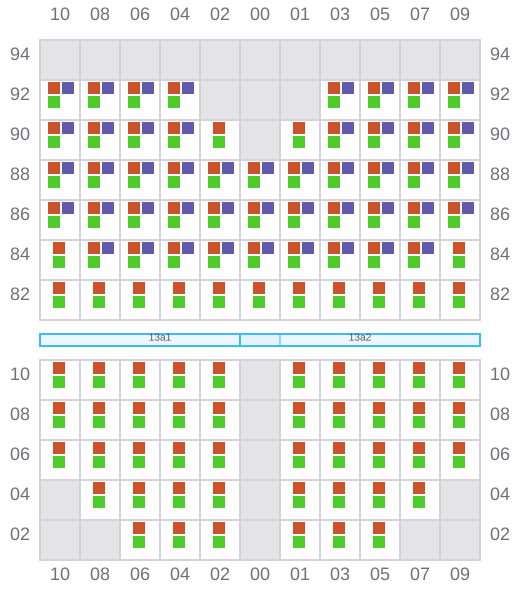

013 (014)
- →

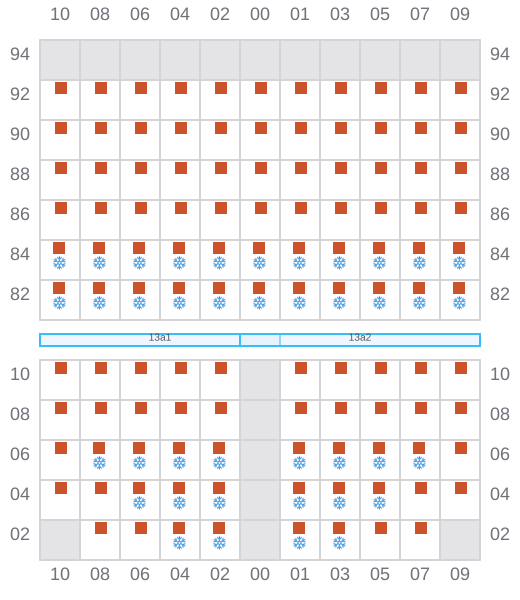

015
- ←
- →

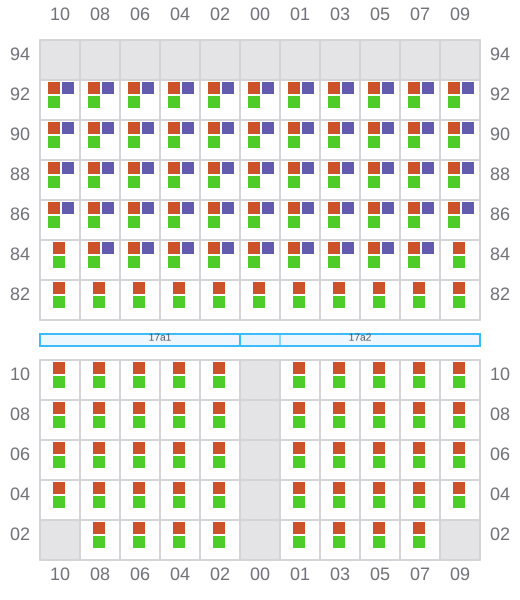

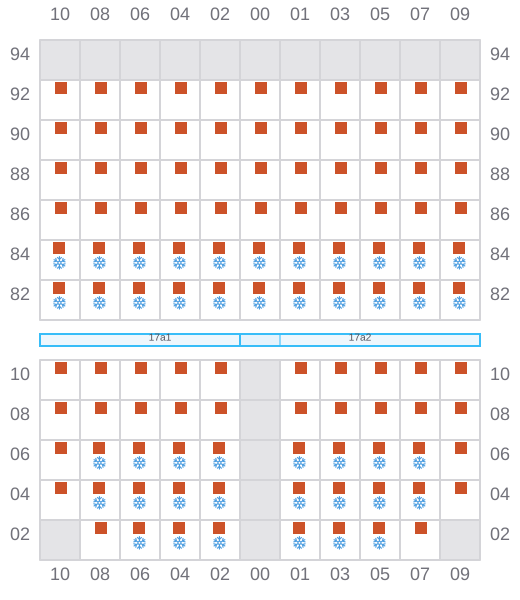

017 (018)
- →

019
- ←
- →

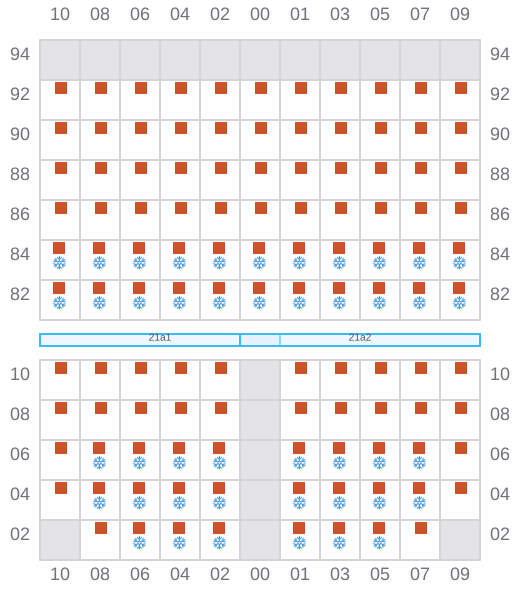

021 (022)
- →

023
- ←
- →

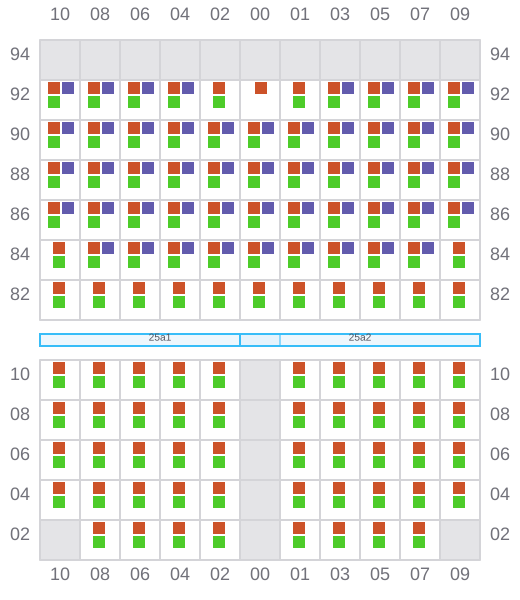

025 (026)
- →

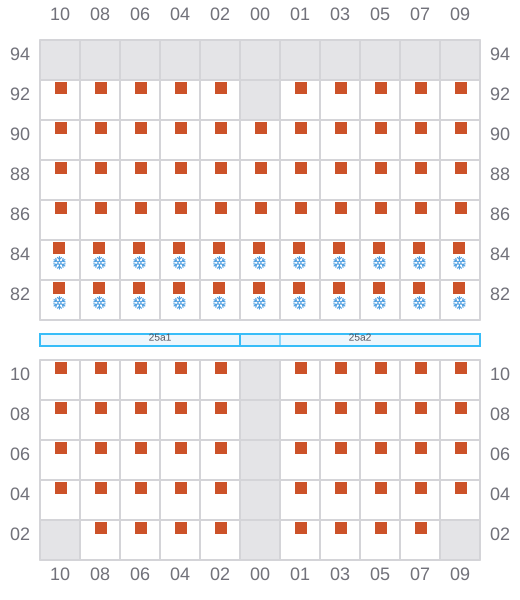

027
- ←
- → / ?

029 (030)
- →

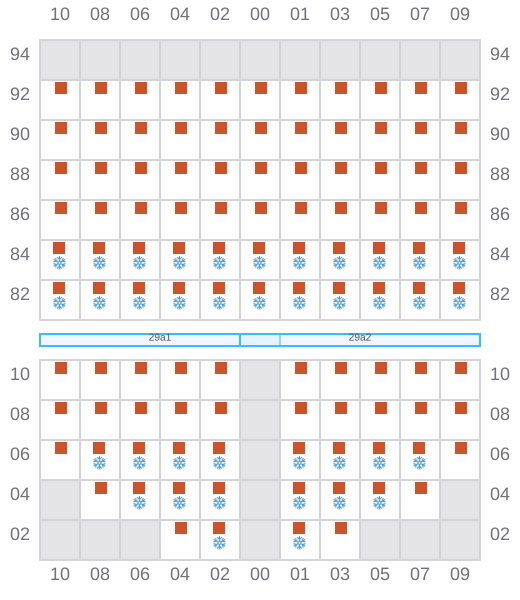

031
- ←
- →

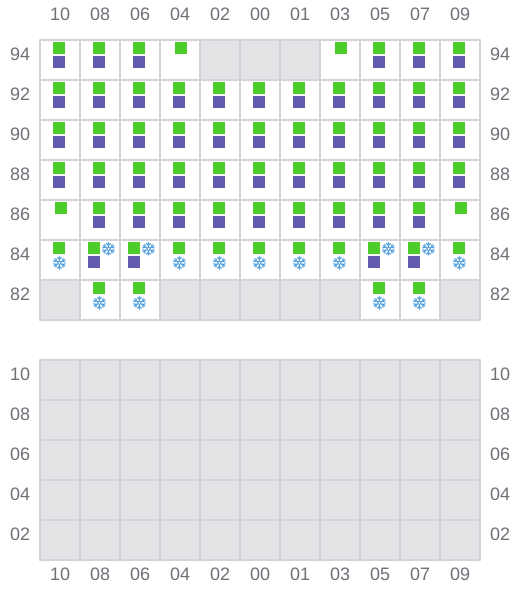

033 (034)
- → / ?
- → / ?
