AS SELINA
9516789 | CQGE | 9516789 by ********* Last update: Thu May 09 2024

General Info

Ship Name:AS SELINA
IMO Code:9516789
Call Sign:CQGE
Line Operator:9516789
Class Name for Sister Ships:WINCHESTER STRAIT
Year Built:2012
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:035
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:1,696

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of AS SELINA

Hatch-Covers View

Deck view of AS SELINA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • →

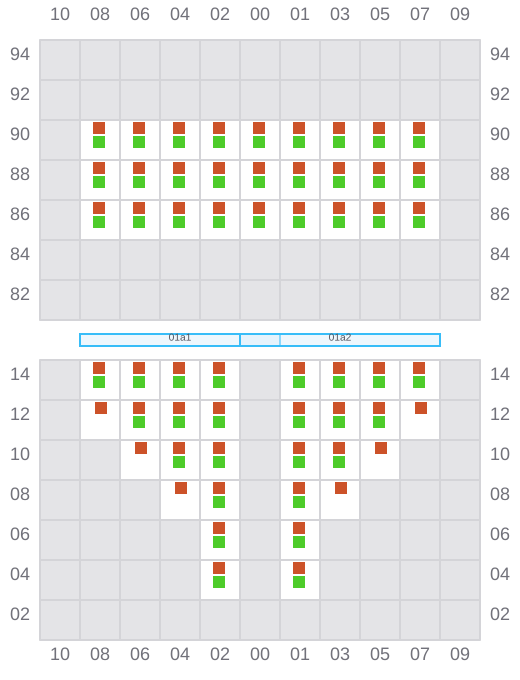

Bay 001 view and slots of AS SELINA

003 (002)

  • ←
Bay 003 view and slots of AS SELINA

005

  • →

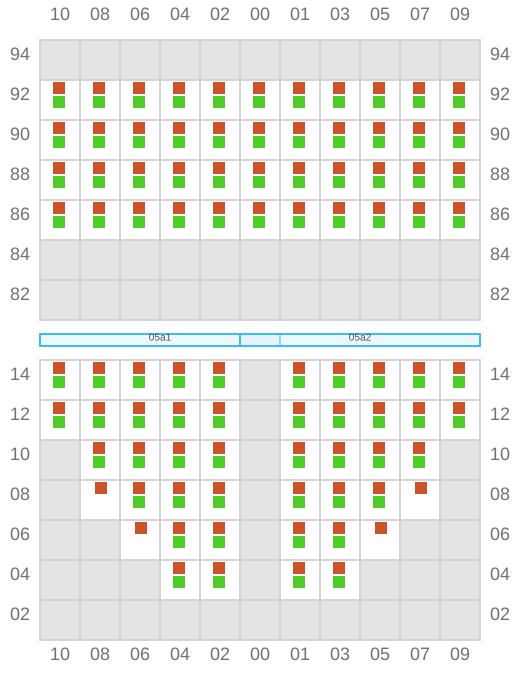

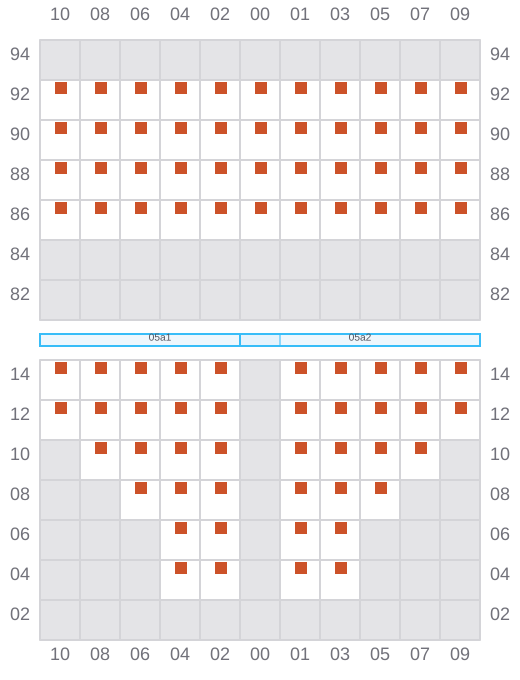

Bay 005 view and slots of AS SELINA

007 (006)

  • ←
Bay 007 view and slots of AS SELINA

009

  • →

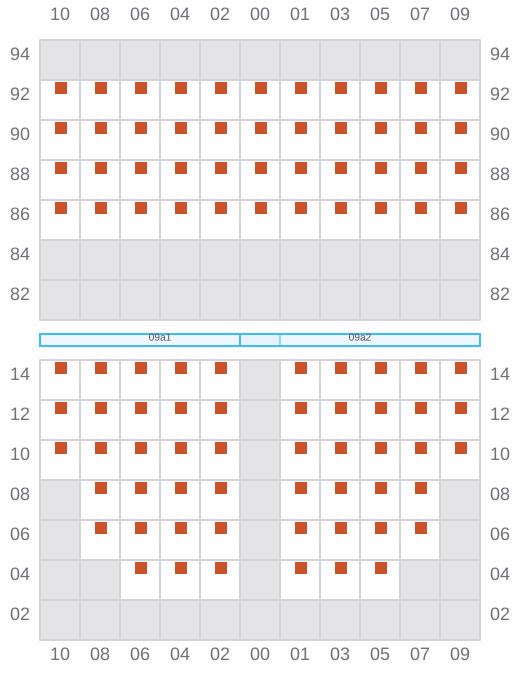

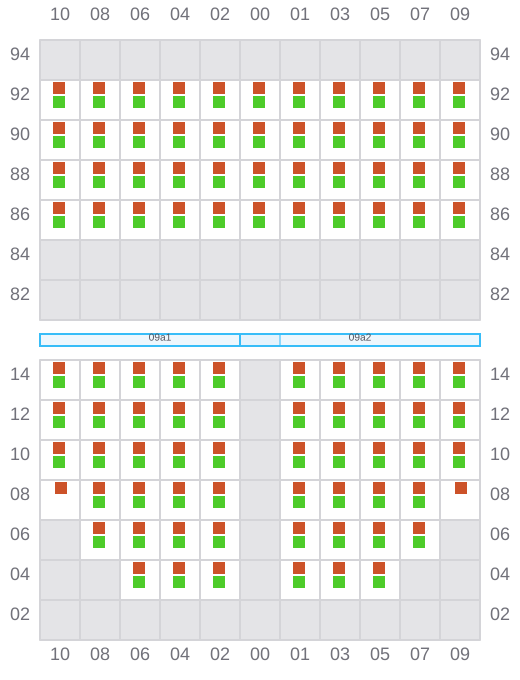

Bay 009 view and slots of AS SELINA

011 (010)

  • ←
Bay 011 view and slots of AS SELINA

013

  • →
Bay 013 view and slots of AS SELINA

015 (014)

  • ←
Bay 015 view and slots of AS SELINA

017

  • →

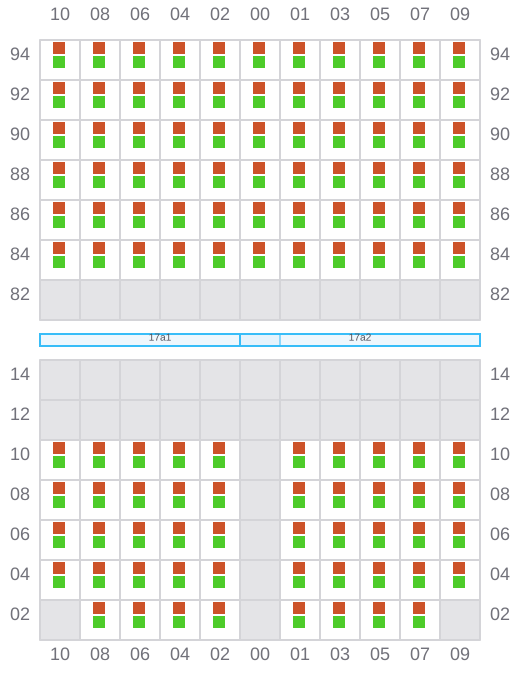

Bay 017 view and slots of AS SELINA

019 (018)

  • ←
Bay 019 view and slots of AS SELINA

021

  • →
Bay 021 view and slots of AS SELINA

023 (022)

  • ←

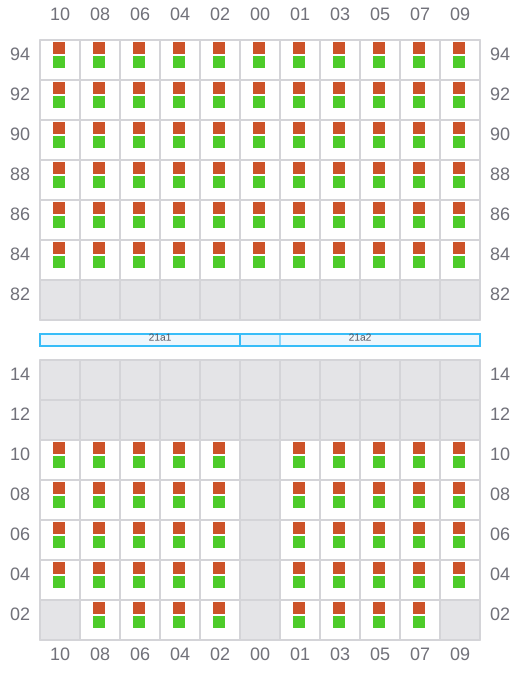

Bay 023 view and slots of AS SELINA

025

  • →

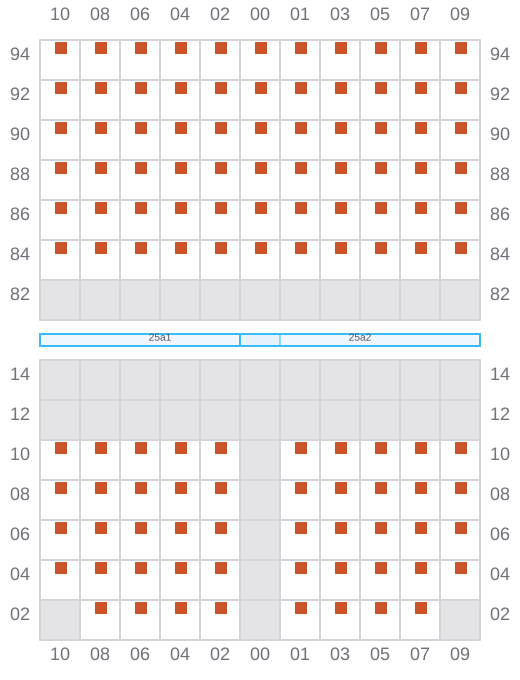

Bay 025 view and slots of AS SELINA

027 (026)

  • ←

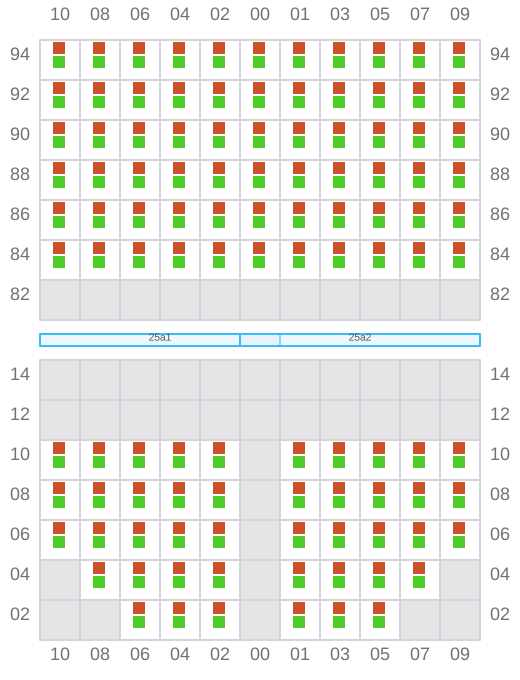

Bay 027 view and slots of AS SELINA

029

  • →

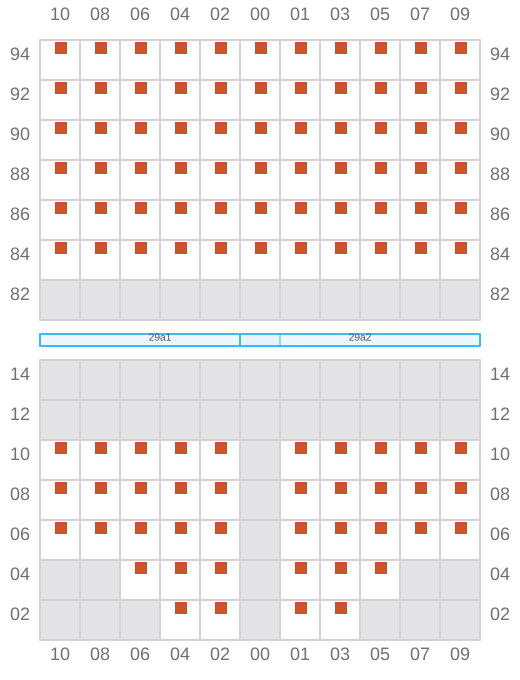

Bay 029 view and slots of AS SELINA

031 (030)

  • ←

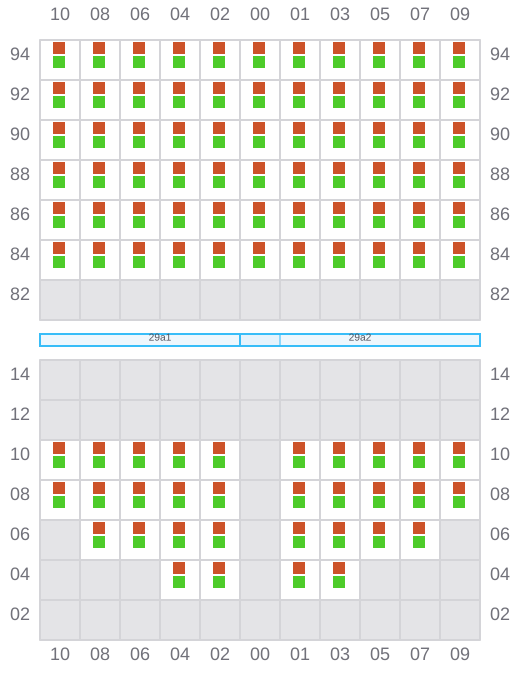

Bay 031 view and slots of AS SELINA

033

  • → / ?

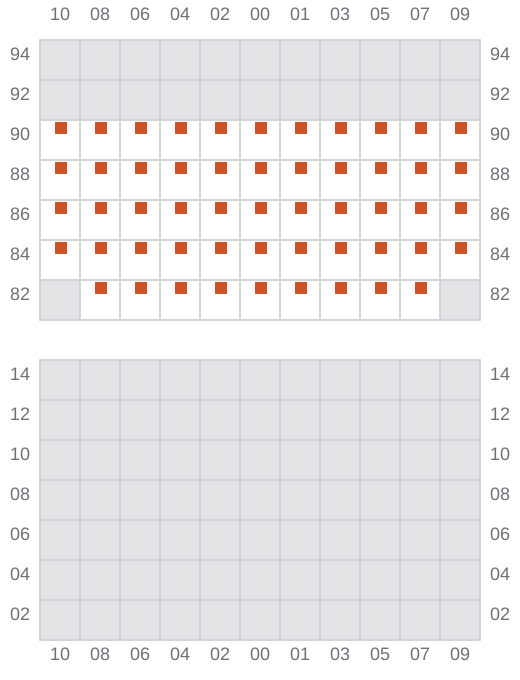

Bay 033 view and slots of AS SELINA

035 (034)

  • ← / ?

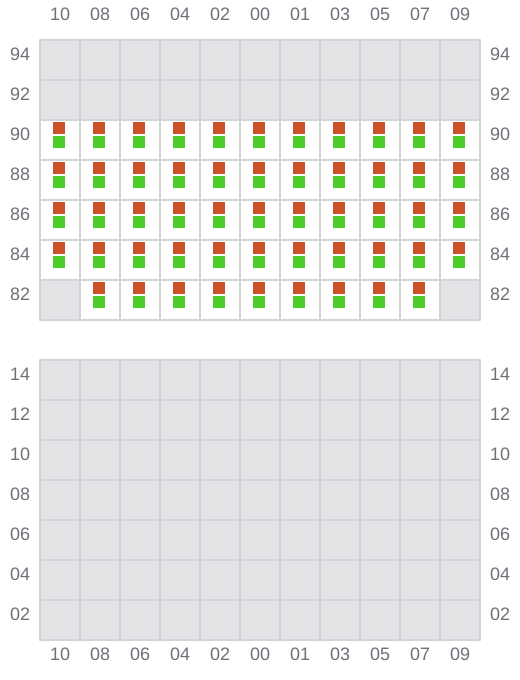

Bay 035 view and slots of AS SELINA
