AS SERENA
9335812 | 5LDH7 | 9335812 by ********* Last update: Mon Jun 24 2024

General Info

Ship Name:AS SERENA
IMO Code:9335812
Call Sign:5LDH7
Line Operator:9335812
Class Name for Sister Ships:MCC
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:033
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,714

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of AS SERENA

Hatch-Covers View

Deck view of AS SERENA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

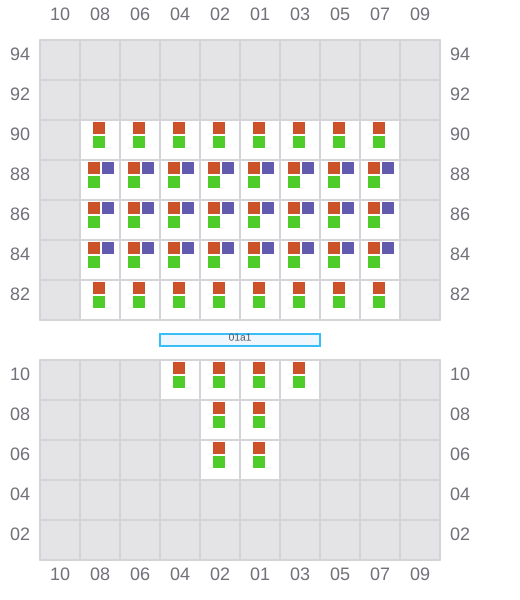

001 (002)

Bay 001 view and slots of AS SERENA

003

  • / ?
Bay 003 view and slots of AS SERENA

005 (006)

Bay 005 view and slots of AS SERENA

007

  • / ?

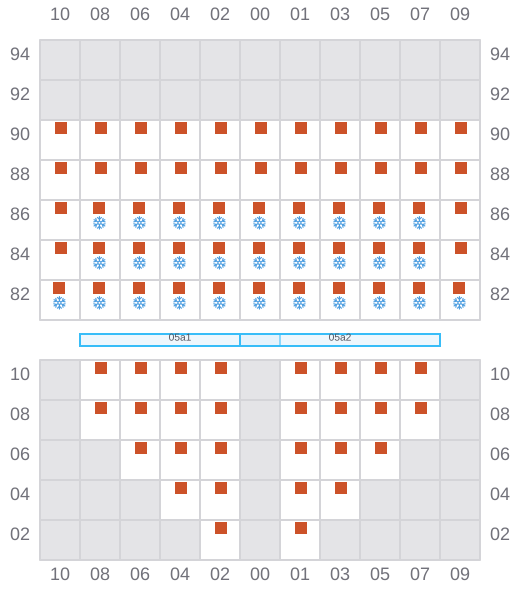

Bay 007 view and slots of AS SERENA

009 (010)

Bay 009 view and slots of AS SERENA

011

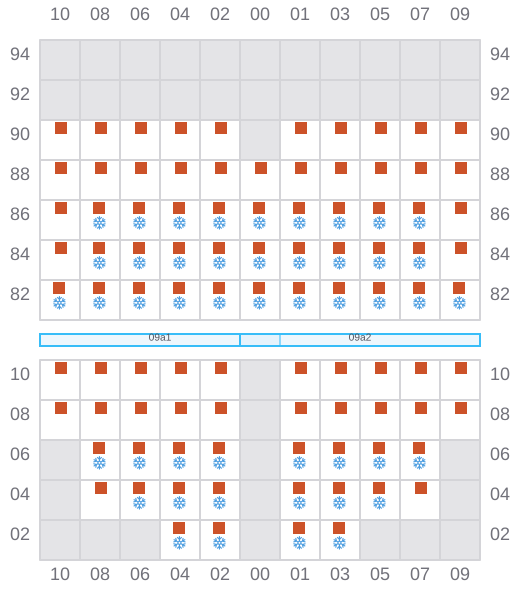

Bay 011 view and slots of AS SERENA

013 (014)

  • / ?

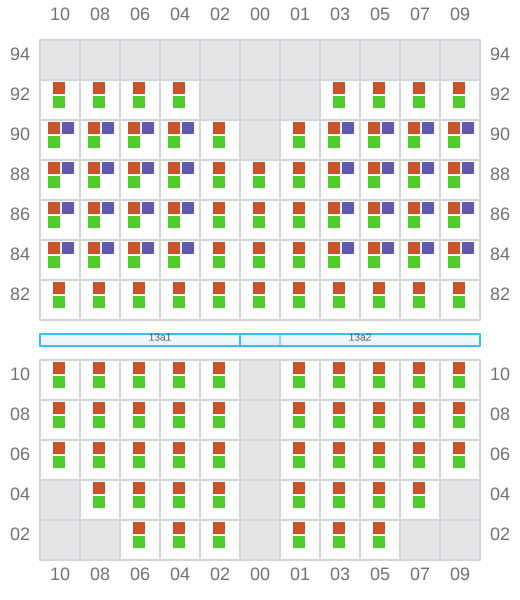

Bay 013 view and slots of AS SERENA

015

Bay 015 view and slots of AS SERENA

017 (018)

Bay 017 view and slots of AS SERENA

019

Bay 019 view and slots of AS SERENA

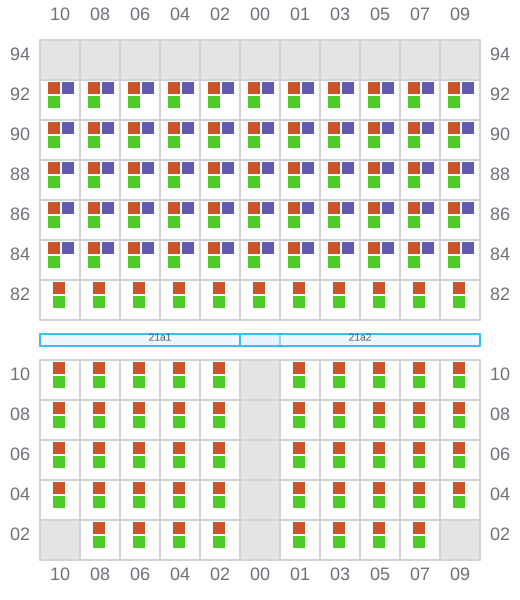

021 (022)

Bay 021 view and slots of AS SERENA

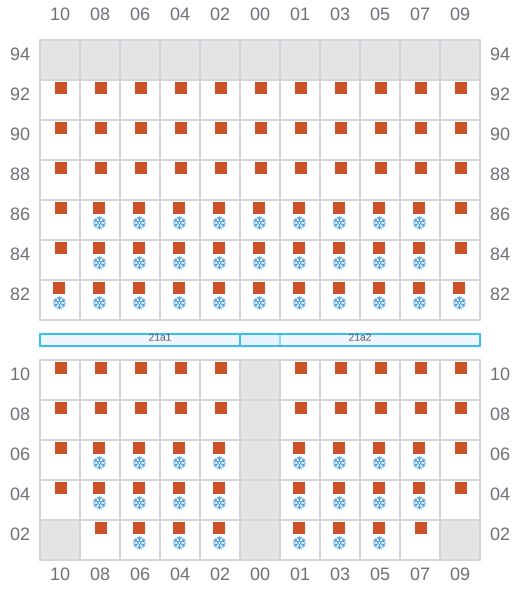

023

Bay 023 view and slots of AS SERENA

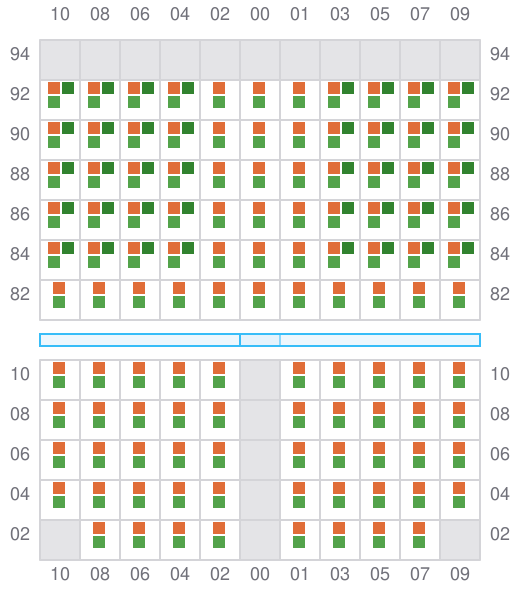

025 (026)

Bay 025 view and slots of AS SERENA

027

  • / ?
Bay 027 view and slots of AS SERENA

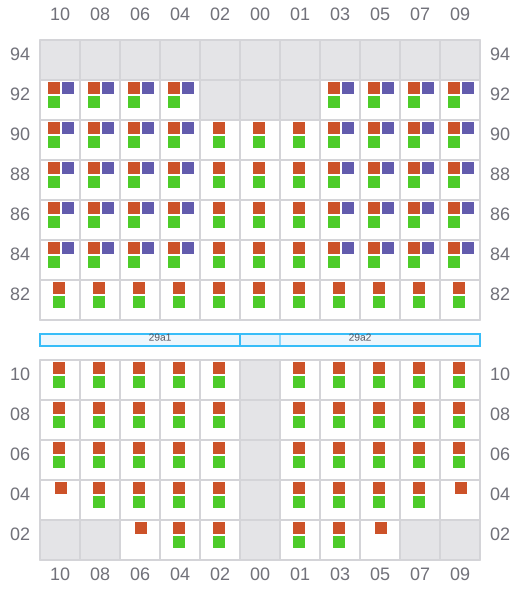

029 (030)

Bay 029 view and slots of AS SERENA

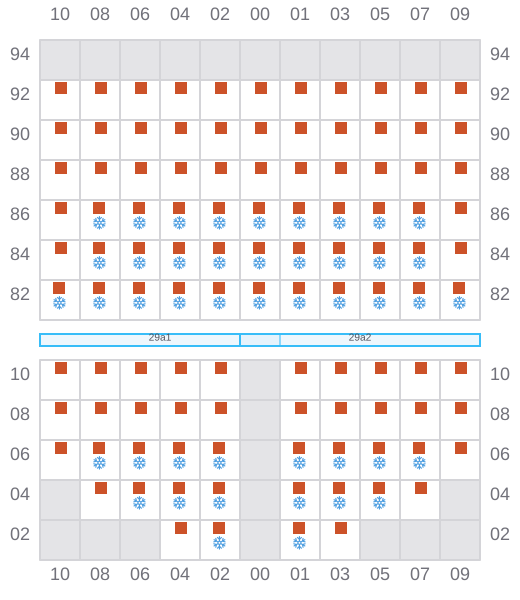

031

Bay 031 view and slots of AS SERENA

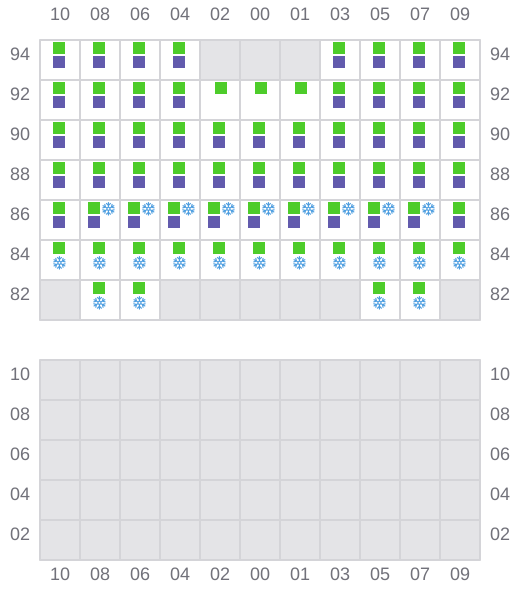

033 (034)

Bay 033 view and slots of AS SERENA
