AS SUSANNA
9410296 | D5PZ5 | 9410296 by ********* Last update: Mon Mar 25 2024
General Info
Ship Name:AS SUSANNA
IMO Code:9410296
Call Sign:D5PZ5
Line Operator:9410296
Class Name for Sister Ships:63A
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:033
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,713
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
![Side view of AS SUSANNA](/vessel-images/c9a57d94-f420-499b-9021-1b7cac5fb2e2-sideView.png?v=1711390994236)
Hatch-Covers View
![Deck view of AS SUSANNA](/vessel-images/c9a57d94-f420-499b-9021-1b7cac5fb2e2-deckView.png?v=1711390994236)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

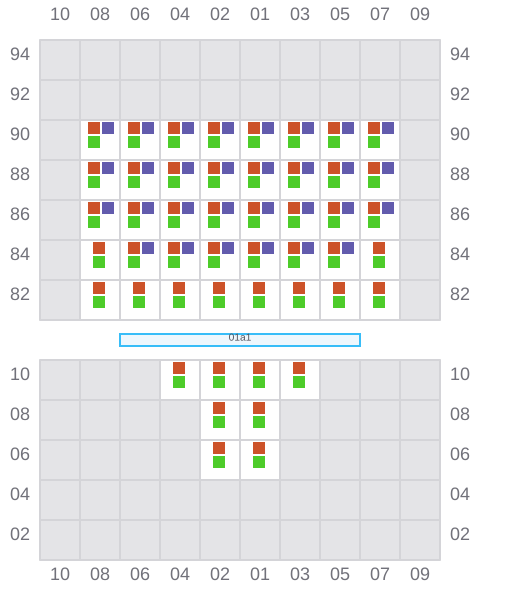

001 (002)
- →
![Bay 001 view and slots of AS SUSANNA](/vessel-images/c9a57d94-f420-499b-9021-1b7cac5fb2e2-b001.png?v=1711390994236)

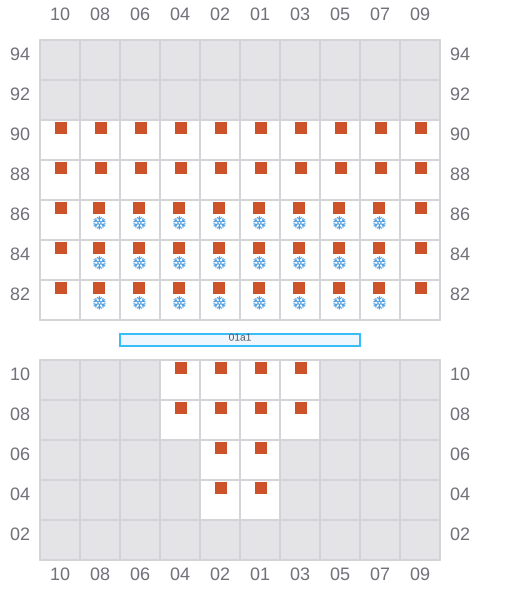

003
- ←
- → / ?
![Bay 003 view and slots of AS SUSANNA](/vessel-images/c9a57d94-f420-499b-9021-1b7cac5fb2e2-b003.png?v=1711390994236)

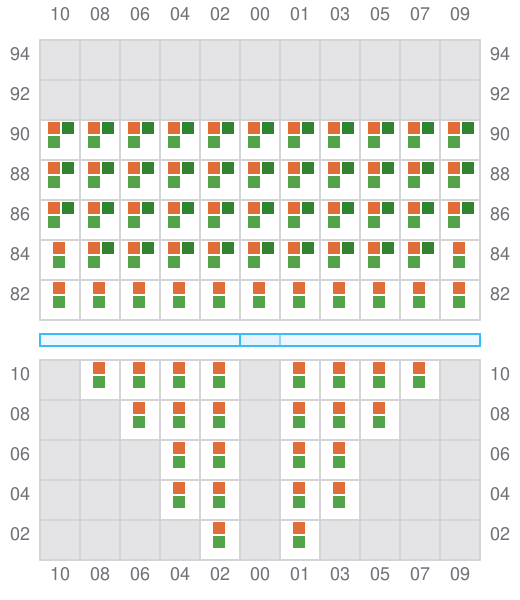

005 (006)
- →
![Bay 005 view and slots of AS SUSANNA](/vessel-images/c9a57d94-f420-499b-9021-1b7cac5fb2e2-b005.png?v=1711390994236)

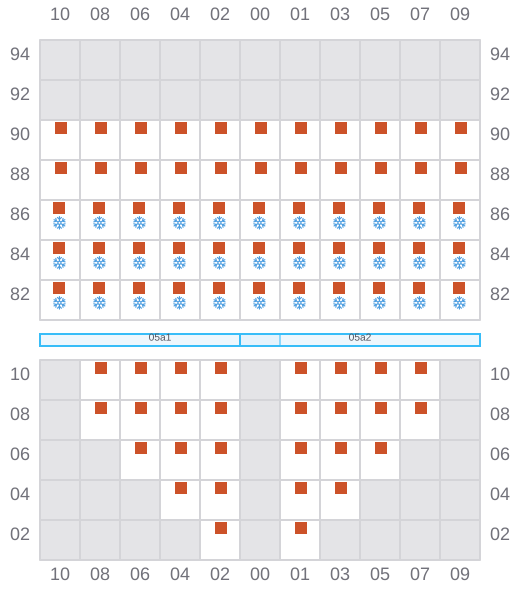

007
- ←
- → / ?
![Bay 007 view and slots of AS SUSANNA](/vessel-images/c9a57d94-f420-499b-9021-1b7cac5fb2e2-b007.png?v=1711390994236)

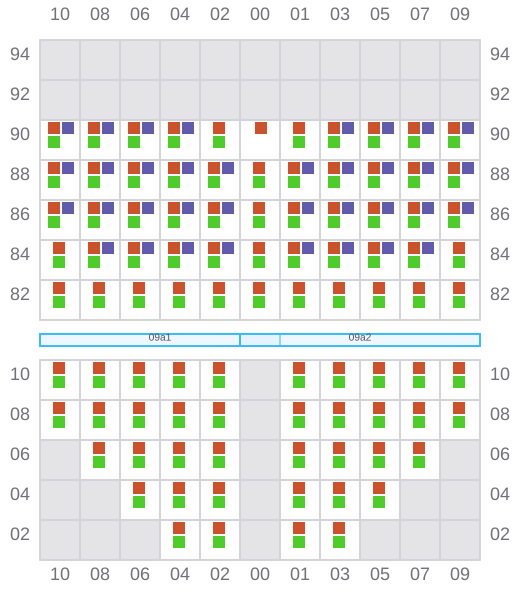

009 (010)
- →
![Bay 009 view and slots of AS SUSANNA](/vessel-images/c9a57d94-f420-499b-9021-1b7cac5fb2e2-b009.png?v=1711390994236)

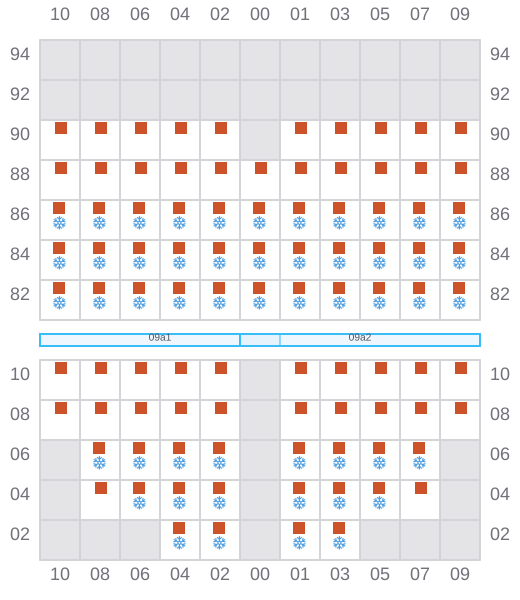

011
- ←
- →
![Bay 011 view and slots of AS SUSANNA](/vessel-images/c9a57d94-f420-499b-9021-1b7cac5fb2e2-b011.png?v=1711390994236)

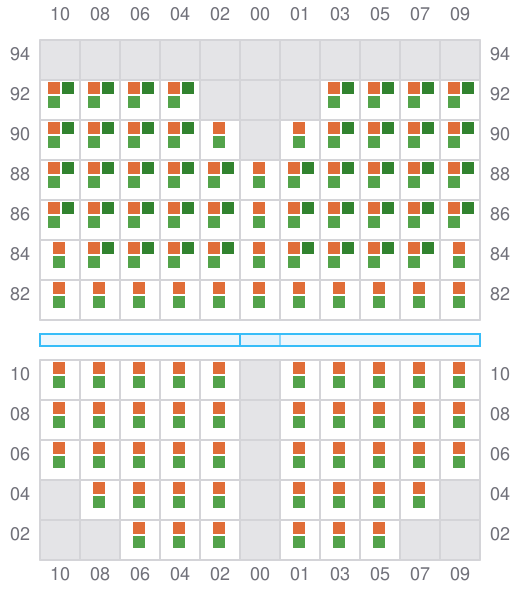

013 (014)
- →
![Bay 013 view and slots of AS SUSANNA](/vessel-images/c9a57d94-f420-499b-9021-1b7cac5fb2e2-b013.png?v=1711390994236)

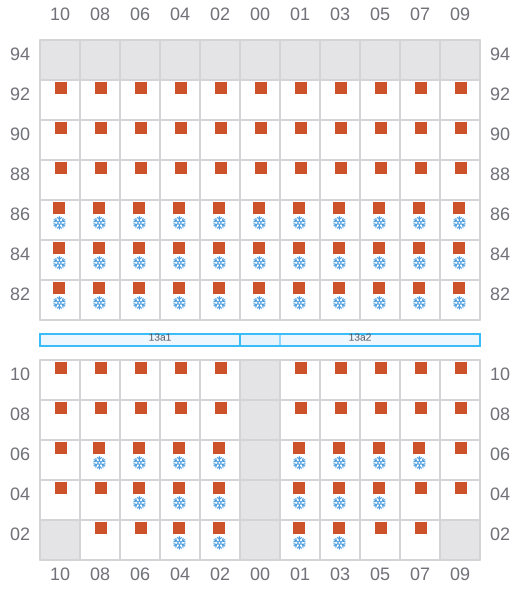

015
- ←
- →
![Bay 015 view and slots of AS SUSANNA](/vessel-images/c9a57d94-f420-499b-9021-1b7cac5fb2e2-b015.png?v=1711390994236)

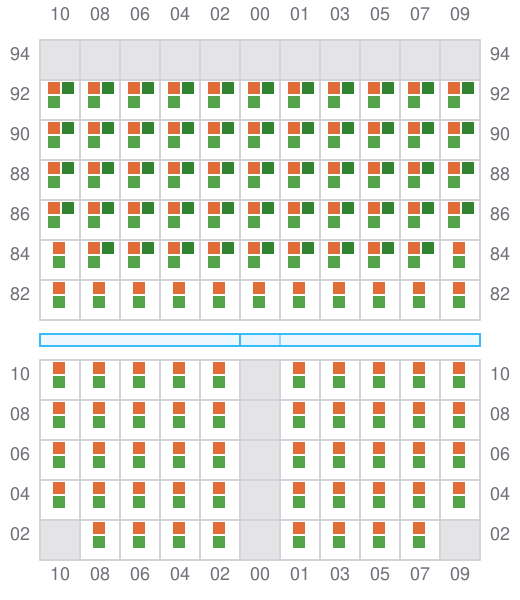

017 (018)
- →
![Bay 017 view and slots of AS SUSANNA](/vessel-images/c9a57d94-f420-499b-9021-1b7cac5fb2e2-b017.png?v=1711390994236)

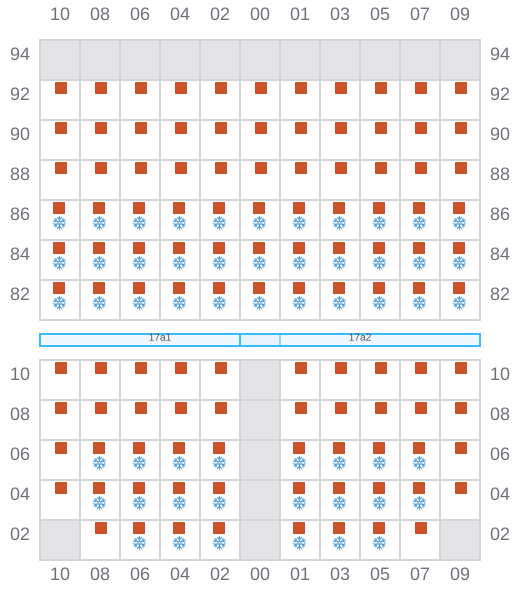

019
- ←
- →
![Bay 019 view and slots of AS SUSANNA](/vessel-images/c9a57d94-f420-499b-9021-1b7cac5fb2e2-b019.png?v=1711390994236)

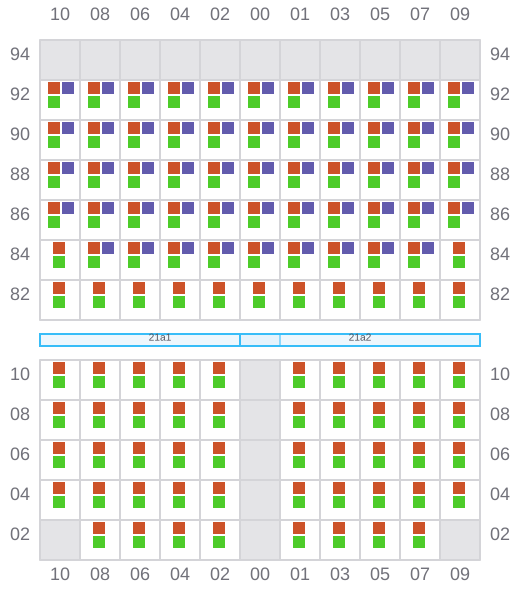

021 (022)
- →
![Bay 021 view and slots of AS SUSANNA](/vessel-images/c9a57d94-f420-499b-9021-1b7cac5fb2e2-b021.png?v=1711390994236)

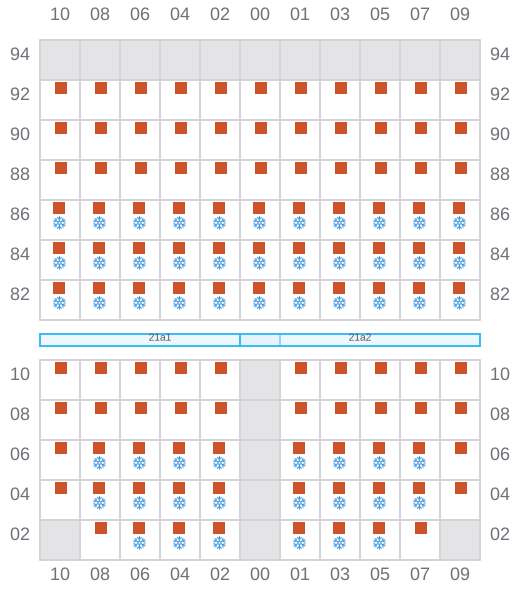

023
- ←
- →
![Bay 023 view and slots of AS SUSANNA](/vessel-images/c9a57d94-f420-499b-9021-1b7cac5fb2e2-b023.png?v=1711390994236)

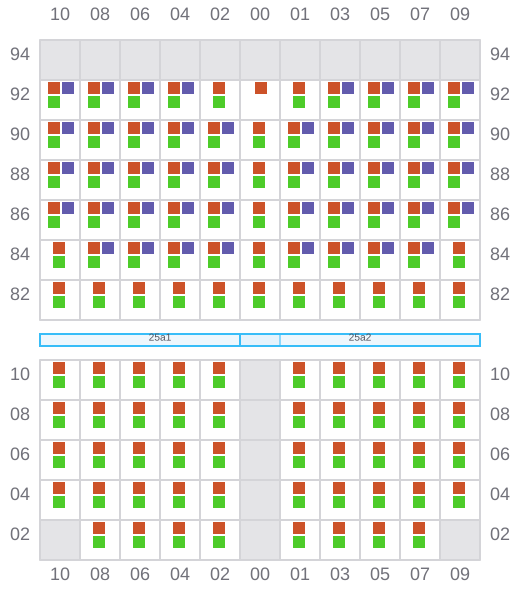

025 (026)
- →
![Bay 025 view and slots of AS SUSANNA](/vessel-images/c9a57d94-f420-499b-9021-1b7cac5fb2e2-b025.png?v=1711390994236)

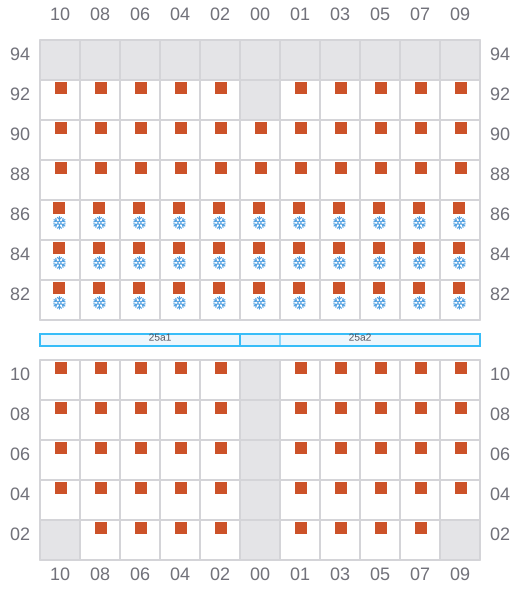

027
- ←
- → / ?
![Bay 027 view and slots of AS SUSANNA](/vessel-images/c9a57d94-f420-499b-9021-1b7cac5fb2e2-b027.png?v=1711390994236)

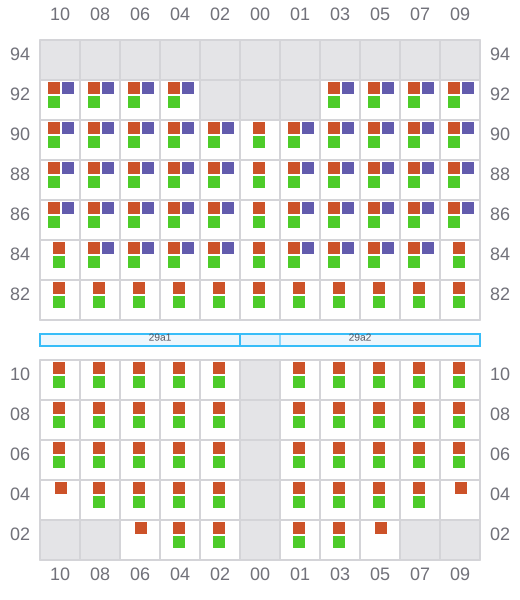

029 (030)
- →
![Bay 029 view and slots of AS SUSANNA](/vessel-images/c9a57d94-f420-499b-9021-1b7cac5fb2e2-b029.png?v=1711390994236)

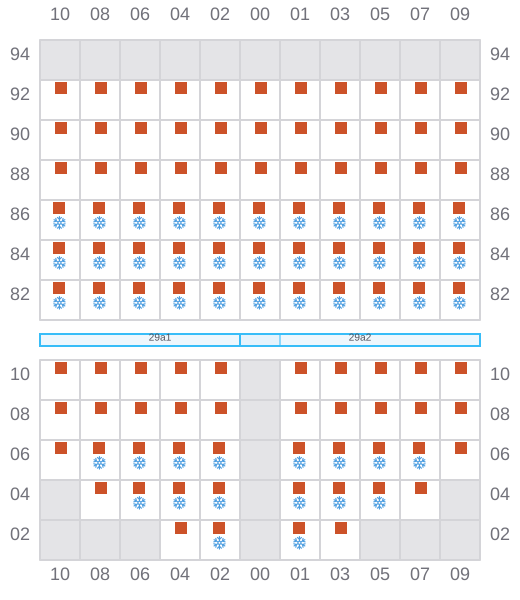

031
- ←
- →
![Bay 031 view and slots of AS SUSANNA](/vessel-images/c9a57d94-f420-499b-9021-1b7cac5fb2e2-b031.png?v=1711390994236)

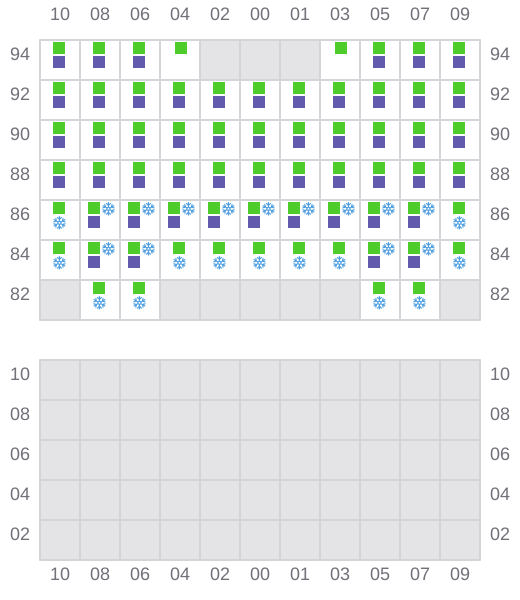

033 (034)
- → / ?
- → / ?
![Bay 033 view and slots of AS SUSANNA](/vessel-images/c9a57d94-f420-499b-9021-1b7cac5fb2e2-b033.png?v=1711390994236)
