ASIATIC REUNION
9404728 | 9V6959 | ASIATIC LLOYD SHIPMANAGEMENT LLP by ************************************** Last update: Fri May 15 2026
General Info
Ship Name:ASIATIC REUNION
IMO Code:9404728
Call Sign:9V6959
Line Operator:ASIATIC LLOYD SHIPMANAGEMENT LLP
Class Name for Sister Ships:ืืN/A
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):133.50
LOA (Length Overall):142.70
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:031
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:1,053
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

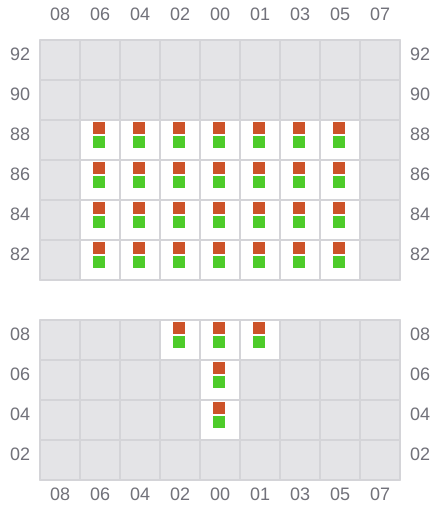

001 (002)
- →
003 (002)
- ←

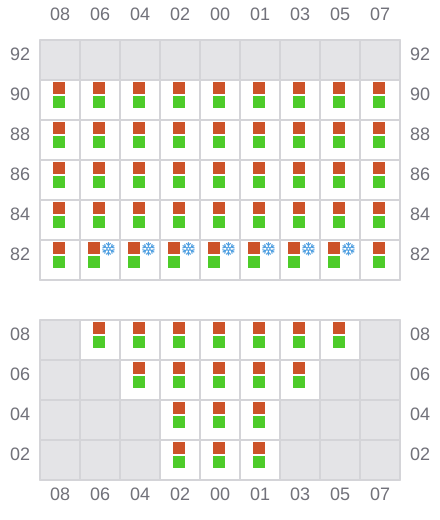

005 (006)
- →

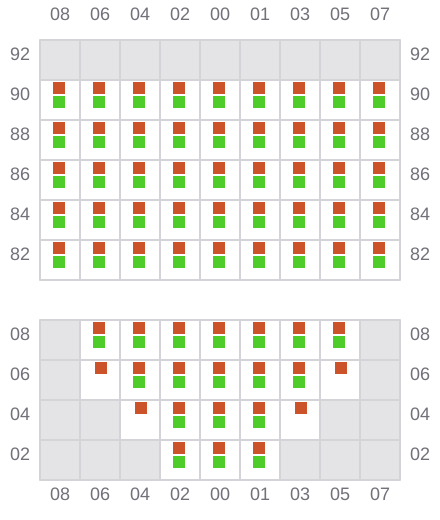

007 (006)
- ←
009 (010)
- →
011 (010)
- ←
013 (014)
- →

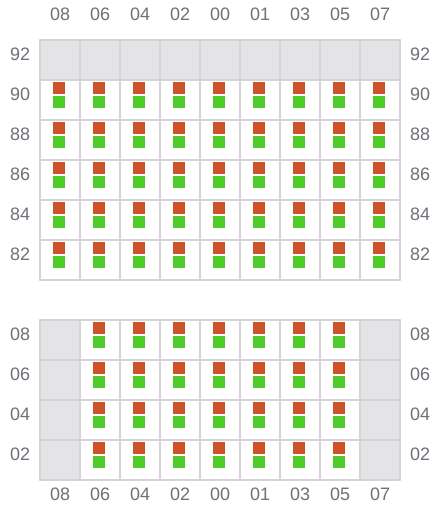

015 (014)
- ←

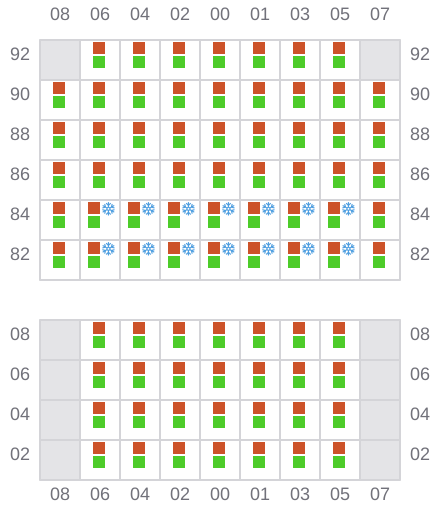

017 (018)
- →
019 (018)
- ←
021 (022)
- →
023 (022)
- ←
025 (026)
- →

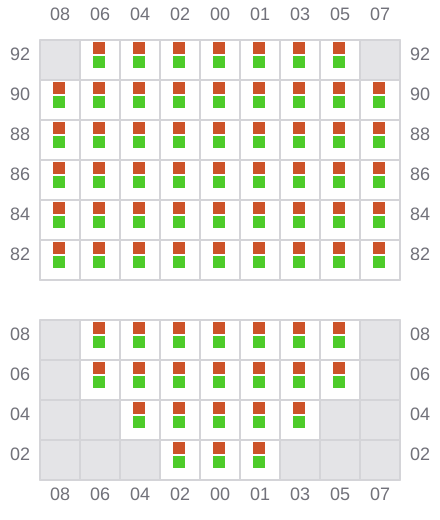

027 (026)
- ←

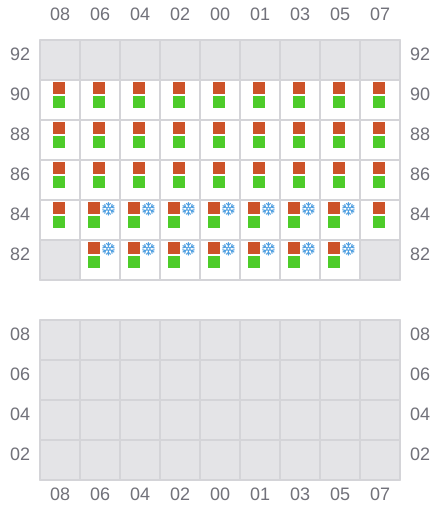

029 (030)
- →
- ? / ?
- ? / ?

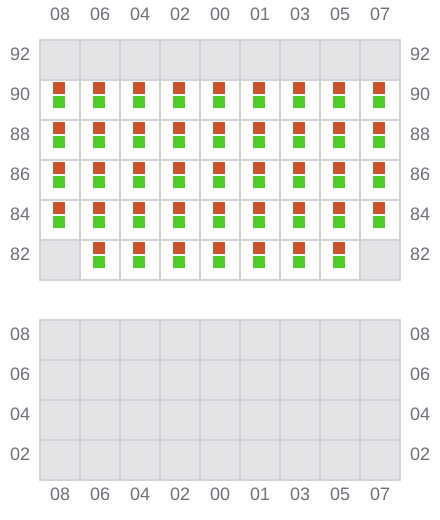

031 (030)
- ←
- ? / ?
- ? / ?
