ATHENA
9187344 | J8B5445 | 9187344 by ********* Last update: Mon May 20 2024
General Info
Ship Name:ATHENA
IMO Code:9187344
Call Sign:J8B5445
Line Operator:9187344
Class Name for Sister Ships:MOL OUEME
Year Built:1999
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):190.00
LOA (Length Overall):199.88
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:043
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:2,011
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
![Side view of ATHENA](/vessel-images/029371bc-2a1b-4ee1-835d-5f0568de36ea-sideView.png?v=1716229411053)
Hatch-Covers View
![Deck view of ATHENA](/vessel-images/029371bc-2a1b-4ee1-835d-5f0568de36ea-deckView.png?v=1716229411053)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

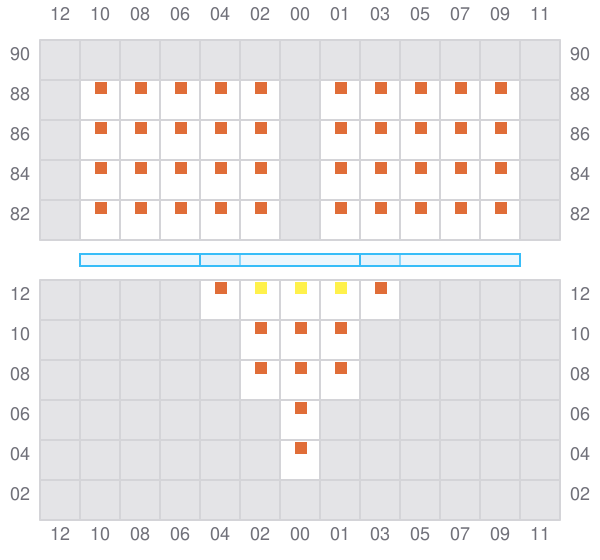

001
- →
- →
![Bay 001 view and slots of ATHENA](/vessel-images/029371bc-2a1b-4ee1-835d-5f0568de36ea-b001.png?v=1716229411053)

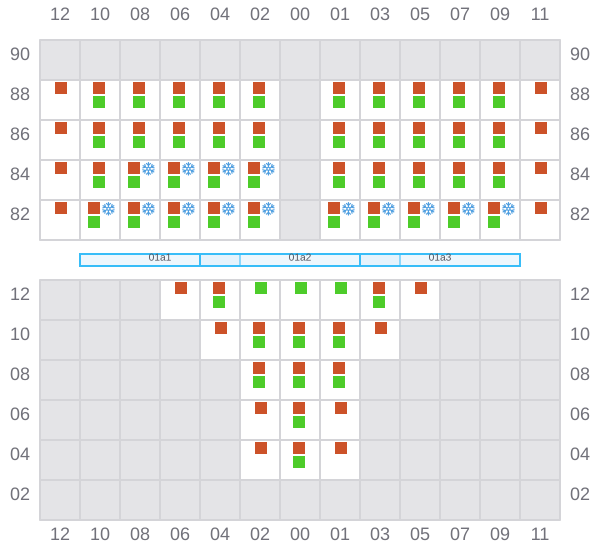

003 (002)
- ←
- → / ?
- →
![Bay 003 view and slots of ATHENA](/vessel-images/029371bc-2a1b-4ee1-835d-5f0568de36ea-b003.png?v=1716229411053)

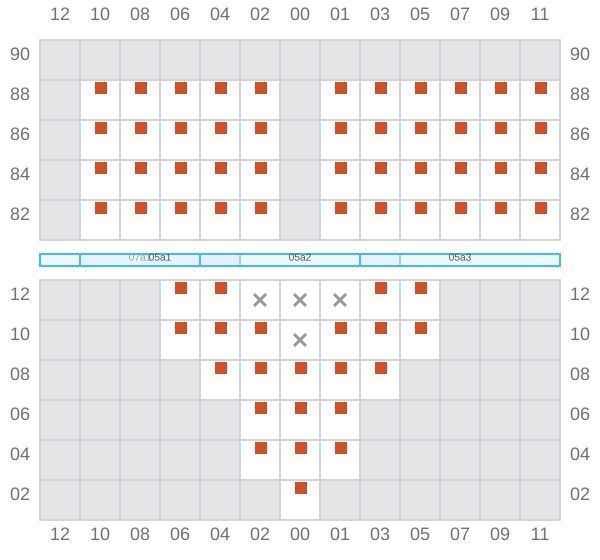

005
- →
- →
![Bay 005 view and slots of ATHENA](/vessel-images/029371bc-2a1b-4ee1-835d-5f0568de36ea-b005.png?v=1716229411053)

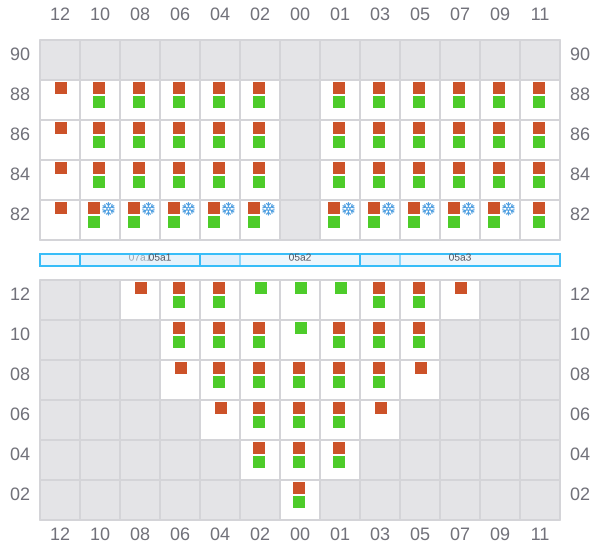

007 (006)
- ←
- → / ?
- →
![Bay 007 view and slots of ATHENA](/vessel-images/029371bc-2a1b-4ee1-835d-5f0568de36ea-b007.png?v=1716229411053)

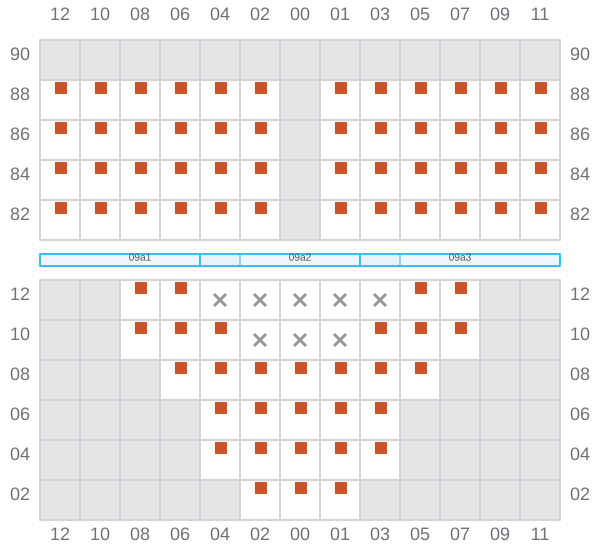

009
- →
- →
![Bay 009 view and slots of ATHENA](/vessel-images/029371bc-2a1b-4ee1-835d-5f0568de36ea-b009.png?v=1716229411053)

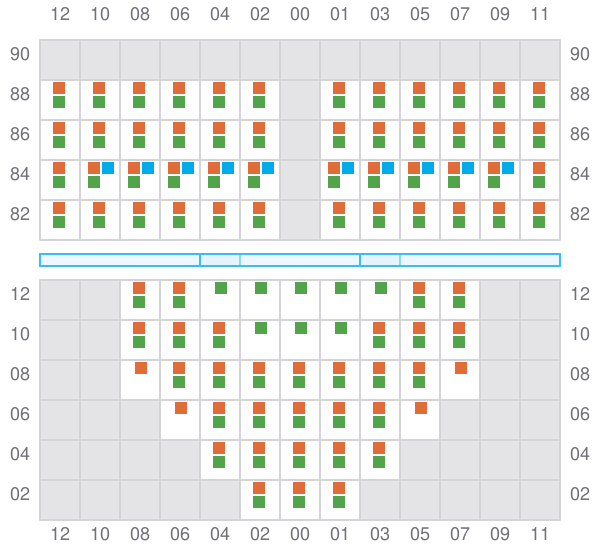

011 (010)
- ←
- → / ?
- →
![Bay 011 view and slots of ATHENA](/vessel-images/029371bc-2a1b-4ee1-835d-5f0568de36ea-b011.png?v=1716229411053)

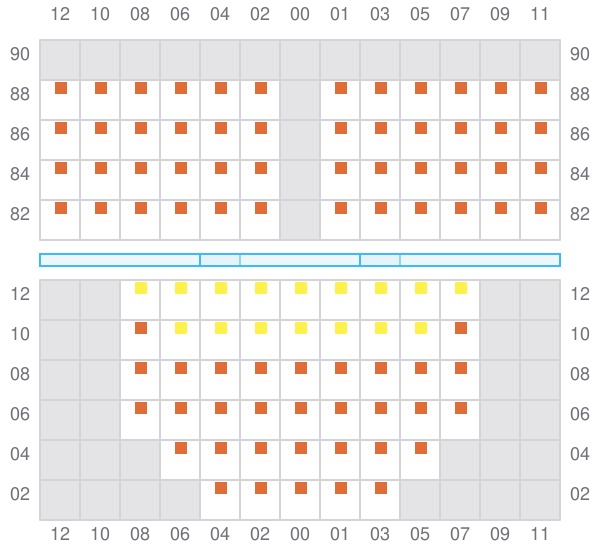

013
- →
- →
![Bay 013 view and slots of ATHENA](/vessel-images/029371bc-2a1b-4ee1-835d-5f0568de36ea-b013.png?v=1716229411053)

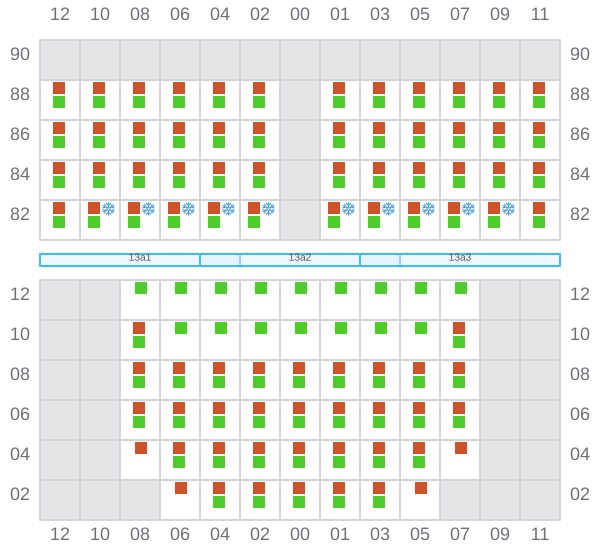

015 (014)
- ←
- → / ?
- →
![Bay 015 view and slots of ATHENA](/vessel-images/029371bc-2a1b-4ee1-835d-5f0568de36ea-b015.png?v=1716229411053)
017
- →
- →
![Bay 017 view and slots of ATHENA](/vessel-images/029371bc-2a1b-4ee1-835d-5f0568de36ea-b017.png?v=1716229411053)

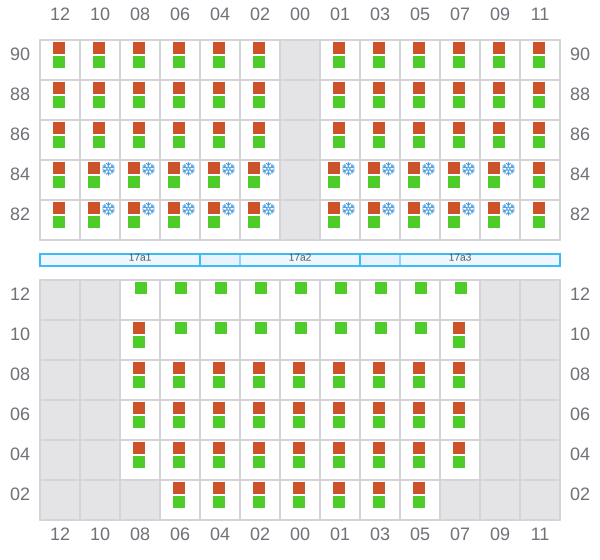

019 (018)
- ←
- → / ?
- →
![Bay 019 view and slots of ATHENA](/vessel-images/029371bc-2a1b-4ee1-835d-5f0568de36ea-b019.png?v=1716229411053)

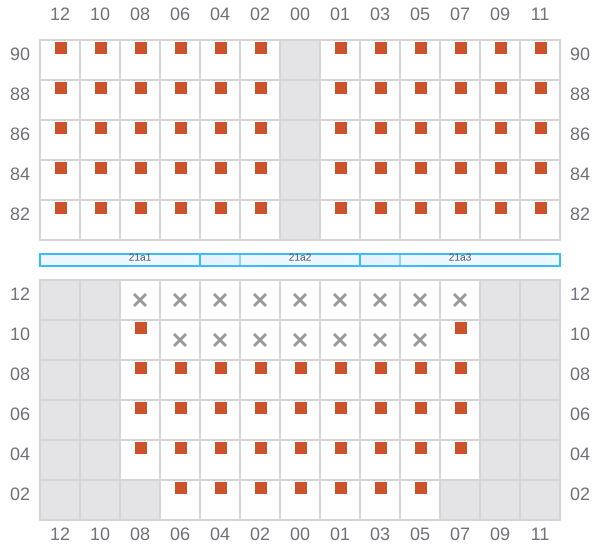

021
- →
- →
![Bay 021 view and slots of ATHENA](/vessel-images/029371bc-2a1b-4ee1-835d-5f0568de36ea-b021.png?v=1716229411053)
023 (022)
- ←
- → / ?
- →
![Bay 023 view and slots of ATHENA](/vessel-images/029371bc-2a1b-4ee1-835d-5f0568de36ea-b023.png?v=1716229411053)
025
- →
- →
![Bay 025 view and slots of ATHENA](/vessel-images/029371bc-2a1b-4ee1-835d-5f0568de36ea-b025.png?v=1716229411053)
027 (026)
- ←
- →
- →
![Bay 027 view and slots of ATHENA](/vessel-images/029371bc-2a1b-4ee1-835d-5f0568de36ea-b027.png?v=1716229411053)

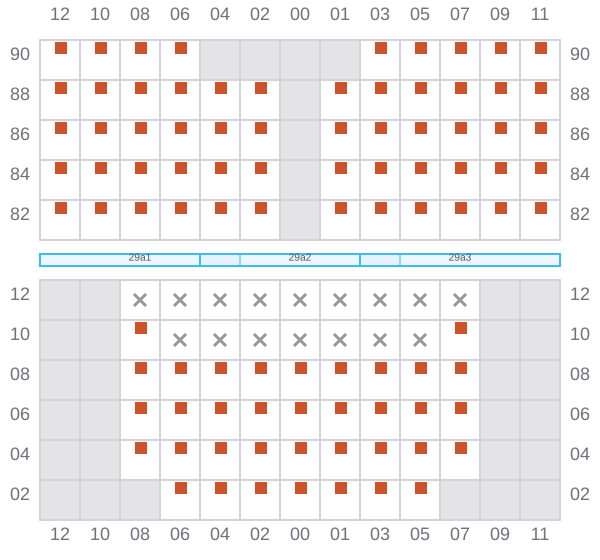

029
- →
- →
![Bay 029 view and slots of ATHENA](/vessel-images/029371bc-2a1b-4ee1-835d-5f0568de36ea-b029.png?v=1716229411053)

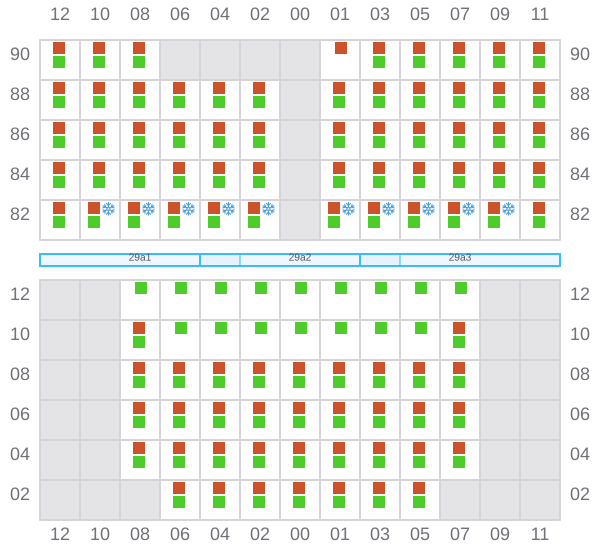

031 (030)
- ←
- → / ?
- →
![Bay 031 view and slots of ATHENA](/vessel-images/029371bc-2a1b-4ee1-835d-5f0568de36ea-b031.png?v=1716229411053)

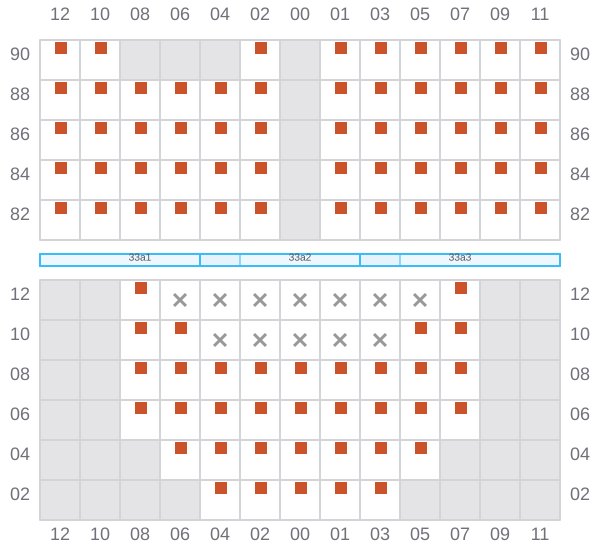

033
- →
- →
![Bay 033 view and slots of ATHENA](/vessel-images/029371bc-2a1b-4ee1-835d-5f0568de36ea-b033.png?v=1716229411053)

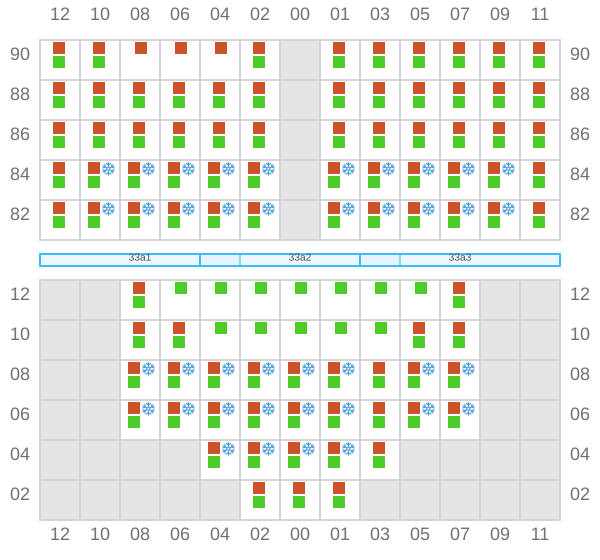

035 (034)
- ←
- →
- →
![Bay 035 view and slots of ATHENA](/vessel-images/029371bc-2a1b-4ee1-835d-5f0568de36ea-b035.png?v=1716229411053)

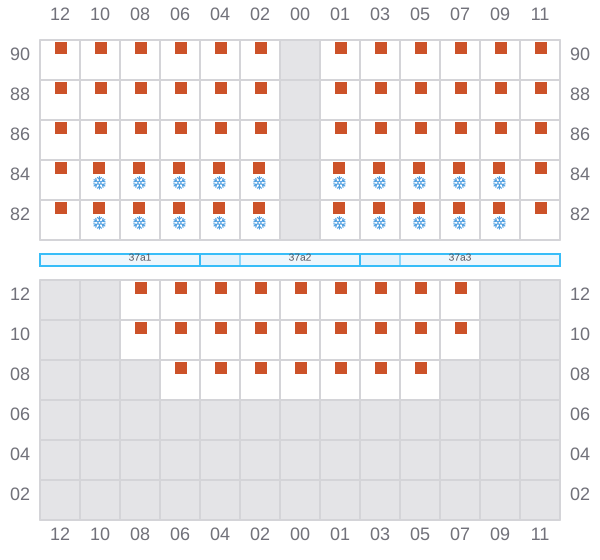

037
- →
- ← / ?
- →
![Bay 037 view and slots of ATHENA](/vessel-images/029371bc-2a1b-4ee1-835d-5f0568de36ea-b037.png?v=1716229411053)

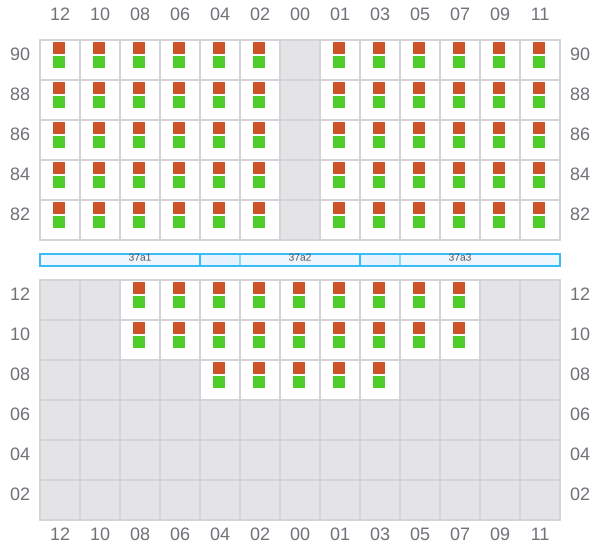

039 (038)
- ←
- →
![Bay 039 view and slots of ATHENA](/vessel-images/029371bc-2a1b-4ee1-835d-5f0568de36ea-b039.png?v=1716229411053)

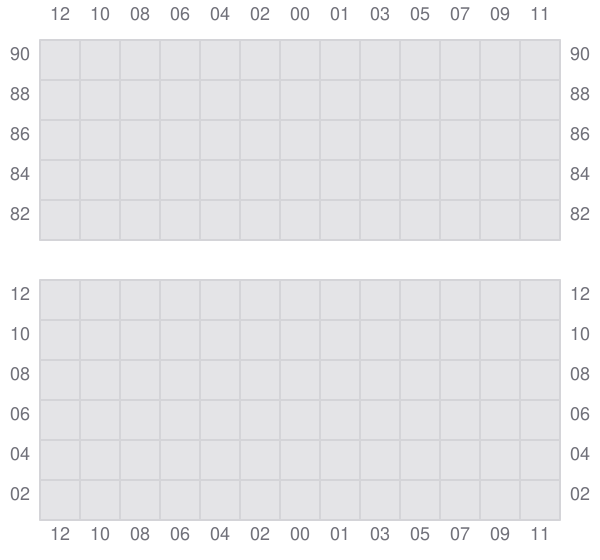

041
![Bay 041 view and slots of ATHENA](/vessel-images/029371bc-2a1b-4ee1-835d-5f0568de36ea-b041.png?v=1716229411053)

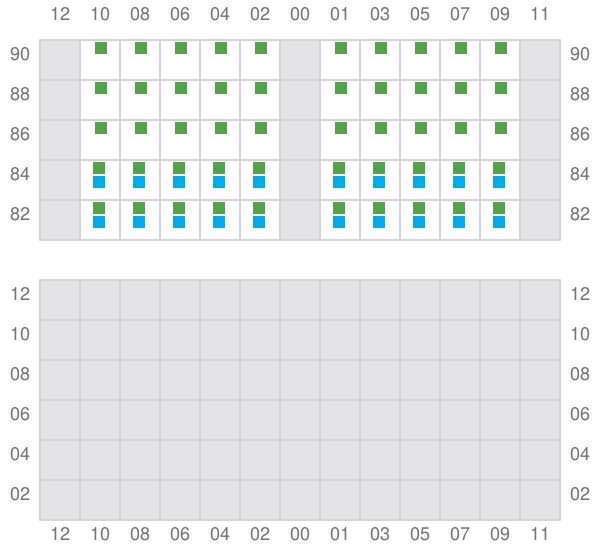

043 (042)
- ← / ?
- ← / ?
- → / ?
![Bay 043 view and slots of ATHENA](/vessel-images/029371bc-2a1b-4ee1-835d-5f0568de36ea-b043.png?v=1716229411053)
