ATHENS GLORY
9247766 | 5BFZ5 | 9247766 by ********* Last update: Tue May 14 2024

General Info

Ship Name:ATHENS GLORY

IMO Code:9247766

Call Sign:5BFZ5

Line Operator:9247766

Class Name for Sister Ships:NYK ATHENA

Year Built:2003

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):283.80

LOA (Length Overall):299.90

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:071

Max ISO Row:16

Center Line Row:No

Max Above ISO Tier:94

Min Above ISO Tier:82

Max Below ISO Tier:18

Min Below ISO Tier:02

Total TEU:6,492

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

Side View

Side view of ATHENS GLORY

Hatch-Covers View

Deck view of ATHENS GLORY

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001

→

Bay 001 view and slots of ATHENS GLORY

003 (002)

←

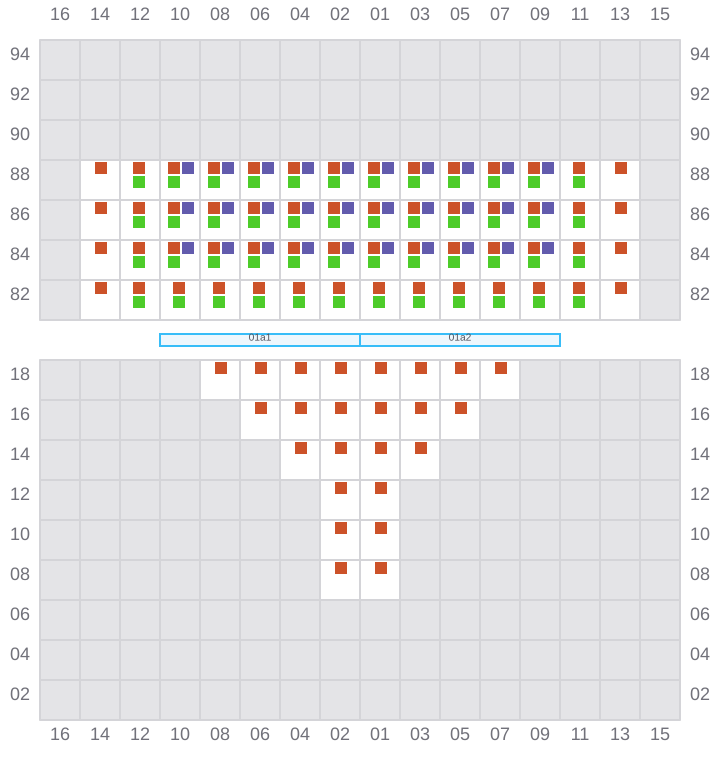

Bay 003 view and slots of ATHENS GLORY

005

→

Bay 005 view and slots of ATHENS GLORY

007 (006)

←

Bay 007 view and slots of ATHENS GLORY

009

→

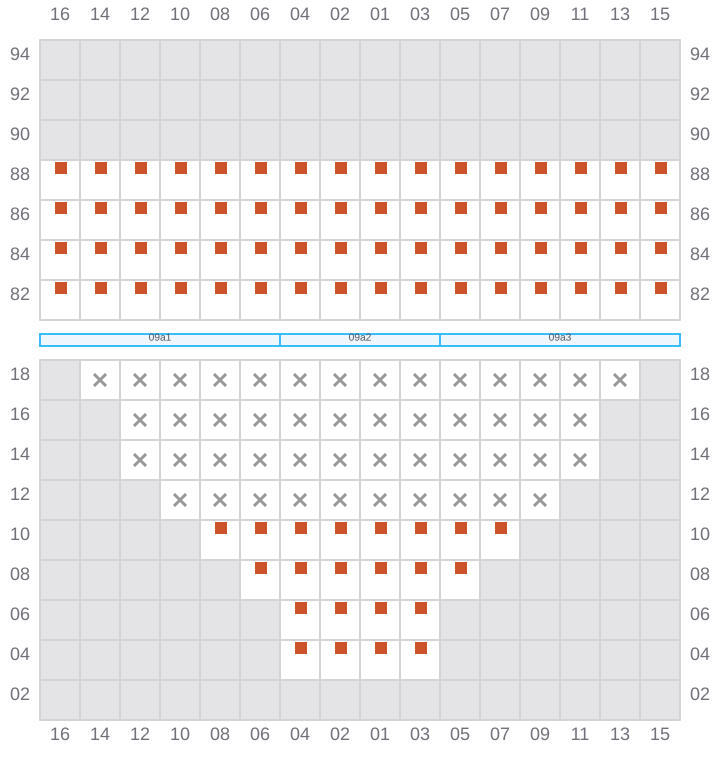

Bay 009 view and slots of ATHENS GLORY

011 (010)

←

Bay 011 view and slots of ATHENS GLORY

013

→

Bay 013 view and slots of ATHENS GLORY

015 (014)

←
^→ / _?

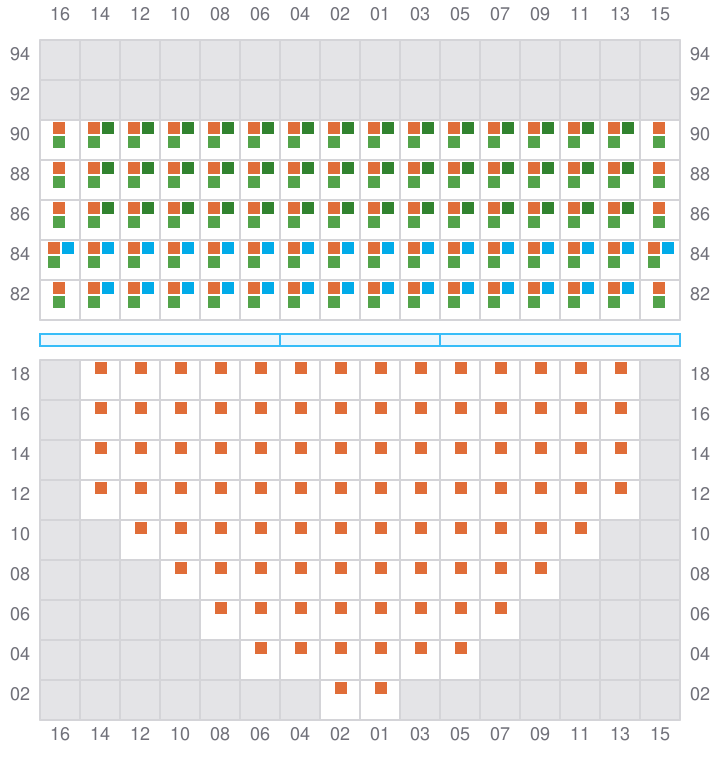

Bay 015 view and slots of ATHENS GLORY

017

→
^← / _?

Bay 017 view and slots of ATHENS GLORY

019 (018)

←

Bay 019 view and slots of ATHENS GLORY

021

→

Bay 021 view and slots of ATHENS GLORY

023 (022)

←
^→ / _?

Bay 023 view and slots of ATHENS GLORY

025

→
^← / _?

Bay 025 view and slots of ATHENS GLORY

027 (026)

←

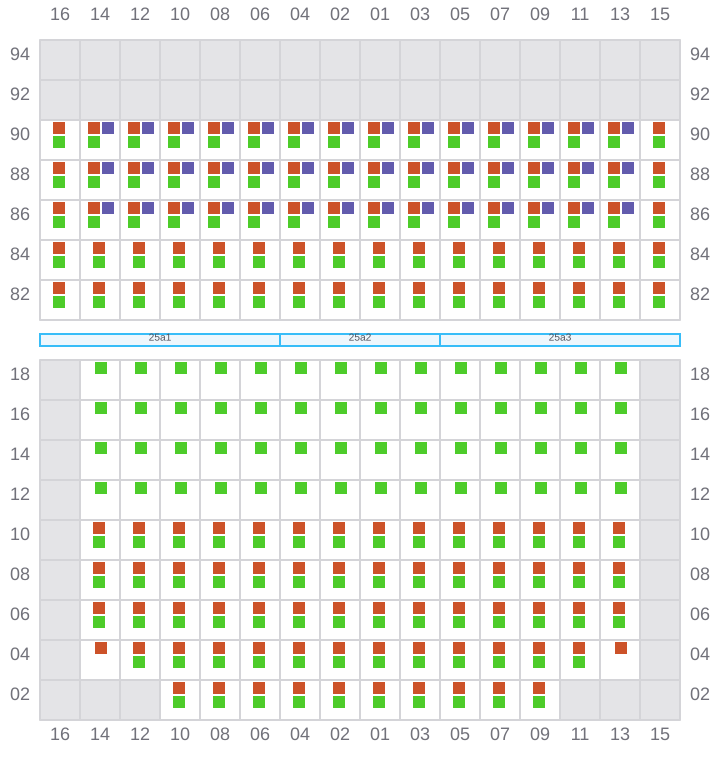

Bay 027 view and slots of ATHENS GLORY

029

→

Bay 029 view and slots of ATHENS GLORY

031 (030)

←
^→ / _?

Bay 031 view and slots of ATHENS GLORY

033

→
^← / _?

Bay 033 view and slots of ATHENS GLORY

035 (034)

←

Bay 035 view and slots of ATHENS GLORY

037

→

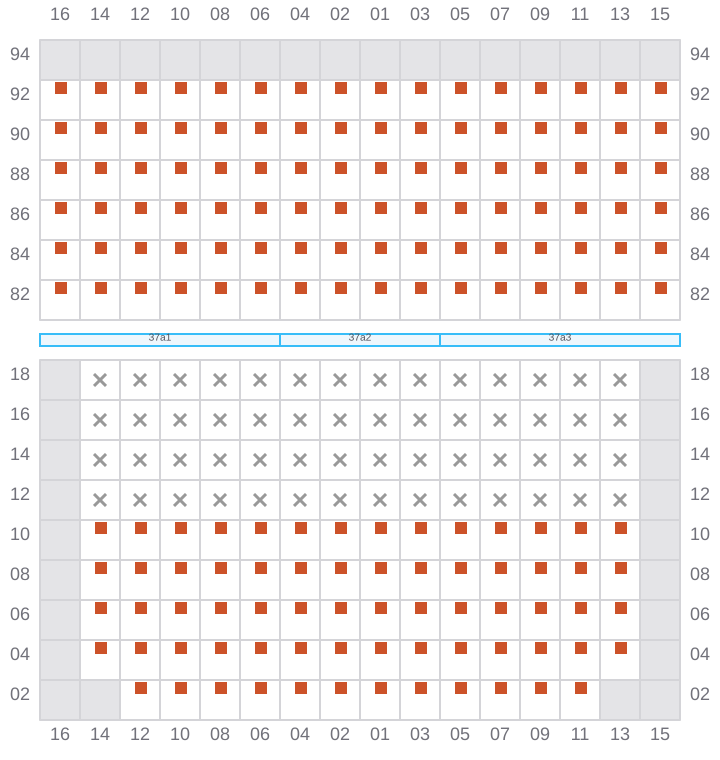

Bay 037 view and slots of ATHENS GLORY

039 (038)

←
^→ / _?

Bay 039 view and slots of ATHENS GLORY

041

→

Bay 041 view and slots of ATHENS GLORY

043 (042)

←
^→ / _?

Bay 043 view and slots of ATHENS GLORY

045

→
^← / _?

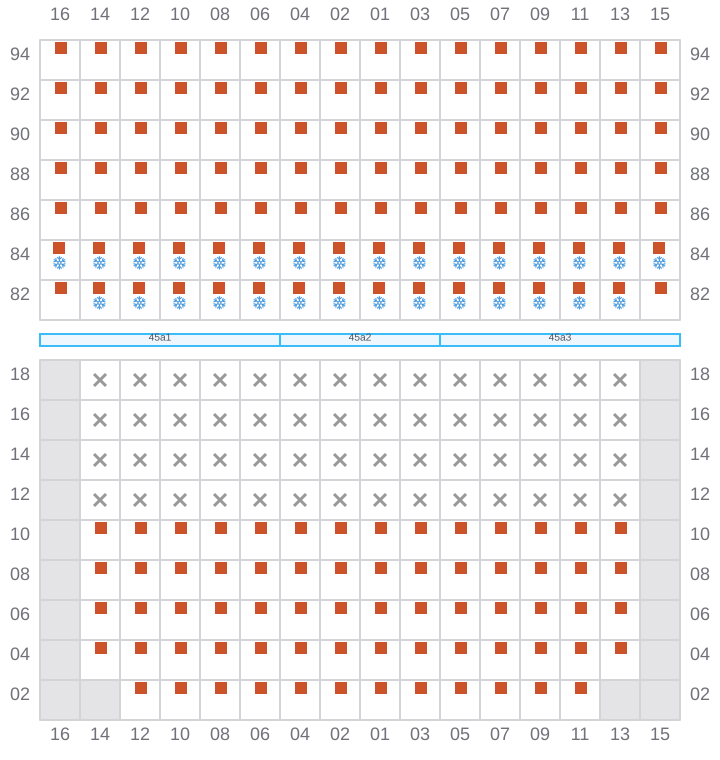

Bay 045 view and slots of ATHENS GLORY

047 (046)

←

Bay 047 view and slots of ATHENS GLORY

049

→

Bay 049 view and slots of ATHENS GLORY

051 (050)

←
^→ / _?

Bay 051 view and slots of ATHENS GLORY

053

→
^← / _?

Bay 053 view and slots of ATHENS GLORY

055 (054)

←
^? / _→

Bay 055 view and slots of ATHENS GLORY

057

^→ / _?

Bay 057 view and slots of ATHENS GLORY

059 (058)

←
^→ / _?

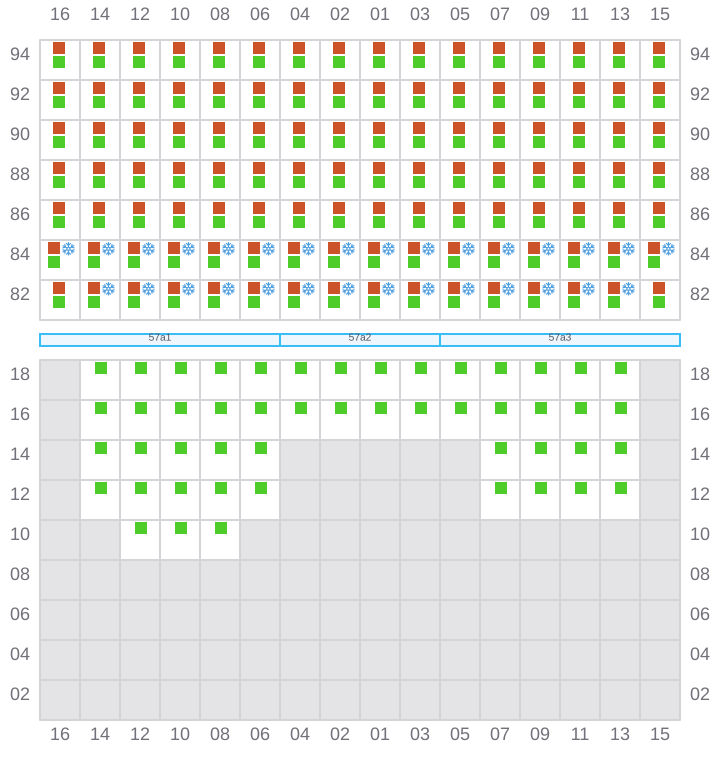

Bay 059 view and slots of ATHENS GLORY

061

^→ / _?
^← / _?

Bay 061 view and slots of ATHENS GLORY

063 (062)

←
^? / _→

Bay 063 view and slots of ATHENS GLORY

065

→

Bay 065 view and slots of ATHENS GLORY

067 (066)

←
^→ / _?

Bay 067 view and slots of ATHENS GLORY

069

Bay 069 view and slots of ATHENS GLORY

071 (070)

^← / _?
^← / _?

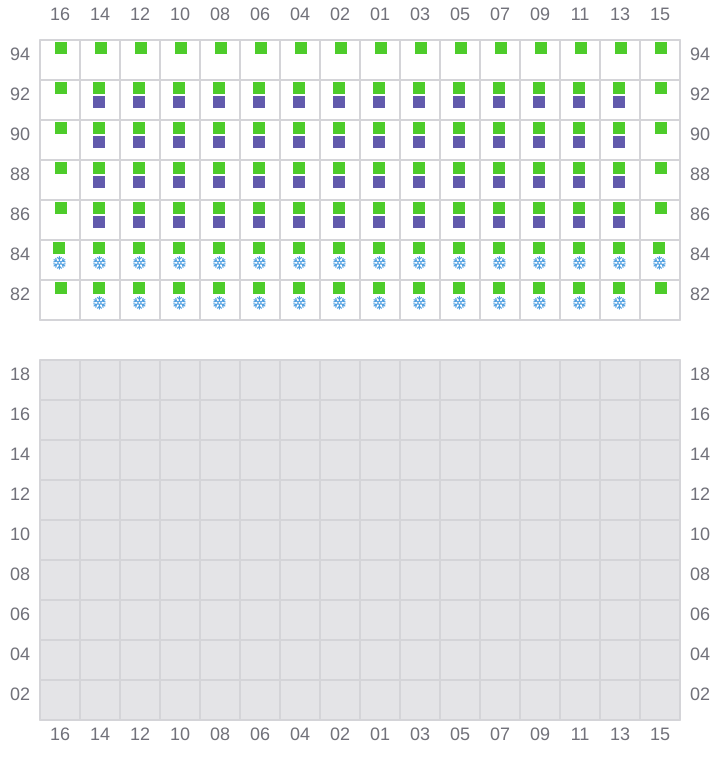

Bay 071 view and slots of ATHENS GLORY
