ATLANTIC DISCOVERER
9243590 | V7AO9 | 9243590 by ********* Last update: Sat Mar 16 2024
General Info
Ship Name:ATLANTIC DISCOVERER
IMO Code:9243590
Call Sign:V7AO9
Line Operator:9243590
Class Name for Sister Ships:81E
Year Built:2004
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:045
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,750
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

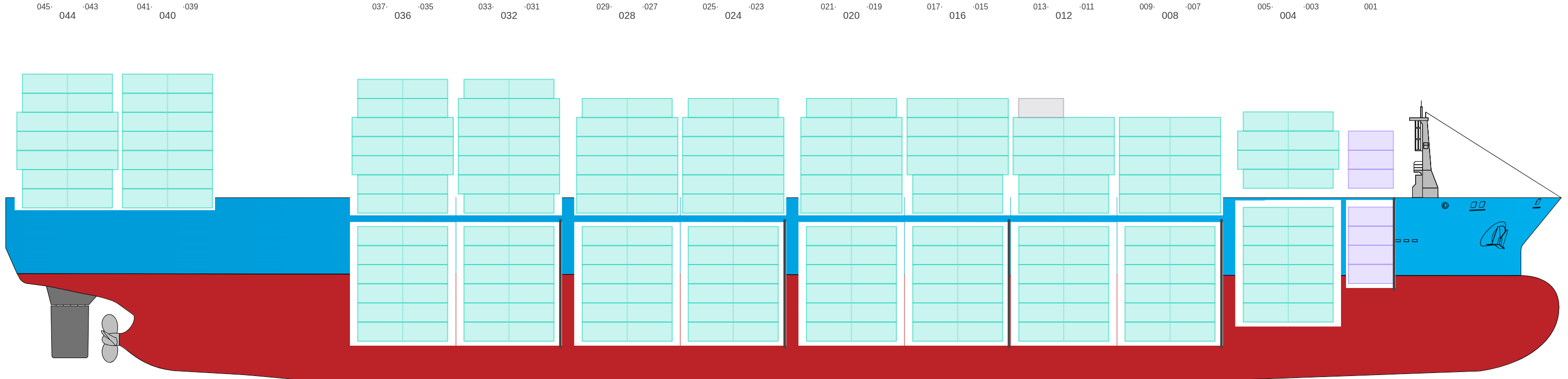

Side View
![Side view of ATLANTIC DISCOVERER](/vessel-images/0da3ef41-5f9c-4957-96e9-cf1fe788225b-sideView.png?v=1710610129569)

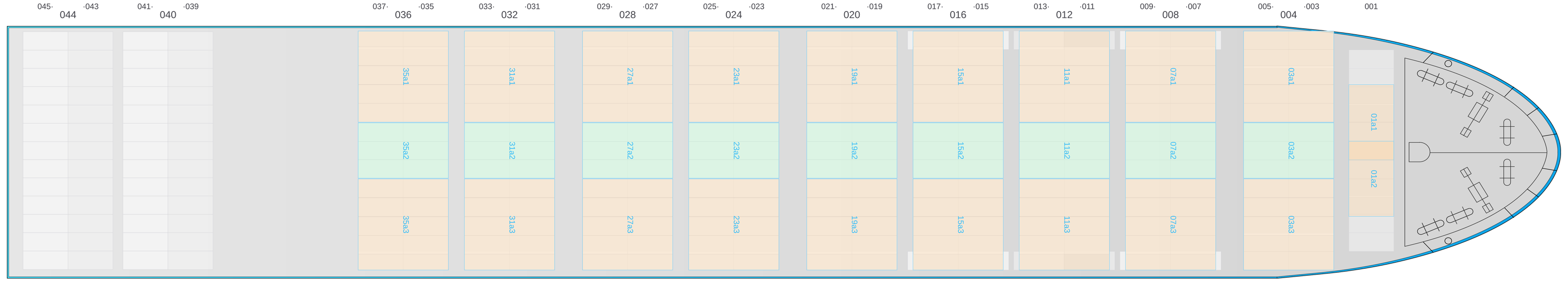

Hatch-Covers View
![Deck view of ATLANTIC DISCOVERER](/vessel-images/0da3ef41-5f9c-4957-96e9-cf1fe788225b-deckView.png?v=1710610129569)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

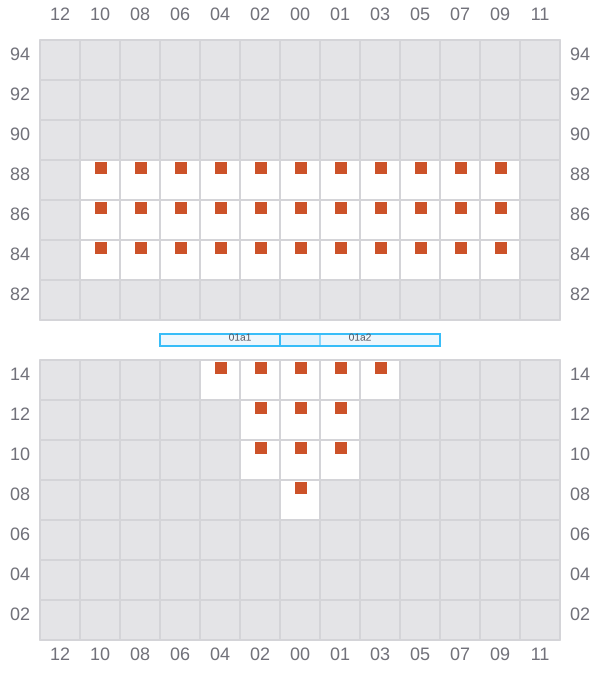

001
![Bay 001 view and slots of ATLANTIC DISCOVERER](/vessel-images/0da3ef41-5f9c-4957-96e9-cf1fe788225b-b001.png?v=1710610129569)

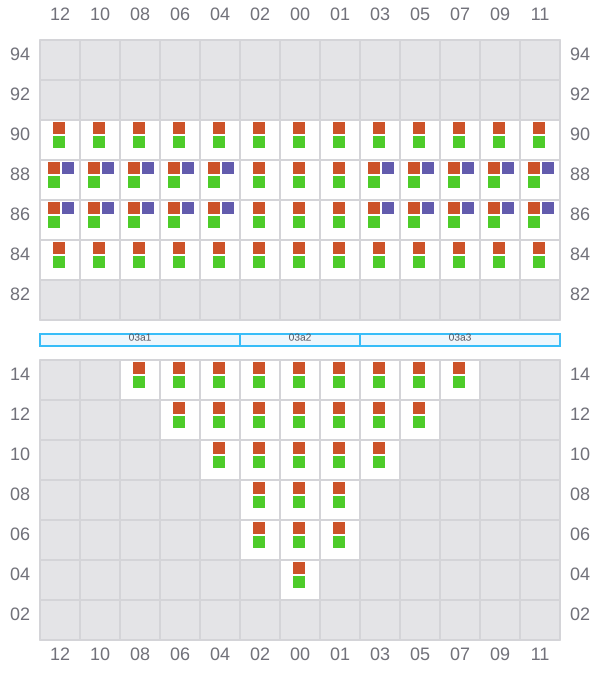

003 (004)
- →
![Bay 003 view and slots of ATLANTIC DISCOVERER](/vessel-images/0da3ef41-5f9c-4957-96e9-cf1fe788225b-b003.png?v=1710610129569)

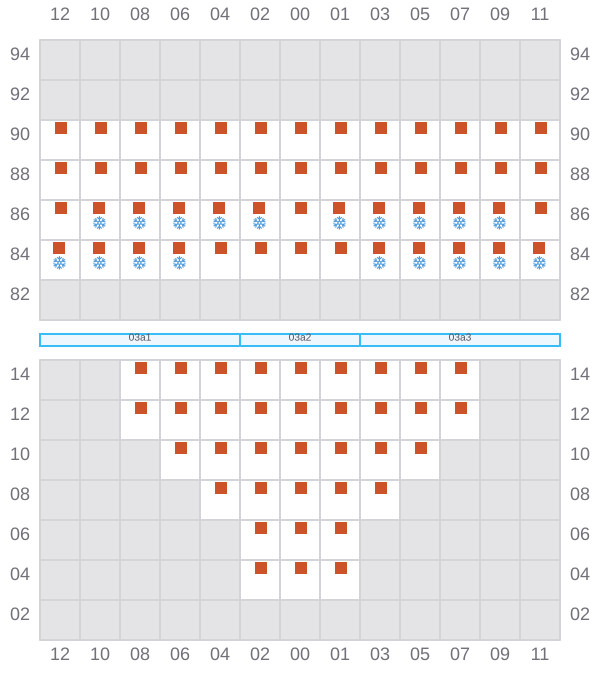

005
- ←
- → / ?
![Bay 005 view and slots of ATLANTIC DISCOVERER](/vessel-images/0da3ef41-5f9c-4957-96e9-cf1fe788225b-b005.png?v=1710610129569)

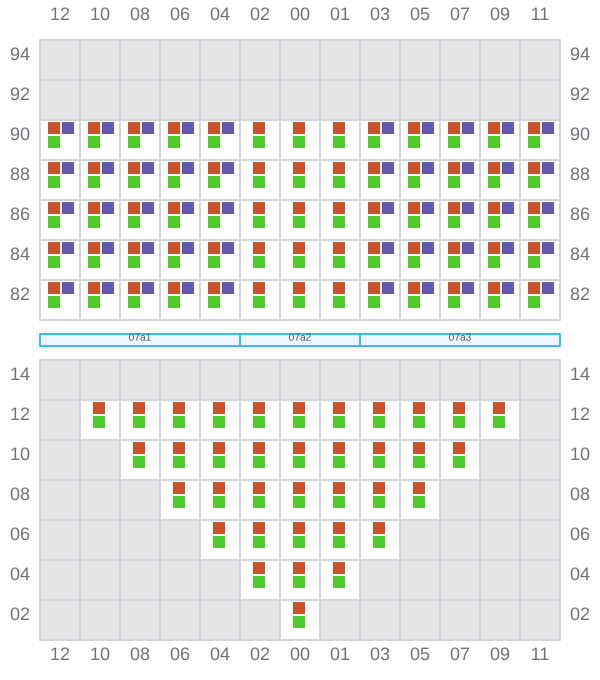

007 (008)
- →
![Bay 007 view and slots of ATLANTIC DISCOVERER](/vessel-images/0da3ef41-5f9c-4957-96e9-cf1fe788225b-b007.png?v=1710610129569)

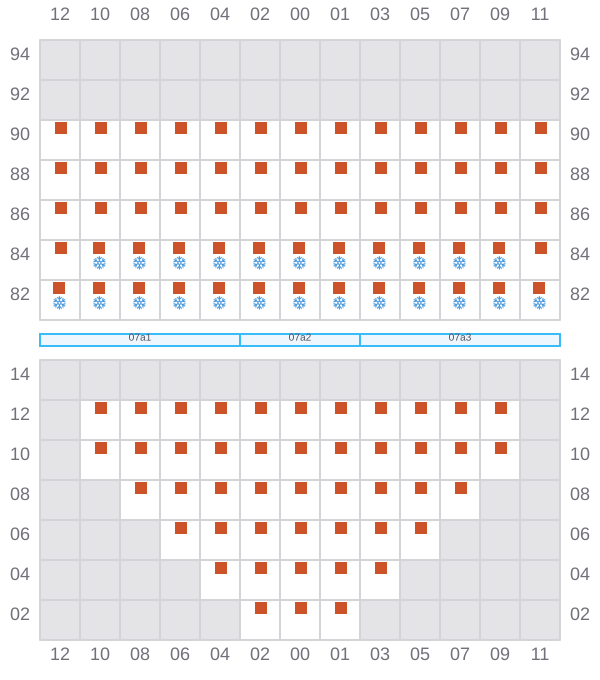

009
- ←
- → / ?
![Bay 009 view and slots of ATLANTIC DISCOVERER](/vessel-images/0da3ef41-5f9c-4957-96e9-cf1fe788225b-b009.png?v=1710610129569)

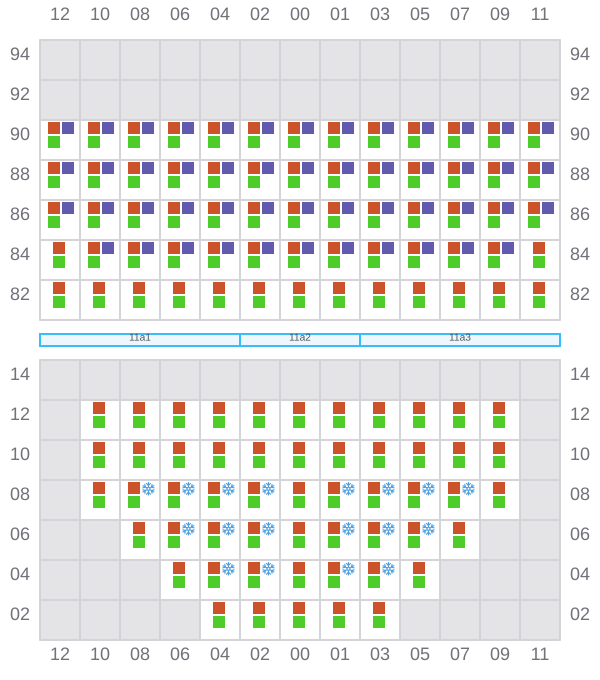

011 (012)
- →
- ? / ←
![Bay 011 view and slots of ATLANTIC DISCOVERER](/vessel-images/0da3ef41-5f9c-4957-96e9-cf1fe788225b-b011.png?v=1710610129569)

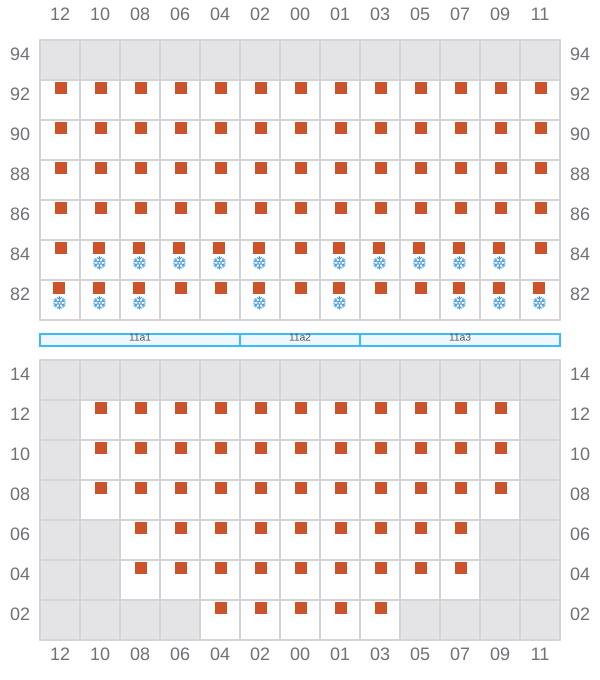

013
- ←
- → / ?
![Bay 013 view and slots of ATLANTIC DISCOVERER](/vessel-images/0da3ef41-5f9c-4957-96e9-cf1fe788225b-b013.png?v=1710610129569)

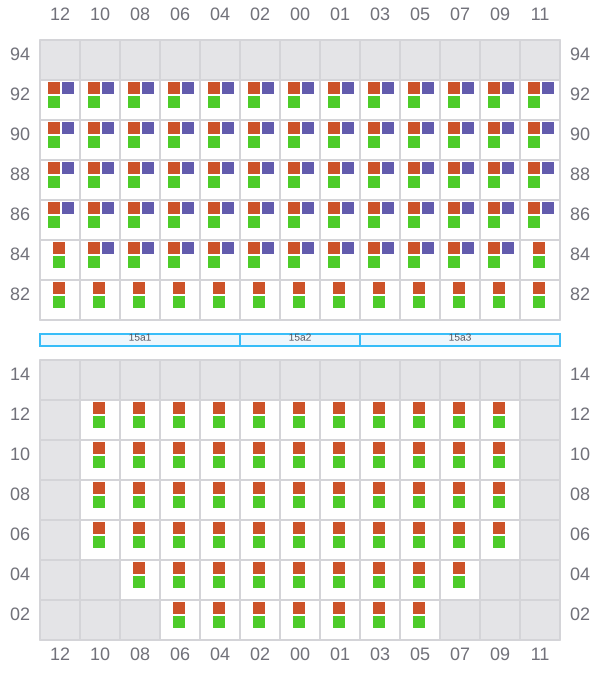

015 (016)
- →
![Bay 015 view and slots of ATLANTIC DISCOVERER](/vessel-images/0da3ef41-5f9c-4957-96e9-cf1fe788225b-b015.png?v=1710610129569)

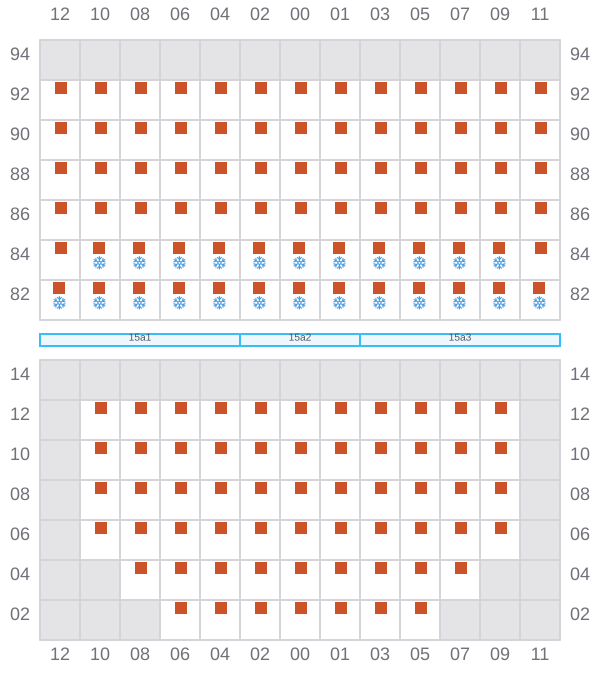

017
- ←
- → / ?
![Bay 017 view and slots of ATLANTIC DISCOVERER](/vessel-images/0da3ef41-5f9c-4957-96e9-cf1fe788225b-b017.png?v=1710610129569)

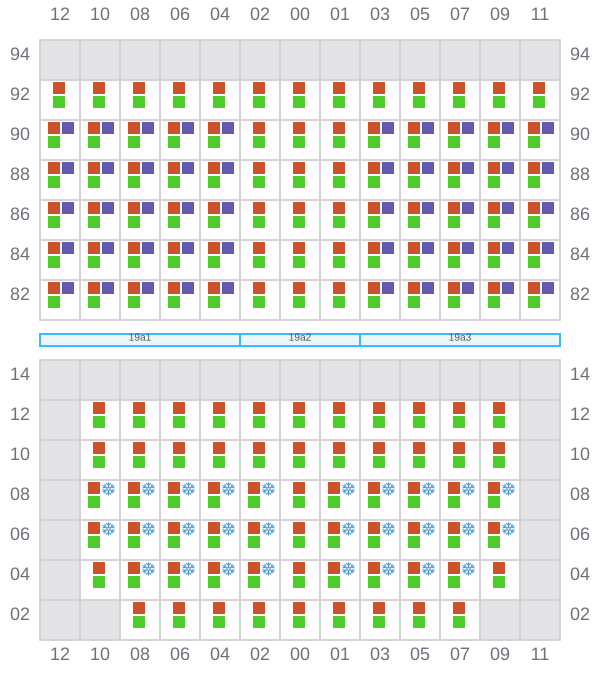

019 (020)
- →
- ? / ←
![Bay 019 view and slots of ATLANTIC DISCOVERER](/vessel-images/0da3ef41-5f9c-4957-96e9-cf1fe788225b-b019.png?v=1710610129569)

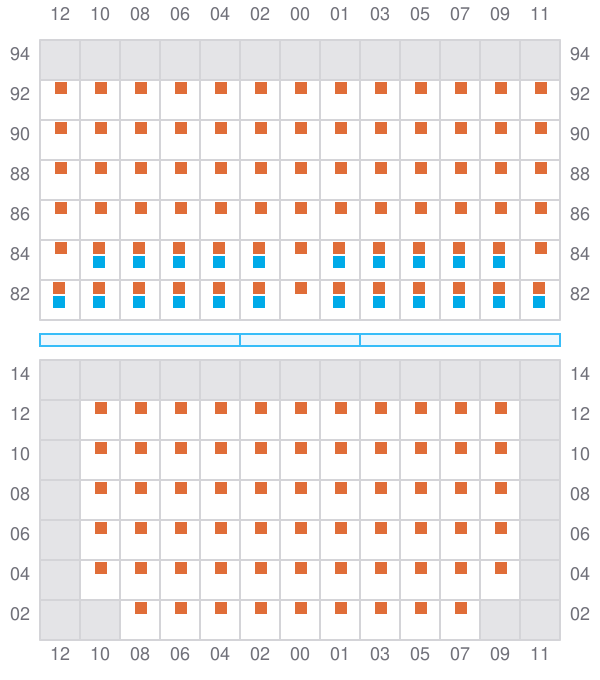

021
- ←
- → / ?
![Bay 021 view and slots of ATLANTIC DISCOVERER](/vessel-images/0da3ef41-5f9c-4957-96e9-cf1fe788225b-b021.png?v=1710610129569)

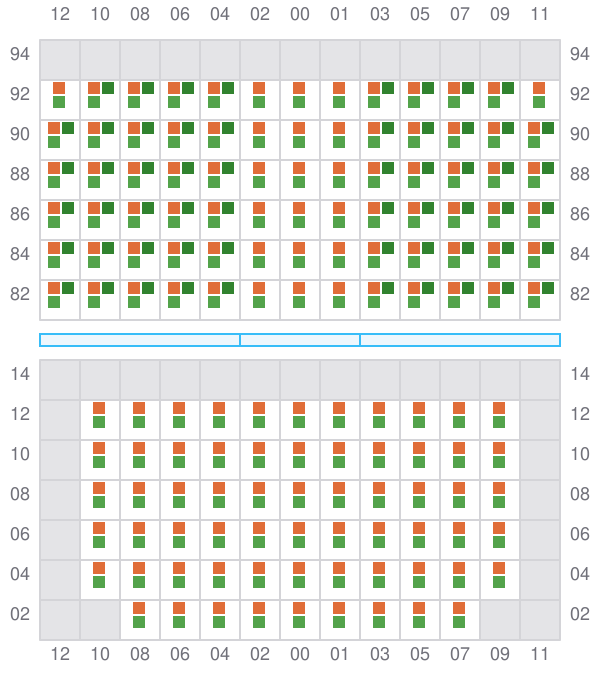

023 (024)
- →
![Bay 023 view and slots of ATLANTIC DISCOVERER](/vessel-images/0da3ef41-5f9c-4957-96e9-cf1fe788225b-b023.png?v=1710610129569)

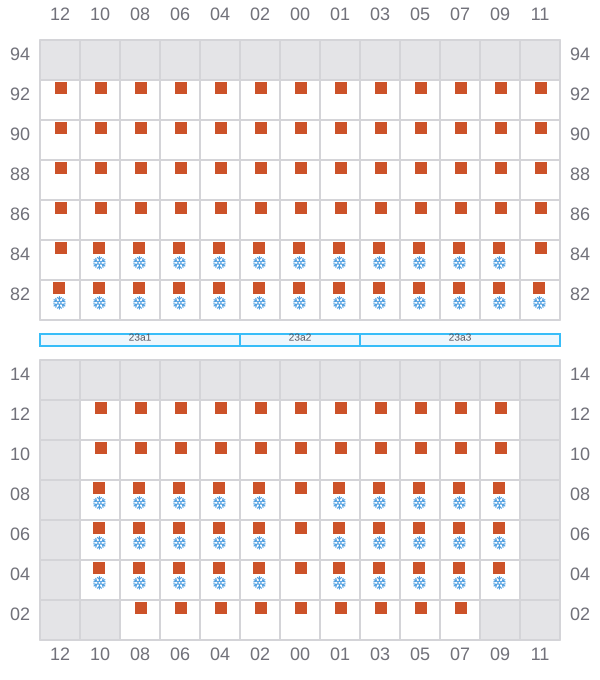

025
- ←
- →
![Bay 025 view and slots of ATLANTIC DISCOVERER](/vessel-images/0da3ef41-5f9c-4957-96e9-cf1fe788225b-b025.png?v=1710610129569)

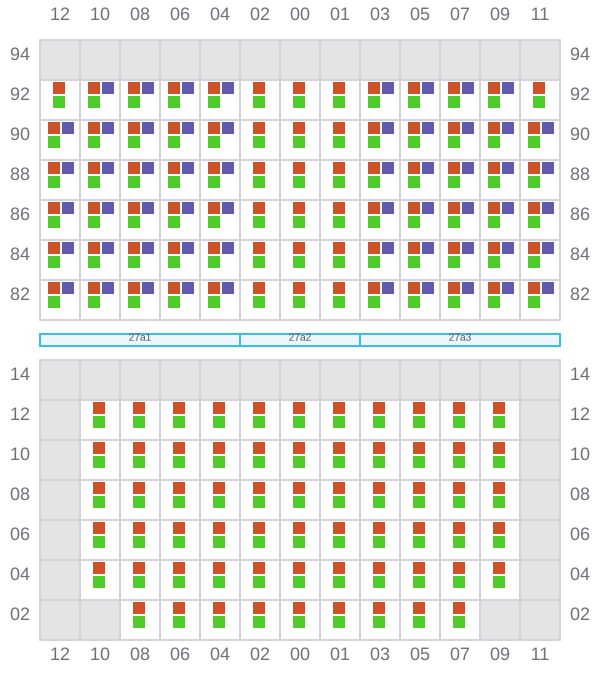

027 (028)
- →
![Bay 027 view and slots of ATLANTIC DISCOVERER](/vessel-images/0da3ef41-5f9c-4957-96e9-cf1fe788225b-b027.png?v=1710610129569)

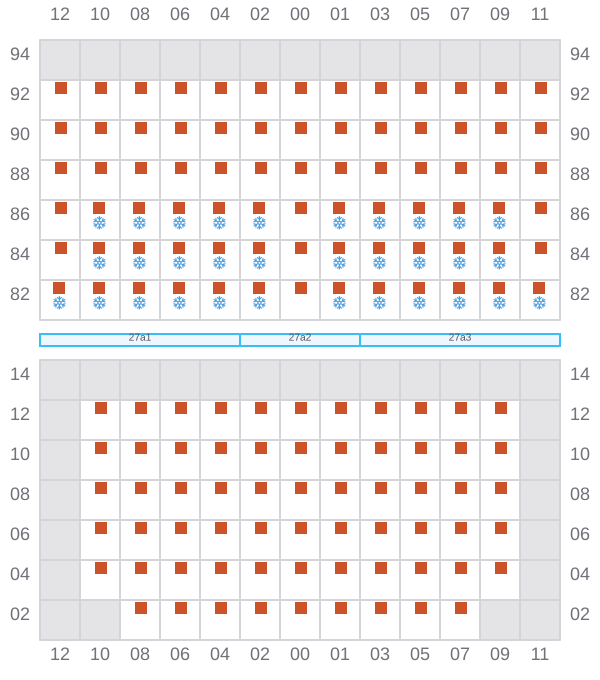

029
- ←
- → / ?
![Bay 029 view and slots of ATLANTIC DISCOVERER](/vessel-images/0da3ef41-5f9c-4957-96e9-cf1fe788225b-b029.png?v=1710610129569)

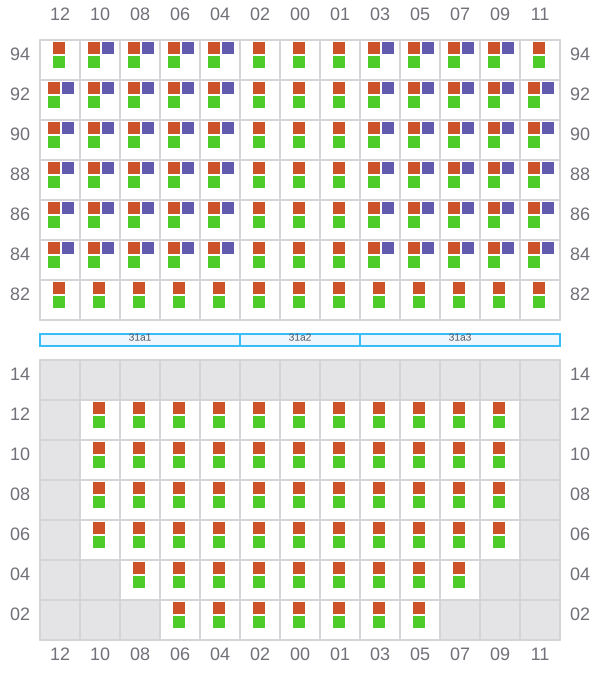

031 (032)
- →
![Bay 031 view and slots of ATLANTIC DISCOVERER](/vessel-images/0da3ef41-5f9c-4957-96e9-cf1fe788225b-b031.png?v=1710610129569)

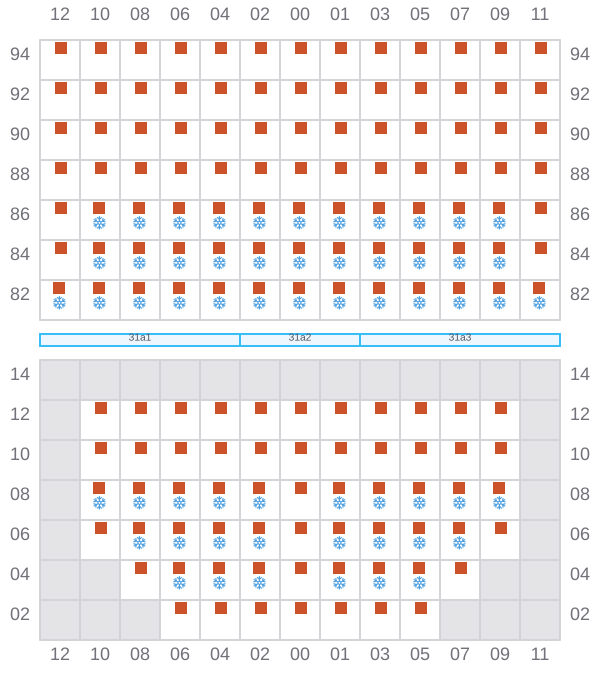

033
- ←
- →
![Bay 033 view and slots of ATLANTIC DISCOVERER](/vessel-images/0da3ef41-5f9c-4957-96e9-cf1fe788225b-b033.png?v=1710610129569)

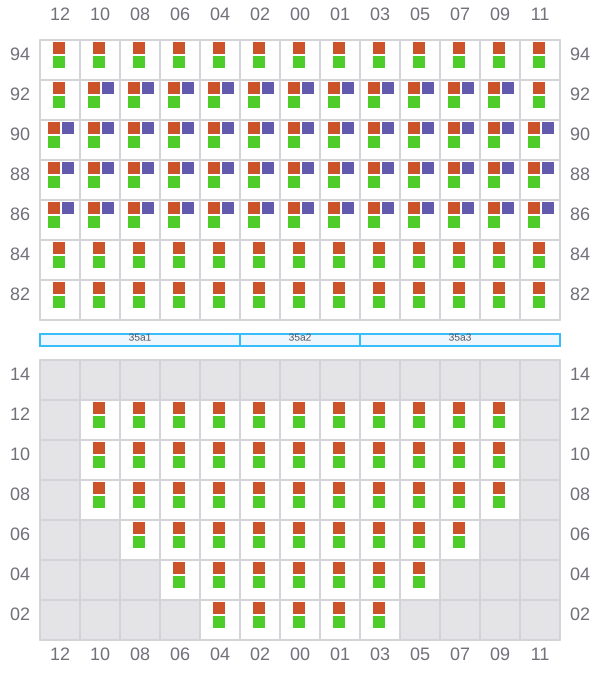

035 (036)
- →
![Bay 035 view and slots of ATLANTIC DISCOVERER](/vessel-images/0da3ef41-5f9c-4957-96e9-cf1fe788225b-b035.png?v=1710610129569)

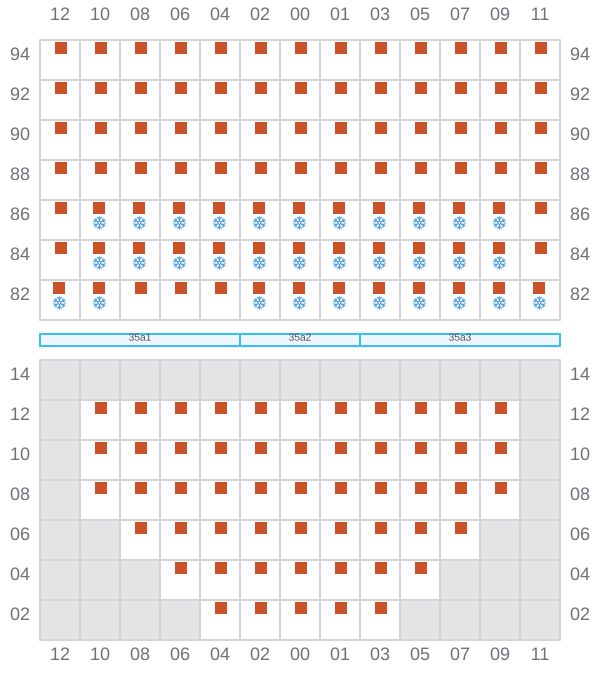

037
- ←
- → / ?
![Bay 037 view and slots of ATLANTIC DISCOVERER](/vessel-images/0da3ef41-5f9c-4957-96e9-cf1fe788225b-b037.png?v=1710610129569)

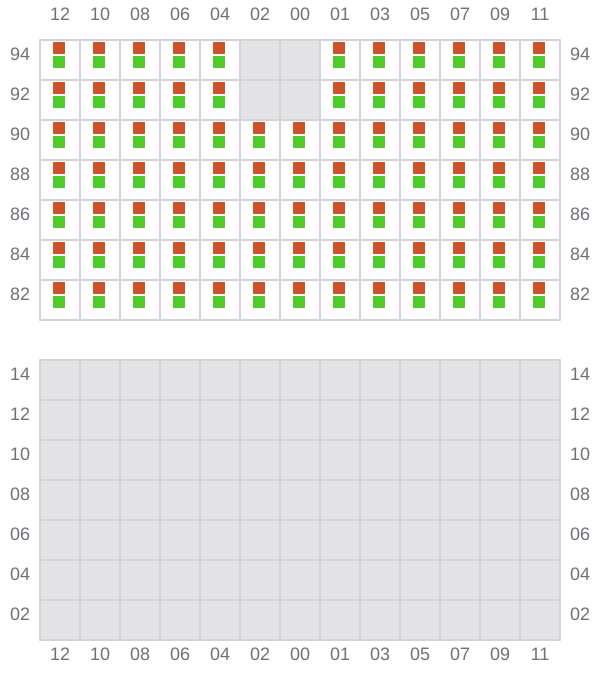

039 (040)
- → / ?
![Bay 039 view and slots of ATLANTIC DISCOVERER](/vessel-images/0da3ef41-5f9c-4957-96e9-cf1fe788225b-b039.png?v=1710610129569)

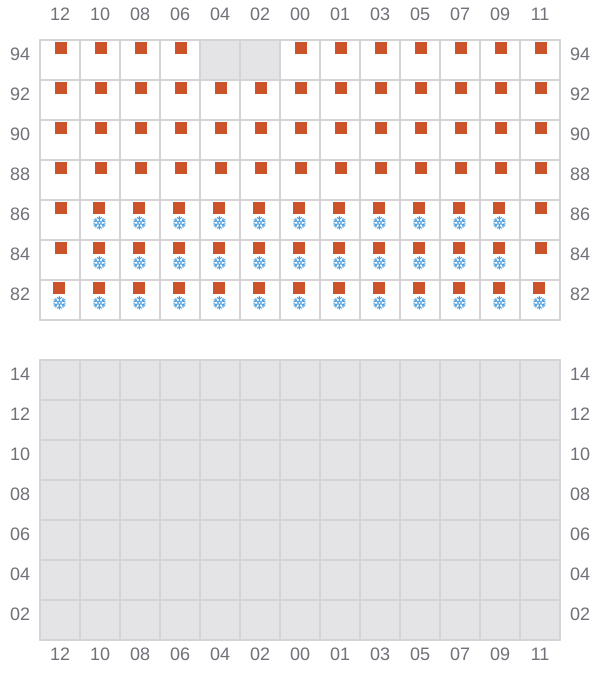

041
- ← / ?
- → / ?
![Bay 041 view and slots of ATLANTIC DISCOVERER](/vessel-images/0da3ef41-5f9c-4957-96e9-cf1fe788225b-b041.png?v=1710610129569)

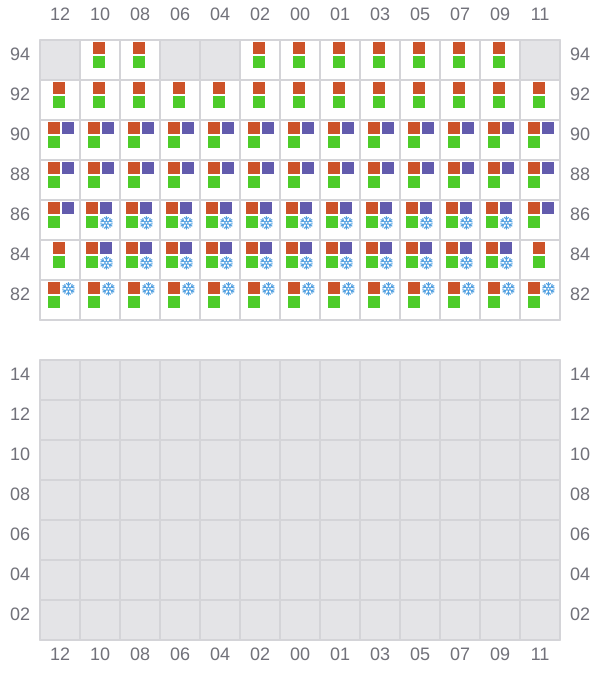

043 (044)
- → / ?
- ← / ?
![Bay 043 view and slots of ATLANTIC DISCOVERER](/vessel-images/0da3ef41-5f9c-4957-96e9-cf1fe788225b-b043.png?v=1710610129569)

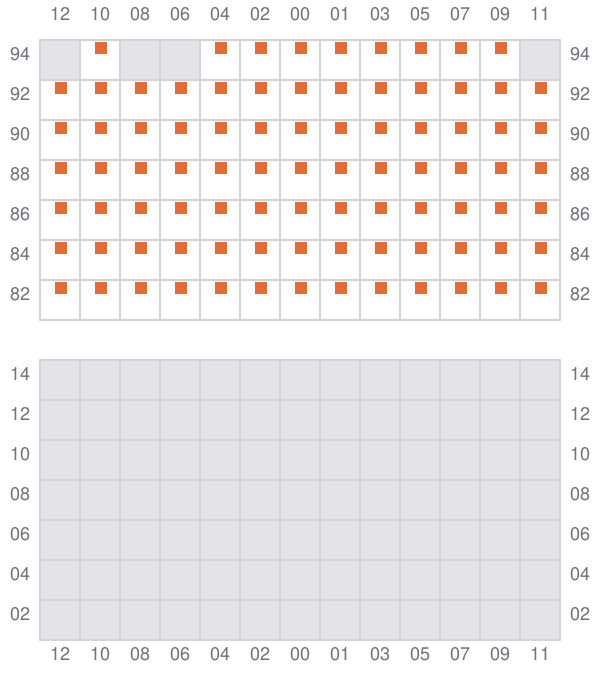

045
- ← / ?
![Bay 045 view and slots of ATLANTIC DISCOVERER](/vessel-images/0da3ef41-5f9c-4957-96e9-cf1fe788225b-b045.png?v=1710610129569)
