ATLANTIC EAST
9433444 | 9V8006 | 9433444 by ********* Last update: Mon Mar 25 2024
General Info
Ship Name:ATLANTIC EAST
IMO Code:9433444
Call Sign:9V8006
Line Operator:9433444
Class Name for Sister Ships:69B
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:029
Max ISO Row:08
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:686
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

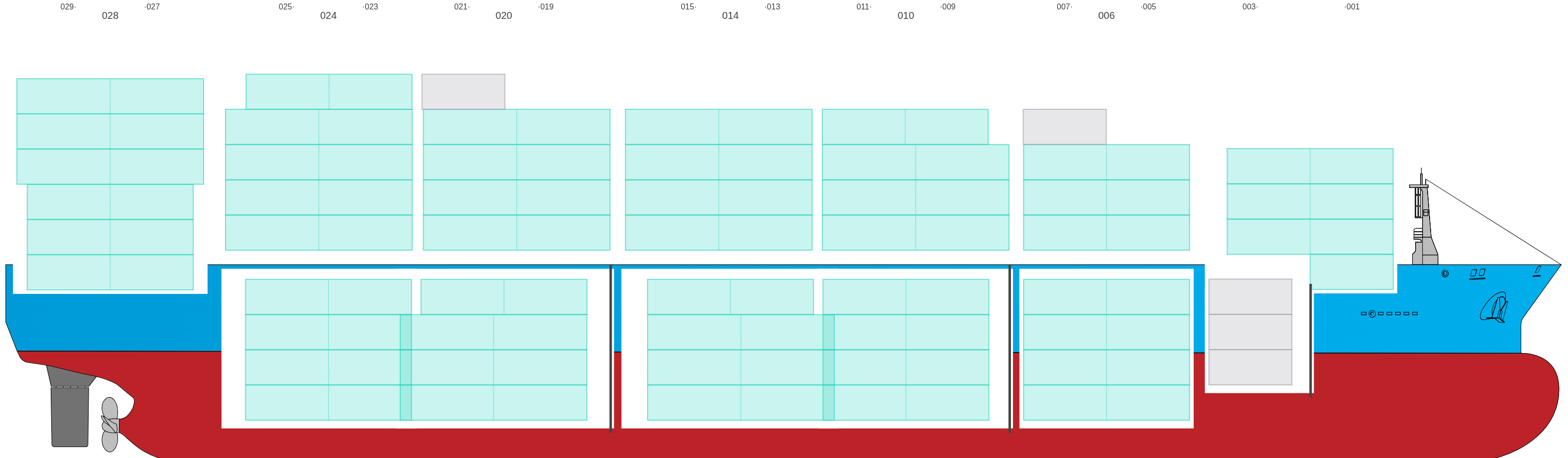

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

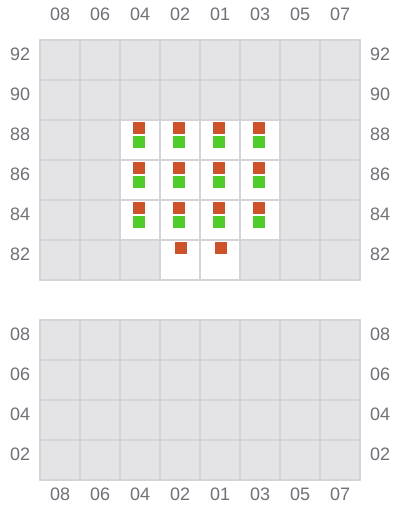

001 (002)
- → / ?

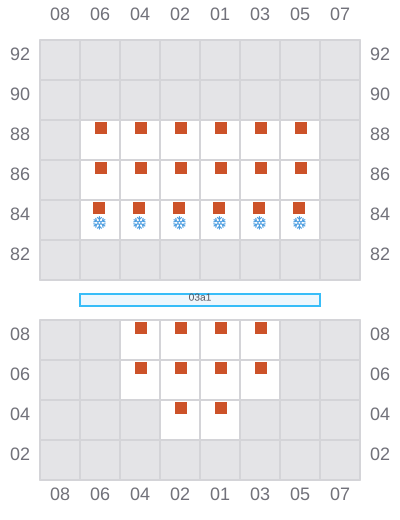

003
- ←
- → / ?

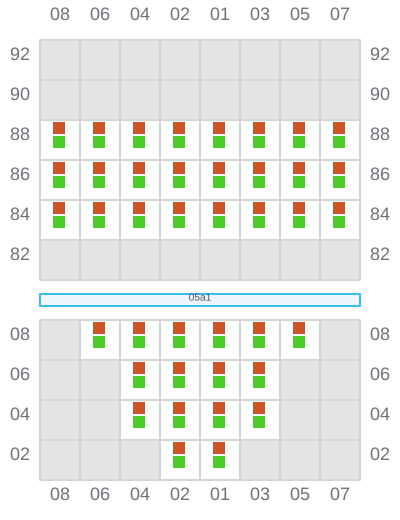

005 (006)
- →

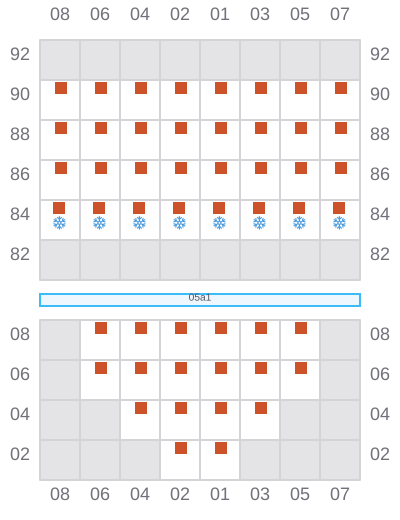

007
- ←
- → / ?

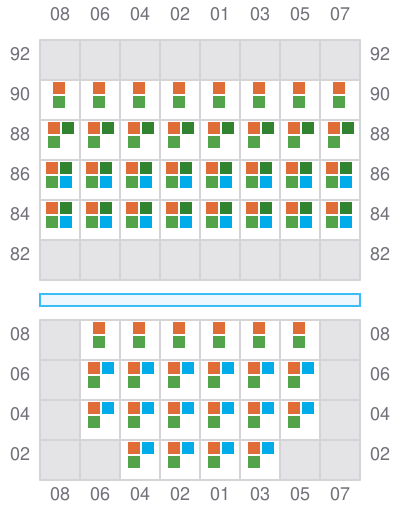

009 (010)
- →
- ←

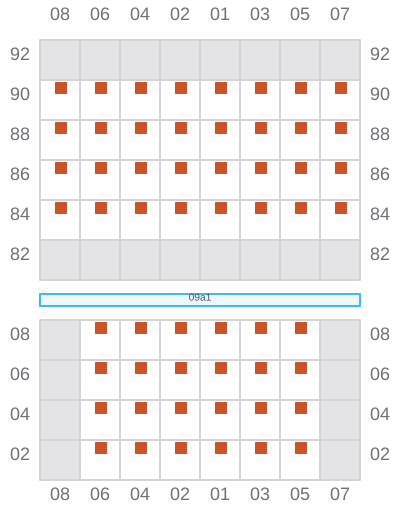

011
- ←

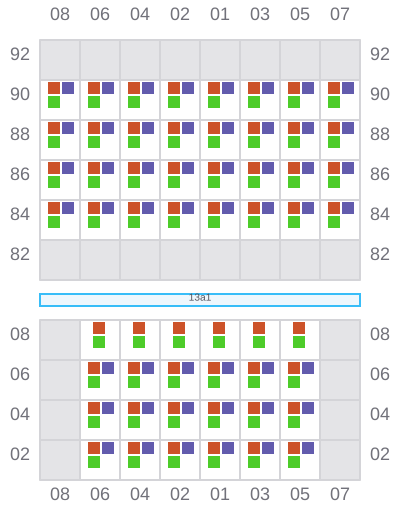

013 (014)
- →

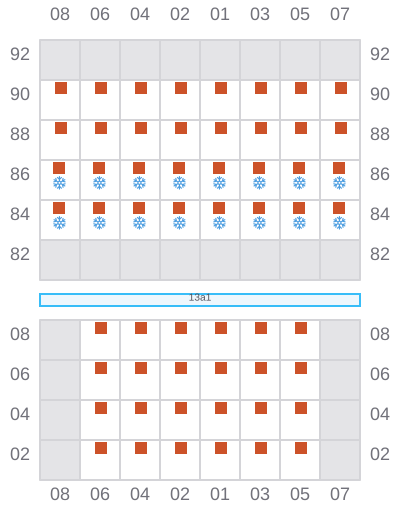

015
- ←
- → / ?

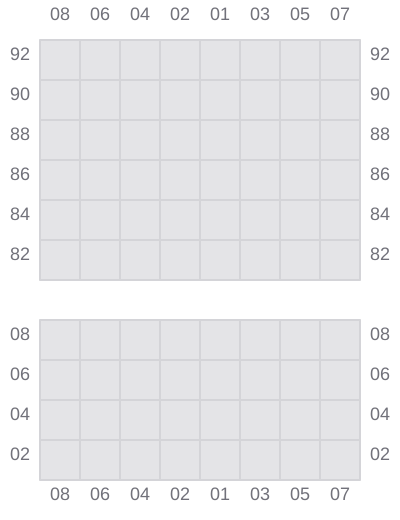

017
019 (020)
- →
- ←

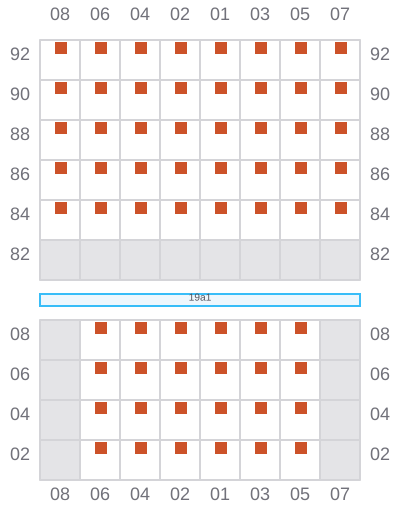

021
- ←
023 (024)
- →

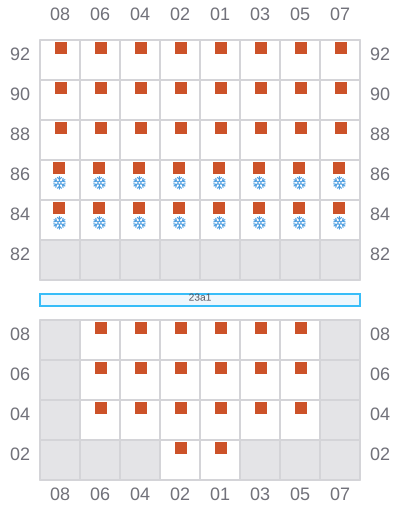

025
- ←
- → / ?

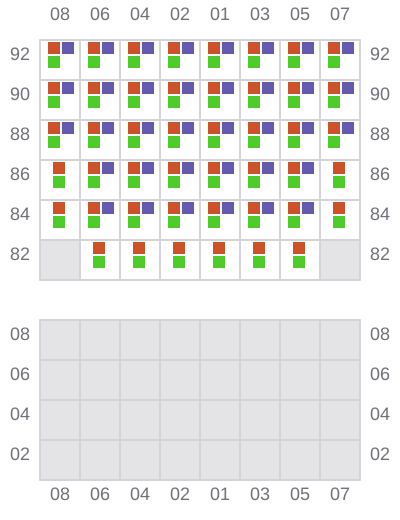

027 (028)
- → / ?

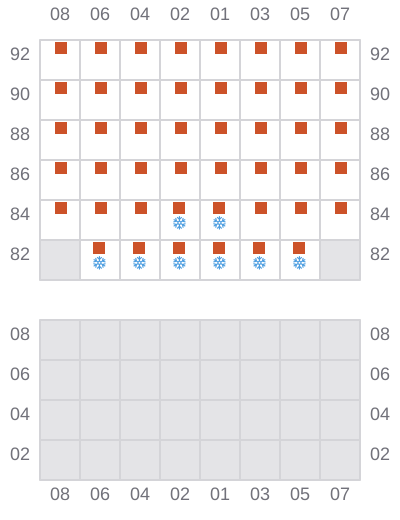

029
- ← / ?
- → / ?
