ATLANTIC NAVIGATOR II
9231145 | V7A5878 | AARC by ************************** Last update: Thu Jun 01 2023
General Info
Ship Name:ATLANTIC NAVIGATOR II
IMO Code:9231145
Call Sign:V7A5878
Line Operator:AARC
Class Name for Sister Ships:AGR
Year Built:2003
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:039
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,858
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

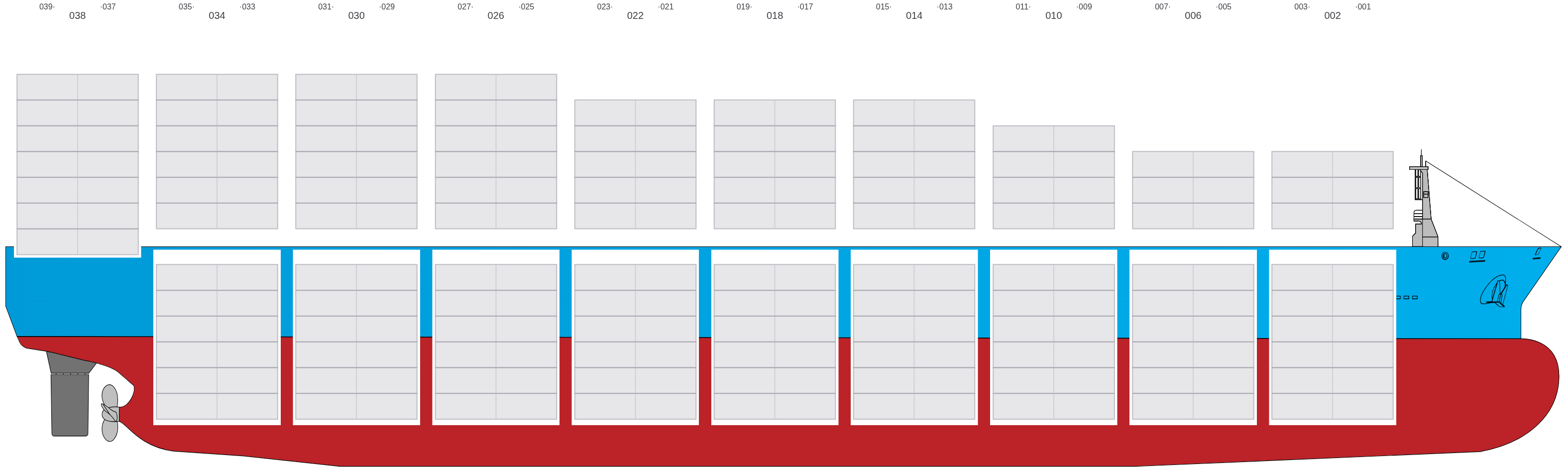

Side View
![Side view of ATLANTIC NAVIGATOR II](/vessel-images/79d21eed-64ca-4328-9586-f593fea97bed-sideView.png?v=1685652079834)

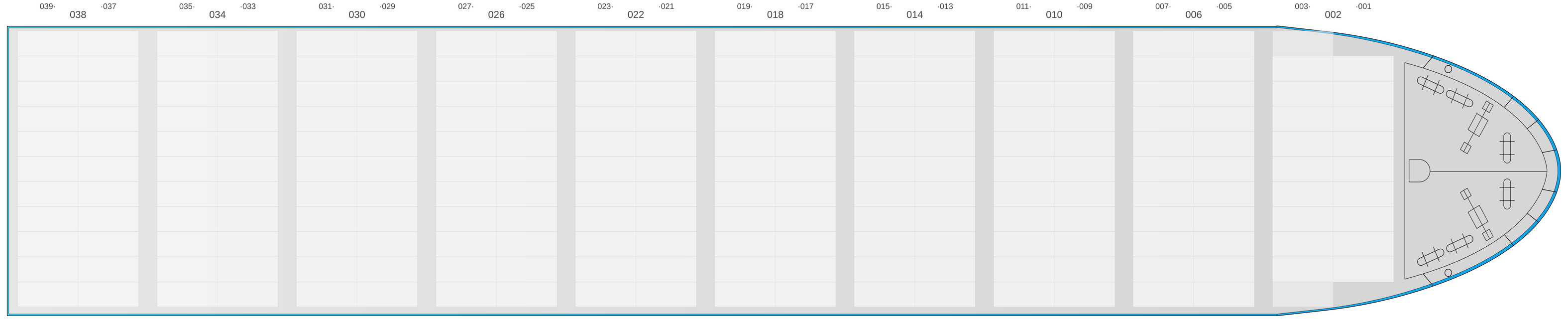

Hatch-Covers View
![Deck view of ATLANTIC NAVIGATOR II](/vessel-images/79d21eed-64ca-4328-9586-f593fea97bed-deckView.png?v=1685652079834)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

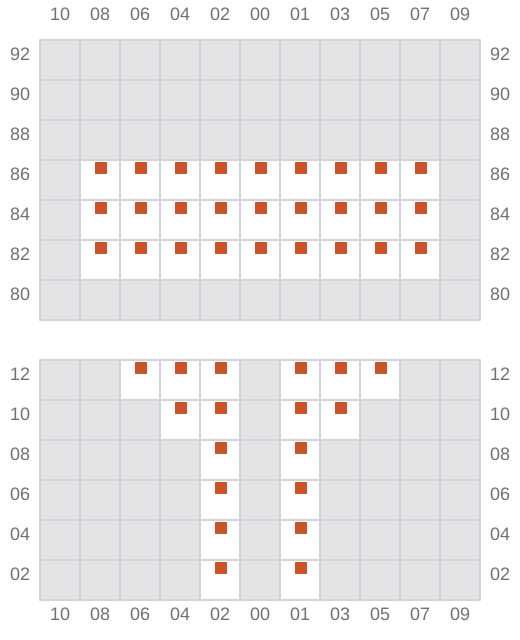

001
- →
![Bay 001 view and slots of ATLANTIC NAVIGATOR II](/vessel-images/79d21eed-64ca-4328-9586-f593fea97bed-b001.png?v=1685652079834)

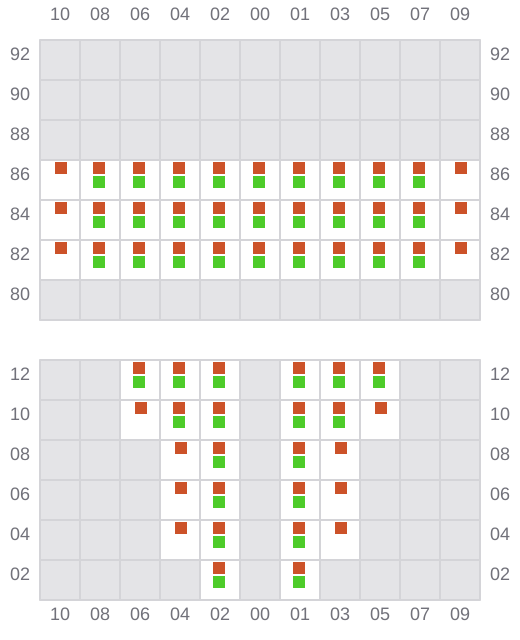

003 (002)
- ←
![Bay 003 view and slots of ATLANTIC NAVIGATOR II](/vessel-images/79d21eed-64ca-4328-9586-f593fea97bed-b003.png?v=1685652079834)

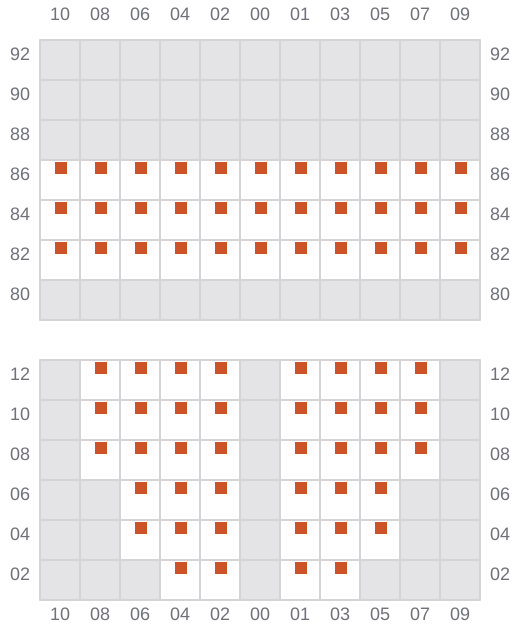

005
- →
![Bay 005 view and slots of ATLANTIC NAVIGATOR II](/vessel-images/79d21eed-64ca-4328-9586-f593fea97bed-b005.png?v=1685652079834)

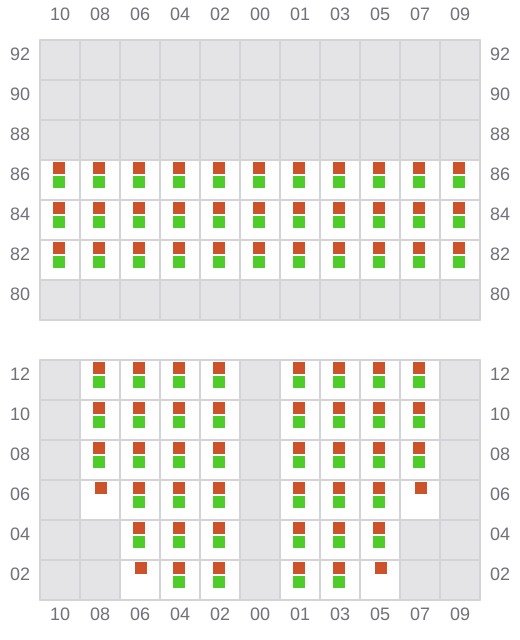

007 (006)
- ←
![Bay 007 view and slots of ATLANTIC NAVIGATOR II](/vessel-images/79d21eed-64ca-4328-9586-f593fea97bed-b007.png?v=1685652079834)

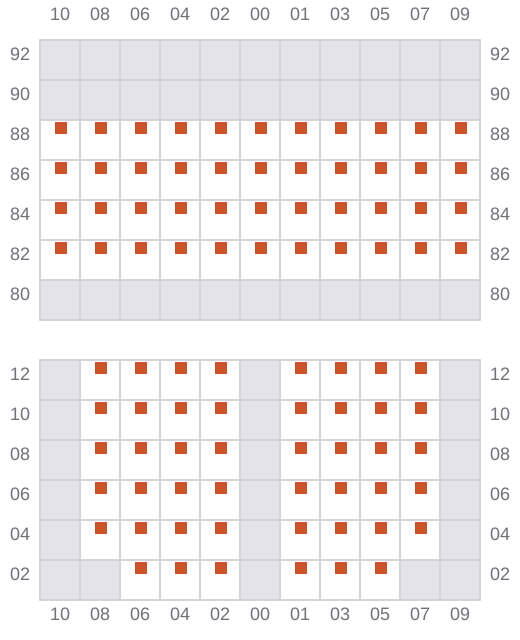

009
- →
![Bay 009 view and slots of ATLANTIC NAVIGATOR II](/vessel-images/79d21eed-64ca-4328-9586-f593fea97bed-b009.png?v=1685652079834)

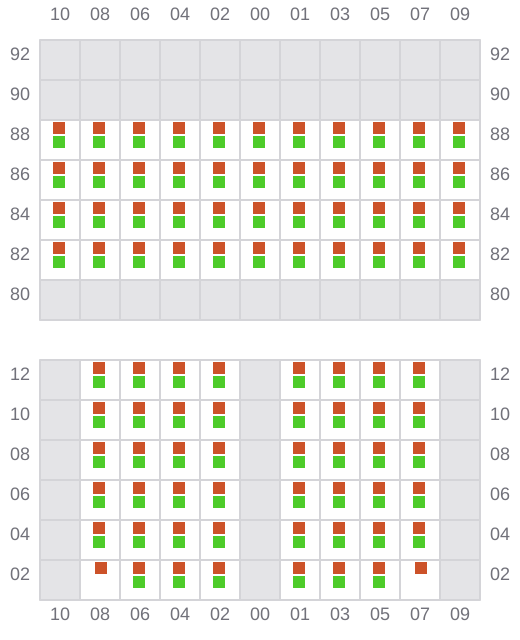

011 (010)
- ←
![Bay 011 view and slots of ATLANTIC NAVIGATOR II](/vessel-images/79d21eed-64ca-4328-9586-f593fea97bed-b011.png?v=1685652079834)
013
- →
![Bay 013 view and slots of ATLANTIC NAVIGATOR II](/vessel-images/79d21eed-64ca-4328-9586-f593fea97bed-b013.png?v=1685652079834)

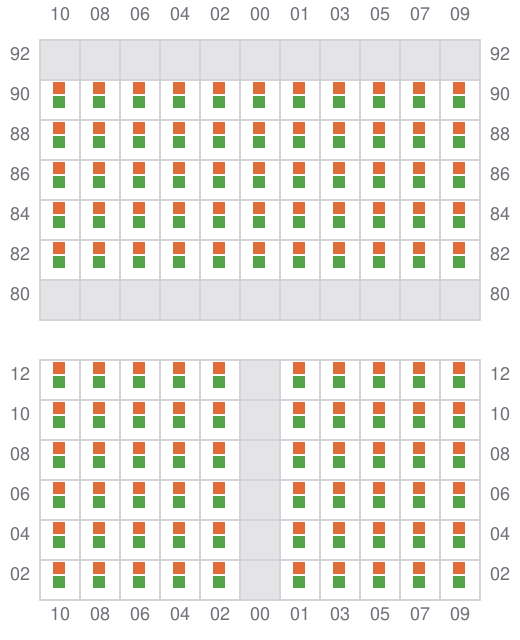

015 (014)
- ←
![Bay 015 view and slots of ATLANTIC NAVIGATOR II](/vessel-images/79d21eed-64ca-4328-9586-f593fea97bed-b015.png?v=1685652079834)
017
- →
![Bay 017 view and slots of ATLANTIC NAVIGATOR II](/vessel-images/79d21eed-64ca-4328-9586-f593fea97bed-b017.png?v=1685652079834)
019 (018)
- ←
![Bay 019 view and slots of ATLANTIC NAVIGATOR II](/vessel-images/79d21eed-64ca-4328-9586-f593fea97bed-b019.png?v=1685652079834)
021
- →
![Bay 021 view and slots of ATLANTIC NAVIGATOR II](/vessel-images/79d21eed-64ca-4328-9586-f593fea97bed-b021.png?v=1685652079834)

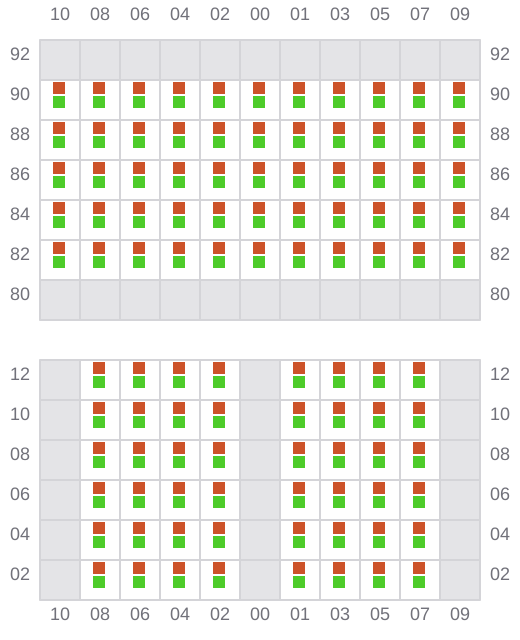

023 (022)
- ←
![Bay 023 view and slots of ATLANTIC NAVIGATOR II](/vessel-images/79d21eed-64ca-4328-9586-f593fea97bed-b023.png?v=1685652079834)
025
- →
![Bay 025 view and slots of ATLANTIC NAVIGATOR II](/vessel-images/79d21eed-64ca-4328-9586-f593fea97bed-b025.png?v=1685652079834)

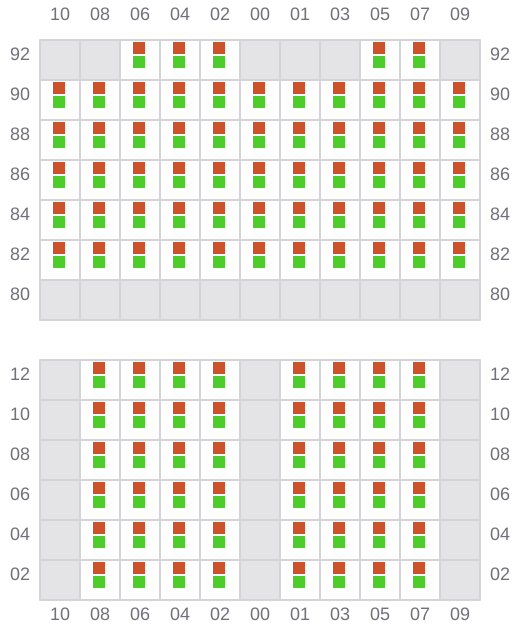

027 (026)
- ←
![Bay 027 view and slots of ATLANTIC NAVIGATOR II](/vessel-images/79d21eed-64ca-4328-9586-f593fea97bed-b027.png?v=1685652079834)

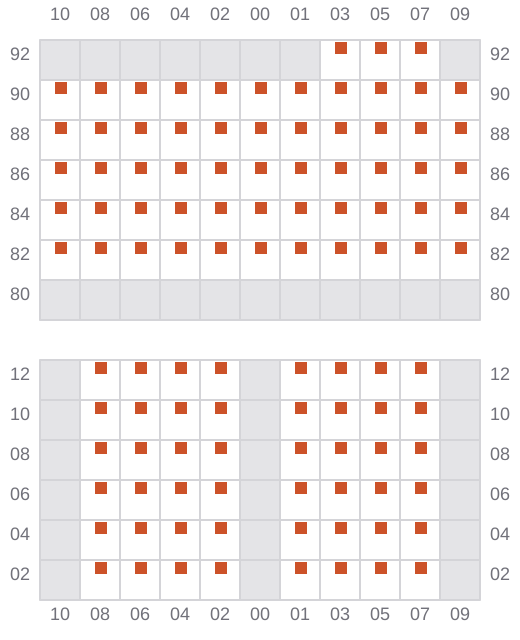

029
- →
![Bay 029 view and slots of ATLANTIC NAVIGATOR II](/vessel-images/79d21eed-64ca-4328-9586-f593fea97bed-b029.png?v=1685652079834)

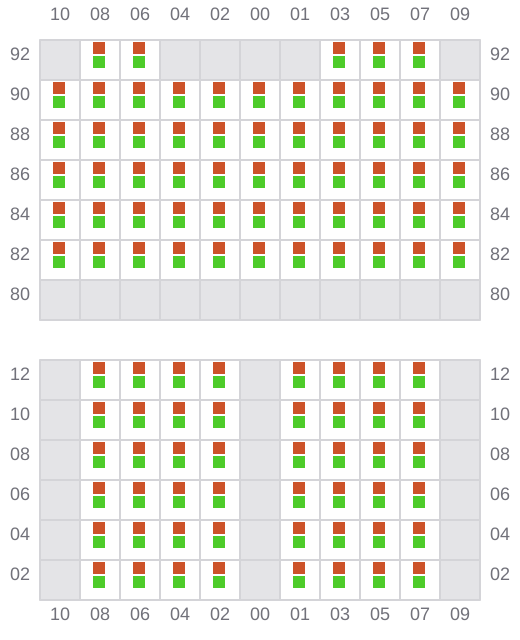

031 (030)
- ←
![Bay 031 view and slots of ATLANTIC NAVIGATOR II](/vessel-images/79d21eed-64ca-4328-9586-f593fea97bed-b031.png?v=1685652079834)

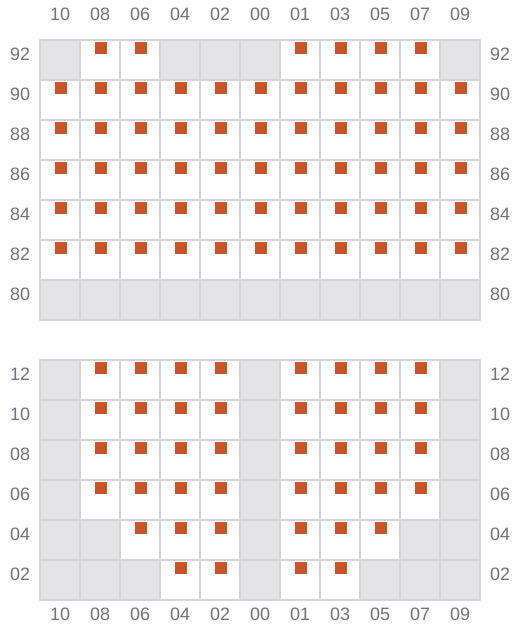

033
- →
![Bay 033 view and slots of ATLANTIC NAVIGATOR II](/vessel-images/79d21eed-64ca-4328-9586-f593fea97bed-b033.png?v=1685652079834)

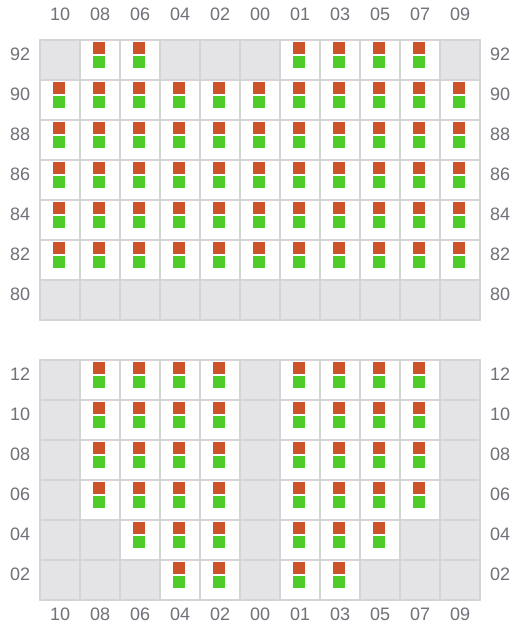

035 (034)
- ←
![Bay 035 view and slots of ATLANTIC NAVIGATOR II](/vessel-images/79d21eed-64ca-4328-9586-f593fea97bed-b035.png?v=1685652079834)

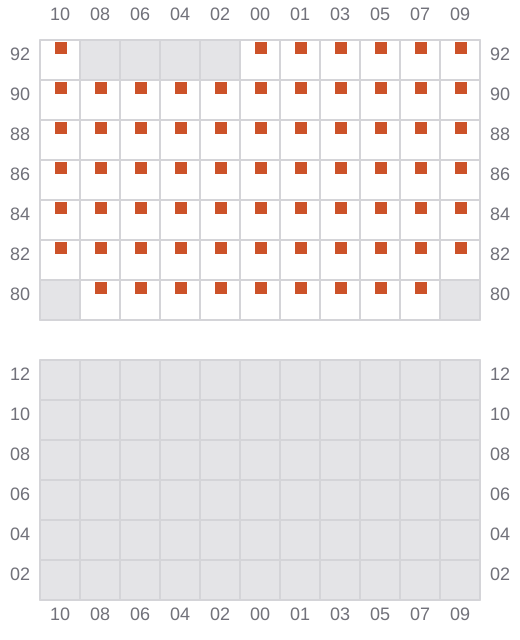

037
- → / ?
![Bay 037 view and slots of ATLANTIC NAVIGATOR II](/vessel-images/79d21eed-64ca-4328-9586-f593fea97bed-b037.png?v=1685652079834)

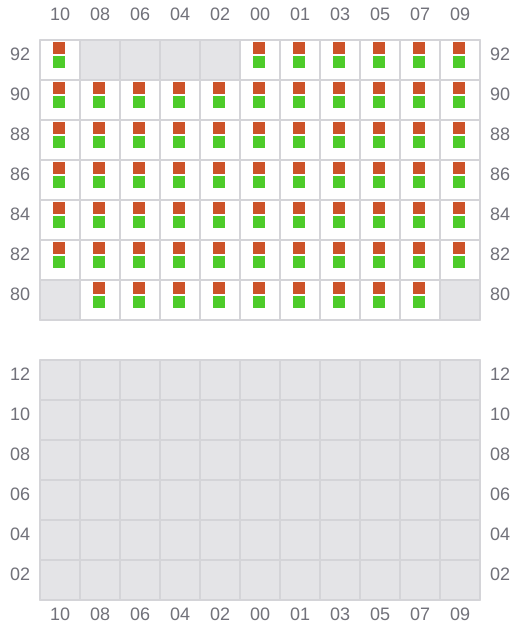

039 (038)
- ← / ?
![Bay 039 view and slots of ATLANTIC NAVIGATOR II](/vessel-images/79d21eed-64ca-4328-9586-f593fea97bed-b039.png?v=1685652079834)
