ATLANTIC SEA
9670597 | 9HA5295 | ACL by ************************** Last update: Wed May 31 2023

General Info

Ship Name:ATLANTIC SEA
IMO Code:9670597
Call Sign:9HA5295
Line Operator:ACL
Class Name for Sister Ships:ATE
Year Built:2016
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:065
Max ISO Row:24
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,916

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

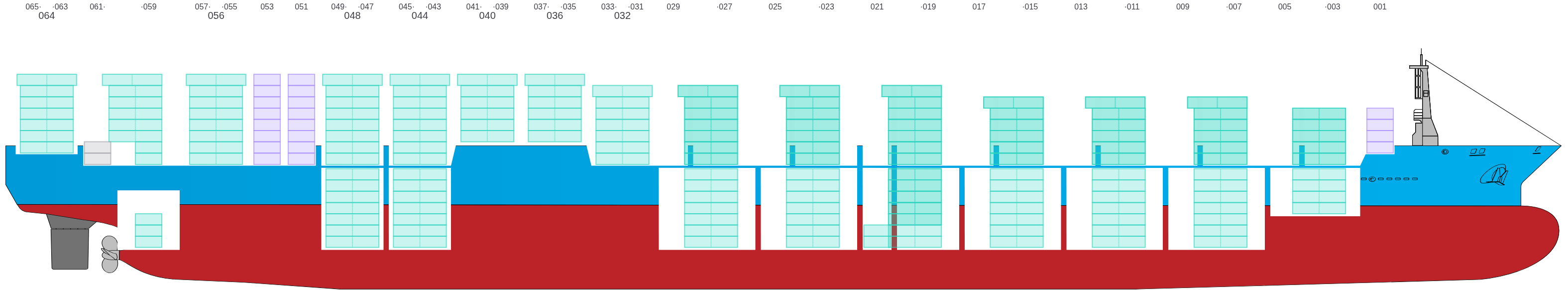

Side View

Side view of ATLANTIC SEA

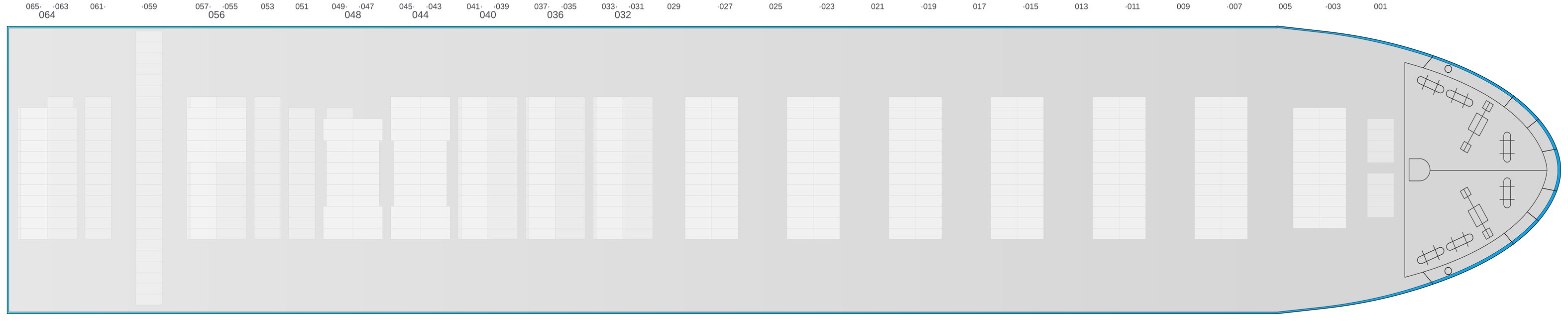

Hatch-Covers View

Deck view of ATLANTIC SEA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

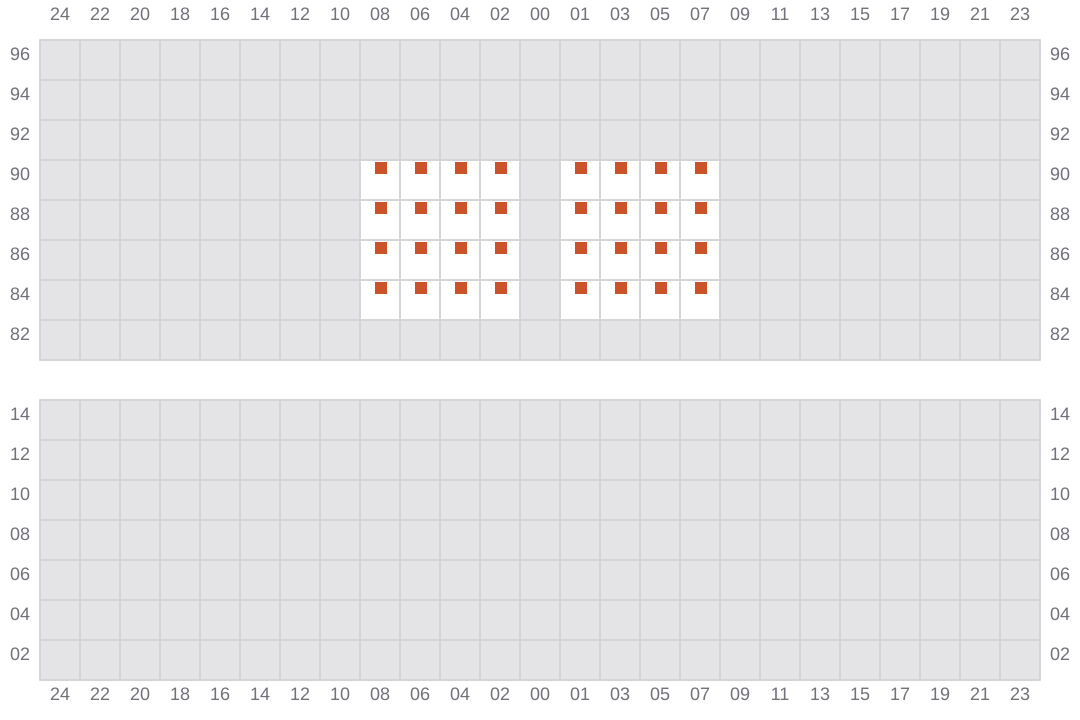

Bay 001 view and slots of ATLANTIC SEA

003 (004)

  • →

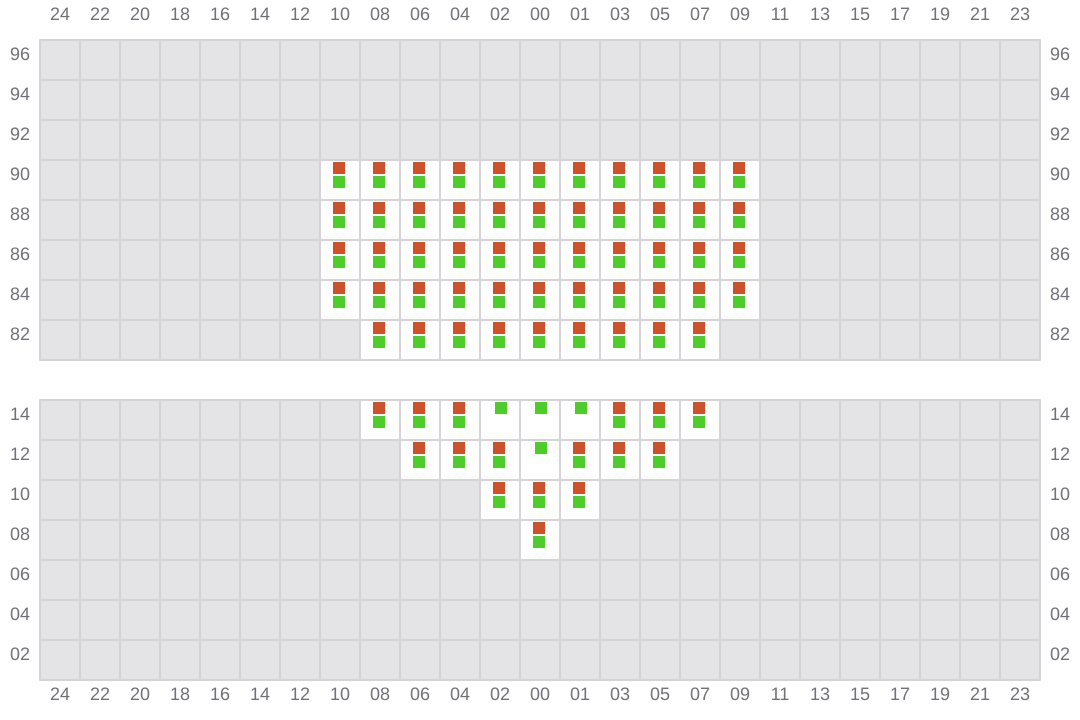

Bay 003 view and slots of ATLANTIC SEA

005

  • ? / ←

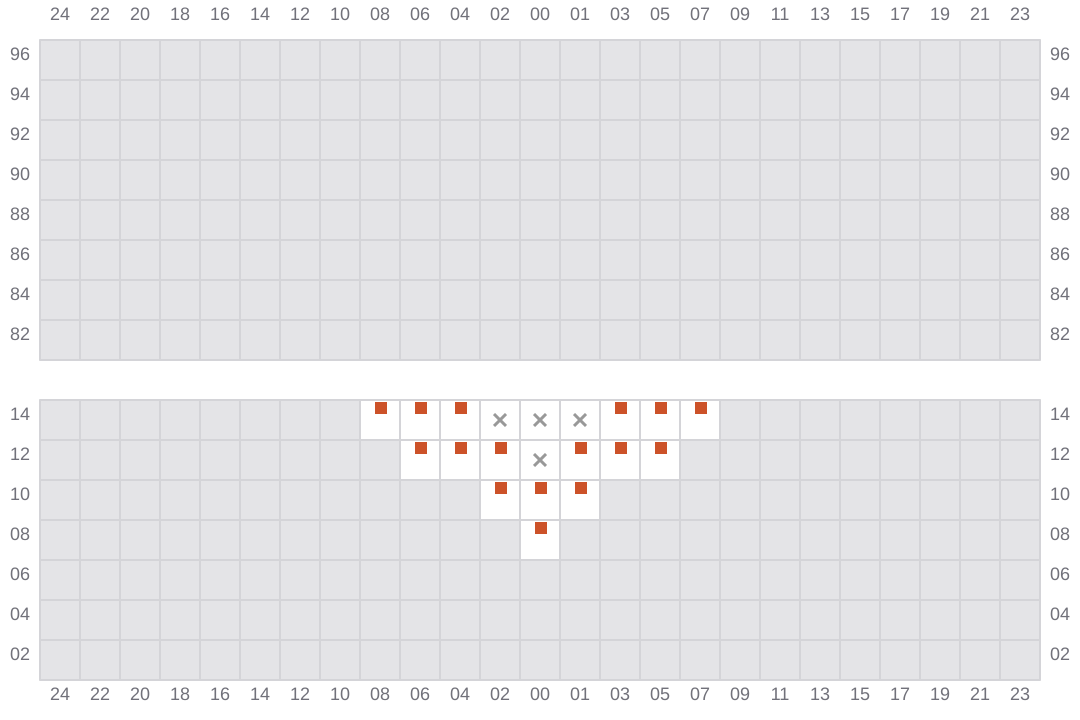

Bay 005 view and slots of ATLANTIC SEA

007 (008)

  • →

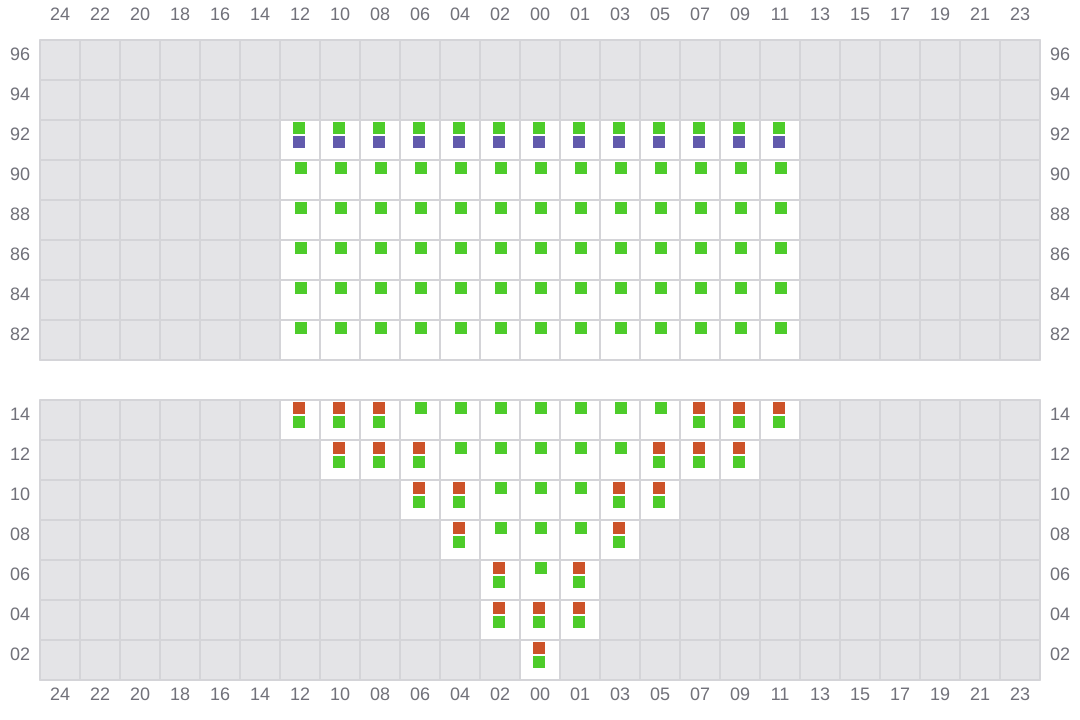

Bay 007 view and slots of ATLANTIC SEA

009

  • ? / ←

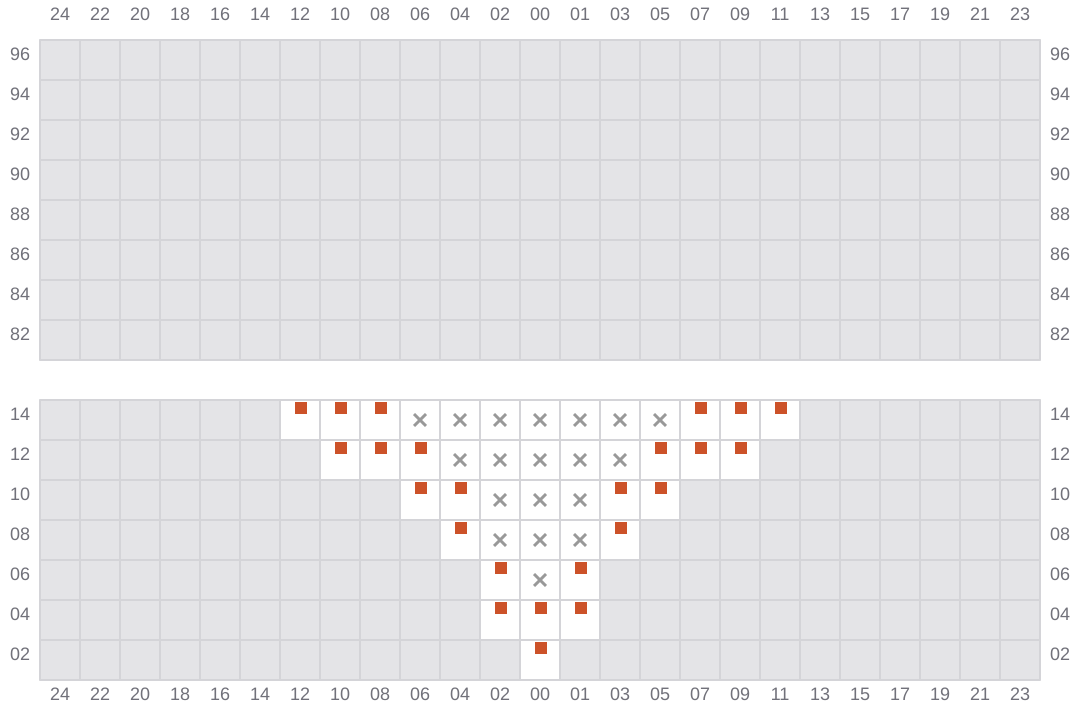

Bay 009 view and slots of ATLANTIC SEA

011 (012)

  • →

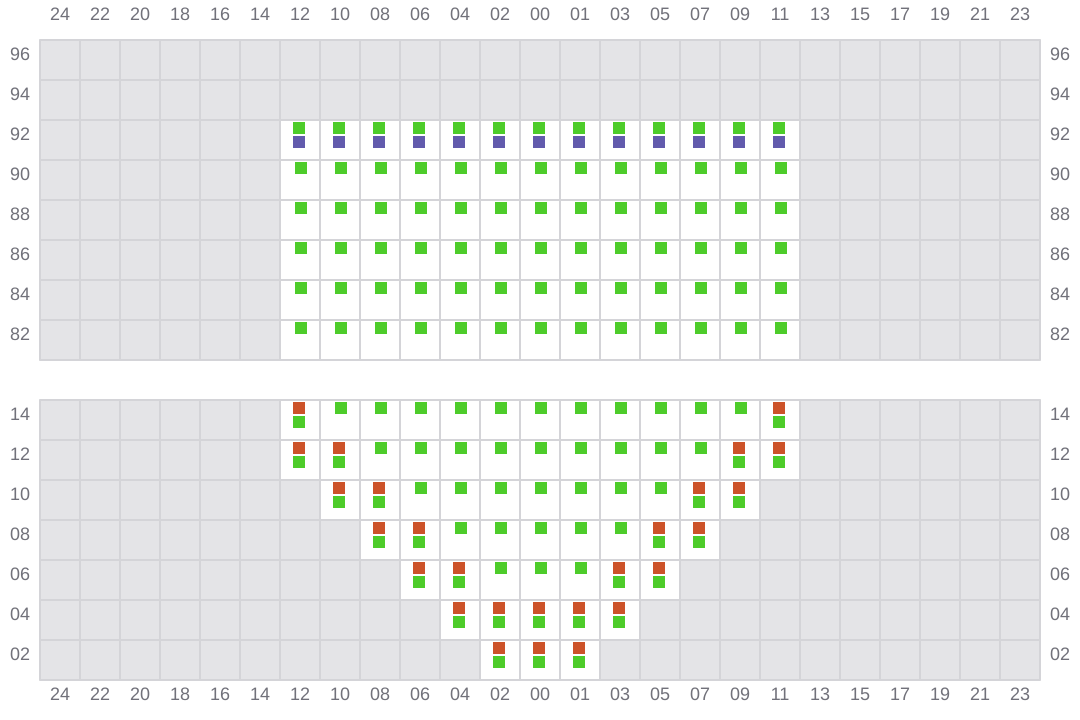

Bay 011 view and slots of ATLANTIC SEA

013

  • ? / ←

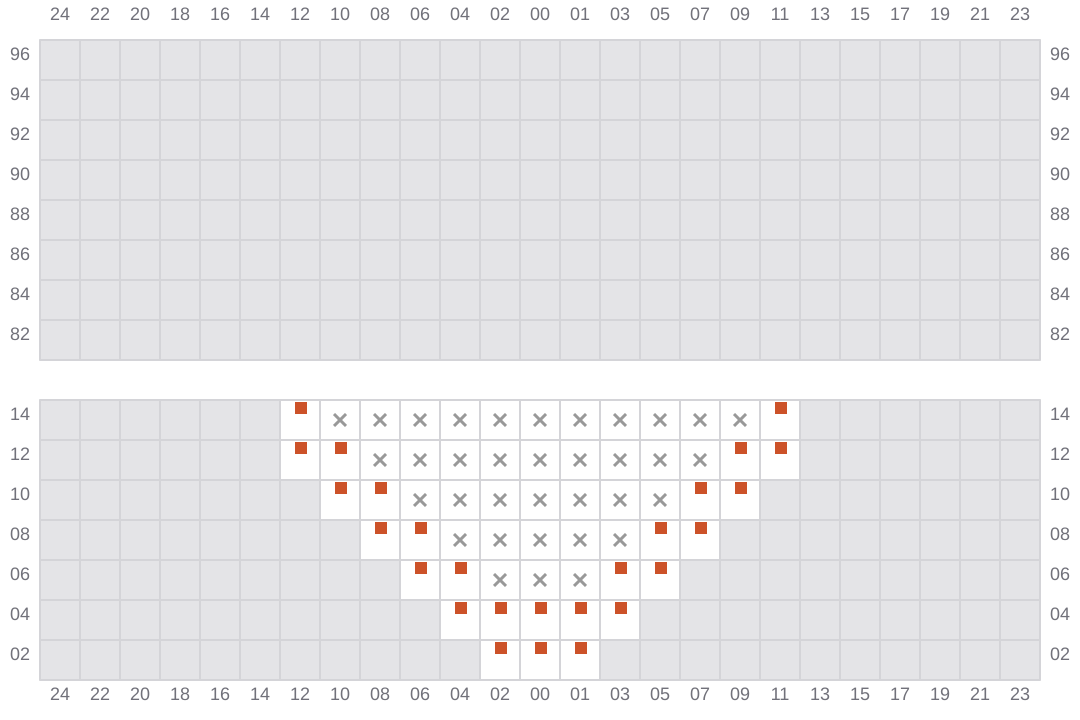

Bay 013 view and slots of ATLANTIC SEA

015 (016)

  • →

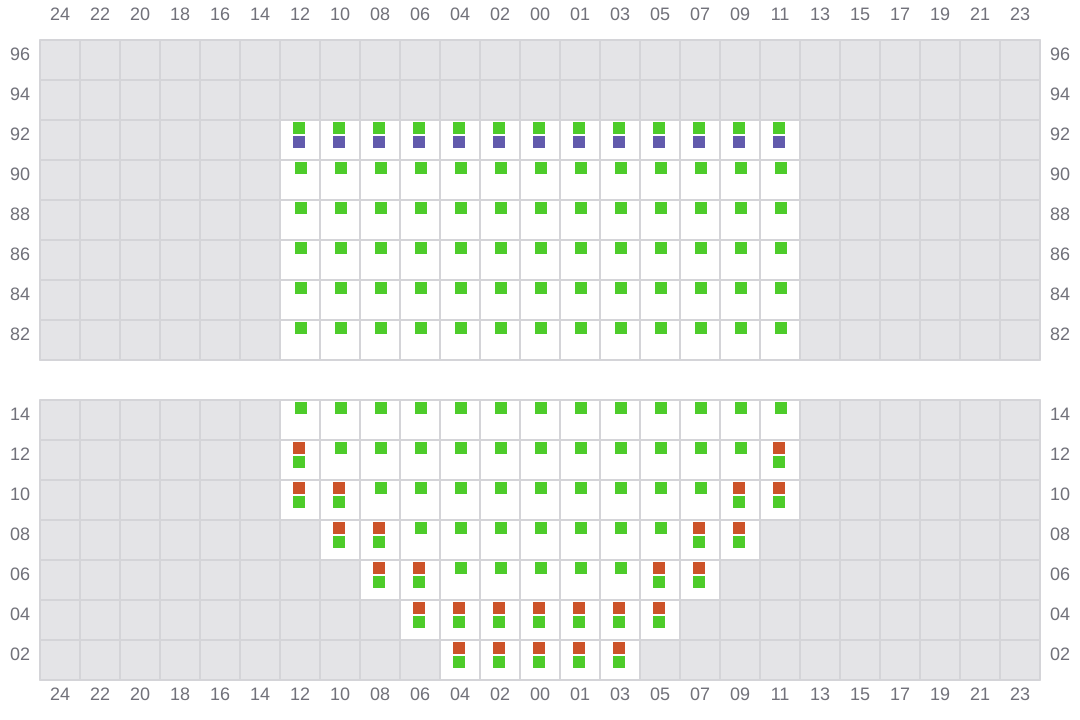

Bay 015 view and slots of ATLANTIC SEA

017

  • ? / ←

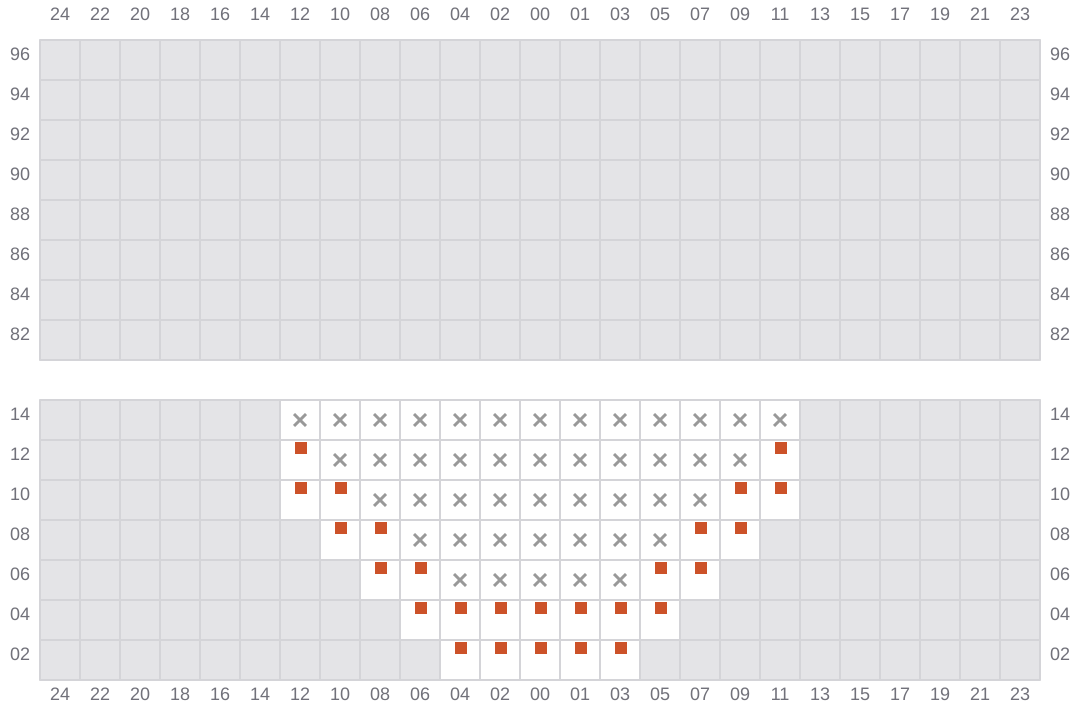

Bay 017 view and slots of ATLANTIC SEA

019 (020)

  • →

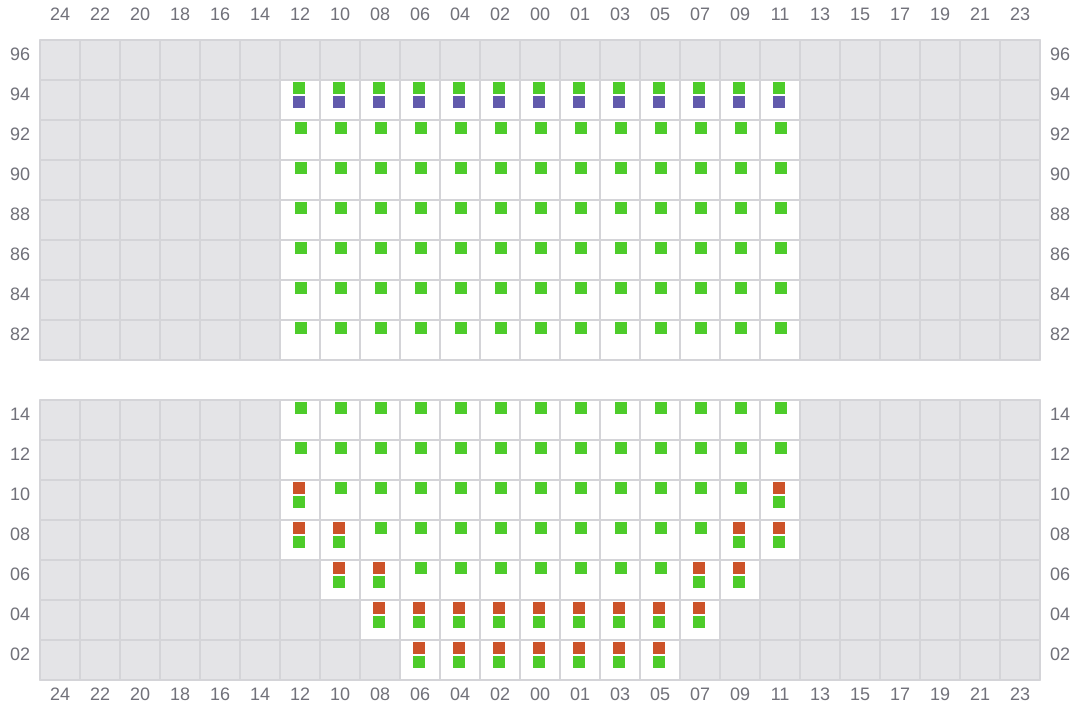

Bay 019 view and slots of ATLANTIC SEA

021

  • ? / →

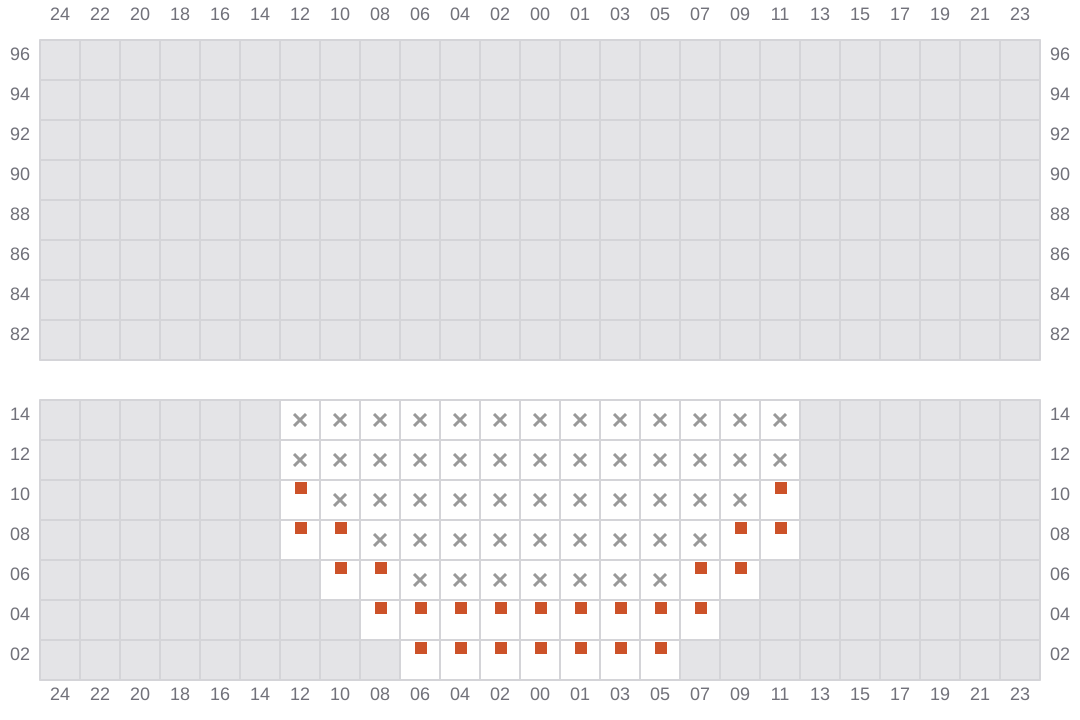

Bay 021 view and slots of ATLANTIC SEA

023 (024)

  • →

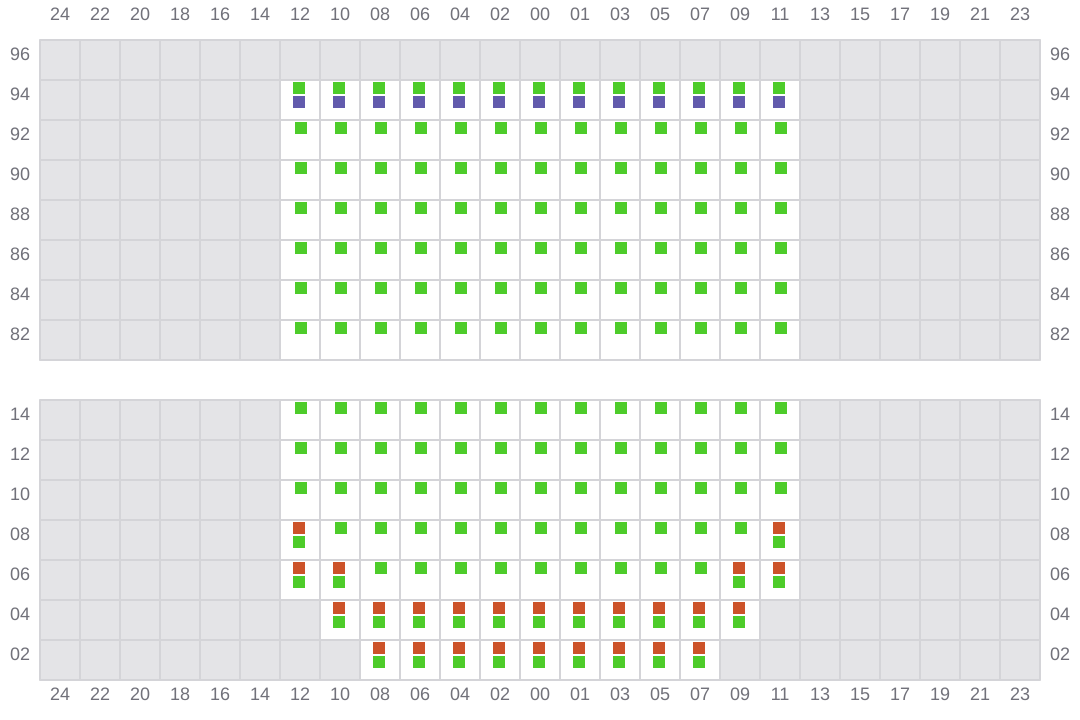

Bay 023 view and slots of ATLANTIC SEA

025

  • ? / ←

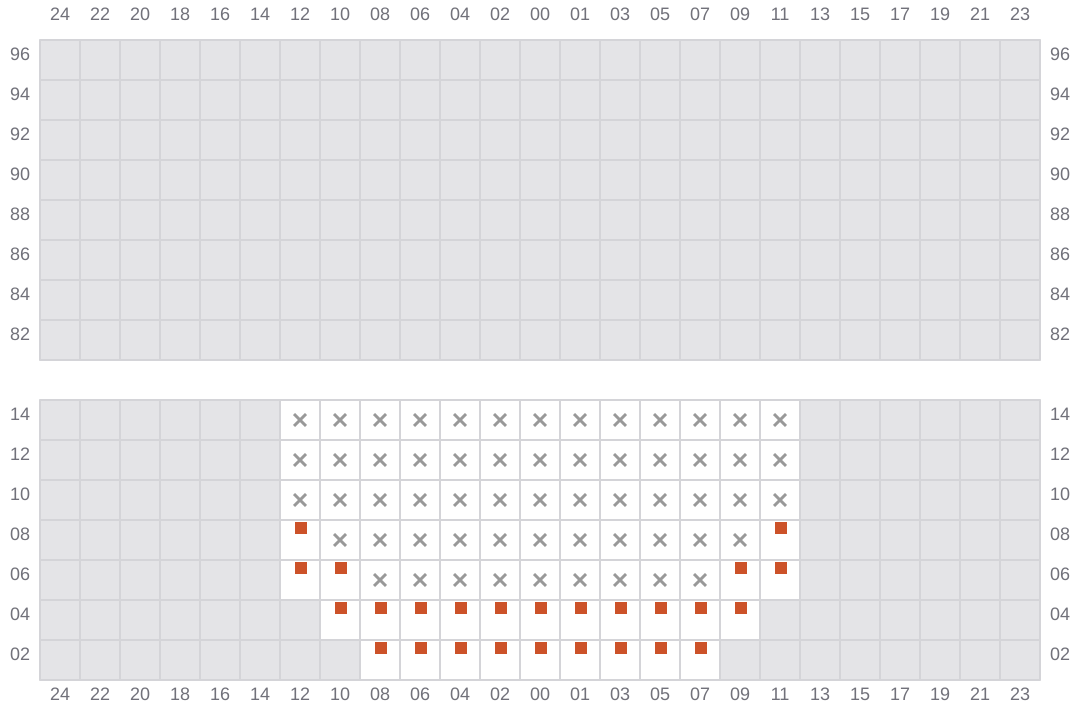

Bay 025 view and slots of ATLANTIC SEA

027 (028)

  • →

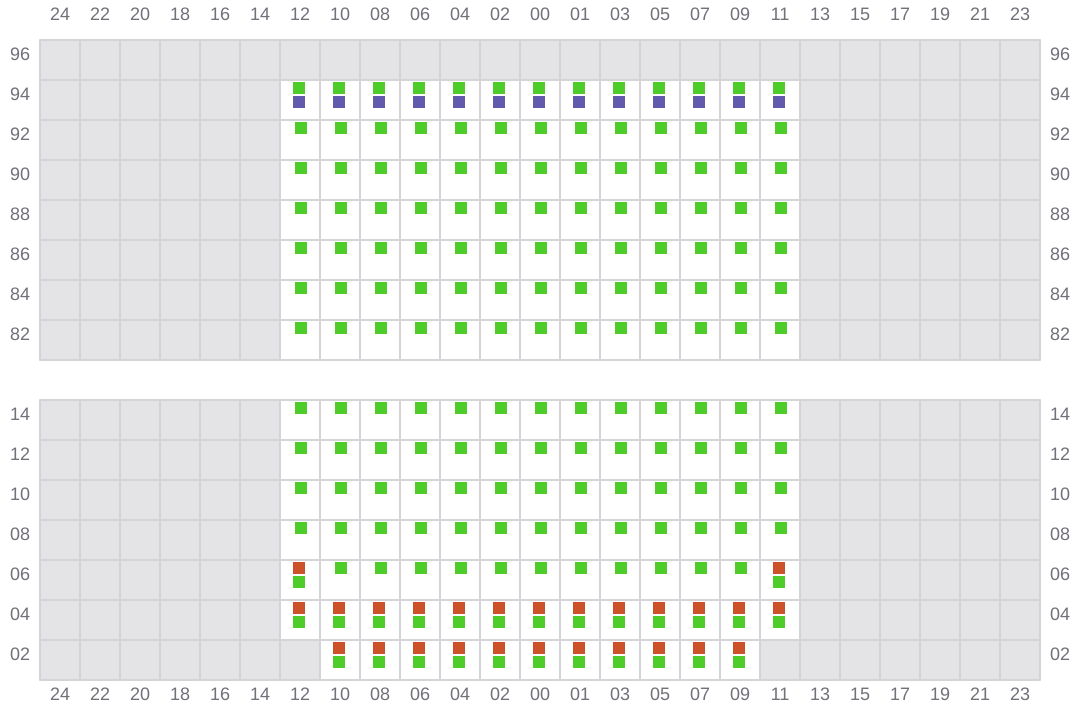

Bay 027 view and slots of ATLANTIC SEA

029

  • ? / ←

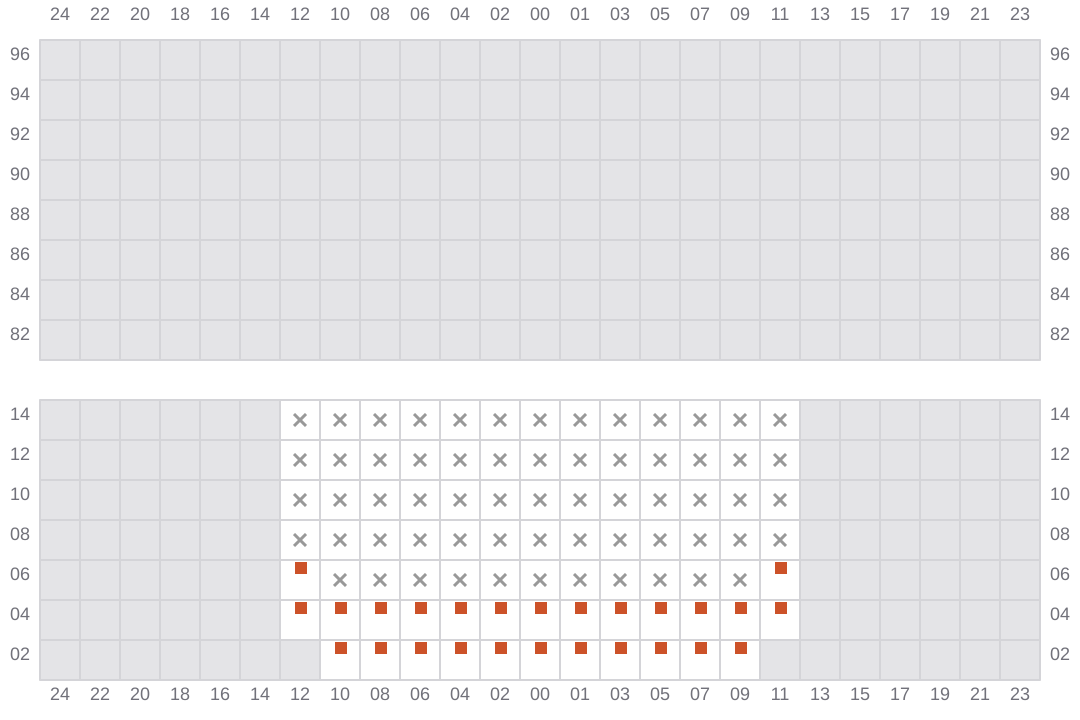

Bay 029 view and slots of ATLANTIC SEA

031 (032)

  • → / ?

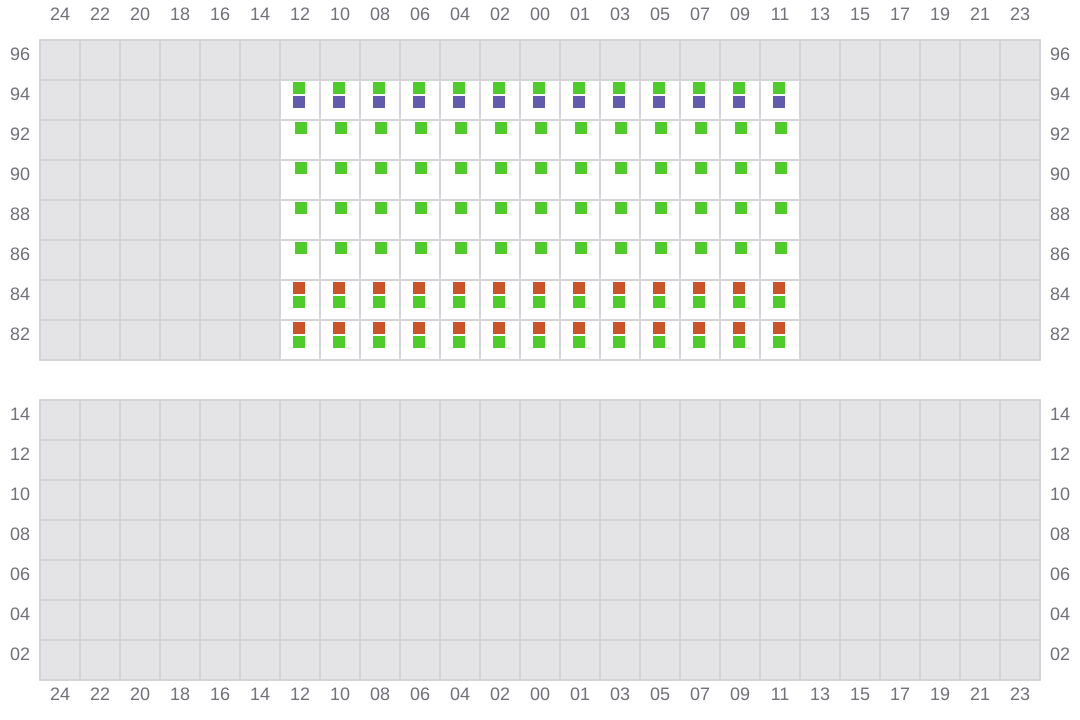

Bay 031 view and slots of ATLANTIC SEA

033

  • ← / ?

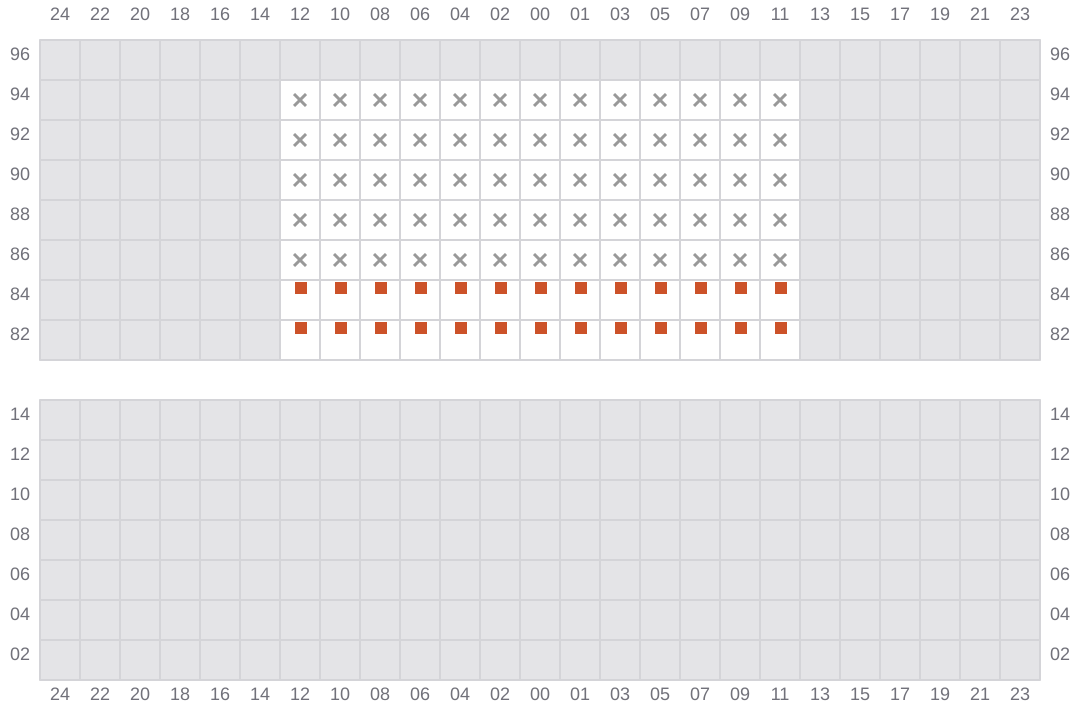

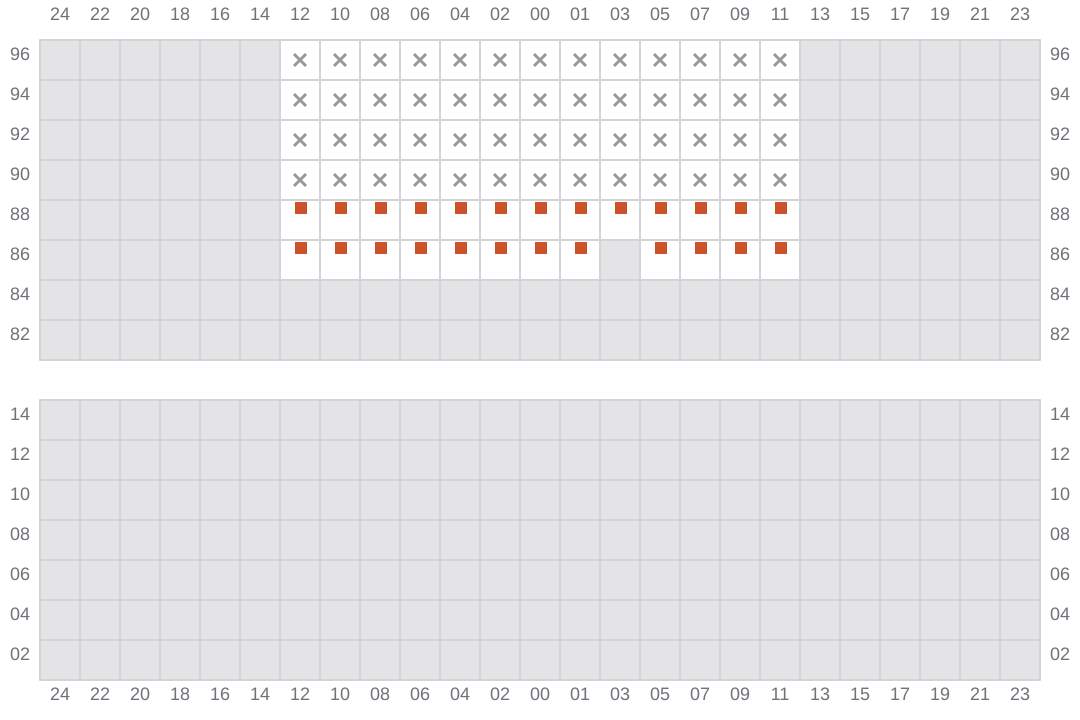

Bay 033 view and slots of ATLANTIC SEA

035 (036)

  • → / ?

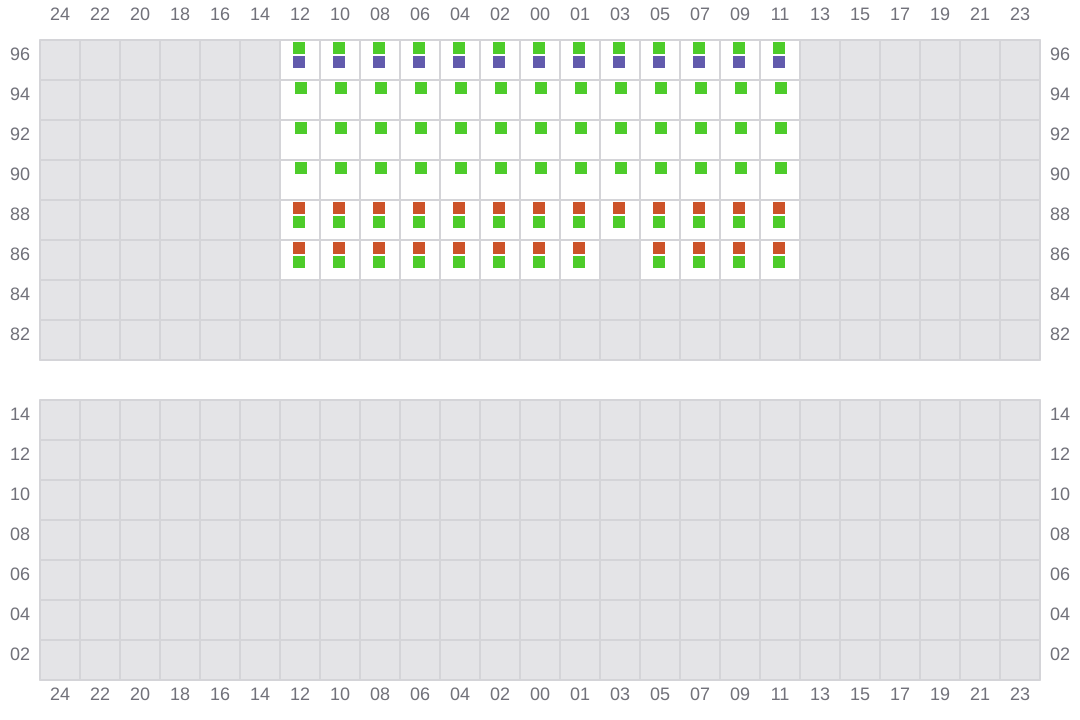

Bay 035 view and slots of ATLANTIC SEA

037

  • ← / ?
Bay 037 view and slots of ATLANTIC SEA

039 (040)

  • → / ?
Bay 039 view and slots of ATLANTIC SEA

041

  • ← / ?
Bay 041 view and slots of ATLANTIC SEA

043 (044)

  • →

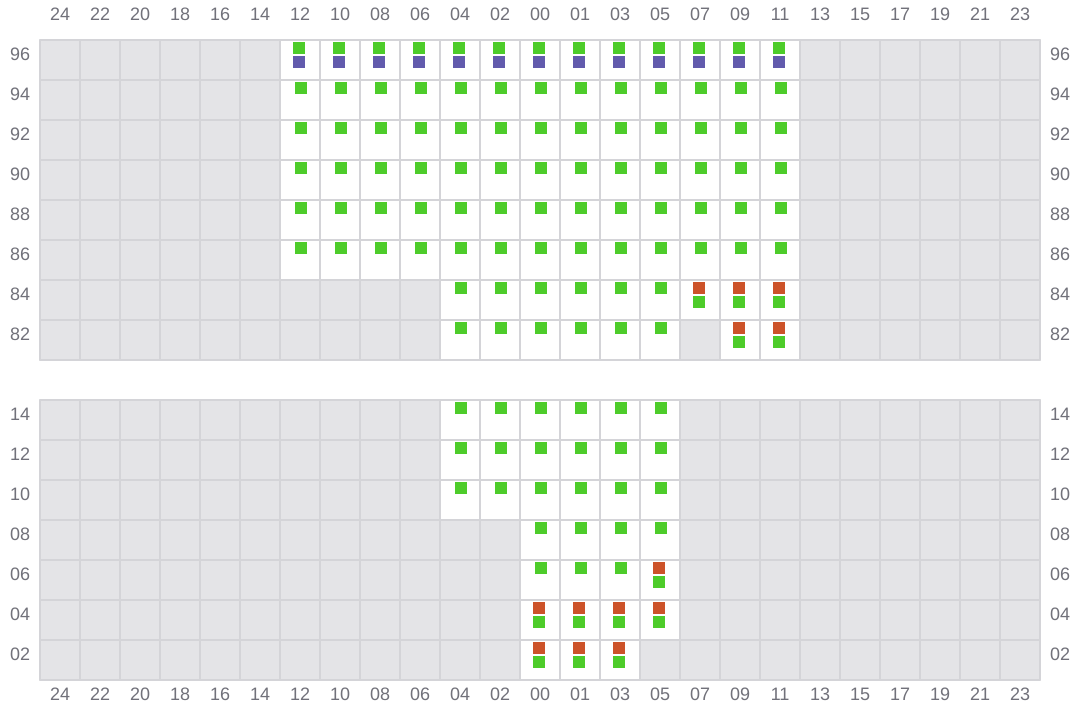

Bay 043 view and slots of ATLANTIC SEA

045

  • ←

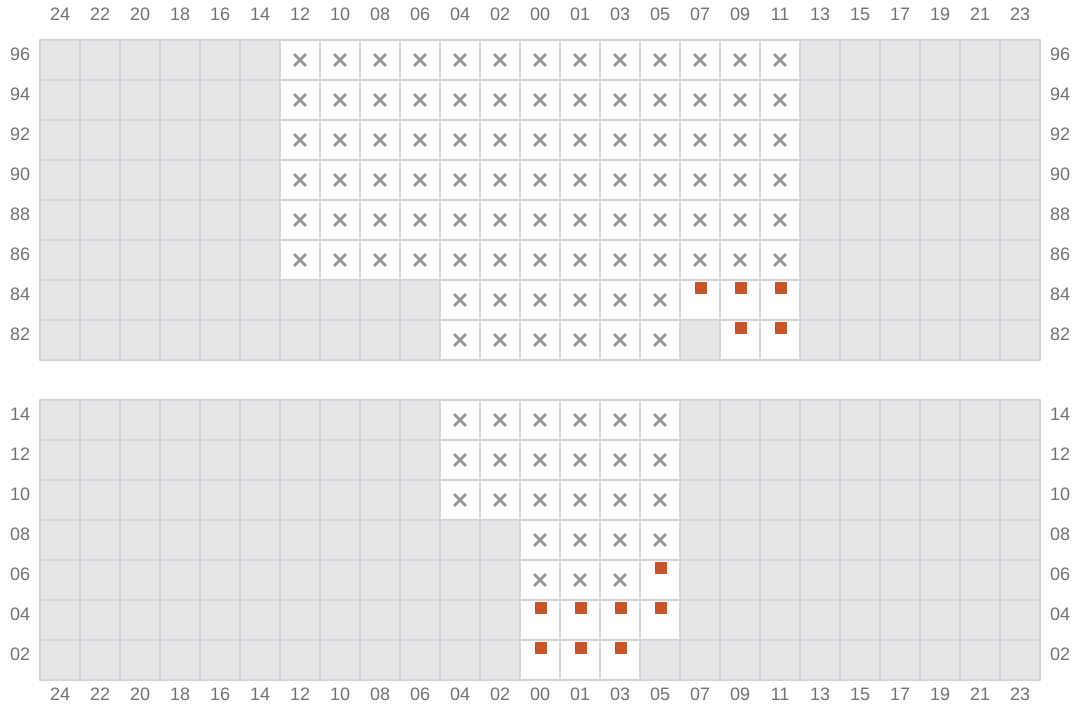

Bay 045 view and slots of ATLANTIC SEA

047 (048)

  • →

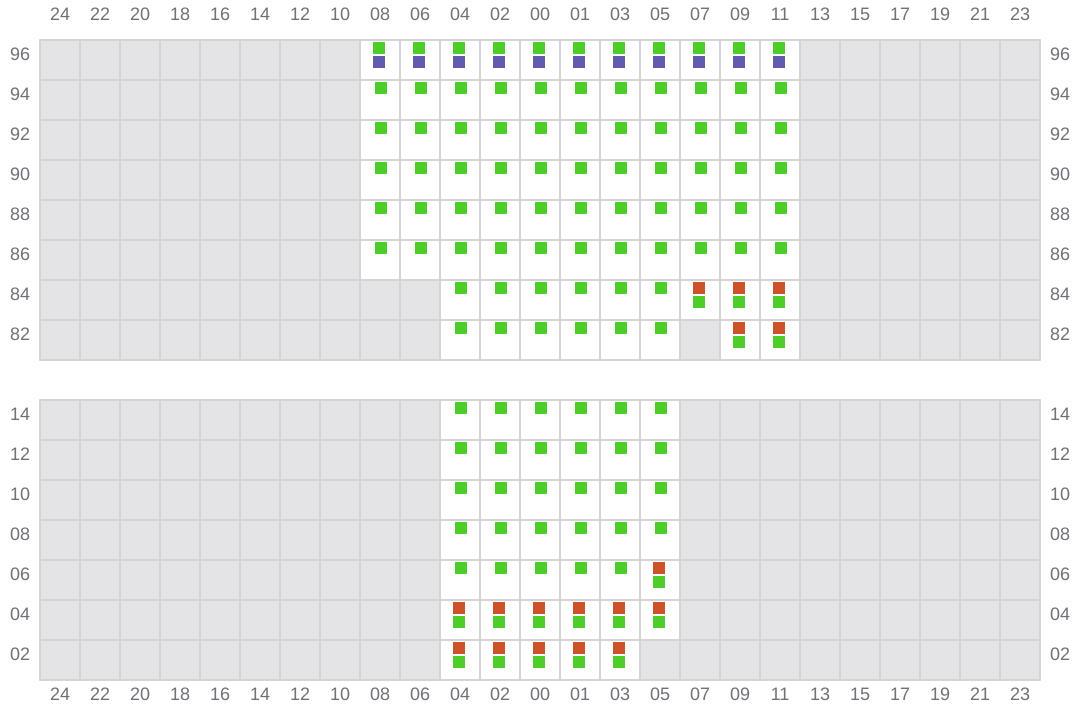

Bay 047 view and slots of ATLANTIC SEA

049

  • ←

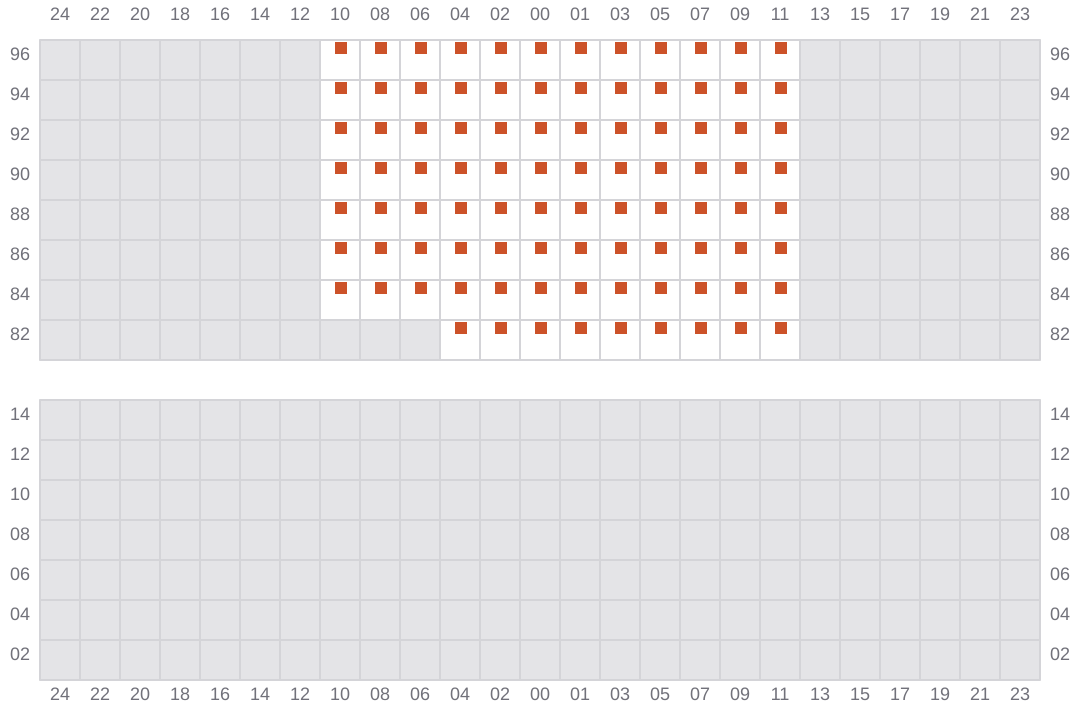

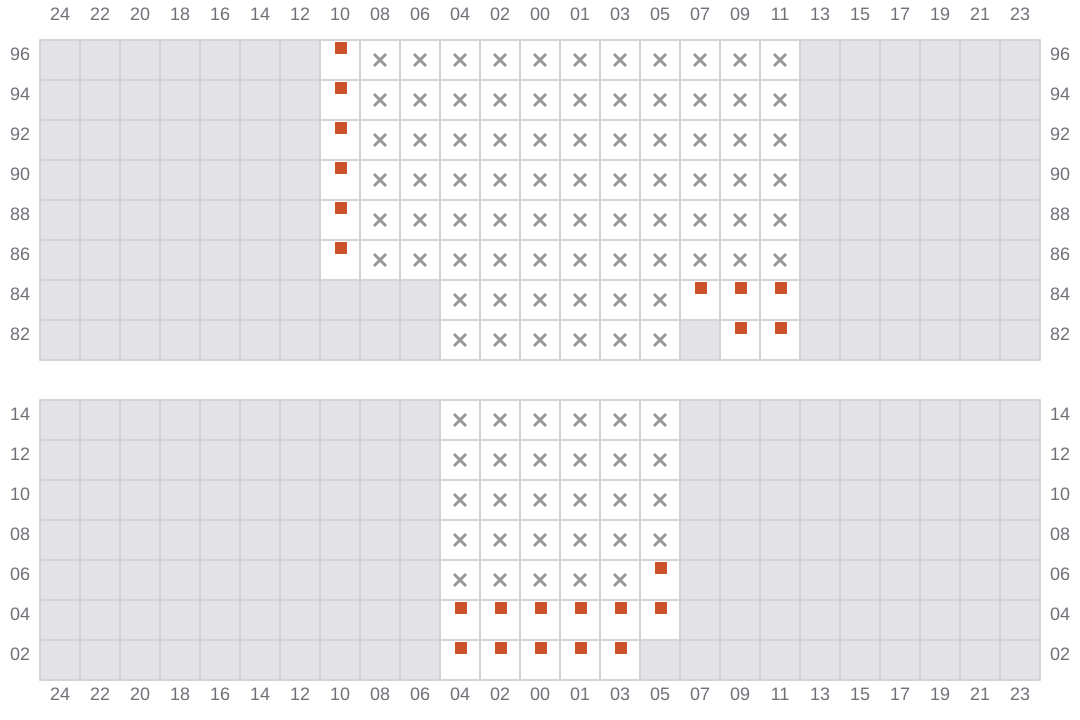

Bay 049 view and slots of ATLANTIC SEA

051

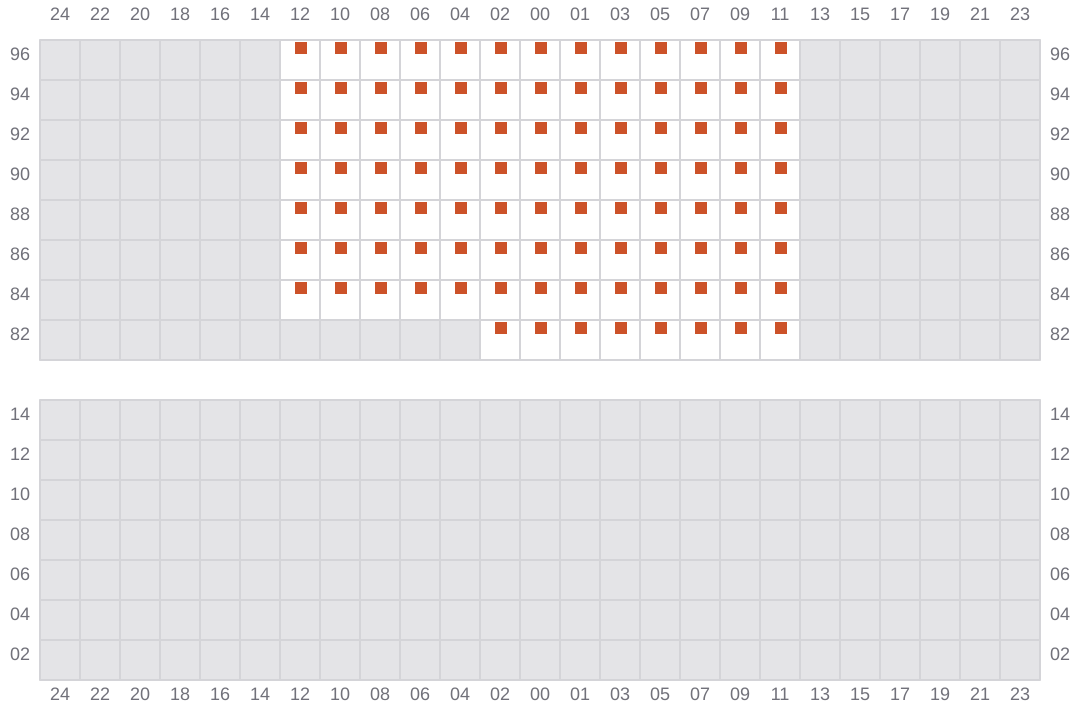

Bay 051 view and slots of ATLANTIC SEA

053

Bay 053 view and slots of ATLANTIC SEA

055 (056)

  • → / ?

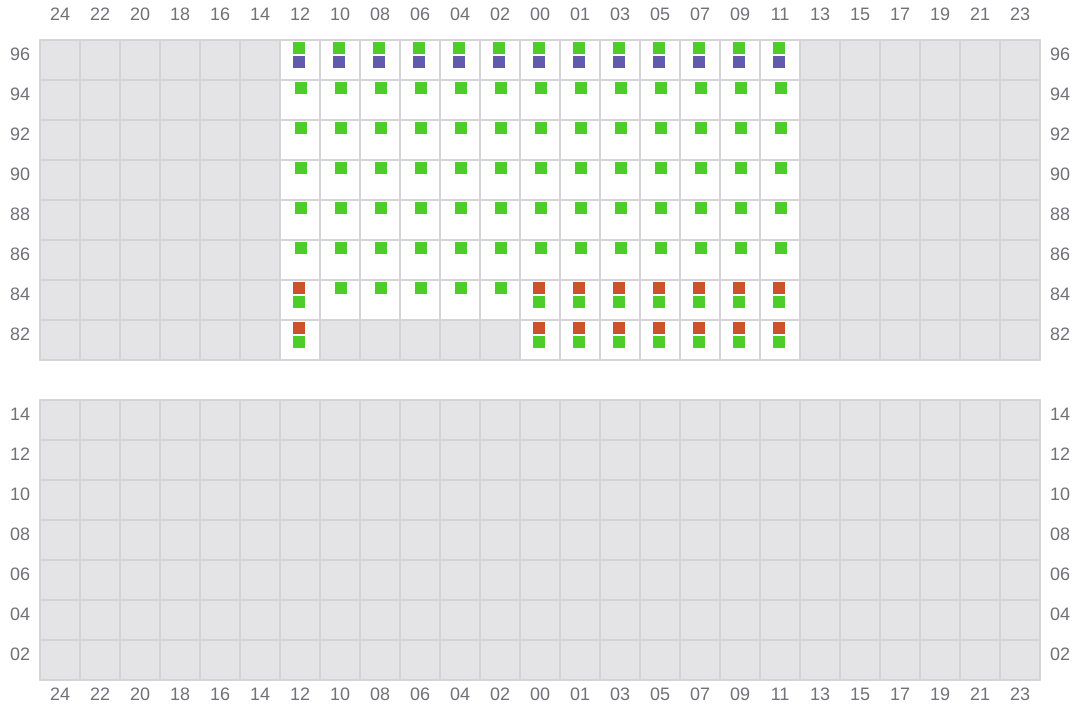

Bay 055 view and slots of ATLANTIC SEA

057

  • ← / ?

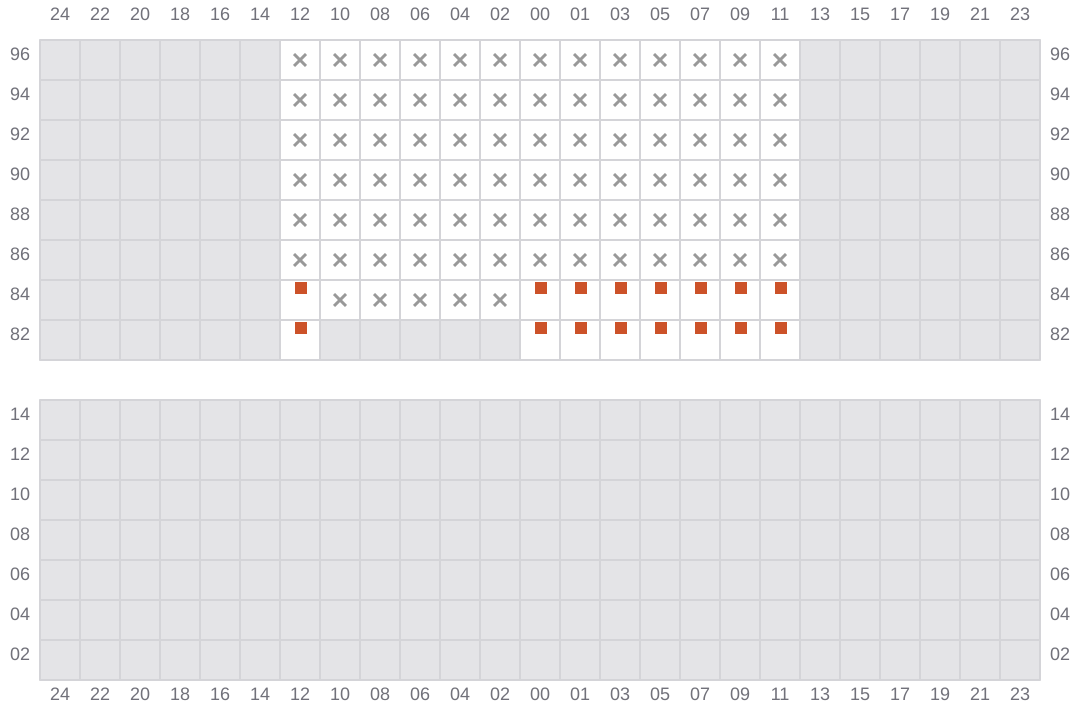

Bay 057 view and slots of ATLANTIC SEA

059 (060)

  • →

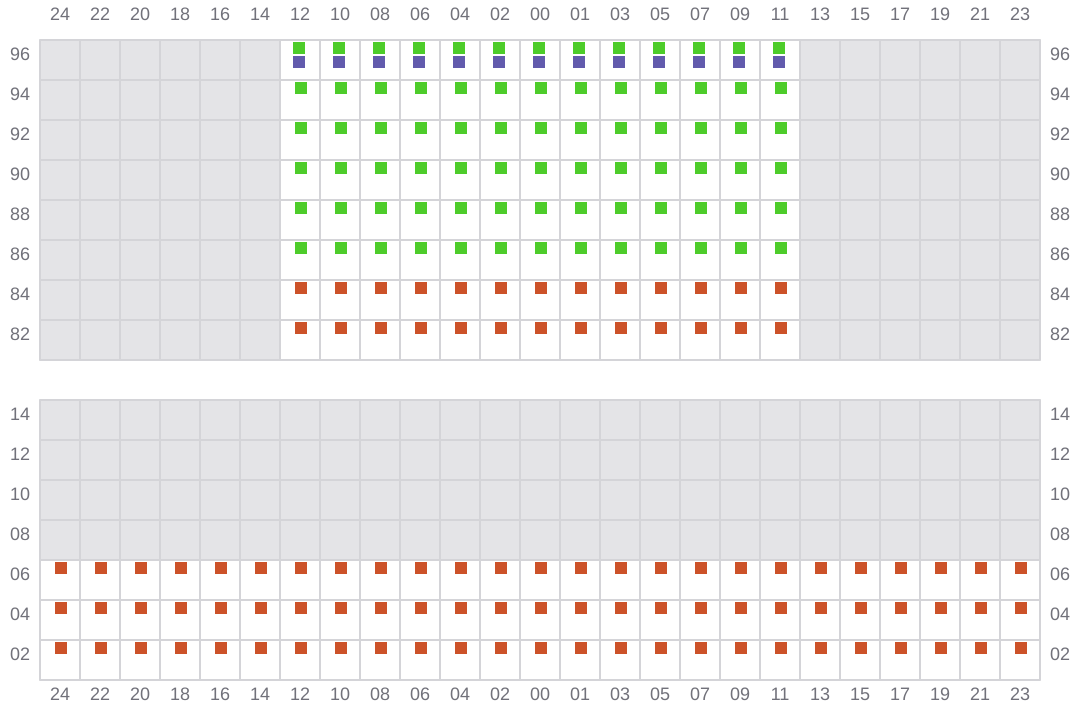

Bay 059 view and slots of ATLANTIC SEA

061

  • ← / ?

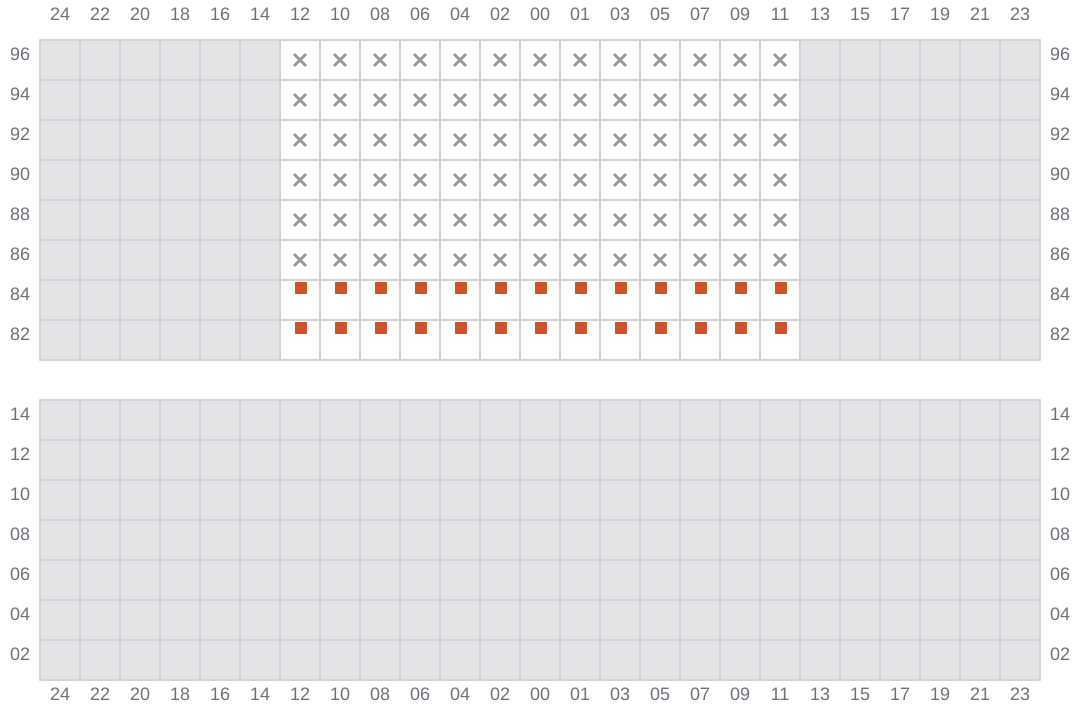

Bay 061 view and slots of ATLANTIC SEA

063 (064)

  • → / ?

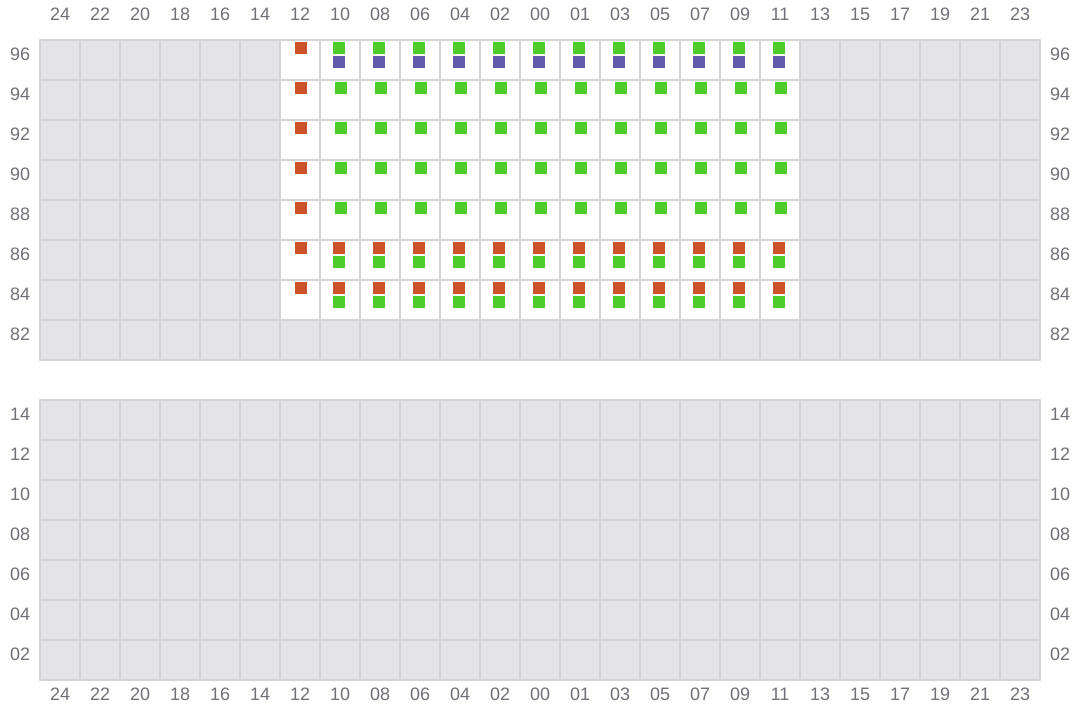

Bay 063 view and slots of ATLANTIC SEA

065

  • ← / ?

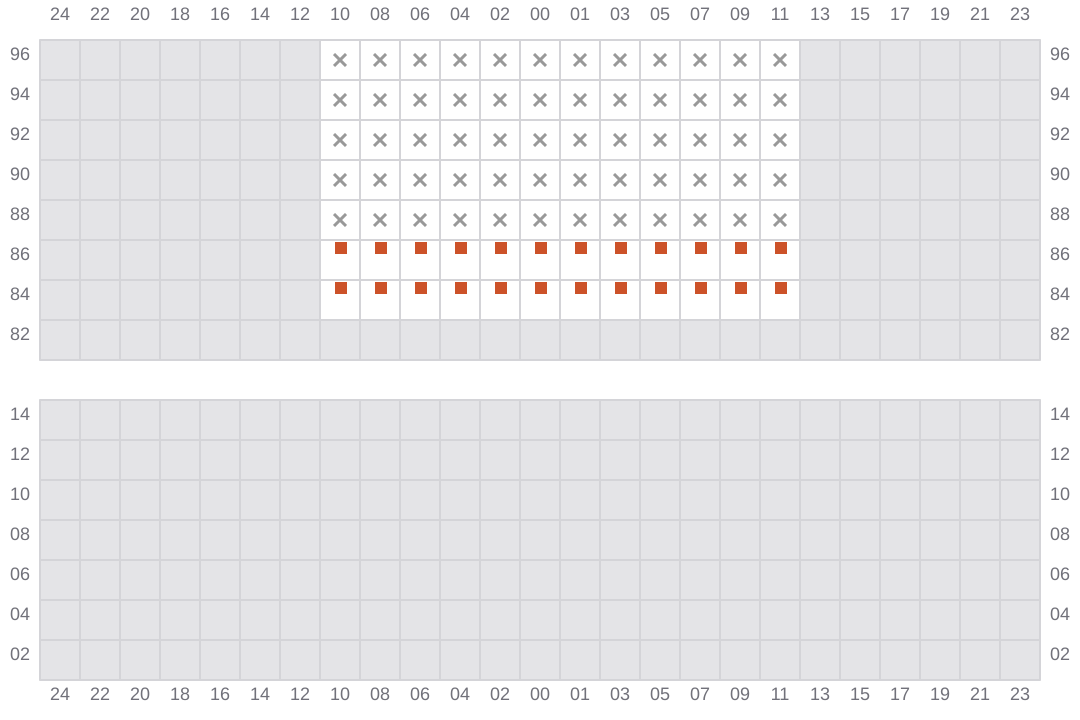

Bay 065 view and slots of ATLANTIC SEA
