ATLANTIC SILVER
9396622 | 9V7600 | 9396622 by ********* Last update: Sun Mar 24 2024
General Info
Ship Name:ATLANTIC SILVER
IMO Code:9396622
Call Sign:9V7600
Line Operator:9396622
Class Name for Sister Ships:91B
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:033
Max ISO Row:10
Center Line Row:No
Max Above ISO Tier:90
Min Above ISO Tier:78
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,343
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

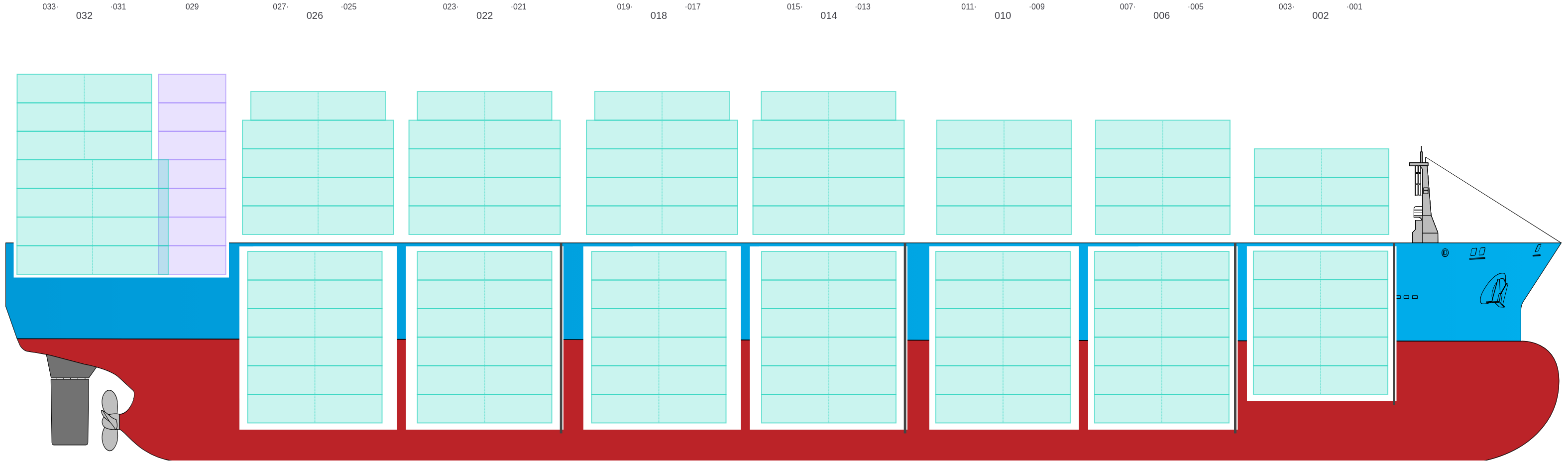

Side View
![Side view of ATLANTIC SILVER](/vessel-images/17ebcd99-bdb5-4d09-9d26-c6e0c7449746-sideView.png?v=1711310897677)

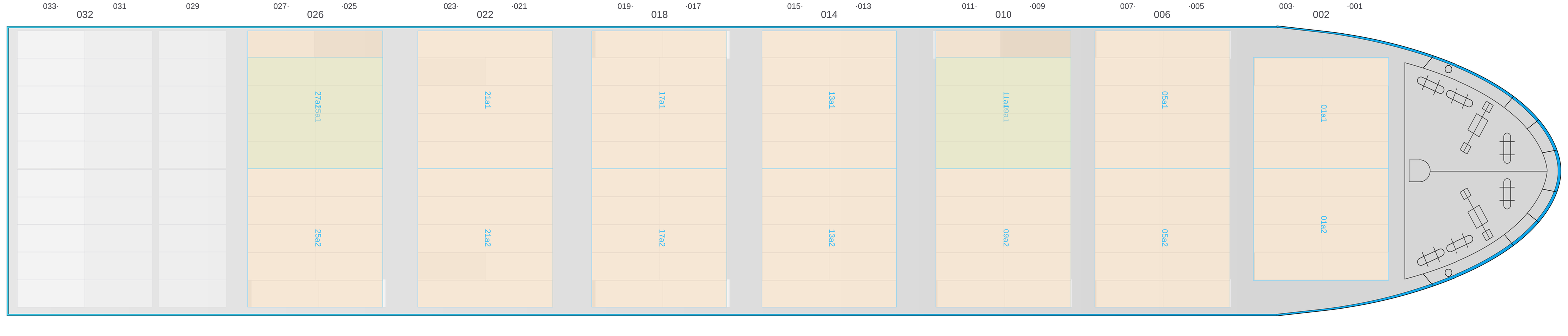

Hatch-Covers View
![Deck view of ATLANTIC SILVER](/vessel-images/17ebcd99-bdb5-4d09-9d26-c6e0c7449746-deckView.png?v=1711310897677)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

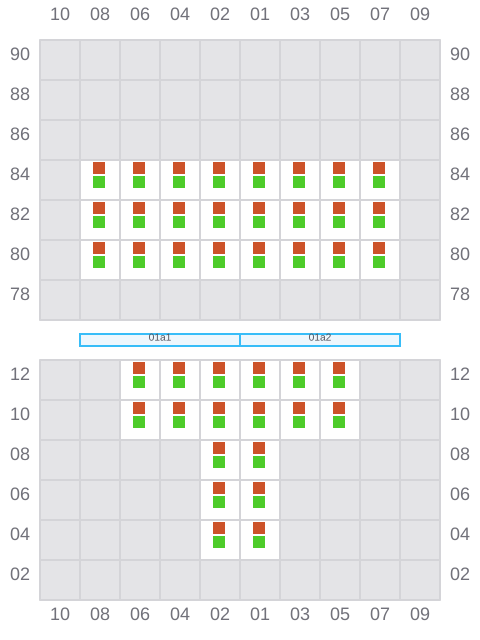

001 (002)
- →
- → / ?
![Bay 001 view and slots of ATLANTIC SILVER](/vessel-images/17ebcd99-bdb5-4d09-9d26-c6e0c7449746-b001.png?v=1711310897677)
003
- ←
- → / ?
![Bay 003 view and slots of ATLANTIC SILVER](/vessel-images/17ebcd99-bdb5-4d09-9d26-c6e0c7449746-b003.png?v=1711310897677)
005 (006)
- →
- ← / ?
![Bay 005 view and slots of ATLANTIC SILVER](/vessel-images/17ebcd99-bdb5-4d09-9d26-c6e0c7449746-b005.png?v=1711310897677)

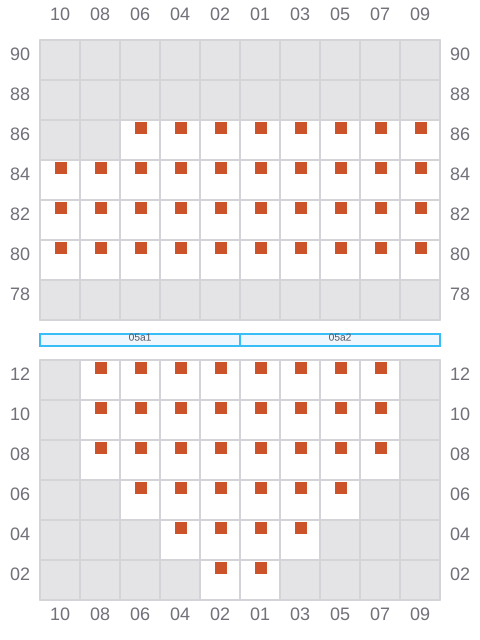

007
- ←
- ← / ?
![Bay 007 view and slots of ATLANTIC SILVER](/vessel-images/17ebcd99-bdb5-4d09-9d26-c6e0c7449746-b007.png?v=1711310897677)

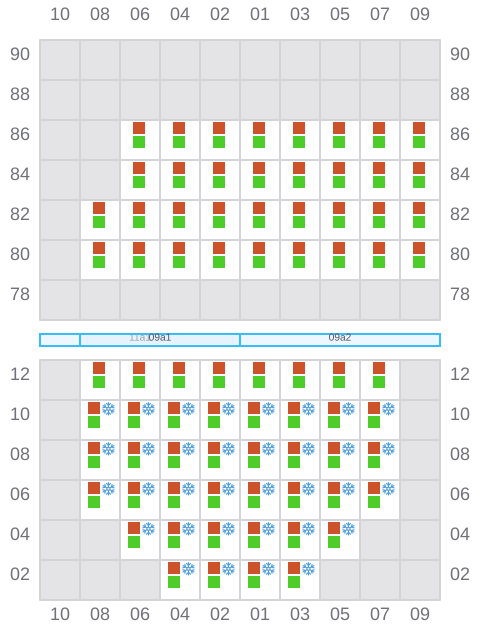

009 (010)
- →
- → / ←
![Bay 009 view and slots of ATLANTIC SILVER](/vessel-images/17ebcd99-bdb5-4d09-9d26-c6e0c7449746-b009.png?v=1711310897677)
011
- ←
- → / ?
![Bay 011 view and slots of ATLANTIC SILVER](/vessel-images/17ebcd99-bdb5-4d09-9d26-c6e0c7449746-b011.png?v=1711310897677)
013 (014)
- →
- ← / ?
![Bay 013 view and slots of ATLANTIC SILVER](/vessel-images/17ebcd99-bdb5-4d09-9d26-c6e0c7449746-b013.png?v=1711310897677)

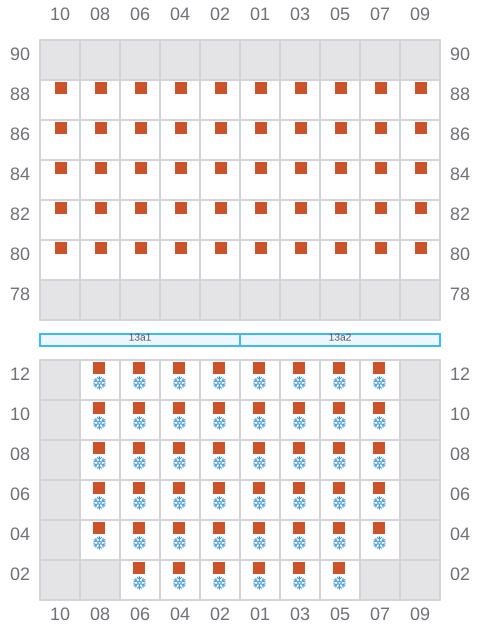

015
- ←
- ? / →
![Bay 015 view and slots of ATLANTIC SILVER](/vessel-images/17ebcd99-bdb5-4d09-9d26-c6e0c7449746-b015.png?v=1711310897677)
017 (018)
- →
- → / ←
![Bay 017 view and slots of ATLANTIC SILVER](/vessel-images/17ebcd99-bdb5-4d09-9d26-c6e0c7449746-b017.png?v=1711310897677)
019
- ←
- → / ?
![Bay 019 view and slots of ATLANTIC SILVER](/vessel-images/17ebcd99-bdb5-4d09-9d26-c6e0c7449746-b019.png?v=1711310897677)
021 (022)
- →
- ← / ?
![Bay 021 view and slots of ATLANTIC SILVER](/vessel-images/17ebcd99-bdb5-4d09-9d26-c6e0c7449746-b021.png?v=1711310897677)
023
- ←
- ? / →
![Bay 023 view and slots of ATLANTIC SILVER](/vessel-images/17ebcd99-bdb5-4d09-9d26-c6e0c7449746-b023.png?v=1711310897677)
025 (026)
- →
- → / ←
![Bay 025 view and slots of ATLANTIC SILVER](/vessel-images/17ebcd99-bdb5-4d09-9d26-c6e0c7449746-b025.png?v=1711310897677)
027
- ←
- → / ?
![Bay 027 view and slots of ATLANTIC SILVER](/vessel-images/17ebcd99-bdb5-4d09-9d26-c6e0c7449746-b027.png?v=1711310897677)
029
![Bay 029 view and slots of ATLANTIC SILVER](/vessel-images/17ebcd99-bdb5-4d09-9d26-c6e0c7449746-b029.png?v=1711310897677)
031 (032)
- → / ?
![Bay 031 view and slots of ATLANTIC SILVER](/vessel-images/17ebcd99-bdb5-4d09-9d26-c6e0c7449746-b031.png?v=1711310897677)

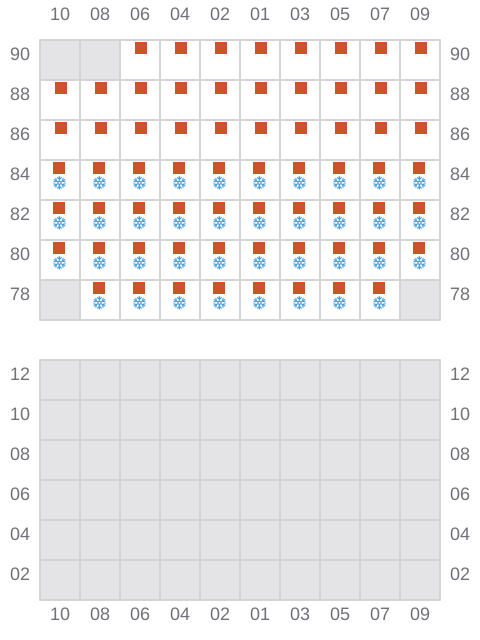

033
- ← / ?
- → / ?
![Bay 033 view and slots of ATLANTIC SILVER](/vessel-images/17ebcd99-bdb5-4d09-9d26-c6e0c7449746-b033.png?v=1711310897677)
