ATLANTIC SUN
9670614 | 9HA5292 | ACL by ************************** Last update: Mon Jul 15 2024
General Info
Ship Name:ATLANTIC SUN
IMO Code:9670614
Call Sign:9HA5292
Line Operator:ACL
Class Name for Sister Ships:ATS
Year Built:2017
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:065
Max ISO Row:24
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,916
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

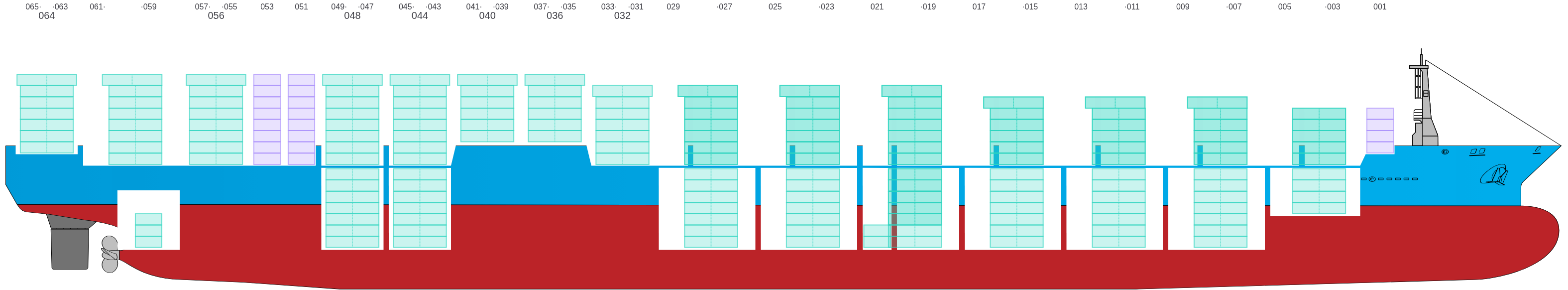

Side View
![Side view of ATLANTIC SUN](/vessel-images/492094d7-be20-4f6b-b044-508ab8079911-sideView.png?v=1721052781316)

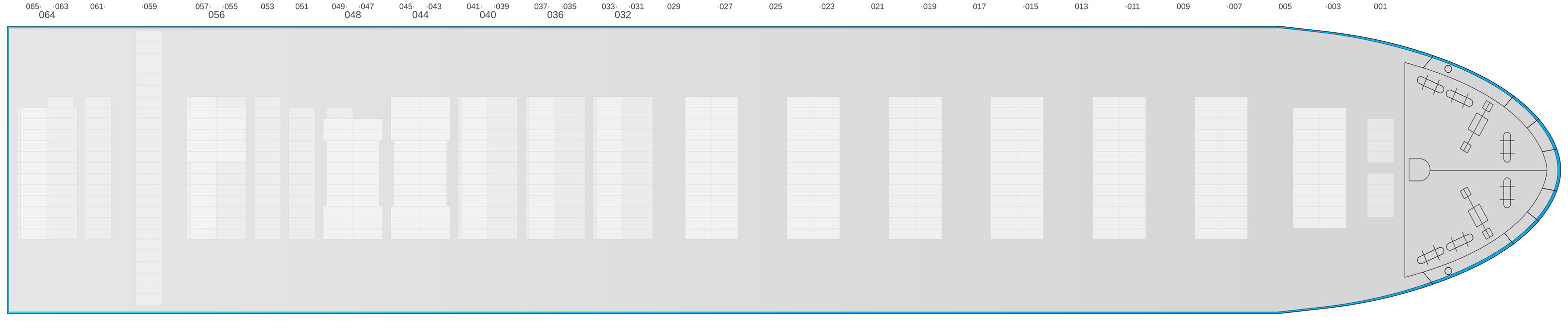

Hatch-Covers View
![Deck view of ATLANTIC SUN](/vessel-images/492094d7-be20-4f6b-b044-508ab8079911-deckView.png?v=1721052781316)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

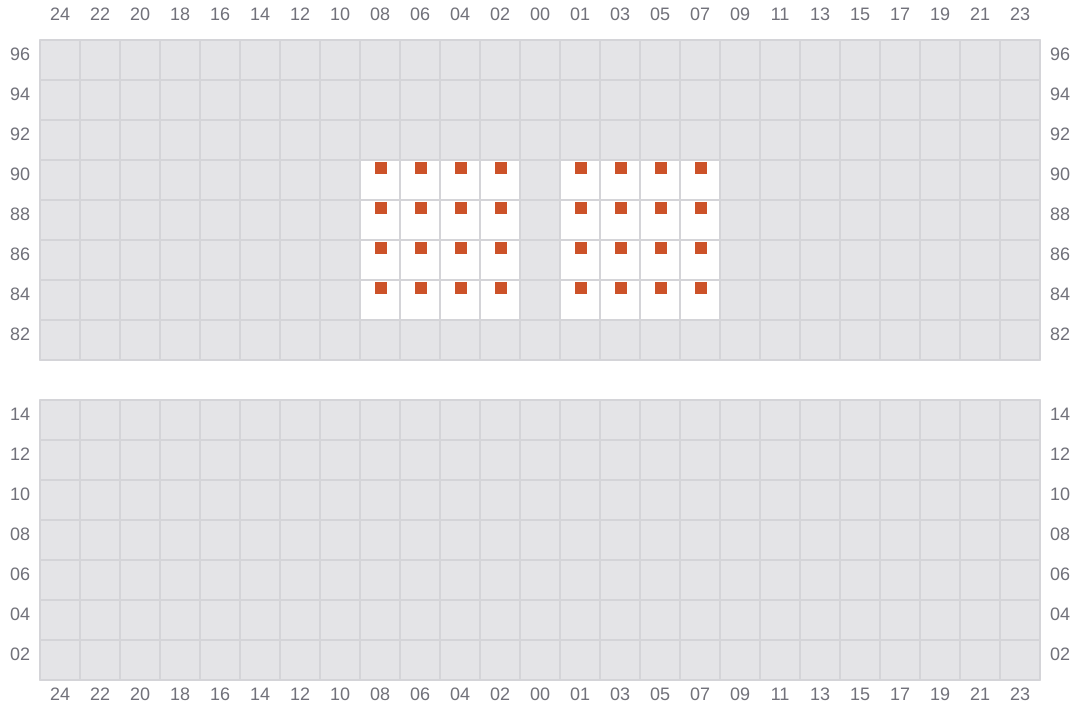

001
![Bay 001 view and slots of ATLANTIC SUN](/vessel-images/492094d7-be20-4f6b-b044-508ab8079911-b001.png?v=1721052781316)

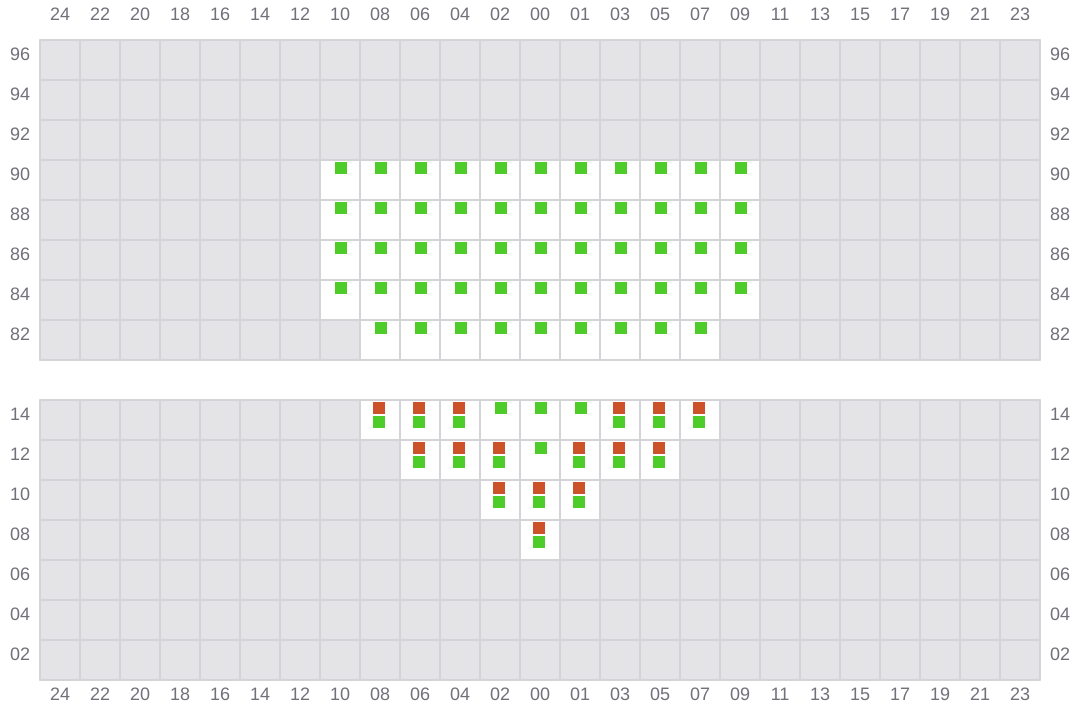

003 (004)
- →
![Bay 003 view and slots of ATLANTIC SUN](/vessel-images/492094d7-be20-4f6b-b044-508ab8079911-b003.png?v=1721052781316)

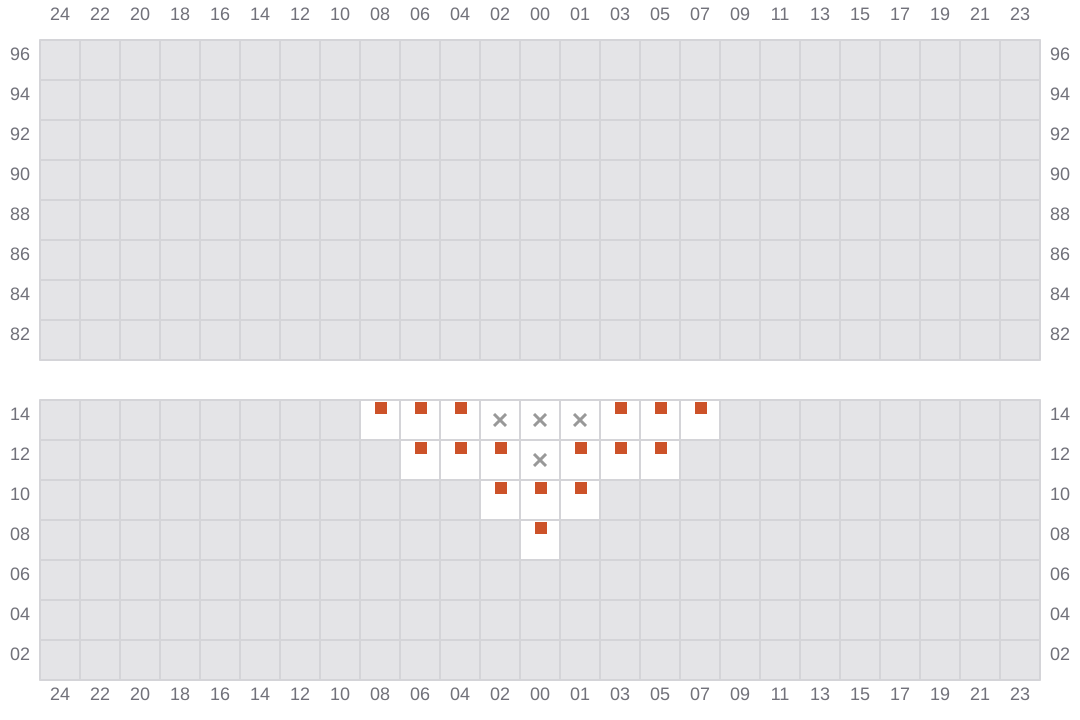

005
- ? / ←
![Bay 005 view and slots of ATLANTIC SUN](/vessel-images/492094d7-be20-4f6b-b044-508ab8079911-b005.png?v=1721052781316)

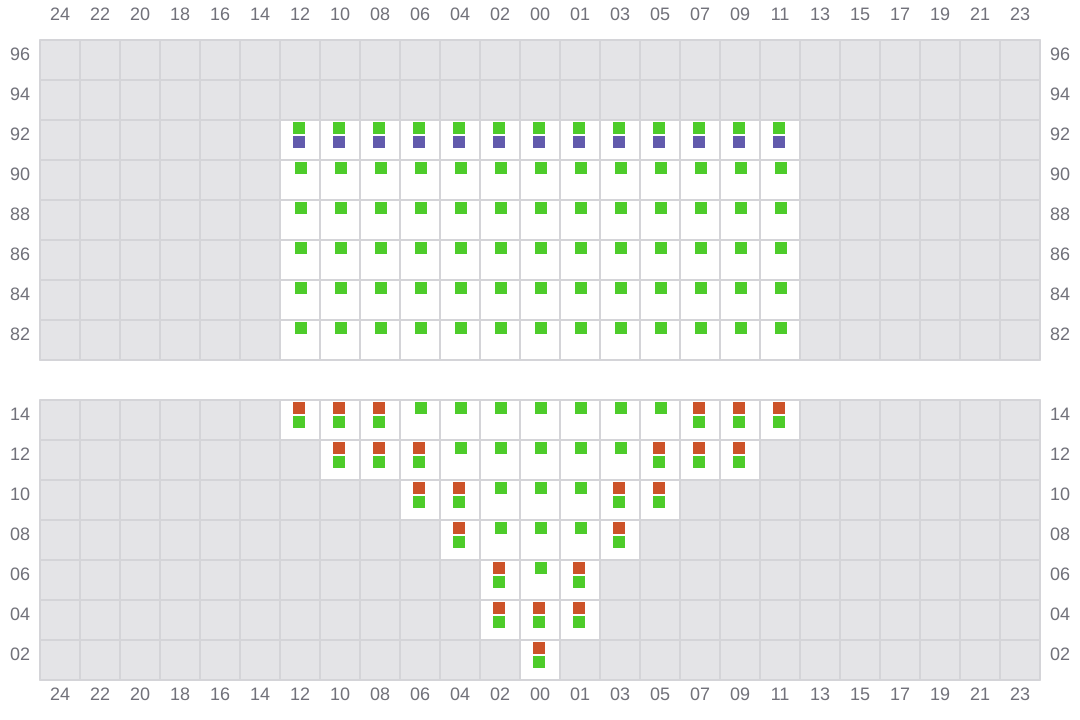

007 (008)
- →
![Bay 007 view and slots of ATLANTIC SUN](/vessel-images/492094d7-be20-4f6b-b044-508ab8079911-b007.png?v=1721052781316)

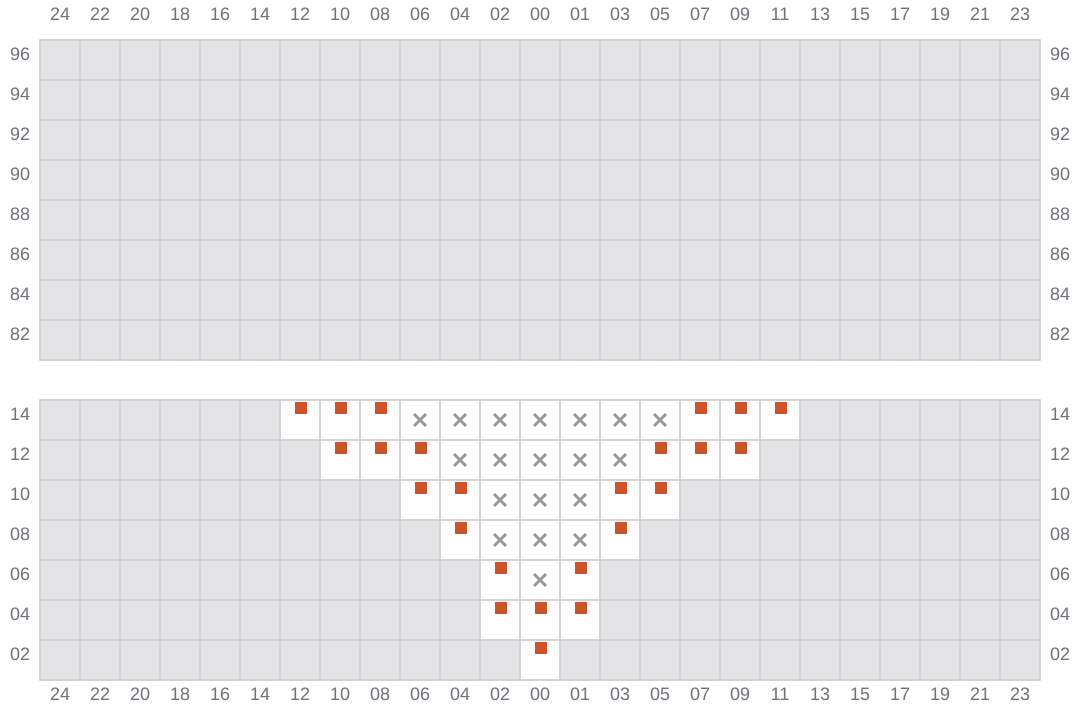

009
- ? / ←
![Bay 009 view and slots of ATLANTIC SUN](/vessel-images/492094d7-be20-4f6b-b044-508ab8079911-b009.png?v=1721052781316)

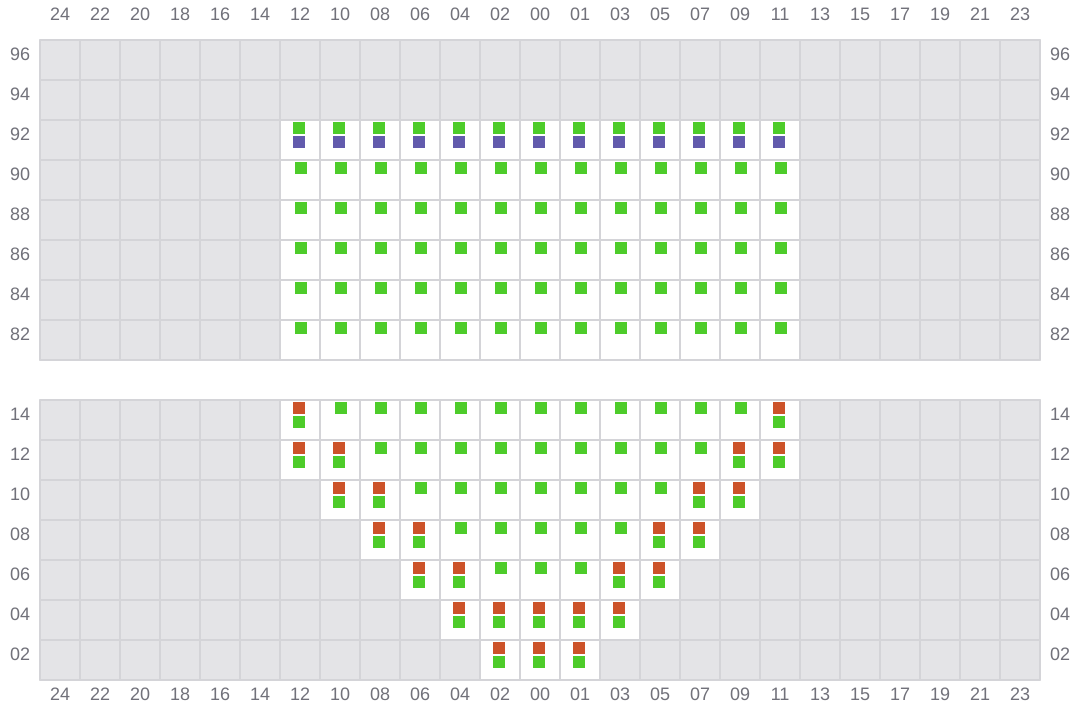

011 (012)
- →
![Bay 011 view and slots of ATLANTIC SUN](/vessel-images/492094d7-be20-4f6b-b044-508ab8079911-b011.png?v=1721052781316)

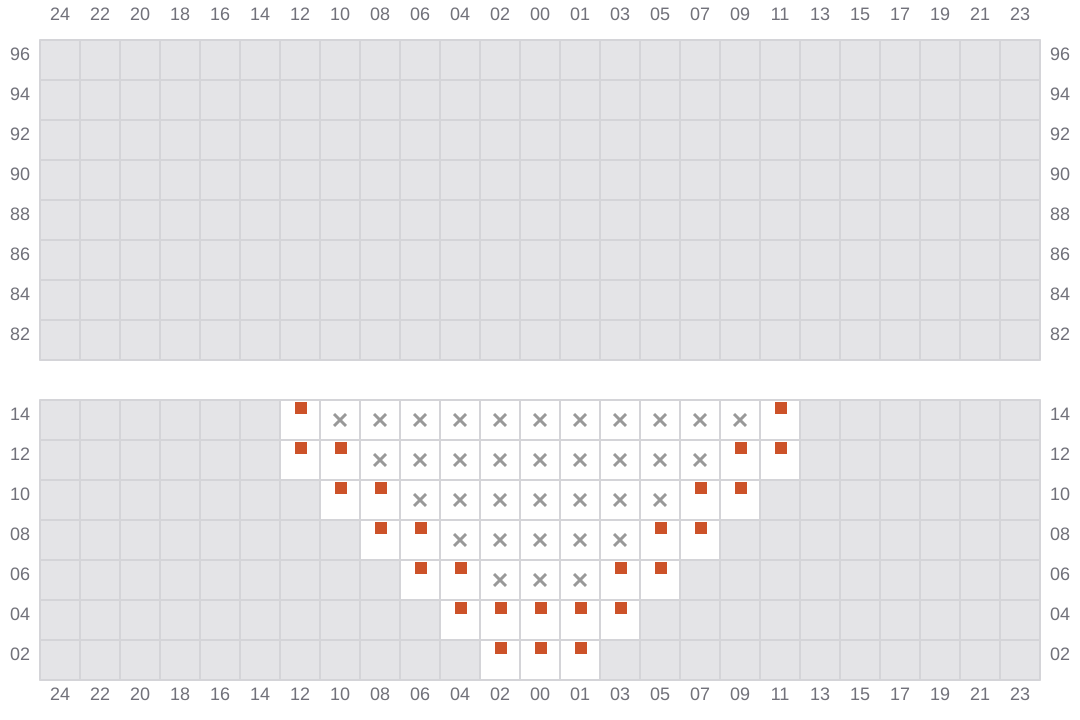

013
- ? / ←
![Bay 013 view and slots of ATLANTIC SUN](/vessel-images/492094d7-be20-4f6b-b044-508ab8079911-b013.png?v=1721052781316)

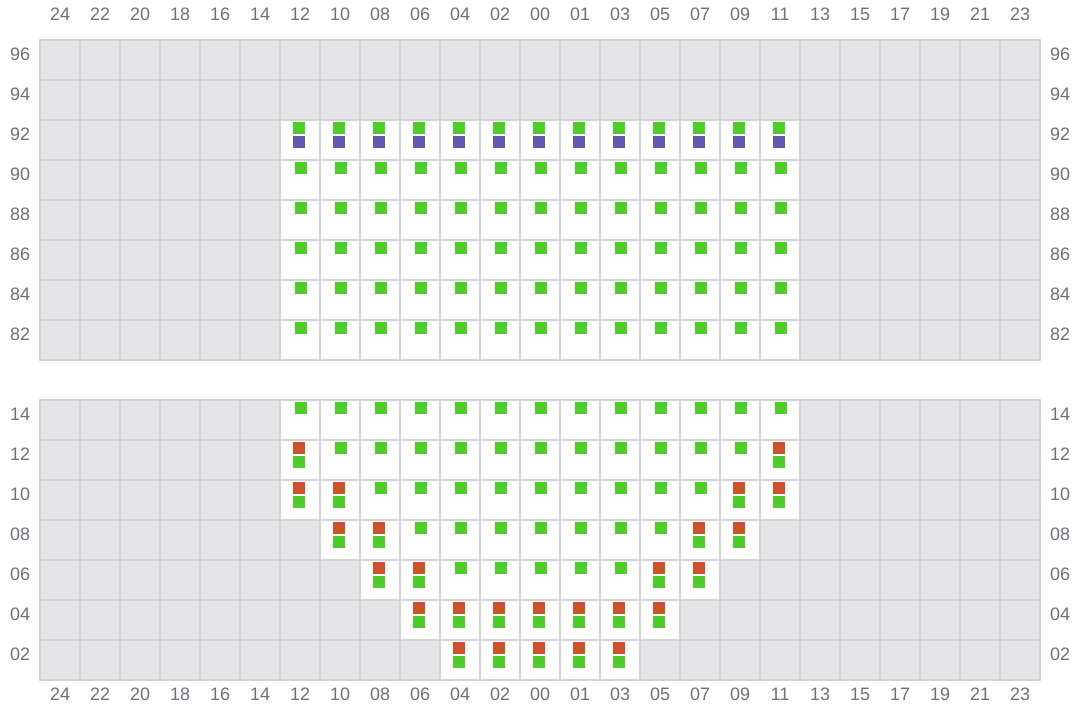

015 (016)
- →
![Bay 015 view and slots of ATLANTIC SUN](/vessel-images/492094d7-be20-4f6b-b044-508ab8079911-b015.png?v=1721052781316)

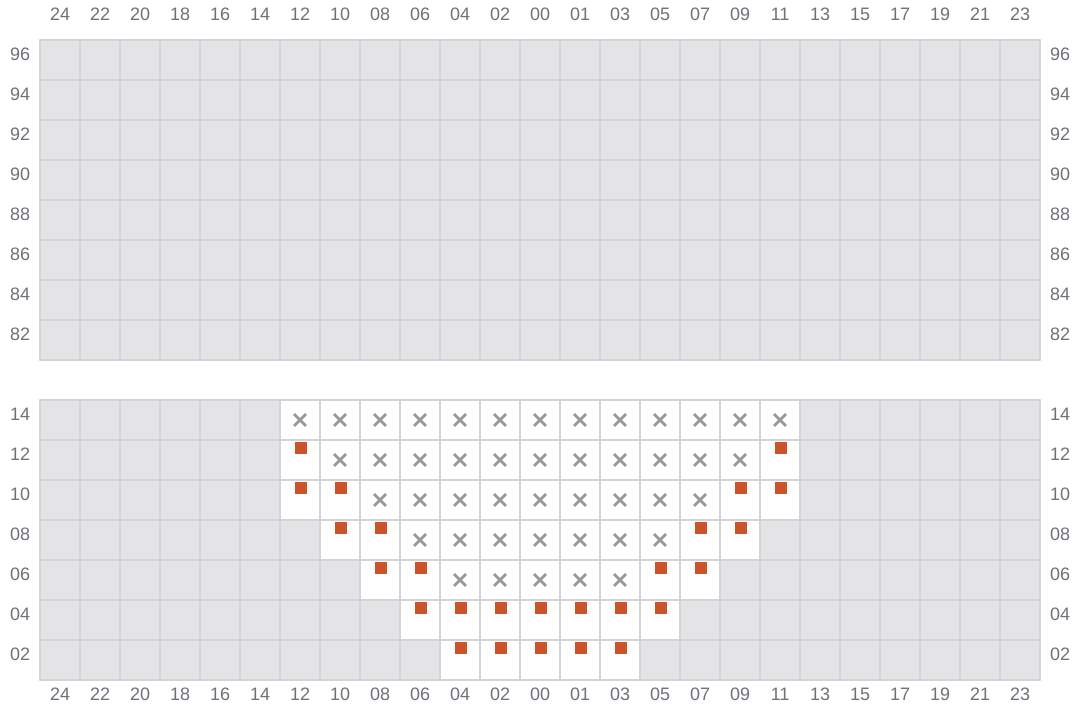

017
- ? / ←
![Bay 017 view and slots of ATLANTIC SUN](/vessel-images/492094d7-be20-4f6b-b044-508ab8079911-b017.png?v=1721052781316)

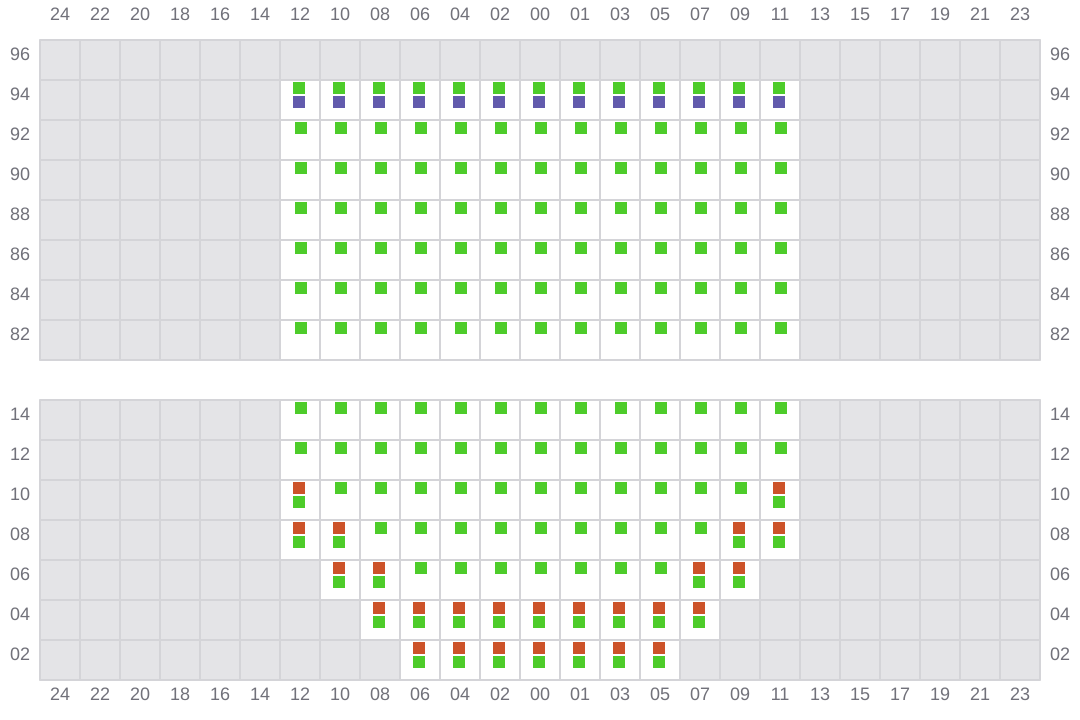

019 (020)
- →
![Bay 019 view and slots of ATLANTIC SUN](/vessel-images/492094d7-be20-4f6b-b044-508ab8079911-b019.png?v=1721052781316)

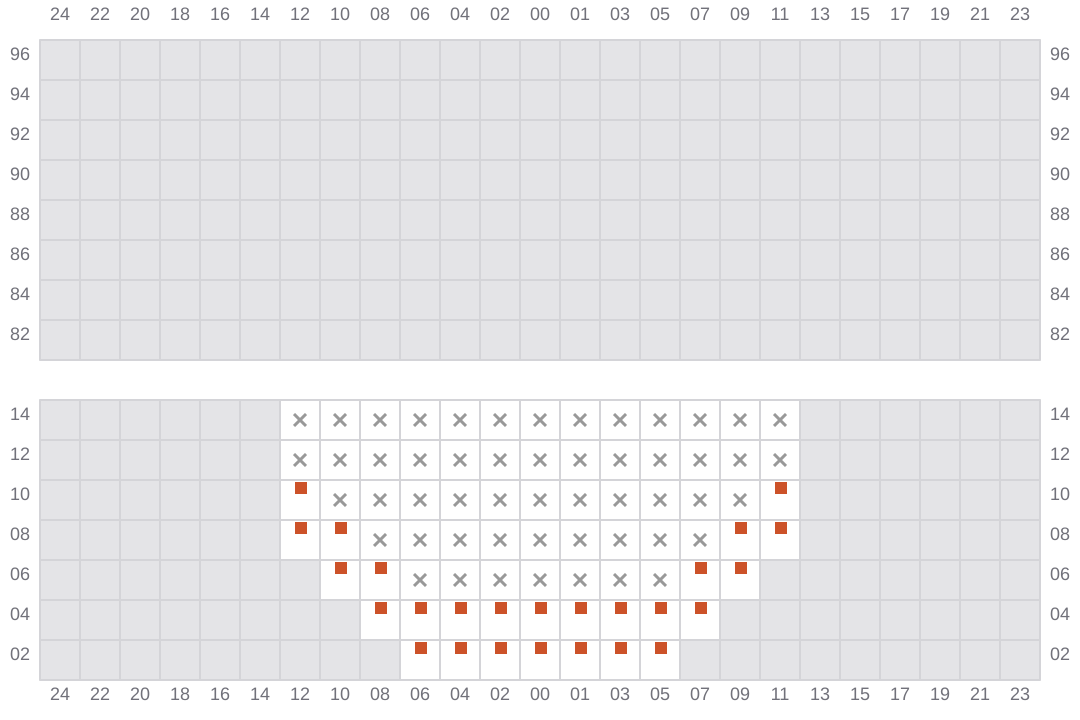

021
- ? / →
![Bay 021 view and slots of ATLANTIC SUN](/vessel-images/492094d7-be20-4f6b-b044-508ab8079911-b021.png?v=1721052781316)

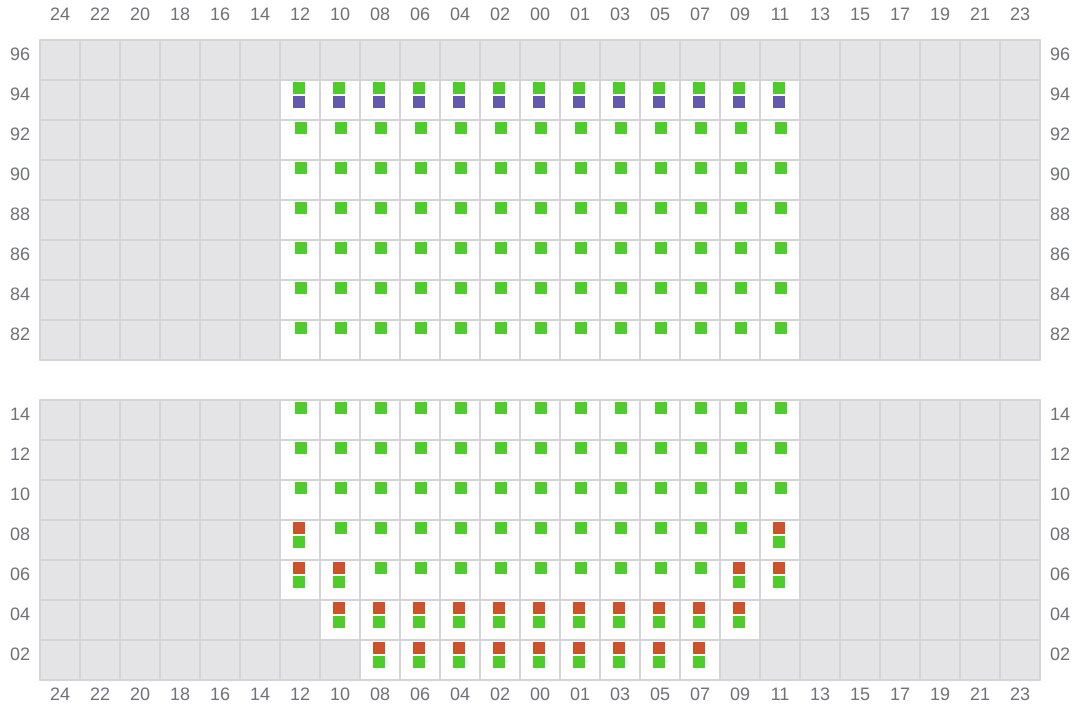

023 (024)
- →
![Bay 023 view and slots of ATLANTIC SUN](/vessel-images/492094d7-be20-4f6b-b044-508ab8079911-b023.png?v=1721052781316)

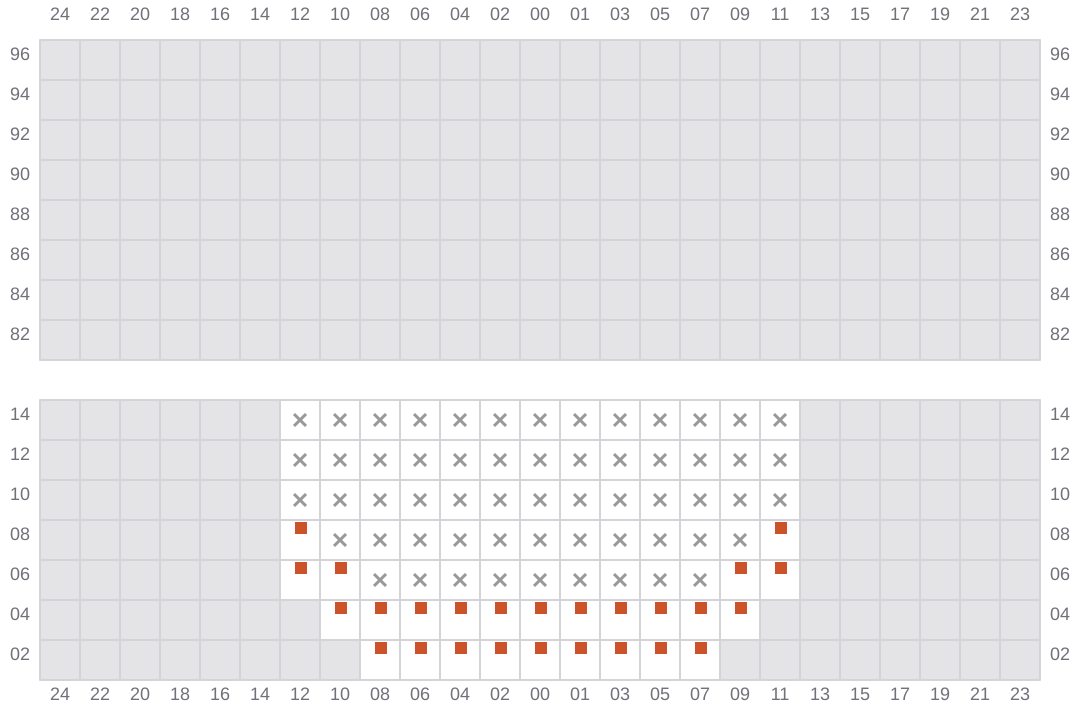

025
- ? / ←
![Bay 025 view and slots of ATLANTIC SUN](/vessel-images/492094d7-be20-4f6b-b044-508ab8079911-b025.png?v=1721052781316)

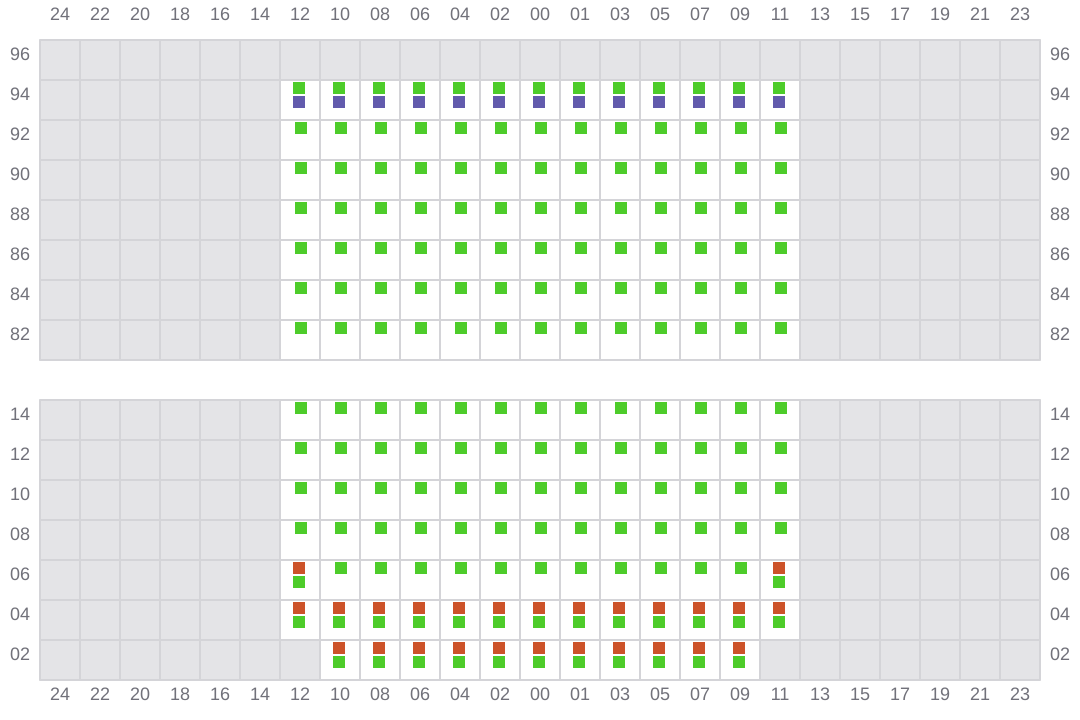

027 (028)
- →
![Bay 027 view and slots of ATLANTIC SUN](/vessel-images/492094d7-be20-4f6b-b044-508ab8079911-b027.png?v=1721052781316)

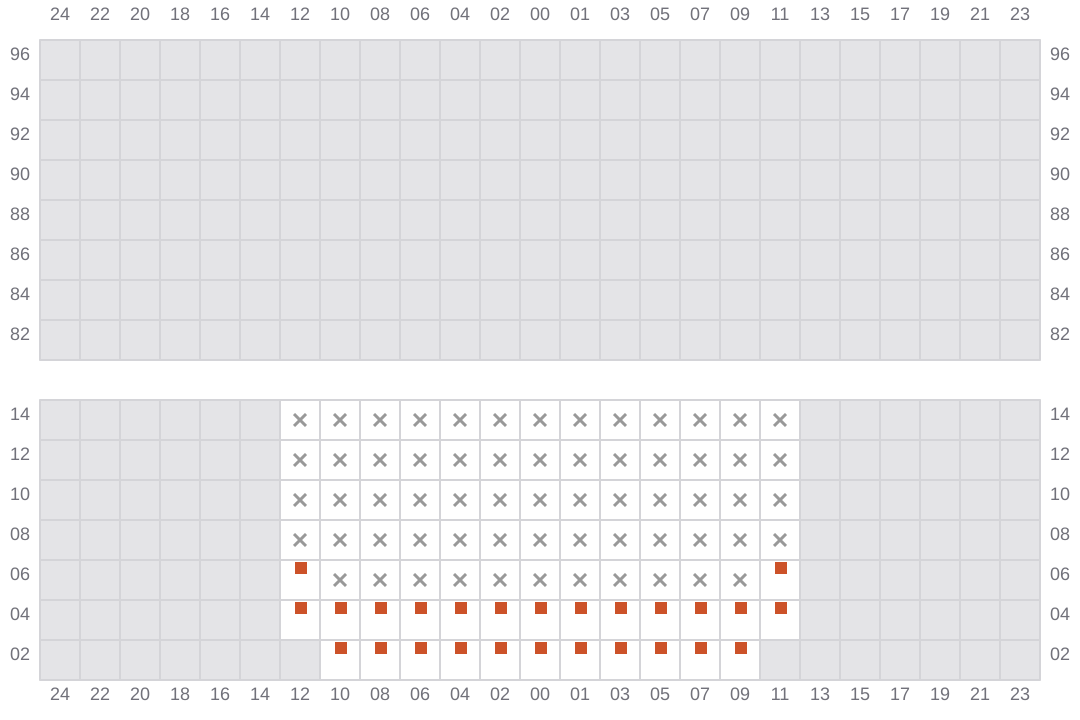

029
- ? / ←
![Bay 029 view and slots of ATLANTIC SUN](/vessel-images/492094d7-be20-4f6b-b044-508ab8079911-b029.png?v=1721052781316)

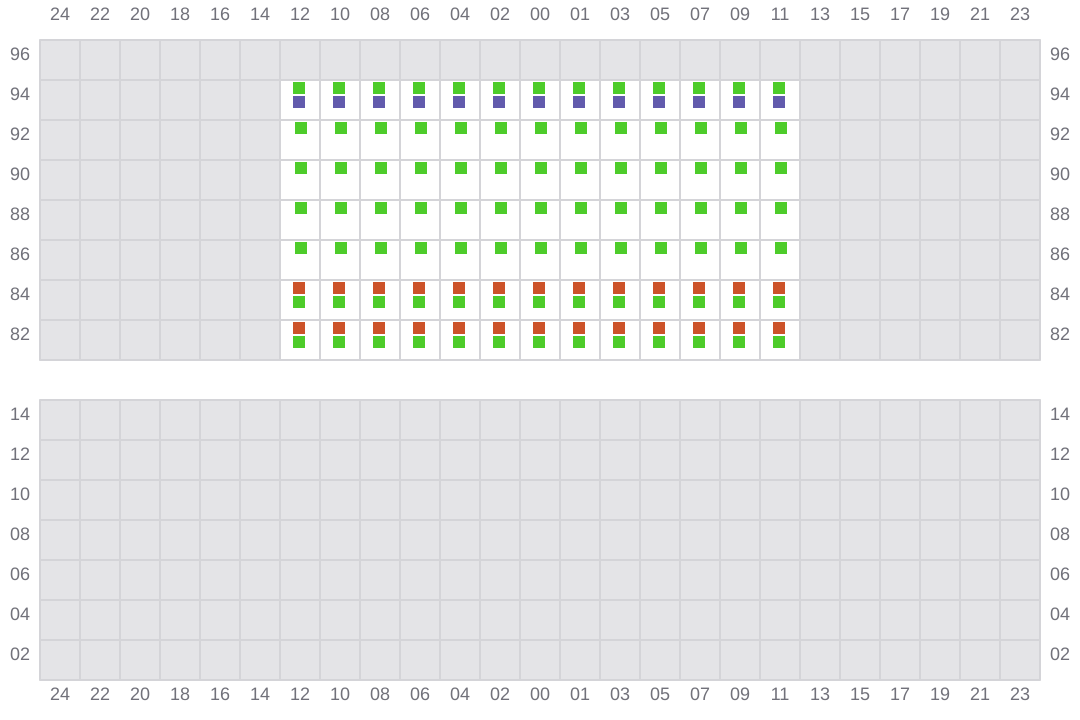

031 (032)
- → / ?
![Bay 031 view and slots of ATLANTIC SUN](/vessel-images/492094d7-be20-4f6b-b044-508ab8079911-b031.png?v=1721052781316)

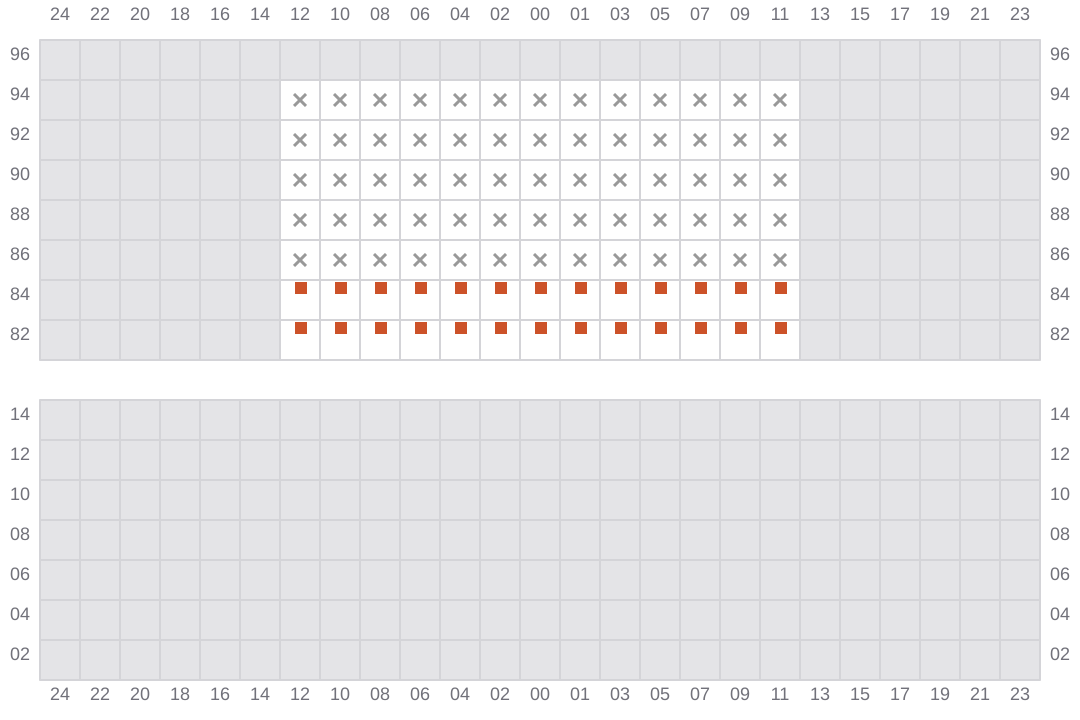

033
- ← / ?
![Bay 033 view and slots of ATLANTIC SUN](/vessel-images/492094d7-be20-4f6b-b044-508ab8079911-b033.png?v=1721052781316)
035 (036)
- → / ?
![Bay 035 view and slots of ATLANTIC SUN](/vessel-images/492094d7-be20-4f6b-b044-508ab8079911-b035.png?v=1721052781316)
037
- ← / ?
![Bay 037 view and slots of ATLANTIC SUN](/vessel-images/492094d7-be20-4f6b-b044-508ab8079911-b037.png?v=1721052781316)

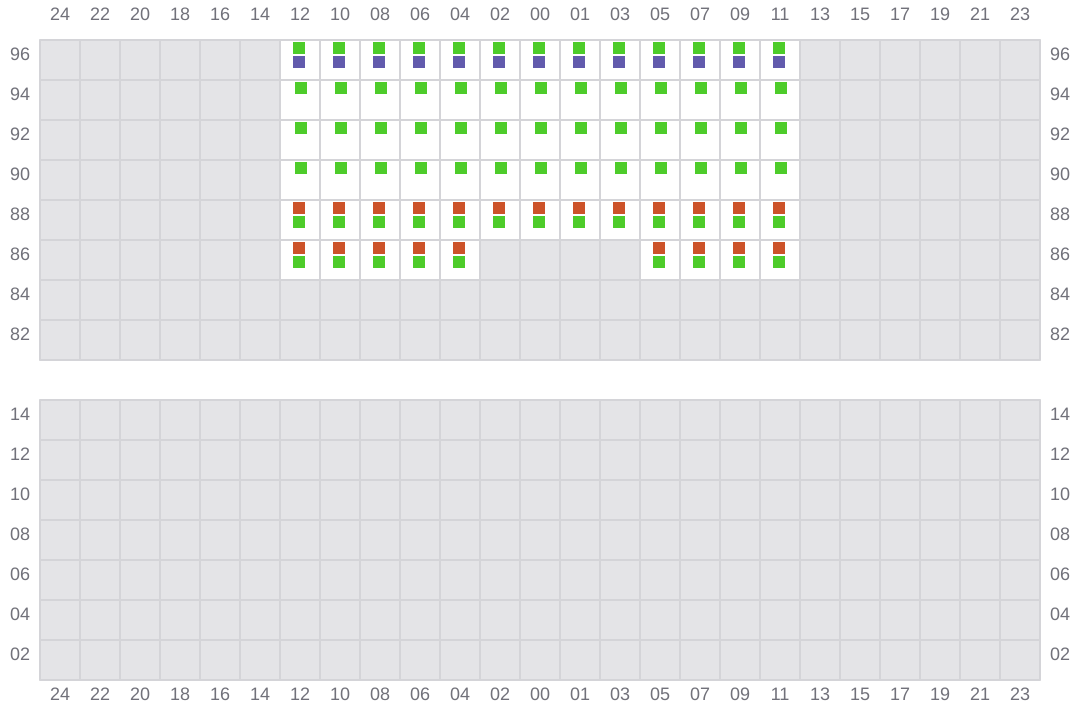

039 (040)
- → / ?
![Bay 039 view and slots of ATLANTIC SUN](/vessel-images/492094d7-be20-4f6b-b044-508ab8079911-b039.png?v=1721052781316)

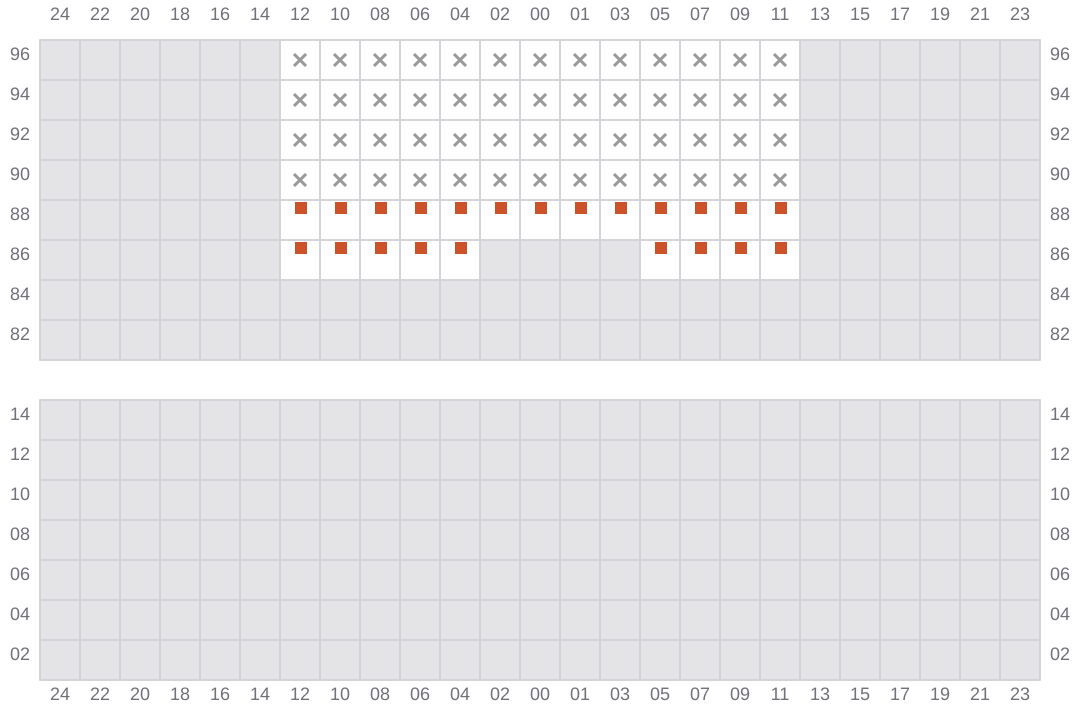

041
- ← / ?
![Bay 041 view and slots of ATLANTIC SUN](/vessel-images/492094d7-be20-4f6b-b044-508ab8079911-b041.png?v=1721052781316)

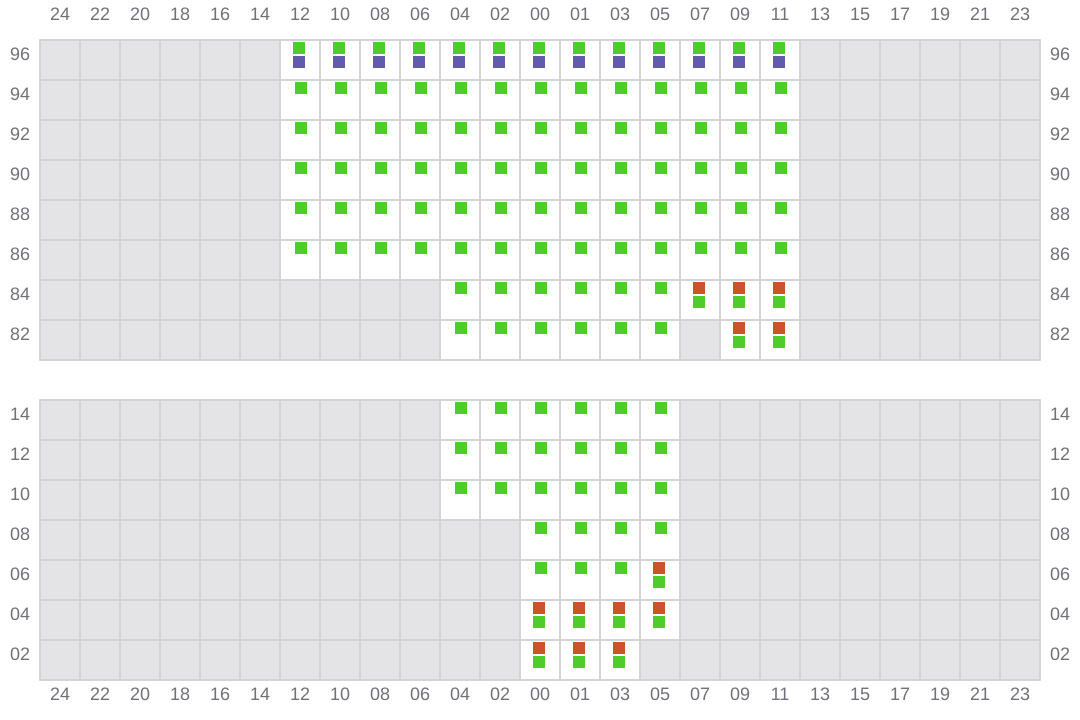

043 (044)
- →
![Bay 043 view and slots of ATLANTIC SUN](/vessel-images/492094d7-be20-4f6b-b044-508ab8079911-b043.png?v=1721052781316)

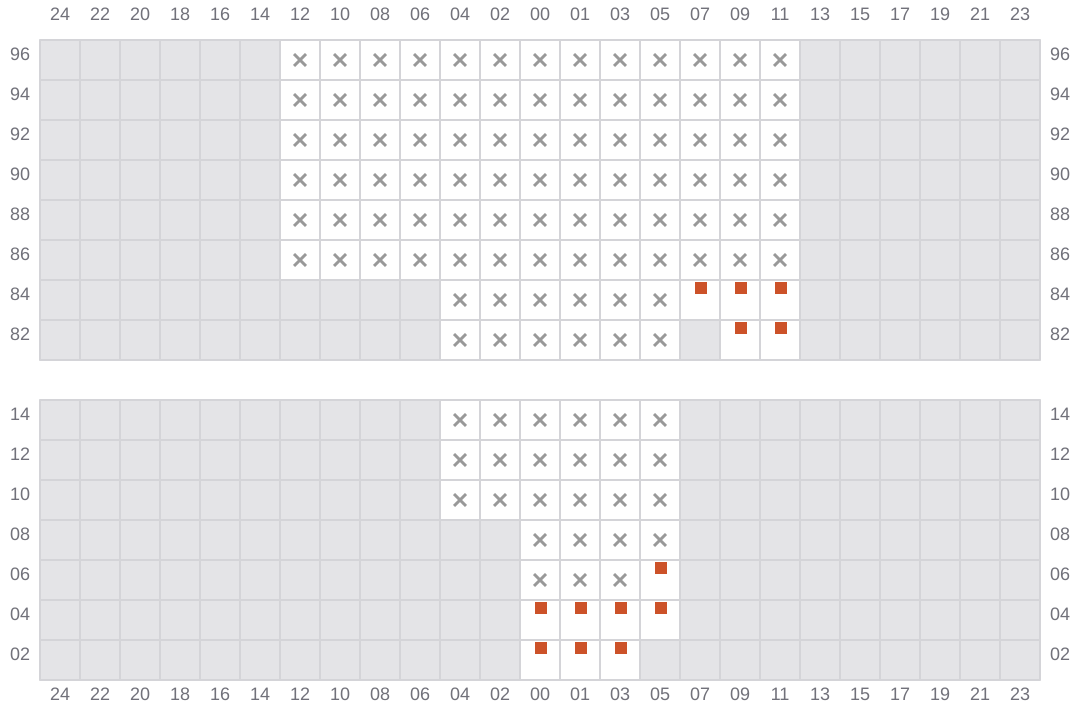

045
- ←
![Bay 045 view and slots of ATLANTIC SUN](/vessel-images/492094d7-be20-4f6b-b044-508ab8079911-b045.png?v=1721052781316)

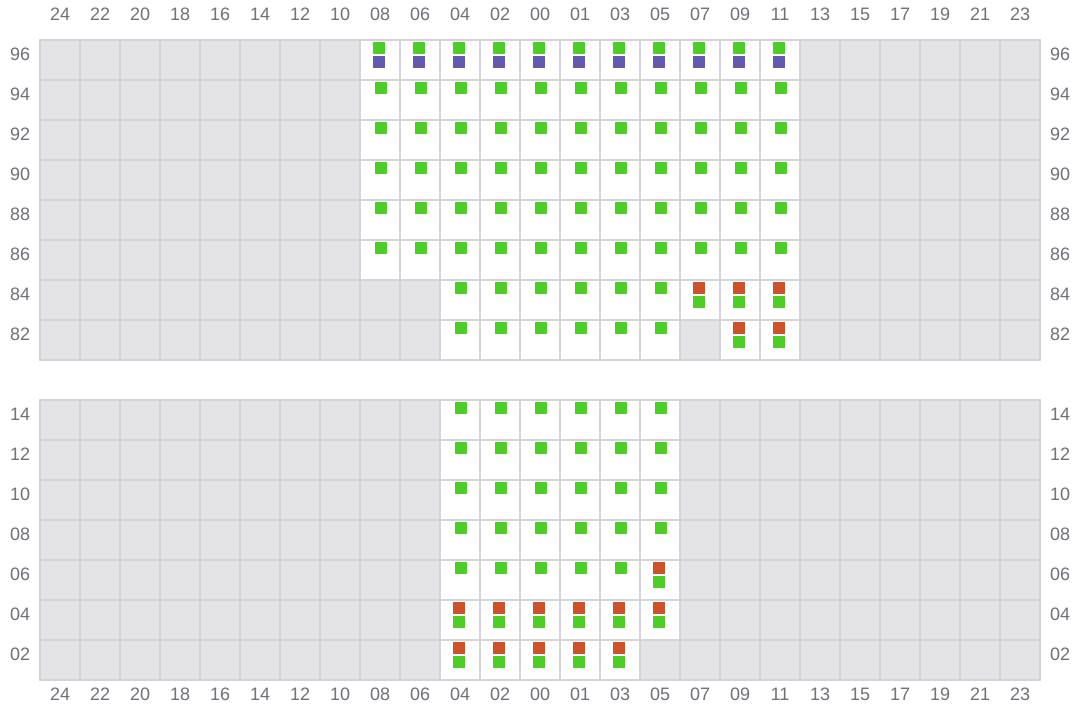

047 (048)
- →
![Bay 047 view and slots of ATLANTIC SUN](/vessel-images/492094d7-be20-4f6b-b044-508ab8079911-b047.png?v=1721052781316)

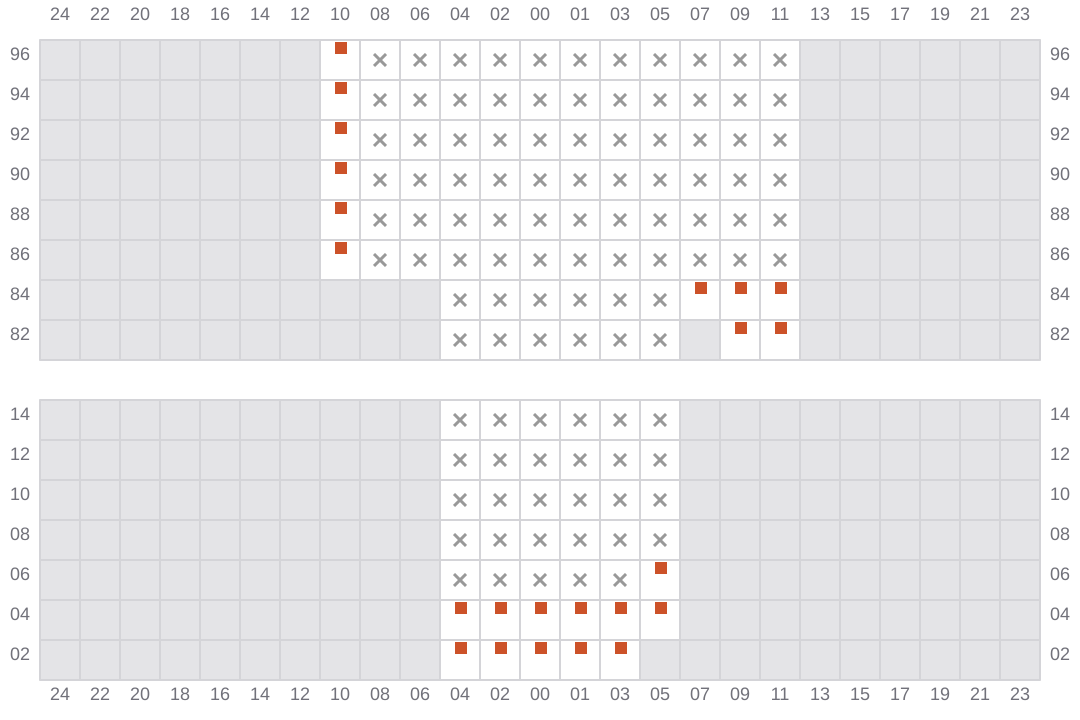

049
- ←
![Bay 049 view and slots of ATLANTIC SUN](/vessel-images/492094d7-be20-4f6b-b044-508ab8079911-b049.png?v=1721052781316)

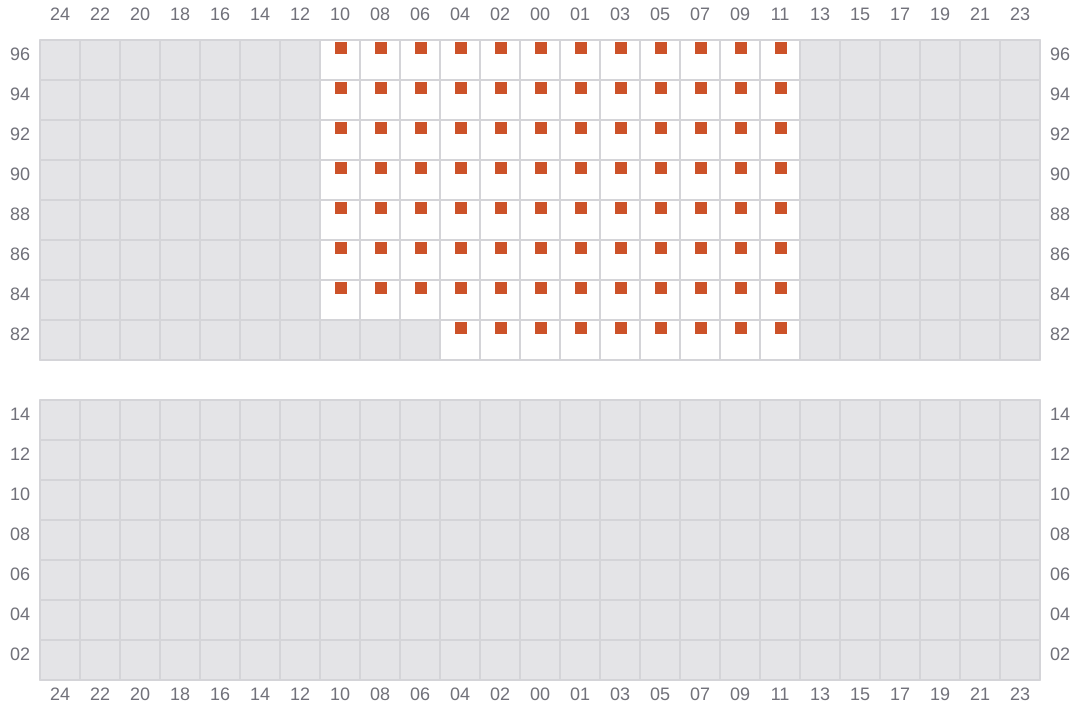

051
![Bay 051 view and slots of ATLANTIC SUN](/vessel-images/492094d7-be20-4f6b-b044-508ab8079911-b051.png?v=1721052781316)

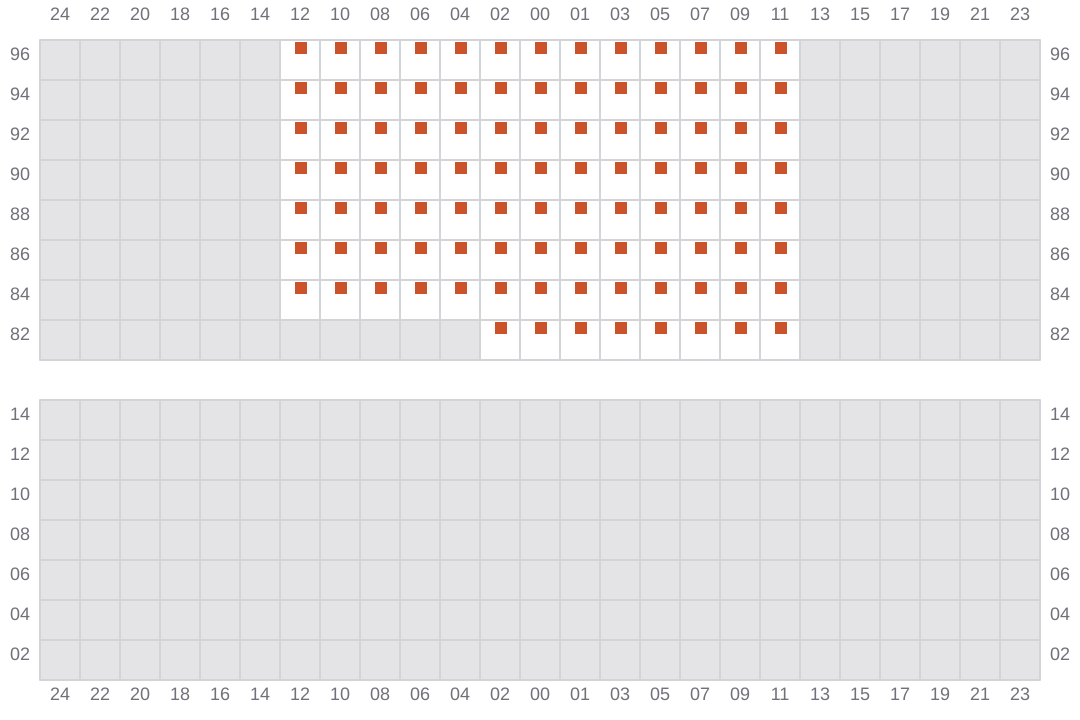

053
![Bay 053 view and slots of ATLANTIC SUN](/vessel-images/492094d7-be20-4f6b-b044-508ab8079911-b053.png?v=1721052781316)
055 (056)
- → / ?
![Bay 055 view and slots of ATLANTIC SUN](/vessel-images/492094d7-be20-4f6b-b044-508ab8079911-b055.png?v=1721052781316)

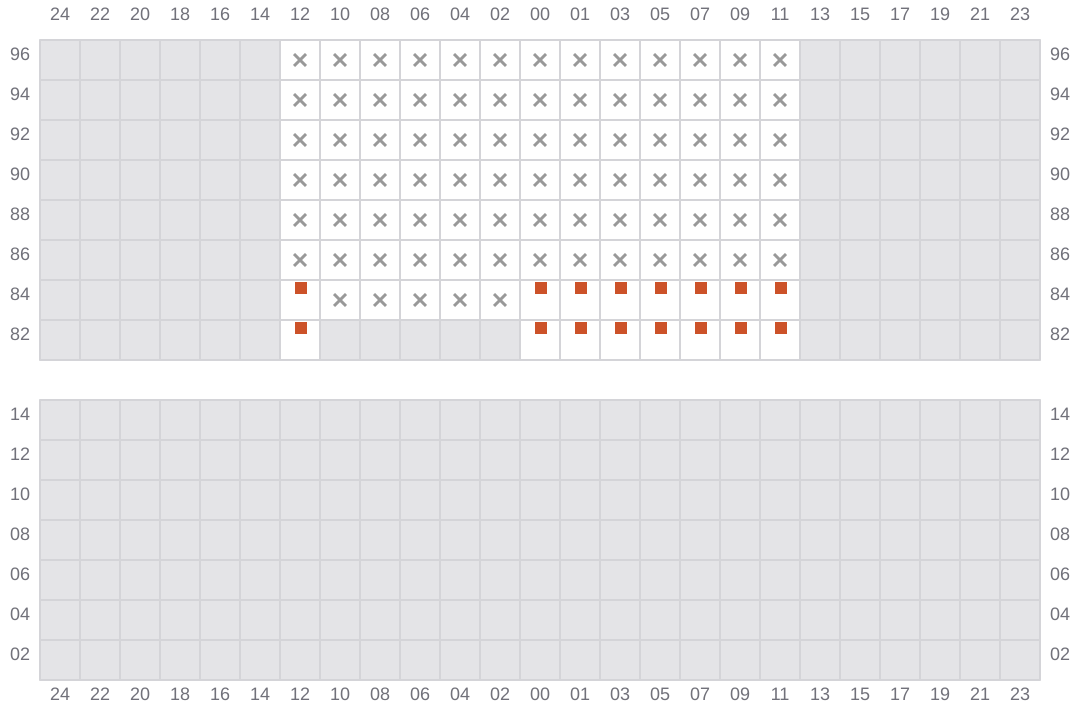

057
- ← / ?
![Bay 057 view and slots of ATLANTIC SUN](/vessel-images/492094d7-be20-4f6b-b044-508ab8079911-b057.png?v=1721052781316)

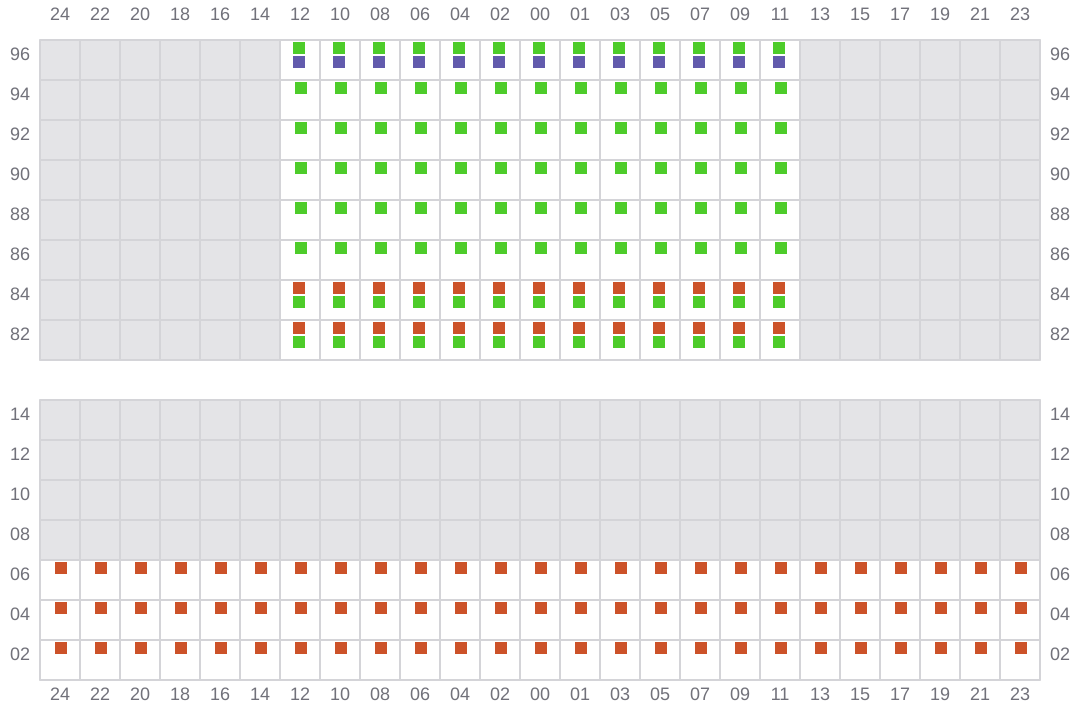

059 (060)
- →
![Bay 059 view and slots of ATLANTIC SUN](/vessel-images/492094d7-be20-4f6b-b044-508ab8079911-b059.png?v=1721052781316)

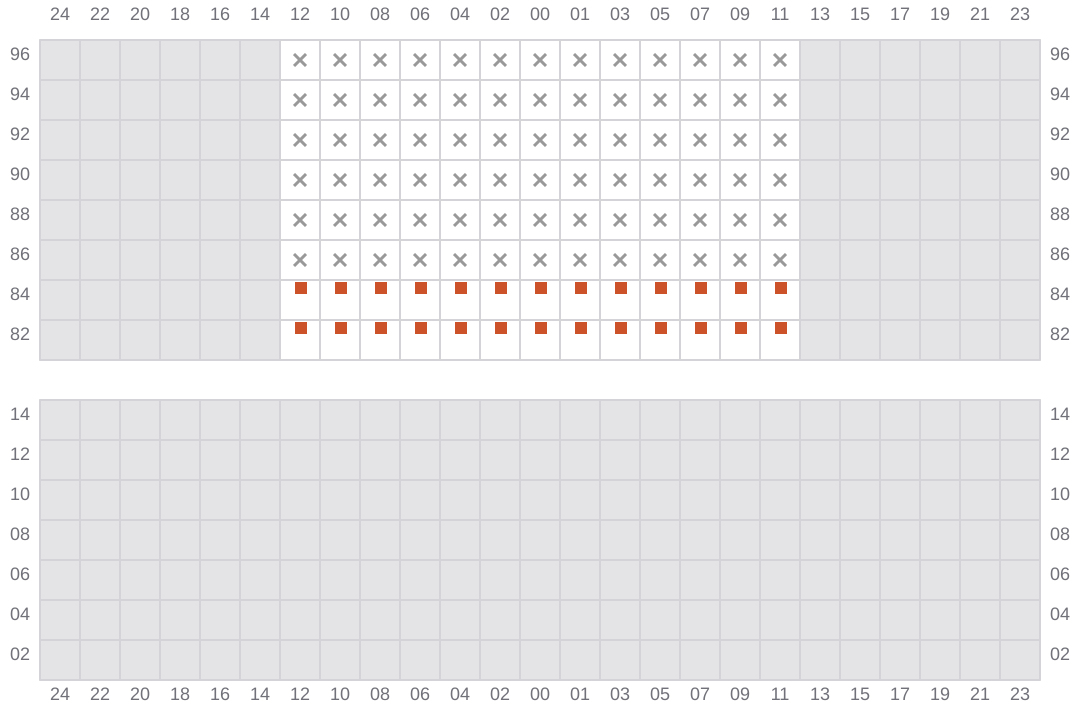

061
- ← / ?
![Bay 061 view and slots of ATLANTIC SUN](/vessel-images/492094d7-be20-4f6b-b044-508ab8079911-b061.png?v=1721052781316)

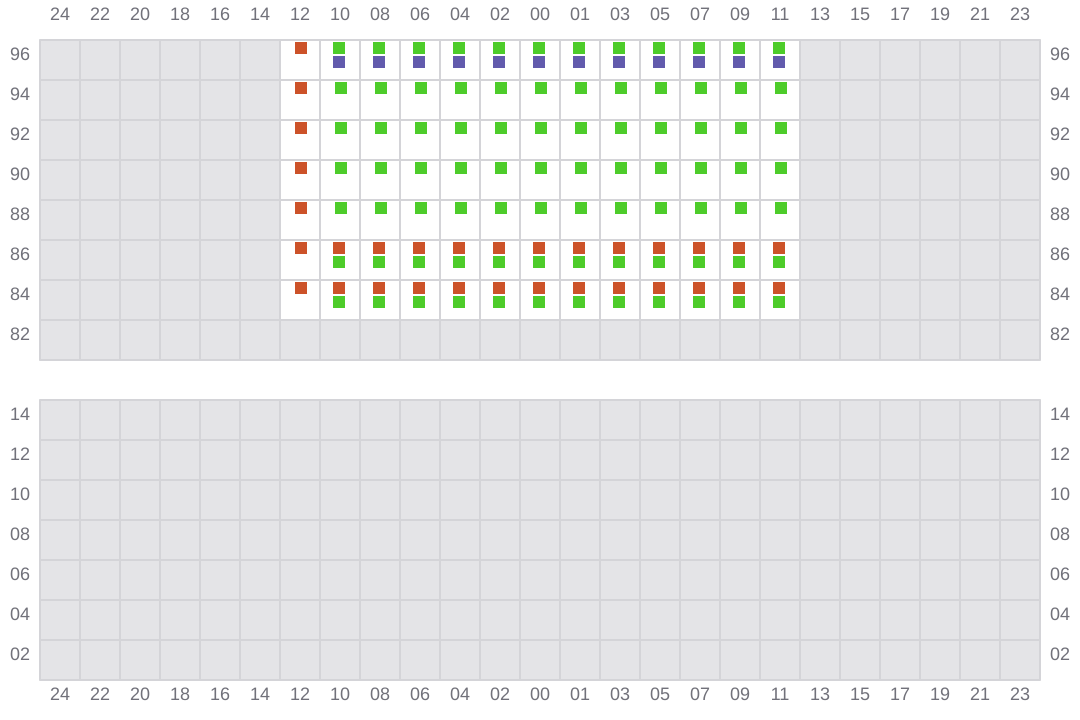

063 (064)
- → / ?
![Bay 063 view and slots of ATLANTIC SUN](/vessel-images/492094d7-be20-4f6b-b044-508ab8079911-b063.png?v=1721052781316)

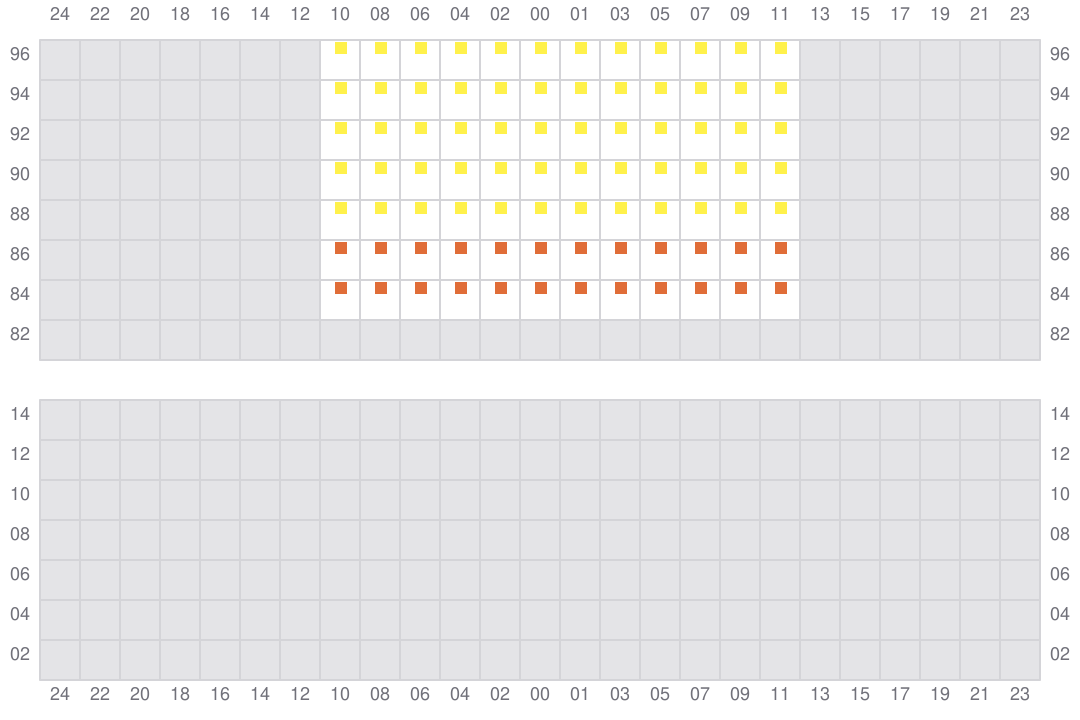

065
- ← / ?
![Bay 065 view and slots of ATLANTIC SUN](/vessel-images/492094d7-be20-4f6b-b044-508ab8079911-b065.png?v=1721052781316)
