ATOUT
9354648 | A8XG9 | 9354648 by ********* Last update: Tue Jul 02 2024

General Info

Ship Name:ATOUT
IMO Code:9354648
Call Sign:A8XG9
Line Operator:9354648
Class Name for Sister Ships:CGM
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:039
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,706

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

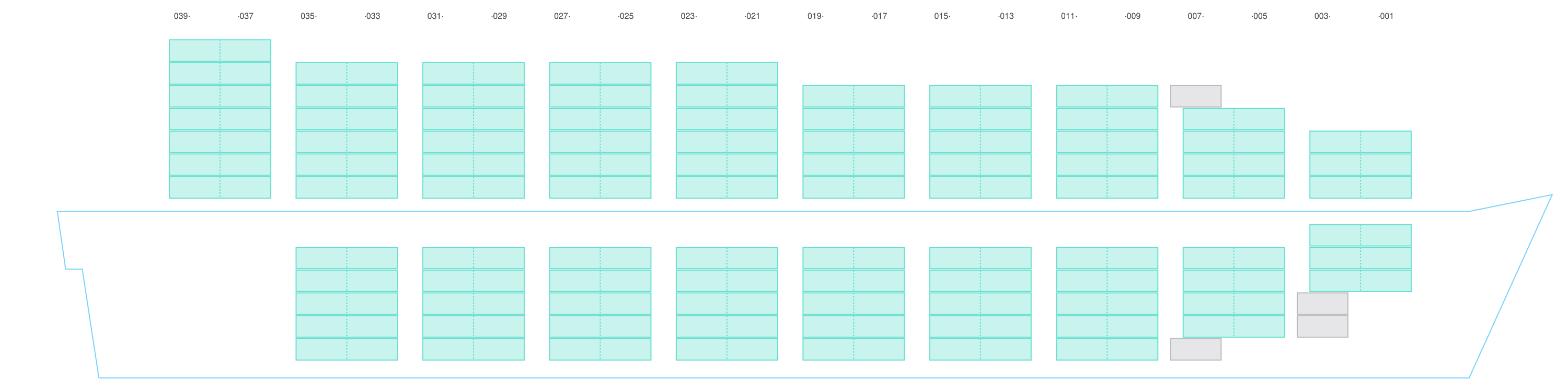

Side View

Side view of ATOUT

Hatch-Covers View

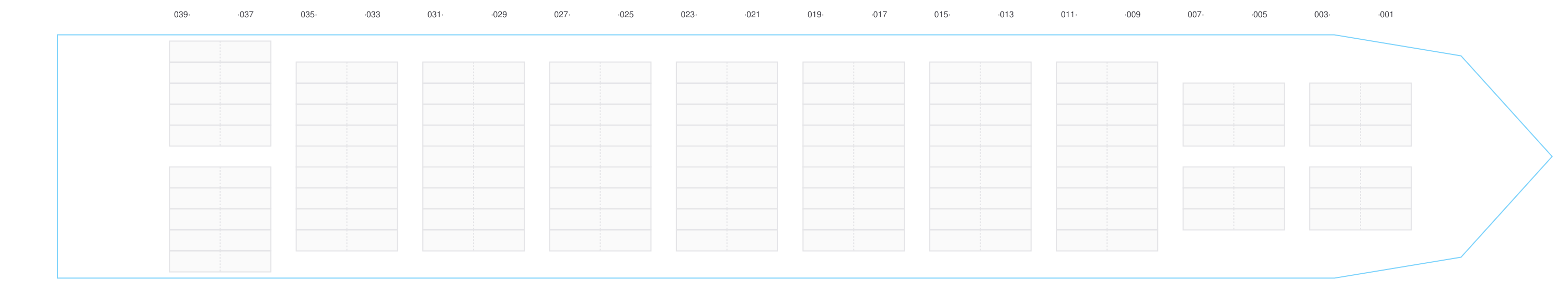

Deck view of ATOUT

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →
Bay 001 view and slots of ATOUT

003

  • ←

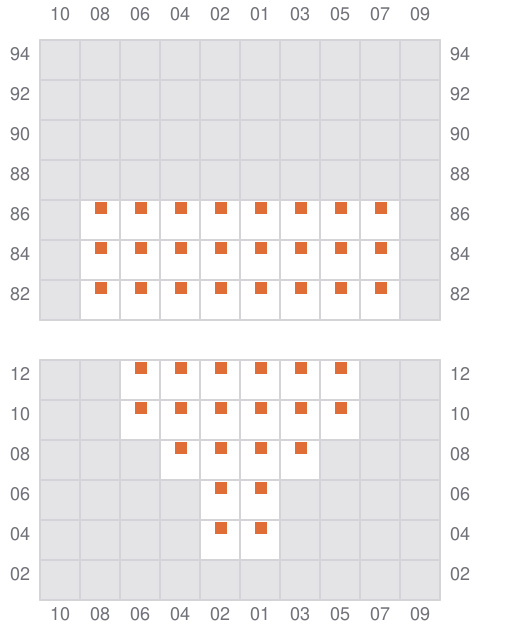

Bay 003 view and slots of ATOUT

005 (006)

  • →

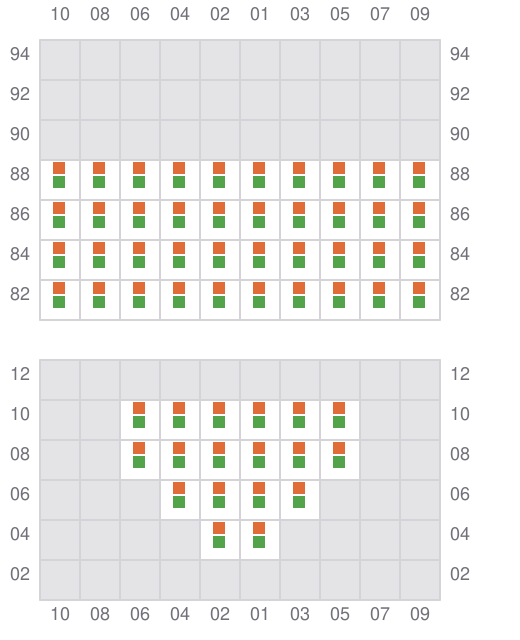

Bay 005 view and slots of ATOUT

007

  • ←
Bay 007 view and slots of ATOUT

009 (010)

  • →

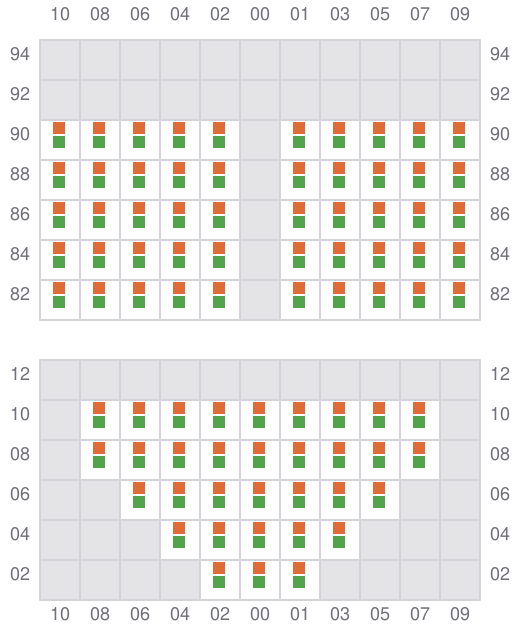

Bay 009 view and slots of ATOUT

011

  • ←
Bay 011 view and slots of ATOUT

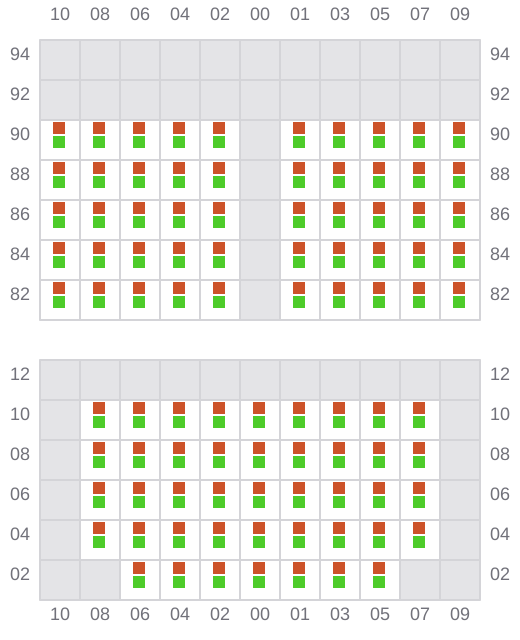

013 (014)

  • →
Bay 013 view and slots of ATOUT

015

  • ←
Bay 015 view and slots of ATOUT

017 (018)

  • →
Bay 017 view and slots of ATOUT

019

  • ←
Bay 019 view and slots of ATOUT

021 (022)

  • →
Bay 021 view and slots of ATOUT

023

  • ←

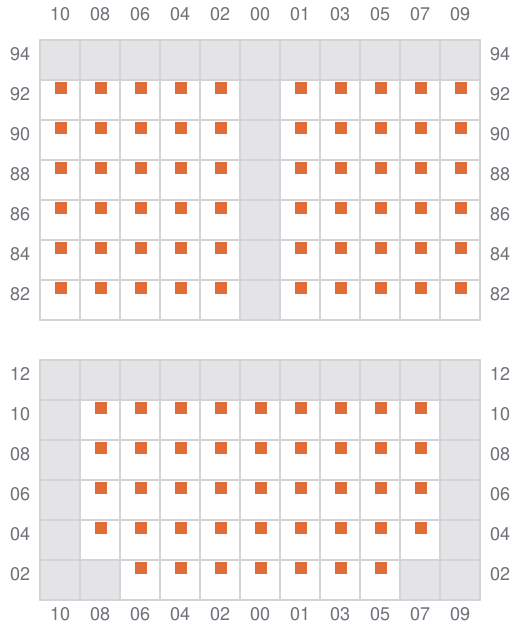

Bay 023 view and slots of ATOUT

025 (026)

  • →

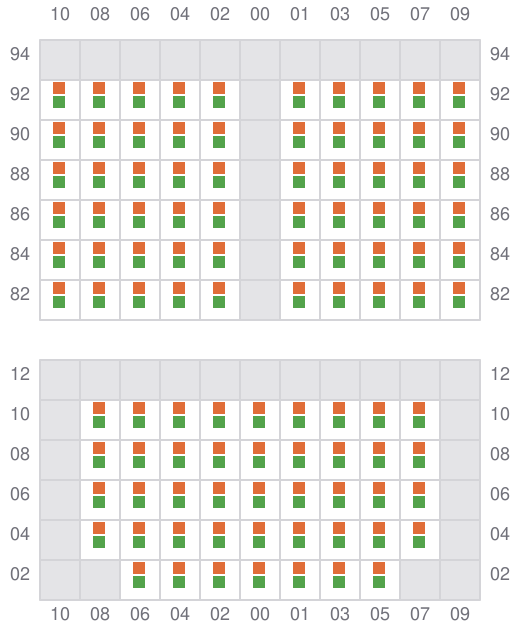

Bay 025 view and slots of ATOUT

027

  • ←
Bay 027 view and slots of ATOUT

029 (030)

  • →
Bay 029 view and slots of ATOUT

031

  • ←

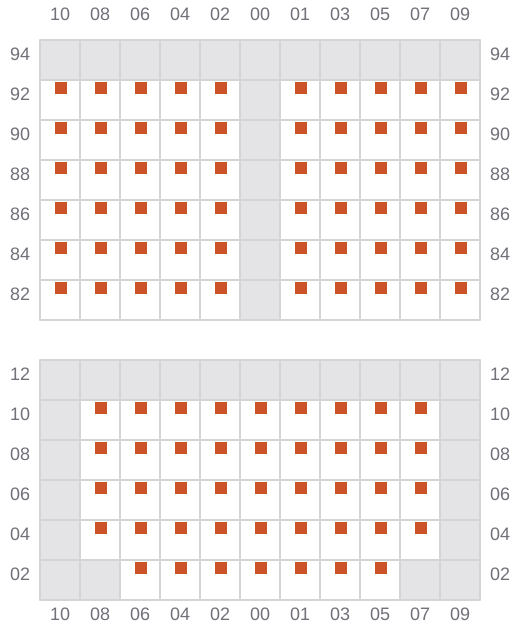

Bay 031 view and slots of ATOUT

033 (034)

  • →
Bay 033 view and slots of ATOUT

035

  • ←
Bay 035 view and slots of ATOUT

037 (038)

  • → / ?

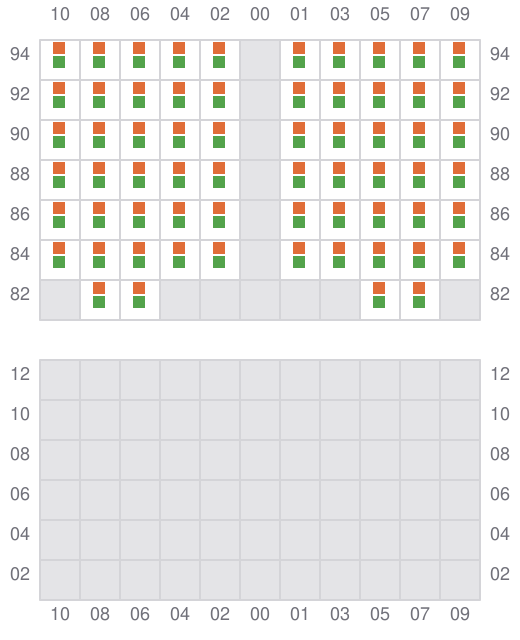

Bay 037 view and slots of ATOUT

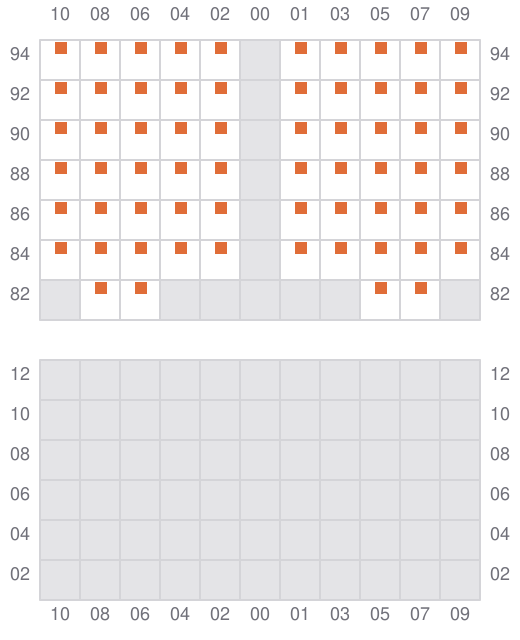

039

  • ← / ?
Bay 039 view and slots of ATOUT
