AURELIA
9121895 | TJM5185 | 9121895 by ********* Last update: Thu Mar 07 2024
General Info
Ship Name:AURELIA
IMO Code:9121895
Call Sign:TJM5185
Line Operator:9121895
Class Name for Sister Ships:3SS
Year Built:1998
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:025
Max ISO Row:06
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:06
Min Below ISO Tier:02
Total TEU:528
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

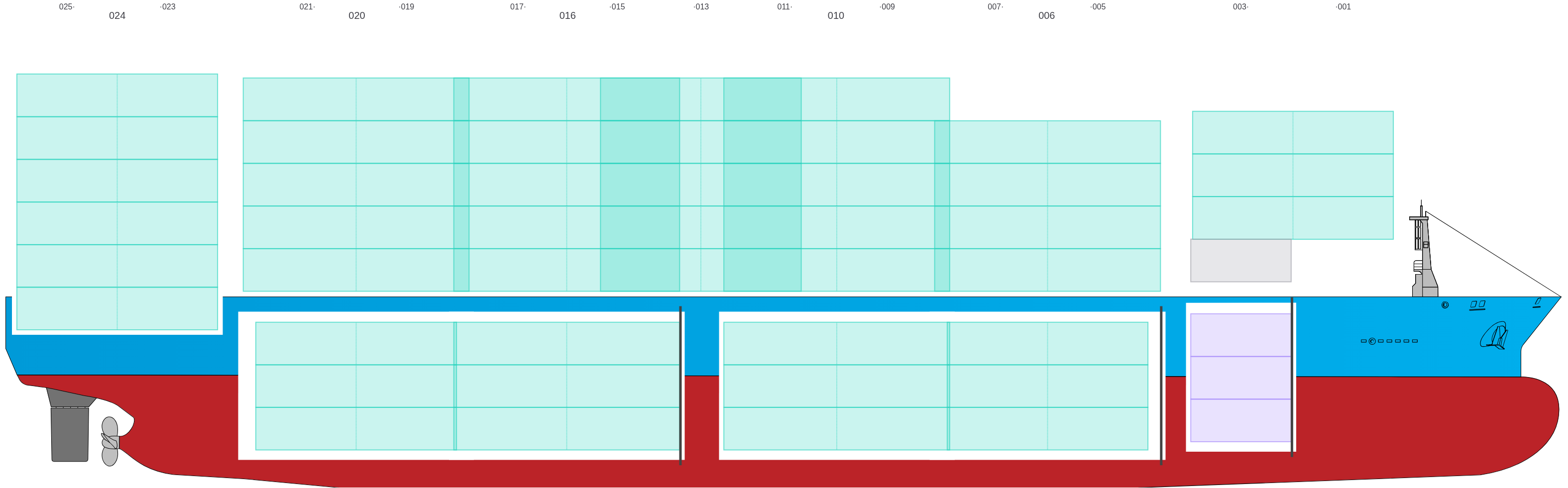

Side View
![Side view of AURELIA](/vessel-images/dcbf4a75-7b16-4714-af4a-29d8ce3b3a13-sideView.png?v=1709839575565)

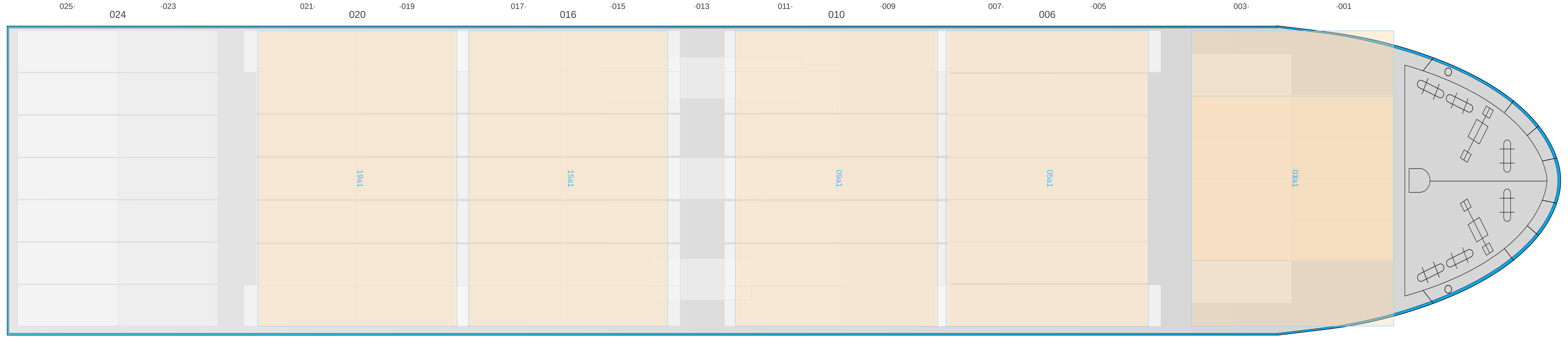

Hatch-Covers View
![Deck view of AURELIA](/vessel-images/dcbf4a75-7b16-4714-af4a-29d8ce3b3a13-deckView.png?v=1709839575565)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

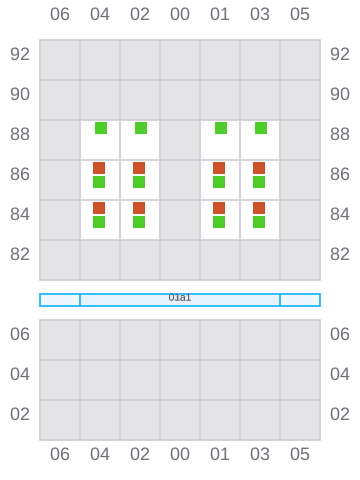

001 (002)
- → / ?
![Bay 001 view and slots of AURELIA](/vessel-images/dcbf4a75-7b16-4714-af4a-29d8ce3b3a13-b001.png?v=1709839575565)

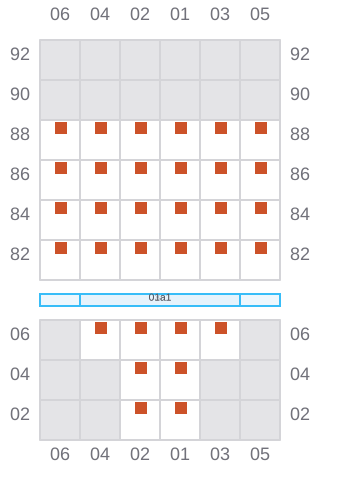

003
- ← / ?
![Bay 003 view and slots of AURELIA](/vessel-images/dcbf4a75-7b16-4714-af4a-29d8ce3b3a13-b003.png?v=1709839575565)

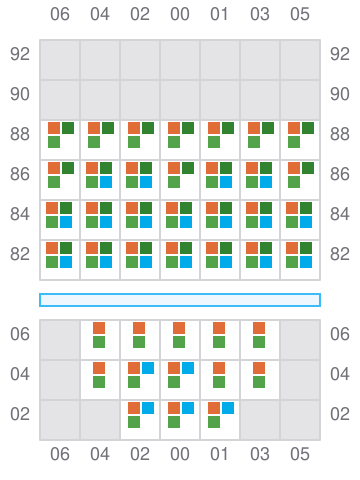

005 (006)
- →
- ←
![Bay 005 view and slots of AURELIA](/vessel-images/dcbf4a75-7b16-4714-af4a-29d8ce3b3a13-b005.png?v=1709839575565)

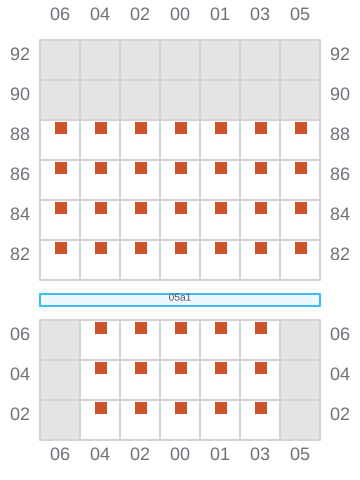

007
- ←
![Bay 007 view and slots of AURELIA](/vessel-images/dcbf4a75-7b16-4714-af4a-29d8ce3b3a13-b007.png?v=1709839575565)

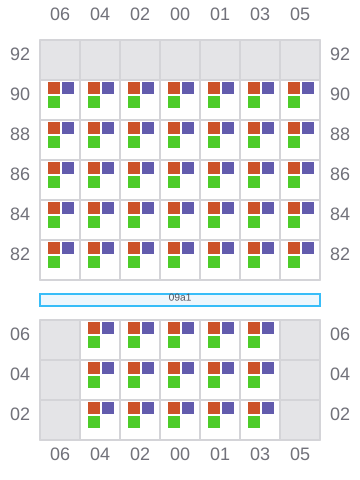

009 (010)
- →
![Bay 009 view and slots of AURELIA](/vessel-images/dcbf4a75-7b16-4714-af4a-29d8ce3b3a13-b009.png?v=1709839575565)

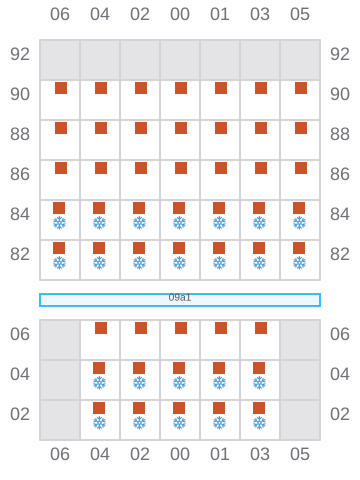

011
- ←
- →
![Bay 011 view and slots of AURELIA](/vessel-images/dcbf4a75-7b16-4714-af4a-29d8ce3b3a13-b011.png?v=1709839575565)

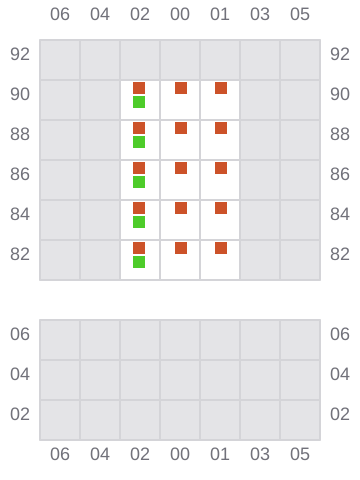

013 (014)
- → / ?
![Bay 013 view and slots of AURELIA](/vessel-images/dcbf4a75-7b16-4714-af4a-29d8ce3b3a13-b013.png?v=1709839575565)

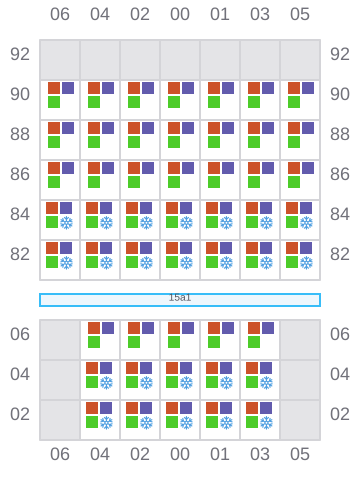

015 (016)
- →
- ←
![Bay 015 view and slots of AURELIA](/vessel-images/dcbf4a75-7b16-4714-af4a-29d8ce3b3a13-b015.png?v=1709839575565)

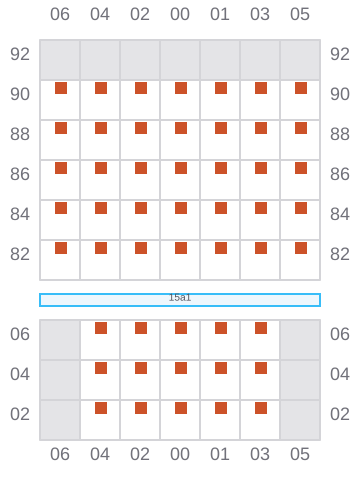

017
- ←
![Bay 017 view and slots of AURELIA](/vessel-images/dcbf4a75-7b16-4714-af4a-29d8ce3b3a13-b017.png?v=1709839575565)

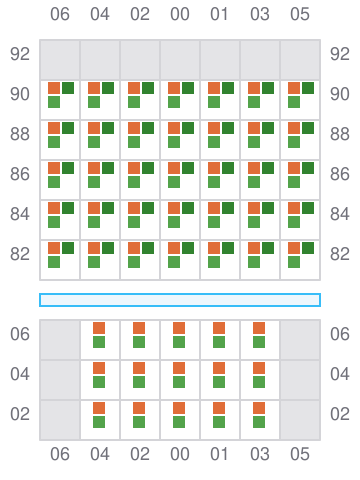

019 (020)
- →
![Bay 019 view and slots of AURELIA](/vessel-images/dcbf4a75-7b16-4714-af4a-29d8ce3b3a13-b019.png?v=1709839575565)

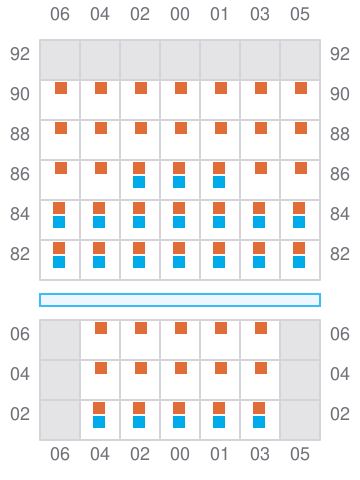

021
- ←
- →
![Bay 021 view and slots of AURELIA](/vessel-images/dcbf4a75-7b16-4714-af4a-29d8ce3b3a13-b021.png?v=1709839575565)

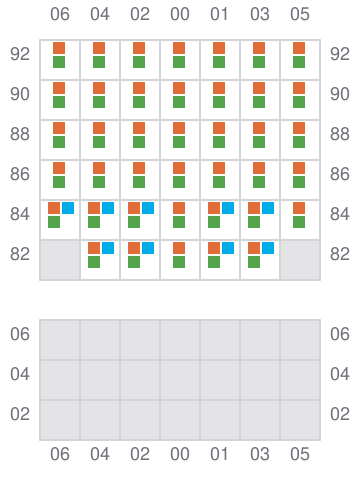

023 (024)
- → / ?
- ← / ?
![Bay 023 view and slots of AURELIA](/vessel-images/dcbf4a75-7b16-4714-af4a-29d8ce3b3a13-b023.png?v=1709839575565)

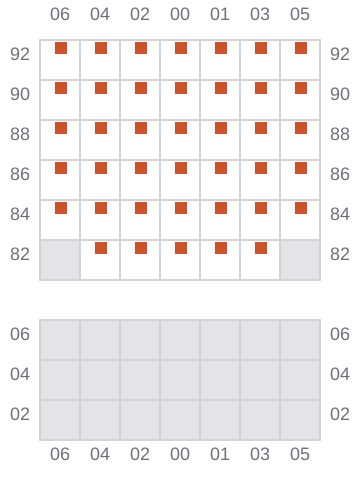

025
- ← / ?
![Bay 025 view and slots of AURELIA](/vessel-images/dcbf4a75-7b16-4714-af4a-29d8ce3b3a13-b025.png?v=1709839575565)
